Model Whirlpool GH8155XJZ0 MICROWAVE OVEN – Common Parts & Diagrams

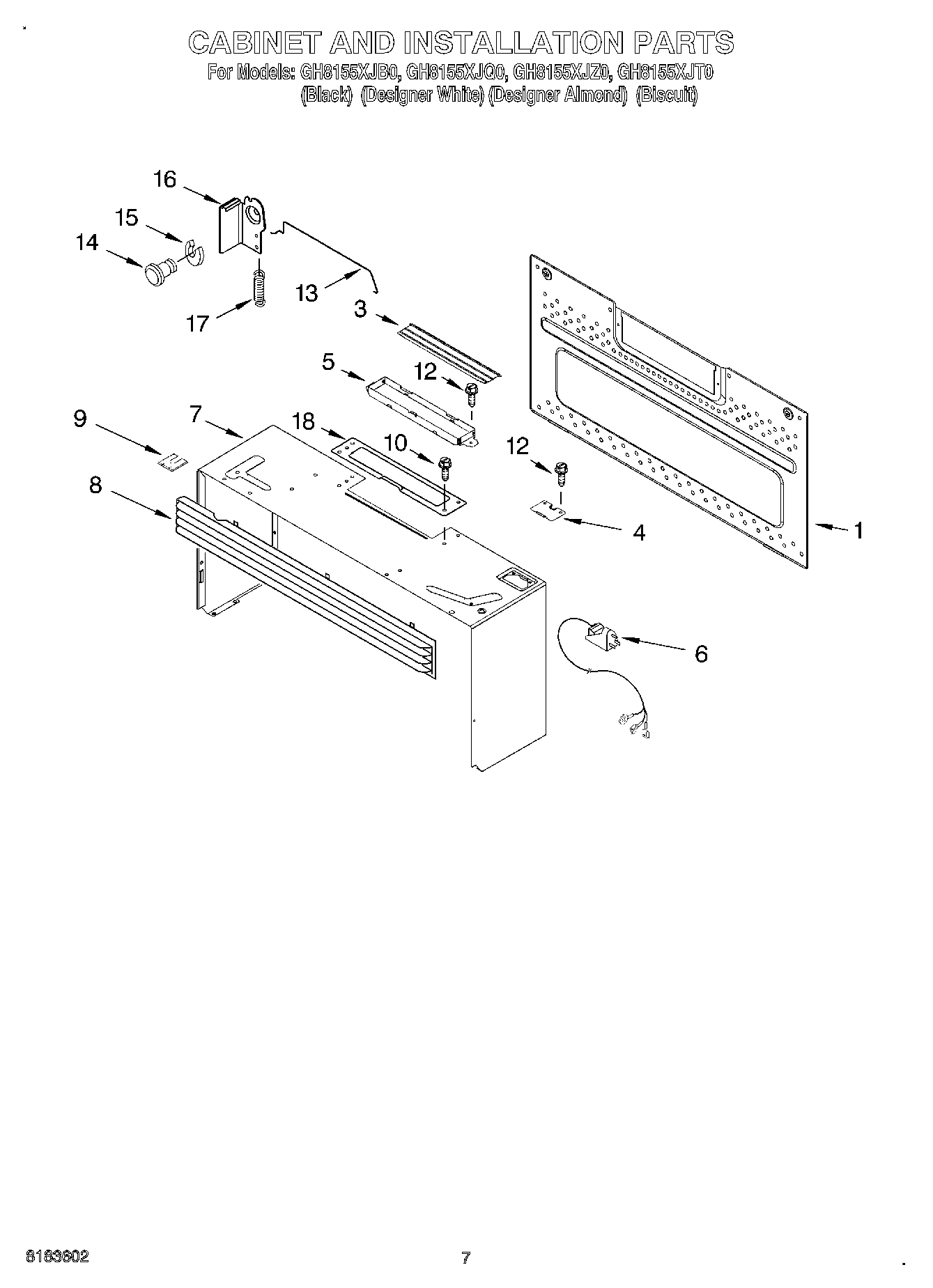

06 - CABINET AND INSTALLATION, OPTIONAL

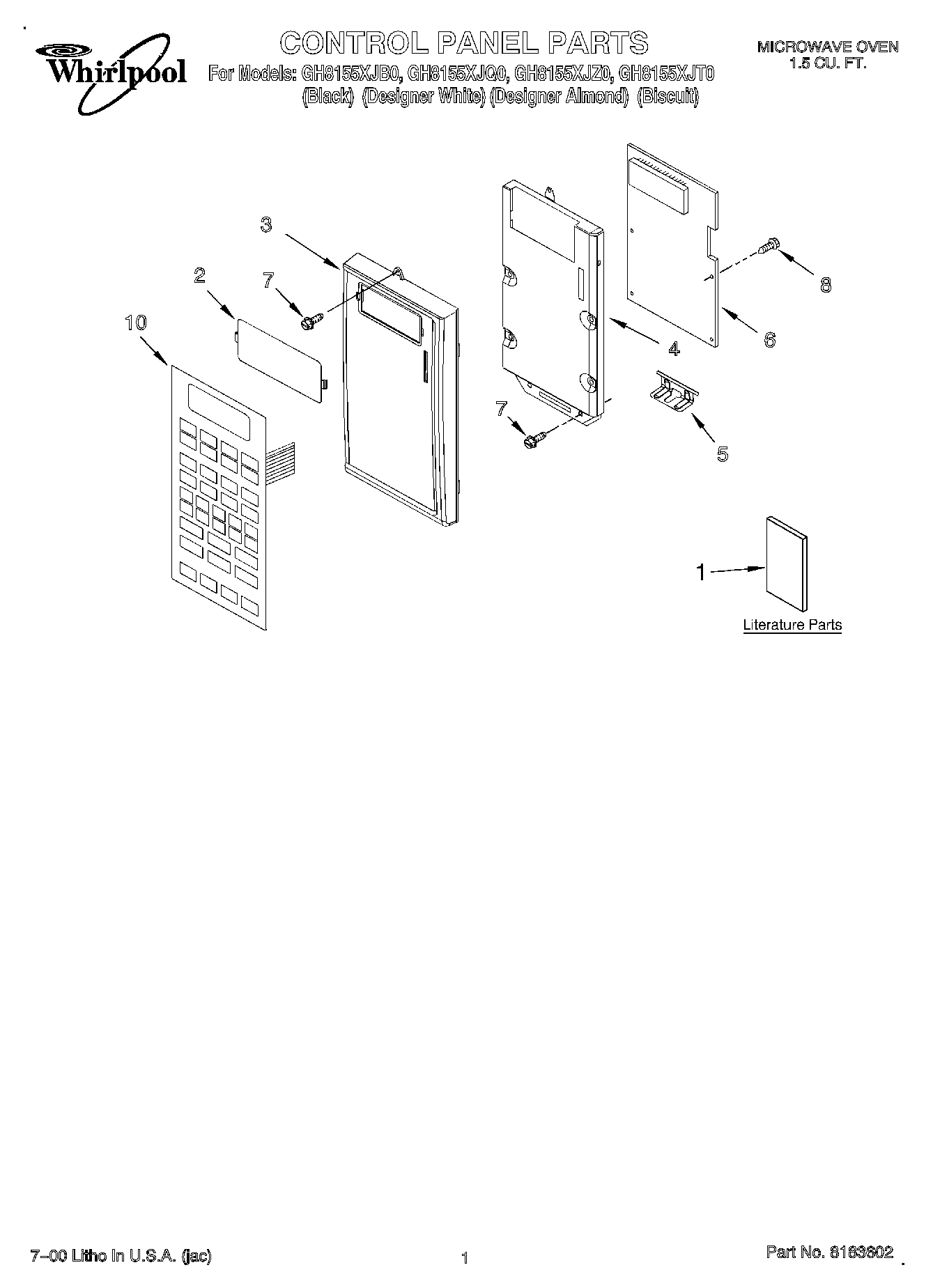

01 - CONTROL PANEL, LITERATURE

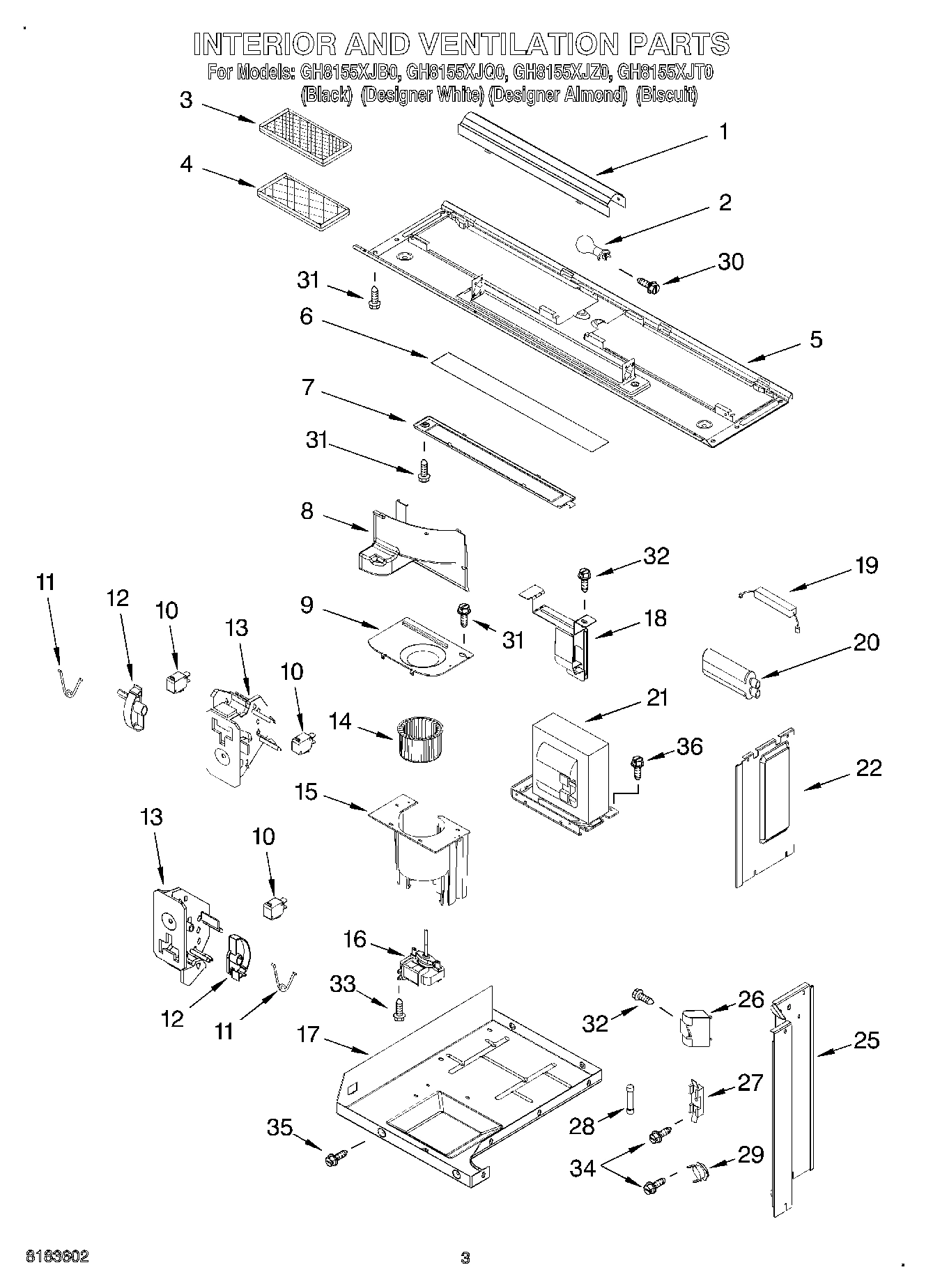

03 - INTERIOR AND VENTILATION

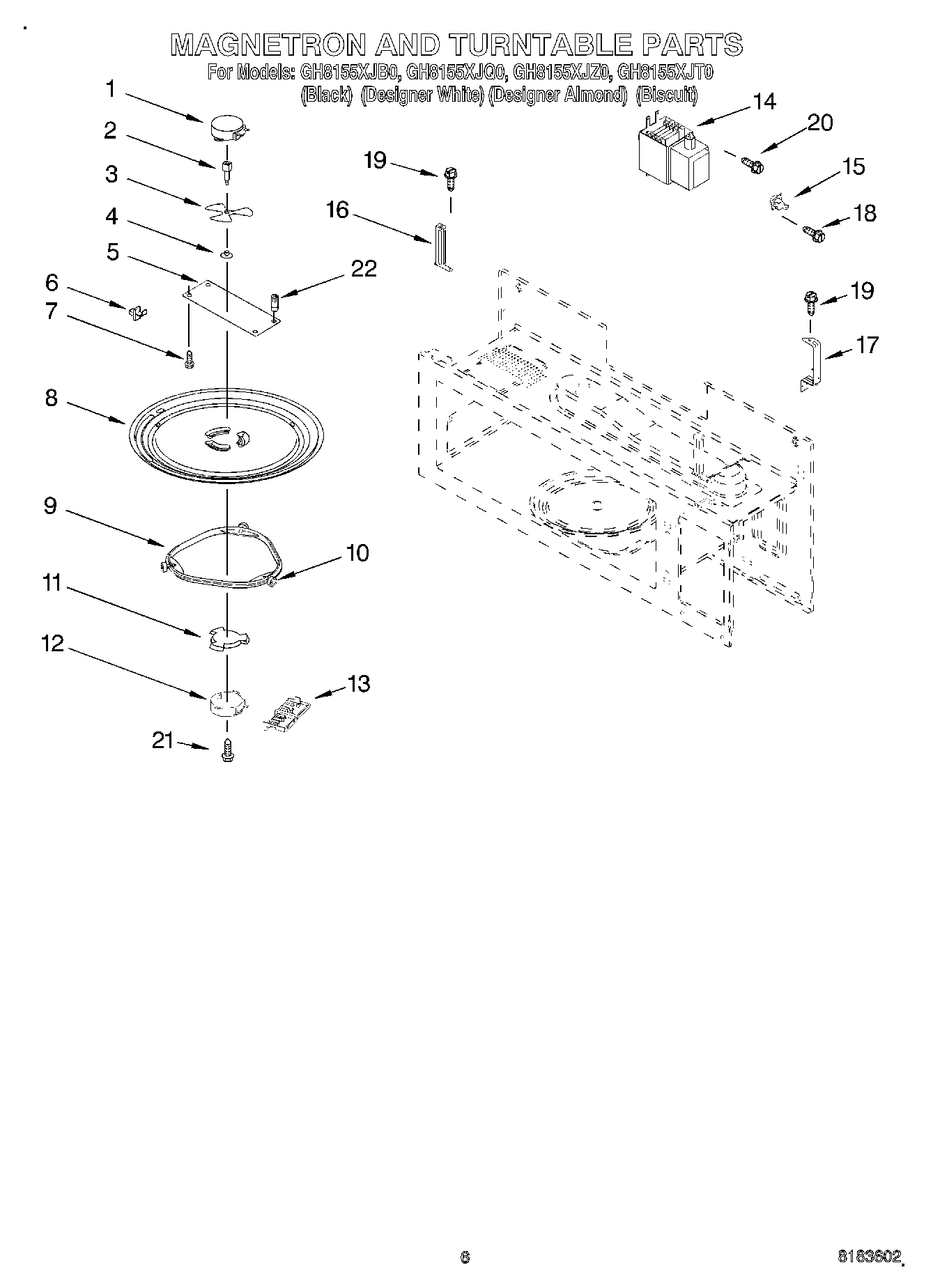

05 - MAGNETRON AND TURNTABLE

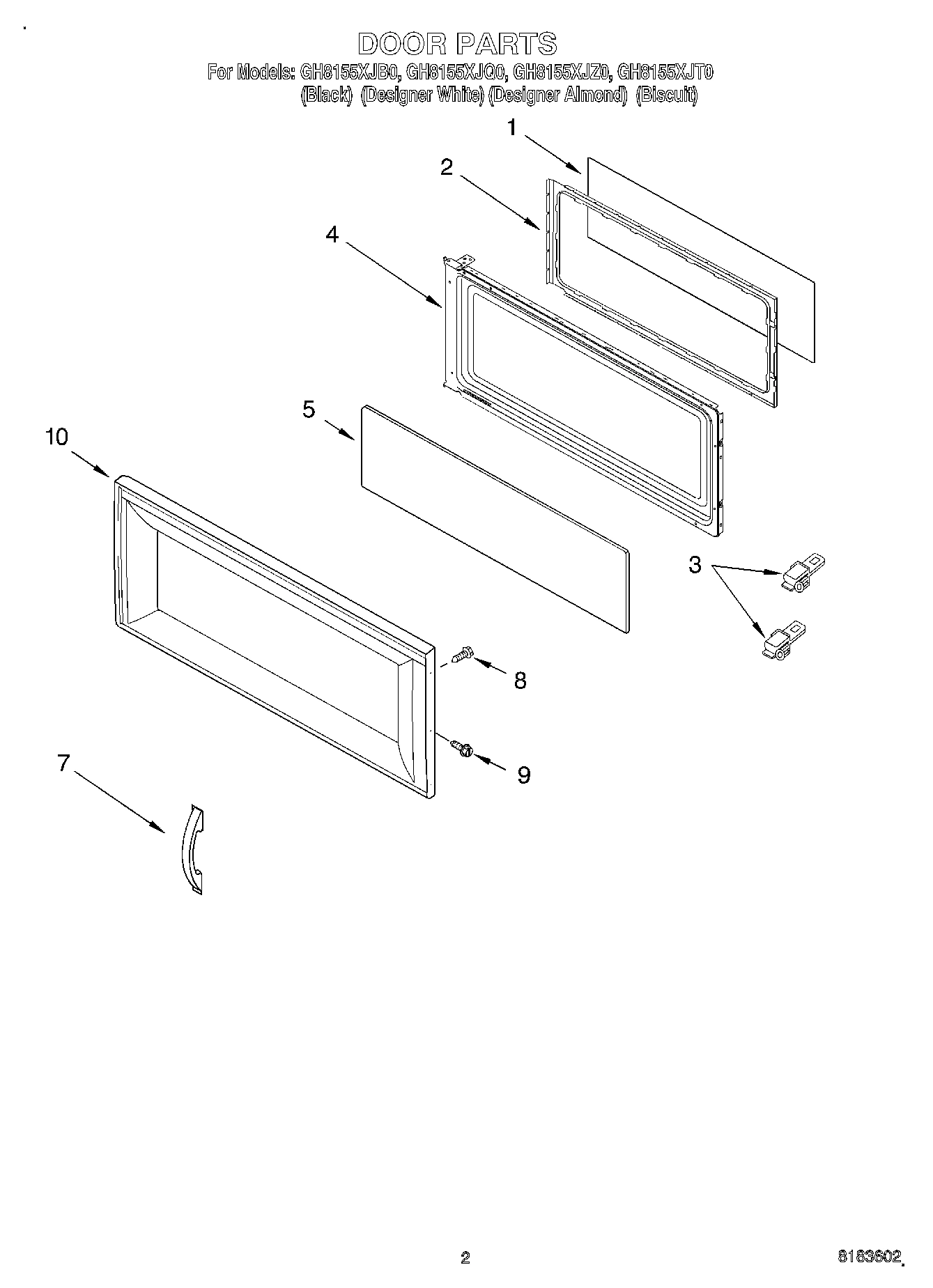

02 - DOOR
04 - AIR FLOW
Common parts from model Whirlpool GH8155XJZ0 MICROWAVE OVEN
1
Literature Parts (Instructions, Installation) WPL LIT8169769 Contact Us For Availability
1
Reflector, Lamp WPL 4393688 Contact Us For Availability
1
Motor, Stirrer WPL 4393746 Contact Us For Availability
1
Film, Back WPL 4393870 Contact Us For Availability
1
Deflector, Air WPL 8169651 Contact Us For Availability
2
Frame, Inner WPL 8169545 Contact Us For Availability
2
Lens (WH/BL/AL) WPL 8183708 Contact Us For Availability
2
Lens (Biscuit Model) WPL 8183724 Contact Us For Availability
2
Shaft, Stirrer WPL 4393794 Contact Us For Availability
2
Reflector, Air WPL 8169557 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Panel, Control (Black) WPL 8183709 Contact Us For Availability
3
Panel, Control (White) WPL 8183710 Contact Us For Availability
3
Panel, Control (Almond) WPL 8183711 Contact Us For Availability
3
Panel, Control (Biscuit) WPL 8183725 Contact Us For Availability
3
Stirrer WPL 4393748 Contact Us For Availability
3
Duct, Air WPL 8169465 Contact Us For Availability
4
Body, Door (White) WPL 8169653 Contact Us For Availability
4
Bracket, Control WPL 8183712 Contact Us For Availability
4
Guide, Stirrer WPL 4393749 Contact Us For Availability
4
Body, Door (Almond) WPL 8169429 Contact Us For Availability
4
Body, Door (Black) WPL 8169460 Contact Us For Availability
4
Body, Door (Biscuit) WPL 8169546 Contact Us For Availability
4
Bracket, Thermostat WPL 8169558 Contact Us For Availability
5
Glass, Outer (Clear (Green Tint)) WPL 4393725 Contact Us For Availability
5
Thermostat WPL 8183697 Contact Us For Availability
5
Plate, Hinge WPL 4393744 Contact Us For Availability
5
Plate, Bottom WPL 8169407 Contact Us For Availability
5
Cover, Inlet WPL 4393750 Contact Us For Availability
5
Glass, Outer (Clear) WPL 8183704 Contact Us For Availability
6
Microcomputer WPL 8183726 Contact Us For Availability
6
Glass, Lamp WPL 8169564 Contact Us For Availability
6
Housing, Lamp WPL 4393680 Contact Us For Availability
7
Handle, Door (Biscuit) WPL 8169642 Contact Us For Availability
7
Handle, Door (Almond) WPL 4393783 Contact Us For Availability
7
Screw WPL 4393828 Contact Us For Availability
7
Holder, Glass WPL 8169316 Contact Us For Availability
7
Nail, Plastic WPL 4393291 Contact Us For Availability
8
Turntable WPL 4393799 No Longer Available
8
Screw WPL 4393833 Contact Us For Availability
8
Screw WPL 4393346 Contact Us For Availability
8
Guide, Air (Magnetron) WPL 8183699 Contact Us For Availability
8
Wheel, Fan WPL 4393682 Contact Us For Availability
9
Cover, Fan WPL 8183700 Contact Us For Availability
9
Motor, Fan WPL 4393789 Contact Us For Availability
10
Frame, Outer (White) WPL 8169471 Contact Us For Availability
10
Frame, Outer (Black) WPL 8169352 Contact Us For Availability
10
Frame, Outer (Biscuit) WPL 8169641 Contact Us For Availability
10
Wheel, Plastic WPL 4393861 Contact Us For Availability
10
Switch, Membrane (White) WPL 8183720 Contact Us For Availability
10
Switch, Membrane (Black) WPL 8183721 Contact Us For Availability
10
Switch, Membrane (Almond) WPL 8183722 Contact Us For Availability
10
Switch, Membrane (Biscuit) WPL 8183723 Contact Us For Availability
10
Frame, Outer (Almond) WPL 8169430 Contact Us For Availability
10
Shield WPL 8169559 Contact Us For Availability
11
Spring, Interlock (2) WPL 8169438 Contact Us For Availability
11
Housing, Fan WPL 8169668 Contact Us For Availability
12
Plate, Cam (2) WPL 8169469 Contact Us For Availability
12
Bracket, Fan (Not Serviceable) WPL ARI65353A1 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
14
Wheel, Fan WPL 8183701 Contact Us For Availability
14
Screw WPL 8169478 Contact Us For Availability
15
Thermostat WPL 8183698 Contact Us For Availability
15
Housing, Fan WPL 8183702 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
16
Motor, Fan WPL 4393700 Contact Us For Availability
16
Holder, Connector (L) WPL 8169540 Contact Us For Availability
17
Chassis WPL 8169740 Contact Us For Availability
17
Holder, Connector (R) WPL 4393686 Contact Us For Availability
17
Humidity, Sensor WPL 4393808 Contact Us For Availability
18
Filler Kit (Black) WPL 8171337 Contact Us For Availability
18
Filler Kit (White) WPL 8171336 Contact Us For Availability
18
Holder, Capacitor WPL 4393702 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
18
Cushion, Mtr WPL 8169569 Contact Us For Availability
19
Screw WPL 8169474 Contact Us For Availability
21
Transformer, H.V. WPL 8169698 Contact Us For Availability
22
Plate, Side (R) WPL 4393705 Contact Us For Availability
22
Bushing, Nail WPL 4393290 Contact Us For Availability
25
Plate, Side (L) WPL 8169470 Contact Us For Availability
26
Capacitor WPL 4393709 Contact Us For Availability
27
Holder, Fuse WPL 4393538 Contact Us For Availability
29
Thermostat WPL 8183703 Contact Us For Availability
× ![]()
