Model Electrolux GGF356BAWA RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - BURNER PARTS

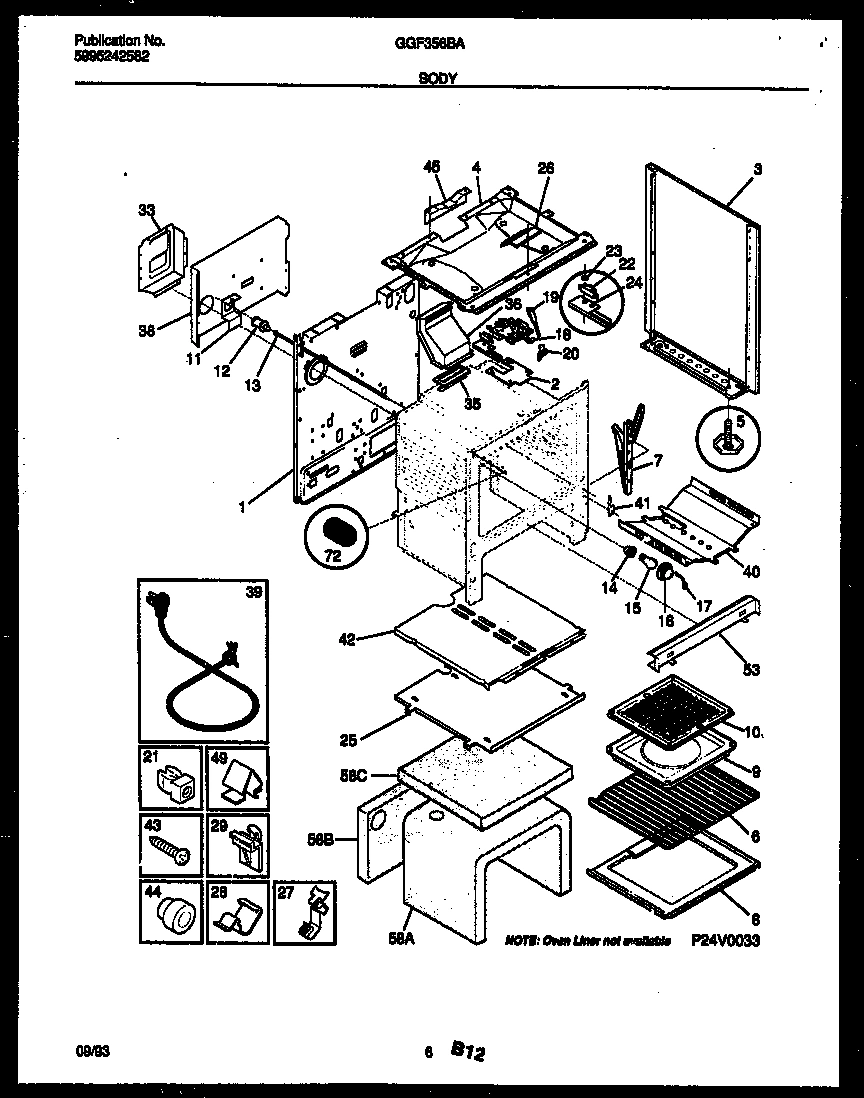

04 - BODY PARTS

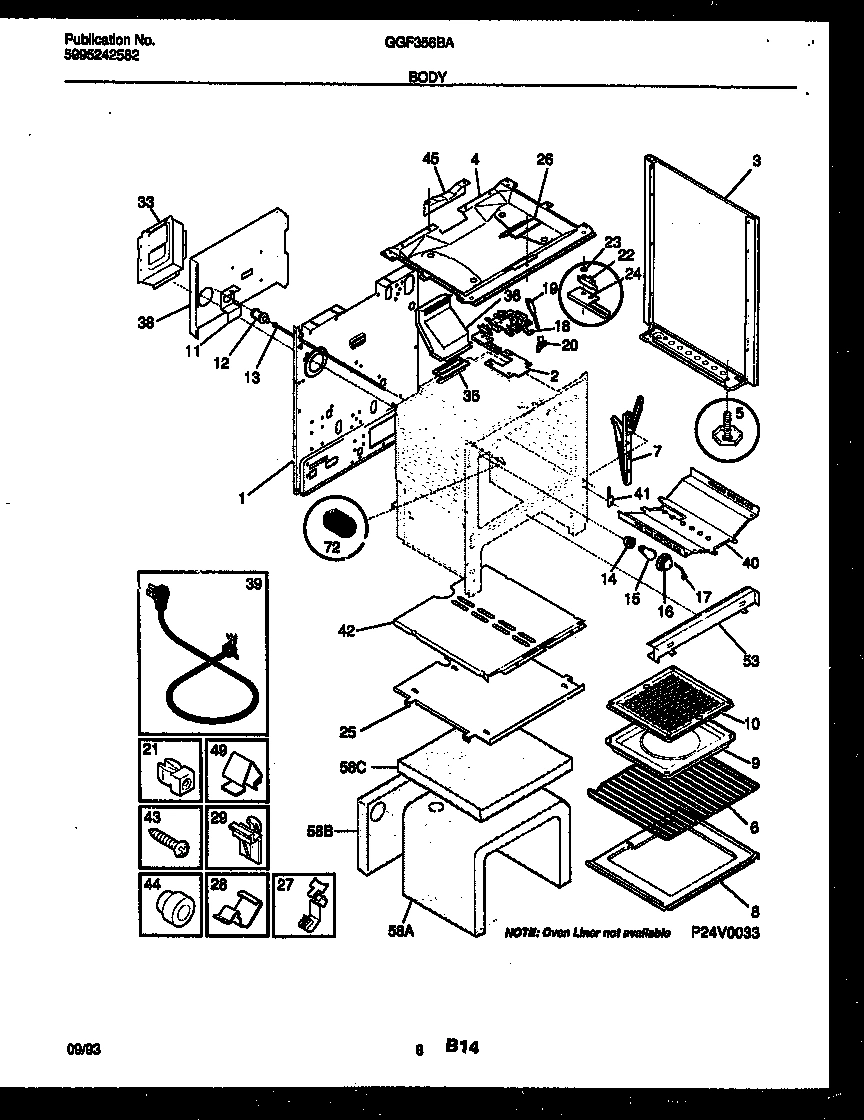

05 - BODY PARTS

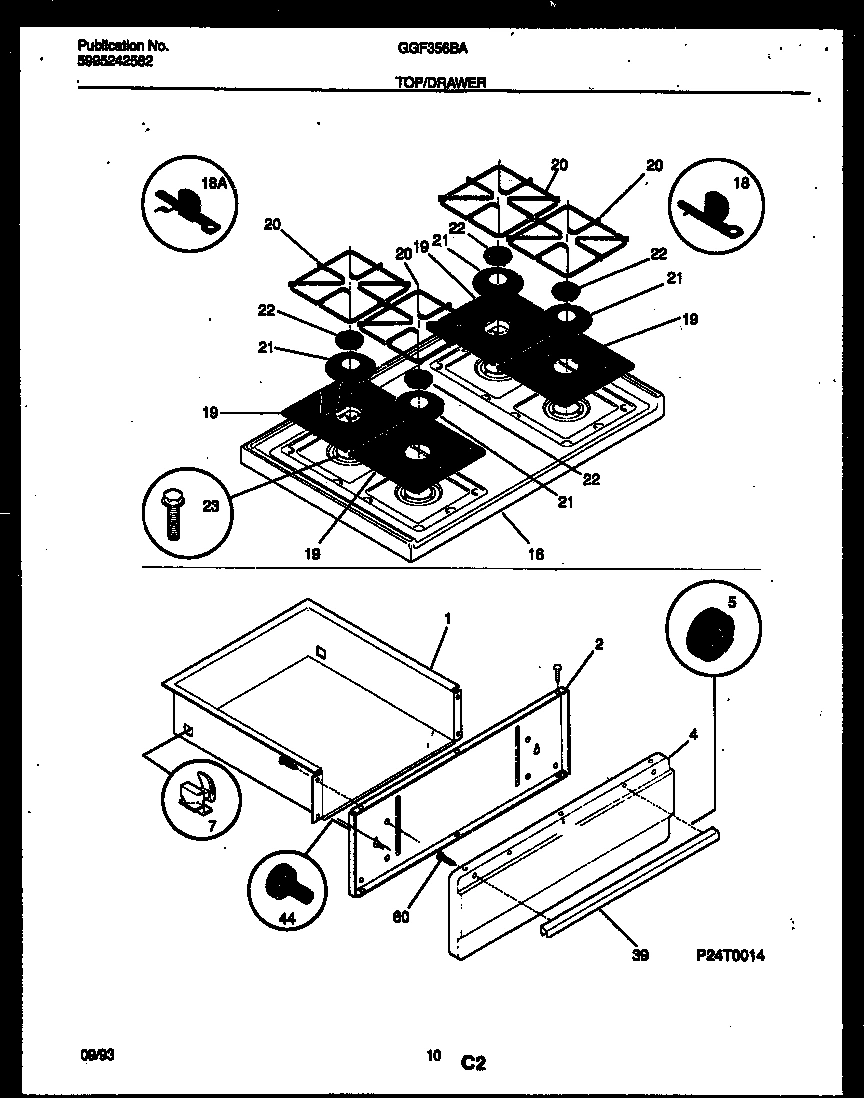

06 - TOP/DRAWER PARTS

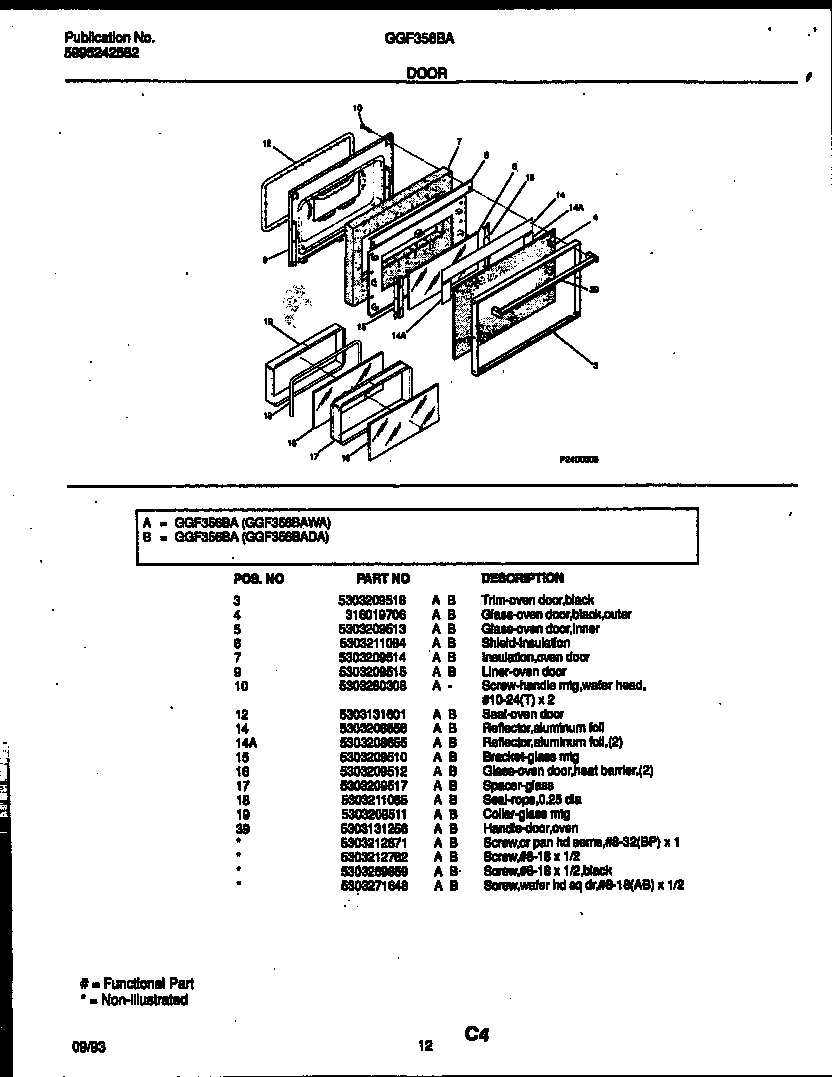

07 - DOOR PARTS
Common parts from model Electrolux GGF356BAWA RANGE
*62907
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*62911
WCI 5303212671 WCI 5303212671 Contact Us For Availability
*62912
WCI 5303269859 WCI 5303269859 Contact Us For Availability
1
WCI 3203082 WCI 3203082 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131314 WCI 3131314 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
SWITCH-IGNITER, (4) WCI 316032000 Contact Us For Availability
3
PANEL-BODYSIDE, WHITE, RH WCI 5303269518 Contact Us For Availability
3
TRIM-OVEN DOOR (BLACK) WCI 5303209518 Contact Us For Availability
3A
PANEL-BODYSIDE, WHITE, LH (NON-ILLUSTRATED) WCI 5303269519 Contact Us For Availability
3B
SHIELD-INSULATION, GALV STEEL (NON-ILLUSTRATE WCI 08067992 Contact Us For Availability
3C
SHIELD-HEAT, BODY SIDE (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
3D
FASTENER-EDGE MTG (NON-ILLUSTRATED) WCI 3200846 Contact Us For Availability
4
WCI 5303269487 WCI 5303269487 Contact Us For Availability
4
WCI 3131117 WCI 3131117 Contact Us For Availability
4
WCI 316019706 WCI 316019706 Contact Us For Availability
4A
WCI 08067785 WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
5
GLASS-OVEN DOOR, INNER WCI 5303209513 Contact Us For Availability
5A
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
5B
WCI 5303288460 WCI 5303288460 Contact Us For Availability
6
SHIELD-INSULATION WCI 5303211084 Contact Us For Availability
7
WCI 316007002 WCI 316007002 Contact Us For Availability
7
INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
WCI 5303209515 WCI 5303209515 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
10
WCI 530313156 WCI 530313156 Contact Us For Availability
11
BRACKET-LIGHT SWITCH WCI 5303131289 Contact Us For Availability
12
SWITCH-OVEN LIGHT, DOOR FRAME WCI 5303202622 Contact Us For Availability
13
WCI 5303269501 WCI 5303269501 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 5303208656 Contact Us For Availability
15
BRACKET-GLASS MTG WCI 5303209510 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER, (2) WCI 5303209512 Contact Us For Availability
16
TUBE-VALVE TO RGLTR WCI 5303208494 Contact Us For Availability
16
WCI 316010401 WCI 316010401 Contact Us For Availability
16A
WCI 5303271891 WCI 5303271891 Contact Us For Availability
16B
WCI 5303271892 WCI 5303271892 Contact Us For Availability
17
RETAINER-GLASS WCI 3204585 Contact Us For Availability
17
WCI 5303209517 WCI 5303209517 Contact Us For Availability
18
WCI 5303015453 WCI 5303015453 Contact Us For Availability
18
WCI 3131290 WCI 3131290 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
18
SEAL-ROPE, 0.25 DIA WCI 5303211085 Contact Us For Availability
18A
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
18A
SHIELD-LATCH, TOP (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
19
WCI 530313100 WCI 530313100 Contact Us For Availability
19
WCI 5303131357 WCI 5303131357 Contact Us For Availability
19
WCI 316011400 WCI 316011400 Contact Us For Availability
19
COLLAR-GLASS MTG WCI 5303209511 Contact Us For Availability
20
BAFFLE-OVEN BURNER WCI 3131284 Contact Us For Availability
20
WCI 3203218 WCI 3203218 Contact Us For Availability
20
WCI 5303269632 WCI 5303269632 Contact Us For Availability
20A
WCI 08013188 WCI 08013188 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
21
WCI 316035101 WCI 316035101 Contact Us For Availability
22
WCI 5303269499 WCI 5303269499 Contact Us For Availability
22
TUBE-VALVE TO MIXER WCI 5303208493 Contact Us For Availability
22A
WCI 08067978 WCI 08067978 Contact Us For Availability
23
WCI 08067935 WCI 08067935 Contact Us For Availability
23
WCI 08067776 WCI 08067776 Contact Us For Availability
24
WCI 5303208640 WCI 5303208640 Contact Us For Availability
24
SHIELD-LATCH WCI 3051413 Contact Us For Availability
25
BAFFLE-BROILER WCI 5303210379 Contact Us For Availability
25
WCI 3131313 WCI 3131313 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
28
CLIP-WIRE WCI 3011813 Contact Us For Availability
32
WCI 5303212679 WCI 5303212679 Contact Us For Availability
33
SHIELD, REAR WALL WCI 316014401 Contact Us For Availability
36
WCI 3131931 WCI 3131931 Contact Us For Availability
38
WCI 316014301 WCI 316014301 Contact Us For Availability
39
WCI 316019504 WCI 316019504 Contact Us For Availability
39
HANDLE-DOOR, OVEN WCI 5303131256 Contact Us For Availability
39A
WCI 08067961 WCI 08067961 Contact Us For Availability
40
WCI 3200836 WCI 3200836 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
42
WCI 5303270104 WCI 5303270104 Contact Us For Availability
44
ORIFICE-TOP BURNER, (4) WCI 5303210090 No Longer Available
45
WCI 316011100 WCI 316011100 Contact Us For Availability
45
SHIELD-WIRE WCI 08068018 Contact Us For Availability
46
WCI 5303269491 WCI 5303269491 Contact Us For Availability
47
WCI 5303286386 WCI 5303286386 Contact Us For Availability
50
WCI 316010700 WCI 316010700 Contact Us For Availability
53
WCI 5303271047 WCI 5303271047 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3200833 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 3204582 Contact Us For Availability
58C
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
60
SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/ WCI 5303281651 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
× ![]()
