Model Gibson GGF354CGSE RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

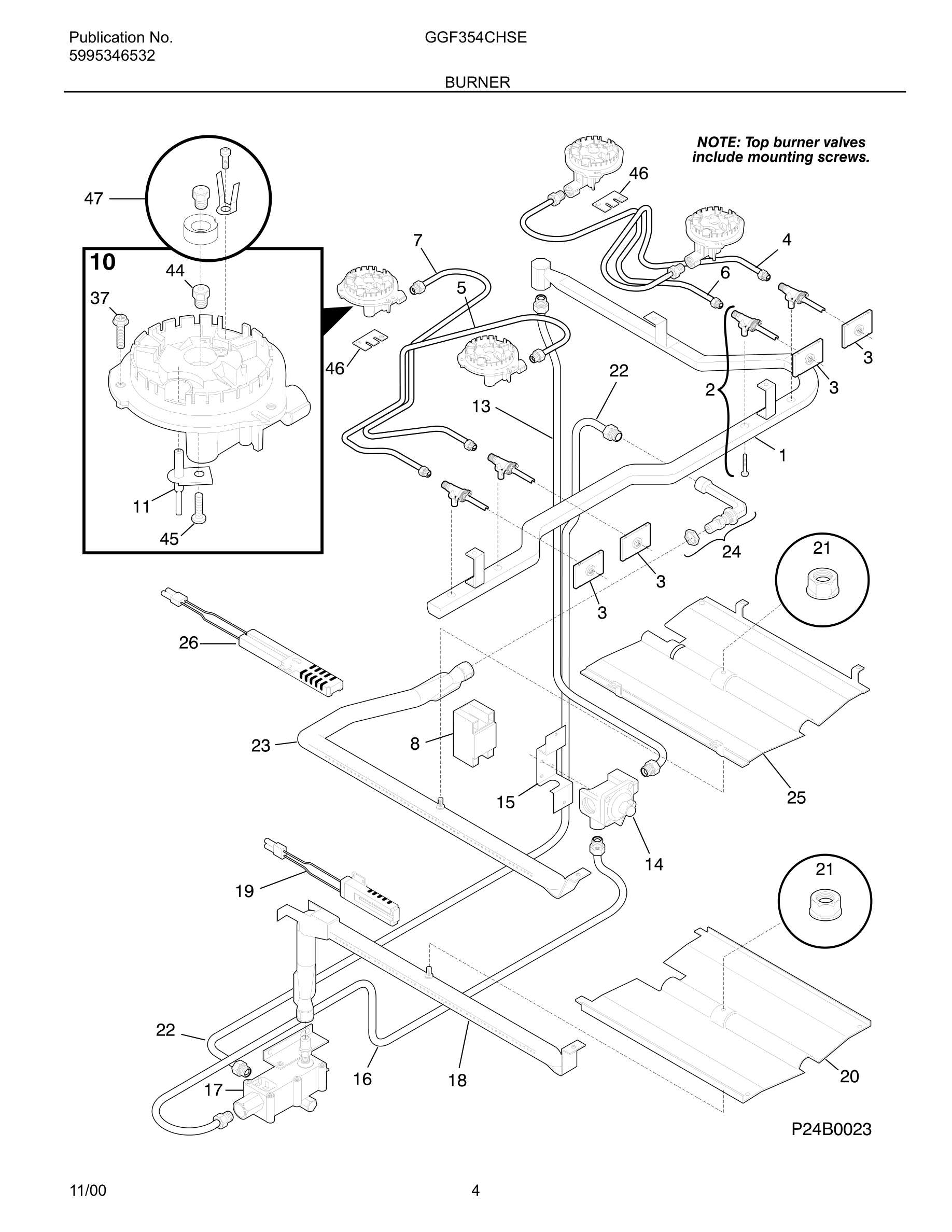

05 - BURNER

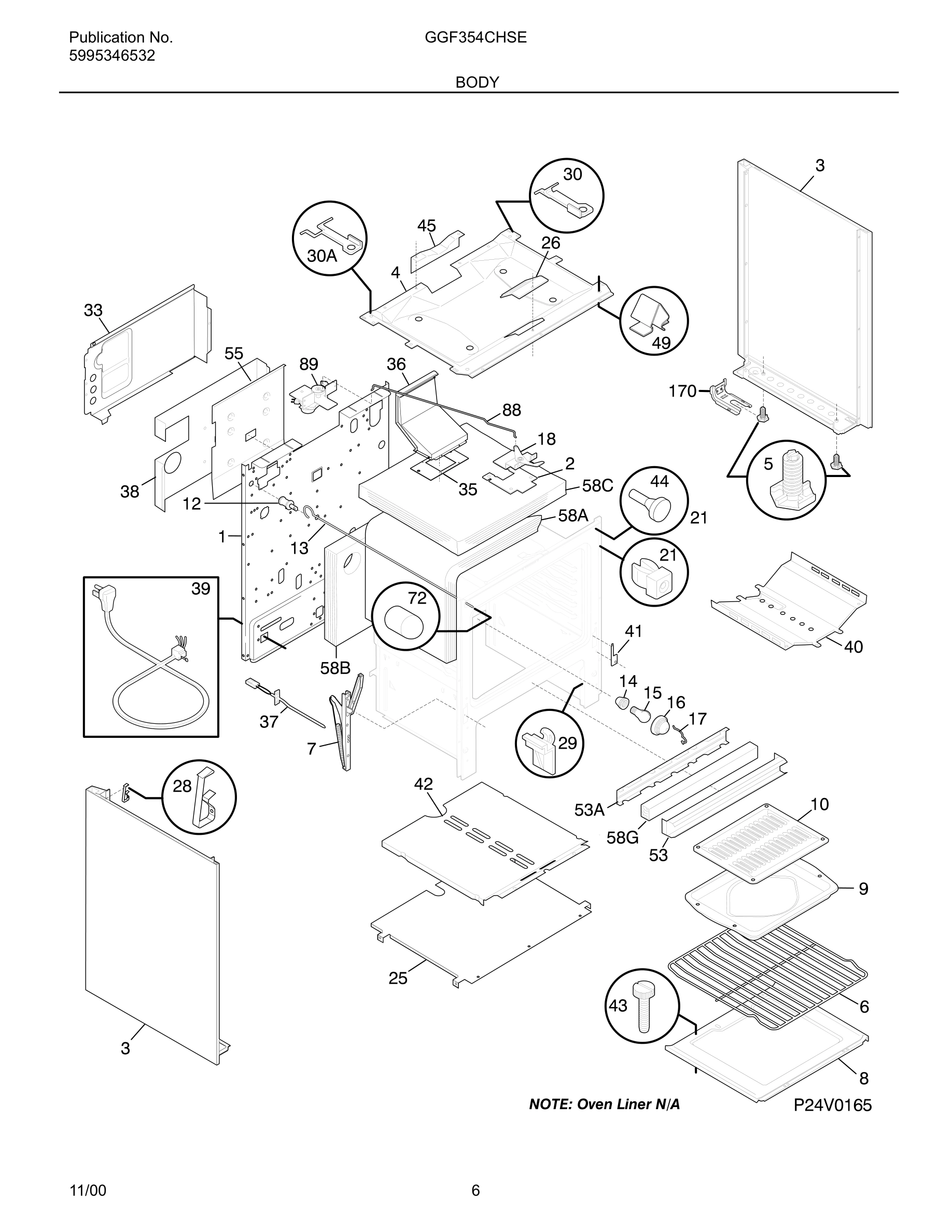

07 - BODY

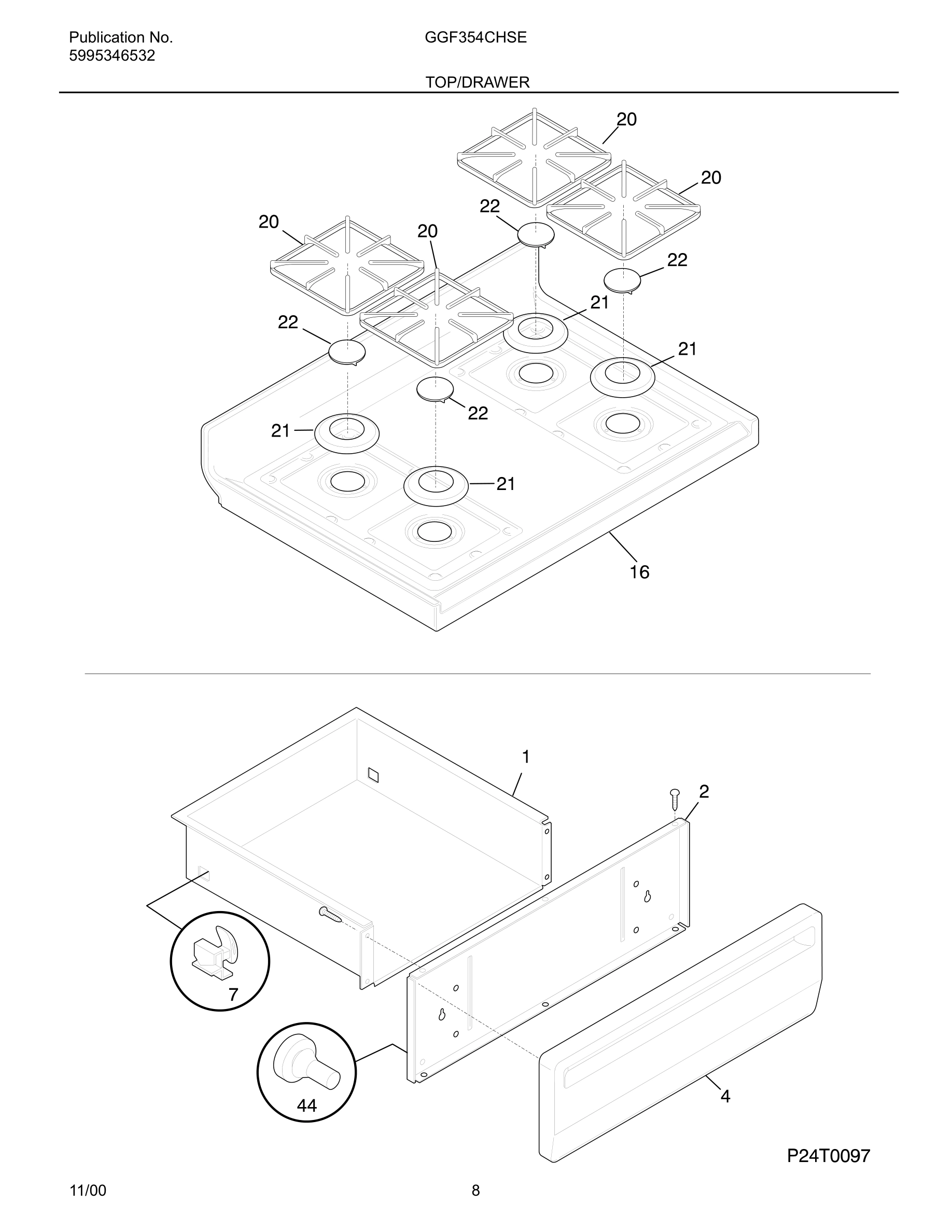

09 - TOP/DRAWER

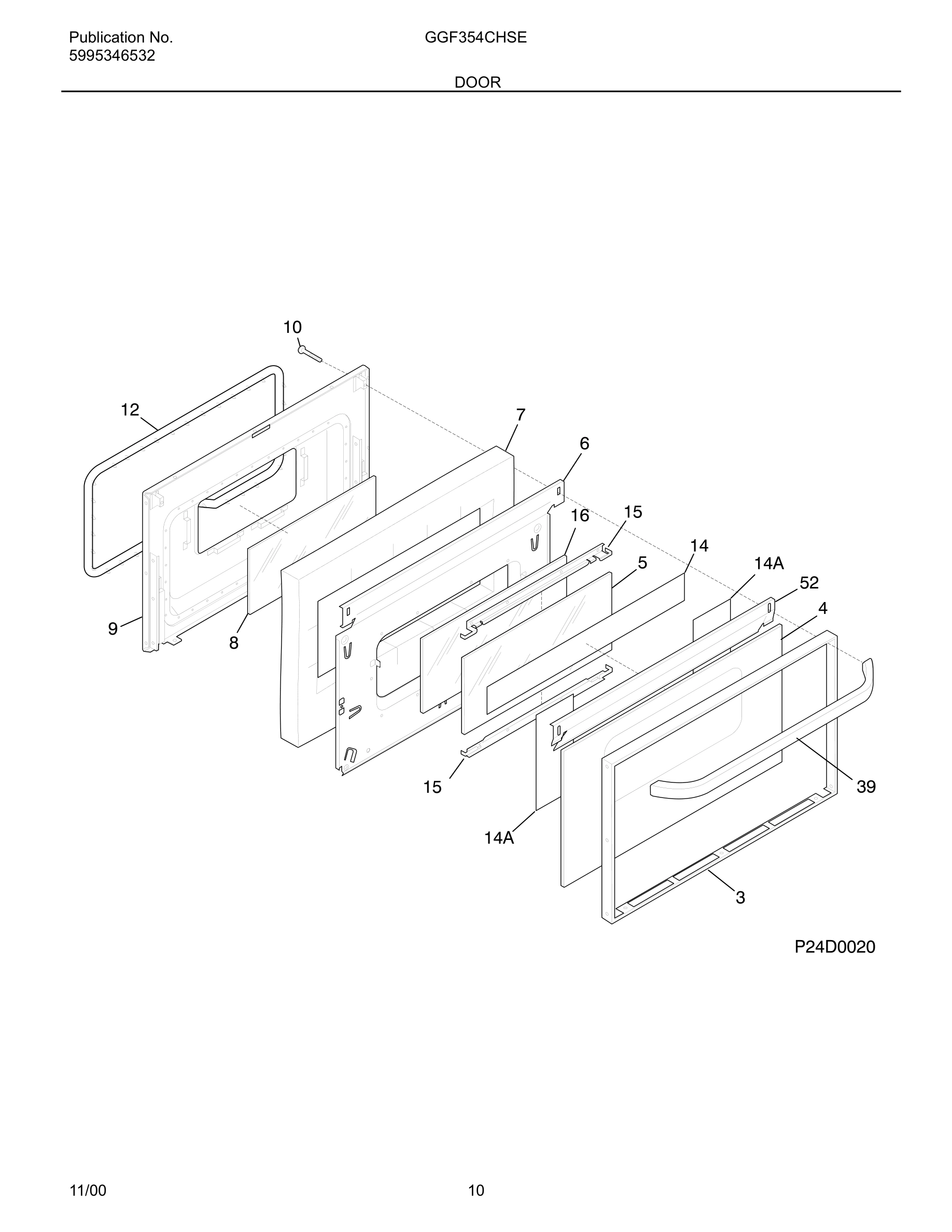

11 - DOOR

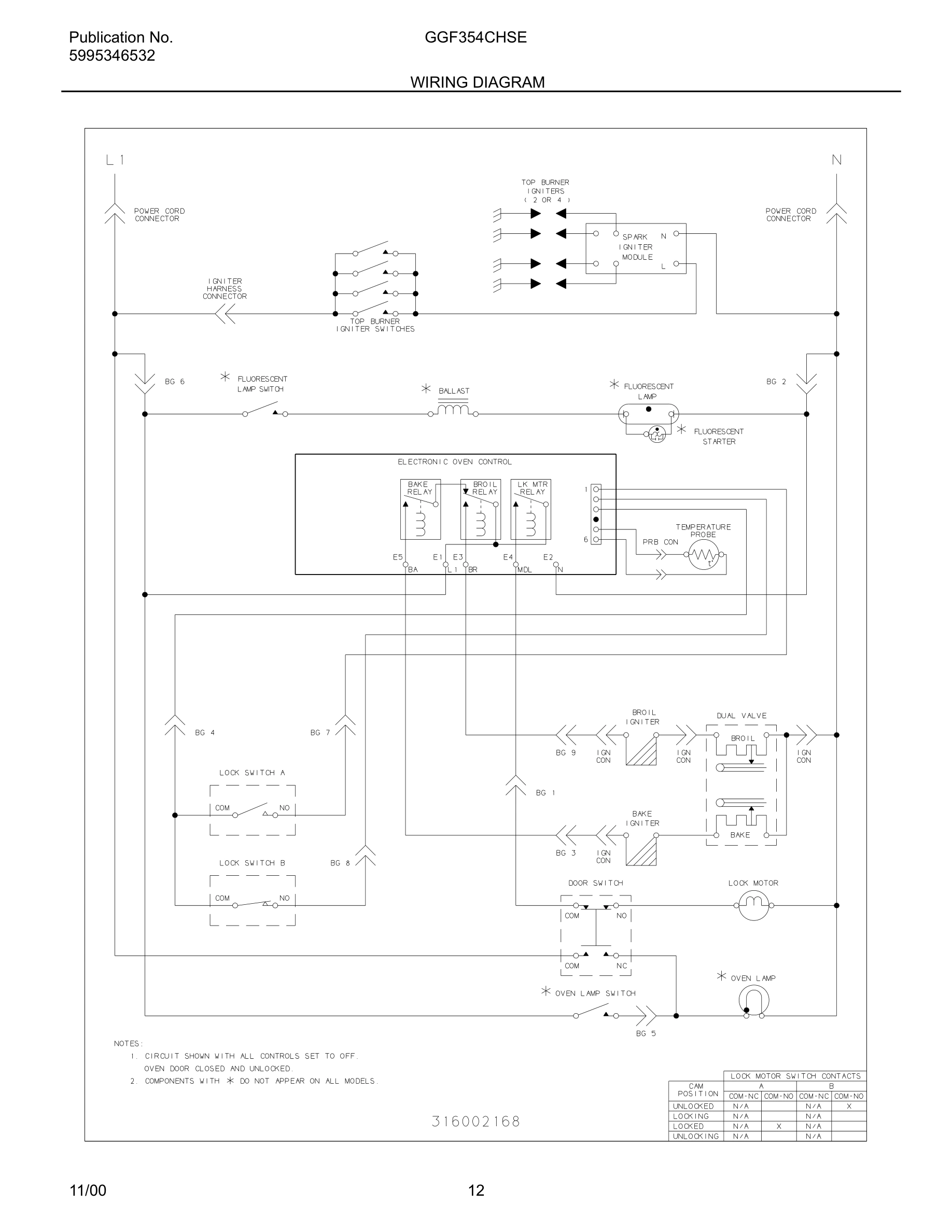

12 - WIRING DIAGRAM
Common parts from model Gibson GGF354CGSE RANGE
*
Screw,cup pt ,8-18 x 0.375 ,chrome WCI 316021108 Contact Us For Availability
*
Plate,warning/caution WCI 316065306 Contact Us For Availability
*
Screw,wafer hd sq dr ,10-32 x 0.312 WCI 5303280311 Contact Us For Availability
*
Rivet,pop WCI 3203618 Contact Us For Availability
*
Spacer,sponge pad WCI 316132100 Contact Us For Availability
2#
Valve-top burner WCI 316134100 Contact Us For Availability
3
Trim,oven door ,white WCI 316067804 Contact Us For Availability
3#
Wiring Harness,w/igntr switch WCI 316001824 Contact Us For Availability
4
Glass,oven door ,white ,outer WCI 316089005 Contact Us For Availability
4#
Tube,burner ,red ,RF WCI 316059612 Contact Us For Availability
5
Screw,leveling ,plastic ,with stop WCI 316129200 Contact Us For Availability
5
Glass,oven door ,airwash WCI 316088700 Contact Us For Availability
5#
Tube,burner ,green ,LF WCI 316059613 Contact Us For Availability
6
Shield-wool WCI 316088401 Contact Us For Availability
6#
Tube,burner ,natural ,RR WCI 316059614 Contact Us For Availability
7
Hinge-oven door,(2) WCI 316007002 No Longer Available
7
Insulation-door WCI 316076403 Contact Us For Availability
8
Glass,oven door ,inner WCI 316088600 Contact Us For Availability
9
Pan,broiler WCI 316081900 Contact Us For Availability
9
Liner,oven door WCI 316066610 Contact Us For Availability
10
Insert,broiler pan WCI 316082000 Contact Us For Availability
10
Screw-handle mtg,wafer hd sq dr ,10-24T x 2.0 WCI 5303280308 Contact Us For Availability
13#
Tube,3/8 ,aluminum ,rgltr to manf ,with fitti WCI 316065005 Contact Us For Availability
14
Reflector,aluminum foil WCI 3131361 Contact Us For Availability
15
Bracket,glass mtg WCI 316081403 Contact Us For Availability
16
Glass,oven door ,heat barrier WCI 316085701 Contact Us For Availability
16
Panel,main top ,white WCI 5303301546 Contact Us For Availability
20#
Grate,gray ,(4) WCI 316085205 Contact Us For Availability
20A
Overlay-clock,white WCI 316101502 Contact Us For Availability
21
Spacer,bodyside WCI 3014099 Contact Us For Availability
21
Trim ring, gray , small WCI 316011308 Contact Us For Availability
22#
Tube,valve to mixer WCI 316065002 Contact Us For Availability
22#
Cap,burner ,gloss gray ,(4) WCI 316010905 Contact Us For Availability
23#
Burner,broiler WCI 08067935 Contact Us For Availability
36
Knob-top valve,white WCI 316109513 Contact Us For Availability
41
Cover,hinge cut-out WCI 3131570 Contact Us For Availability
44
Orifice,top burner ,9K WCI 5303210090 No Longer Available
47
LP Conversion Kit WCI 5303286386 Contact Us For Availability
52
Shield,oven door ,white ,top WCI 316081301 Contact Us For Availability
58A
Insulation,2" ,oven wrapper WCI 316047708 Contact Us For Availability
× ![]()
