Model Electrolux GGF333BFDB RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD

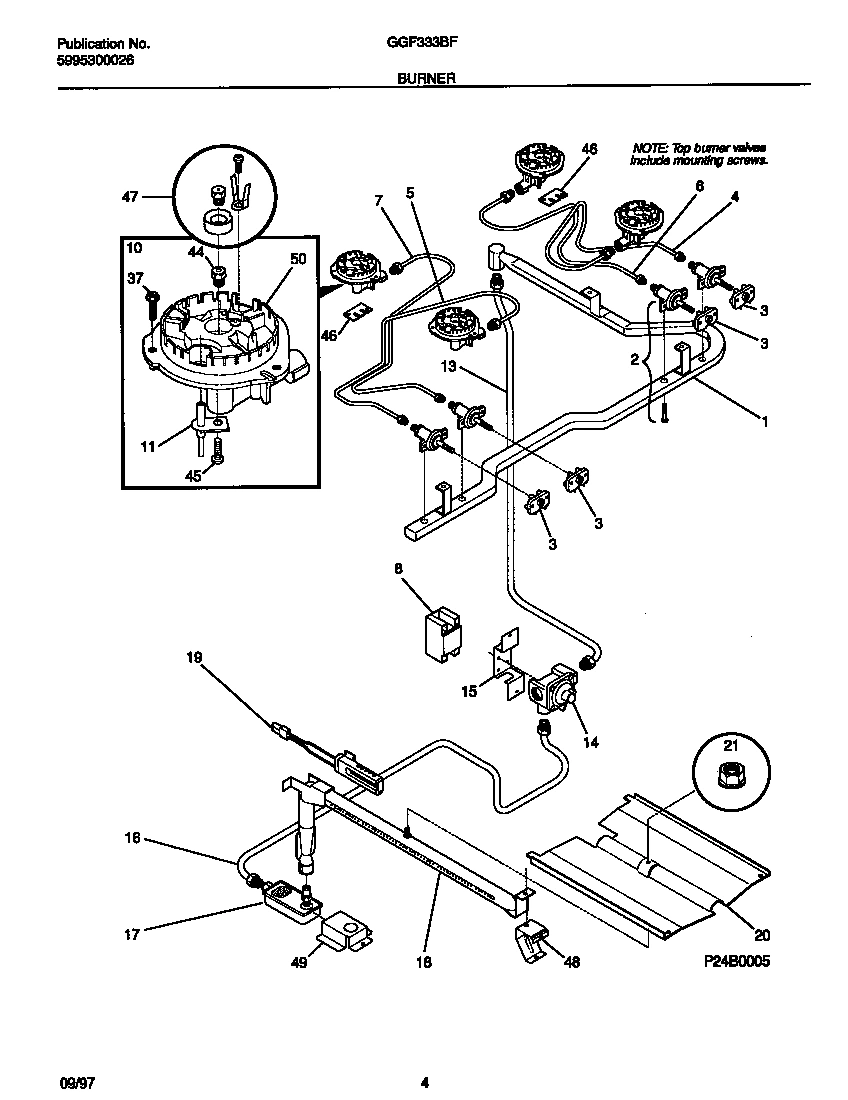

03 - BURNER

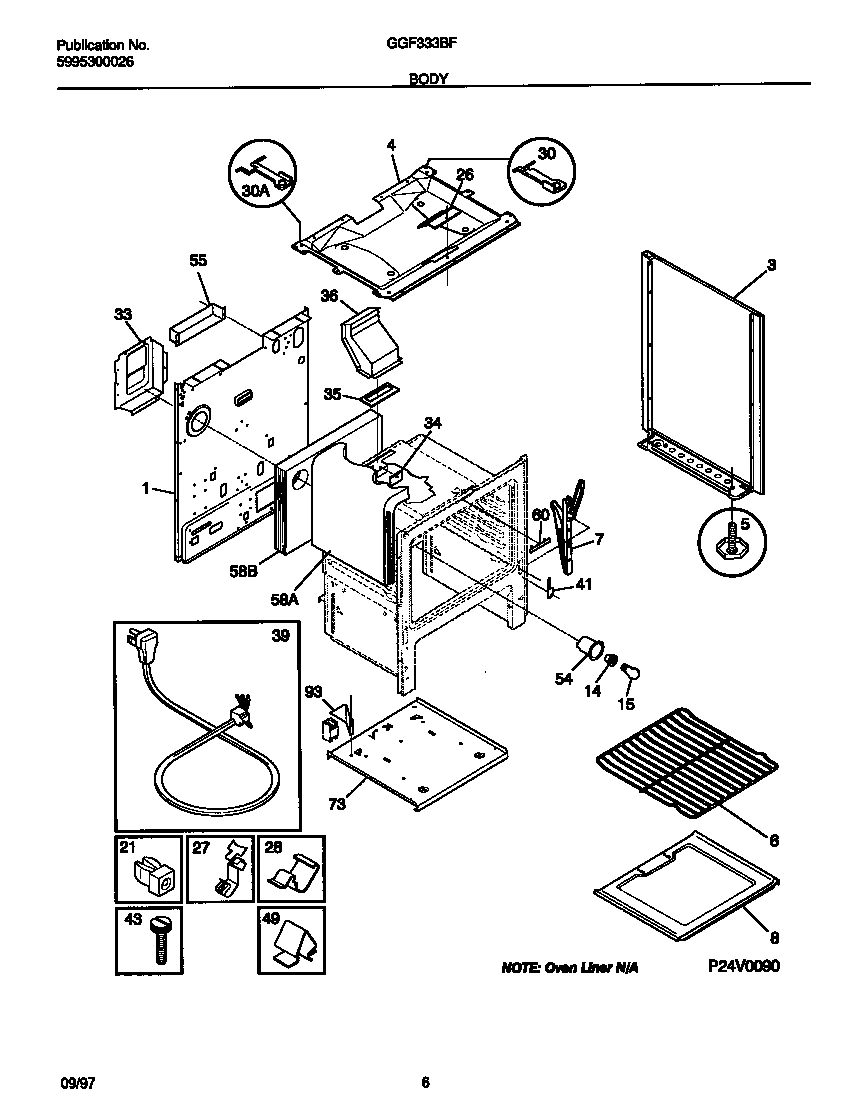

04 - BODY

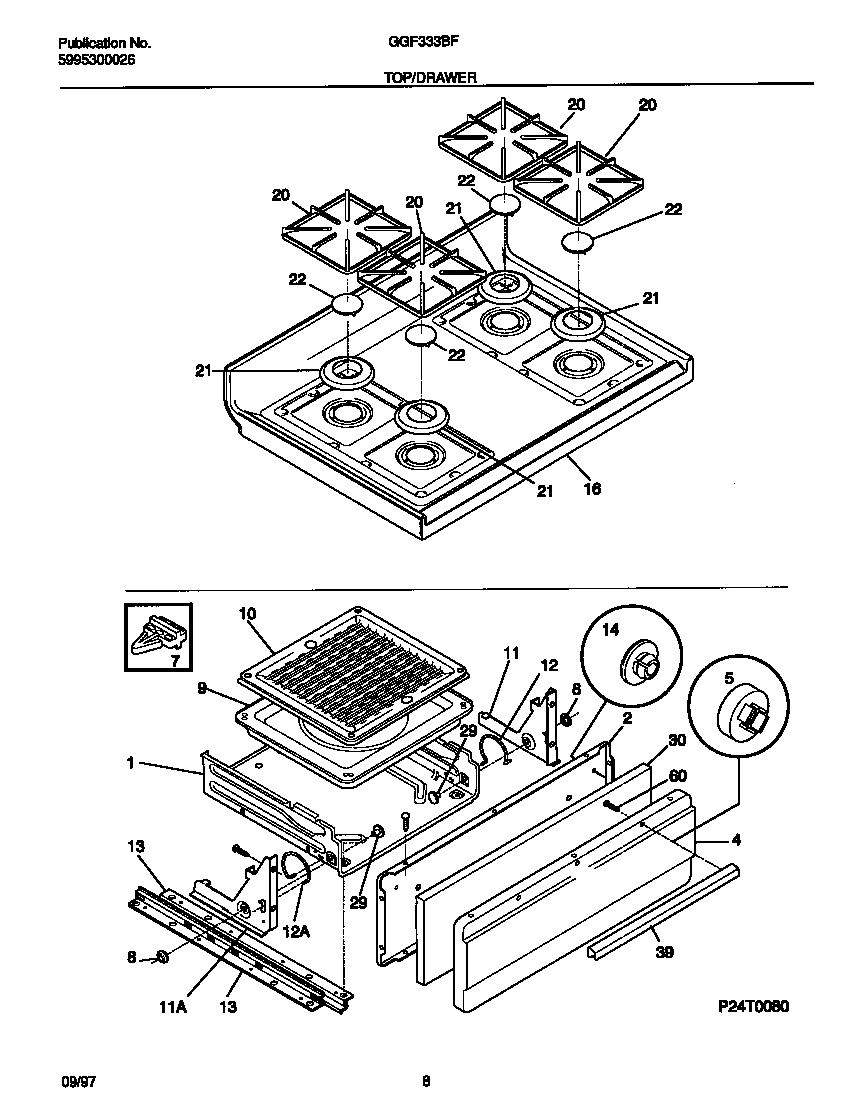

05 - TOP/DRAWER

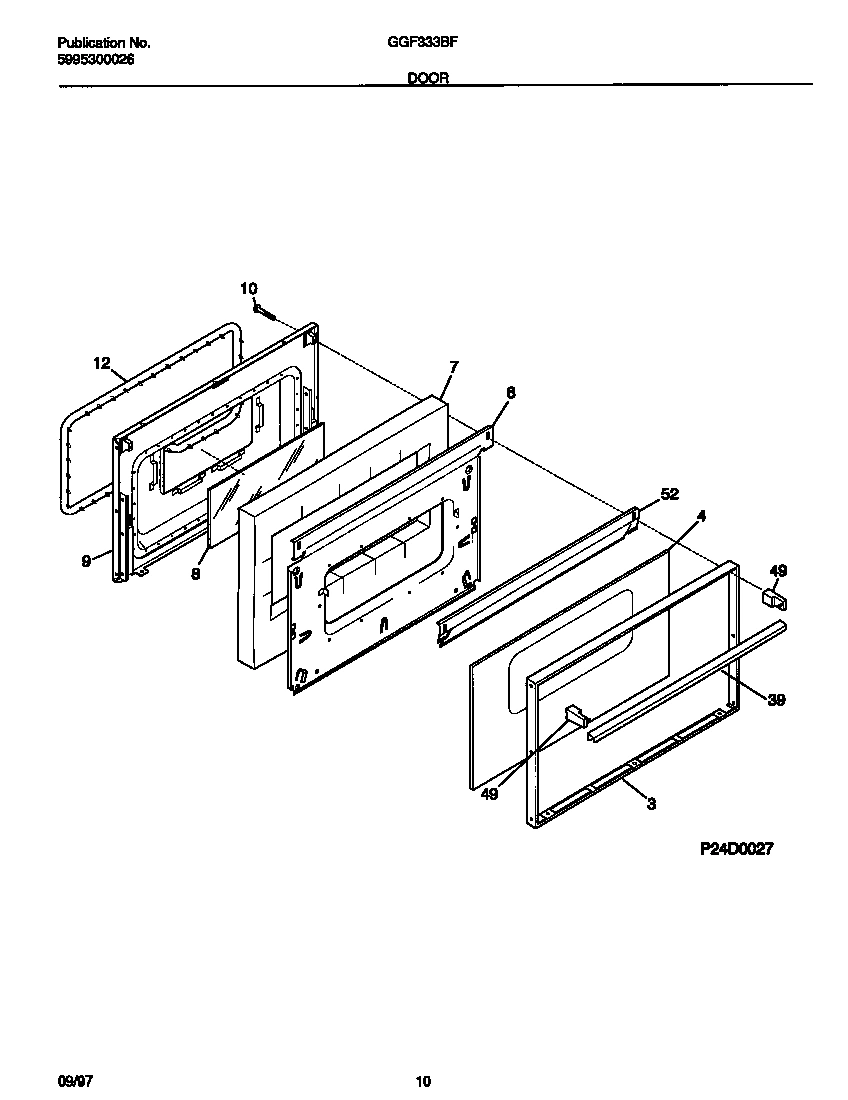

06 - DOOR
Common parts from model Electrolux GGF333BFDB RANGE
*39403
SCREW,CUP PT,8-18X3/8,HINGE,IND LT BRKT,MANF WCI 316021108 Contact Us For Availability
*39408
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
*39410
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
1
DRAWER-BROILER WCI 3018608 Contact Us For Availability
2
LINER, BROILER DOOR WCI 3202803 Contact Us For Availability
2A
VALVE-TOP BURNER, (4) WCI 5303935130 No Longer Available
3
WCI 316067802 WCI 316067802 Contact Us For Availability
4
WCI 316059612 WCI 316059612 Contact Us For Availability
4
WCI 316056206 WCI 316056206 Contact Us For Availability
4
WCI 316089000 WCI 316089000 Contact Us For Availability
5
WCI 316059613 WCI 316059613 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
5A
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5B
WCI 3934058 WCI 3934058 Contact Us For Availability
6
WCI 316059614 WCI 316059614 Contact Us For Availability
6
WCI 316088403 WCI 316088403 Contact Us For Availability
7
GLIDE-BROILER WCI 3018610 No Longer Available
7
WCI 316059615 WCI 316059615 Contact Us For Availability
7
WCI 316076401 WCI 316076401 Contact Us For Availability
7A
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
8
GLASS-OVEN DOOR, AIRWASH WCI 316088600 Contact Us For Availability
8
NUT, PUSH-ON, (2) WCI 3131386 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
BRACKET-HINGE, BROILER LH WCI 316066300 Contact Us For Availability
11
WCI 316066301 WCI 316066301 Contact Us For Availability
12
SPRING-BROILER, LH WCI 3018618 Contact Us For Availability
12
SPRING-BROILER, RH WCI 3018619 Contact Us For Availability
13
WCI 316065005 WCI 316065005 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
14
PLUG-BUTTON, GLIDE WCI 3206216 Contact Us For Availability
16
WCI 5303301547 WCI 5303301547 Contact Us For Availability
18
WCI 3131439 WCI 3131439 Contact Us For Availability
20
WCI 316085201 WCI 316085201 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
21
TRIM RING-BURNER, BLACK, SMALL WCI 316011300 Contact Us For Availability
29
BUTTON-SELECTOR, CLOCK/TIMER, BLACK WCI 5303272305 Contact Us For Availability
29
WCI 3018614 WCI 3018614 Contact Us For Availability
30
INSULATION, BROILER DRAWER WCI 5303131258 Contact Us For Availability
34
WCI 3018607 WCI 3018607 Contact Us For Availability
36
WCI 316009010 WCI 316009010 Contact Us For Availability
39
HANDLE-DRAWER, BRUSHED CHROME WCI 3201268 Contact Us For Availability
39A
WCI 316020204 WCI 316020204 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
44
ORIFICE-TOP BURNER, SMALL WCI 5303210090 No Longer Available
47
WCI 5303286386 WCI 5303286386 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
54
WCI 5303271606 WCI 5303271606 Contact Us For Availability
55
WCI 5303289358 WCI 5303289358 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 3203541 Contact Us For Availability
60
COVER-OVEN FRONT WCI 5303015372 Contact Us For Availability
73
WCI 5303281627 WCI 5303281627 Contact Us For Availability
93
WCI 316055500 WCI 316055500 Contact Us For Availability
× ![]()
