Model GE GFWS2600F2WW Washer – Common Parts & Diagrams
CONTROLS & DISPENSER
FRONT PANEL & DOOR

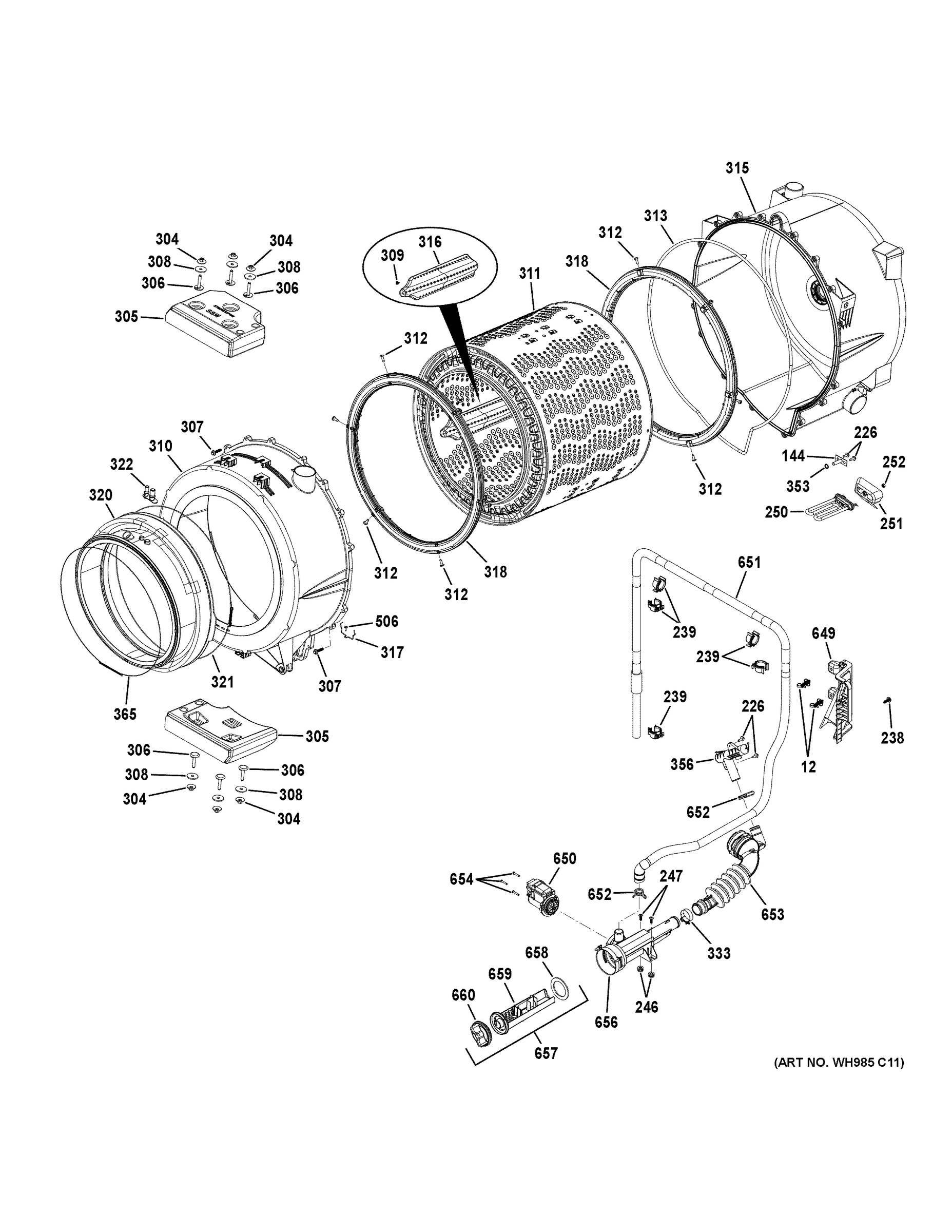

TUB & DRAIN PUMP

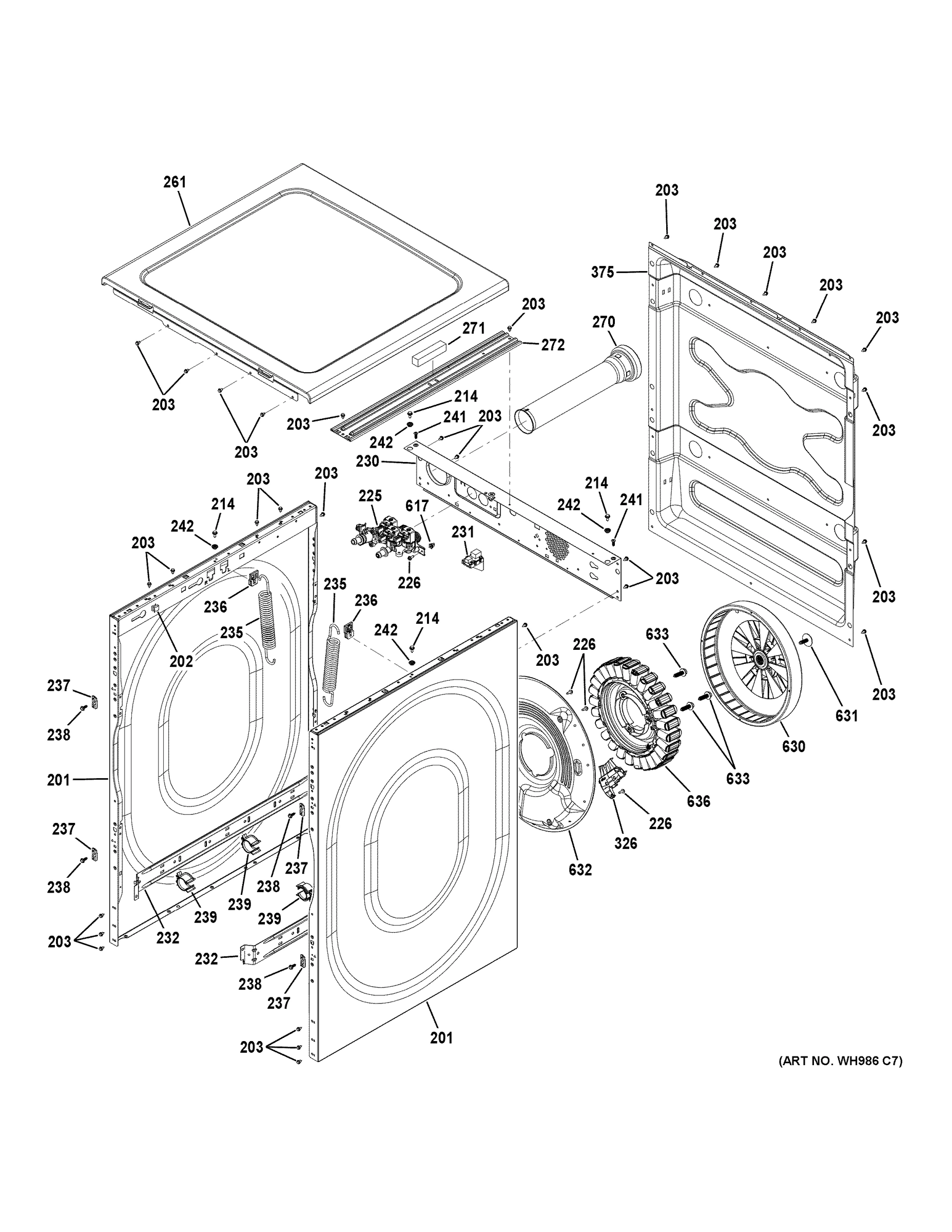

CABINET & DRIVE ASSEMBLY

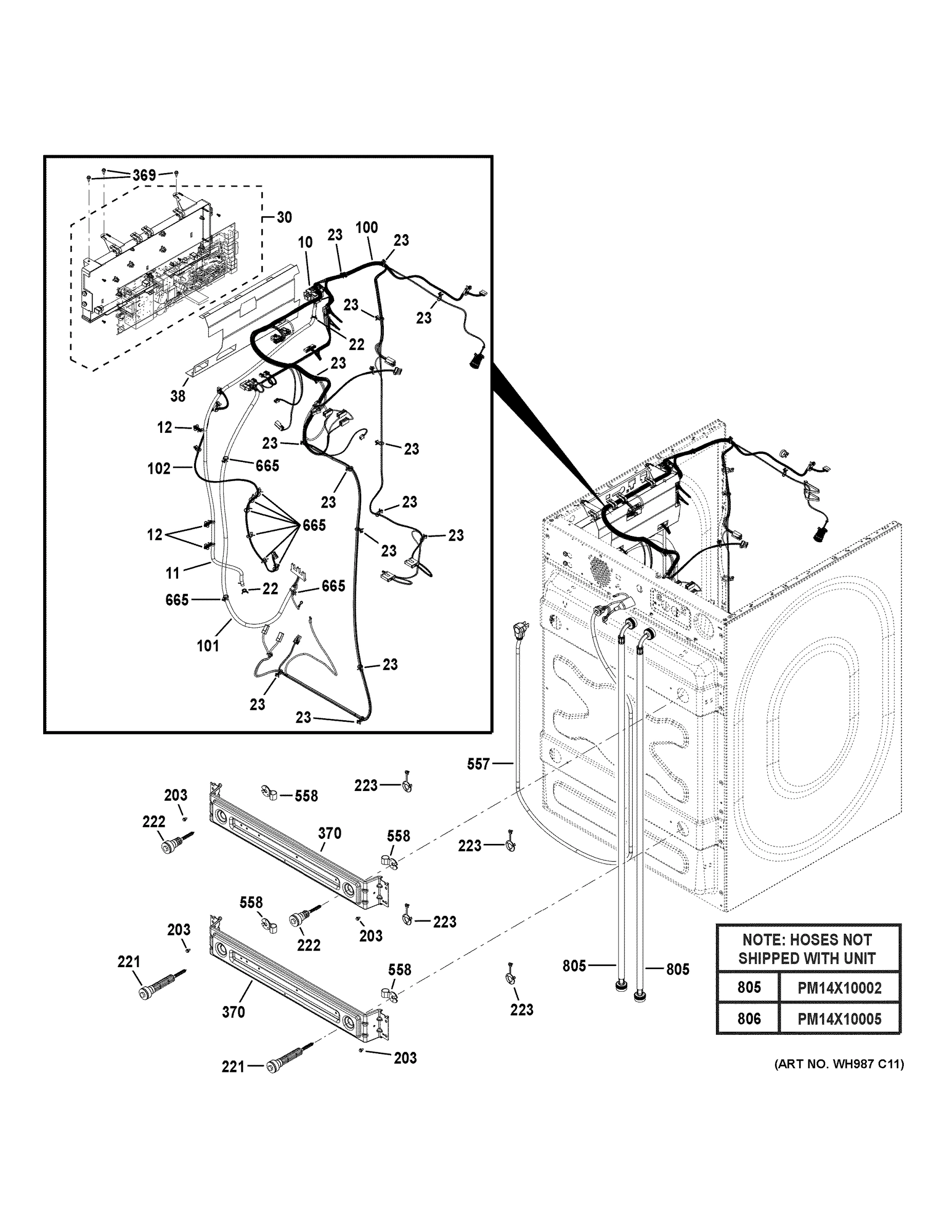

CABINET (2)

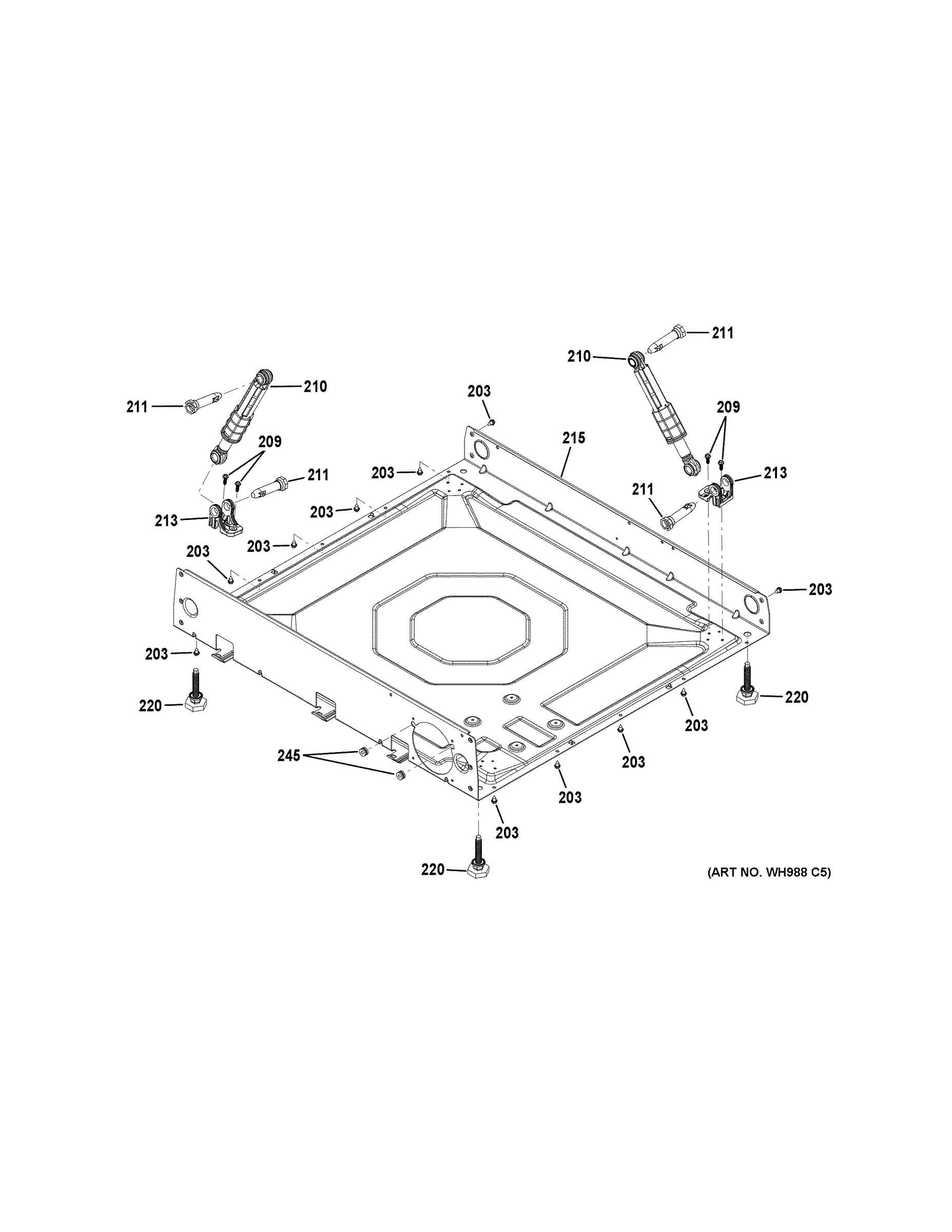

BASE PAN
Common parts from model GE GFWS2600F2WW Washer
10
SENSOR PRESSURE GEN WH12X10595 Contact Us For Availability
11
HOSE (PRESSURE) GEN WH41X10348 Contact Us For Availability
12
WIRE TIE STANDOFF GEN WH01X10750 Contact Us For Availability
113
KNOB GEN WE01X10415 Contact Us For Availability
114
RETAINER KNOB GEN WH01X10743 Contact Us For Availability
116
SCR 8-18 AB PNP 1-1/4 S GEN WH02X10403 Contact Us For Availability
117
SCR 8-18 AB PNP 2-1/8 S GEN WH02X10408 Contact Us For Availability
126
SCR 10-18 HI/LO HXW 1/2 GEN WR01X10619 Contact Us For Availability
130
DOOR DISPENSER ASM GEN WH47X10043 Contact Us For Availability
131
DRAWER BODY DISPENSER GEN WH47X10033 Contact Us For Availability
132
CAP SIPHON GEN WH47X20146 Contact Us For Availability
133
CUP DETERGENT GEN WH47X20147 Contact Us For Availability
134
CUP SIPHON DETERGENT GEN WH47X10036 Contact Us For Availability
135
RETAINER DRAWER DISP GEN WH47X10035 Contact Us For Availability
136
BADGE GE GEN WE19M10949 Contact Us For Availability
140
DIVERTER DRIVE ASM GEN WH47X10040 Contact Us For Availability
144
THERMISTOR GEN WH12X10597 Contact Us For Availability
145
HOSE FILL SUBWASHER GEN WH41X10337 Contact Us For Availability
147
CLAMP GEN WH01X10739 Contact Us For Availability
150
MANUAL DISPENSE BODY ASM GEN WH47X20507 Contact Us For Availability
154
CHANNEL Y GEN WH41X10355 Contact Us For Availability
157
HOSE (GLASS CLEAN) GEN WH41X10351 Contact Us For Availability
200
PANEL FRONT ASM (WH) GEN WH46X10288 Contact Us For Availability
203
SCR 10-16 B HXW 3/8 S GEN WH02X10396 Contact Us For Availability
209
SCR 10-16 AB HXW .532 GEN WH02X20698 Contact Us For Availability
210
DAMPER ASSEMBLY GEN WH01X10727 Contact Us For Availability
211
PIN DAMPER GEN WH01X10726 Contact Us For Availability
213
MOUNT DAMPER GEN WH01X10728 Contact Us For Availability
220
LEVELING LEG ASM GEN WH02X10401 Contact Us For Availability
221
SHIPPING BOLT LONG ASM GEN WH02X10413 Contact Us For Availability
222
SHIPPING BOLT SHORT ASM GEN WH02X10414 Contact Us For Availability
225
VALVE WATER ASM GEN WH13X10066 Contact Us For Availability
230
PANEL REAR TOP GEN WH10X10024 Contact Us For Availability
235
SPRING SUSPENSION GEN WH01X10730 Contact Us For Availability
238
SCR 10-16 AB 43WHEX 5/8 GEN WD02X10151 Contact Us For Availability
241
SCREW 10-32 GXTT FLP 595 GEN WR01X10065 Contact Us For Availability
250
HEATER ASM GEN WH12X10589 Contact Us For Availability
251
SHIELD HEATER GEN WH10X10010 Contact Us For Availability
261
PANEL TOP ASM (WH) GEN WH44X10324 Contact Us For Availability
278
PROTECT COVER DOOR GEN WH44X21159 Contact Us For Availability
284
STRIKER DOOR GEN WH01X10731 Contact Us For Availability
285
HINGE GEN WH01X10723 Contact Us For Availability
290
HINGE PLATE GEN WH01X10724 Contact Us For Availability
305
COUNTER WEIGHT GEN WH01X10717 Contact Us For Availability
307
SCR 1/4 PL HXW 1 1/4 S GEN WH02X10393 Contact Us For Availability
309
SCR 8-18 AB HW 1/2 SS GEN WD02X10166 Contact Us For Availability
310
TUB FRONT GEN WH45X10141 Contact Us For Availability
312
SCR 10-14 AB FLP 5/8S GEN WH02X10392 Contact Us For Availability
313
SEAL ORING GEN WH01X21994 Contact Us For Availability
315
TUB ASM REAR GEN WH45X10136 Contact Us For Availability
316
BAFFLE GEN WH16X10187 Contact Us For Availability
318
RING BALANCE ASM GEN WH45X10138 Contact Us For Availability
320
GASKET MAIN GEN WH08X22619 Contact Us For Availability
321
CLAMP GASKET GEN WH01X10742 Contact Us For Availability
322
NOZZLE GASKET GEN WH01X23255 Contact Us For Availability
326
RPS MODULE GEN WH12X23995 Contact Us For Availability
332
SCR 10-32 B TRT-25 5/8 GEN WH02X10139 Contact Us For Availability
356
AIR CHAMBER GEN WH41X10353 Contact Us For Availability
360
PUMP HOUSING COVER GEN WH44X10326 Contact Us For Availability
361
FUNNEL CLEANOUT GEN WH01X10754 Contact Us For Availability
362
ENCLOSURE PUMP HOUSING GEN WH01X10753 Contact Us For Availability
365
CLAMP GASKET GEN WH01X10744 Contact Us For Availability
370
BRACKET SHIPPING GEN WH10X10021 Contact Us For Availability
390
LOCK MODULE DOOR GEN WH01X23494 Contact Us For Availability
506
SCREW 8-16 HXW 1/2 SS GEN WD02X10067 Contact Us For Availability
557
CORD POWER GEN WH19X10126 Contact Us For Availability
617
GROMMET SCR GEN WR2X8349 Contact Us For Availability
630
ROTOR GEN WH39X10014 Contact Us For Availability
631
SCR 5/16-24 HXW 1 S GEN WH02X10409 Contact Us For Availability
633
SCR 5/16-18 HXW 1 1/4 S GEN WH02X10404 Contact Us For Availability
636
STATOR GEN WH39X10013 Contact Us For Availability
650
PUMP DRAIN GEN WH23X10051 Contact Us For Availability
651
HOSE DRAIN GEN WH41X20509 Contact Us For Availability
653
HOSE SUMP GEN WH41X10340 Contact Us For Availability
656
HOUSING COMBINATION PUMP GEN WH41X21494 Contact Us For Availability
657
FILTER PUMP ASM GEN WH41X10358 Contact Us For Availability
658
SEAL PUMP GEN WH08X10068 Contact Us For Availability
660
CAP FILTER GEN WH41X10343 Contact Us For Availability
805
2PK 4FT RUBBER INLET HOS GEN PM14X10002 Contact Us For Availability
× ![]()
