GFWR2700H1WW

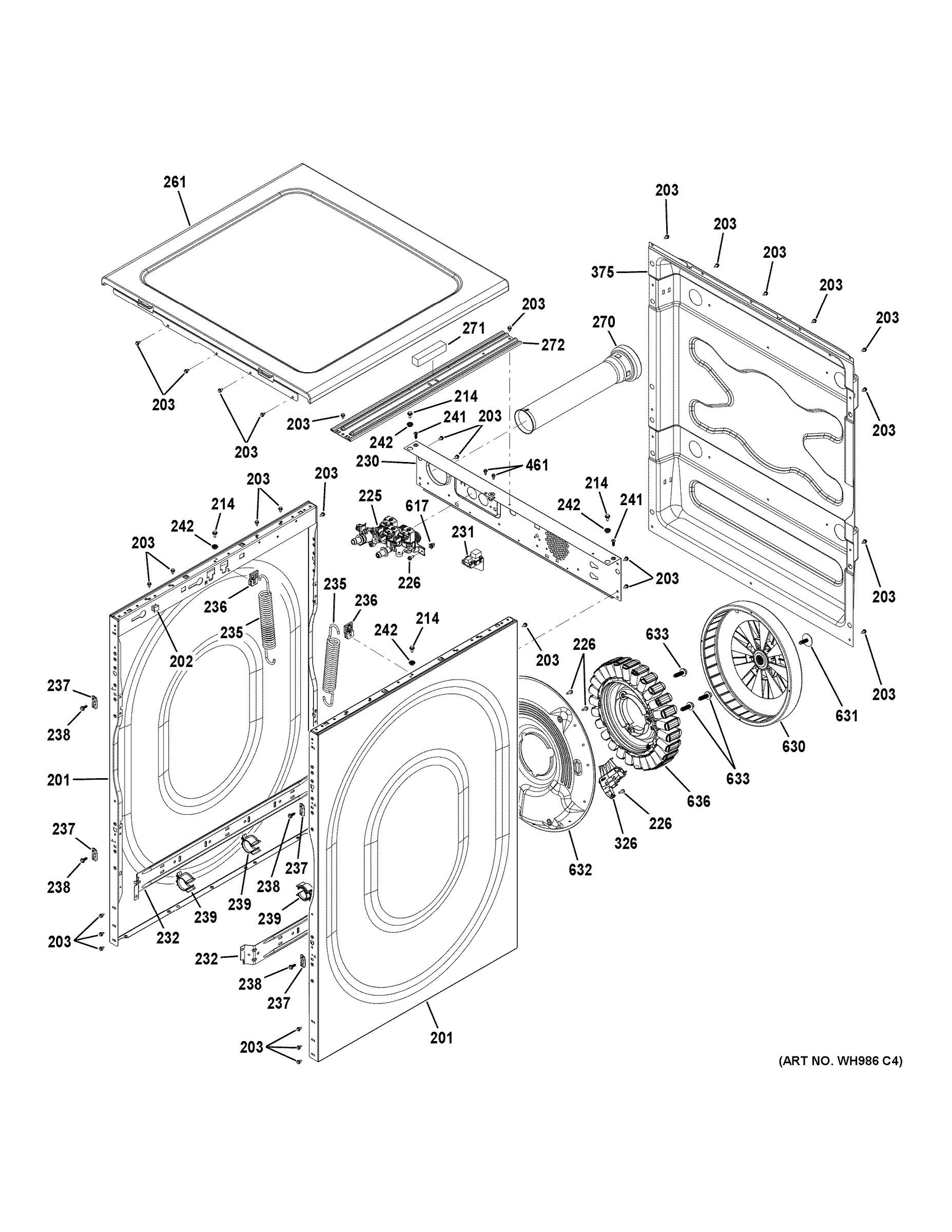

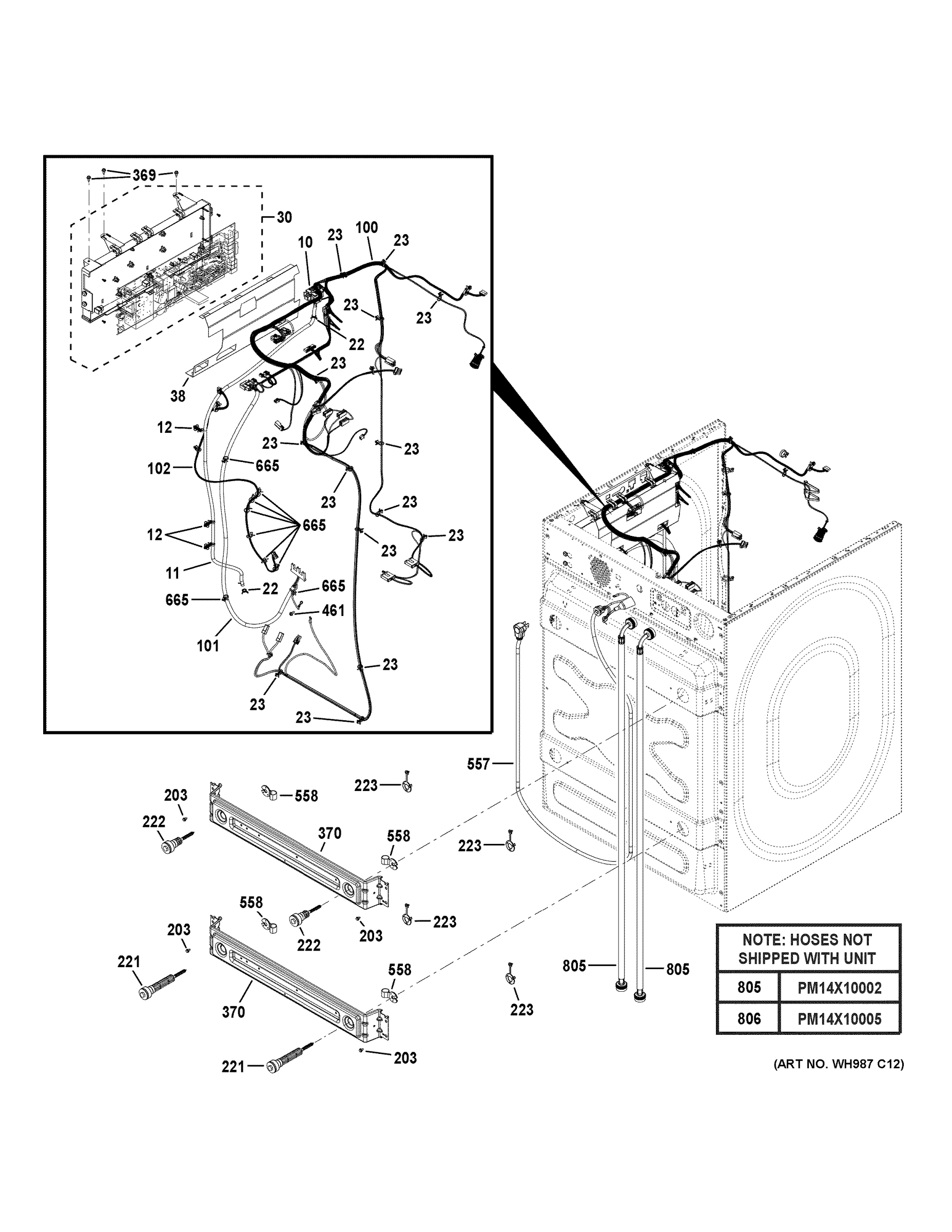

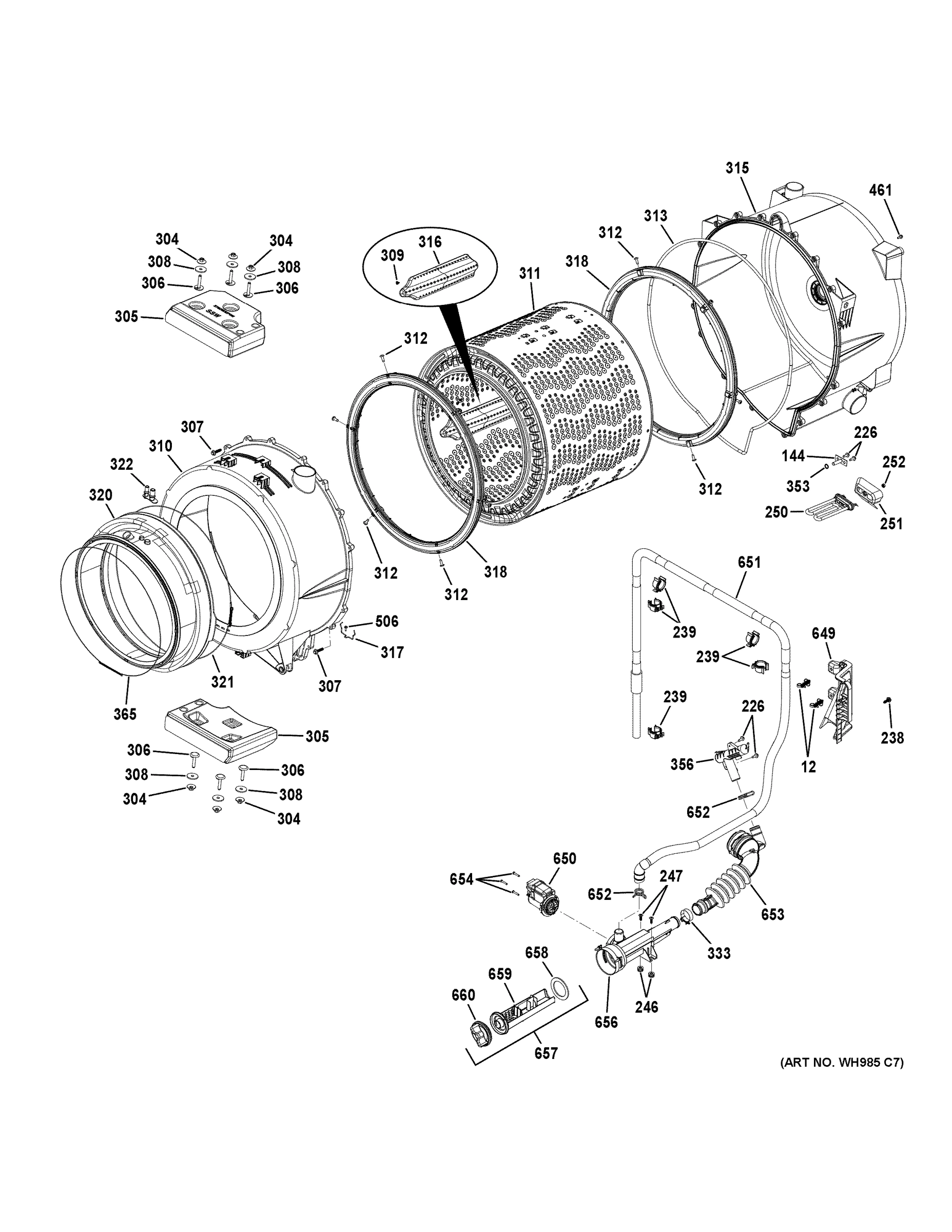

Model GFWR2700H1WW – Common Parts & Diagrams

Common parts from model GFWR2700H1WW

WH12X10595 GE Pressure Switch

WH12X10595 GE Pressure Switch In Stock GEN WH12X10595 $20.23

WH41X10348 GE Hose (Pressure)

WH41X10348 GE Hose (Pressure) Out of Stock GEN WH41X10348 $11.16

WH01X10750 GE Wire Tie Standoff

WH01X10750 GE Wire Tie Standoff Out of Stock GEN WH01X10750 $5.11

WH19X25934 GE Motor Harness

WH19X25934 GE Motor Harness Out of Stock GEN WH19X25934 $83.25

WH19X25495 GE Harness Pigtail HE

WH19X25495 GE Harness Pigtail HE Out of Stock GEN WH19X25495 $17.39

WH01X10748 GE Dryer Rubber Knob Assembly

WH01X10748 GE Dryer Rubber Knob Assembly In Stock GEN WH01X10748 $16.02

WH01X10743 GE Washer Dryer Retainer Knob

WH01X10743 GE Washer Dryer Retainer Knob Out of Stock GEN WH01X10743 $4.86

WH02X10403 GE Screw 8-18 AB PNP 1-1/4 S

WH02X10403 GE Screw 8-18 AB PNP 1-1/4 S Out of Stock GEN WH02X10403 $5.11

WH02X10408 GE Screw 8-18 AB PNP 2-1/8 S

WH02X10408 GE Screw 8-18 AB PNP 2-1/8 S Out of Stock GEN WH02X10408 $5.11

WE04X25572 GE Printed Circuit Board UI Assemb

WE04X25572 GE Printed Circuit Board UI Assemb Out of Stock GEN WE04X25572 $202.24

WR01X10619 GE Refrigerator Screw

WR01X10619 GE Refrigerator Screw Out of Stock GEN WR01X10619 $5.11

WH47X10043 GE Door Dispenser Assembly

WH47X10043 GE Door Dispenser Assembly Out of Stock GEN WH47X10043 $31.00

WH47X10033 GE Drawer Body Dispenser

WH47X10033 GE Drawer Body Dispenser Out of Stock GEN WH47X10033 $34.78

WH47X20146 GE Cap Siphon

WH47X20146 GE Cap Siphon Out of Stock GEN WH47X20146 $5.11

WH47X20147 GE Cup Detergent

WH47X20147 GE Cup Detergent Out of Stock GEN WH47X20147 $5.11

WH47X10036 GE Cup Siphon Detergent

WH47X10036 GE Cup Siphon Detergent Out of Stock GEN WH47X10036 $5.11

WH47X10035 GE Retainer Drawer Dispenser

WH47X10035 GE Retainer Drawer Dispenser Out of Stock GEN WH47X10035 $5.11

WE19M10949 GE Badge GE.

WE19M10949 GE Badge GE. Out of Stock GEN WE19M10949 $8.69

WH47X10040 GE Diverter Drive Assembly

WH47X10040 GE Diverter Drive Assembly Out of Stock GEN WH47X10040 $34.02

WH12X10597 GE Thermistor

WH12X10597 GE Thermistor Out of Stock GEN WH12X10597 $17.77

WH41X10337 GE Hose Fill Subwasher

WH41X10337 GE Hose Fill Subwasher Out of Stock GEN WH41X10337 $26.46

WH01X10739 GE Clamp

WH01X10739 GE Clamp Out of Stock GEN WH01X10739 $5.11

WH47X20507 GE Manual Dispense Body Assembly

WH47X20507 GE Manual Dispense Body Assembly Out of Stock GEN WH47X20507 $60.27

WH41X10355 GE Channel Y

WH41X10355 GE Channel Y Out of Stock GEN WH41X10355 $5.11

WH41X10351 GE Hose (Glass Clean)

WH41X10351 GE Hose (Glass Clean) Out of Stock GEN WH41X10351 $5.11

WH02X10396 GE Screw 10-16 B HXW 3/8 S

WH02X10396 GE Screw 10-16 B HXW 3/8 S Out of Stock GEN WH02X10396 $4.86

WH02X20698 GE Screw 10-16 AB HXW .532

WH02X20698 GE Screw 10-16 AB HXW .532 Out of Stock GEN WH02X20698 $5.11

WH01X10727 GE Washer Damper Assembly

WH01X10727 GE Washer Damper Assembly In Stock GEN WH01X10727 $15.12

WH01X10726 GE Pin Damper

WH01X10726 GE Pin Damper Out of Stock GEN WH01X10726 $5.11

WH01X10728 GE Damper Mount

WH01X10728 GE Damper Mount Out of Stock GEN WH01X10728 $5.11

WH02X10401 GE Levelling Leg Assembly

WH02X10401 GE Levelling Leg Assembly Out of Stock GEN WH02X10401 $5.11

WH02X10413 GE Bolt Long Assembly

WH02X10413 GE Bolt Long Assembly Out of Stock GEN WH02X10413 $9.27

WH02X10414 GE Bolt Short Assembly

WH02X10414 GE Bolt Short Assembly Out of Stock GEN WH02X10414 $19.48

WH13X10066 GE Washer Water Valve Assembly

WH13X10066 GE Washer Water Valve Assembly Out of Stock GEN WH13X10066 $62.30

WH10X10024 GE Panel Rear Top

WH10X10024 GE Panel Rear Top Out of Stock GEN WH10X10024 $16.38

WH01X10730 GE Spring Suspension

WH01X10730 GE Spring Suspension Out of Stock GEN WH01X10730 $10.96

WD02X10151 GE Dishwasher Screw 10-16 AB 43WHE

WD02X10151 GE Dishwasher Screw 10-16 AB 43WHE Out of Stock GEN WD02X10151 $5.11

WR01X10065 GE Screw

WR01X10065 GE Screw Out of Stock GEN WR01X10065 $5.11

WH12X10589 GE Heater Assembly

WH12X10589 GE Heater Assembly Out of Stock GEN WH12X10589 $48.76

WH10X10010 GE Shield Heater

WH10X10010 GE Shield Heater Out of Stock GEN WH10X10010 $6.62

WH44X21159 GE Door Protector Cover

WH44X21159 GE Door Protector Cover Out of Stock GEN WH44X21159 $61.01

WH46X25561 GE Glass Door

WH46X25561 GE Glass Door Out of Stock GEN WH46X25561 $61.20

WH01X10731 GE Striker Door

WH01X10731 GE Striker Door Out of Stock GEN WH01X10731 $5.11

WH01X10723 GE Hinge

WH01X10723 GE Hinge Out of Stock GEN WH01X10723 $27.18

WH01X10724 GE Hinge Plate

WH01X10724 GE Hinge Plate Out of Stock GEN WH01X10724 $4.86

WH01X10717 GE Counter Weight

WH01X10717 GE Counter Weight Out of Stock GEN WH01X10717 $36.11

WH02X10393 GE Screw 1/4 PL HXW 1 1/4 S

WH02X10393 GE Screw 1/4 PL HXW 1 1/4 S Out of Stock GEN WH02X10393 $5.29

WD02X10166 GE Dishwasher Screw 8-18 AB HW 1/2

WD02X10166 GE Dishwasher Screw 8-18 AB HW 1/2 Out of Stock GEN WD02X10166 $5.11

WH45X10141 GE Washer Tub Front

WH45X10141 GE Washer Tub Front In Stock GEN WH45X10141 $85.26

WH02X10392 GE Screw 10-14 AB FLP 5/8S

WH02X10392 GE Screw 10-14 AB FLP 5/8S Out of Stock GEN WH02X10392 $5.11

WH45X10136 GE Tub Bearing and Seal Kit

WH45X10136 GE Tub Bearing and Seal Kit Out of Stock GEN WH45X10136 $367.76

WH16X10187 GE Baffle

WH16X10187 GE Baffle Out of Stock GEN WH16X10187 $10.03

WH45X10138 GE Ring Balance Assembly

WH45X10138 GE Ring Balance Assembly In Stock GEN WH45X10138 $73.69

WH01X10742 GE Clamp Gasket

WH01X10742 GE Clamp Gasket Out of Stock GEN WH01X10742 $5.11

WH01X23255 GE Nozzle Gasket

WH01X23255 GE Nozzle Gasket Out of Stock GEN WH01X23255 $4.63

WH02X10139 GE Screw 10-32 B TRT-25 5/8

WH02X10139 GE Screw 10-32 B TRT-25 5/8 Out of Stock GEN WH02X10139 $5.11

WH41X10353 GE Air Chamber

WH41X10353 GE Air Chamber Out of Stock GEN WH41X10353 $11.34

WH44X10326 GE Pump Housing Cover

WH44X10326 GE Pump Housing Cover Out of Stock GEN WH44X10326 $8.69

WH01X10754 GE Laundry Funnel Cleanout

WH01X10754 GE Laundry Funnel Cleanout Out of Stock GEN WH01X10754 $5.11

WH01X10753 GE Enclosure Pump Housing

WH01X10753 GE Enclosure Pump Housing Out of Stock GEN WH01X10753 $5.76

WH01X10744 GE Washer Clamp Gasket

WH01X10744 GE Washer Clamp Gasket Out of Stock GEN WH01X10744 $5.11

WH10X10021 GE Bracket

WH10X10021 GE Bracket Out of Stock GEN WH10X10021 $28.73

WD02X10067 GE Dishwasher Stainless Steel Scre

WD02X10067 GE Dishwasher Stainless Steel Scre In Stock GEN WD02X10067 $5.11

WH19X10126 GE Cord Power

WH19X10126 GE Cord Power Out of Stock GEN WH19X10126 $22.30

WH39X10014 GE Rotor

WH39X10014 GE Rotor In Stock GEN WH39X10014 $97.21

WH02X10409 GE Screw 5/16-24 HXW

WH02X10409 GE Screw 5/16-24 HXW Out of Stock GEN WH02X10409 $5.11

WH02X10404 GE Screw 5/16-18 HXW 1 1/4 S

WH02X10404 GE Screw 5/16-18 HXW 1 1/4 S Out of Stock GEN WH02X10404 $5.11

WH39X10013 GE Stator

WH39X10013 GE Stator In Stock GEN WH39X10013 $82.69

WH23X10051 GE Washer Drain Pump

WH23X10051 GE Washer Drain Pump In Stock GEN WH23X10051 $58.66

WH41X20509 GE Drain Hose

WH41X20509 GE Drain Hose Out of Stock GEN WH41X20509 $20.23

WH41X10340 GE Hose Sump

WH41X10340 GE Hose Sump Out of Stock GEN WH41X10340 $31.57

WH41X10359 GE Housing Combination Pump

WH41X10359 GE Housing Combination Pump Out of Stock GEN WH41X10359 $18.34

WH41X10358 GE Filter Pump Assembly

WH41X10358 GE Filter Pump Assembly Out of Stock GEN WH41X10358 $13.99

WH08X10068 GE Seal Pump

WH08X10068 GE Seal Pump Out of Stock GEN WH08X10068 $5.11

WH41X10343 GE Washer Cap Filter

WH41X10343 GE Washer Cap Filter Out of Stock GEN WH41X10343 $5.11

PM14X10002 GE 2 Pack 4FT Rubber Inlet HoseS

PM14X10002 GE 2 Pack 4FT Rubber Inlet HoseS Out of Stock GEN PM14X10002 $11.09
