GE GFW550SPN1DG Washer | Part Advantage

11

Backorder GEN WH01X26257 $5.73

View on Model

12

WH02X29626 GE Ground Harness Clamp Backorder GEN WH02X29626 $6.39

View on Model

23

WH01X26259 GE Wire Tie Backorder GEN WH01X26259 $5.20

View on Model

30

WH22X38697 GE Washer Main Control Board In Stock GEN WH22X38697 $137.59

View on Model

38

WH01X29667 GE Control Board Cover Backorder GEN WH01X29667 $19.38

View on Model

100

WH08X29513 GE Main Harness In Stock GEN WH08X29513 $117.39

View on Model

113

WH01X30000 GE Knob Selector Backorder GEN WH01X30000 $25.25

View on Model

114

WH01X29633 GE Wi-Fi Bracket Backorder GEN WH01X29633 $9.02

View on Model

116

WH22X36577 GE Wi-Fi and Bluetooth Board with Backorder GEN WH22X36577 $40.48

View on Model

120

WH22X34917 GE Washer User Interface Board wit In Stock GEN WH22X34917 $359.53

View on Model

121

WH01X29655 GE Upper Right Harness Support Backorder GEN WH01X29655 $5.22

View on Model

122

WH01X29678 GE Washer Lower Right Harness Supp Backorder GEN WH01X29678 $5.76

View on Model

124

WH02X29673 GE Access Cover Damper Pin Backorder GEN WH02X29673 $5.22

View on Model

126

M SCREW GEN WH02X27219 Contact Us For Availability

View on Model

128

WH01X29631 GE Power Button Support Backorder GEN WH01X29631 $5.73

View on Model

129

WH01X29613 GE External Drain Hose Support Backorder GEN WH01X29613 $5.20

View on Model

131

WH02X29619 GE Drain Hose Guide Backorder GEN WH02X29619 $6.39

View on Model

132

WH02X29616 GE Internal Drain Hose Assembly Backorder GEN WH02X29616 $5.73

View on Model

133

WH41X38917 GE External Drain Hose Fl Washer Backorder GEN WH41X38917 $15.30

View on Model

134

WH01X29676 GE Bottom Support Harness Backorder GEN WH01X29676 $5.73

View on Model

140

WH23X29538 GE Hot Water Valve In Stock GEN WH23X29538 $53.27

View on Model

141

WH01X29651 GE Left Harness Support Backorder GEN WH01X29651 $5.73

View on Model

146

WH02X26240 GE Screw Backorder GEN WH02X26240 $6.37

View on Model

150

WH42X35099 GE Manual Dispense Drawer Backorder GEN WH42X35099 $108.54

View on Model

153

WH22X38837 GE Inverter Board Fl Washer In Stock GEN WH22X38837 $127.95

View on Model

154

WH01X35100 GE Inverter Box Drive Motor Backorder GEN WH01X35100 $13.73

View on Model

155

WH01X29624 GE Inverter Cover Backorder GEN WH01X29624 $6.04

View on Model

156

WH01X26320 GE Air Conditioner Internal Drain Backorder GEN WH01X26320 $6.39

View on Model

161

WR01X28375 GE M5 x 16 Screw Backorder GEN WR01X28375 $5.20

View on Model

175

INVERTER HEAT SHIELD Backorder GEN WH01X30353 $5.49

View on Model

182

WE02X26338 GE Front Panel Screws Backorder GEN WE02X26338 $6.37

View on Model

185

FOAM PAD GEN WH01X30277 Contact Us For Availability

View on Model

195

WH01X30057 GE Lock Assembly In Stock GEN WH01X30057 $5.71

View on Model

199

WH01X30344 GE Washer Latch Cover Diamond Gray Backorder GEN WH01X30344 $5.76

View on Model

201

WH01X29610 GE Washer Front Damper Gasket Clam Backorder GEN WH01X29610 $5.20

View on Model

203

WH02X30339 GE Ground Screw In Stock GEN WH02X30339 $5.20

View on Model

204

WH02X26236 GE Screw Assembly Backorder GEN WH02X26236 $6.37

View on Model

205

WH01X29641 GE Door Glass Hose Backorder GEN WH01X29641 $7.05

View on Model

206

WH01X29612 GE Hose Guide Backorder GEN WH01X29612 $5.73

View on Model

208

WH01X29223 GE Spray Nozzle to Glass Backorder GEN WH01X29223 $5.20

View on Model

209

WH01X29661 GE Rear Damper Gasket Clamp Backorder GEN WH01X29661 $5.20

View on Model

210

WH03X29516 GE Suspension Damper In Stock GEN WH03X29516 $14.80

View on Model

211

WH01X29647 GE Damper Pin In Stock GEN WH01X29647 $5.71

View on Model

212

WH01X29652 GE Dispenser Fill Hose In Stock GEN WH01X29652 $11.42

View on Model

213

WH41X29621 GE Dispenser Nozzle Fill Hose Backorder GEN WH41X29621 $5.22

View on Model

214

WH02X29617 GE Top Panel Pin Backorder GEN WH02X29617 $5.22

View on Model

215

WH13X29675 GE Rear Damper Bracket Backorder GEN WH13X29675 $5.22

View on Model

216

WH02X30340 GE Drain Hose Fixing Screw Backorder GEN WH02X30340 $6.39

View on Model

218

WH13X29653 GE Front Damper Bracket Backorder GEN WH13X29653 $5.20

View on Model

219

WH01X37477 GE Leveling Leg Wrench Washer Backorder GEN WH01X37477 $5.23

View on Model

220

WH01X29505 GE Leveling Leg In Stock GEN WH01X29505 $8.25

View on Model

221

WH02X30002 GE Washer Bolt In Stock GEN WH02X30002 $11.00

View on Model

222

WH02X29999 GE Washer Bolt In Stock GEN WH02X29999 $8.59

View on Model

223

WH02X29671 GE Washer Shipping Bolt Hole Cover Backorder GEN WH02X29671 $5.22

View on Model

226

WH02X26247 GE Housing Screw ST4 12 Backorder GEN WH02X26247 $6.37

View on Model

228

WH16X29504 GE Fan Housing Overnight Dry Backorder GEN WH16X29504 $6.46

View on Model

229

HEAT SHIELD Backorder GEN WH01X30350 $27.74

View on Model

230

TERMINAL BRACKET GEN WH01X30356 Contact Us For Availability

View on Model

233

WH03X37841 GE Accelerometer with Instructions In Stock GEN WH03X37841 $35.52

View on Model

234

WH02X26515 GE Screw Backorder GEN WH02X26515 $6.08

View on Model

235

WH03X29511 GE Suspension Spring Backorder GEN WH03X29511 $11.73

View on Model

236

WH02X29668 GE Left Spring Sheath Backorder GEN WH02X29668 $5.78

View on Model

237

WH02X29640 GE Right Sheath Spring Backorder GEN WH02X29640 $5.20

View on Model

239

WH02X29635 GE External Drain Hose Support Backorder GEN WH02X29635 $5.20

View on Model

240

WH01X34126 GE Overnight Dry Filter Backorder GEN WH01X34126 $5.58

View on Model

242

WH02X29656 GE Pressure Hose Clamp Backorder GEN WH02X29656 $6.39

View on Model

243

WH41X29649 GE Dry Hose Assembly Backorder GEN WH41X29649 $19.80

View on Model

246

WH02X29677 GE Drive Motor Flan Nut Backorder GEN WH02X29677 $18.48

View on Model

260

WH02X26905 GE Drive Motor Bolt Backorder GEN WH02X26905 $6.39

View on Model

261

WH13X29645 GE Accelerator Clamp Backorder GEN WH13X29645 $5.20

View on Model

262

WH13X30877 GE Top Panel Diamond Gray Backorder GEN WH13X30877 $70.52

View on Model

271

WH01X28406 GE Crossbrace Foam Pad Backorder GEN WH01X28406 $5.20

View on Model

272

WH13X29672 GE Cross Brace Backorder GEN WH13X29672 $11.35

View on Model

274

WH02X29609 GE Ground Screw Backorder GEN WH02X29609 $5.20

View on Model

280

WH10X29544 GE Washer Door Backorder GEN WH10X29544 $293.96

View on Model

281

WH13X29611 GE Support Door Strike Backorder GEN WH13X29611 $5.78

View on Model

302

WH02X29660 GE Rear Counterweight Assembly Backorder GEN WH02X29660 $12.74

View on Model

304

WH01X29648 GE Counterweight Lower Backorder GEN WH01X29648 $35.56

View on Model

305

WH02X29636 GE Upper Counterweight Backorder GEN WH02X29636 $30.82

View on Model

306

WH02X29657 GE Bolt Counterweight Backorder GEN WH02X29657 $6.44

View on Model

307

WH02X26297 GE Tub Bolt Backorder GEN WH02X26297 $5.20

View on Model

308

WH02X29662 GE Counterweight Flange Nut Backorder GEN WH02X29662 $4.58

View on Model

309

WH02X30341 GE Basket Baffle Screw Backorder GEN WH02X30341 $6.39

View on Model

310

WH21X29646 GE Front Tub Assembly Backorder GEN WH21X29646 $186.07

View on Model

311

WH21X29681 GE Basket Backorder GEN WH21X29681 $270.48

View on Model

315

WH21X29658 GE Rear Tub Backorder GEN WH21X29658 $122.41

View on Model

316

WH13X29679 GE Baffle Backorder GEN WH13X29679 $6.92

View on Model

318

WH05X29620 GE Seal Tub Backorder GEN WH05X29620 $9.24

View on Model

320

WH05X29521 GE Door Gasket In Stock GEN WH05X29521 $96.38

View on Model

321

WH01X29615 GE Inner Clamp Gasket In Stock GEN WH01X29615 $6.37

View on Model

326

WH03X29524 GE Motor In Stock GEN WH03X29524 $169.99

View on Model

327

WH01X30369 GE Motor Shield Backorder GEN WH01X30369 $9.02

View on Model

333

WH02X30362 GE Drain Pump Clamp Backorder GEN WH02X30362 $5.20

View on Model

356

WH03X29654 GE Pressure Chamber Backorder GEN WH03X29654 $10.32

View on Model

362

WH11X29644 GE Drain Pump Housing Backorder GEN WH11X29644 $5.29

View on Model

365

WH05X29663 GE Boot Clamp Gasket In Stock GEN WH05X29663 $5.71

View on Model

370

WH13X29674 GE Bracket Shipping Backorder GEN WH13X29674 $14.04

View on Model

375

WH10X29625 GE Cover Rear Backorder GEN WH10X29625 $16.73

View on Model

390

WH01X29528 GE Door Lock In Stock GEN WH01X29528 $37.38

View on Model

557

WH08X29508 GE Power Cord Backorder GEN WH08X29508 $38.78

View on Model

560

WH01X26319 GE Washer Hose Clip Connector Backorder GEN WH01X26319 $6.39

View on Model

561

WH02X29623 GE Overnight Dry Hose Clamp Backorder GEN WH02X29623 $6.42

View on Model

617

WH02X27118 GE Water Valve Screws Backorder GEN WH02X27118 $6.62

View on Model

630

WH03X29622 GE Appliance Pulley Backorder GEN WH03X29622 $27.82

View on Model

631

WH02X30342 GE Screw Pulley Backorder GEN WH02X30342 $7.89

View on Model

636

WH03X29522 GE Driver Belt Assembly In Stock GEN WH03X29522 $25.10

View on Model

651

WH41X29630 GE Hose Pressure Backorder GEN WH41X29630 $5.82

View on Model

652

WH01X26324 GE Upper Pressure Hose Clamp Backorder GEN WH01X26324 $6.37

View on Model

653

WH41X29628 GE Tub to Pump Hose Backorder GEN WH41X29628 $10.38

View on Model

655

WH23X38617 GE Pump Filter with Seal In Stock GEN WH23X38617 $8.78

View on Model

656

DRAIN PUMP FILTER In Stock GEN WH11X39237 $68.60

View on Model

658

WH01X27149 GE Washer Clamp Backorder GEN WH01X27149 $6.39

View on Model

All Categories

Brands

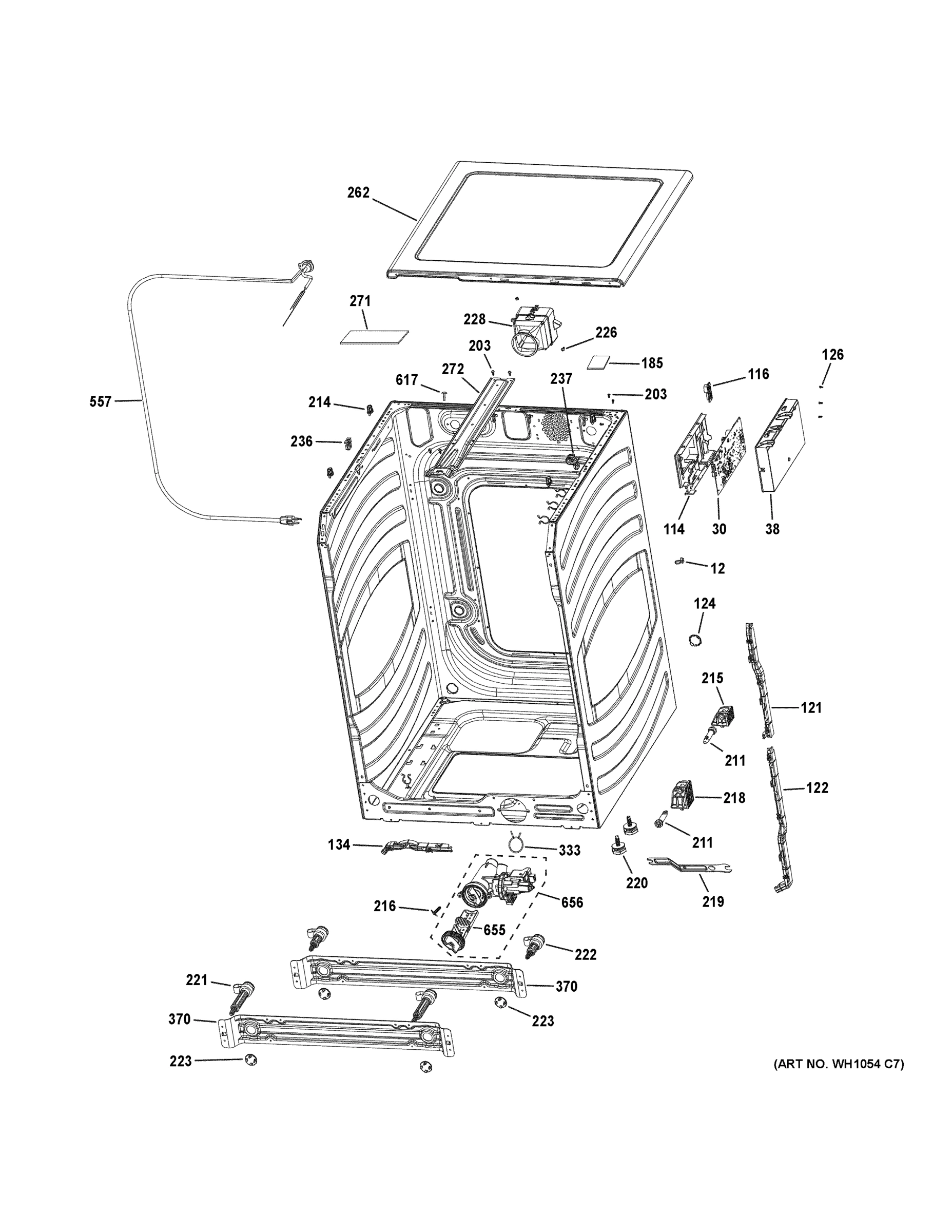

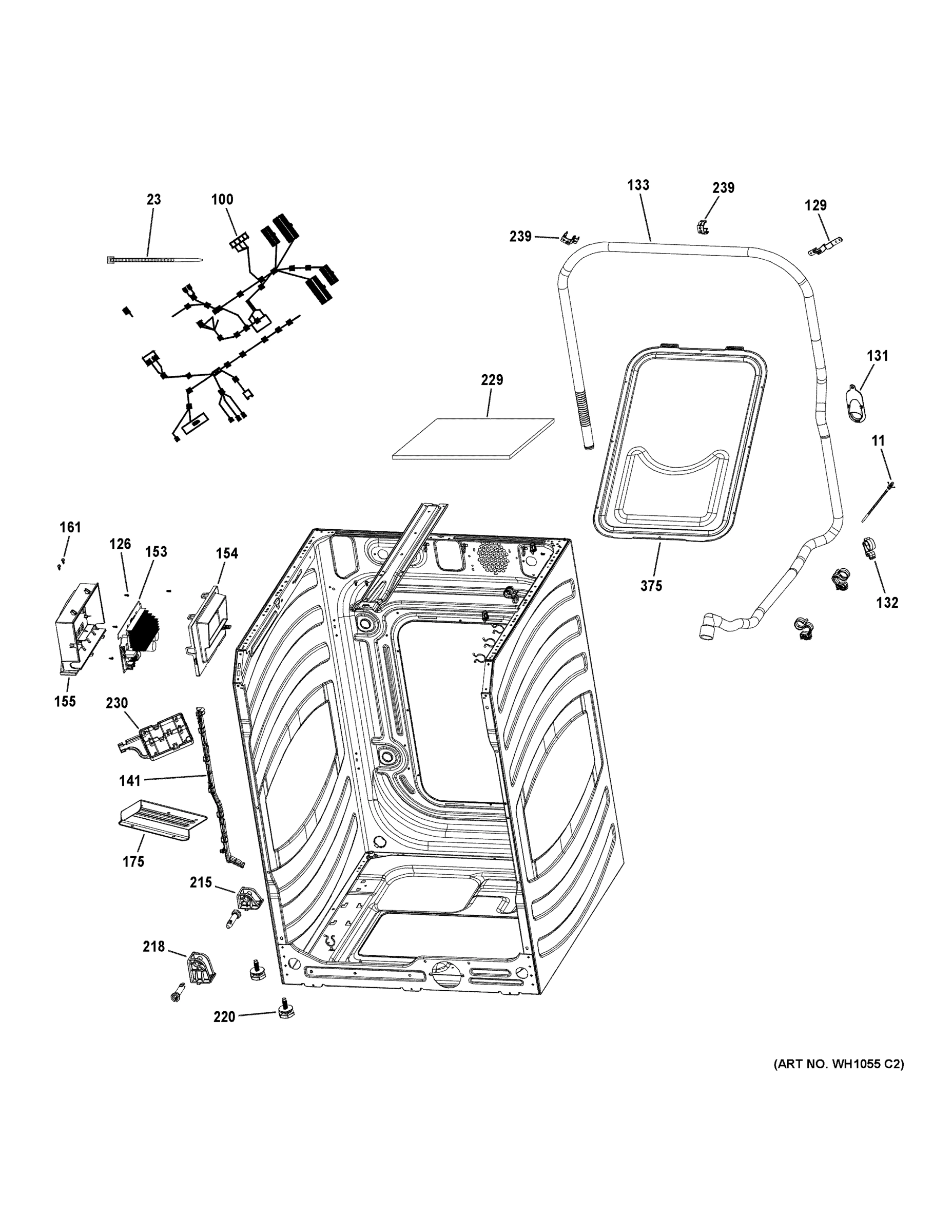

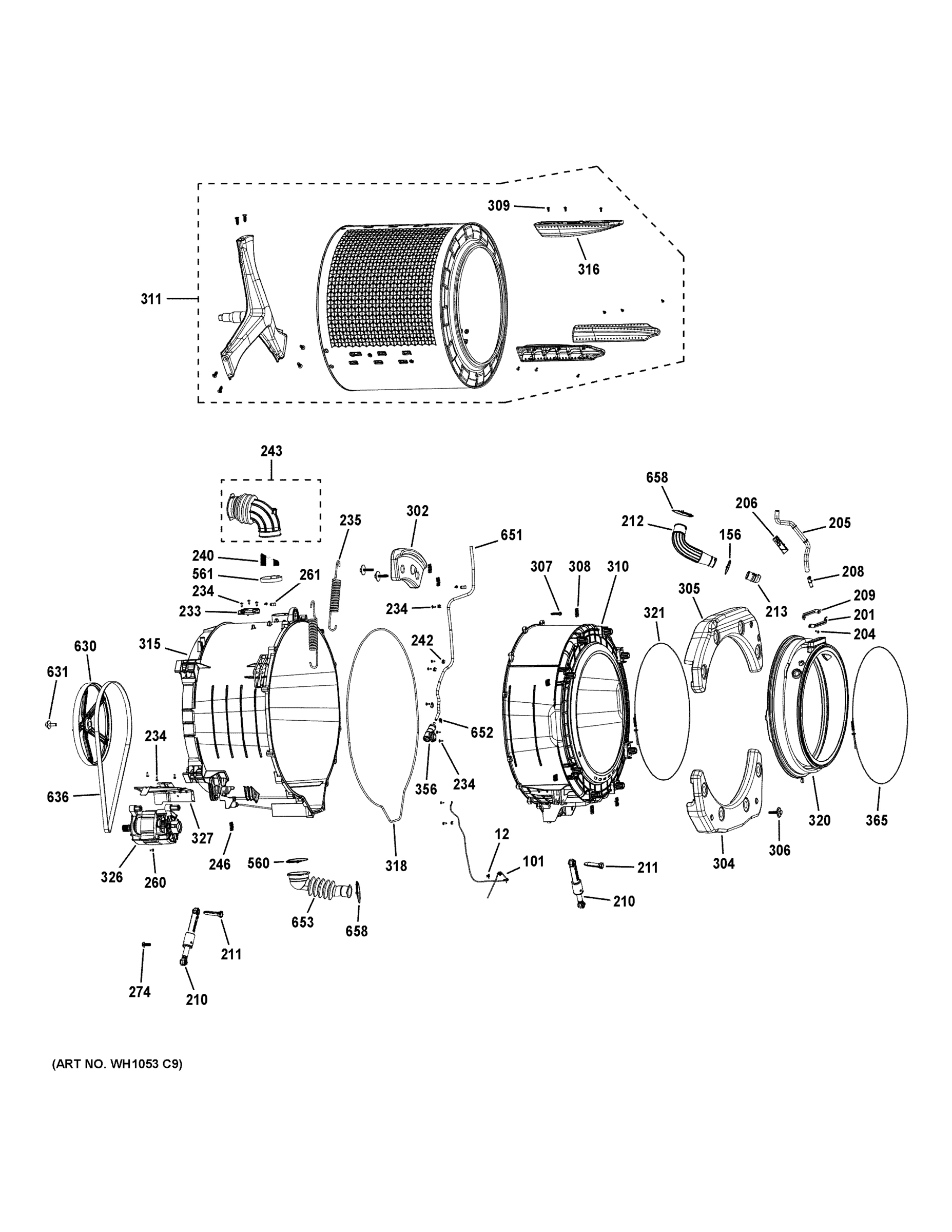

Model GE GFW550SPN1DG Washer – Common Parts & Diagrams

Common parts from model GE GFW550SPN1DG Washer
