Model Gibson GFU20F7GW4 FREEZER – Common Parts & Diagrams

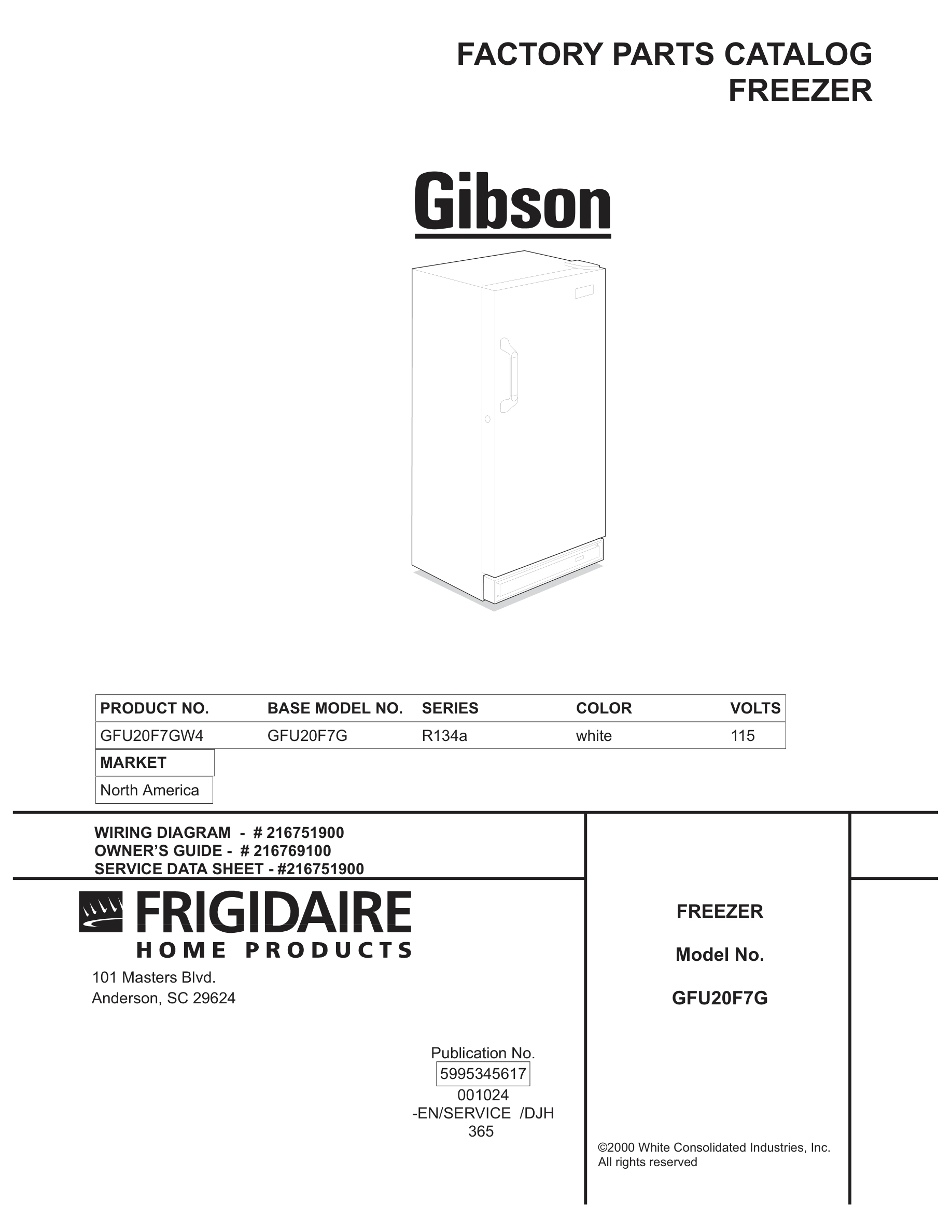

01 - COVER

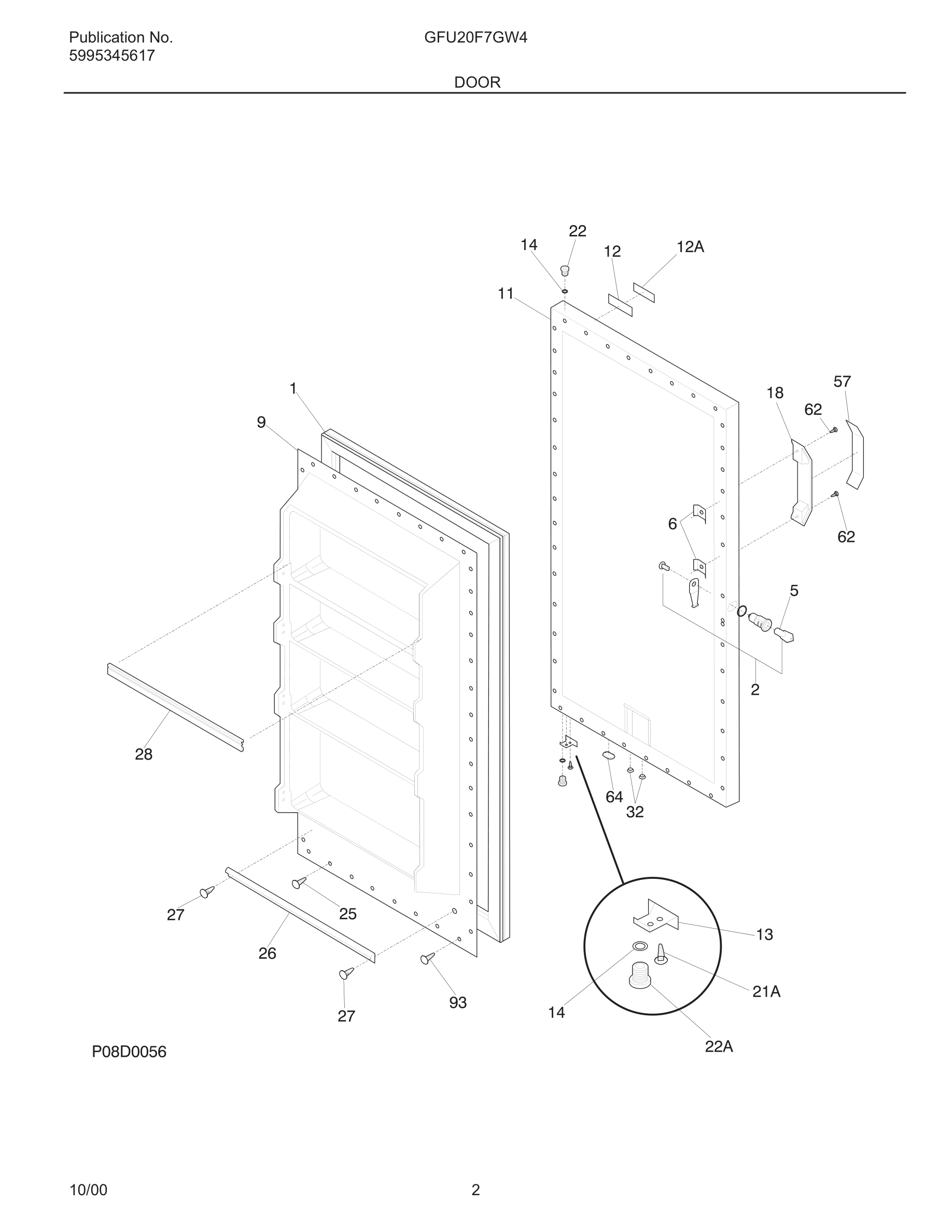

03 - DOOR
05 - CABINET
07 - SYSTEM
Common parts from model Gibson GFU20F7GW4 FREEZER
*
Insulation,drain tube WCI 09948773 Contact Us For Availability
*
Sleeve-tube insert WCI 216502500 Contact Us For Availability
*
Clip-cord WCI 05878556 Contact Us For Availability
5#
Harness-main WCI 216748100 Contact Us For Availability
13
Door Stop WCI 08016354 Contact Us For Availability
15A
Heat Exchanger WCI 216751000 Contact Us For Availability
16#
Socket-light/lamp WCI 5300136117 Contact Us For Availability
18
Handle,white WCI 216446900 Contact Us For Availability
18
Insulator-evap,styrofoam WCI 216727600 Contact Us For Availability
19
Gasket-cover evap WCI 216204901 Contact Us For Availability
19
Insulator-evap,styrofoam WCI 216727700 Contact Us For Availability
21#
Control-temperature WCI 216521100 Contact Us For Availability
24
Bracket WCI 08016580 Contact Us For Availability
26
Ramp,closer ,door WCI 216503300 Contact Us For Availability
26
Spacer tube,(3) WCI 216511900 Contact Us For Availability
30#
Controller WCI 216649309 Contact Us For Availability
32
Valve-breather WCI 5309950074 Contact Us For Availability
32
Clip-controller WCI 216731900 Contact Us For Availability
34
Sleeve-compressor WCI 5306594529 Contact Us For Availability
34
Shield-light WCI 216557600 Contact Us For Availability
35
Screw,Ind hex sems ,1/4-28 unfx ,compressor WCI 5303272328 Contact Us For Availability
38
Hinge-upper WCI 5303925086 Contact Us For Availability
39
Nut-insert,hinge WCI 5303294372 Contact Us For Availability
40
Cover-hinge WCI 5303212912 Contact Us For Availability
41
Screw-top hinge WCI 5303212937 Contact Us For Availability
42
Shelf,14.50x27.88 ,WH WCI 216458400 Contact Us For Availability
42A
Shelf,wire ,16.69x26.88 ,white ,(3) WCI 216458500 Contact Us For Availability
42B
Shelf-fixed w/frame,white WCI 216546000 Contact Us For Availability
43
Clip,cord WCI 09950610 Contact Us For Availability
44#
Switch-rocker WCI 5303017178 Contact Us For Availability
46
Screw,PH type AB ,8-32x1/2 ,wiring harness WCI 08037851 Contact Us For Availability
50
Bracket-motor mtg fan WCI 216394000 Contact Us For Availability
56
Screw-control knob,phillips ,4-40 x 3/8 WCI 09950853 Contact Us For Availability
59
Basket WCI 216154400 Contact Us For Availability
59A
Stop-basket WCI 09948791 No Longer Available
64
Plug-button,base door WCI 216403700 Contact Us For Availability
64
Bracket WCI 08016369 Contact Us For Availability
66#
Buzzer,alarm WCI 216713700 Contact Us For Availability
72
Grille/Kickplate WCI 216591122 Contact Us For Availability
77#
Sensor Assy WCI 5303313631 Contact Us For Availability
78
Housing-sensor WCI 3205349 Contact Us For Availability
80
Bracket,control WCI 06594601 Contact Us For Availability
87
Screw WCI 08037849 Contact Us For Availability
108
Trap-drain WCI 216388600 Contact Us For Availability
130
Support-evaporator WCI 216730400 Contact Us For Availability
132
Screw,6-20AB x 3/8 WCI 5303283898 Contact Us For Availability
× ![]()
