Model Electrolux GEF400WAW1 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - DRAWER PARTS

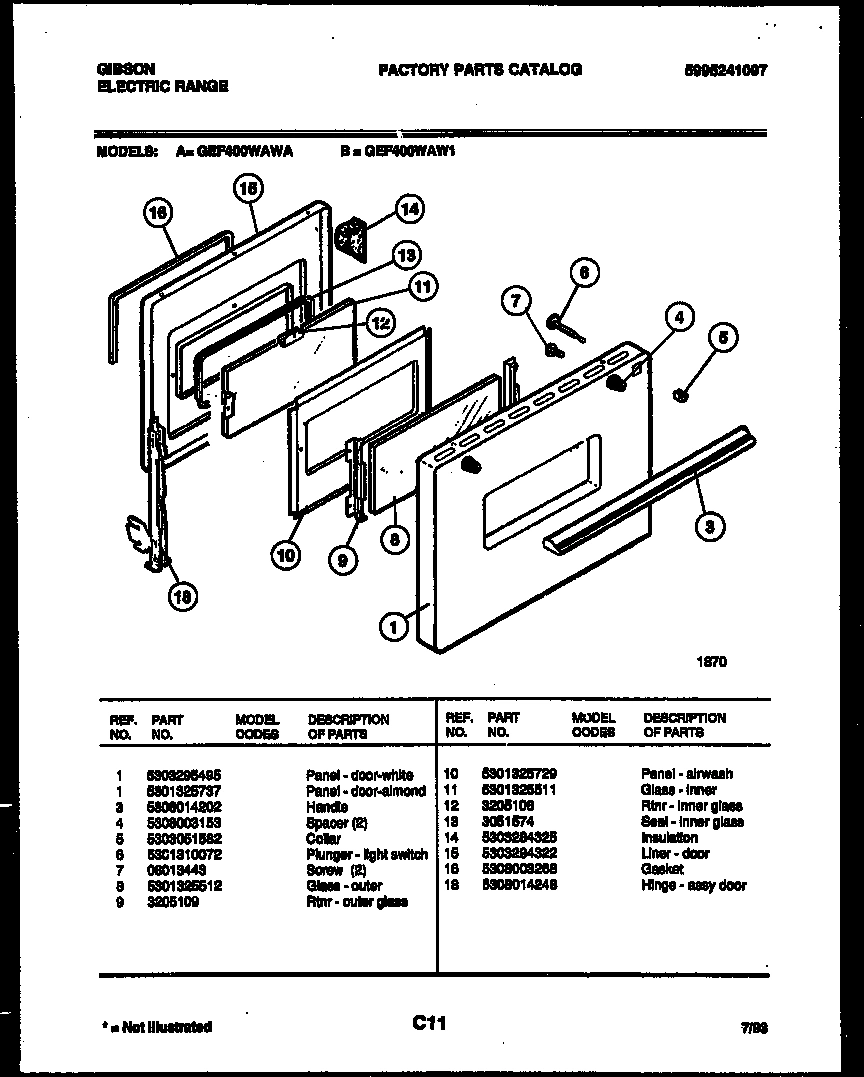

04 - DOOR PARTS

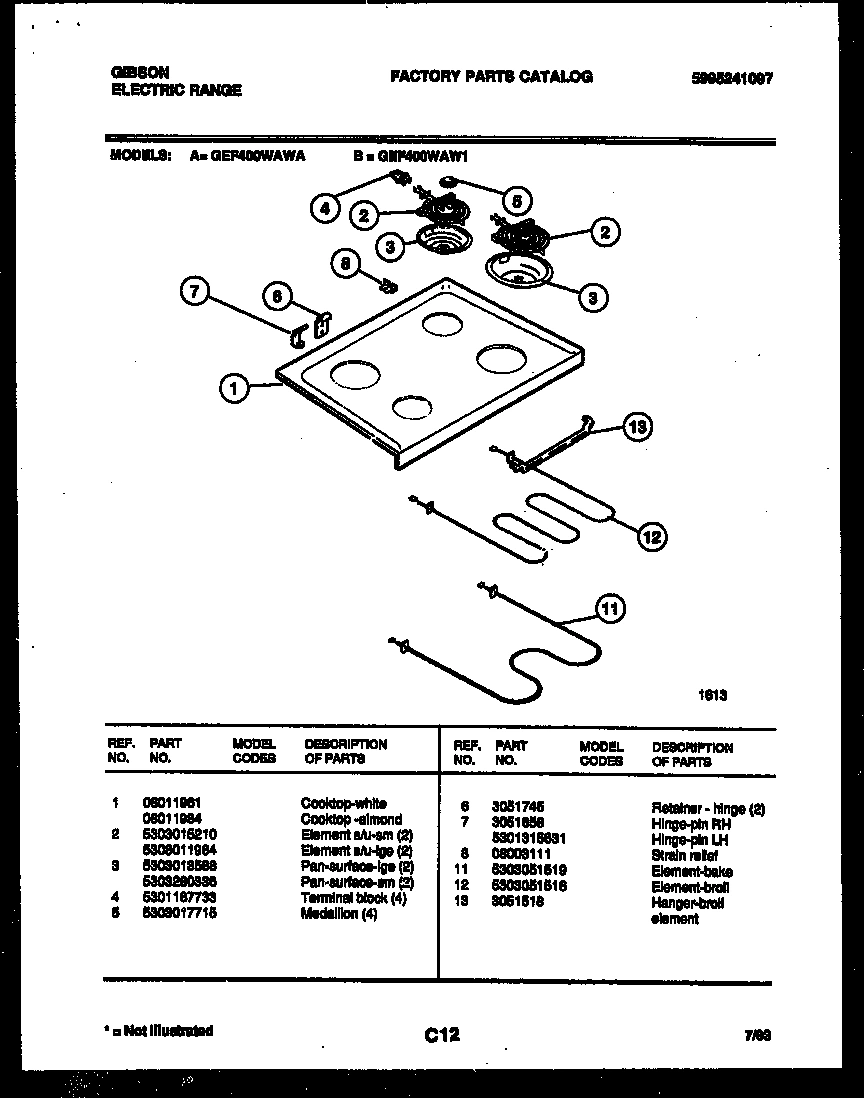

05 - COOKTOP AND BROILER PARTS

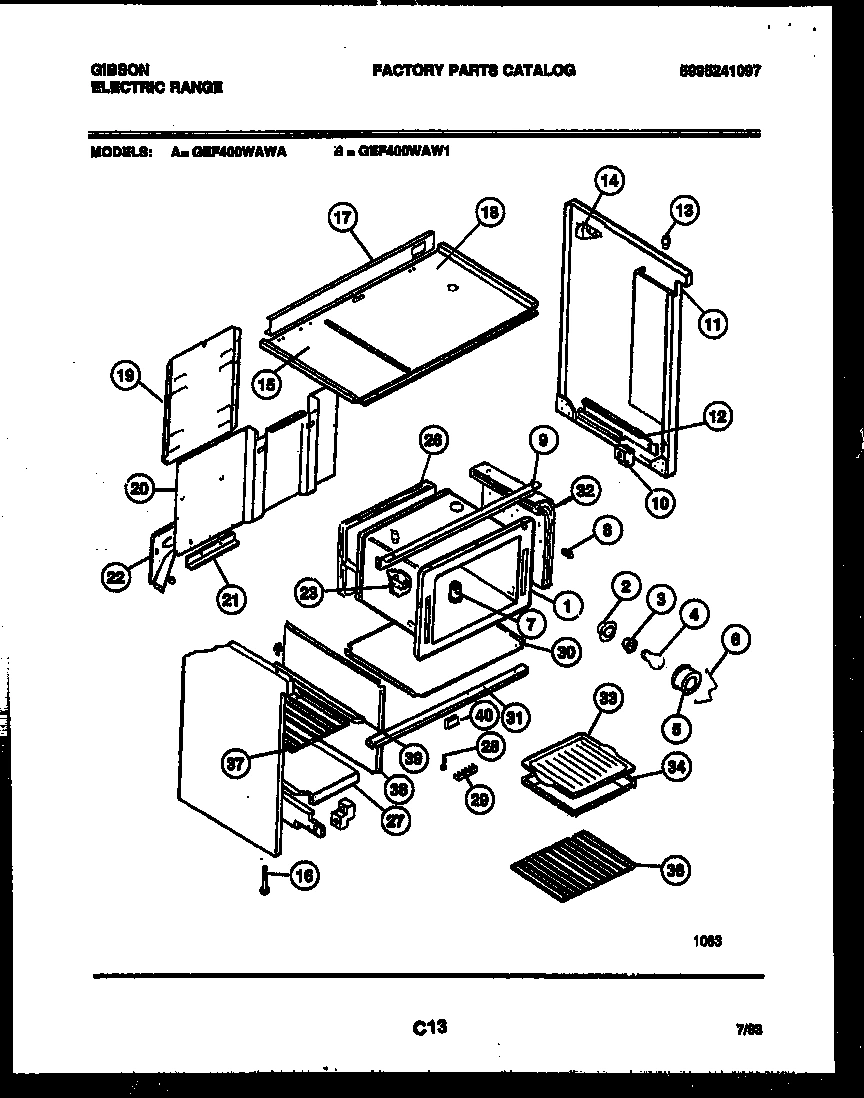

06 - BODY PARTS
Common parts from model Electrolux GEF400WAW1 RANGE
*63823
ANTI-TIP KIT WCI 3934058 Contact Us For Availability
*63824
WCI 211947-10/0 WCI 211947-10/0 Contact Us For Availability
1
WCI 3202108 WCI 3202108 Contact Us For Availability
1
WCI 08011961 WCI 08011961 Contact Us For Availability
1
PANEL - DOOR-ALMOND WCI 5301325737 Contact Us For Availability
1
WCI 5303295495 WCI 5303295495 Contact Us For Availability
1
WCI 08011984 WCI 08011984 Contact Us For Availability
1
OVEN ASSEMBLY-RIGHT WCI 5303292166 Contact Us For Availability
2
HOUSING-LIGHT WCI 3051511 Contact Us For Availability
3
WCI 5308014202 WCI 5308014202 Contact Us For Availability
4
WCI 08011980 WCI 08011980 Contact Us For Availability
4
PANEL, FRONT, ALMOND WCI 5301322709 Contact Us For Availability
4
SPACER (2) WCI 5308003153 Contact Us For Availability
4A
INDICATOR LIGHT S/U WCI 5303051533 Contact Us For Availability
5
WCI 5301315217 WCI 5301315217 Contact Us For Availability
5
WCI 5303051582 WCI 5303051582 Contact Us For Availability
6
WCI 08011969 WCI 08011969 Contact Us For Availability
6
WCI 5301310072 WCI 5301310072 Contact Us For Availability
6
RETAINER HINGE (2) WCI 3051745 Contact Us For Availability
6
RETAINER-LENS WCI 5303205904 Contact Us For Availability
7
SCREW (2) WCI 08013443 Contact Us For Availability
7
WCI 3051658 WCI 3051658 Contact Us For Availability
7
TUBE - OVEN VENT WCI 5301311218 Contact Us For Availability
7A
WCI 5301315631 WCI 5301315631 Contact Us For Availability
8
WCI 5301314211 WCI 5301314211 Contact Us For Availability
8
WCI 5308005306 WCI 5308005306 Contact Us For Availability
8
HINGE - BOTTOM DOOR WCI 5300310113 Contact Us For Availability
8
HINGE - TOP DOOR WCI 5303292014 Contact Us For Availability
8
WCI 5301325512 WCI 5301325512 Contact Us For Availability
8
WCI 08003111 WCI 08003111 Contact Us For Availability
9
WCI 5308016480 WCI 5308016480 Contact Us For Availability
9
WCI 5301318024 WCI 5301318024 Contact Us For Availability
9
RTNR-OUTER GLASS WCI 3205109 Contact Us For Availability
9
WCI 5303294354 WCI 5303294354 Contact Us For Availability
10
WASHER, PADDED WCI 3051785 Contact Us For Availability
10
WCI 5301325729 WCI 5301325729 Contact Us For Availability
10
DRAWER-GUIDE WCI 3051654 Contact Us For Availability
11
WCI 5301325511 WCI 5301325511 Contact Us For Availability
11
PNL - END RH (WHITE) WCI 5308012527 Contact Us For Availability
11
PNL - END RH ALMOND WCI 5308012529 Contact Us For Availability
11A
PNL - END LH (WHITE) WCI 5308012528 Contact Us For Availability
11A
PNL - END LH -ALMOND WCI 5308012530 Contact Us For Availability
12
RTNR-INNER GLASS WCI 3205108 Contact Us For Availability
12
RAIL-DRWR RH WCI 5308015746 Contact Us For Availability
12A
RAIL-DRWR LH WCI 3051652 Contact Us For Availability
13
WCI 3051574 WCI 3051574 Contact Us For Availability
13
WCI 3204306 WCI 3204306 Contact Us For Availability
13
HANGER, BROIL ELEMENT WCI 3051518 Contact Us For Availability
13
BUMPER-COOKTOP WCI 5308003107 Contact Us For Availability
14
WCI 5303284325 WCI 5303284325 Contact Us For Availability
14
GUSSET WCI 3204821 Contact Us For Availability
15
WCI 5303208501 WCI 5303208501 Contact Us For Availability
15
WCI 5303294322 WCI 5303294322 Contact Us For Availability
15
COOKTOP SUPPORT ROD WCI 3051554 Contact Us For Availability
16
PANEL - DOOR-WHITE WCI 08012211 Contact Us For Availability
16
PANEL, DOOR, ALMOND WCI 5301317750 Contact Us For Availability
16
GASKET WCI 5308003268 Contact Us For Availability
16
SCREW-LEVELLING (4) WCI 5303205540 Contact Us For Availability
17
WCI 5301306686 WCI 5301306686 Contact Us For Availability
17
WCI 5303209319 WCI 5303209319 Contact Us For Availability
18
HINGE-ASSY DOOR WCI 5308014248 Contact Us For Availability
18
WCI 5303294355 WCI 5303294355 Contact Us For Availability
19
RIVET (2) WCI 3203618 Contact Us For Availability
19
WCI 5303051856 WCI 5303051856 Contact Us For Availability
20
WCI 3204827 WCI 3204827 Contact Us For Availability
21
WCI 5301307085 WCI 5301307085 Contact Us For Availability
22
WCI 3204822 WCI 3204822 Contact Us For Availability
22A
WCI 3204823 WCI 3204823 Contact Us For Availability
23
BRKT, THERMOBULB WCI 3051552 Contact Us For Availability
26
WCI 5303300144 WCI 5303300144 Contact Us For Availability
27
WCI 08011951 WCI 08011951 Contact Us For Availability
28
PLATE-GROUND WCI 5301145190 Contact Us For Availability
30
WCI 3206275 WCI 3206275 Contact Us For Availability
31
WCI 08011954 WCI 08011954 Contact Us For Availability
32
WCI 3051521 WCI 3051521 Contact Us For Availability
33
BROILER GRILL WCI 5303293415 Contact Us For Availability
34
WCI 5303293416 WCI 5303293416 Contact Us For Availability
37
WCI 08011960 WCI 08011960 Contact Us For Availability
38
WCI 08016542 WCI 08016542 Contact Us For Availability
39
WCI 5301315199 WCI 5301315199 Contact Us For Availability
40
WCI 3204318 WCI 3204318 Contact Us For Availability
× ![]()
