Model Electrolux GEF357BABB RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - BODY

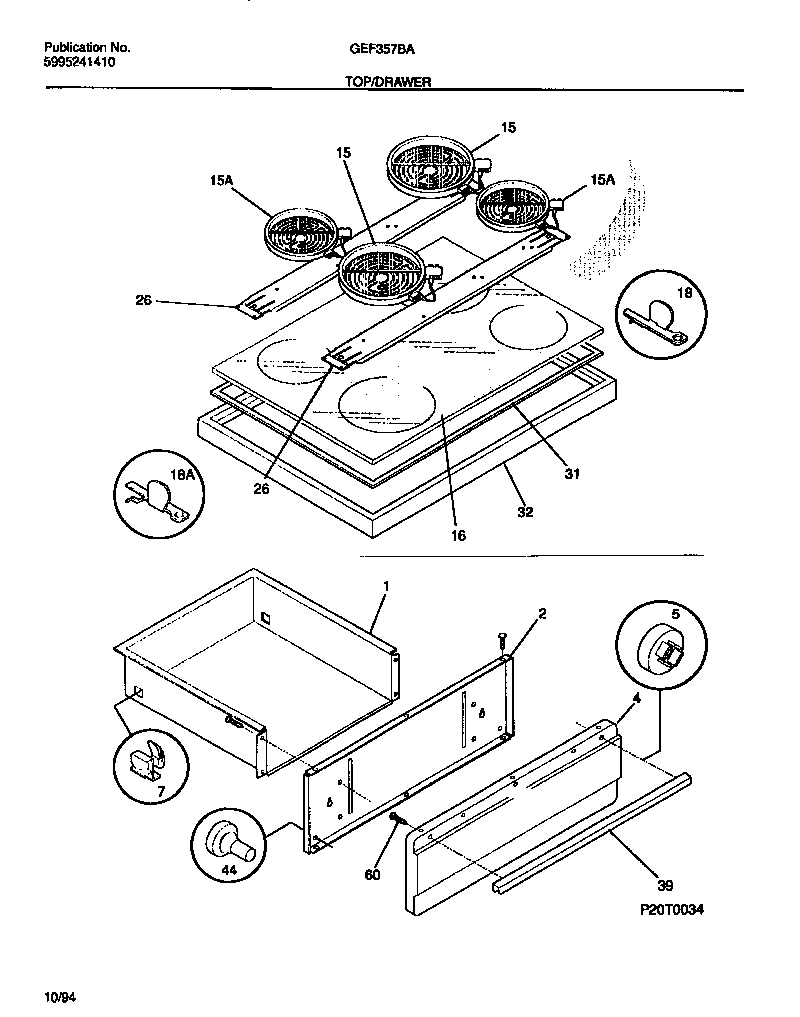

04 - TOP/DRAWER

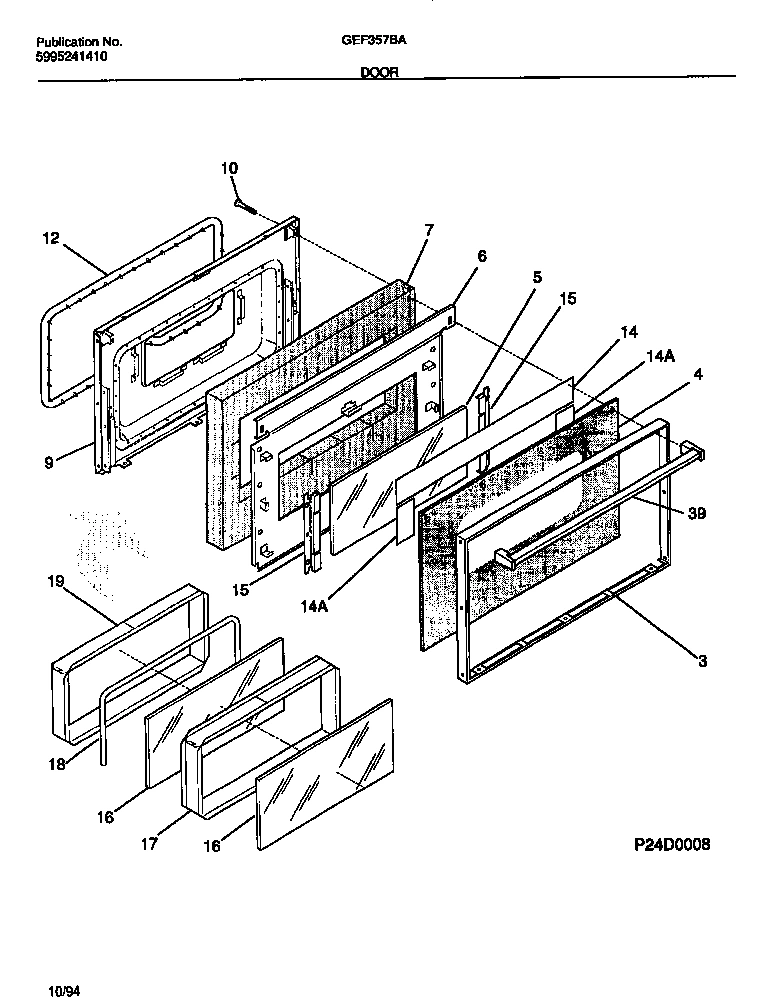

05 - DOOR

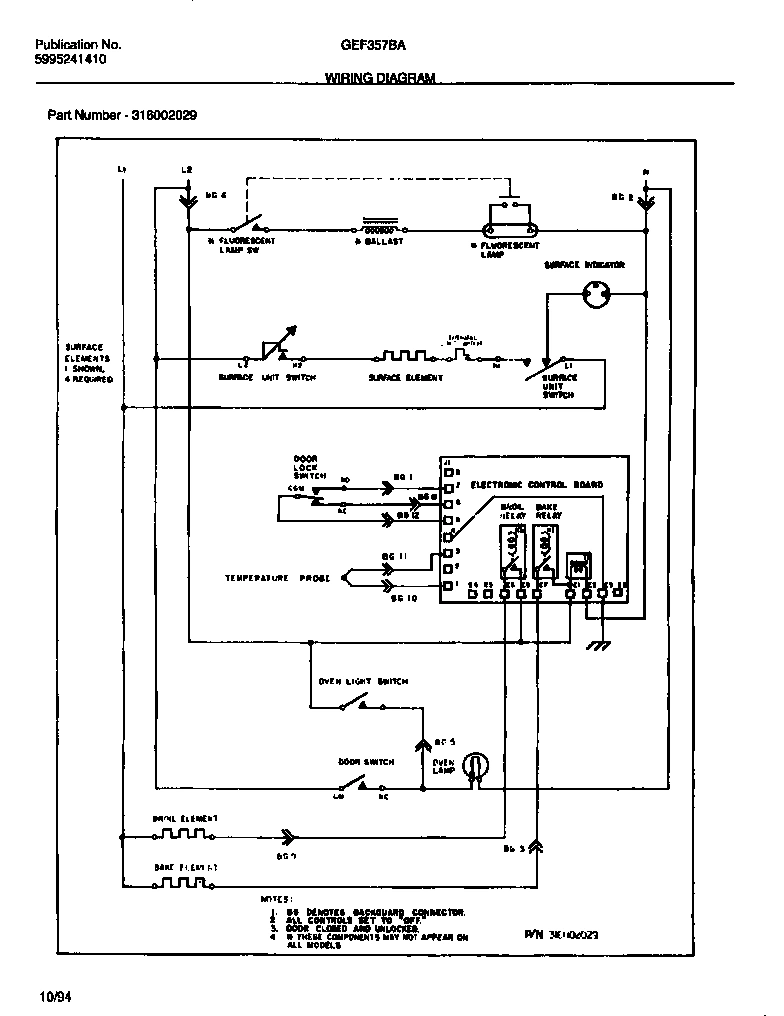

06 - WIRING DIAGRAM
Common parts from model Electrolux GEF357BABB RANGE
*84726
WCI 08067961 WCI 08067961 Contact Us For Availability
*84728
HARNESS-TOP ELEMENTS WCI 316001705 Contact Us For Availability
*84729
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*84730
WCI 5309951550 WCI 5309951550 Contact Us For Availability
1
WCI 3203082 WCI 3203082 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
PANEL-BODYSIDE, BLACK, RH WCI 5303269544 Contact Us For Availability
3
TRIM-OVEN DOOR (BLACK) WCI 5303209518 Contact Us For Availability
3A
PANEL-BODYSIDE, BLACK, LH (NON-ILLUSTRATED) WCI 5303269546 Contact Us For Availability
3A
SCREW, 8-18 X 1/2, BLACK (NON-ILLUSTRATED) WCI 5303269859 Contact Us For Availability
3B
SHIELD-HEAT, BODY SIDE (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
3C
FASTENER-EDGE MTG (NON-ILLUSTRATED) WCI 3200846 Contact Us For Availability
4
WCI 5303271658 WCI 5303271658 Contact Us For Availability
4
WCI 316056207 WCI 316056207 Contact Us For Availability
4
WCI 316019706 WCI 316019706 Contact Us For Availability
4A
SCREW, HEX WASHER HEAD, 8-18(A) X 1/2 (NON-IL WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
5
GLASS-OVEN DOOR, INNER WCI 5303209513 Contact Us For Availability
5A
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
5B
WCI 5303288460 WCI 5303288460 Contact Us For Availability
6
SHIELD-INSULATION WCI 5303211084 Contact Us For Availability
7
WCI 316007002 No Longer Available
7
INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 3203540 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
WCI 5303209515 WCI 5303209515 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
BRACKET-LIGHT SWITCH WCI 5303131289 Contact Us For Availability
12
SWITCH-OVEN LIGHT, DOOR FRAME WCI 5303202622 Contact Us For Availability
13
WCI 5303269501 WCI 5303269501 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 5303208656 Contact Us For Availability
15
BRACKET-GLASS MTG WCI 5303209510 Contact Us For Availability
15A
ELEMENT-SURFACE, COIL, SMALL/6 INCH, W/LIMIT WCI 3204913 Contact Us For Availability
15B
WCI 5303305635 WCI 5303305635 Contact Us For Availability
15C
WCI 5303305636 WCI 5303305636 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER, (2) WCI 5303209512 Contact Us For Availability
16
WCI 316035800 WCI 316035800 Contact Us For Availability
17
RETAINER-GLASS WCI 3204585 Contact Us For Availability
17
WCI 5303209517 WCI 5303209517 Contact Us For Availability
18
LATCH-DOOR, BIMETAL WCI 5303015361 Contact Us For Availability
18
WCI 5303291056 WCI 5303291056 Contact Us For Availability
18
SEAL-ROPE, 0.25 DIA WCI 5303211085 Contact Us For Availability
18A
SHIELD-LATCH, TOP (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
18A
WCI 5303291055 WCI 5303291055 Contact Us For Availability
19
WCI 5303131357 WCI 5303131357 Contact Us For Availability
19
WCI 316067600 WCI 316067600 Contact Us For Availability
19A
SCREW, CR PAN HD SEMS, 8-32(BP) X 1 (NON-ILLU WCI 5303212671 Contact Us For Availability
20
WCI 3203218 WCI 3203218 Contact Us For Availability
20A
WCI 08013188 WCI 08013188 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
SWITCH-LATCH WCI 5303269499 Contact Us For Availability
22A
WCI 08067978 WCI 08067978 Contact Us For Availability
23
WCI 08067776 WCI 08067776 Contact Us For Availability
24
SHIELD-LATCH WCI 3051413 Contact Us For Availability
25
WCI 3200848 WCI 3200848 Contact Us For Availability
26
WCI 316049501 WCI 316049501 Contact Us For Availability
26
CHANNEL, SURFACE UNIT MT WCI 5303271632 Contact Us For Availability
28
BUTTON-CLOCK, BLACK WCI 3204586 Contact Us For Availability
29
KNOB-EOC CONTROL, BLACK WCI 3204590 Contact Us For Availability
31
WCI 316045900 WCI 316045900 Contact Us For Availability
32
WCI 5303271631 WCI 5303271631 Contact Us For Availability
33
WCI 3203582 WCI 3203582 Contact Us For Availability
36
KNOB-CONTROL, INFINITE SW WCI 5303212659 Contact Us For Availability
36
WCI 5303275279 WCI 5303275279 Contact Us For Availability
39
WCI 316019504 WCI 316019504 Contact Us For Availability
39
HANDLE-DOOR, OVEN WCI 5303285070 Contact Us For Availability
40
WCI 316062346 WCI 316062346 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
44
WCI 3131468 WCI 3131468 Contact Us For Availability
46
LENS-LIGHT/LAMP, INDICATOR, AMBER WCI 5308037703 Contact Us For Availability
47
RETAINER, EOC GLASS WCI 3204868 Contact Us For Availability
55
WCI 3051368 WCI 3051368 Contact Us For Availability
57
COVER-ACCESS WCI 3203405 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3200833 Contact Us For Availability
58B
WCI 316054200 WCI 316054200 Contact Us For Availability
58C
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
58D
INSULATION, OVEN VENT WCI 3015337 Contact Us For Availability
59
WCI 3051345 WCI 3051345 Contact Us For Availability
60
SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/ WCI 5303281651 Contact Us For Availability
60
WCI 5303293427 WCI 5303293427 Contact Us For Availability
63
PLATE-GROUND STRAP WCI 5303212739 Contact Us For Availability
63A
WCI 5303306586 WCI 5303306586 Contact Us For Availability
64
FILTER-OVEN VENT, CATALYST WCI 08067810 Contact Us For Availability
65
RETAINER-FILTER WCI 08010606 Contact Us For Availability
71
SHIELD-REAR WALL, LOWER WCI 3203549 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
74
WCI 5308003107 WCI 5308003107 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 3200825 Contact Us For Availability
87
WCI 5303206618 WCI 5303206618 Contact Us For Availability
90
WCI 3051243 WCI 3051243 Contact Us For Availability
90A
ANGLE-CLOSURE LH (NON-ILLUSTRATED) WCI 3051242 Contact Us For Availability
× ![]()
