Model Electrolux GEF352CHSB RANGE – Common Parts & Diagrams

1

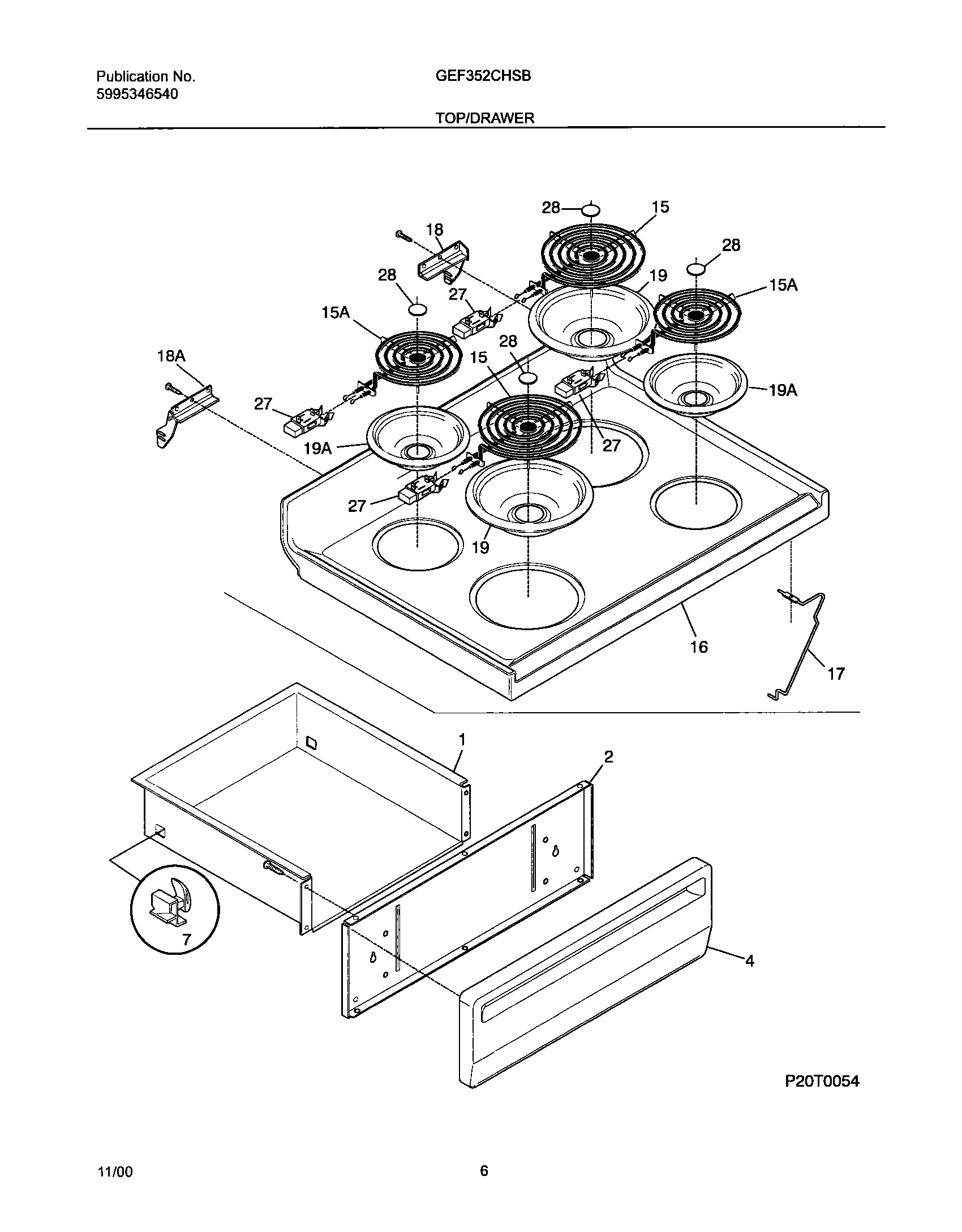

DRAWER-UTILITY
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
View on Model
2
Shield-drawer,liner ,galv steel ,front panel
Shield-drawer,liner ,galv steel ,front panel WCI 5303288582 Contact Us For Availability
View on Model
4
Panel-drawer front,white
Panel-drawer front,white WCI 316084405 Contact Us For Availability
View on Model
5
WCI 316129200
WCI 316129200 WCI 316129200 Contact Us For Availability
View on Model
5

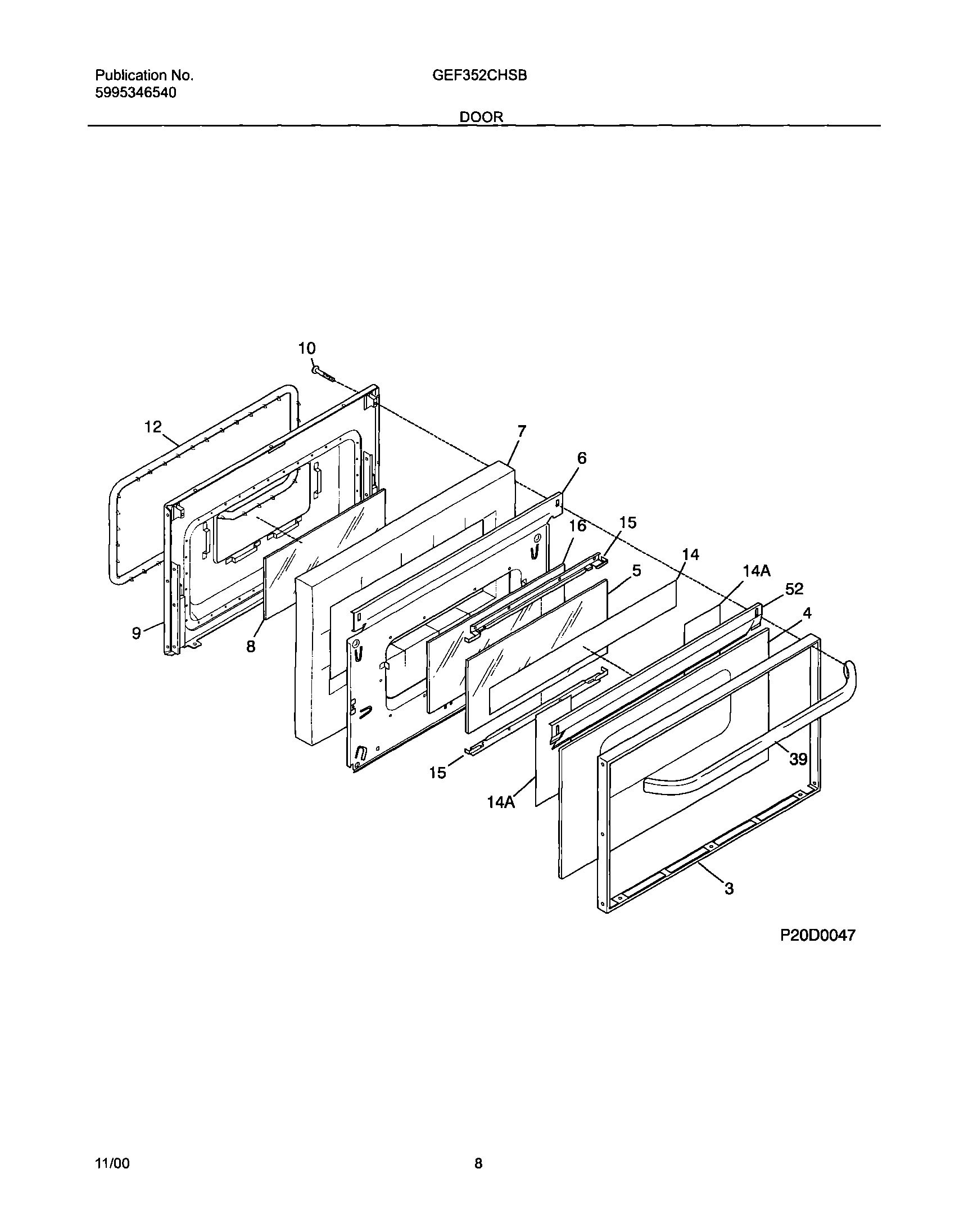

Glass,oven door ,airwash
Glass,oven door ,airwash WCI 316088700 Contact Us For Availability
View on Model
7
WCI 316007002 No Longer Available
View on Model
8
WCI 316088600
WCI 316088600 WCI 316088600 Contact Us For Availability
View on Model
9
Pan,broiler
Pan,broiler WCI 316081900 Contact Us For Availability
View on Model
10
Insert-broiler pan
Insert-broiler pan WCI 316082000 Contact Us For Availability
View on Model
10
Screw-handle mtg,wafer hd sq dr ,10-24T x 2.0
Screw-handle mtg,wafer hd sq dr ,10-24T x 2.0 WCI 5303280308 Contact Us For Availability
View on Model
15A
WCI 316115400
WCI 316115400 WCI 316115400 Contact Us For Availability
View on Model
16
WCI 316085701
WCI 316085701 WCI 316085701 Contact Us For Availability
View on Model
18
HINGE-MAIN TOP (RH)
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
View on Model
18A
HINGE-MAIN TOP (LH)
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
View on Model
19
WCI 318067055
WCI 318067055 WCI 318067055 Contact Us For Availability
View on Model
20
WCI 316131601
WCI 316131601 WCI 316131601 Contact Us For Availability
View on Model
20A
Overlay-clock,white
Overlay-clock,white WCI 316101502 Contact Us For Availability
View on Model
21
SPACER-BODYSIDE, (8)
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
View on Model
41
WCI 3131570
WCI 3131570 WCI 3131570 Contact Us For Availability
View on Model
52
WCI 316081301
WCI 316081301 WCI 316081301 Contact Us For Availability
View on Model
58A
WCI 316047708
WCI 316047708 WCI 316047708 Contact Us For Availability
View on Model
NI
Screw,cup pt ,8-18 x 0.375 ,chrome ,hinge,ind
Screw,cup pt ,8-18 x 0.375 ,chrome ,hinge,ind WCI 316021108 Contact Us For Availability
View on Model
NI
WCI 316065306
WCI 316065306 WCI 316065306 Contact Us For Availability
View on Model
NI
Screw,wafer hd sq dr ,10-32 x 0.312 ,(2)
Screw,wafer hd sq dr ,10-32 x 0.312 ,(2) WCI 5303280311 Contact Us For Availability
View on Model
NI
WCI 316132100
WCI 316132100 WCI 316132100 Contact Us For Availability
View on Model
NI
RIVET-POP, WARNING-PLATE
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
View on Model
NI
Wiring Harness,surface element
Wiring Harness,surface element WCI 316001725 Contact Us For Availability
View on Model
NI
WCI 316089600
WCI 316089600 WCI 316089600 Contact Us For Availability
View on Model
