Model Electrolux GEF301SADA RANGE – Common Parts & Diagrams

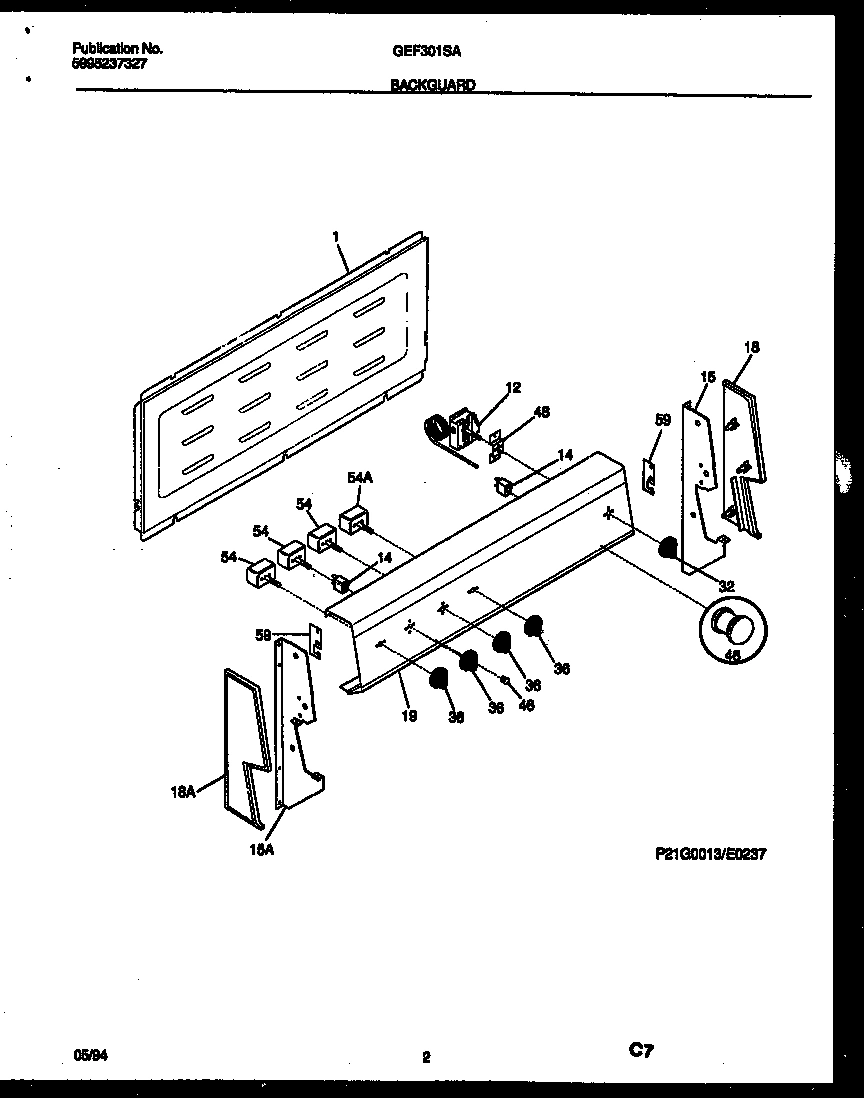

02 - BACKGUARD

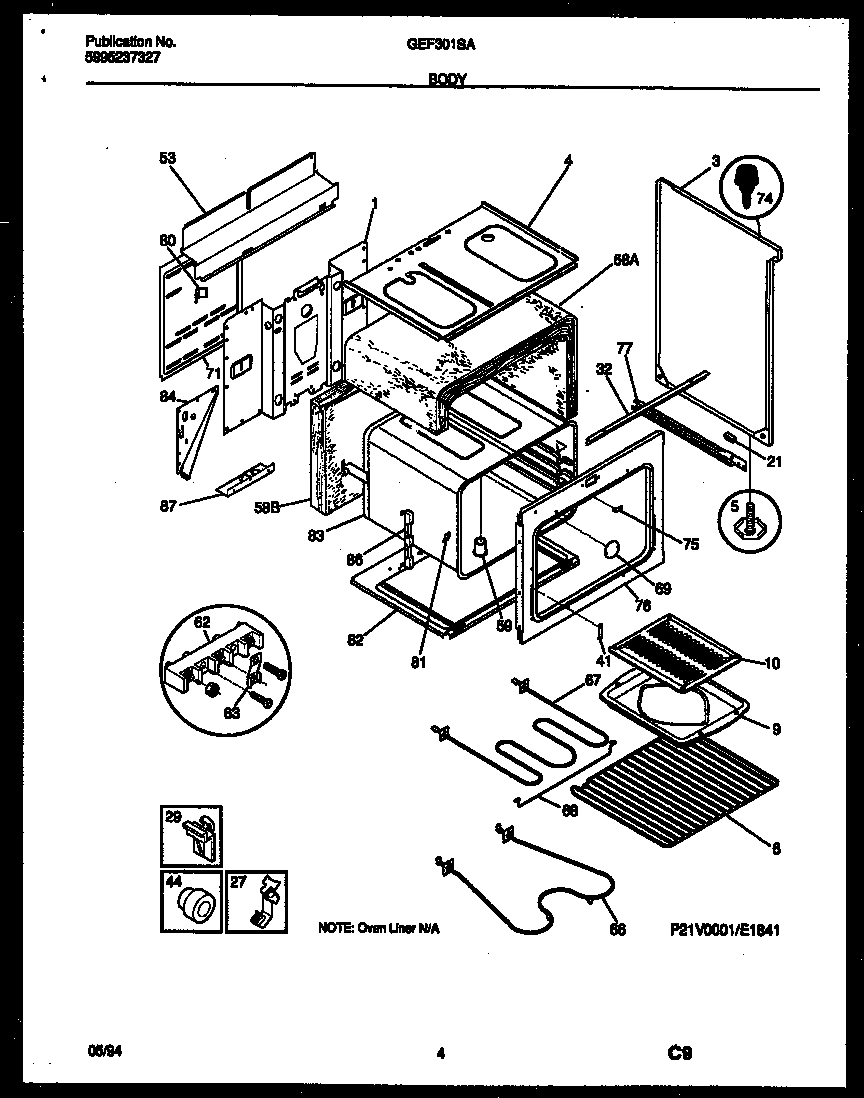

03 - BODY
04 - TOP/DRAWER
05 - DOOR
Common parts from model Electrolux GEF301SADA RANGE
1
BACK-MAIN WCI 3205757 Contact Us For Availability
1
DRAWER-UTILITY WCI 5308011051 Contact Us For Availability
1A
SCREW-SHOULDER, (NON-ILLUSTRATED) WCI 3051050 Contact Us For Availability
3
PANEL-BODYSIDE, ALMOND, RH WCI 5308012529 Contact Us For Availability
3
TRIM-OVEN DOOR, BLACK WCI 3206200 Contact Us For Availability
3B
PANEL-BODYSIDE, ALMOND, LH, (NON-ILLUSTRATED) WCI 5308012530 Contact Us For Availability
4
WCI 5303292692 WCI 5303292692 Contact Us For Availability
4
PANEL-DRAWER, ALMOND WCI 5301325100 Contact Us For Availability
4
GLASS-OVEN DOOR, BLACK, OUTER WCI 5308012547 Contact Us For Availability
5
SCREW-LEVELING WCI 5303205540 Contact Us For Availability
5A
ANTI-TIP KIT, (NON-ILLUSTRATED) WCI 3934063 Contact Us For Availability
7
GLIDE-DRAWER, REAR WCI 5303209487 Contact Us For Availability
7
INSULATION, OVEN BACK WCI 5303051630 Contact Us For Availability
9
WCI 5303292688 WCI 5303292688 Contact Us For Availability
9
WCI 316041701 WCI 316041701 Contact Us For Availability
10
SCREW-HANDLE MTG, FLT HD SQDR, 6-32 X 1/2, (4 WCI 5303051860 Contact Us For Availability
10
WCI 3205234 WCI 3205234 Contact Us For Availability
12
SEAL-OVEN DOOR WCI 3206199 Contact Us For Availability
14
LIGHT / LAMP, INDICATOR, 250 V, (2) WCI 5303276663 Contact Us For Availability
16
WCI 5303211310 WCI 5303211310 Contact Us For Availability
17
WCI 5303211119 WCI 5303211119 Contact Us For Availability
17
SPACER-GLASS WCI 5301324812 Contact Us For Availability
17A
WCI 5303211120 WCI 5303211120 Contact Us For Availability
18
WCI 08012537 WCI 08012537 Contact Us For Availability
21
SPACER-BODYSIDE WCI 3051653 Contact Us For Availability
23
HINGE-OVEN DOOR, ASSEMBLY WCI 5303207447 Contact Us For Availability
23A
WCI 08003264 WCI 08003264 Contact Us For Availability
24
BUMPER-DOOR, TOP WCI 5303131771 Contact Us For Availability
24A
WCI 5305297101 WCI 5305297101 Contact Us For Availability
28
MEDALLION, STAINLESS STEEL, SURF ELEM WCI 3017801 Contact Us For Availability
29
GUIDE-DRAWER, FRONT WCI 3051654 Contact Us For Availability
32
WCI 5303207391 WCI 5303207391 Contact Us For Availability
39
WCI 316019504 WCI 316019504 Contact Us For Availability
39
HANDLE-DOOR, OVEN WCI 5303207187 Contact Us For Availability
41
RETAINER-DOOR WCI 3019063 Contact Us For Availability
44
WCI 3204817 WCI 3204817 Contact Us For Availability
46
WCI 316058400 WCI 316058400 Contact Us For Availability
48
WCI 08003252 WCI 08003252 Contact Us For Availability
53
WCI 3206095 WCI 3206095 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3051521 Contact Us For Availability
58B
WCI 5303274967 WCI 5303274967 Contact Us For Availability
59
WCI 5308012538 WCI 5308012538 Contact Us For Availability
59
WCI 08012541 WCI 08012541 Contact Us For Availability
63
PLATE=GROUND STRAP WCI 5301145190 Contact Us For Availability
68
SUPPORT-ELEMENT WCI 3205756 Contact Us For Availability
69
PLATE-OVEN LIGHT WCI 3017576 Contact Us For Availability
71
SHIELD-REAR WALL, LOWER WCI 5303051856 Contact Us For Availability
74
WCI 5308003107 WCI 5308003107 Contact Us For Availability
75
COVER-OVEN SEAM WCI 3202082 Contact Us For Availability
76
WCI 316042103 WCI 316042103 Contact Us For Availability
77
WCI 5308015746 WCI 5308015746 Contact Us For Availability
77A
RAIL-DRAWER LH, (NON-ILLUSTRATED) WCI 3051652 Contact Us For Availability
80
SPRING-OVEN REAR WCI 3016281 Contact Us For Availability
81
SPACER-OVEN WCI 3201632 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 3206275 Contact Us For Availability
83
WCI 5303292686 WCI 5303292686 Contact Us For Availability
83A
PLUG-BUTTON, LINER, (NON-ILLUSTRATED) WCI 3016334 Contact Us For Availability
84
WCI 3017482 WCI 3017482 Contact Us For Availability
84A
GUSSET-REAR, RH, (NON-ILLUSTRATED) WCI 3017481 Contact Us For Availability
86
CHANNEL, HINGE WCI 3201631 Contact Us For Availability
87
BRACKET-CABLE MTG WCI 3203574 Contact Us For Availability
× ![]()
