Model Whirlpool GDU4050XPW4 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

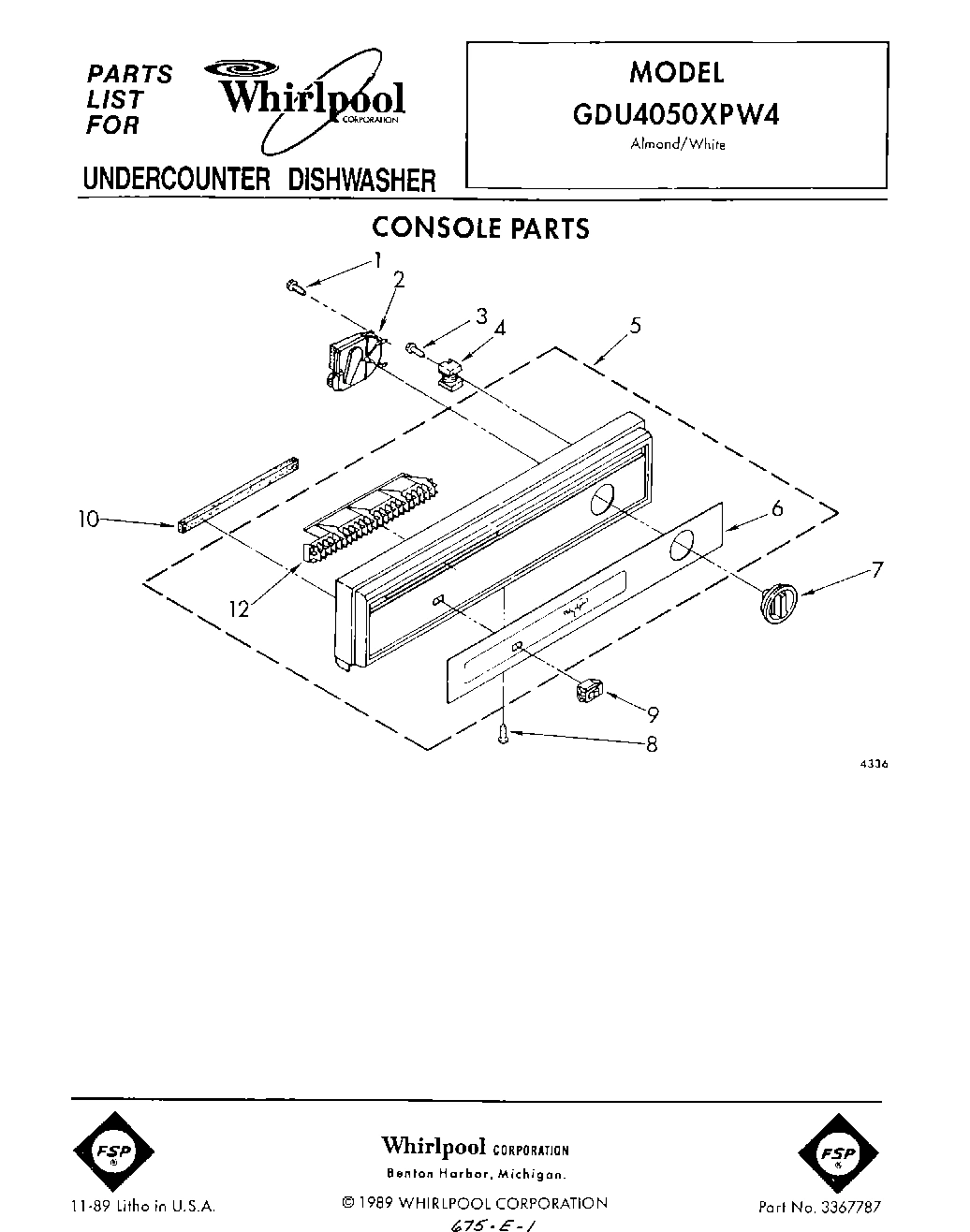

01 - CONSOLE

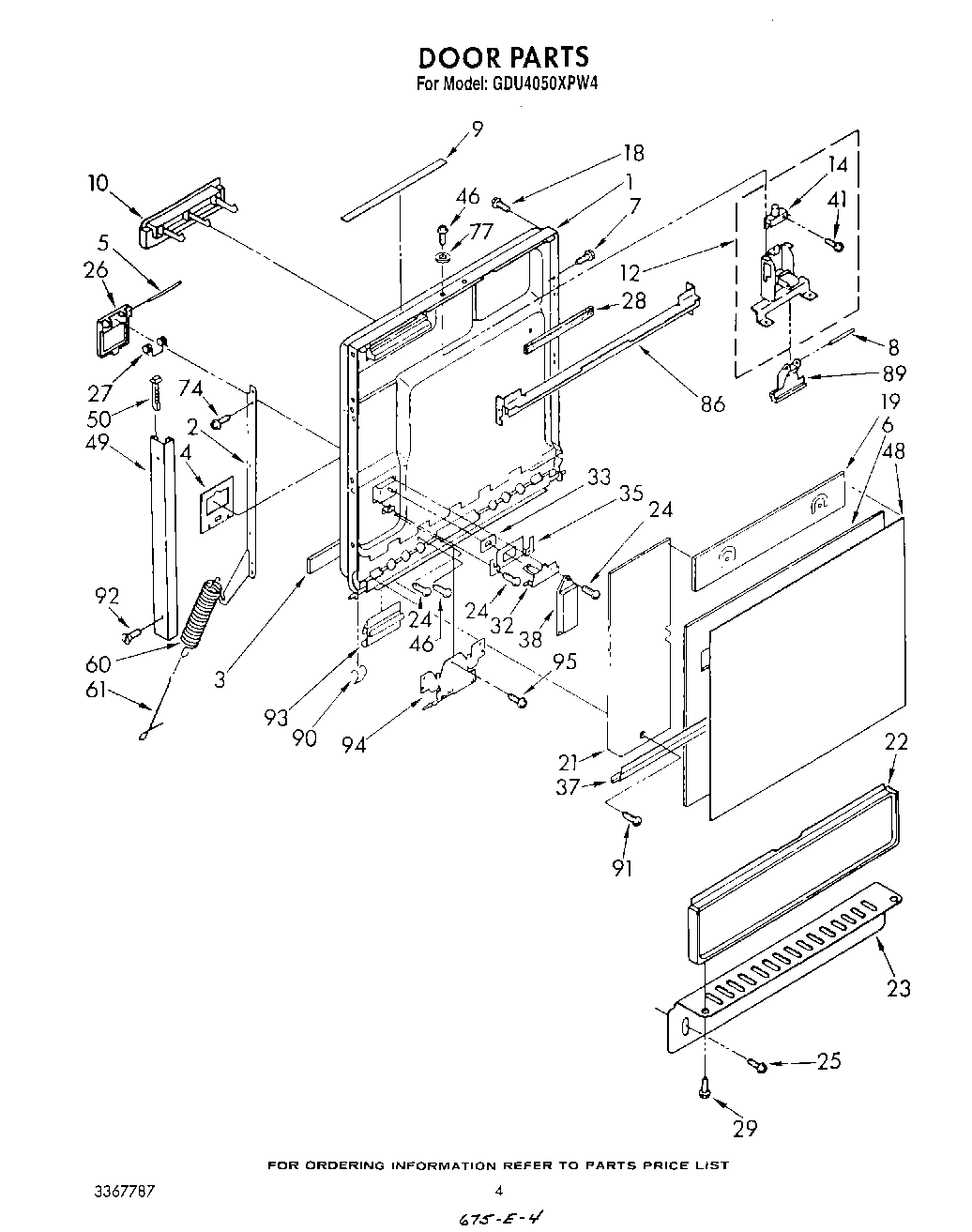

03 - DOOR
02 - TUB
04 - DISHRACK
05 - HEATER, PUMP AND LOWER SPRAY ARM
06 - 3367743 PUMP AND MOTOR
07 - WIRING HARNESS
Common parts from model Whirlpool GDU4050XPW4 UNDERCOUNTER DISHWASHER
1
Wheel & Axle Assembly (4) WPL 300995 Contact Us For Availability
1
Plate, Perforated (Includes Item 5) (Also Ord WPL 302720 Contact Us For Availability
2
Terminal, Female WPL 352088 Contact Us For Availability
2
Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability
4
Spray Arm, Upper WPL 304204 Contact Us For Availability
5
Tower WPL 304170 Contact Us For Availability
5
Ball, Check WPL 302709 Contact Us For Availability
6
Receptacle, Terminal (3-Way) WPL 353425 Contact Us For Availability
7
Cover, Valve WPL 302721 Contact Us For Availability
8
Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability
9
Separator Assembly (Includes Items 12, 13 & 2 WPL 303883 Contact Us For Availability
9
Receptacle (5-Circuit) WPL 719585 Contact Us For Availability
10
Screw, 8-18 x 1-5/8 (4) WPL 302717 Contact Us For Availability
10
Harness, Wiring WPL 3368868 Contact Us For Availability
12
Latch Assembly WPL 3367058 Contact Us For Availability
14
Switch, Interlock WPL 660951 Contact Us For Availability
14
Bumper WPL 304490 Contact Us For Availability
14
Outlet, Pump (Includes Illus. 13) WPL 302730 Contact Us For Availability
14
Connector Block WPL 301219 Contact Us For Availability
15
Connector, Block (Alternate) WPL 300708 Contact Us For Availability
15
Connector Block (Alternate) WPL 374230 Contact Us For Availability
16
xPanel, Reversible WPL ARI64787A3 Contact Us For Availability
16
Insulator .250 Terminal WPL 358736 Contact Us For Availability
17
Pump & Motor Assembly WPL 3367443 Contact Us For Availability
18
Screw, 8 x 1-7/8 (2) WPL 304233 Contact Us For Availability
18
Panel, Lower Side WPL 3367549 Contact Us For Availability
18
Bushing, Grind WPL 302707 Contact Us For Availability
19
Barrier, Console WPL 303908 Contact Us For Availability
20
Screw, Lower Side Panel Mounting (2) WPL 9419621 Contact Us For Availability
20
Sleeve, Drain Impeller WPL 302705 Contact Us For Availability
21
Barrier, Door WPL 303906 Contact Us For Availability
21
Check Ball & Retainer WPL 675488 Contact Us For Availability
22
Seal, Drain Cover WPL 302704 Contact Us For Availability
23
Plate, Toe WPL 3367470 Contact Us For Availability
23
``O`` Ring WPL 95080 Contact Us For Availability
23
Cover, Drain (Also Order Illus. No. 30) See N WPL 302723 Contact Us For Availability
25
Base, Pump (Includes Item 24) (Also Order Ill WPL 3367204 Contact Us For Availability
28
Baffle WPL 719860 Contact Us For Availability
28
Motor (Includes Items 24 & 27) (Also Order Il WPL 302716 Contact Us For Availability
29
Screw, 13-18 x 1-1/2 (4) WPL 3369331 Contact Us For Availability
30
Pump Seal Kit (Includes Items 4, 13 & 22) WPL 675505 Contact Us For Availability
31
Tool, Pump Centering WPL 303918 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
35
Retainer WPL 300104 Contact Us For Availability
36
Bearing, Nozzle WPL 719576 Contact Us For Availability
37
Trim, Panel WPL 304047 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
39
Cap, Nozzle WPL 3367910 Contact Us For Availability
40
Spray Arm, Lower WPL 302767 Contact Us For Availability
41
Gasket, Pump WPL 717000 Contact Us For Availability
41
Screw, 6-32 x 1 (1) WPL 301582 Contact Us For Availability
43
Heater WPL 660318 Contact Us For Availability
46
Nut, 7/16 x 20 (2) WPL 718537 Contact Us For Availability
47
Washer, Retainer (2) WPL 717289 Contact Us For Availability
48
xPanel, Front WPL ARI64786A4 Contact Us For Availability
48
Support, Heater (2) WPL 717096 Contact Us For Availability
49
Trim, Door R.H. WPL 3367206 Contact Us For Availability
49
Trim, Door (L.H.) WPL 3367207 Contact Us For Availability
49
Washer (2) WPL 711284 Contact Us For Availability
50
Clip, Trim Guard (2) WPL 3367172 Contact Us For Availability
50
Washer (2) WPL 14351 Contact Us For Availability
51
Nut, 10-32 (2) WPL 120614 Contact Us For Availability
52
Grate WPL 303469 Contact Us For Availability
61
Retainer, Spring WPL 716401 Contact Us For Availability
77
Washer WPL 300237 Contact Us For Availability
86
Rail, Support WPL 304391 Contact Us For Availability
89
Lever, Release WPL 304408 Contact Us For Availability
90
Clip, Wire WPL 301857 Contact Us For Availability
92
Screw, 8 x 1/2 (4) WPL 3367288 Contact Us For Availability
93
Retainer, Clip WPL 303121 Contact Us For Availability
94
Shield, Harness WPL 303362 Contact Us For Availability
95
Screw, 8-18 x 5/8 WPL 303090 Contact Us For Availability
× ![]()
