Model Whirlpool GDU4050XPW0 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams
03 - DOOR
05 - HEATER, PUMP AND LOWER SPRAYARM

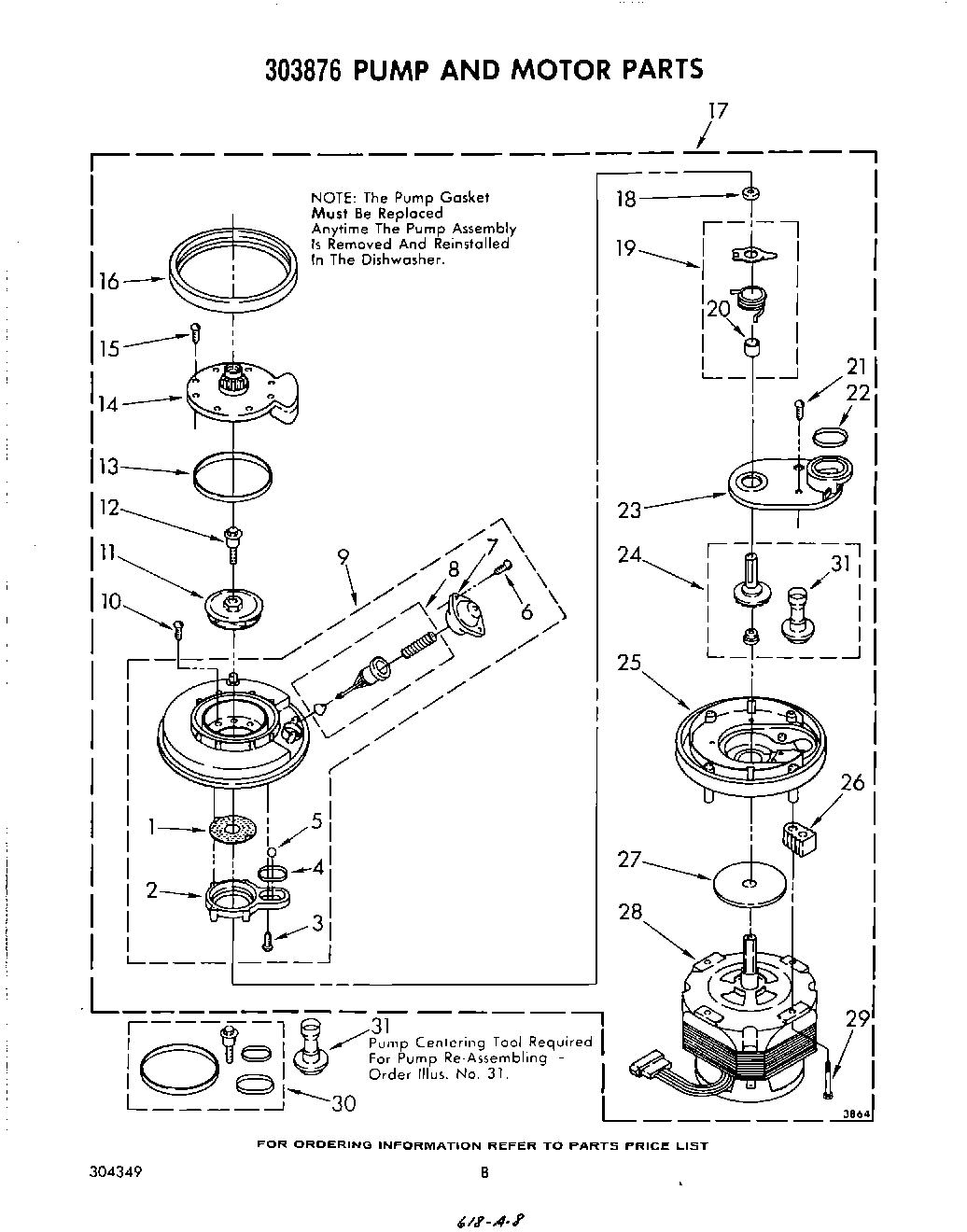

06 - PUMP AND MOTOR

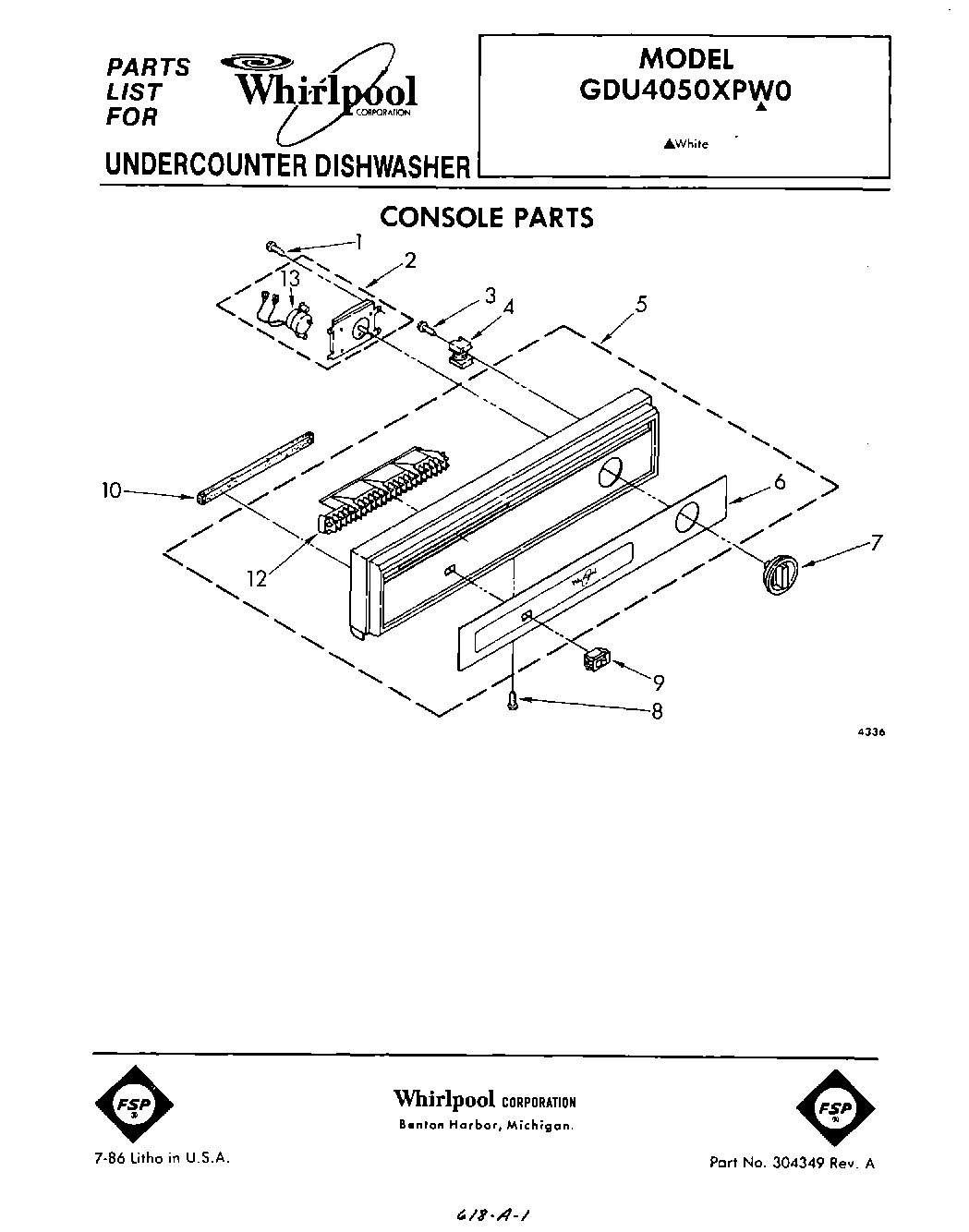

01 - CONSOLE

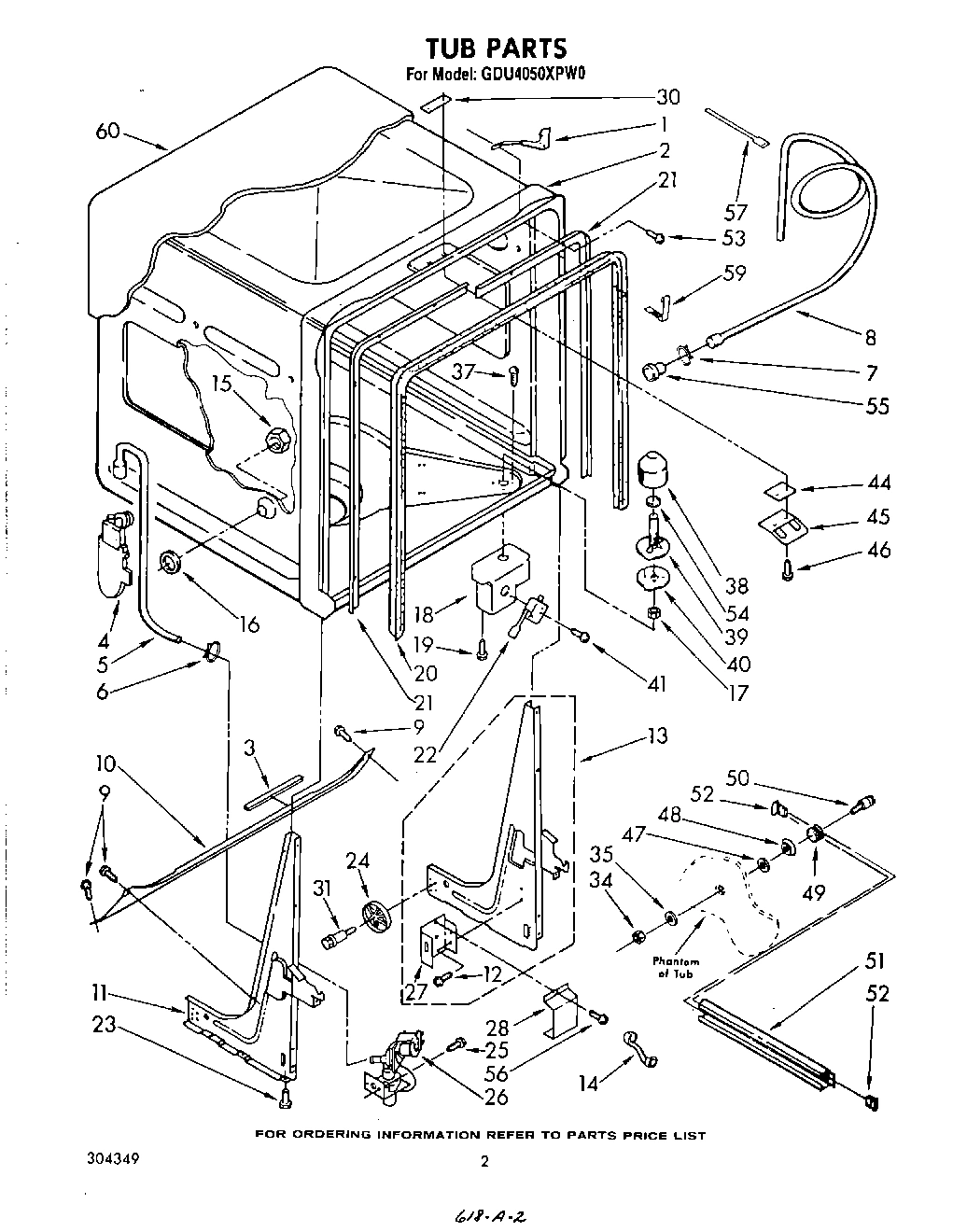

02 - TUB

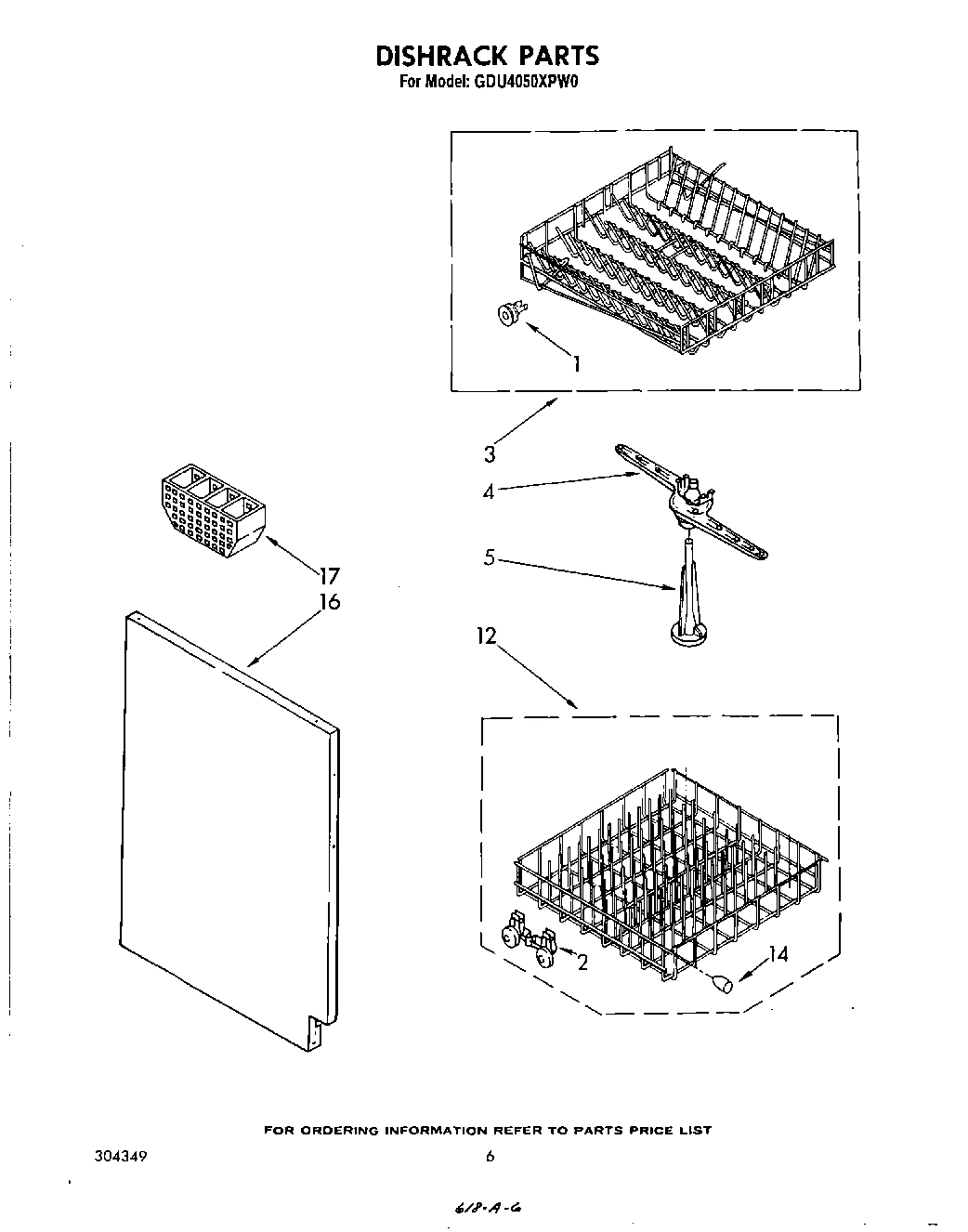

04 - DISHRACK

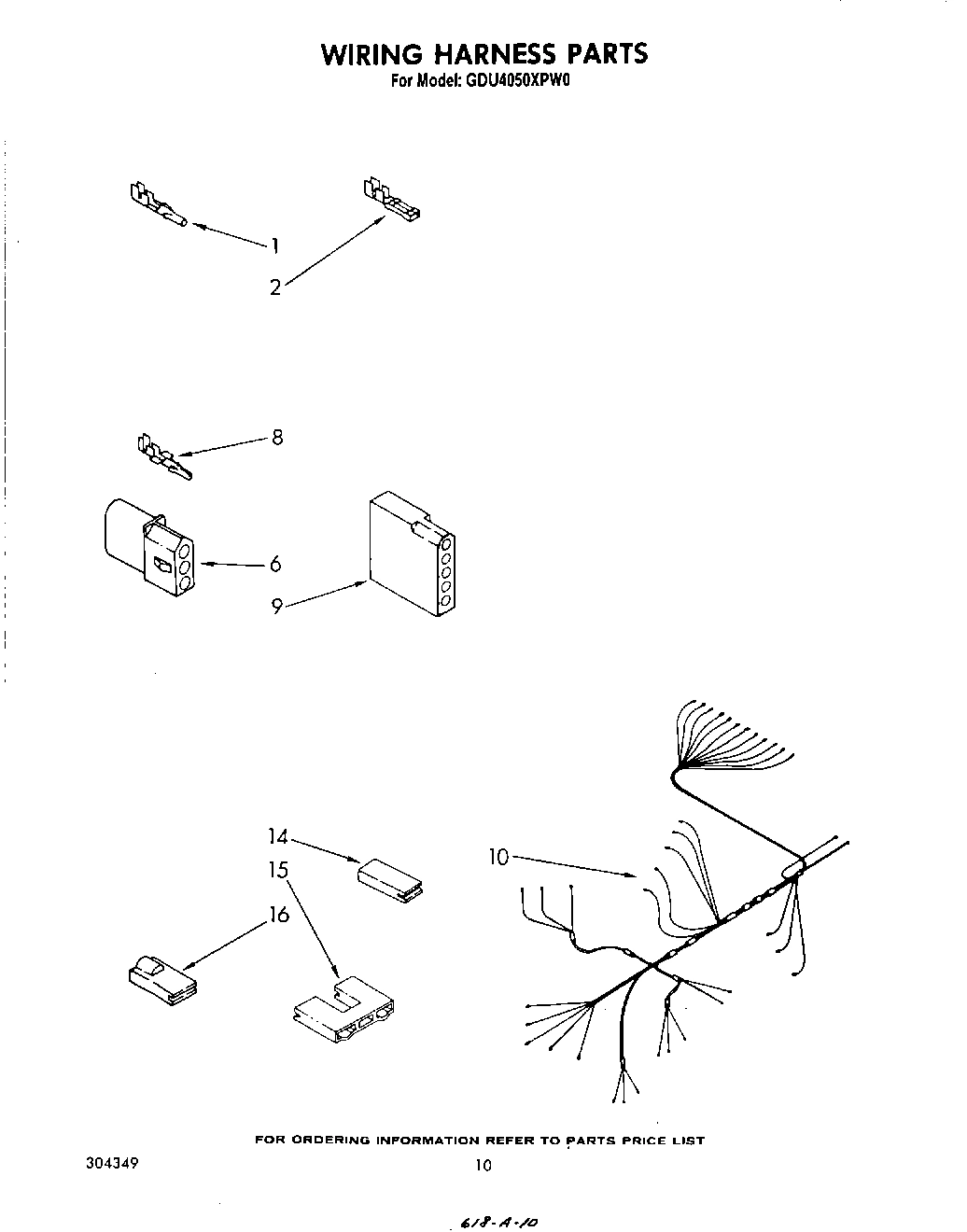

07 - WIRING HARNESS
Common parts from model Whirlpool GDU4050XPW0 UNDERCOUNTER DISHWASHER
WPL LIT304282 WPL LIT304282 Contact Us For Availability
WPL LIT304349 WPL LIT304349 Contact Us For Availability
WPL LIT304417 WPL LIT304417 Contact Us For Availability
WPL LIT304830 WPL LIT304830 Contact Us For Availability
1
Pump & Motor Assembly (Includes Item 41) WPL 3038763 Contact Us For Availability
1
Plate, Perforated (Includes Item 5) (Also Ord WPL 302720 Contact Us For Availability
1
Bracket, Mounting (2) WPL 300796 Contact Us For Availability
1
Wheel & Axle Assembly (4) WPL 300995 Contact Us For Availability
2
Terminal, Female WPL 352088 Contact Us For Availability
2
Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 302726 Contact Us For Availability
2
Timer WPL 304464 Contact Us For Availability
2
Tub Assembly WPL 303110 Contact Us For Availability
3
Screw, 7-18 x 1-3/8 Slot Hex Wash Hd WPL 304232 Contact Us For Availability
3
Edge Protector WPL 303294 Contact Us For Availability
4
Relay, Start WPL 304409 Contact Us For Availability
4
Inlet, Water WPL 300974 Contact Us For Availability
5
Tower WPL 304170 Contact Us For Availability
5
Hose, Inlet WPL 304670 Contact Us For Availability
5
Ball, Check WPL 302709 Contact Us For Availability
5
Console WPL 304613 Contact Us For Availability
6
Insert, Decorative WPL 304834 Contact Us For Availability
6
Receptacle, Terminal (3-Way) WPL 353425 Contact Us For Availability
7
Cover, Valve WPL 302721 Contact Us For Availability
7
Knob, Timer WPL 304435 Contact Us For Availability
8
Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability
9
Separator Assembly (Includes Items 12, 13 & 2 WPL 303883 Contact Us For Availability
9
Receptacle (5-Circuit) WPL 719585 Contact Us For Availability
10
Screw, 8-18 x 1-5/8 (4) WPL 302717 Contact Us For Availability
10
Baffle WPL 719860 Contact Us For Availability
10
Brace WPL 303111 Contact Us For Availability
10
Harness, Wiring WPL 304503 Contact Us For Availability
11
Leg & Hinge Assembly, L.H. WPL 302822 Contact Us For Availability
12
Grill, Vent WPL 304426 Contact Us For Availability
12
Screw, 8-32 x 3/8 Hex Washer Head Slotted Tap WPL 718178 Contact Us For Availability
13
Motor, Timer WPL 301074 Contact Us For Availability
13
Leg & Hinge Assembly, R.H. WPL 302823 Contact Us For Availability
14
Outlet, Pump (Includes Illus. 13) WPL 302730 Contact Us For Availability
14
Relief, Strain WPL 717563 Contact Us For Availability
14
Bumper WPL 304490 Contact Us For Availability
14
Connector Block WPL 301219 Contact Us For Availability
15
Nut, 7/8-16 Polypropylene (1) WPL 713799 Contact Us For Availability
15
Connector, Block (Alternate) WPL 300708 Contact Us For Availability
15
Connector Block (Alternate) WPL 374230 Contact Us For Availability
16
Gasket, Pump WPL 717000 Contact Us For Availability
16
Gasket WPL 713878 Contact Us For Availability
16
xPanel, R.S. WPL ARI64781A6 Contact Us For Availability
16
Insulator .250 Terminal WPL 358736 Contact Us For Availability
17
Nut, 1/8 Self-Threading (1) WPL 717488 Contact Us For Availability
17
Pump & Motor Assembly WPL 3367443 Contact Us For Availability
18
Bushing, Grind WPL 302707 Contact Us For Availability
18
Bracket, Overflow WPL 719342 Contact Us For Availability
19
Screw, 8 x 1/2 Hi-Lo Blunt Point (3) WPL 718250 Contact Us For Availability
20
Sleeve, Drain Impeller WPL 302705 Contact Us For Availability
20
Gasket (Alternate) WPL 302090 Contact Us For Availability
20
Gasket (Alternate) WPL 302091 Contact Us For Availability
21
Check Ball & Retainer WPL 675488 Contact Us For Availability
21
Retainer (R.H.) WPL 302093 Contact Us For Availability
21
Retainer (L.H.) WPL 302094 Contact Us For Availability
22
Seal, Drain Cover WPL 302704 Contact Us For Availability
22
Switch, Pressure WPL 301671 Contact Us For Availability
22
Alternate WPL 301672 Contact Us For Availability
22
Alternate WPL 304589 Contact Us For Availability
23
``O`` Ring WPL 95080 Contact Us For Availability
23
Cover, Drain (Also Order Illus. No. 30) See N WPL 302723 Contact Us For Availability
24
Wheel, Leg WPL 302819 Contact Us For Availability
25
Base, Pump (Includes Item 24) (Also Order Ill WPL 3367204 Contact Us For Availability
26
Valve, Water Inlet (Alternate) WPL 303650 Contact Us For Availability
26
Valve, Water Inlet (Alternate) WPL 300453 Contact Us For Availability
27
Box, Terminal WPL 300067 Contact Us For Availability
28
Cover, Terminal Box WPL 300068 Contact Us For Availability
28
Motor (Includes Items 24 & 27) (Also Order Il WPL 302716 Contact Us For Availability
29
Screw, 13-18 x 1-1/2 (4) WPL 301817 Contact Us For Availability
30
Pump WPL 675505 Contact Us For Availability
30
Nut, Twin Spring WPL 303080 Contact Us For Availability
31
WPL 303918 WPL 303918 Contact Us For Availability
31
Screw, Shoulder WPL 302818 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
34
Locknut, 10-32 (8) WPL 718829 Contact Us For Availability
35
Washer (8) WPL 717624 Contact Us For Availability
36
Bearing, Nozzle WPL 719576 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Float WPL 718035 Contact Us For Availability
39
Cap, Nozzle WPL 303870 Contact Us For Availability
39
Standpipe, Overflow WPL 719967 Contact Us For Availability
40
Spray Arm, Lower WPL 302767 Contact Us For Availability
40
Gasket, Overflow WPL 719966 Contact Us For Availability
41
Screw, 4-40 x 9/16 Hex Head Slotted Thread Cu WPL 302203 Contact Us For Availability
43
Heater (Alternate) WPL 302113 Contact Us For Availability
43
Heater (Alternate) WPL 302562 Contact Us For Availability
43
Heater (Alternate) WPL 717141 Contact Us For Availability
43
Heater (Alternate) WPL 719687 Contact Us For Availability
44
Thermostat (Alternate) WPL 303282 Contact Us For Availability
44
Thermostat (Alternate) WPL 303652 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
45
Bracket WPL 303808 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
46
Nut, 7/16 x 20 (2) WPL 718537 Contact Us For Availability
47
Washer, Retainer (2) WPL 717289 Contact Us For Availability
47
Washer (8) WPL 718750 Contact Us For Availability
48
Support, Heater (2) WPL 717096 Contact Us For Availability
48
Washer, Cup (8) WPL 718817 Contact Us For Availability
49
Washer (2) WPL 711284 Contact Us For Availability
49
Wheel Assembly (8) WPL 300844 Contact Us For Availability
50
Washer (2) WPL 14351 Contact Us For Availability
50
Screw, Shoulder (8) WPL 712499 Contact Us For Availability
51
Nut, 10-32 (2) WPL 120614 Contact Us For Availability
51
Track (2) WPL 300846 Contact Us For Availability
52
End Cap, Track (4) WPL 300845 Contact Us For Availability
52
Grate WPL 303469 Contact Us For Availability
53
Screw, 8-18 x 5/8 Indented Hex H WPL 719266 Contact Us For Availability
54
WPL 301662 WPL 301662 Contact Us For Availability
55
WPL 301656 WPL 301656 Contact Us For Availability
59
WPL 301663 WPL 301663 Contact Us For Availability
60
WPL 799344 WPL 799344 Contact Us For Availability
60
WPL 206925 WPL 206925 Contact Us For Availability
60
WPL 261890 WPL 261890 Contact Us For Availability
60
WPL 261891 WPL 261891 Contact Us For Availability
60
WPL 285365 WPL 285365 Contact Us For Availability
60
WPL 285366 WPL 285366 Contact Us For Availability
60
WPL 285367 WPL 285367 Contact Us For Availability
60
WPL 285368 WPL 285368 Contact Us For Availability
60
WPL 675476 WPL 675476 Contact Us For Availability
60
WPL 675506 WPL 675506 Contact Us For Availability
60
WPL 72112 WPL 72112 Contact Us For Availability
60
WPL 799340 WPL 799340 Contact Us For Availability
60
WPL 799640 WPL 799640 Contact Us For Availability
77
Washer WPL 300237 Contact Us For Availability
86
Rail, Support WPL 304391 Contact Us For Availability
89
Lever, Release WPL 304407 Contact Us For Availability
90
Clip, Wire WPL 301857 Contact Us For Availability
93
Retainer, Clip WPL 303121 Contact Us For Availability
94
Shield, Har WPL 303362 Contact Us For Availability
95
WPL 303090 WPL 303090 Contact Us For Availability
× ![]()
