Model Whirlpool GDP8700XTN1 PORTABLE DISHWASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Vinyl Touch Up (Blue) WPL 675476 Contact Us For Availability

Tine Tip Repair Kit (Blue-Enough For Two Comp WPL 675506 Contact Us For Availability

Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability

WPL 799640 WPL 799640 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT3367223 WPL LIT3367223 Contact Us For Availability

WPL LIT3367699 WPL LIT3367699 Contact Us For Availability

WPL LIT3367945 WPL LIT3367945 Contact Us For Availability

WPL LIT3367993 WPL LIT3367993 Contact Us For Availability

WPL LIT3368459 WPL LIT3368459 Contact Us For Availability

1

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

1

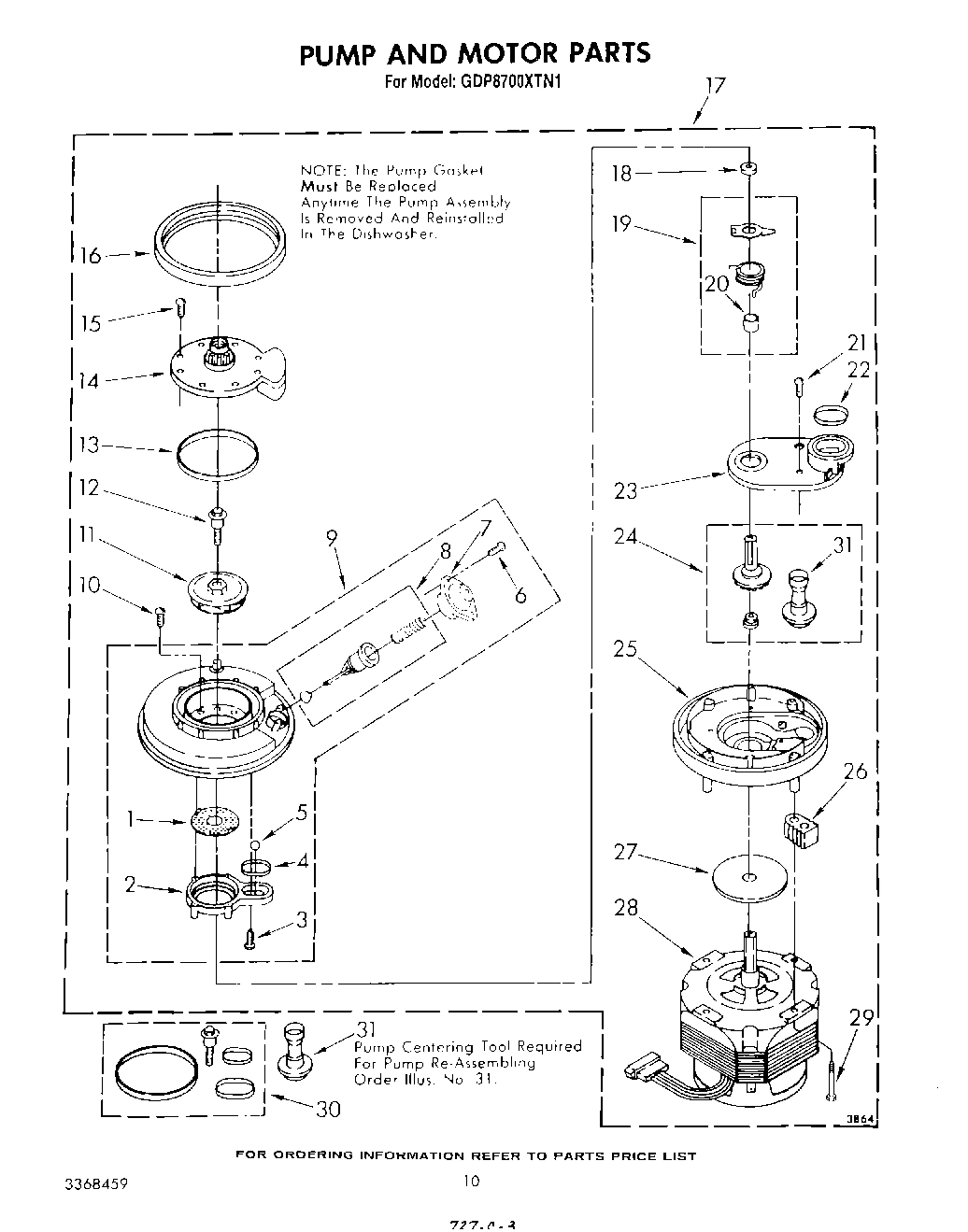

Pump & Motor Assembly (Includes Illus. 41) WPL 3367494 Contact Us For Availability

1

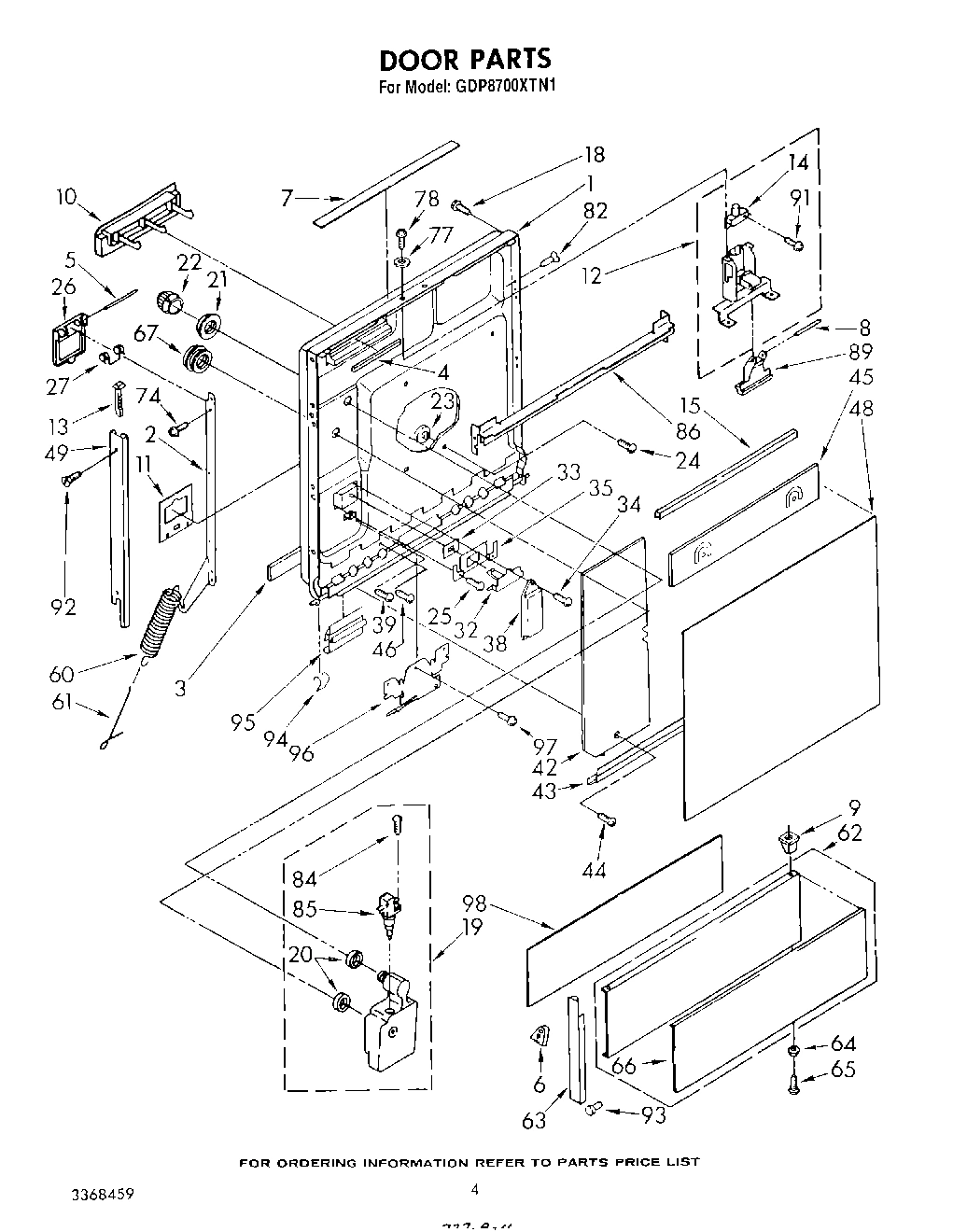

Door, Inner WPL 3367388 Contact Us For Availability

1

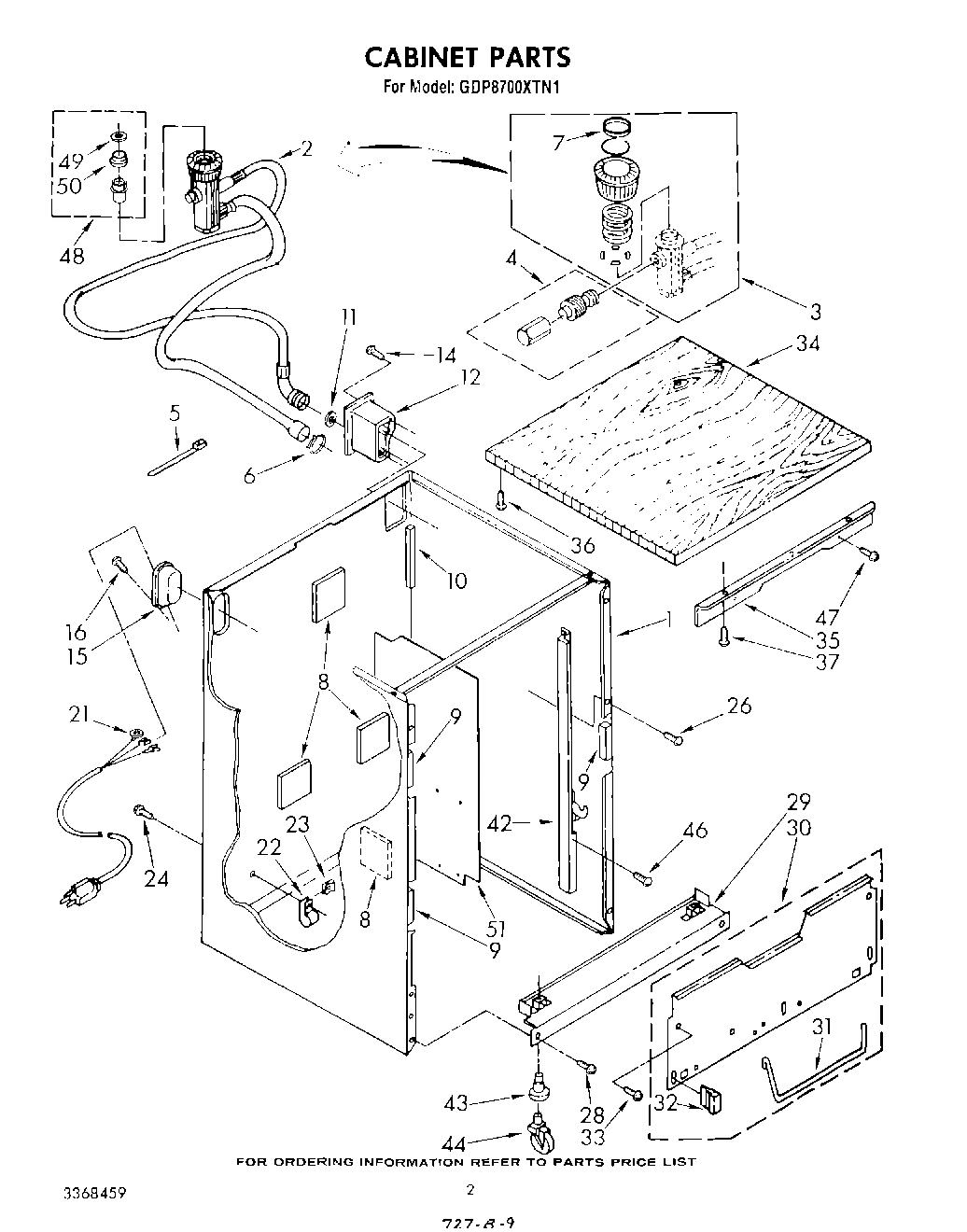

Shell Assembly (Almond) WPL 302898 Contact Us For Availability

1

Screw, 8-18 x 5/8 WPL 303090 Contact Us For Availability

2

Terminal, Female WPL 352088 Contact Us For Availability

2

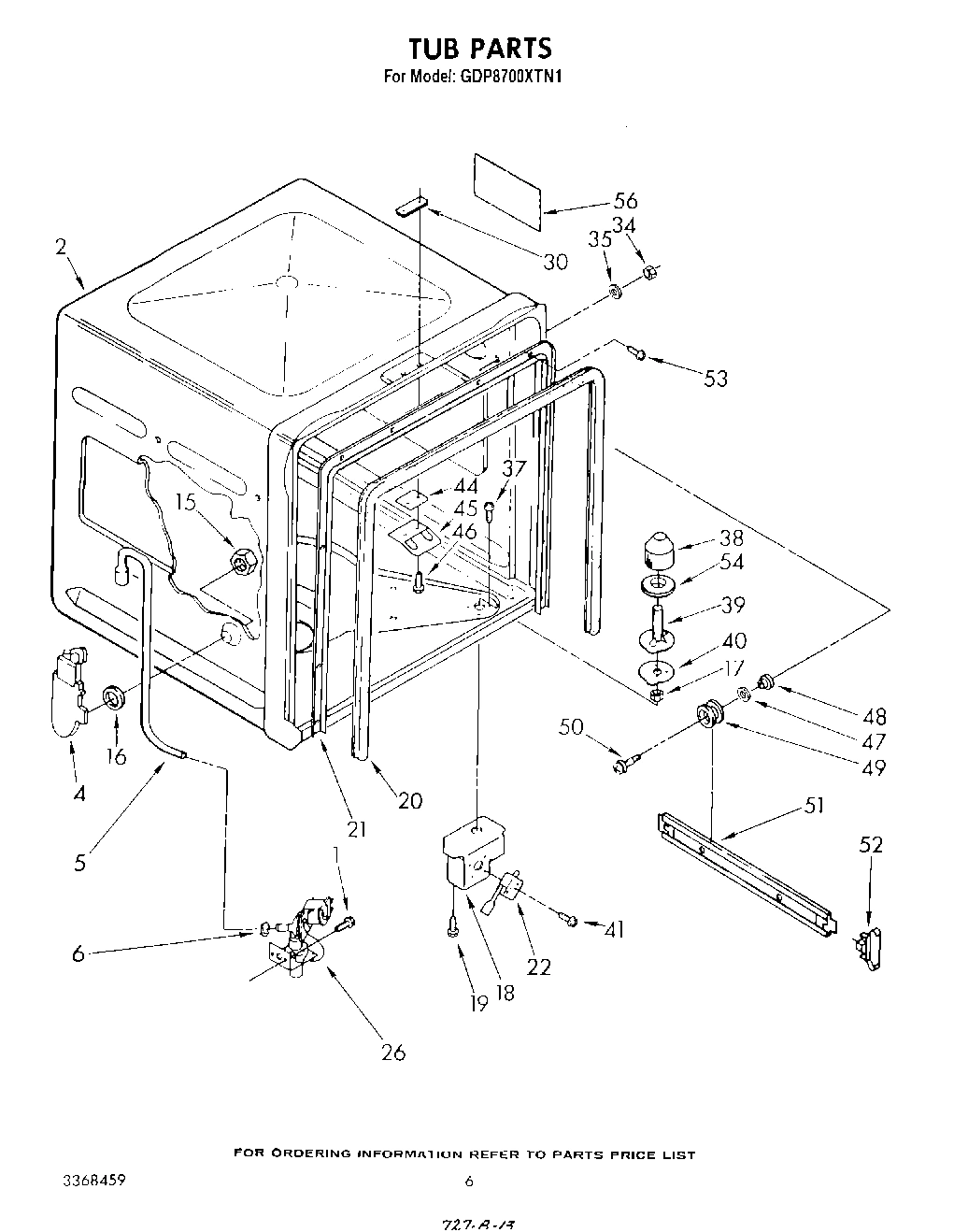

tub assembly WPL 3367464 Contact Us For Availability

2

Support, Door (R.H.) WPL 3367201 Contact Us For Availability

2

Support, Door (L.H.) WPL 3367202 Contact Us For Availability

2

Timer WPL 3368390 Contact Us For Availability

2

Coupler Assembly WPL 302902 Contact Us For Availability

3

WP285170 Whirlpool Collar In Stock WPL WP285170 $28.27

3

Gasket, Door WPL 717921 Contact Us For Availability

3

Block, Timer (White) WPL 304757 Contact Us For Availability

3

block, timer (black) WPL 304758 Contact Us For Availability

3

Screw, 7-18 x 1-3/8 Slot Hex Wash Hd WPL 304232 Contact Us For Availability

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $4.26

4

Inlet, Water WPL 300974 Contact Us For Availability

4

Baffle WPL 719860 Contact Us For Availability

4

Terminal, Female WPL 304759 Contact Us For Availability

4

Relay, Start WPL 3367136 Contact Us For Availability

4

Valve, Pressure Relief WPL 285171 Contact Us For Availability

5

4387043 Whirlpool Door Latch Kit In Stock WPL 4387043 $15.98

5

WPW10144763 Whirlpool Tie Wire Backorder WPL WPW10144763 $2.38

5

Hose, Inlet WPL 304669 Contact Us For Availability

5

Plug, Two Pin WPL 717252 Contact Us For Availability

5

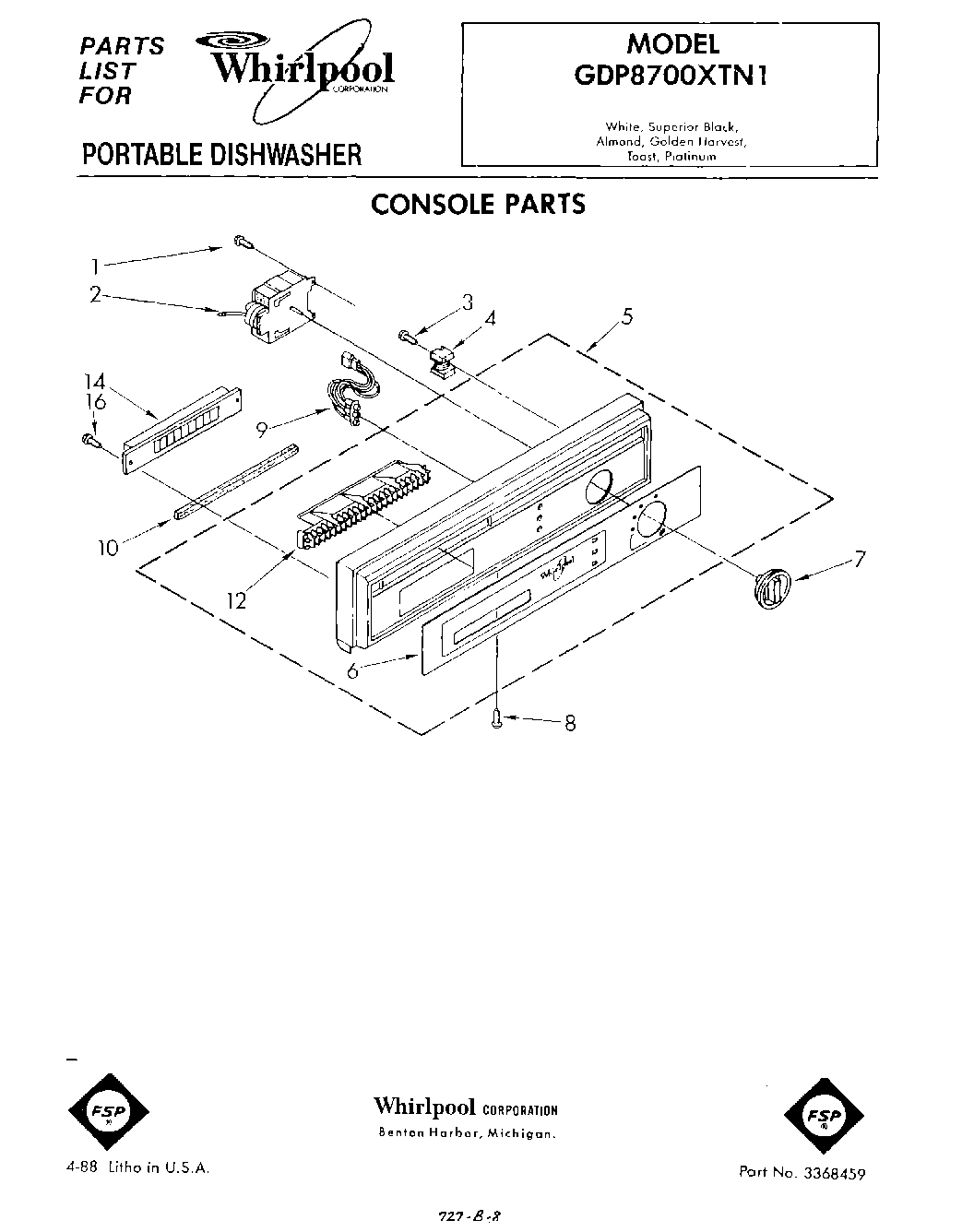

Console WPL 3367886 Contact Us For Availability

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

6

Retainer (2) WPL 3367736 Contact Us For Availability

6

Plug, One Pin WPL 351297 Contact Us For Availability

6

Insert, Decorative WPL 3367841 Contact Us For Availability

6

Clamp, Hose WPL 719953 Contact Us For Availability

7

Seal WPL 711696 Contact Us For Availability

7

Label, User Guide WPL LIT303498 Contact Us For Availability

7

Knob, Timer WPL 3367282 Contact Us For Availability

8

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

8

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

8

Pin, Pivot (2) WPL 300234 Contact Us For Availability

8

Pad (4) WPL 3368108 Contact Us For Availability

9

WP304204 Whirlpool Dishwasher Spray Arm Backorder WPL WP304204 $94.36

9

Grommet WPL 356592 Contact Us For Availability

9

Receptacle (5-Circuit) WPL 719585 Contact Us For Availability

9

Light, Indicator (For Electrical Connector On WPL 304422 Contact Us For Availability

9

Pad (3) WPL 3368110 Contact Us For Availability

Screen, Vent WPL 300246 Contact Us For Availability

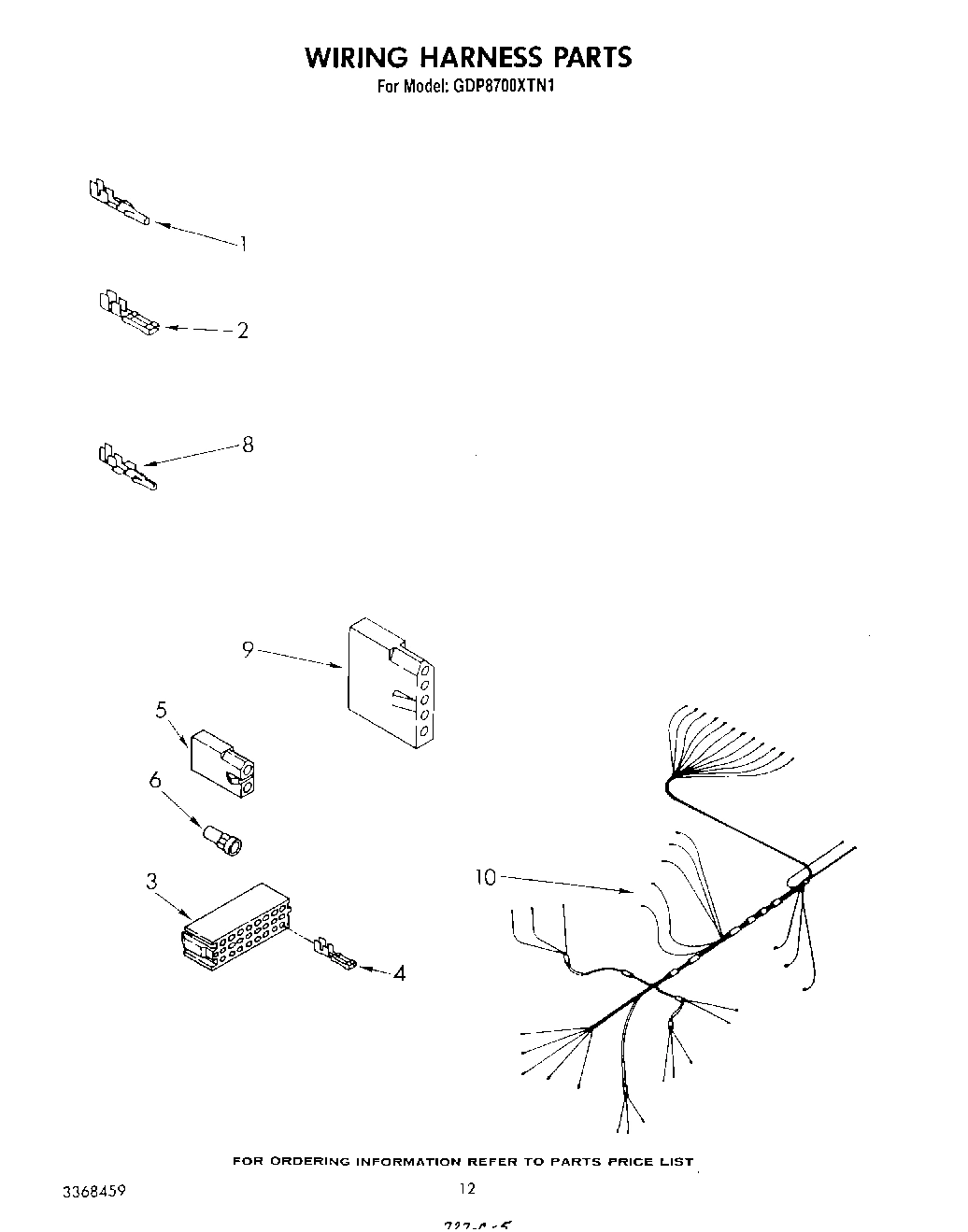

Harness, Wiring WPL 3367799 Contact Us For Availability

Baffle WPL 3368537 Contact Us For Availability

Pad WPL 3368109 Contact Us For Availability

11

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

11

Barrier WPL 303978 Contact Us For Availability

12

Latch Assembly WPL 3367058 Contact Us For Availability

12

Grill, Vent WPL 304602 Contact Us For Availability

12

Housing, Hose WPL 302891 Contact Us For Availability

13

WP302711 Whirlpool Dishwasher Ring Seal Backorder WPL WP302711 $11.66

13

Clip, Trim Guard (2) WPL 3367172 Contact Us For Availability

Alternate WPL 300232 Contact Us For Availability

Alternate WPL 303075 Contact Us For Availability

Alternate WPL 303885 Contact Us For Availability

Switch, Interlock WPL 660951 Contact Us For Availability

Switch, Pushbutton WPL 3367741 Contact Us For Availability

Tower WPL 304170 Contact Us For Availability

Nut, 7/18-16 WPL 713799 Contact Us For Availability

Protector, Edge WPL 3367669 Contact Us For Availability

Housing, Cord WPL 716234 Contact Us For Availability

16

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $2.51

16

Gasket WPL 713878 Contact Us For Availability

17

Nut, .125 WPL 717488 Contact Us For Availability

18

Bracket, Overflow Switch WPL 719342 Contact Us For Availability

18

Screw, 8 x 1-7/8 (2) WPL 304233 Contact Us For Availability

19

Screw, 8 x 1/2 (3) WPL 718250 Contact Us For Availability

19

Dispenser, Wetting Agent WPL 304442 Contact Us For Availability

20

Gasket WPL 3368007 Contact Us For Availability

20

Washer WPL 713080 Contact Us For Availability

Retainer & Seal WPL 3368002 Contact Us For Availability

Check Ball & Retainer WPL 675488 Contact Us For Availability

Nut WPL 718575 Contact Us For Availability

Cord, Power WPL 303651 Contact Us For Availability

675238 Whirlpool Check Valve Backorder WPL 675238 $28.04

Alternate WPL 301671 Contact Us For Availability

Alternate WPL 301672 Contact Us For Availability

Alternate WPL 304589 Contact Us For Availability

Switch, Pressure WPL 660741 Contact Us For Availability

Indicator, Level WPL 718577 Contact Us For Availability

Clamp, Strain Relief WPL 596553 Contact Us For Availability

23

``O`` Ring WPL 95080 Contact Us For Availability

23

Button, Retainer (3) WPL 300239 Contact Us For Availability

23

Nut, J-Type WPL 717337 Contact Us For Availability

24

Screw, 8-18 x 3/8 (3) WPL 300250 Contact Us For Availability

26

Valve, Water Inlet WPL 661511 Contact Us For Availability

27

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $8.24

27

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $2.51

28

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

29

Toeplate Assembly (Includes Item 43) WPL 3368426 Contact Us For Availability

30

Nut, Twin Spring WPL 303080 Contact Us For Availability

30

Plate, Cover WPL 719091 Contact Us For Availability

31

WPL 303918 WPL 303918 Contact Us For Availability

31

Bar, Torsion (R.H.) WPL 719093 Contact Us For Availability

31

Bar, Torsion (L.H.) WPL 719094 Contact Us For Availability

32

Lever, Catch WPL 300119 Contact Us For Availability

32

Bumper, Rubber WPL 719235 Contact Us For Availability

33

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

33

Seal, Lever WPL 300105 Contact Us For Availability

34

Locknut (8) WPL 718829 Contact Us For Availability

34

Panel, Top WPL 304598 Contact Us For Availability

35

Washer (8) WPL 717624 Contact Us For Availability

35

Retainer WPL 300104 Contact Us For Availability

35

Trim, Front WPL 302250 Contact Us For Availability

36

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

36

WP719576 Whirlpool Dishwasher Bearing Backorder WPL WP719576 $4.26

37

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

38

Actuator WPL 300109 Contact Us For Availability

38

Float WPL 718035 Contact Us For Availability

39

Cap, Nozzle WPL 3367910 Contact Us For Availability

39

Standpipe, Overflow WPL 719967 Contact Us For Availability

40

Gasket, Overflow WPL 719966 Contact Us For Availability

40

Spray Arm, Lower WPL 302767 Contact Us For Availability

41

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

41

Screw, 4-40 x 9/16 WPL 302203 Contact Us For Availability

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

Barrier, Door WPL 303906 Contact Us For Availability

leg assembly, r.h. WPL 3367436 Contact Us For Availability

Leg Assembly, L.H. WPL 3367438 Contact Us For Availability

Socket, Caster (Alternate) WPL 300450 Contact Us For Availability

Alternate WPL 302113 Contact Us For Availability

Alternate WPL 302562 Contact Us For Availability

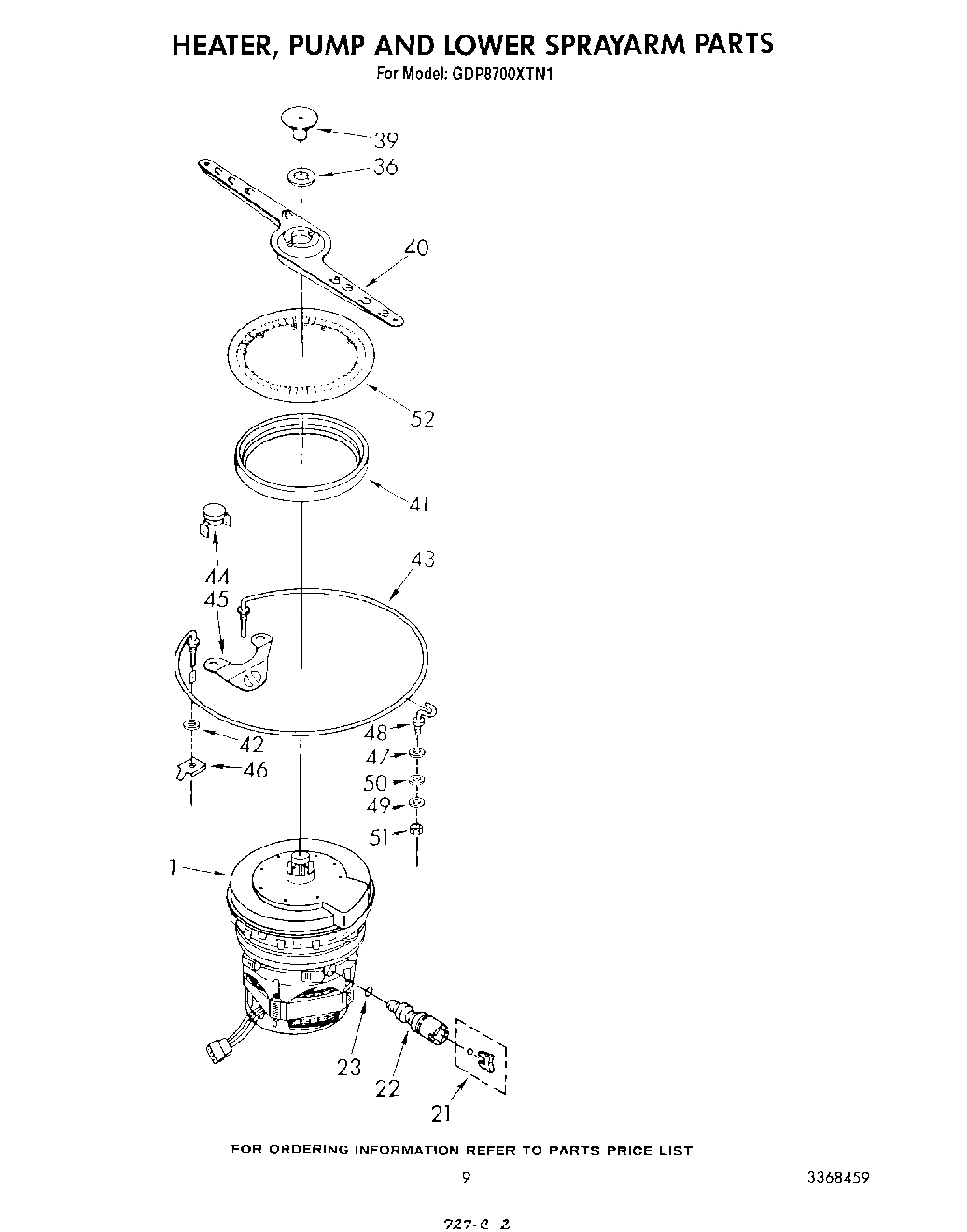

Heater WPL 660318 Contact Us For Availability

Alternate WPL 717141 Contact Us For Availability

Alternate WPL 719687 Contact Us For Availability

Edging, Panel WPL 304047 Contact Us For Availability

Socket, Caster (Alternate) WPL 717588 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP3370639 Whirlpool Caster Backorder WPL WP3370639 $25.57

Shim WPL 712302 Contact Us For Availability

Alternate WPL 303282 Contact Us For Availability

Alternate WPL 303652 Contact Us For Availability

Thermostat WPL 661504 Contact Us For Availability

45

Strike WPL 300233 Contact Us For Availability

45

Bracket, Thermostat WPL 3368272 Contact Us For Availability

45

Barrier, Console WPL 303908 Contact Us For Availability

46

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

46

Nut, 7/16 x 20 (2) WPL 718537 Contact Us For Availability

47

Washer (8) WPL 718750 Contact Us For Availability

47

Washer, Retainer (2) WPL 717289 Contact Us For Availability

47

screw, 8-18 x 5/8 (2) WPL 3367953 Contact Us For Availability

WPW10254672 Whirlpool Faucet Adapter In Stock WPL WPW10254672 $26.68

Washer, Cup (8) WPL 718817 Contact Us For Availability

Support, Heater (2) WPL 717096 Contact Us For Availability

Panel, Front WPL ARI64769A4 Contact Us For Availability

Wheel Tub (8) WPL 300844 Contact Us For Availability

Washer (2) WPL 711284 Contact Us For Availability

Trim, Door (R.H.) WPL 3367487 Contact Us For Availability

Trim, Door (L.H.) WPL 3367488 Contact Us For Availability

Washer WPL 713747 Contact Us For Availability

50

Screw, Shoulder (8) WPL 712499 Contact Us For Availability

50

Washer (2) WPL 14351 Contact Us For Availability

50

Bushing WPL 713748 Contact Us For Availability

51

Track (2) WPL 300846 Contact Us For Availability

51

Nut, 10-32 (2) WPL 120614 Contact Us For Availability

51

Barrier, Hose WPL 301543 Contact Us For Availability

52

End Cap, Track (4) WPL 300845 Contact Us For Availability

52

Grate WPL 303469 Contact Us For Availability

53

Screw, 8-18 x 5/8 (10) WPL 3368008 Contact Us For Availability

54

Gasket, Standpipe (2) WPL 301662 Contact Us For Availability

56

Pad, Sound (2) WPL 302340 Contact Us For Availability

60

675611 Whirlpool Spring Assembly In Stock WPL 675611 $39.24

61

WP716401 Whirlpool Dishwasher Retainer In Stock WPL WP716401 $26.21

62

Panel, Access WPL ARI64770A2 Contact Us For Availability

63

Cap, End R.H. WPL 3367527 Contact Us For Availability

63

Cap, End L.H. WPL 3367531 Contact Us For Availability

64

Foot (2) WPL 719581 Contact Us For Availability

65

Screw, 8-18 x 5/8 WPL 719266 Contact Us For Availability

66

Overlay, Access Panel (Brushed Aluminum (Opti WPL 302595 Contact Us For Availability

66

overlay, access panel (black) WPL 303445 Contact Us For Availability

67

Cap, Drip WPL 718576 Contact Us For Availability

74

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

77

Washer (2) WPL 300237 Contact Us For Availability

82

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

84

Screw, 4-20 WPL 304444 Contact Us For Availability

85

WPL 304443 WPL 304443 Contact Us For Availability

86

WPL 304391 WPL 304391 Contact Us For Availability

89

WPL 304408 WPL 304408 Contact Us For Availability

91

WPL 301582 WPL 301582 Contact Us For Availability

92

WPL 3367288 WPL 3367288 Contact Us For Availability

93

WPL 715779 WPL 715779 Contact Us For Availability

94

WPL 301857 WPL 301857 Contact Us For Availability

95

WPL 3367720 WPL 3367720 Contact Us For Availability

96

WPL 303362 WPL 303362 Contact Us For Availability

98

WPL 301774 WPL 301774 Contact Us For Availability
