Model LG GDP1329CES2.ASSEELC – Common Parts & Diagrams

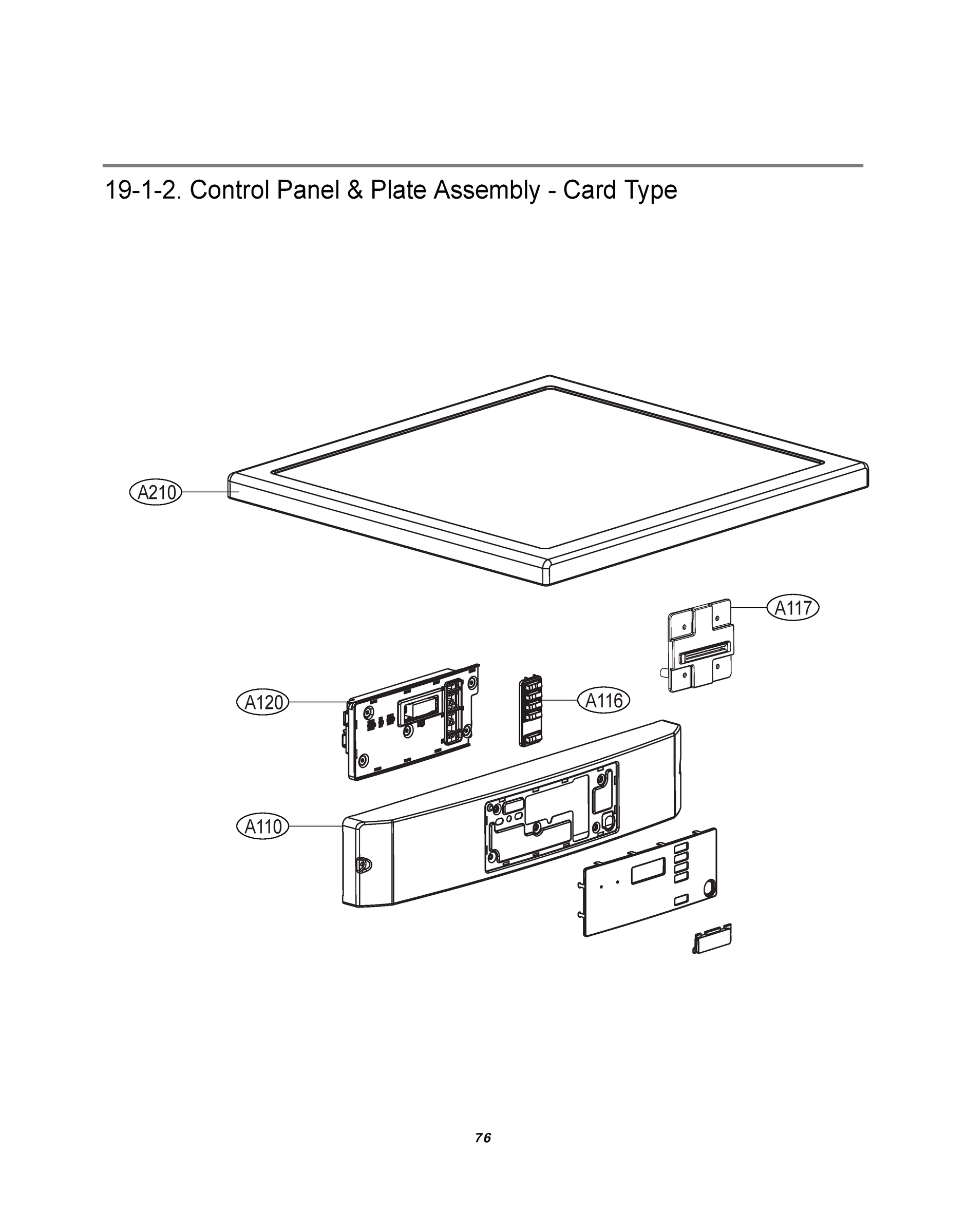

CONTROL PANEL & PLATE ASSEMBLY CARD TYPE

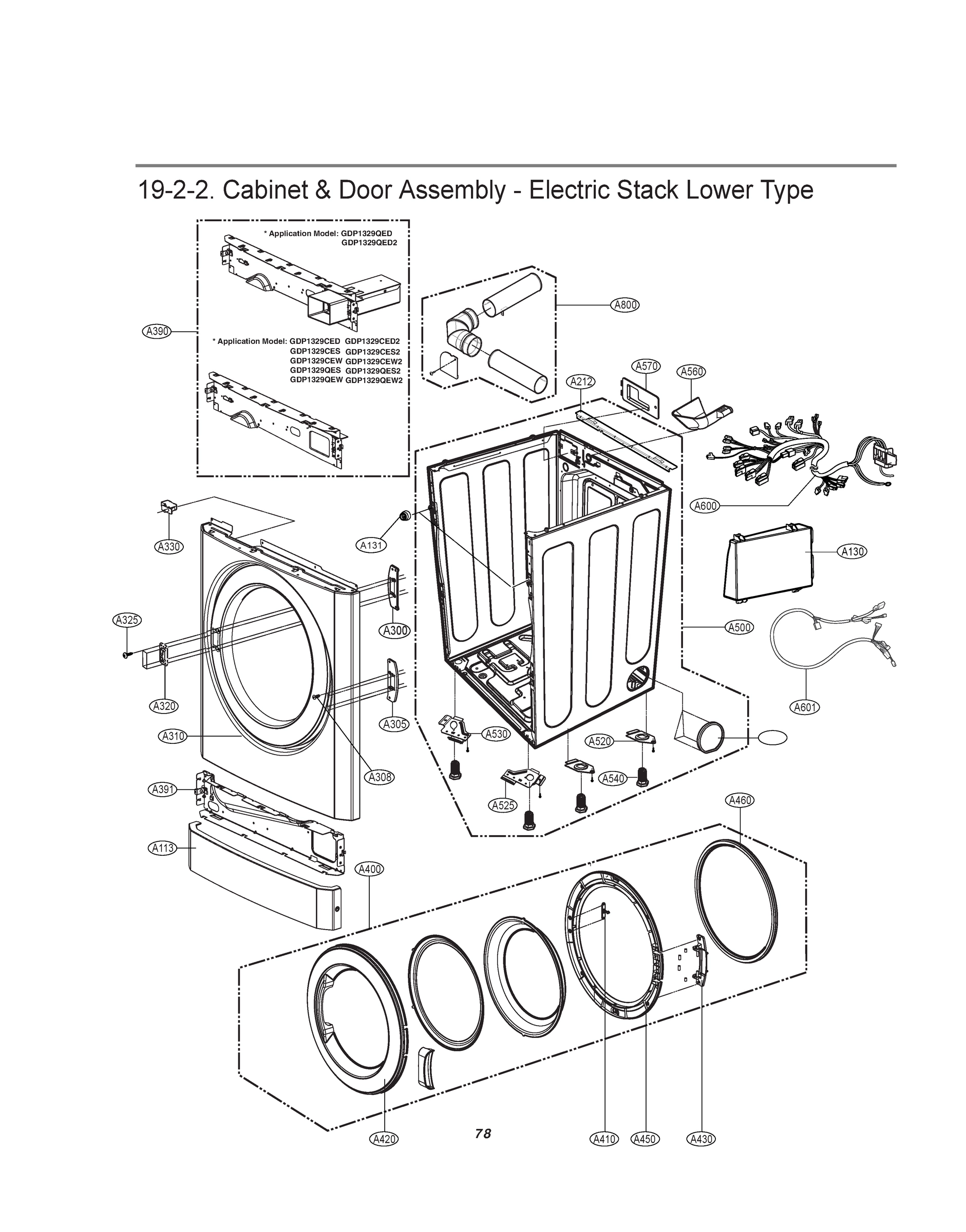

CABINET & DOOR ASSEMBLY

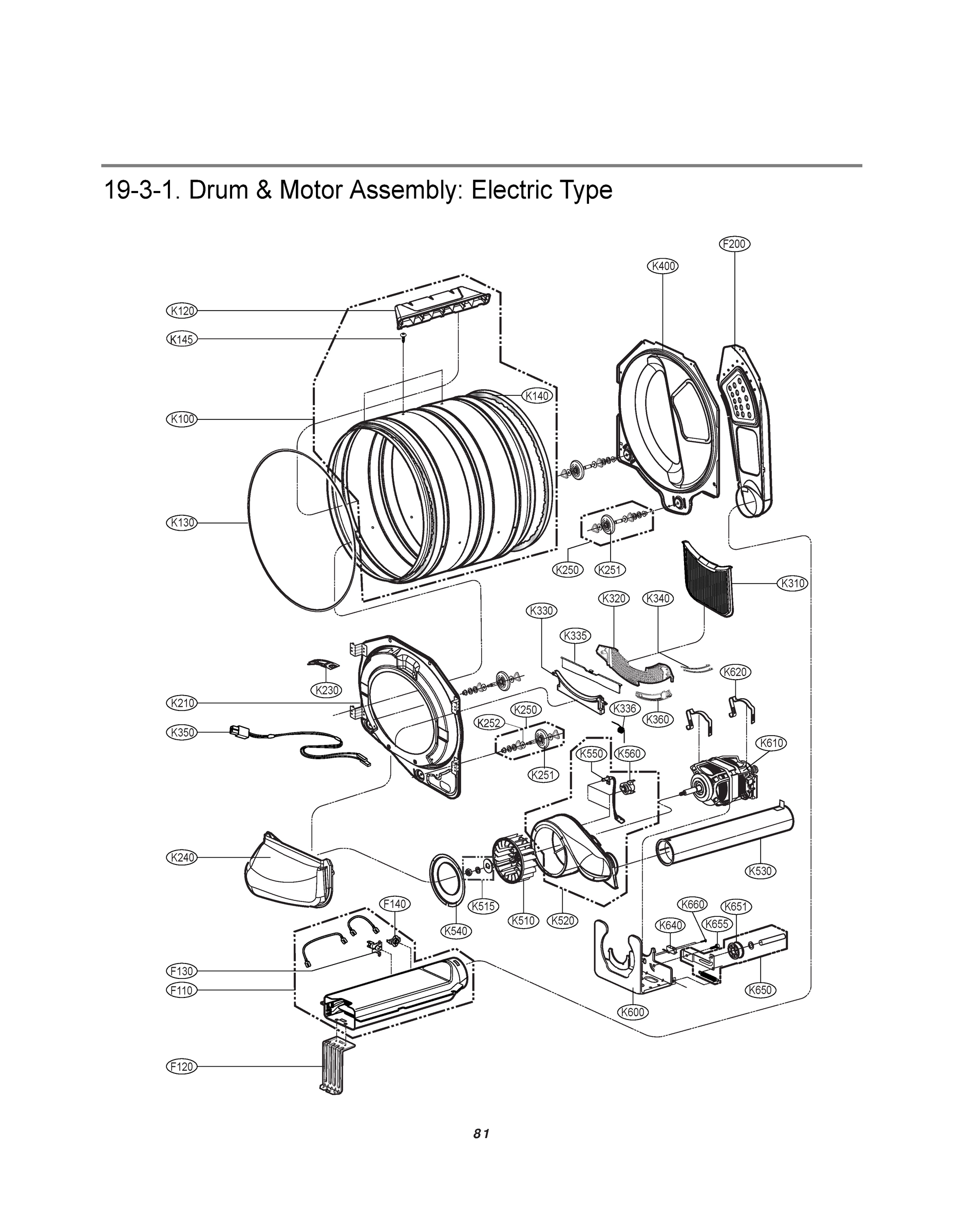

DRUM & MOTOR ASSEMBLY
Common parts from model LG GDP1329CES2.ASSEELC
A116
Button,Control LGE MBG62329502 Contact Us For Availability
A130
PCB Assembly,Main LGE EBR73527812 Contact Us For Availability
A131
Holder Assembly LGE AEJ33026601 Contact Us For Availability
A305
Bracket,Hinge LGE MAZ47156203 Contact Us For Availability
A308
Screw,Taptite LGE 1APF0402608 Contact Us For Availability
A320
Locker Assembly LGE 4027EL1001A Contact Us For Availability
A325
Screw,Machine LGE 1MTC0402632 Contact Us For Availability
A330
Switch Assembly,Safety LGE 6601EL3001A Contact Us For Availability
A410
Locker,Hook LGE 4026EL3007A Contact Us For Availability
A430
Hinge LGE 4774EL2001A Contact Us For Availability
A450
Frame,Door(Inner) LGE 3212EL1005A Contact Us For Availability
A460
Gasket LGE 4986EL2004A Contact Us For Availability
A520
Bracket,Base LGE 4810EL3001B Contact Us For Availability
A540
Leg LGE 4778EL3001B Contact Us For Availability
A560
Cover,Guide LGE 3550EL3007D Contact Us For Availability
A570
Cover,Safety LGE 3550EL3002A Contact Us For Availability
F110
Heater Assembly LGE 5301EL1001J Contact Us For Availability
F130
Thermostat LGE 6931EL3003D Contact Us For Availability
F140
Thermostat Assembly LGE 6931EL3001F Contact Us For Availability
F200
Duct Assembly LGE 5209EL1001C Contact Us For Availability
K100
Tub Assembly,Drum LGE 3045EL1002P Contact Us For Availability
K120
Lifter LGE 4432EL1002A Contact Us For Availability
K130
Belt,Poly V LGE 4400EL2001F Contact Us For Availability
K140
Gasket LGE 4036EL3001A Contact Us For Availability
K210
Tub Assembly,Drum LGE AJQ73594002 Contact Us For Availability
K230
Cover,Lamp LGE 3550EL2001A Contact Us For Availability
K251
Roller Assembly LGE 4581EL3001M Contact Us For Availability
K252
Washer,Customized LGE 4W50100F Contact Us For Availability
K335
Cover,Filter LGE 3550EL2004B Contact Us For Availability
K336
Spring,Distortion LGE 4970EL4002C Contact Us For Availability
K340
Sensor,Humidity LGE 6500EL3001A Contact Us For Availability
K350
Single Harness LGE 6631EL3003B Contact Us For Availability
K360
Holder LGE 4930EL2004D Contact Us For Availability
K510
Casing Assembly LGE 5835EL1002A Contact Us For Availability
K515
Locker,Parts Assembly,SVC LGE 383EEL9001G Contact Us For Availability
K520
Housing,Blower LGE MEK37661701 Contact Us For Availability
K530
Duct Assembly LGE 5209EL1006A Contact Us For Availability
K540
Guide Assembly LGE 4975EL3001A Contact Us For Availability
K550
Thermistor,NTC LGE 6323EL2001B Contact Us For Availability
K560
Thermostat LGE 6931EL3002M Contact Us For Availability
K600
Bracket,Motor LGE MAZ66065301 Contact Us For Availability
K610
Motor Assembly,DC,Drum LGE 4681EL1008A Contact Us For Availability
K620
Clamp LGE 4860EL3001A Contact Us For Availability
K640
Switch,Micro LGE EBF61734701 Contact Us For Availability
K650
Pulley Assembly,Motor LGE 4561EL3002A Contact Us For Availability
K651
Pulley,Idle LGE 4560EL3001A Contact Us For Availability
K655
Screw,Customized LGE 1SZZEL3001A Contact Us For Availability
K660
Screw,Tapping LGE 1TPL0303218 Contact Us For Availability
× ![]()
