Model Whirlpool GDG27CA GAS DRYER – Common Parts & Diagrams
06 - MOTOR, BLOWER & BASE FRAME
07 - THERMOSTATS

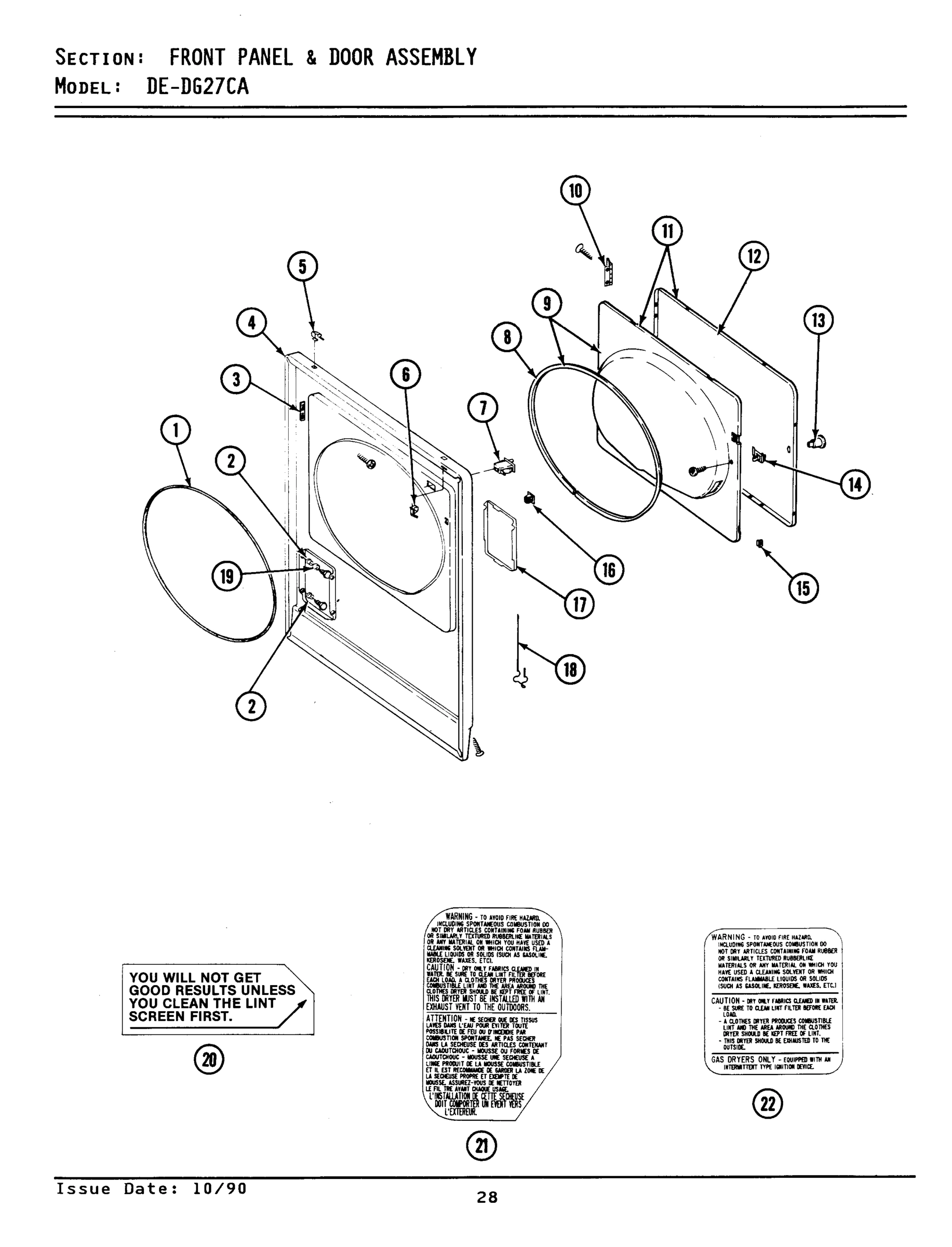

04 - FRONT PANEL & DOOR ASSEMBLY

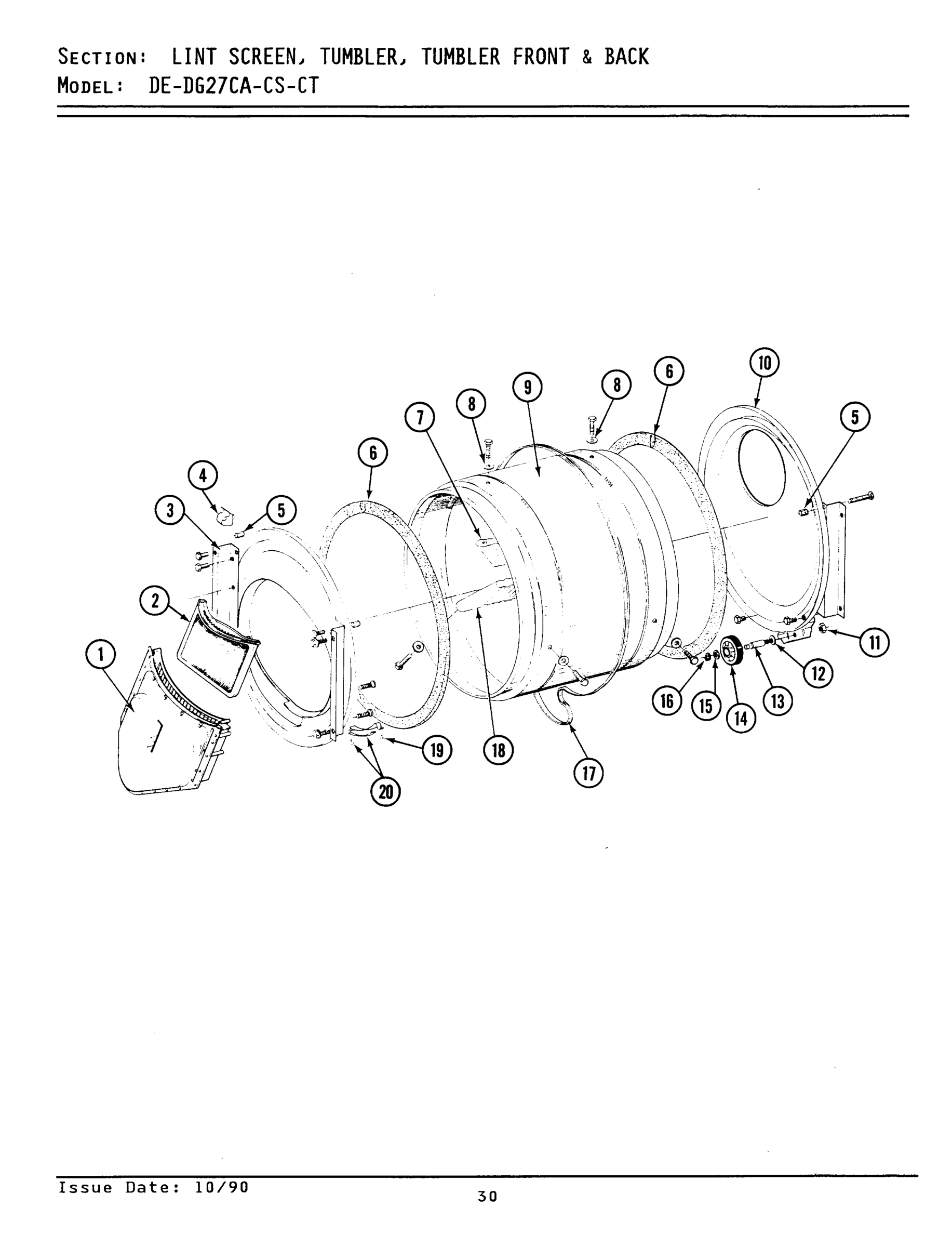

05 - LINT SCREEN, TUMBLER (FRONT & BACK)

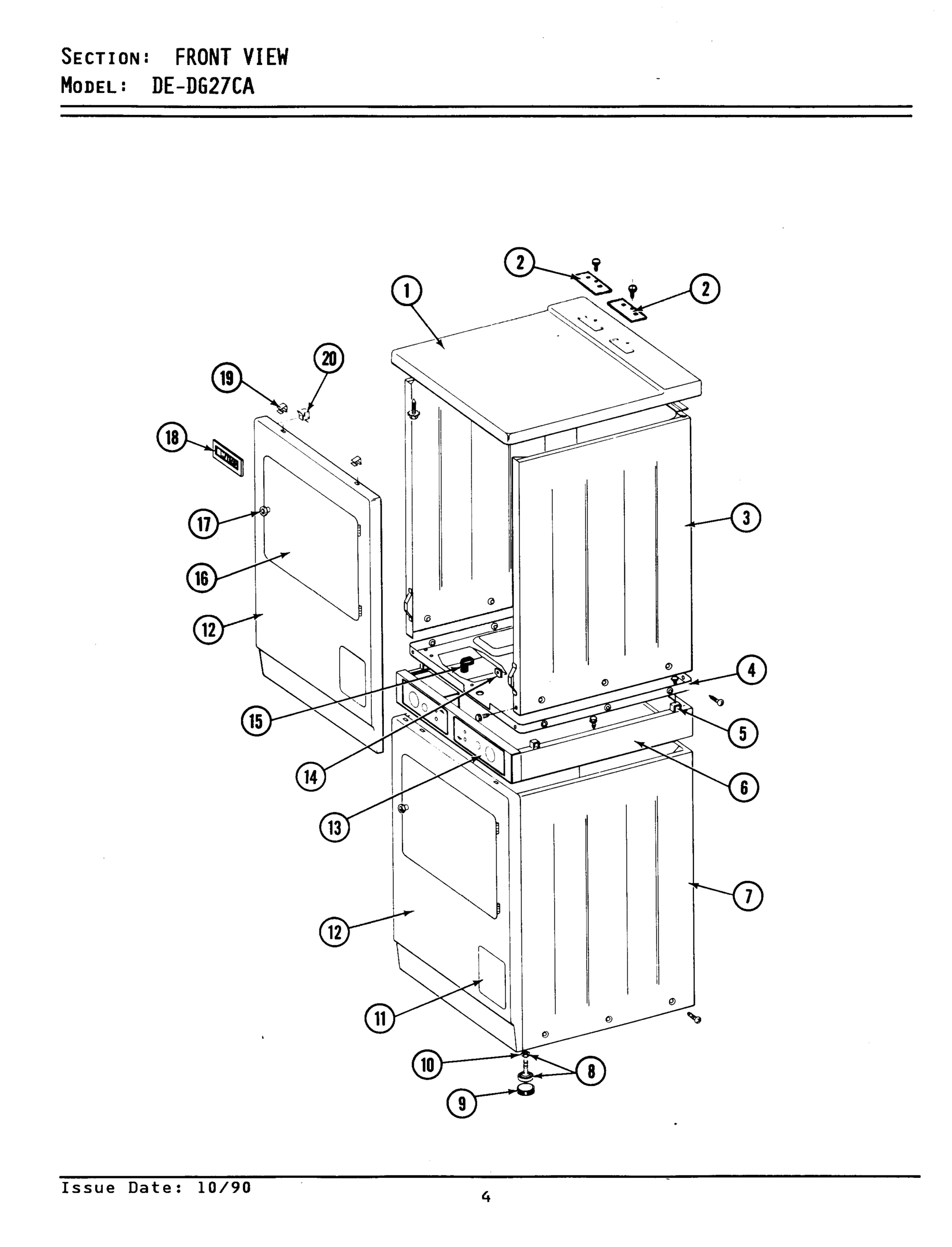

01 - FRONT VIEW

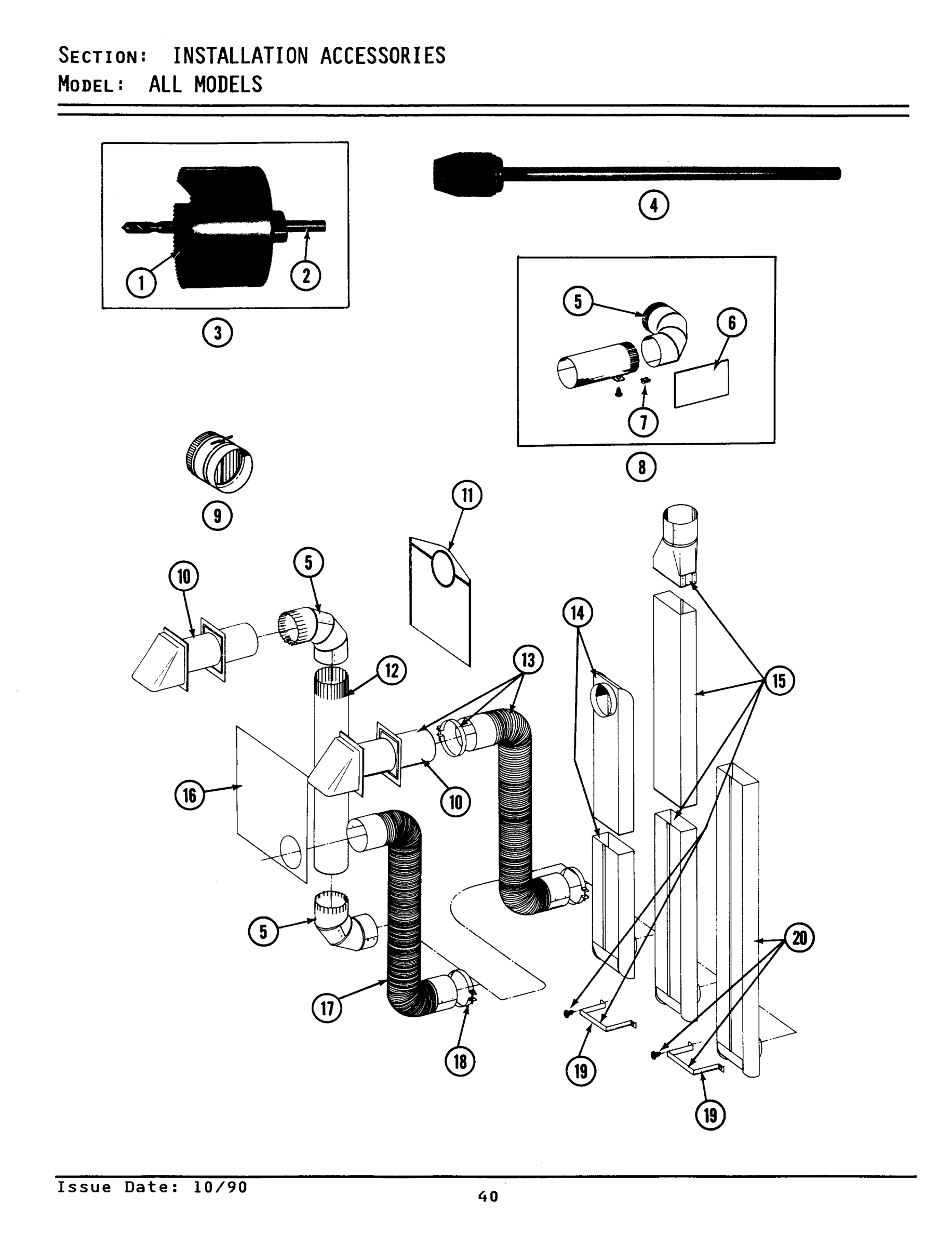

08 - INSTALLATION ACCESSORIES

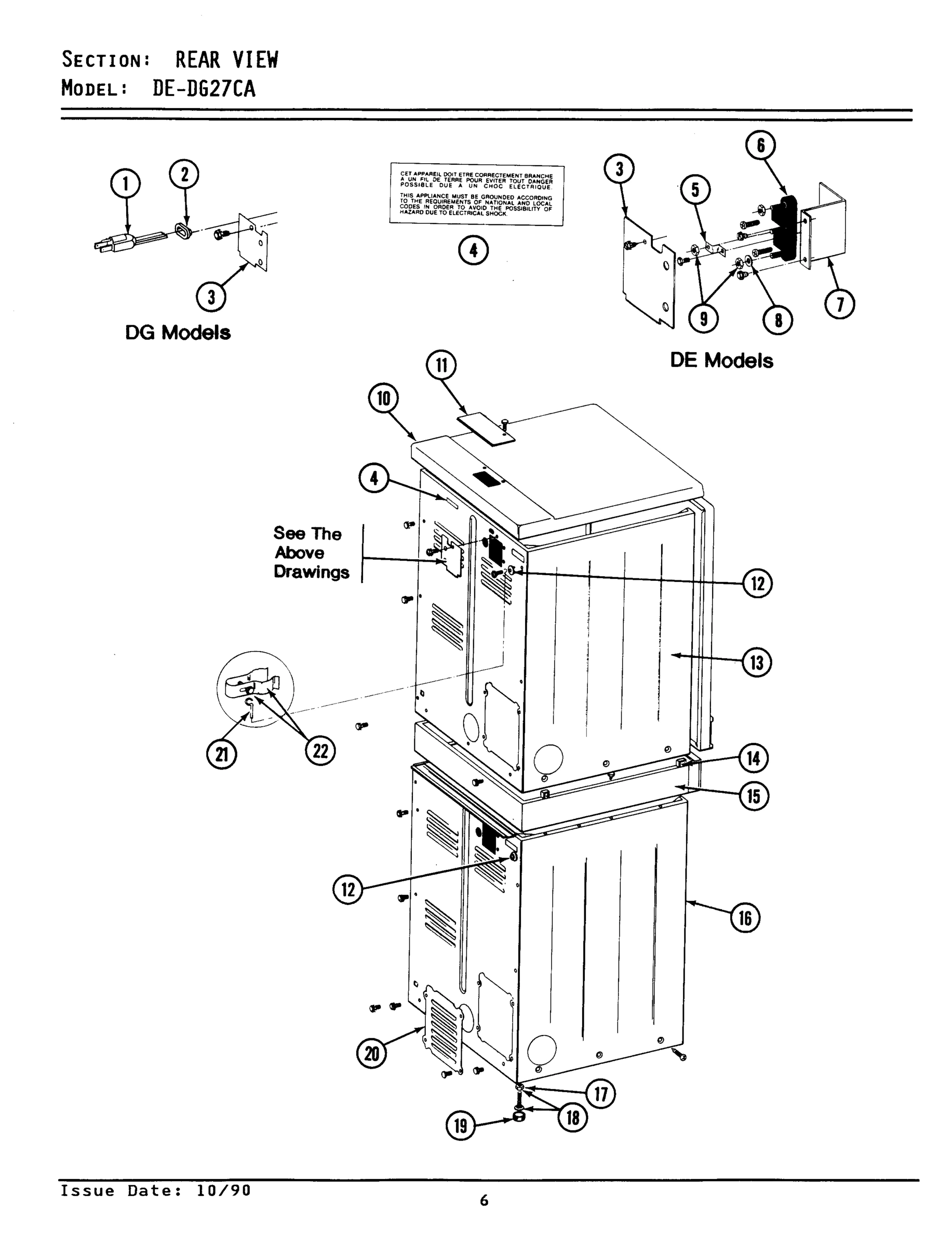

02 - REAR VIEW
09 - 50HZ CONVERSION LIST

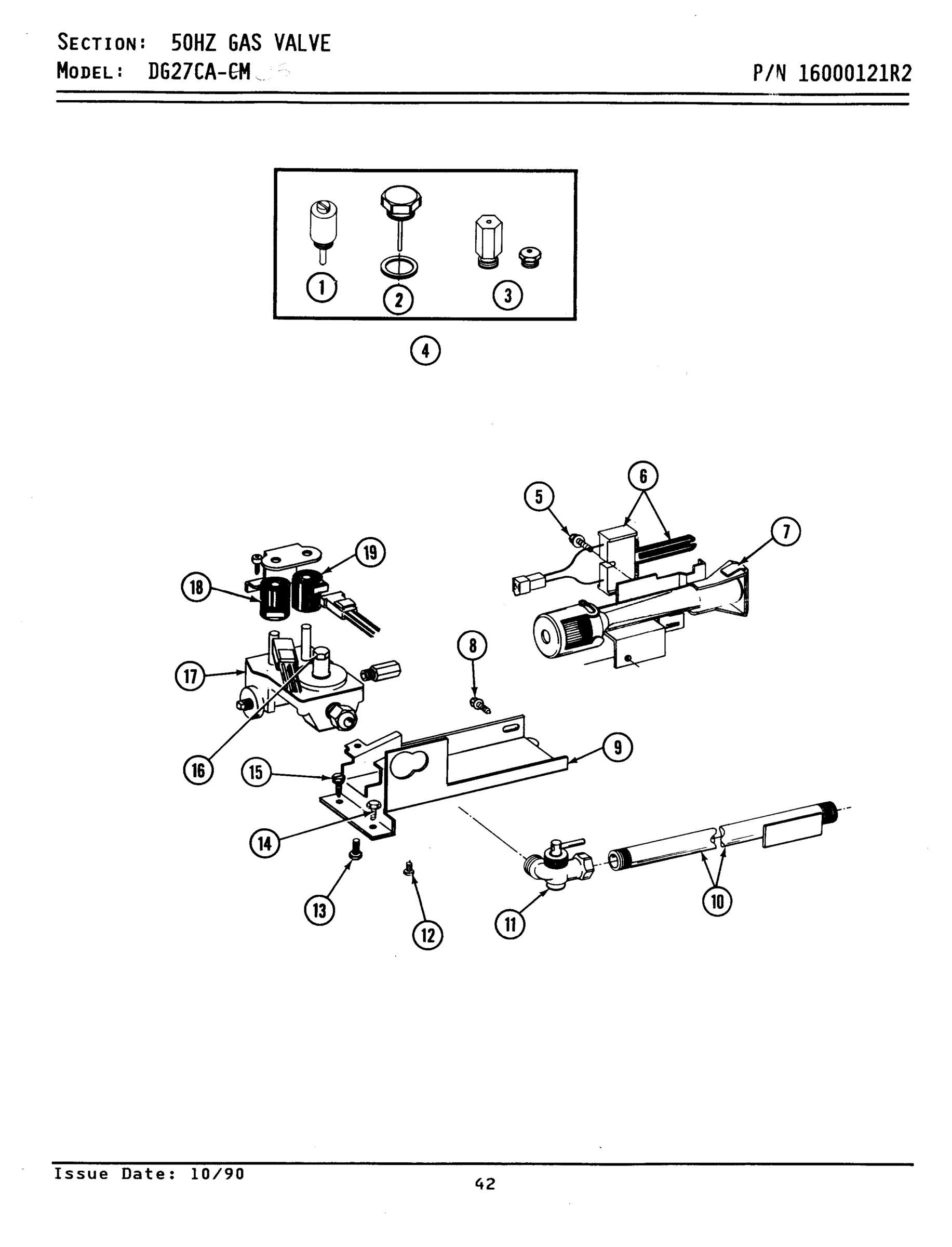

11 - 50HZ GAS VALVE

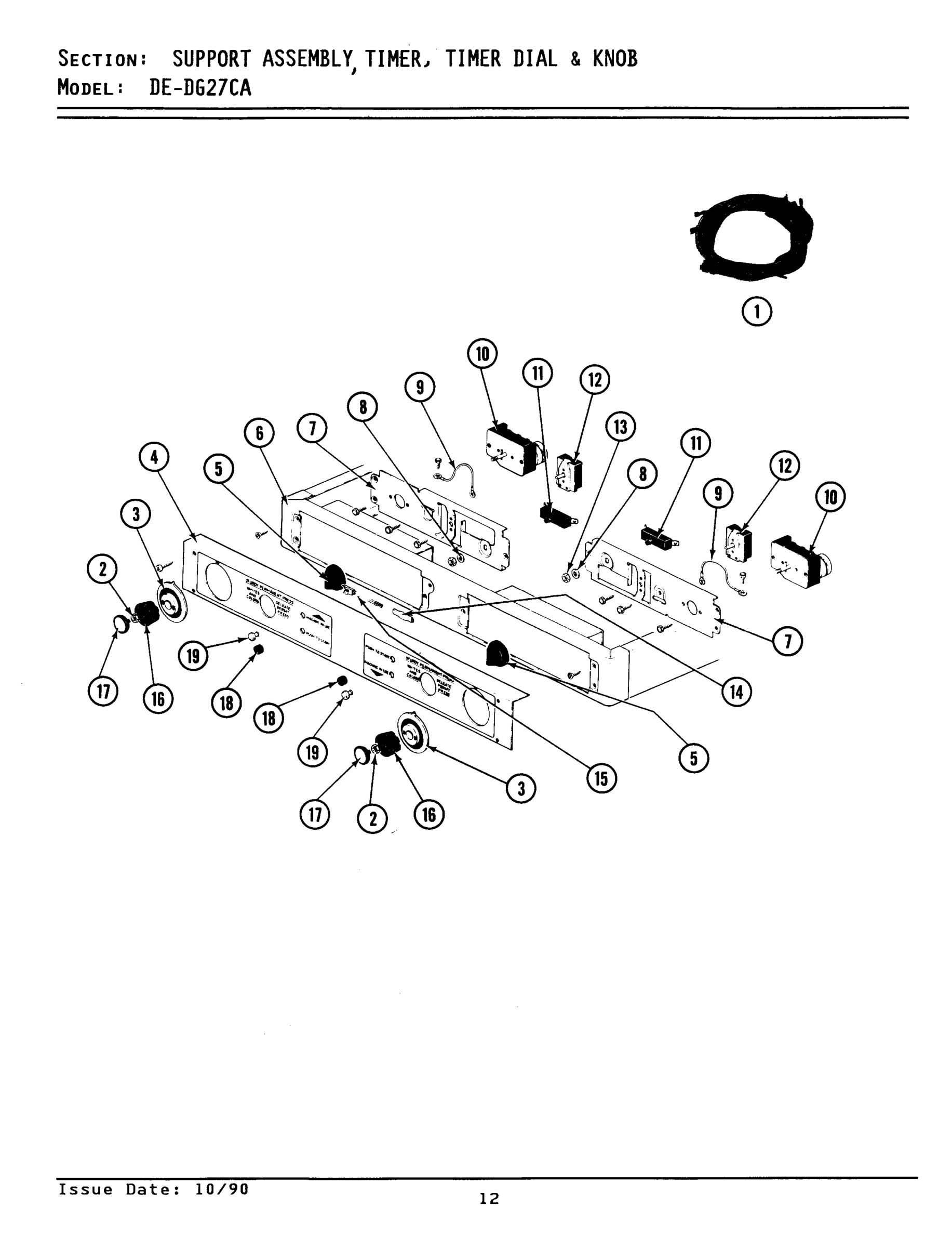

03 - SUPPORT ASSY., TIMER, TIMER DIAL & KNOB

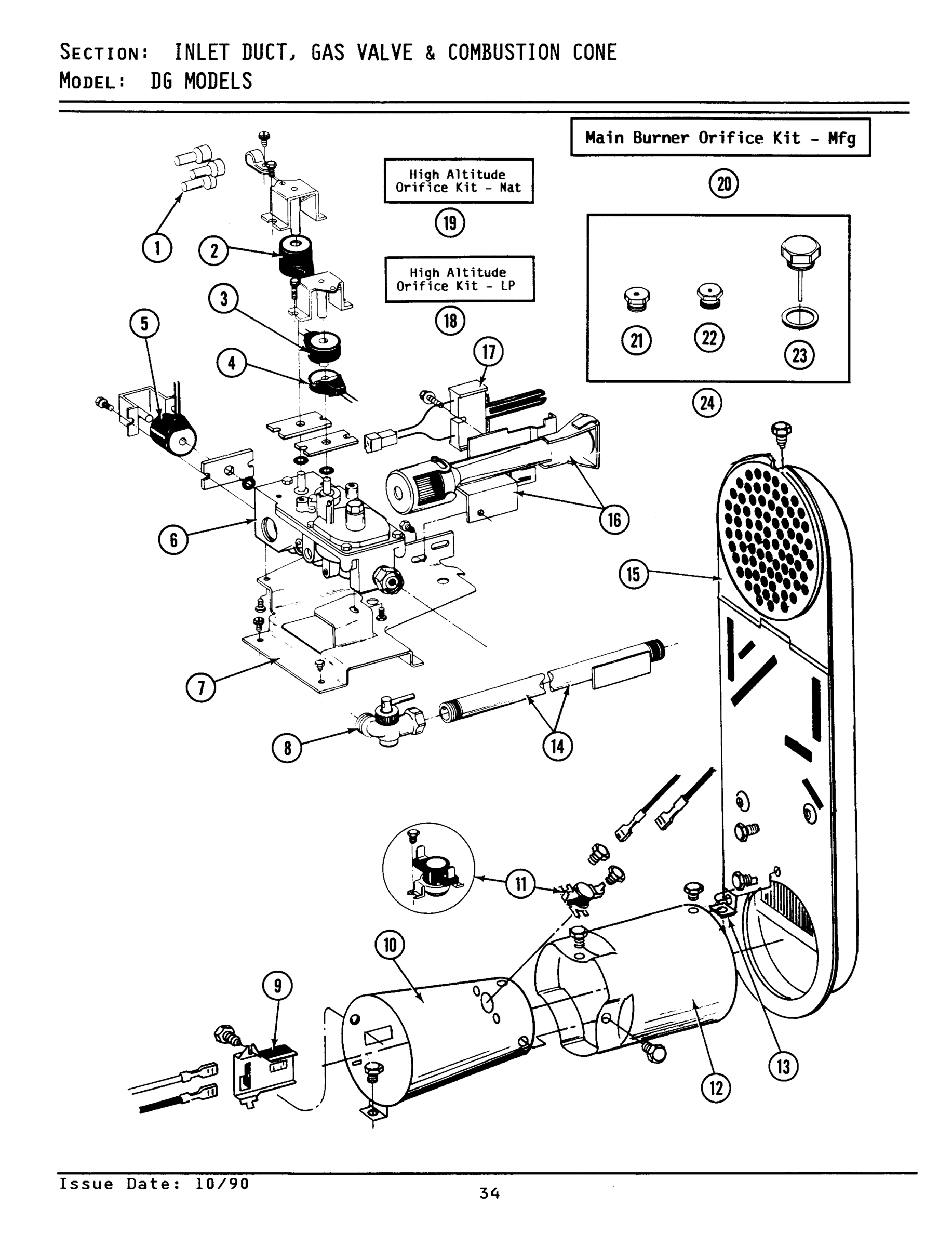

10 - INLET DUCT, GAS VALVE & COMBUSTION CONE
Common parts from model Whirlpool GDG27CA GAS DRYER
001
PART NOT USED WPL Y303225 Contact Us For Availability
001
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
001
DUCT, OUTLET ASSY. ----S WPL Y307112 Contact Us For Availability
001
POWER CORD WPL 302521 Contact Us For Availability
001
PLUG, BLOCKING (LPG REGULATOR) WPL 306184 Contact Us For Availability
001
WIRE HARNESS WPL Y307387 Contact Us For Availability
001
CLOSED CONNECTOR WPL 311546 Contact Us For Availability
002
SCREEN, LINT WPL 307108 Contact Us For Availability
002
CORD HOLDER WPL 211881 Contact Us For Availability
002
SECONDARY COIL WPL 305603 Contact Us For Availability
003
TWIN FASTENER WPL Y313907 Contact Us For Availability
003
FRONT, TUMBLER (W/SEAL) WPL 307109 Contact Us For Availability
003
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
003
COVER, TERMINAL WPL Y312905 Contact Us For Availability
003
TIMER DIAL INDICATOR WPL 314725 Contact Us For Availability
003
HOLDING COIL WPL 305604 Contact Us For Availability
004
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
004
BASE ASSY WPL Y307482 Contact Us For Availability
004
THERMOSTAT, MULTI-TEMP WPL 306966 Contact Us For Availability
004
SCREW WPL 212949 Contact Us For Availability
004
LABEL, ELECTRICAL INSTRUCTION WPL 214519 Contact Us For Availability
005
PART NOT USED WPL 306967 Contact Us For Availability
005
ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability
005
PART NOT USED WPL Y312184 Contact Us For Availability
005
KNOB FOR SELECTOR SWITCH WPL 205663 Contact Us For Availability
005
SIDE COIL WPL Y304626 Contact Us For Availability
006
PART NOT USED WPL 315122 Contact Us For Availability
006
INSULATION, EXHAUST DUCT KIT WPL 312302 Contact Us For Availability
006
PART NOT USED WPL 400008 Contact Us For Availability
006
GAS VALVE ASSEMBLY WPL Y303777 Contact Us For Availability
007
SWITCH, MOTOR PROD.No.3-3358-2, No.3-3358-4 & WPL Y303877 Contact Us For Availability
007
SWITCH, MOTOR START PROD. No.3-3358 & No.3-33 WPL Y303879 Contact Us For Availability
007
SCREW----NA WPL Y313561 Contact Us For Availability
007
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
007
SCREW WPL 314663 Contact Us For Availability
007
FASTENER, EXHAUST DUCT KIT WPL 213323 Contact Us For Availability
007
PART NOT USED WPL Y312904 Contact Us For Availability
007
SCREW WPL 910186 Contact Us For Availability
007
GAS VALVE BRACKET WPL 312929 Contact Us For Availability
008
DOOR SEAL WPL 314935 Contact Us For Availability
008
WASHER WPL 314158 Contact Us For Availability
008
EXHAUST DUCT KIT WPL Y304652 Contact Us For Availability
008
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
009
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
009
INNER DOOR WPL Y308070 Contact Us For Availability
009
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
009
TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability
009
BRACKET, GAS VALVE WPL 314566 Contact Us For Availability
009
WIRE, GROUND WPL 205810 Contact Us For Availability
010
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
010
SCREW WPL Y314062 Contact Us For Availability
010
BACK, TUMBLER (W/SEAL) ---S WPL Y307114 Contact Us For Availability
010
BACK, TUMBLER (W/SEAL) ---S WPL Y308544 Contact Us For Availability
010
TOP COVER ASSY WPL 307104 Contact Us For Availability
010
TIMER RPR WPL Y307296 Contact Us For Availability
010
CONE, COMBUSTION WPL Y303368 Contact Us For Availability
010
CONE, COMBUSTION WPL Y308548 Contact Us For Availability
011
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
011
BAG, LINT (DACRON) WPL 311353 Contact Us For Availability
012
PIPE, VENTING WPL Y059130 Contact Us For Availability
012
SWITCH CYCLE SEL WPL 307253 Contact Us For Availability
012
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
013
FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability
013
HEX NUT ON SWITCH WPL Y312706 Contact Us For Availability
013
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
014
FASTENER WPL 310933 Contact Us For Availability
014
VENT DUCT ASSY. WPL Y059135 Contact Us For Availability
014
PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability
014
WIRE CONNECTOR WPL Y201110 Contact Us For Availability
015
CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability
015
STRAIN RELIEF WPL 314522 Contact Us For Availability
015
LIGHT, INDICATOR WPL 204075 Contact Us For Availability
015
INLET DUCT ASSY. WPL 307119 Contact Us For Availability
016
DOOR ASSY COMPLETE W/O HINGES WPL 308062 Contact Us For Availability
016
SCREW WPL Y310632 Contact Us For Availability
016
PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability
016
GAS VALVE - 120V-50HZ WPL 307927 Contact Us For Availability
017
SCREW WPL 304971 Contact Us For Availability
018
SCREW WPL Y310759 Contact Us For Availability
018
LATCH, ACCESS DOOR WPL Y314025 Contact Us For Availability
018
CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability
018
KNURLED NUT WPL Y312702 Contact Us For Availability
019
RUBBERT SLEEVE WPL 312369 Contact Us For Availability
020
COVER FOR BLOWER WPL 314778 Contact Us For Availability
020
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
020
LABEL, LINT SCREEN INSTRUCTION WPL Y313340 Contact Us For Availability
020
COVER, ACCESS WPL Y312951 Contact Us For Availability
021
LABEL, INSTRUCTION WPL 314941 Contact Us For Availability
021
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
021
SCREW - BAFFLE TO TUMBLER WPL 313122 Contact Us For Availability
023
SCREW ASSM - BLUE BLOCK OPE WPL NLA Contact Us For Availability
024
CONVERSION KIT-NAT. TO LPG WPL Y303779 Contact Us For Availability
027
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
028
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
029
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
NI
MOTOR PULLEY - 50 CYCLE WPL 305186 Contact Us For Availability
NI
TRANSFORMER (240V 50HZ) WPL 307928 Contact Us For Availability
NI
MOTOR 240-50 WPL Y304656 Contact Us For Availability
NI
TIMER 240-50 WPL Y307496 Contact Us For Availability
NI
HARNESS, WIRE (LOWER 240) WPL Y308499 Contact Us For Availability
NI
CONE, COMBUSTION WPL Y308549 Contact Us For Availability
× ![]()
