Model Whirlpool GDG26CA GAS DRYER – Common Parts & Diagrams

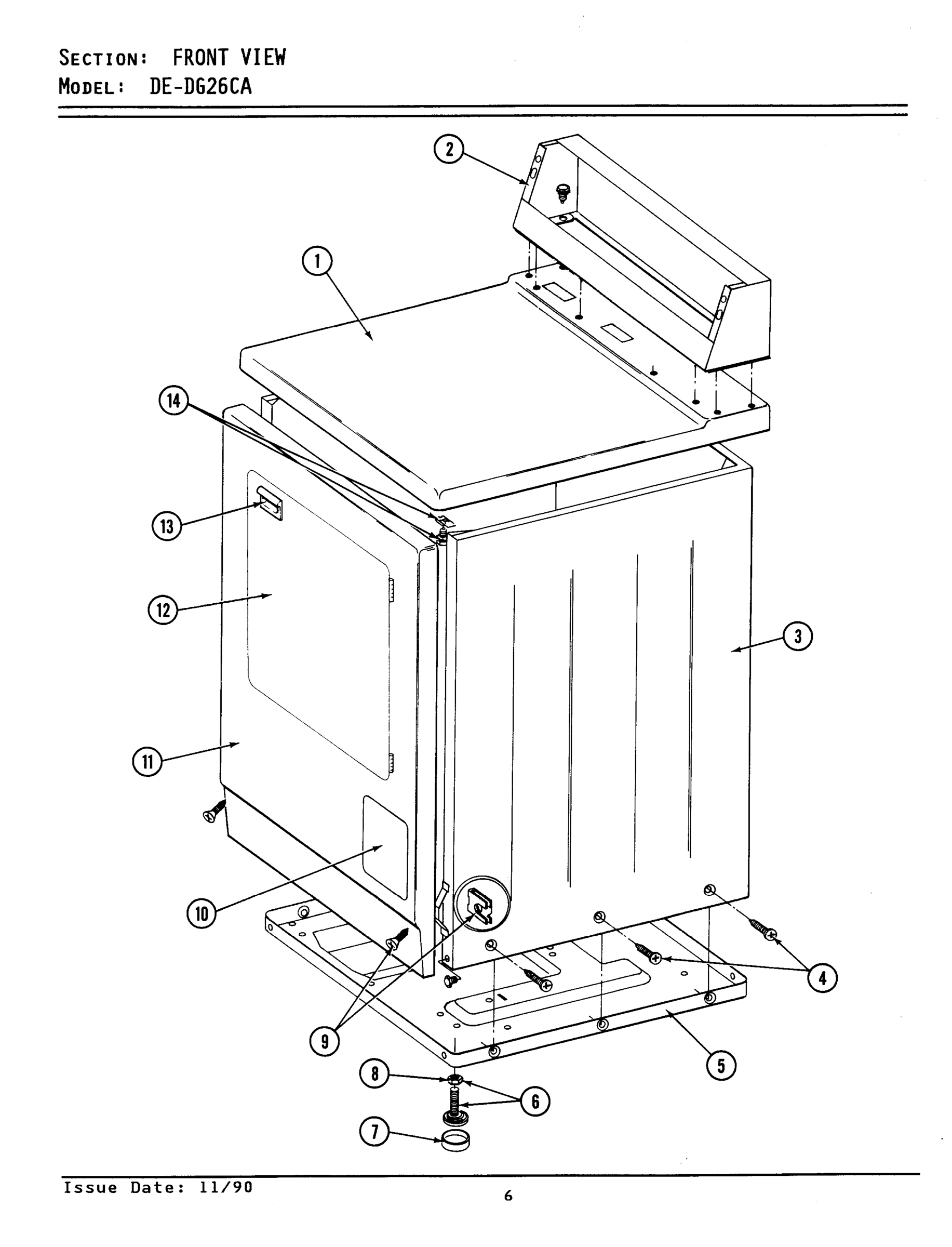

01 - FRONT VIEW - CA MODELS

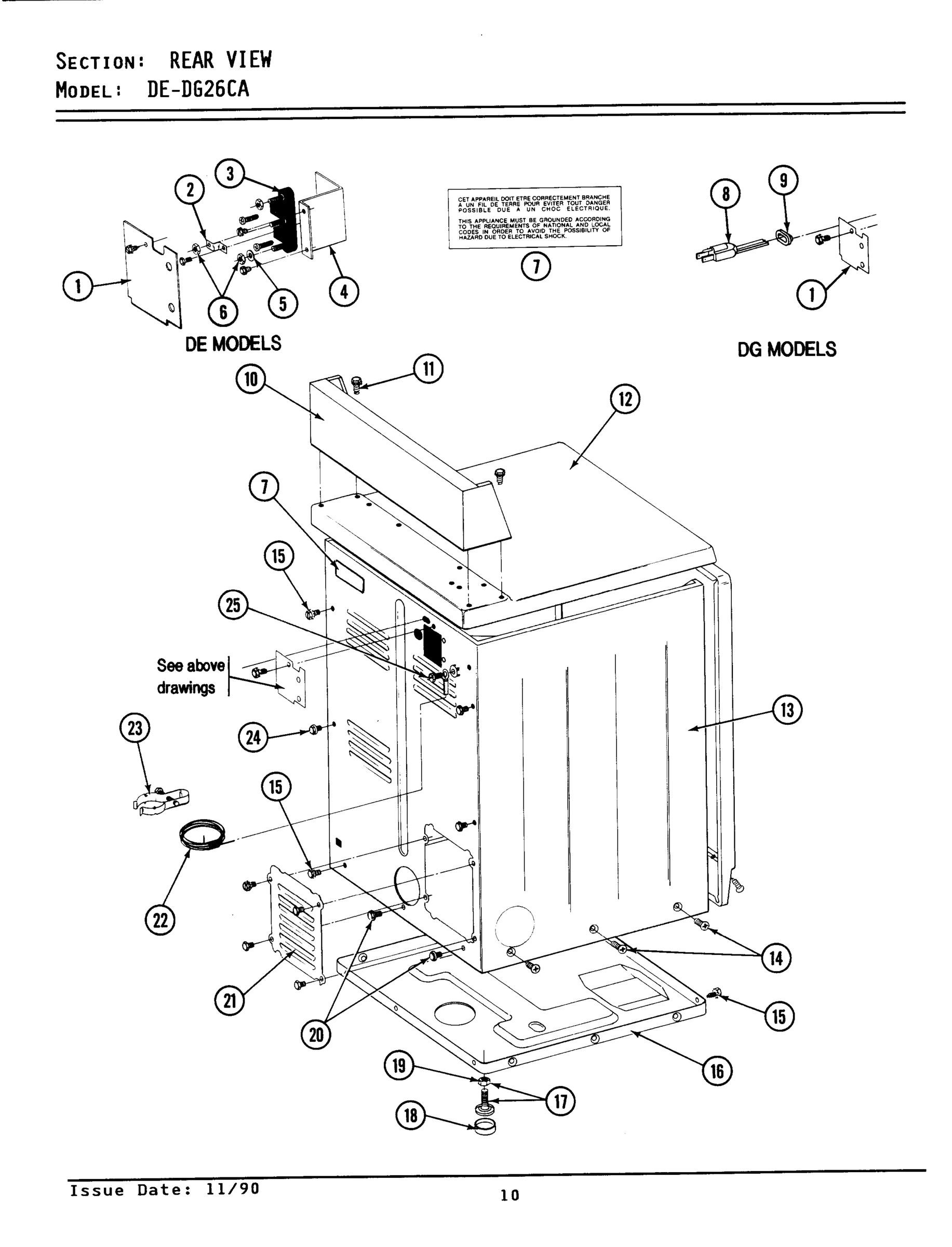

02 - REAR VIEW - CA MODELS

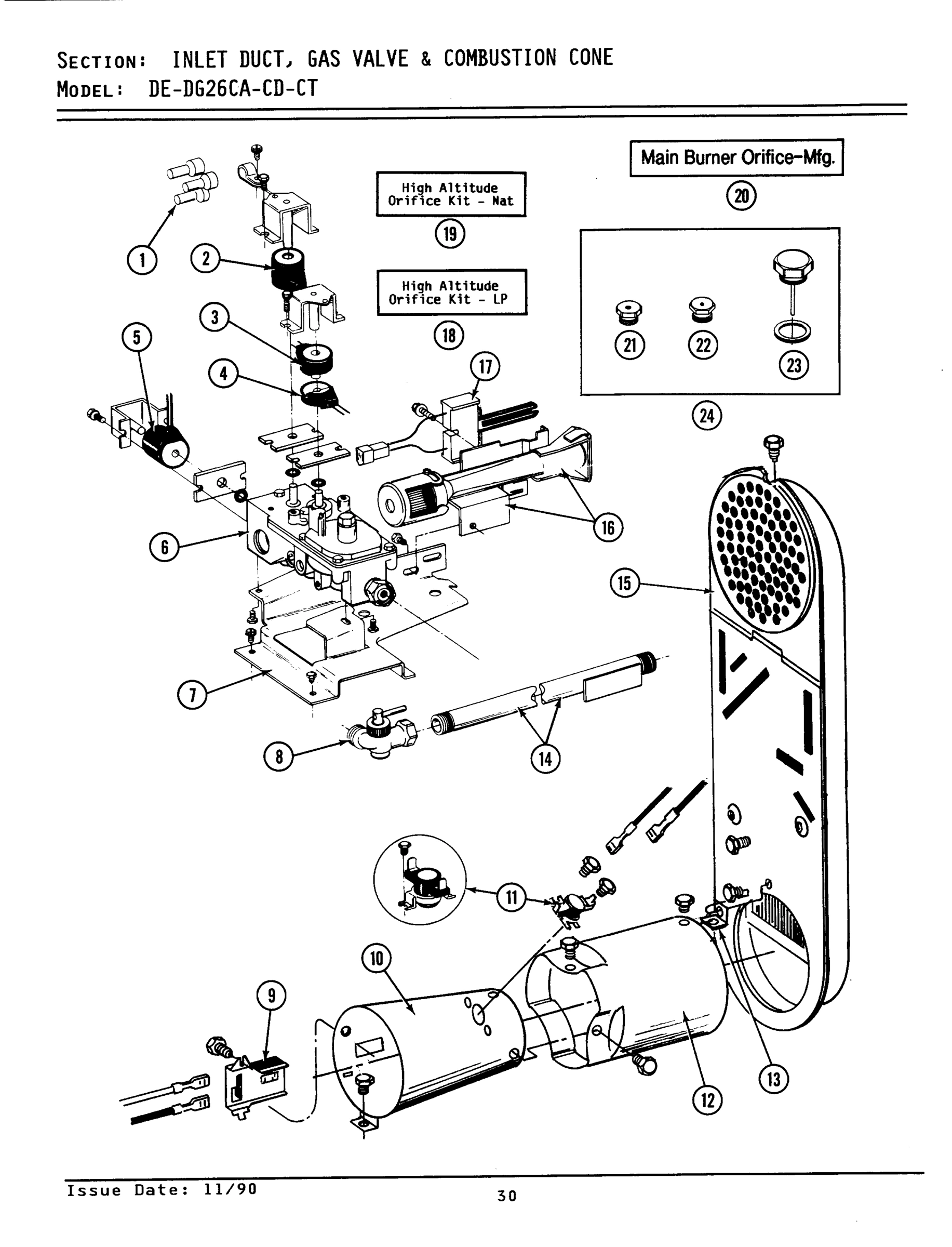

06 - INLET DUCT, GAS VALVE & COMBUSTION CONE

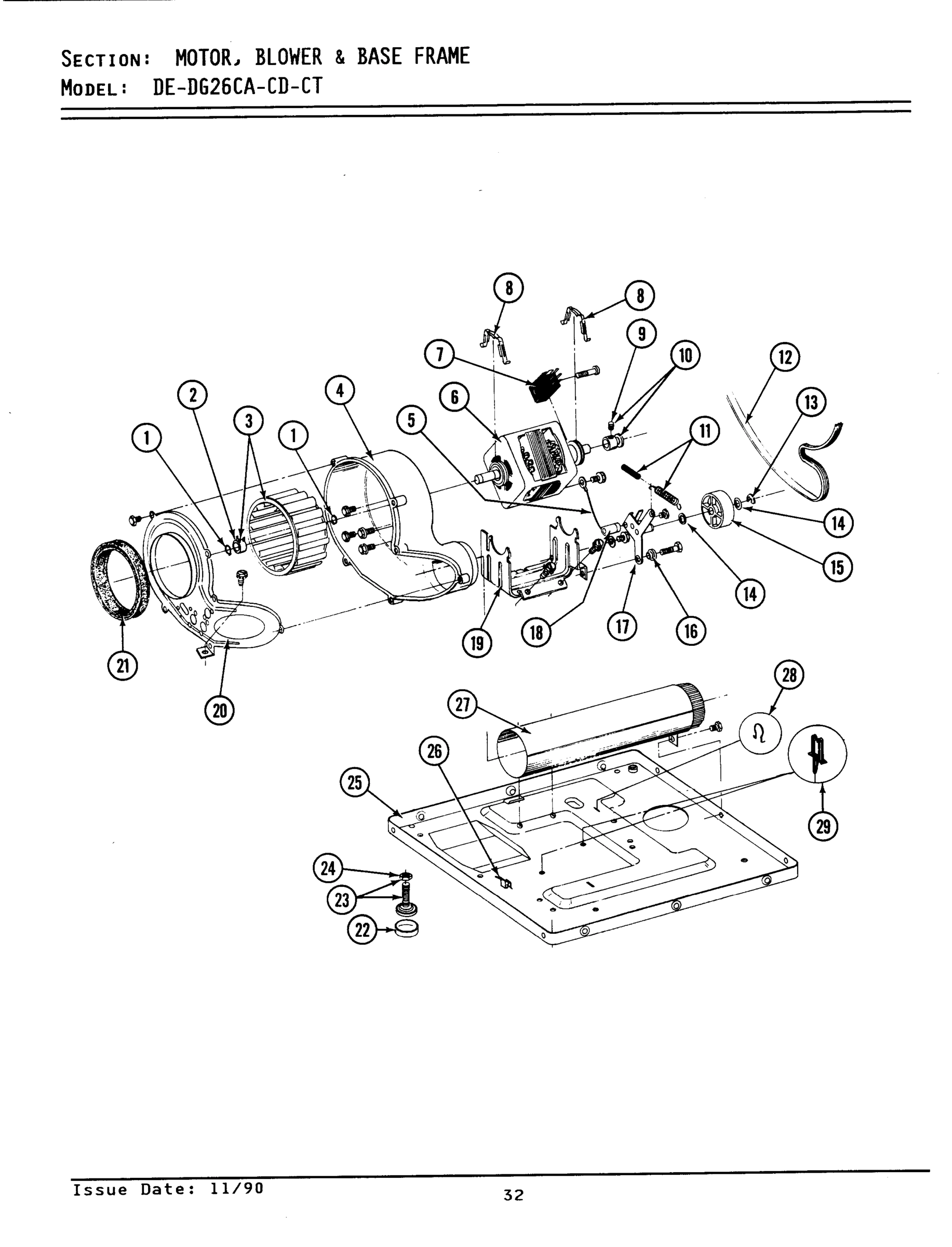

07 - MOTOR, BLOWER & BASE FRAME

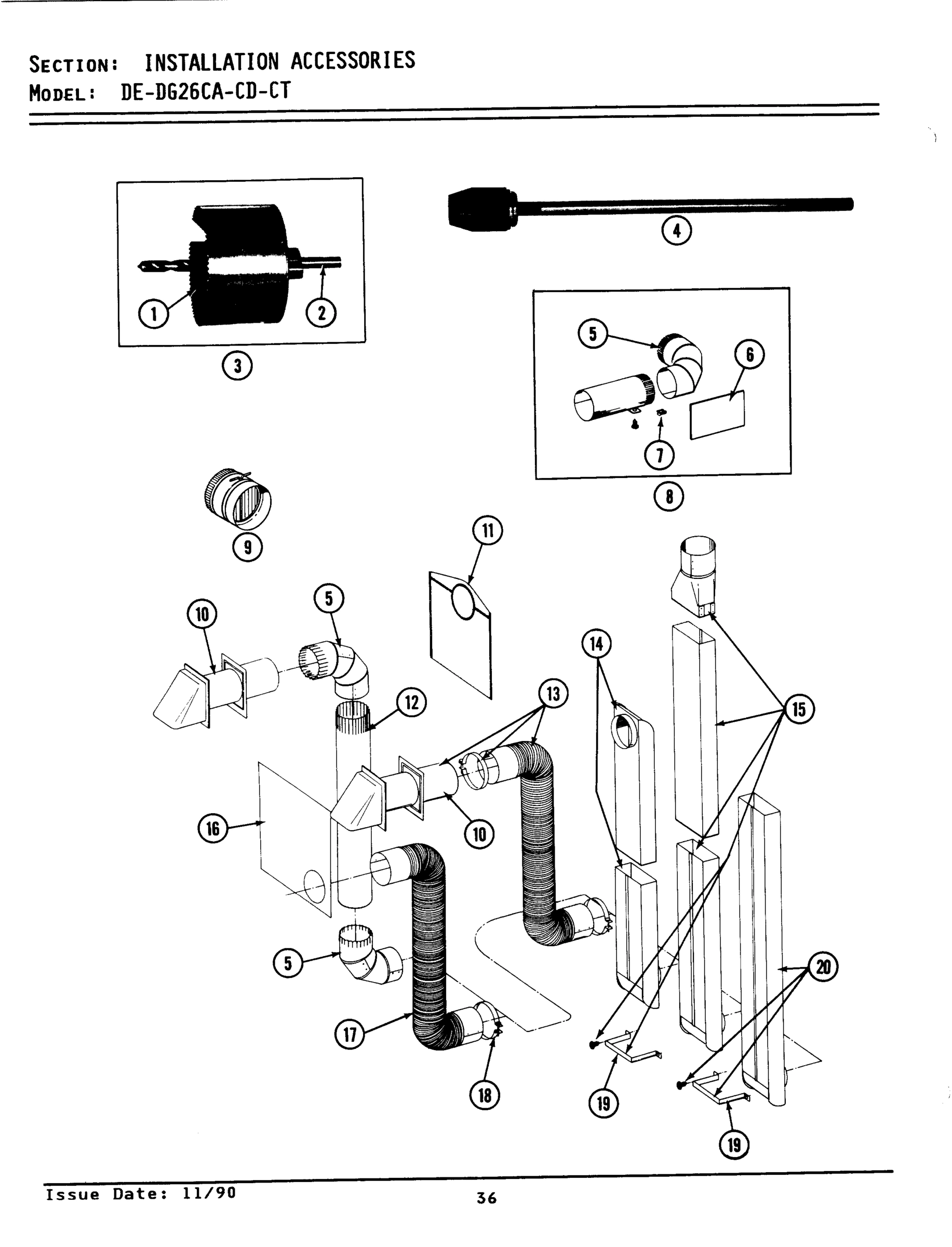

09 - INSTALLATION ACCESSORIES

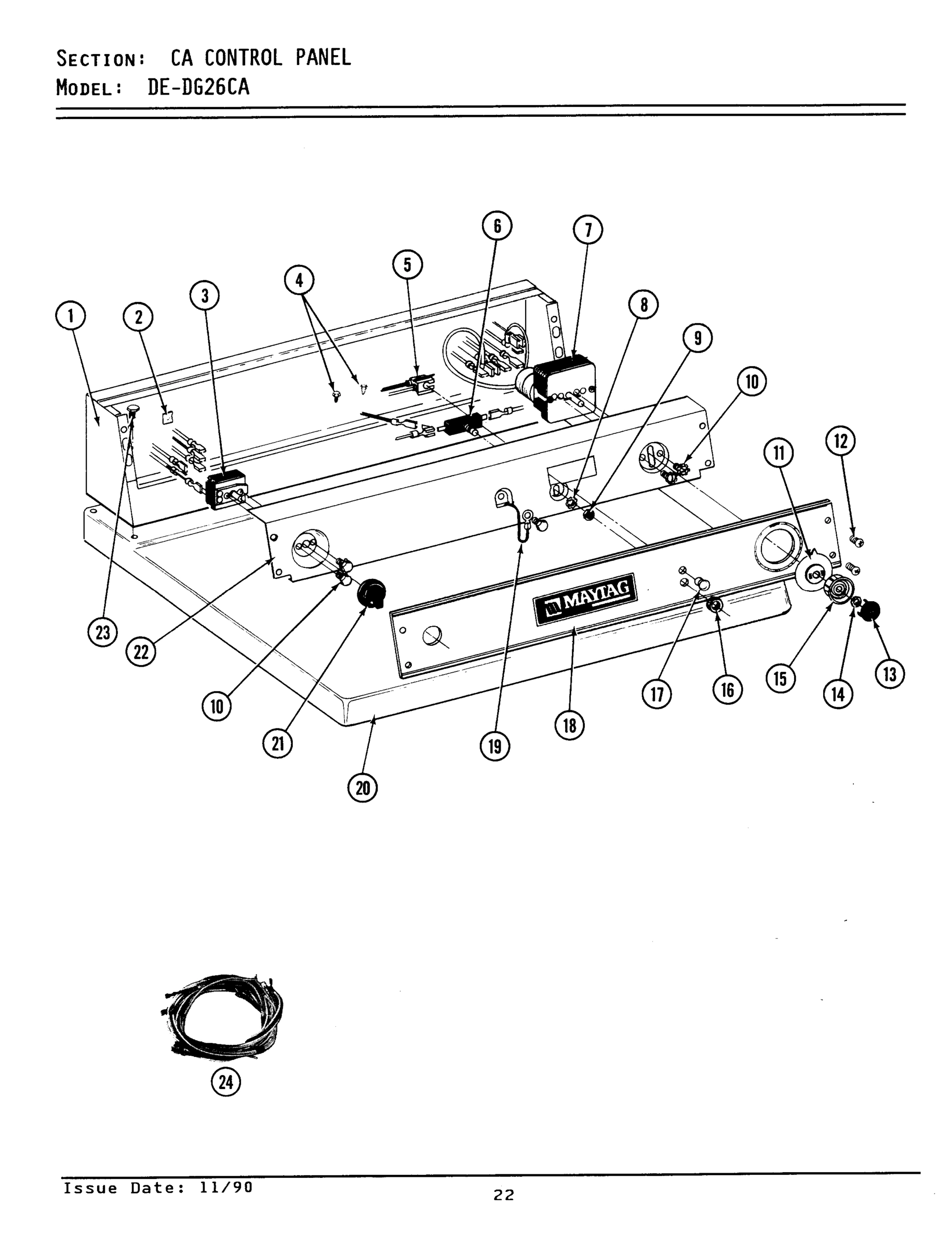

03 - CONTROL PANEL-CA MODELS

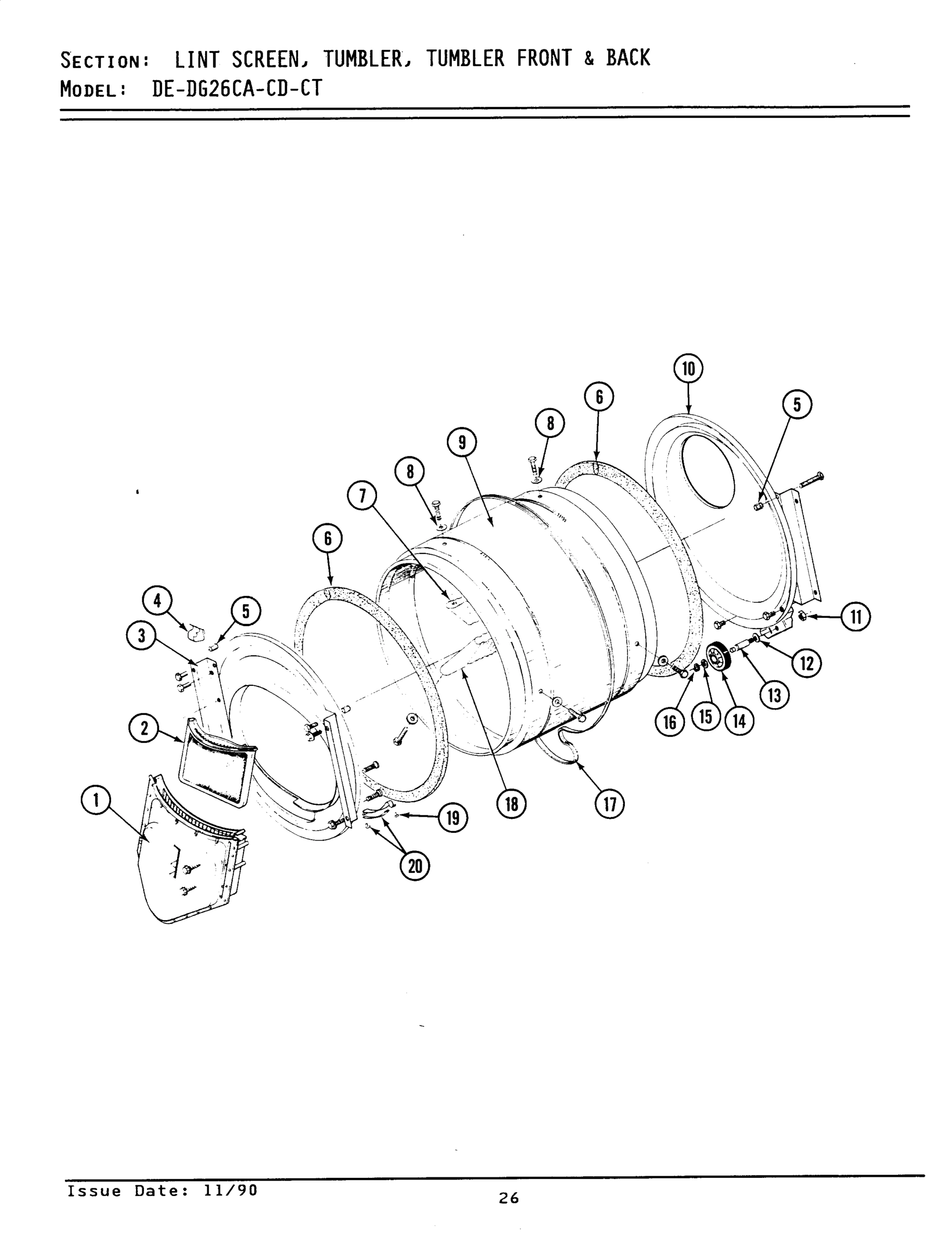

05 - LINT SCREEN, TUMBLER (FRONT & BACK)

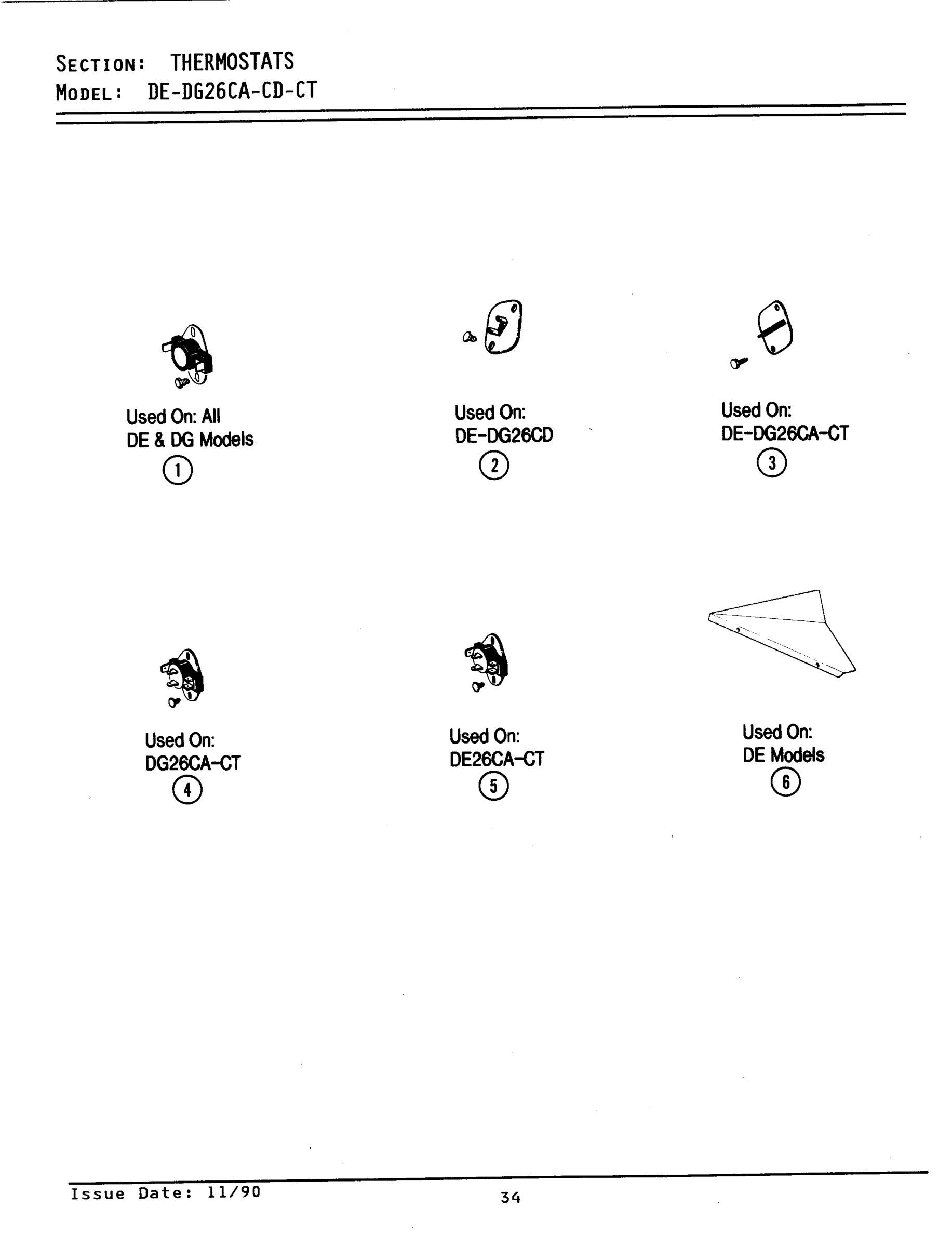

08 - THERMOSTATS
10 - 50HZ GAS VALVE

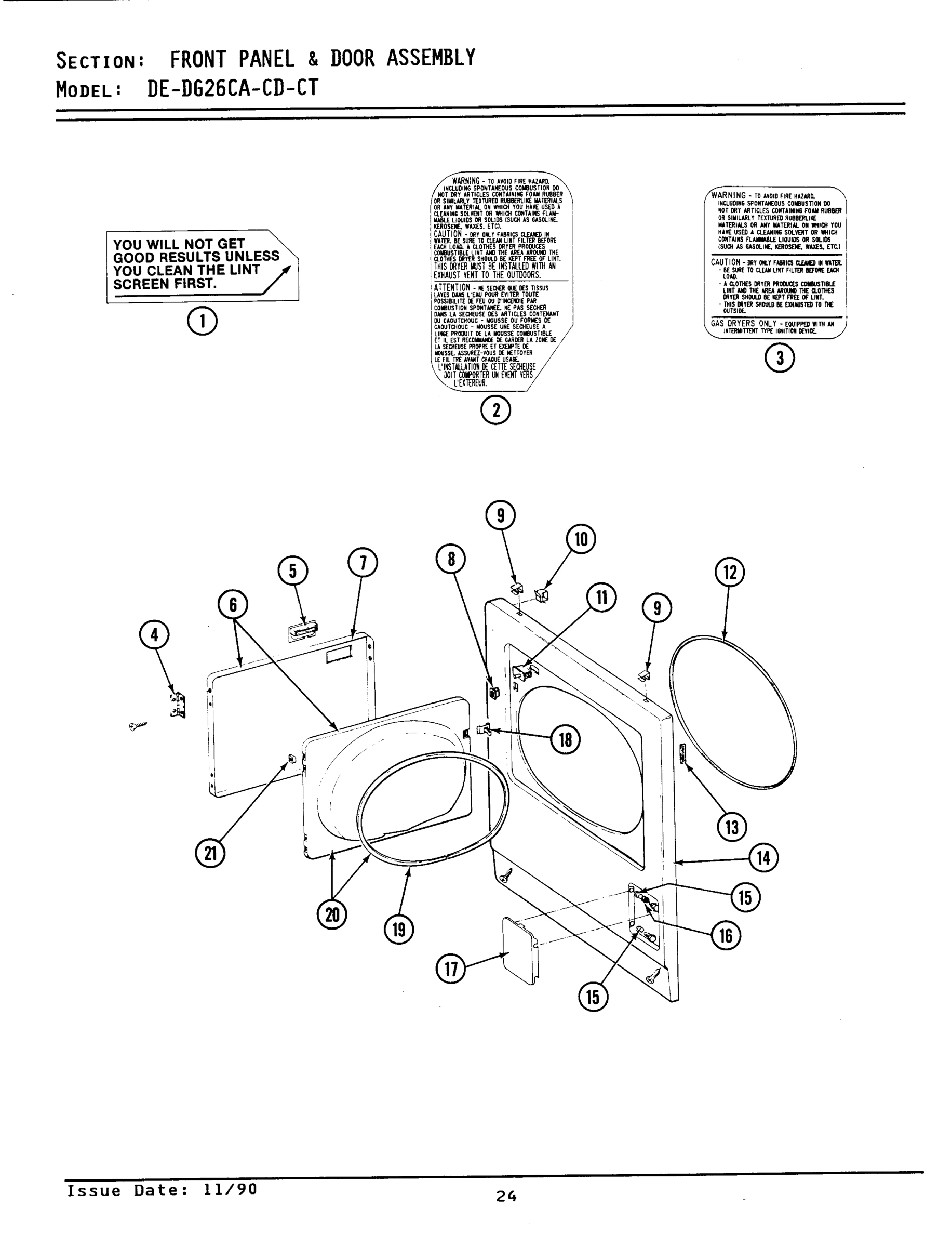

04 - FRONT PANEL & DOOR ASSEMBLY
11 - 50HZ CONVERSION LIST
Common parts from model Whirlpool GDG26CA GAS DRYER
001
COVER, TERMINAL WPL Y312905 Contact Us For Availability
001
CLOSED CONNECTOR WPL 311546 Contact Us For Availability
001
DUCT, OUTLET ASSY. ----S WPL Y307112 Contact Us For Availability
001
LABEL, LINT SCREEN INSTR. WPL Y313340 Contact Us For Availability
002
PART NOT USED WPL Y312184 Contact Us For Availability
002
SECONDARY COIL WPL 305603 Contact Us For Availability
002
FASTENER WPL 215003 Contact Us For Availability
002
SCREEN, LINT WPL 307108 Contact Us For Availability
002
THERMISTOR TEMP CONTROL WPL 306056 Contact Us For Availability
002
LABEL, INSTRUCTION WPL 314941 Contact Us For Availability
003
PART NOT USED WPL 400008 Contact Us For Availability
003
HOLDING COIL WPL 305604 Contact Us For Availability
003
FRONT, TUMBLER (W/SEAL) WPL 307109 Contact Us For Availability
004
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
004
PART NOT USED WPL Y312904 Contact Us For Availability
004
SCREW, No.8-32 X 3/8 INCH WPL Y314322 Contact Us For Availability
004
THERMOSTAT, MULTI-TEMPERATURE WPL 306966 Contact Us For Availability
004
HINGE WPL 307099 Contact Us For Availability
004
SCREW WPL Y314062 Contact Us For Availability
005
HANDLE (WHT) WPL 314946 Contact Us For Availability
005
(ALM) WPL 314972 Contact Us For Availability
005
SIDE COIL WPL Y304626 Contact Us For Availability
005
WIRE, GROUND WPL 901220 Contact Us For Availability
005
ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability
005
LIGHT, INDICATOR WPL 204075 Contact Us For Availability
005
PART NOT USED WPL 306967 Contact Us For Availability
006
GAS VALVE ASSEMBLY WPL Y303777 Contact Us For Availability
006
INSULATION, EXHAUST DUCT KIT WPL 312302 Contact Us For Availability
006
PART NOT USED WPL 315122 Contact Us For Availability
006
DOOR ASSY. COMPLETE (WHT) WPL Y307111 Contact Us For Availability
007
INSTRUCTION LABEL WPL 214519 Contact Us For Availability
007
GAS VALVE BRACKET WPL 312929 Contact Us For Availability
007
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
007
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
007
FASTENER, EXHAUST DUCT KIT WPL 213323 Contact Us For Availability
007
TIMER WPL 305214 Contact Us For Availability
007
TIMER WPL 305215 Contact Us For Availability
007
TIMER MOTOR RPR WPL Y304585 Contact Us For Availability
007
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
007
PANEL, OUTER (WHT) WPL 314966 Contact Us For Availability
008
POWER CORD WPL 302521 Contact Us For Availability
008
EXHAUST DUCT KIT WPL Y304652 Contact Us For Availability
008
WASHER WPL 314158 Contact Us For Availability
009
GROMMET WPL 211881 Contact Us For Availability
009
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
009
HEX NUT ON SWITCH WPL Y312706 Contact Us For Availability
009
TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability
010
CONE, COMBUSTION WPL Y303368 Contact Us For Availability
010
CONE, COMBUSTION WPL Y308548 Contact Us For Availability
010
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
010
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
010
BACK, TUMBLER (W/SEAL) ---S WPL Y307114 Contact Us For Availability
010
BACK, TUMBLER (W/SEAL) ---S WPL Y308544 Contact Us For Availability
011
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
011
BAG, LINT (DACRON) WPL 311353 Contact Us For Availability
011
TIMER DIAL INDICATOR WPL 314725 Contact Us For Availability
012
DOOR ASSY. COMPLETE (WHT) WPL 308061 Contact Us For Availability
012
TOP COVER ASSY. (WHT) WPL 307105 Contact Us For Availability
012
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
012
PIPE, VENTING WPL Y059130 Contact Us For Availability
012
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
013
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
013
FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability
013
TWIN FASTENER WPL Y313907 Contact Us For Availability
014
SCREW & FSTNER ASSY (FT. PNL) WPL 204439 Contact Us For Availability
014
FRONT PANEL----NA WPL 307998L Contact Us For Availability
014
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
014
VENT DUCT ASSY. WPL Y059135 Contact Us For Availability
015
INLET DUCT ASSY. WPL 307119 Contact Us For Availability
015
SCREW, BUSHINGS WPL 212949 Contact Us For Availability
016
PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability
016
KNURLED NUT WPL Y312702 Contact Us For Availability
016
SLEEVE, ACCESS DOOR RUBBER WPL 312369 Contact Us For Availability
017
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
018
SCREW WPL Y310759 Contact Us For Availability
018
CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability
018
CONTROL PANEL COMMERCIAL DRYER WPL 314909 Contact Us For Availability
019
WIRE, GROUND WPL 205810 Contact Us For Availability
019
DOOR SEAL WPL 314935 Contact Us For Availability
020
COVER, BLOWER WPL 314778 Contact Us For Availability
020
TOP COVER ASSY. (ALM) WPL 307104 Contact Us For Availability
020
DOOR, INNER (W/SEAL) WPL 307098 Contact Us For Availability
021
COVER, ACCESS WPL Y312951 Contact Us For Availability
021
KNOB, SELECTOR SWITCH WPL 306938 Contact Us For Availability
021
CLIP, DOOR LINER WPL Y313910 Contact Us For Availability
023
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
024
CONVERSION KIT (NAT.TO LP) WPL Y303779 Contact Us For Availability
024
CONVERSION KIT (LP TO NATURAL) WPL Y308377 Contact Us For Availability
025
BASE ASSY. WPL Y303361 Contact Us For Availability
027
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
028
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
029
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
NI
COMBUSTION CONE WPL NLA Contact Us For Availability
NI
SCREW----NA WPL Y313561 Contact Us For Availability
NI
SCREW WPL Y310632 Contact Us For Availability
NI
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
NI
PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability
NI
SCREW WPL 304971 Contact Us For Availability
NI
GAS VALVE (240V-50HZ) WPL 307927 Contact Us For Availability
NI
BRACKET, GAS VALVE WPL 314566 Contact Us For Availability
NI
MOTOR PULLEY - 50 CYCLE WPL 305186 Contact Us For Availability
NI
TRANSFORMER (240V 50HZ) WPL 307928 Contact Us For Availability
NI
MOTOR 240-50 WPL Y304656 Contact Us For Availability
NI
TIMER 240-50 WPL Y305758 Contact Us For Availability
NI
CONE, COMBUSTION WPL Y308549 Contact Us For Availability
NI
HEATER ELEMENT 240-50 WPL Y313950 Contact Us For Availability
× ![]()
