Model Maytag GDG24CA WASHER – Common Parts & Diagrams
01 - FRONT VIEW
02 - CA CONTROL PANEL

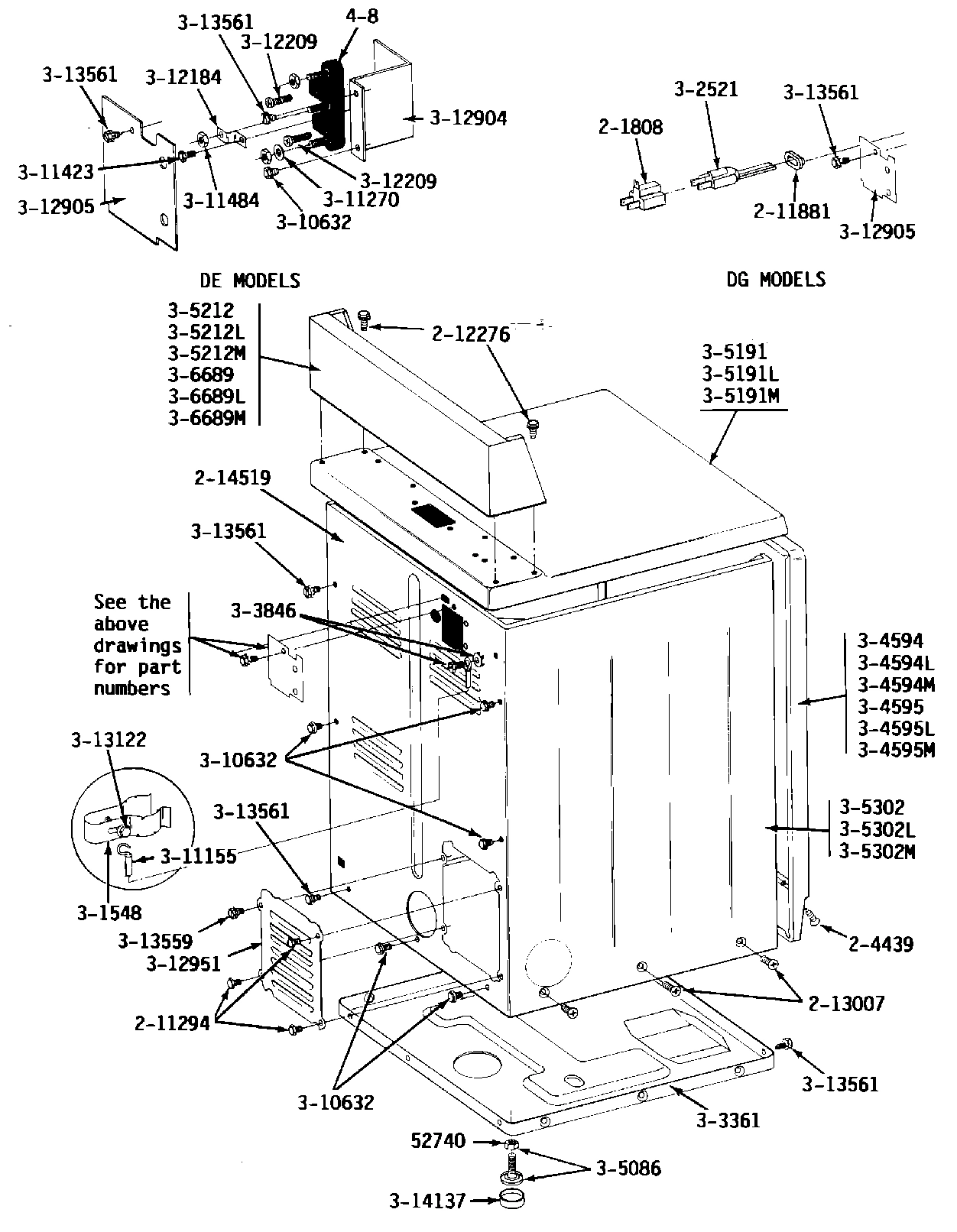

03 - REAR VIEW

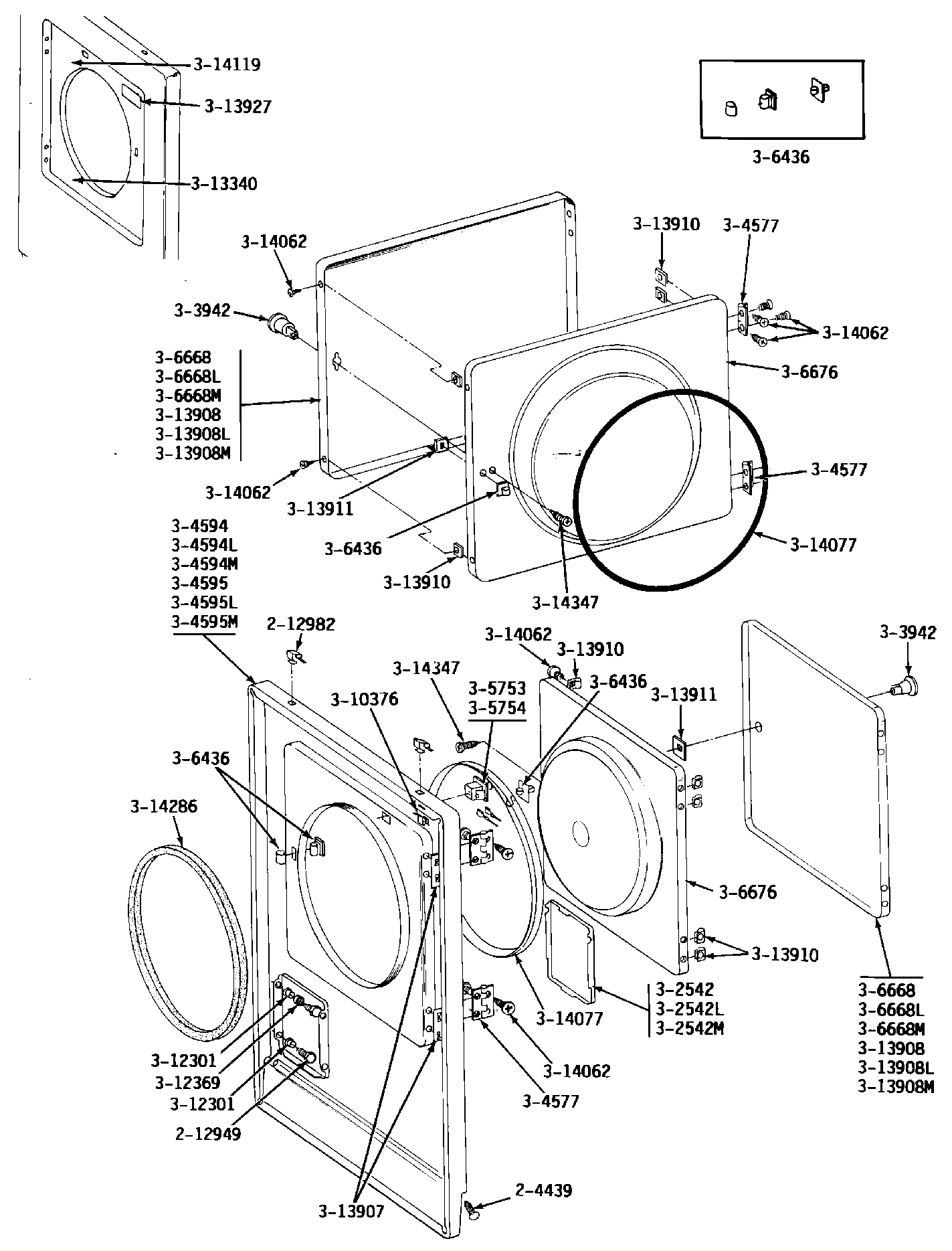

04 - FRONT PANEL\DOOR ASSY.

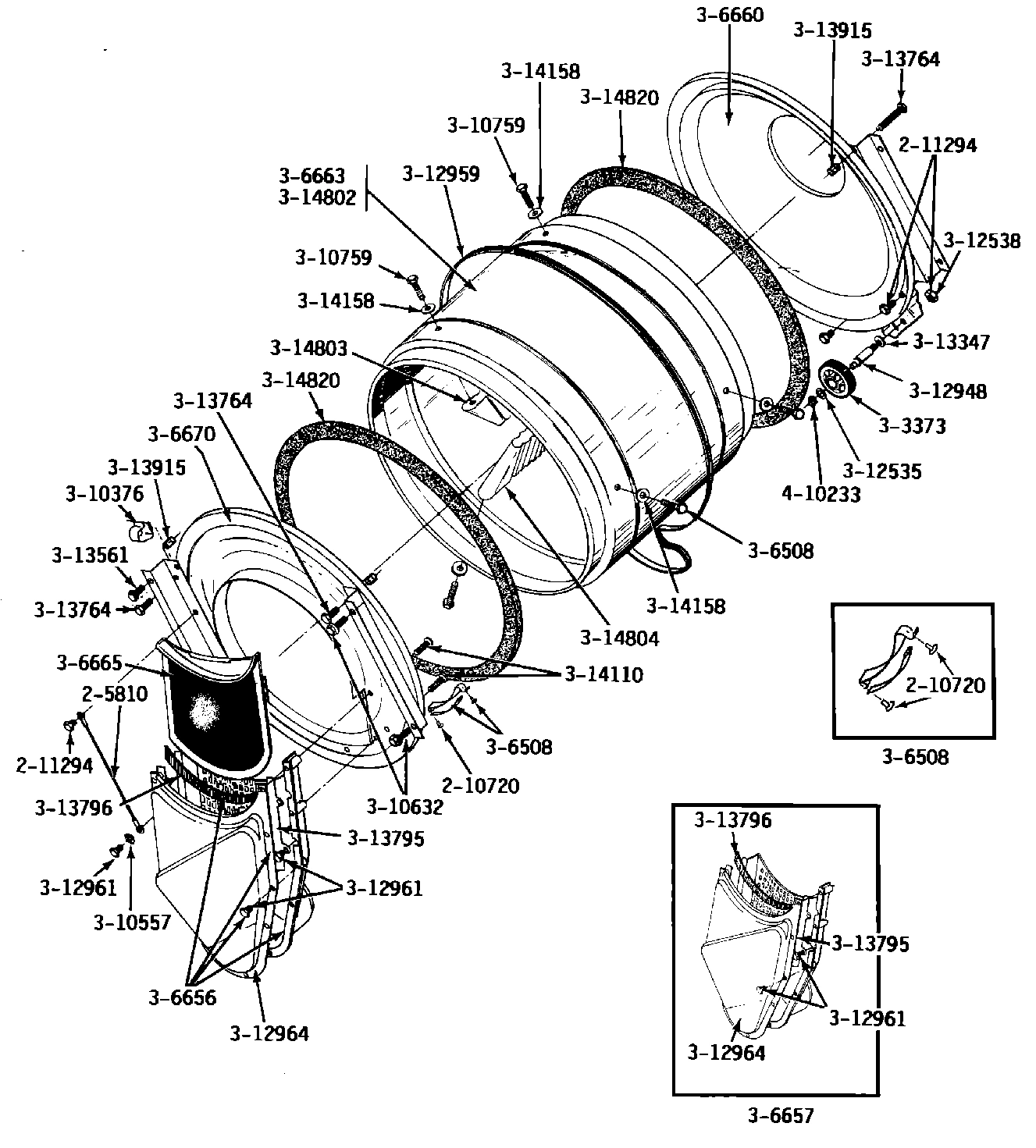

05 - LINT SCREEN, TUMBLER (FRONT & BACK)

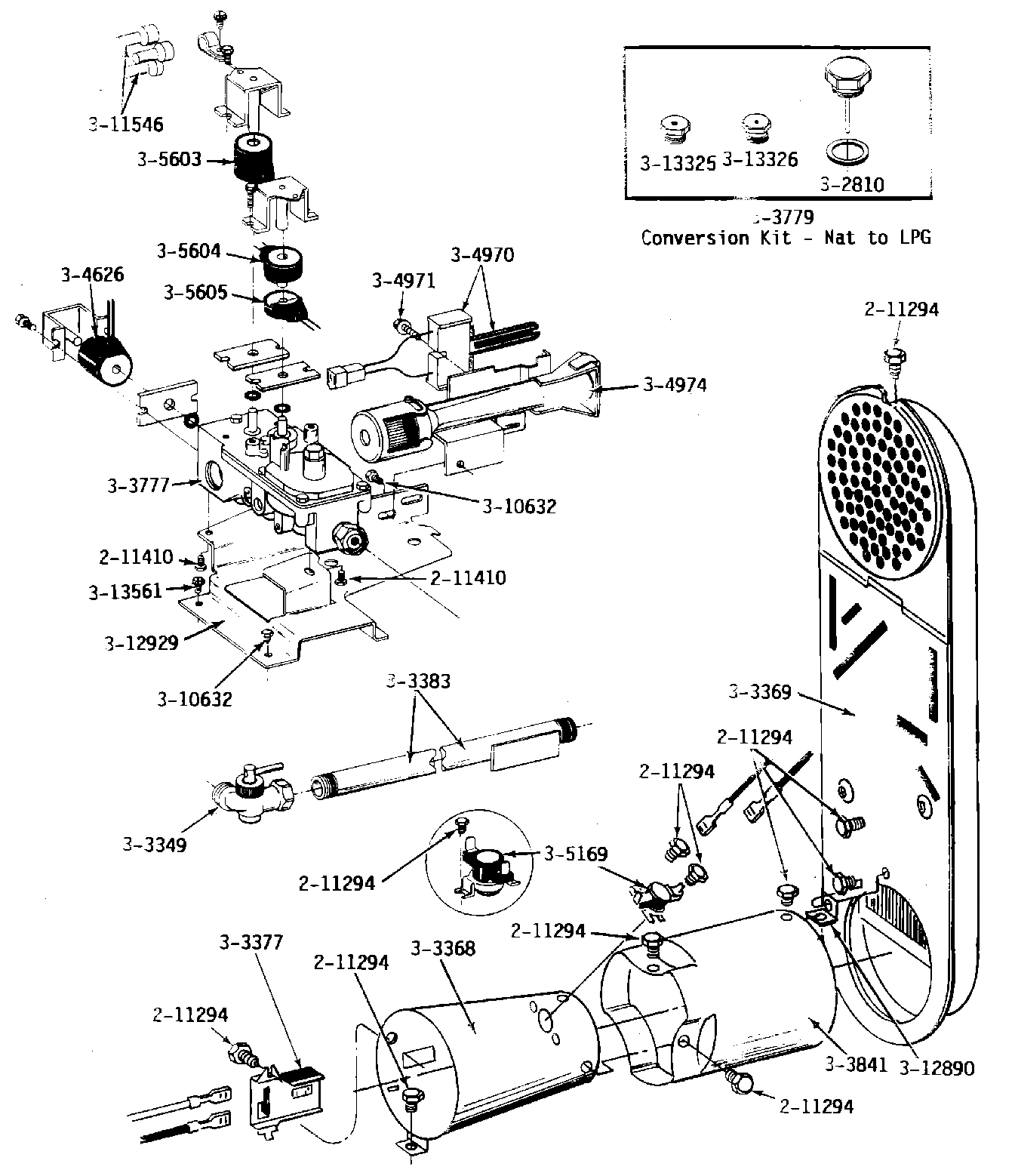

06 - INLET DUCT, GAS VALVE, CONE & EXTENSION

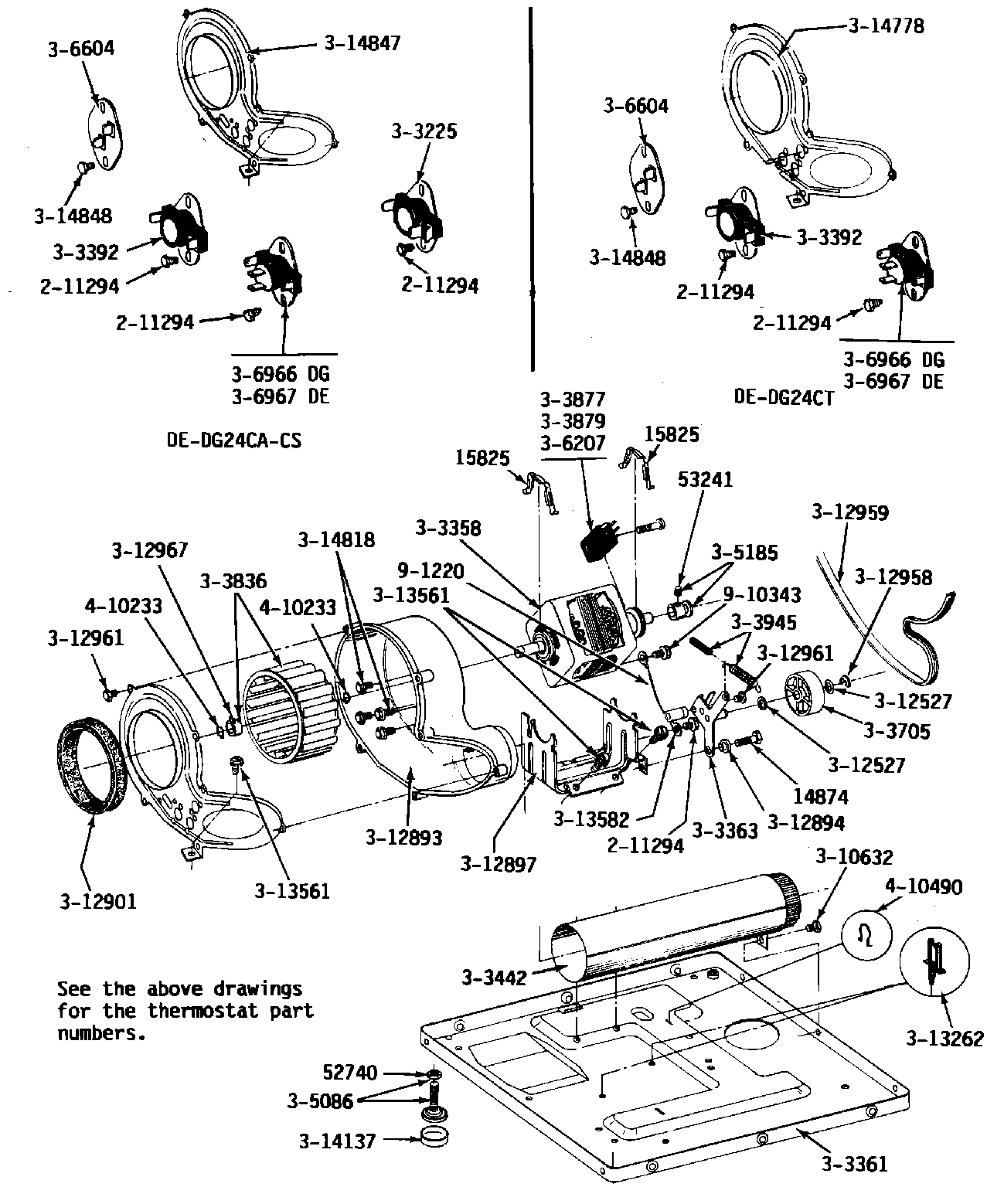

07 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS

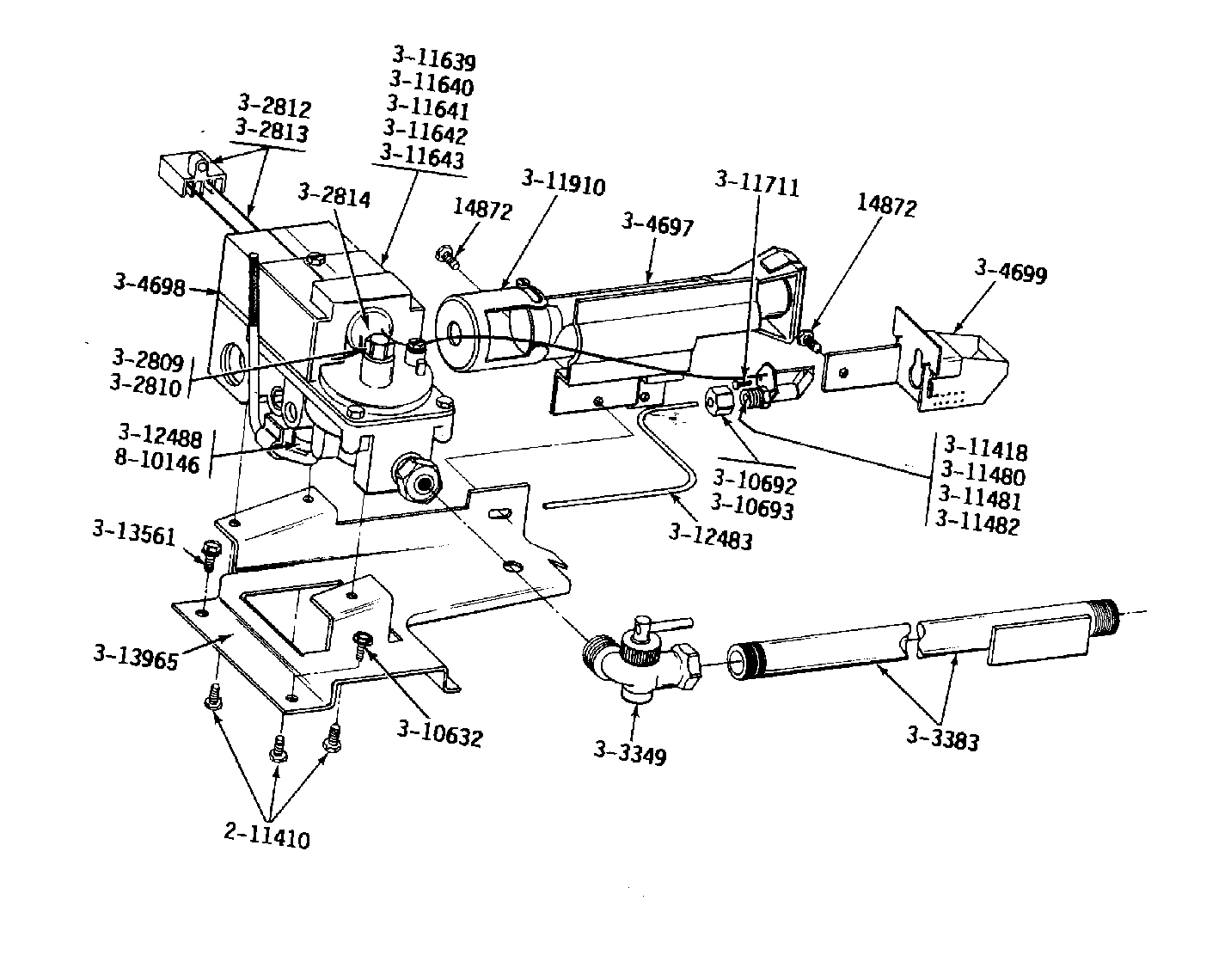

08 - 50HZ GAS VALVE
09 - 50HZ CONVERSION LIST
Common parts from model Maytag GDG24CA WASHER
001
MAY 204439 MAY 204439 Contact Us For Availability
001
MAY 205810 MAY 205810 Contact Us For Availability
001
MAY Y014872 MAY Y014872 Contact Us For Availability
002
MAY Y201808 MAY Y201808 Contact Us For Availability
002
MAY 212949 MAY 212949 Contact Us For Availability
002
MAY 211605 MAY 211605 Contact Us For Availability
003
MAY 212982 MAY 212982 Contact Us For Availability
003
MAY Y304656 MAY Y304656 Contact Us For Availability
004
MAY Y303373 MAY Y303373 Contact Us For Availability
004
MAY Y304697 MAY Y304697 Contact Us For Availability
005
MAY 211881 MAY 211881 Contact Us For Availability
005
MAY Y303368 MAY Y303368 Contact Us For Availability
005
MAY Y304698 MAY Y304698 Contact Us For Availability
006
MAY 212276 MAY 212276 Contact Us For Availability
006
MAY 306656 MAY 306656 Contact Us For Availability
006
MAY Y303369 MAY Y303369 Contact Us For Availability
007
MAY 306657 MAY 306657 Contact Us For Availability
007
MAY Y302812 MAY Y302812 Contact Us For Availability
008
MAY 214519 MAY 214519 Contact Us For Availability
008
MAY Y303361 MAY Y303361 Contact Us For Availability
008
MAY Y306660 MAY Y306660 Contact Us For Availability
008
MAY Y302813 MAY Y302813 Contact Us For Availability
008
MAY 305186 MAY 305186 Contact Us For Availability
009
MAY 301548 MAY 301548 Contact Us For Availability
009
MAY 306663 MAY 306663 Contact Us For Availability
009
MAY Y303777 MAY Y303777 Contact Us For Availability
010
MAY 302521 MAY 302521 Contact Us For Availability
010
MAY Y306665 MAY Y306665 Contact Us For Availability
010
MAY Y303349 MAY Y303349 Contact Us For Availability
010
MAY Y303779 MAY Y303779 Contact Us For Availability
010
MAY Y305758 MAY Y305758 Contact Us For Availability
011
DOOR HINGE ----S MAY Y304577 Contact Us For Availability
011
MAY Y303383 MAY Y303383 Contact Us For Availability
011
MAY Y303841 MAY Y303841 Contact Us For Availability
011
MAY Y303442 MAY Y303442 Contact Us For Availability
011
MAY 305812 MAY 305812 Contact Us For Availability
012
MAY Y310376 MAY Y310376 Contact Us For Availability
012
MAY Y304626 MAY Y304626 Contact Us For Availability
012
MAY 306527 MAY 306527 Contact Us For Availability
013
MAY 310557 MAY 310557 Contact Us For Availability
014
MAY 304971 MAY 304971 Contact Us For Availability
015
MAY 305214 MAY 305214 Contact Us For Availability
015
DOOR MAY Y306668 Contact Us For Availability
015
MAY Y310632 MAY Y310632 Contact Us For Availability
015
MAY Y310759 MAY Y310759 Contact Us For Availability
015
MAY 304974 MAY 304974 Contact Us For Availability
015
MAY Y303879 MAY Y303879 Contact Us For Availability
016
MAY Y303945 MAY Y303945 Contact Us For Availability
016
COMPRESSION NUT MAY 310692 Contact Us For Availability
016
MAY Y310693 MAY Y310693 Contact Us For Availability
017
MAY Y305086 MAY Y305086 Contact Us For Availability
017
MAY 312538 MAY 312538 Contact Us For Availability
017
MAY 305603 MAY 305603 Contact Us For Availability
017
MAY Y311711 MAY Y311711 Contact Us For Availability
018
MAY 305604 MAY 305604 Contact Us For Availability
018
MAY Y311418 MAY Y311418 Contact Us For Availability
018
MAY Y305185 MAY Y305185 Contact Us For Availability
019
MAY Y311480 MAY Y311480 Contact Us For Availability
019
MAY Y312483 MAY Y312483 Contact Us For Availability
020
MAY Y313950 MAY Y313950 Contact Us For Availability
021
MAY Y305191 MAY Y305191 Contact Us For Availability
021
MAY 312369 MAY 312369 Contact Us For Availability
021
MAY Y312964 MAY Y312964 Contact Us For Availability
021
MAY Y311482 MAY Y311482 Contact Us For Availability
022
GAS BURNER INSTRUCT LABEL MAY NLA Contact Us For Availability
022
MAY Y313340 MAY Y313340 Contact Us For Availability
022
MAY Y311639 MAY Y311639 Contact Us For Availability
023
MAY 311546 MAY 311546 Contact Us For Availability
024
MAY Y313908 MAY Y313908 Contact Us For Availability
024
MAY Y312890 MAY Y312890 Contact Us For Availability
025
MAY Y313795 MAY Y313795 Contact Us For Availability
025
MAY 312929 MAY 312929 Contact Us For Availability
025
MAY Y312527 MAY Y312527 Contact Us For Availability
026
MAY Y313796 MAY Y313796 Contact Us For Availability
026
MAY Y312893 MAY Y312893 Contact Us For Availability
027
MAY Y313910 MAY Y313910 Contact Us For Availability
027
SLEEVE, IDLER ARM ----S MAY Y312894 Contact Us For Availability
028
MAY Y313911 MAY Y313911 Contact Us For Availability
028
SCREW, INLET DUCT ----S MAY Y314110 Contact Us For Availability
029
MAY 314158 MAY 314158 Contact Us For Availability
030
MAY 314802 MAY 314802 Contact Us For Availability
031
MAY 314077 MAY 314077 Contact Us For Availability
031
MAY Y313561 MAY Y313561 Contact Us For Availability
034
MAY 311155 MAY 311155 Contact Us For Availability
034
MAY Y313262 MAY Y313262 Contact Us For Availability
037
MAY Y314137 MAY Y314137 Contact Us For Availability
038
MAY 314818 MAY 314818 Contact Us For Availability
039
MAY 314847 MAY 314847 Contact Us For Availability
041
MAY Y312905 MAY Y312905 Contact Us For Availability
042
MAY Y312951 MAY Y312951 Contact Us For Availability
042
MAY 901220 MAY 901220 Contact Us For Availability
043
MAY 313122 MAY 313122 Contact Us For Availability
043
MAY 910343 MAY 910343 Contact Us For Availability
044
MAY Y313559 MAY Y313559 Contact Us For Availability
NI
MAY Y303225 MAY Y303225 Contact Us For Availability
NI
MAY Y313907 MAY Y313907 Contact Us For Availability
NI
MAY Y313927 MAY Y313927 Contact Us For Availability
NI
MAY 314803 MAY 314803 Contact Us For Availability
NI
MAY Y053241 MAY Y053241 Contact Us For Availability
NI
MAY Y303877 MAY Y303877 Contact Us For Availability
NI
MAY 301539 MAY 301539 Contact Us For Availability
× ![]()
