Model Maytag GDG23CD WASHER – Common Parts & Diagrams
01 - FRONT VIEW
02 - REAR VIEW
03 - CONTROLS & UPPER DRYER FRONT PANEL

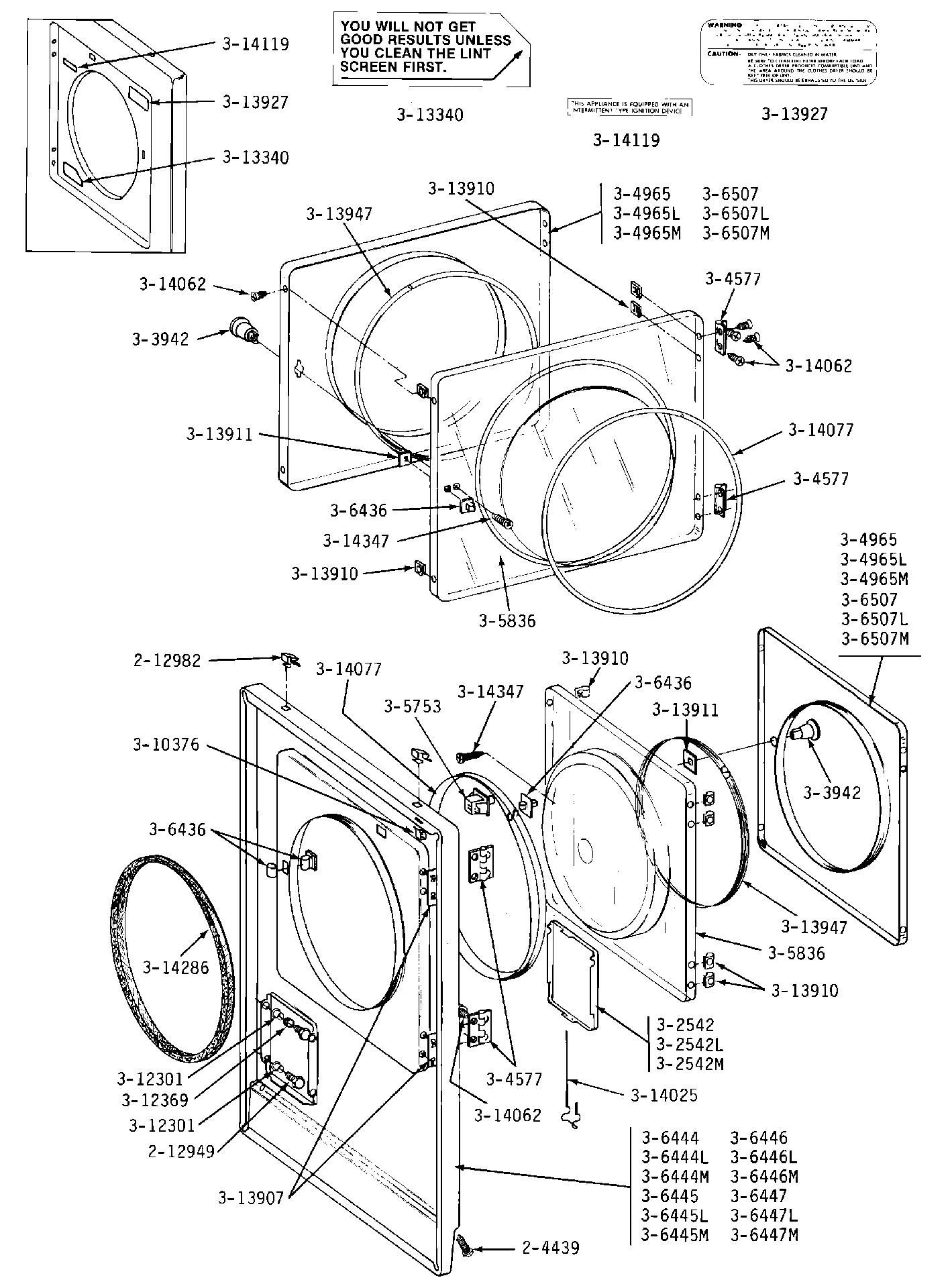

04 - FRONT PANEL & DOOR ASSEMBLY

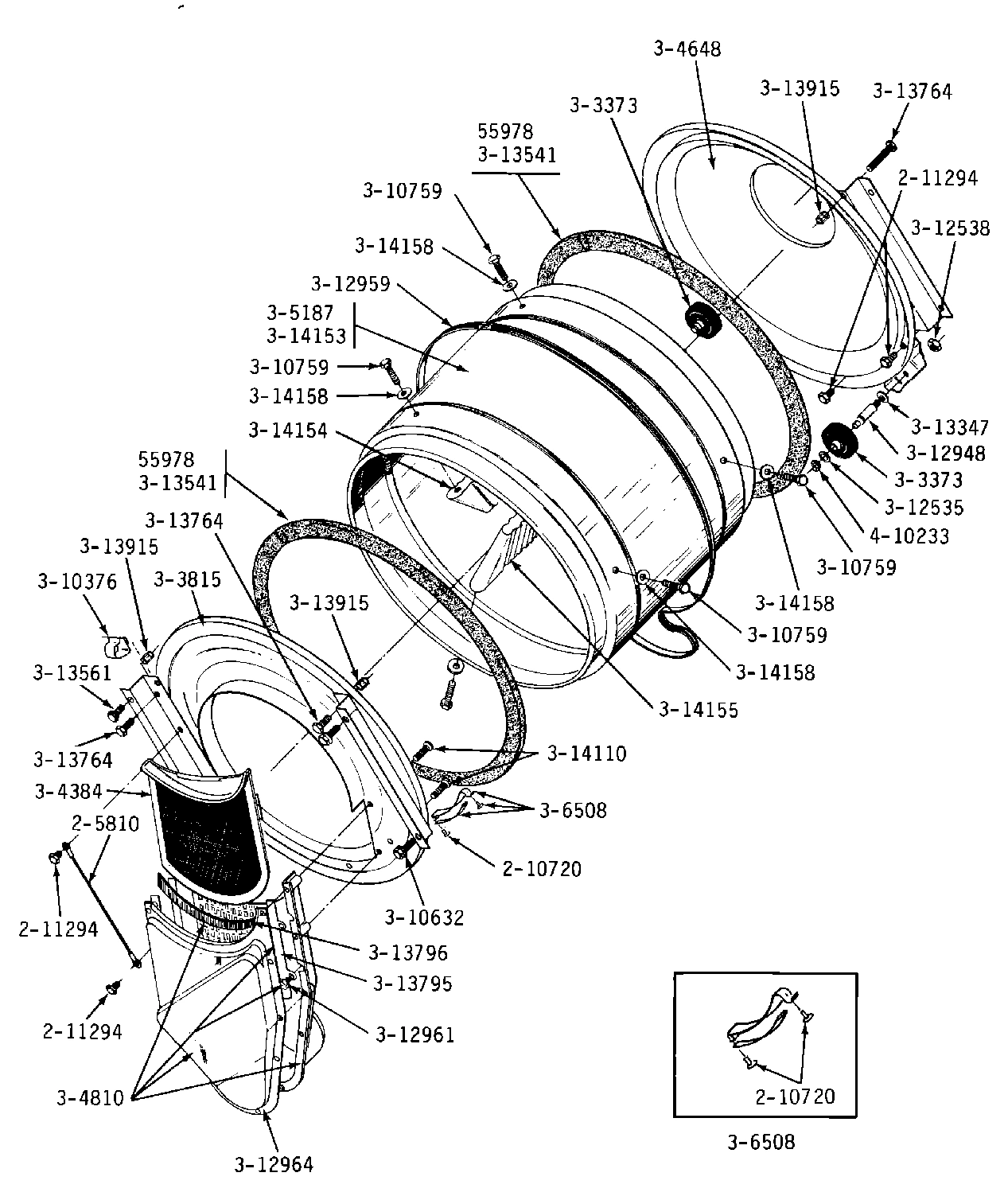

05 - LINT SCREEN, TUMBLER (FRONT & BACK)

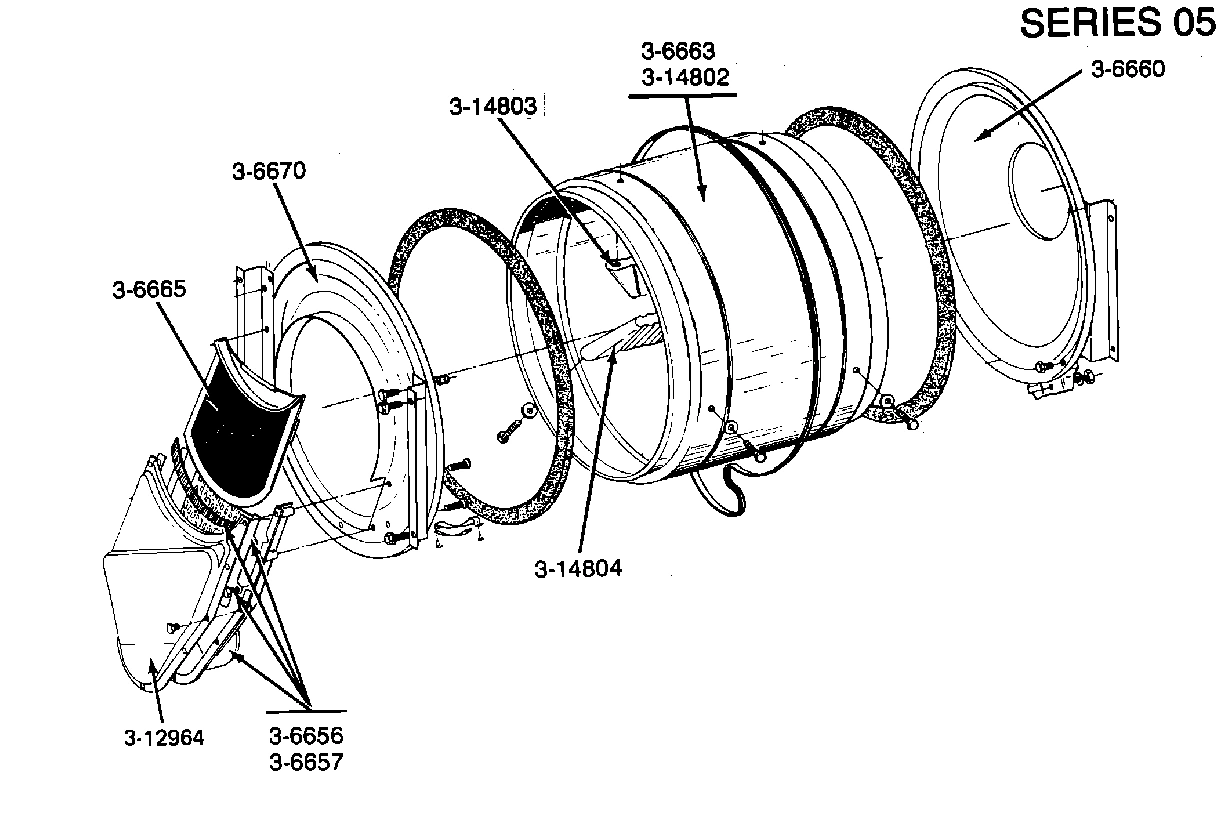

06 - TUMBLER (FRONT & BACK)(SERIES 05)
07 - INLET DUCT, GAS VALVE, CONE & EXTENSION

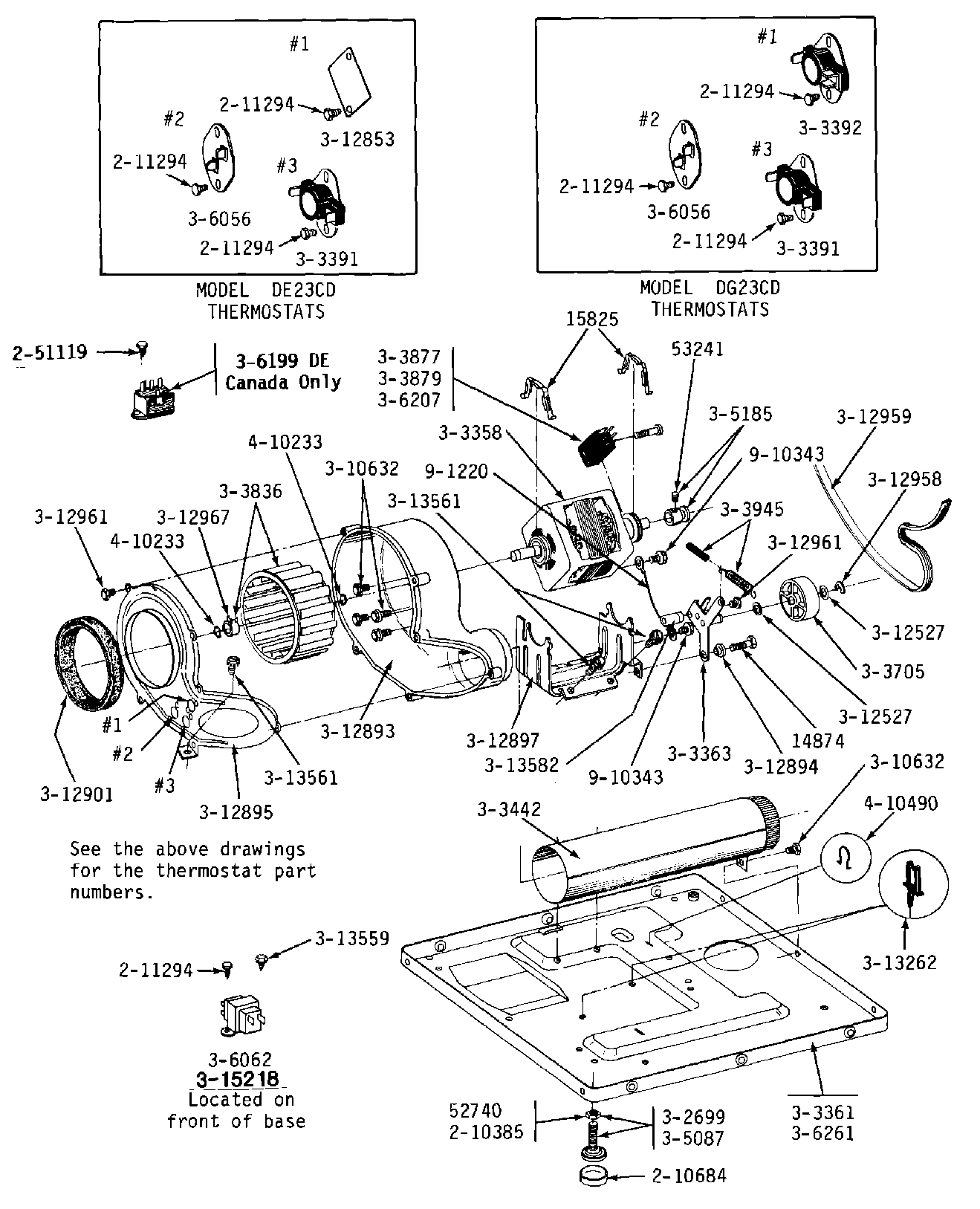

08 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS

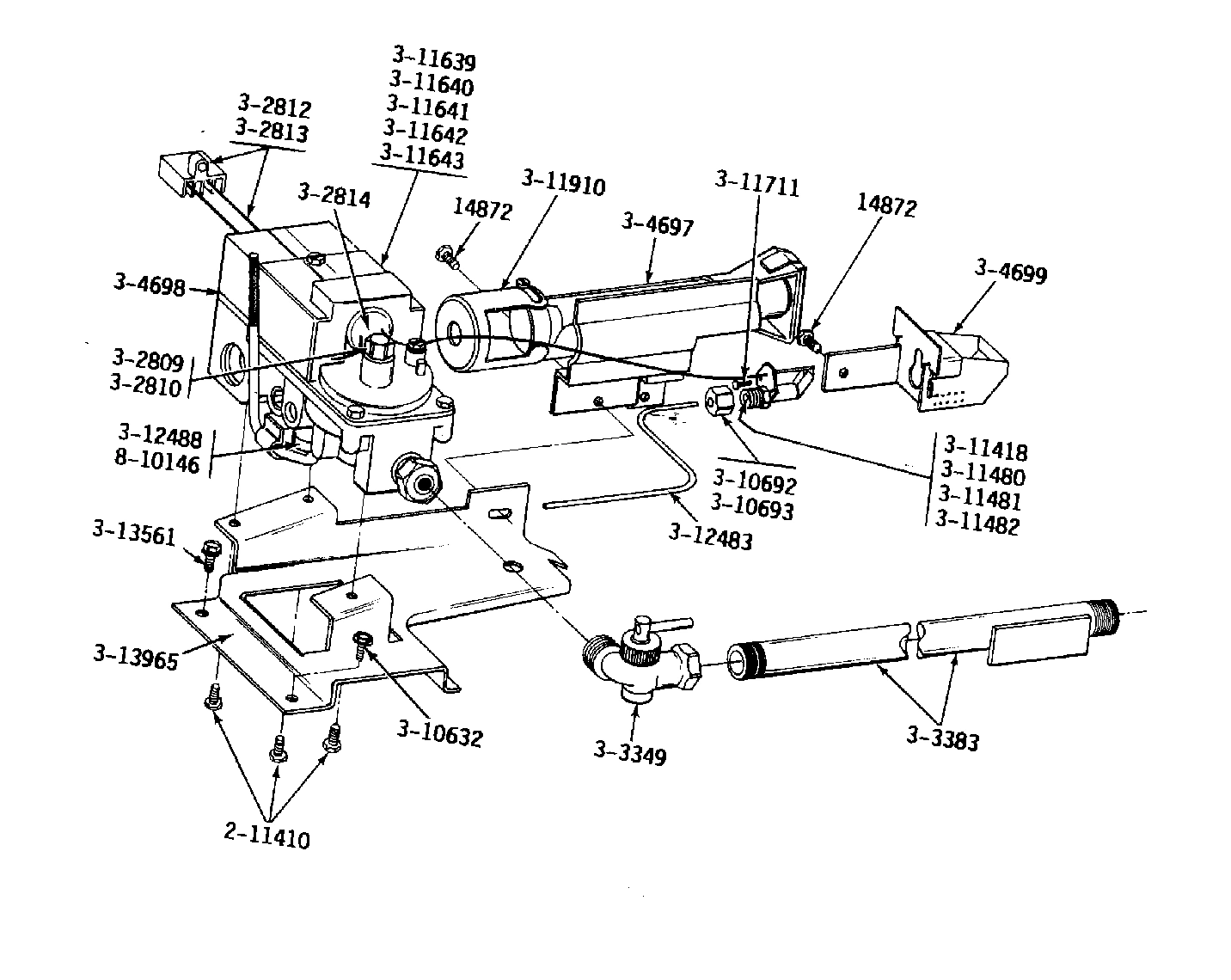

09 - 50HZ GAS VALVE
Common parts from model Maytag GDG23CD WASHER
001
MAY 204439 MAY 204439 Contact Us For Availability
001
MAY Y055978 MAY Y055978 Contact Us For Availability
001
MAY Y052655 MAY Y052655 Contact Us For Availability
001
MAY 306656 MAY 306656 Contact Us For Availability
001
MAY Y014872 MAY Y014872 Contact Us For Availability
002
MAY 212949 MAY 212949 Contact Us For Availability
002
MAY 205810 MAY 205810 Contact Us For Availability
002
MAY 306657 MAY 306657 Contact Us For Availability
003
MAY 212982 MAY 212982 Contact Us For Availability
003
MAY Y306660 MAY Y306660 Contact Us For Availability
004
MAY 306663 MAY 306663 Contact Us For Availability
005
MAY Y303373 MAY Y303373 Contact Us For Availability
005
MAY Y306665 MAY Y306665 Contact Us For Availability
005
MAY Y303368 MAY Y303368 Contact Us For Availability
005
MAY Y053241 MAY Y053241 Contact Us For Availability
006
MAY Y303815 MAY Y303815 Contact Us For Availability
006
MAY Y303369 MAY Y303369 Contact Us For Availability
007
MAY 214519 MAY 214519 Contact Us For Availability
007
MAY Y304384 MAY Y304384 Contact Us For Availability
007
MAY 314802 MAY 314802 Contact Us For Availability
007
MAY Y302812 MAY Y302812 Contact Us For Availability
008
MAY 301548 MAY 301548 Contact Us For Availability
008
DOOR HINGE ----S MAY Y304577 Contact Us For Availability
008
MAY 314803 MAY 314803 Contact Us For Availability
008
MAY Y302813 MAY Y302813 Contact Us For Availability
009
MAY 302521 MAY 302521 Contact Us For Availability
009
LEG, ADJUSTABLE (W/NUT)---S MAY Y302699 Contact Us For Availability
009
REINFORCING NUT FOR COIN BO MAY 214104 Contact Us For Availability
009
MAY 304965 MAY 304965 Contact Us For Availability
009
MAY Y303777 MAY Y303777 Contact Us For Availability
010
MAY Y304672 MAY Y304672 Contact Us For Availability
010
OUTLET DUCT ASSEMBLY---S MAY Y304810 Contact Us For Availability
010
MAY Y303349 MAY Y303349 Contact Us For Availability
010
MAY Y303779 MAY Y303779 Contact Us For Availability
011
MAY 305187 MAY 305187 Contact Us For Availability
011
MAY Y303383 MAY Y303383 Contact Us For Availability
011
MAY Y303841 MAY Y303841 Contact Us For Availability
011
MAY Y303361 MAY Y303361 Contact Us For Availability
012
MAY Y304626 MAY Y304626 Contact Us For Availability
012
MAY Y304697 MAY Y304697 Contact Us For Availability
013
COIN TRAY MAY 306219 Contact Us For Availability
013
MAY Y310376 MAY Y310376 Contact Us For Availability
013
MAY Y304698 MAY Y304698 Contact Us For Availability
014
MAY 304971 MAY 304971 Contact Us For Availability
015
MAY Y310632 MAY Y310632 Contact Us For Availability
015
MAY Y310759 MAY Y310759 Contact Us For Availability
015
MAY 304974 MAY 304974 Contact Us For Availability
015
MAY Y303442 MAY Y303442 Contact Us For Availability
016
MAY Y306224 MAY Y306224 Contact Us For Availability
016
COMPRESSION NUT MAY 310692 Contact Us For Availability
017
MAY 306228 MAY 306228 Contact Us For Availability
017
MAY 312538 MAY 312538 Contact Us For Availability
017
MAY 305603 MAY 305603 Contact Us For Availability
017
MAY Y310693 MAY Y310693 Contact Us For Availability
018
SHAFT, TUMBLER ROLLER----C WPL WP6-3129480 No Longer Available
018
MAY 305604 MAY 305604 Contact Us For Availability
018
MAY Y311418 MAY Y311418 Contact Us For Availability
018
MAY Y303877 MAY Y303877 Contact Us For Availability
019
MAY Y306232 MAY Y306232 Contact Us For Availability
019
MAY Y303879 MAY Y303879 Contact Us For Availability
019
MAY Y311480 MAY Y311480 Contact Us For Availability
020
MAY 306233 MAY 306233 Contact Us For Availability
020
MAY Y303945 MAY Y303945 Contact Us For Availability
021
MAY Y305087 MAY Y305087 Contact Us For Availability
021
MAY Y312964 MAY Y312964 Contact Us For Availability
021
MAY Y311482 MAY Y311482 Contact Us For Availability
022
MAY Y305185 MAY Y305185 Contact Us For Availability
022
MAY Y311639 MAY Y311639 Contact Us For Availability
023
MAY 306199 MAY 306199 Contact Us For Availability
023
TUMBLER SEAL -----S MAY Y313541 Contact Us For Availability
023
MAY 311546 MAY 311546 Contact Us For Availability
024
MAY 306056 MAY 306056 Contact Us For Availability
024
MAY Y306447 MAY Y306447 Contact Us For Availability
024
MAY Y312890 MAY Y312890 Contact Us For Availability
025
MAY 306062 MAY 306062 Contact Us For Availability
025
MAY 311155 MAY 311155 Contact Us For Availability
025
MAY 312929 MAY 312929 Contact Us For Availability
026
MAY Y311423 MAY Y311423 Contact Us For Availability
026
MAY Y313795 MAY Y313795 Contact Us For Availability
027
MAY Y313796 MAY Y313796 Contact Us For Availability
027
MAY 306261 MAY 306261 Contact Us For Availability
027
MAY Y311711 MAY Y311711 Contact Us For Availability
028
MAY Y312184 MAY Y312184 Contact Us For Availability
029
SCREW, No.10-24 X 3/4 INCH-----O MAY Y312209 Contact Us For Availability
029
SCREW, INLET DUCT ----S MAY Y314110 Contact Us For Availability
029
MAY Y312527 MAY Y312527 Contact Us For Availability
029
MAY Y312483 MAY Y312483 Contact Us For Availability
030
TUMBLER No. MAY Y314153 Contact Us For Availability
030
MAY Y312853 MAY Y312853 Contact Us For Availability
031
MAY Y312905 MAY Y312905 Contact Us For Availability
031
MAY Y313561 MAY Y313561 Contact Us For Availability
031
MAY Y312893 MAY Y312893 Contact Us For Availability
032
MAY Y312951 MAY Y312951 Contact Us For Availability
032
MAY 312369 MAY 312369 Contact Us For Availability
032
MAY 314155 MAY 314155 Contact Us For Availability
032
SLEEVE, IDLER ARM ----S MAY Y312894 Contact Us For Availability
033
MAY 314158 MAY 314158 Contact Us For Availability
033
MAY Y313340 MAY Y313340 Contact Us For Availability
033
MAY Y312895 MAY Y312895 Contact Us For Availability
034
MAY 306439 MAY 306439 Contact Us For Availability
034
MAY Y313907 MAY Y313907 Contact Us For Availability
035
MAY Y313910 MAY Y313910 Contact Us For Availability
036
MAY Y313911 MAY Y313911 Contact Us For Availability
037
MAY Y313927 MAY Y313927 Contact Us For Availability
038
MAY 306443 MAY 306443 Contact Us For Availability
038
MAY Y313947 MAY Y313947 Contact Us For Availability
039
MAY Y314025 MAY Y314025 Contact Us For Availability
040
MAY Y313262 MAY Y313262 Contact Us For Availability
041
MAY Y313559 MAY Y313559 Contact Us For Availability
041
MAY 314077 MAY 314077 Contact Us For Availability
045
MAY 410490 MAY 410490 Contact Us For Availability
046
MAY Y306712 MAY Y306712 Contact Us For Availability
046
MAY 901220 MAY 901220 Contact Us For Availability
047
MAY 910343 MAY 910343 Contact Us For Availability
048
MAY Y306716 MAY Y306716 Contact Us For Availability
048
MAY 315218 MAY 315218 Contact Us For Availability
051
MAY 310933 MAY 310933 Contact Us For Availability
053
MAY 314618 MAY 314618 Contact Us For Availability
055
MAY 314631 MAY 314631 Contact Us For Availability
057
MAY 314634 MAY 314634 Contact Us For Availability
058
MAY 314635 MAY 314635 Contact Us For Availability
059
MAY 314654 MAY 314654 Contact Us For Availability
061
MAY 314664 MAY 314664 Contact Us For Availability
063
MAY 314666 MAY 314666 Contact Us For Availability
064
MAY 314710 MAY 314710 Contact Us For Availability
065
MAY 314713 MAY 314713 Contact Us For Availability
067
MAY 314979 MAY 314979 Contact Us For Availability
069
MAY 912012 MAY 912012 Contact Us For Availability
070
MAY 912075 MAY 912075 Contact Us For Availability
072
MAY 912086 MAY 912086 Contact Us For Availability
NI
SCREW, HEX HD No.8 X 3/8 INCH MAY NLA Contact Us For Availability
NI
MAY 313122 MAY 313122 Contact Us For Availability
NI
MAY 314663 MAY 314663 Contact Us For Availability
NI
MAY Y305190 MAY Y305190 Contact Us For Availability
NI
MAY Y304648 MAY Y304648 Contact Us For Availability
NI
MAY 301539 MAY 301539 Contact Us For Availability
× ![]()
