Model Maytag GDE23CD ELECTRIC DRYER – Common Parts & Diagrams

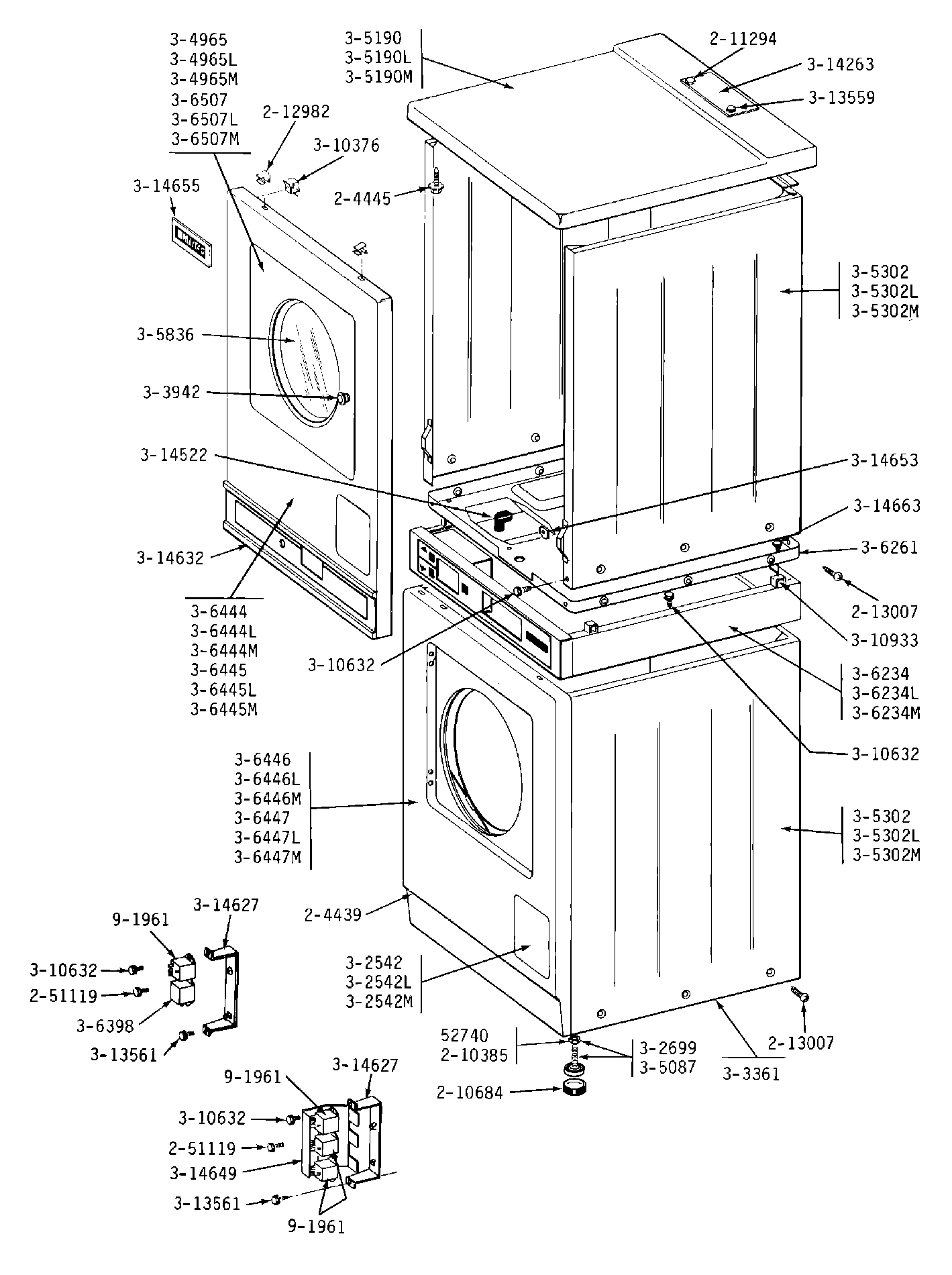

01 - FRONT VIEW

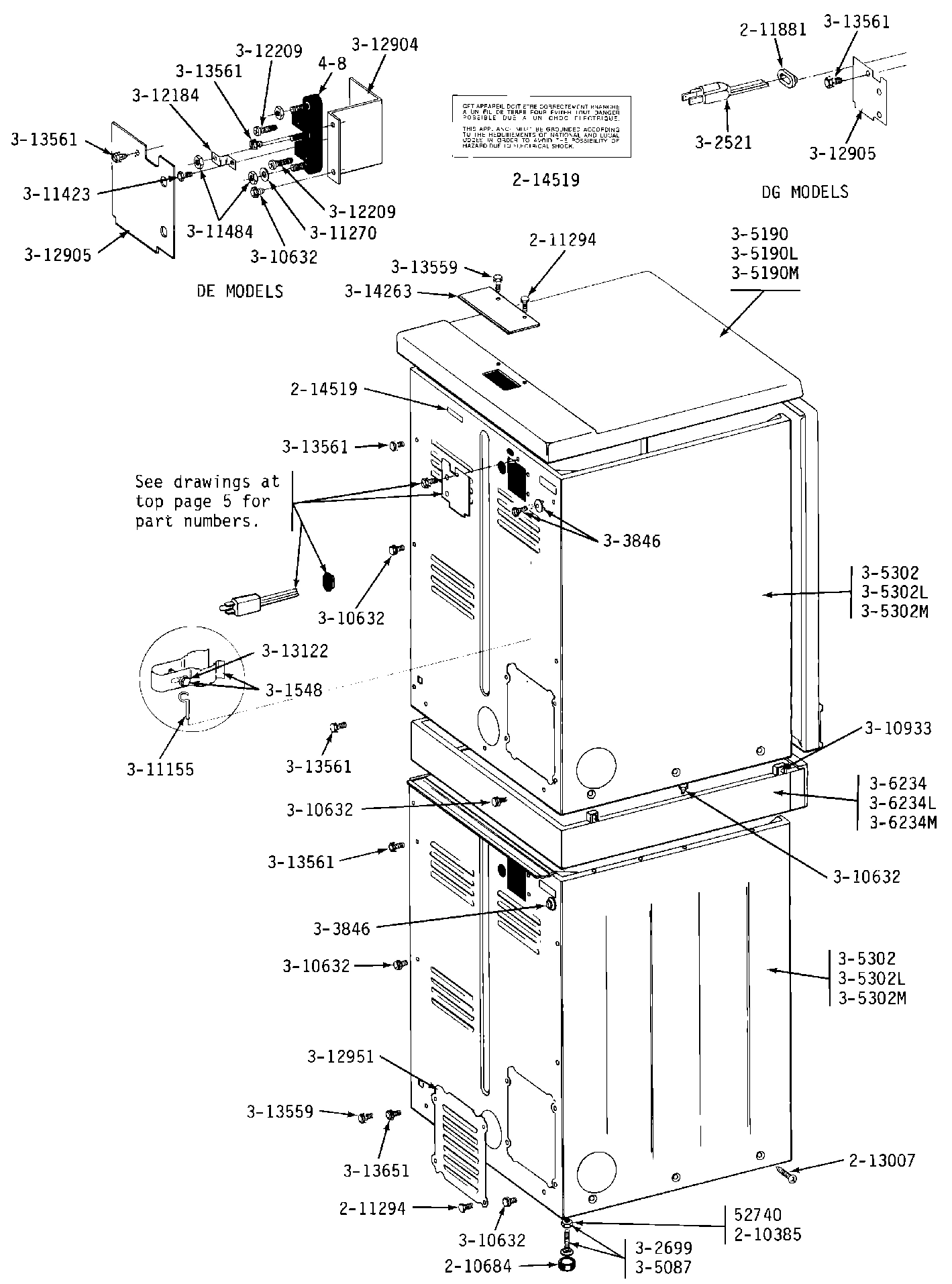

02 - REAR VIEW

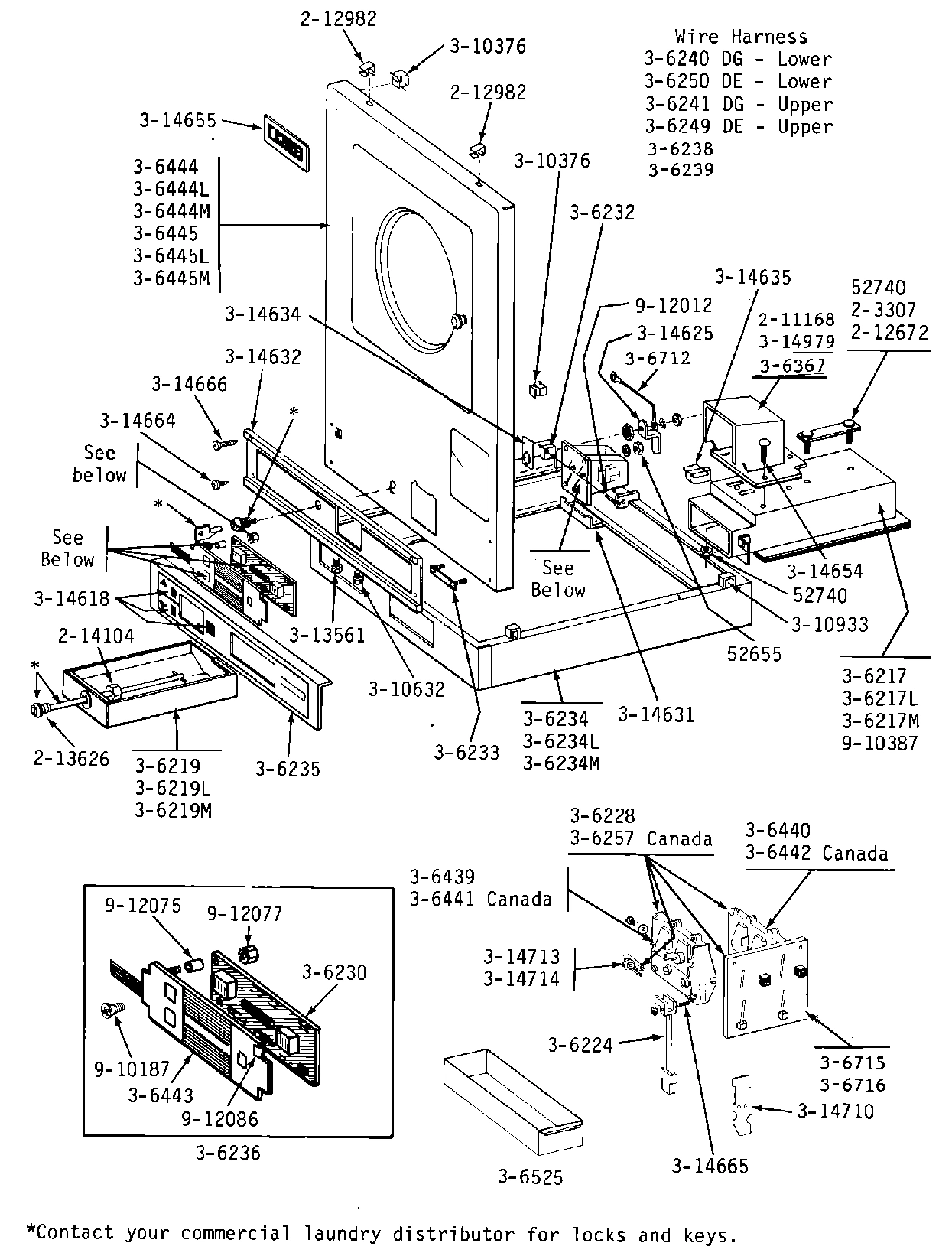

03 - CONTROLS & UPPER DRYER FRONT PANEL

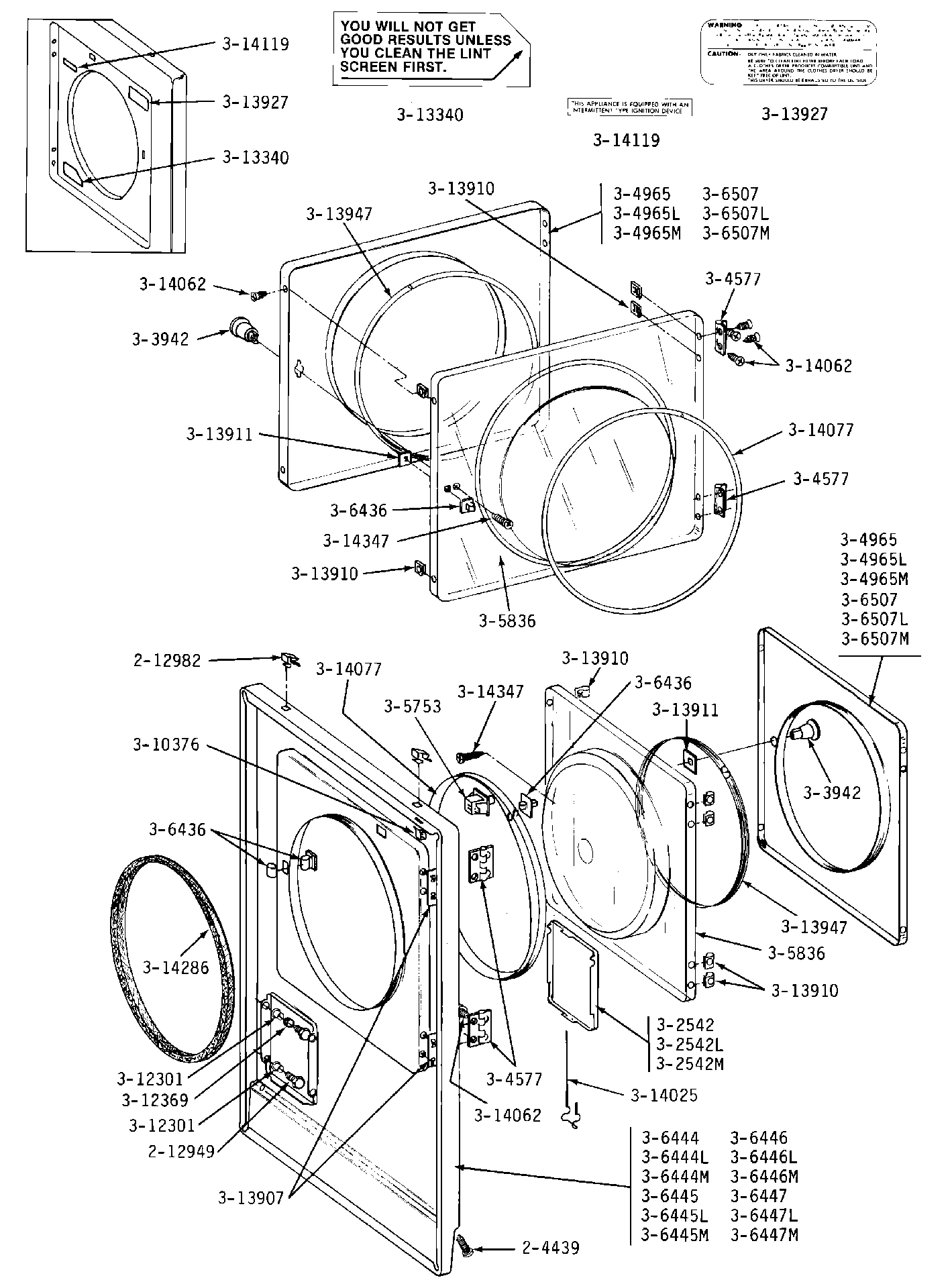

04 - FRONT PANEL & DOOR ASSEMBLY

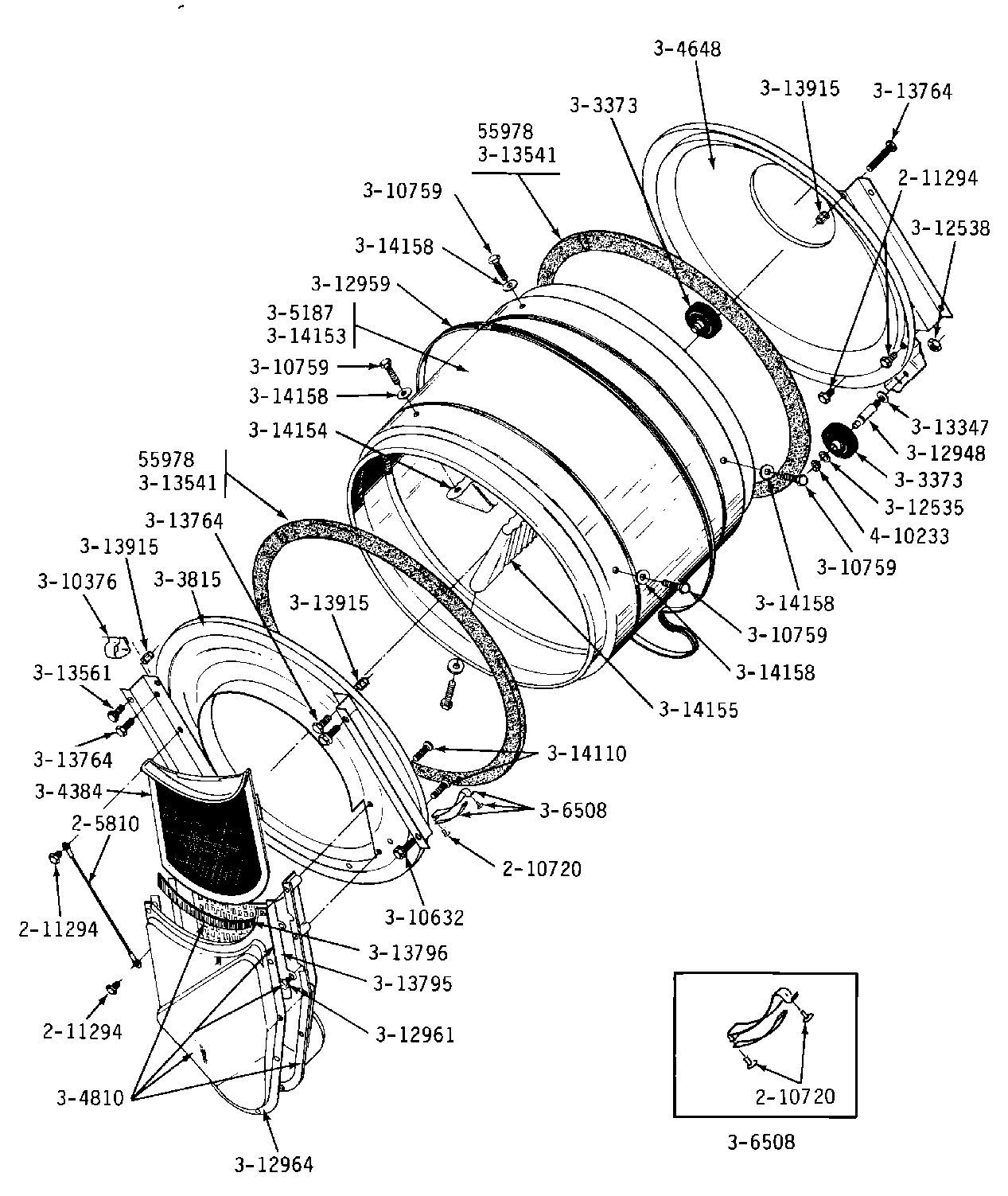

05 - LINT SCREEN, TUMBLER (FRONT & BACK)

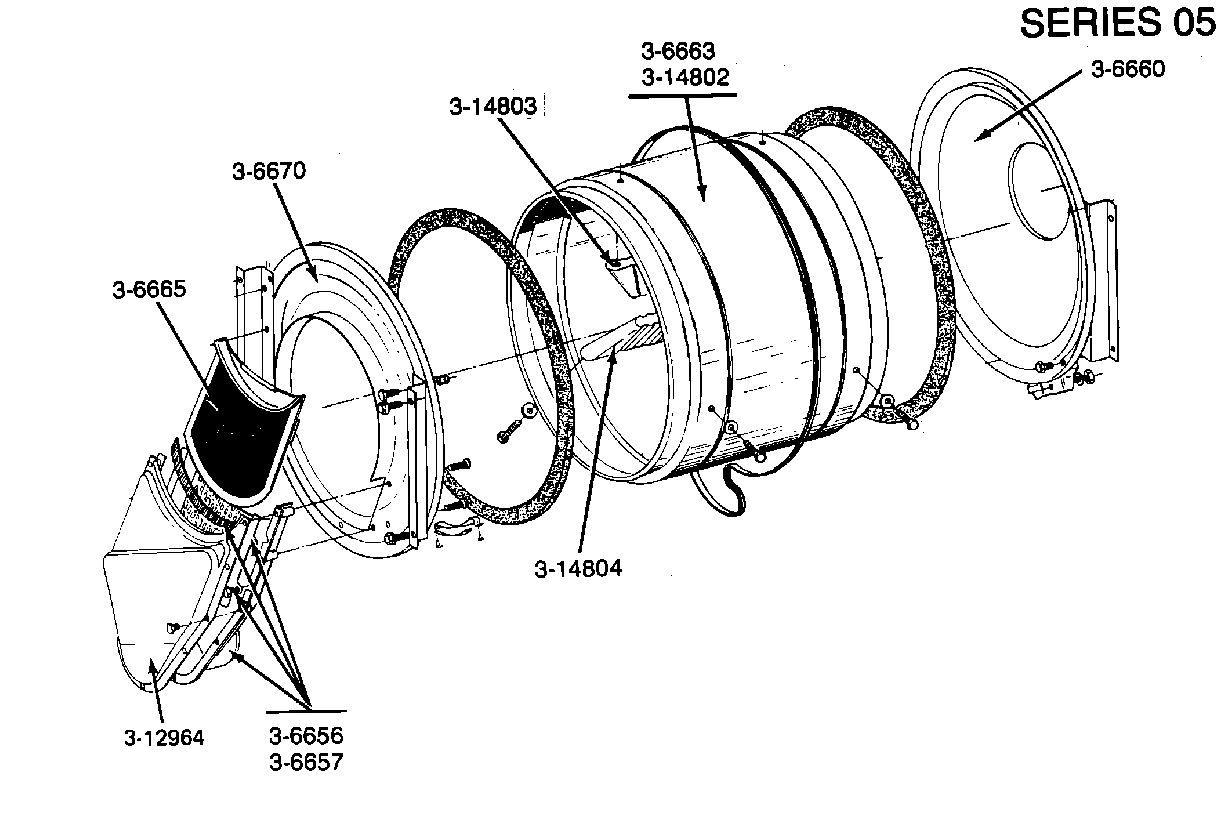

06 - TUMBLER (FRONT & BACK)(SERIES 05)

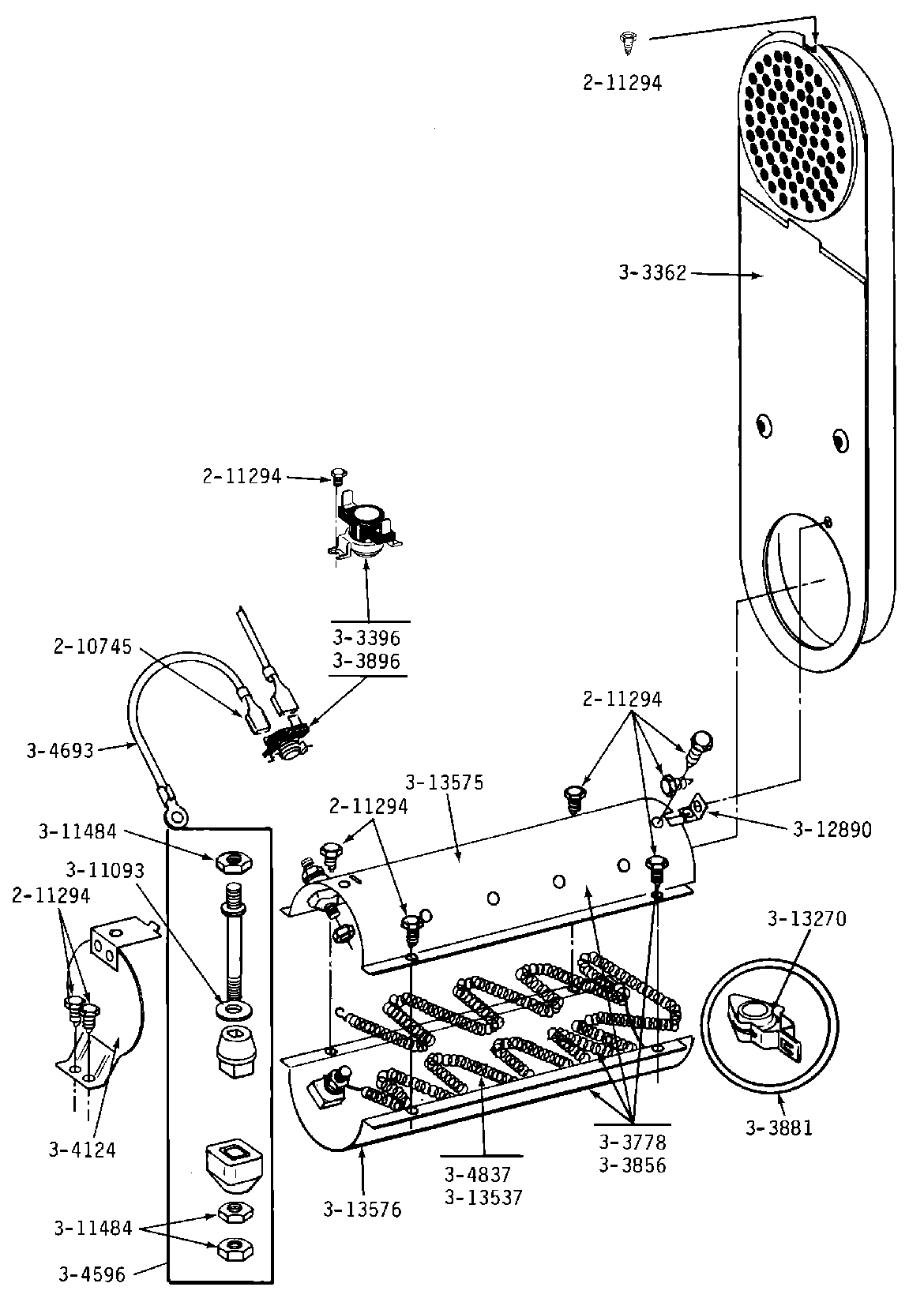

07 - INLET DUCT & HEATER ASSEMBLY

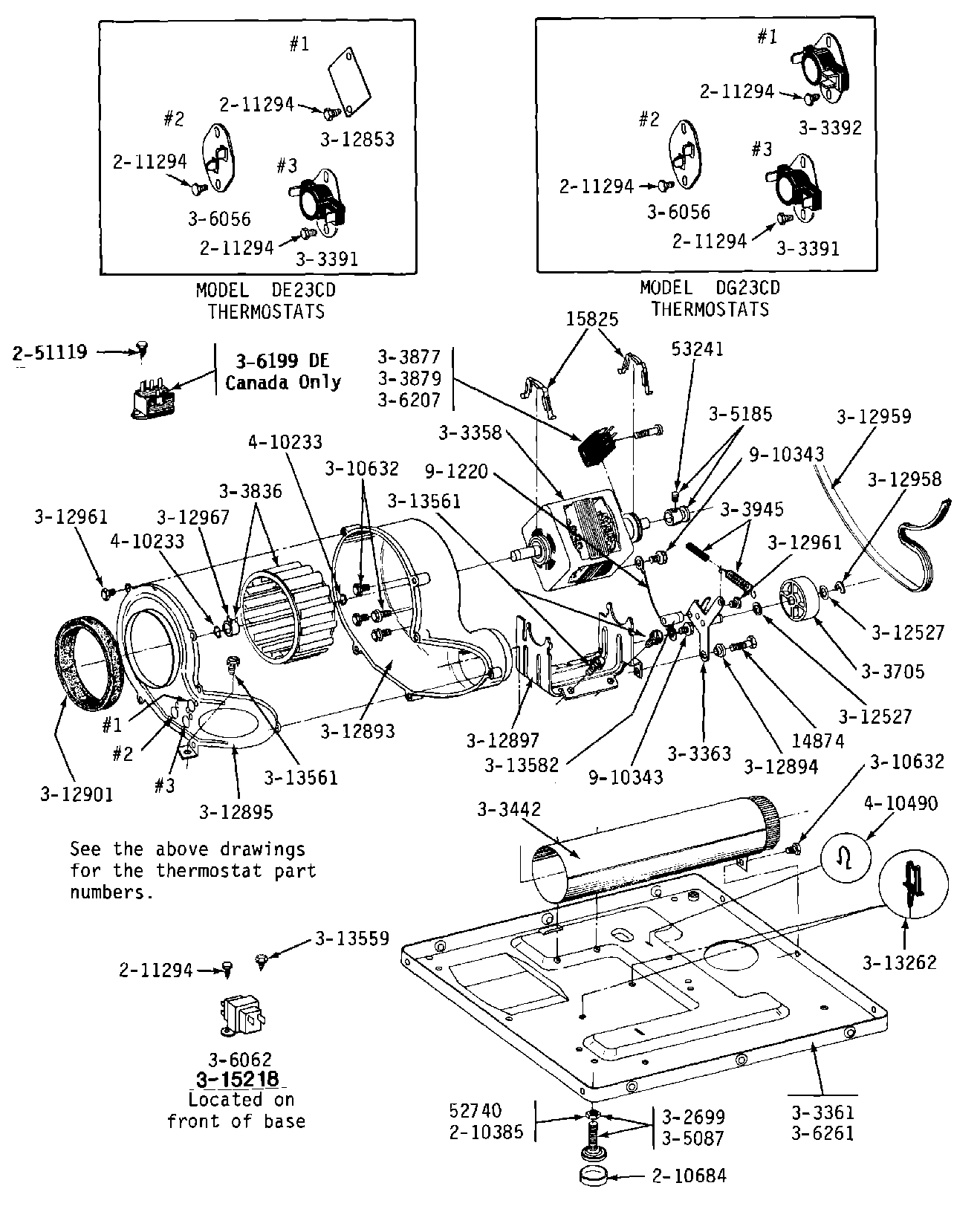

08 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS
Common parts from model Maytag GDE23CD ELECTRIC DRYER
001
SCREW & FSTNER ASSY (FT. PNL) MAY 204439 Contact Us For Availability
001
MAY Y055978 MAY Y055978 Contact Us For Availability
001
MAY Y052655 MAY Y052655 Contact Us For Availability
001
MAY 306656 MAY 306656 Contact Us For Availability
001
MAY 210745 MAY 210745 Contact Us For Availability
002
MAY 205810 MAY 205810 Contact Us For Availability
002
MAY 306657 MAY 306657 Contact Us For Availability
003
MAY 212982 MAY 212982 Contact Us For Availability
003
MAY Y306660 MAY Y306660 Contact Us For Availability
003
INLET DUCT ASSEMBLY MAY Y303362 Contact Us For Availability
004
MAY 306663 MAY 306663 Contact Us For Availability
005
MAY Y303778 MAY Y303778 Contact Us For Availability
005
MAY Y303373 MAY Y303373 Contact Us For Availability
005
MAY Y306665 MAY Y306665 Contact Us For Availability
005
MAY Y053241 MAY Y053241 Contact Us For Availability
006
MAY Y303815 MAY Y303815 Contact Us For Availability
006
MAY Y303856 MAY Y303856 Contact Us For Availability
007
MAY Y304384 MAY Y304384 Contact Us For Availability
007
MAY 314802 MAY 314802 Contact Us For Availability
008
DOOR HINGE ----S MAY Y304577 Contact Us For Availability
008
MAY 314803 MAY 314803 Contact Us For Availability
009
MAY 214104 MAY 214104 Contact Us For Availability
009
DOOR COMPLETE (WHT) MAY 304965 Contact Us For Availability
009
MAY 304124 MAY 304124 Contact Us For Availability
009
LEG, ADJUSTABLE (W/NUT)---S MAY Y302699 Contact Us For Availability
010
OUTLET DUCT ASSEMBLY---S MAY Y304810 Contact Us For Availability
011
TOP COVER (WHT) MAY Y305190 Contact Us For Availability
011
TUMBLER W/BAFFLES MAY 305187 Contact Us For Availability
011
MAY Y303361 MAY Y303361 Contact Us For Availability
013
MAY 306219 MAY 306219 Contact Us For Availability
013
MAY Y310376 MAY Y310376 Contact Us For Availability
015
MAY Y310759 MAY Y310759 Contact Us For Availability
015
MAY Y312890 MAY Y312890 Contact Us For Availability
015
MAY Y303442 MAY Y303442 Contact Us For Availability
016
INSULATOR, HEATER ELEMENT MAY Y313270 Contact Us For Availability
016
MAY Y306224 MAY Y306224 Contact Us For Availability
017
MAY 306228 MAY 306228 Contact Us For Availability
017
MAY 312538 MAY 312538 Contact Us For Availability
017
MAY Y313537 MAY Y313537 Contact Us For Availability
018
MAY Y313575 MAY Y313575 Contact Us For Availability
018
MAY Y303877 MAY Y303877 Contact Us For Availability
019
MAY Y306232 MAY Y306232 Contact Us For Availability
019
MAY Y313576 MAY Y313576 Contact Us For Availability
019
MAY Y303879 MAY Y303879 Contact Us For Availability
020
MAY 306233 MAY 306233 Contact Us For Availability
020
MAY Y303945 MAY Y303945 Contact Us For Availability
021
MAY Y312964 MAY Y312964 Contact Us For Availability
021
ADJUSTABLE LEG & NUT MAY Y305087 Contact Us For Availability
022
MAY Y305185 MAY Y305185 Contact Us For Availability
023
MAY 306199 MAY 306199 Contact Us For Availability
023
MAY Y311423 MAY Y311423 Contact Us For Availability
023
TUMBLER SEAL -----S MAY Y313541 Contact Us For Availability
024
MAY 306056 MAY 306056 Contact Us For Availability
025
MAY 306062 MAY 306062 Contact Us For Availability
025
MAY Y312184 MAY Y312184 Contact Us For Availability
026
SCREW, No.10-24 X 3/4 INCH-----O MAY Y312209 Contact Us For Availability
026
GUIDE, LINT SCREEN MAY Y313795 Contact Us For Availability
027
MAY Y313796 MAY Y313796 Contact Us For Availability
027
MAY Y312904 MAY Y312904 Contact Us For Availability
027
MAY 306261 MAY 306261 Contact Us For Availability
028
MAY Y310632 MAY Y310632 Contact Us For Availability
028
MAY Y312905 MAY Y312905 Contact Us For Availability
029
MAY Y312951 MAY Y312951 Contact Us For Availability
029
SCREW, INLET DUCT ----S MAY Y314110 Contact Us For Availability
029
MAY Y312527 MAY Y312527 Contact Us For Availability
030
SCREW, BAFFLE MAY 313122 Contact Us For Availability
030
MAY 306249 MAY 306249 Contact Us For Availability
030
TUMBLER No. MAY Y314153 Contact Us For Availability
030
COVER,THERMOSTAT OPENING MAY Y312853 Contact Us For Availability
031
MAY 306250 MAY 306250 Contact Us For Availability
031
MAY Y312893 MAY Y312893 Contact Us For Availability
032
MAY 314155 MAY 314155 Contact Us For Availability
032
SLEEVE, IDLER ARM ----S MAY Y312894 Contact Us For Availability
033
MAY 314158 MAY 314158 Contact Us For Availability
033
LABEL, LINT SCREEN INSTR. MAY Y313340 Contact Us For Availability
033
COVER, BLOWER MAY Y312895 Contact Us For Availability
034
MAY 306439 MAY 306439 Contact Us For Availability
034
MAY Y313907 MAY Y313907 Contact Us For Availability
035
MAY 400008 MAY 400008 Contact Us For Availability
035
CLIP, DOOR LINER MAY Y313910 Contact Us For Availability
036
MAY Y313911 MAY Y313911 Contact Us For Availability
037
MAY Y313927 MAY Y313927 Contact Us For Availability
038
MAY 306443 MAY 306443 Contact Us For Availability
038
GASKET, WINDOW MAY Y313947 Contact Us For Availability
040
MAY Y313262 MAY Y313262 Contact Us For Availability
041
MAY Y313559 MAY Y313559 Contact Us For Availability
041
MAY 314077 MAY 314077 Contact Us For Availability
042
MAY Y313561 MAY Y313561 Contact Us For Availability
045
MAY 410490 MAY 410490 Contact Us For Availability
046
MAY Y306712 MAY Y306712 Contact Us For Availability
046
MAY 901220 MAY 901220 Contact Us For Availability
047
MAY 910343 MAY 910343 Contact Us For Availability
048
MAY Y306716 MAY Y306716 Contact Us For Availability
048
MAY 315218 MAY 315218 Contact Us For Availability
051
MAY 310933 MAY 310933 Contact Us For Availability
053
MAY 314618 MAY 314618 Contact Us For Availability
055
MAY 314631 MAY 314631 Contact Us For Availability
057
MAY 314634 MAY 314634 Contact Us For Availability
058
MAY 314635 MAY 314635 Contact Us For Availability
059
MAY 314654 MAY 314654 Contact Us For Availability
061
MAY 314664 MAY 314664 Contact Us For Availability
063
MAY 314666 MAY 314666 Contact Us For Availability
064
MAY 314710 MAY 314710 Contact Us For Availability
065
MAY 314713 MAY 314713 Contact Us For Availability
067
MAY 314979 MAY 314979 Contact Us For Availability
069
MAY 912012 MAY 912012 Contact Us For Availability
070
MAY 912075 MAY 912075 Contact Us For Availability
072
MAY 912086 MAY 912086 Contact Us For Availability
NI
MAY 314663 MAY 314663 Contact Us For Availability
NI
SWITCH, MOTOR START-PROD. MAY NLA Contact Us For Availability
NI
TUMBLER BACK W/SEAL MAY Y304648 Contact Us For Availability
× ![]()
