Model Electrolux GCWS3067AFA WALL OVEN, ELECTRIC, SINGLE, 30 INCH – Common Parts & Diagrams

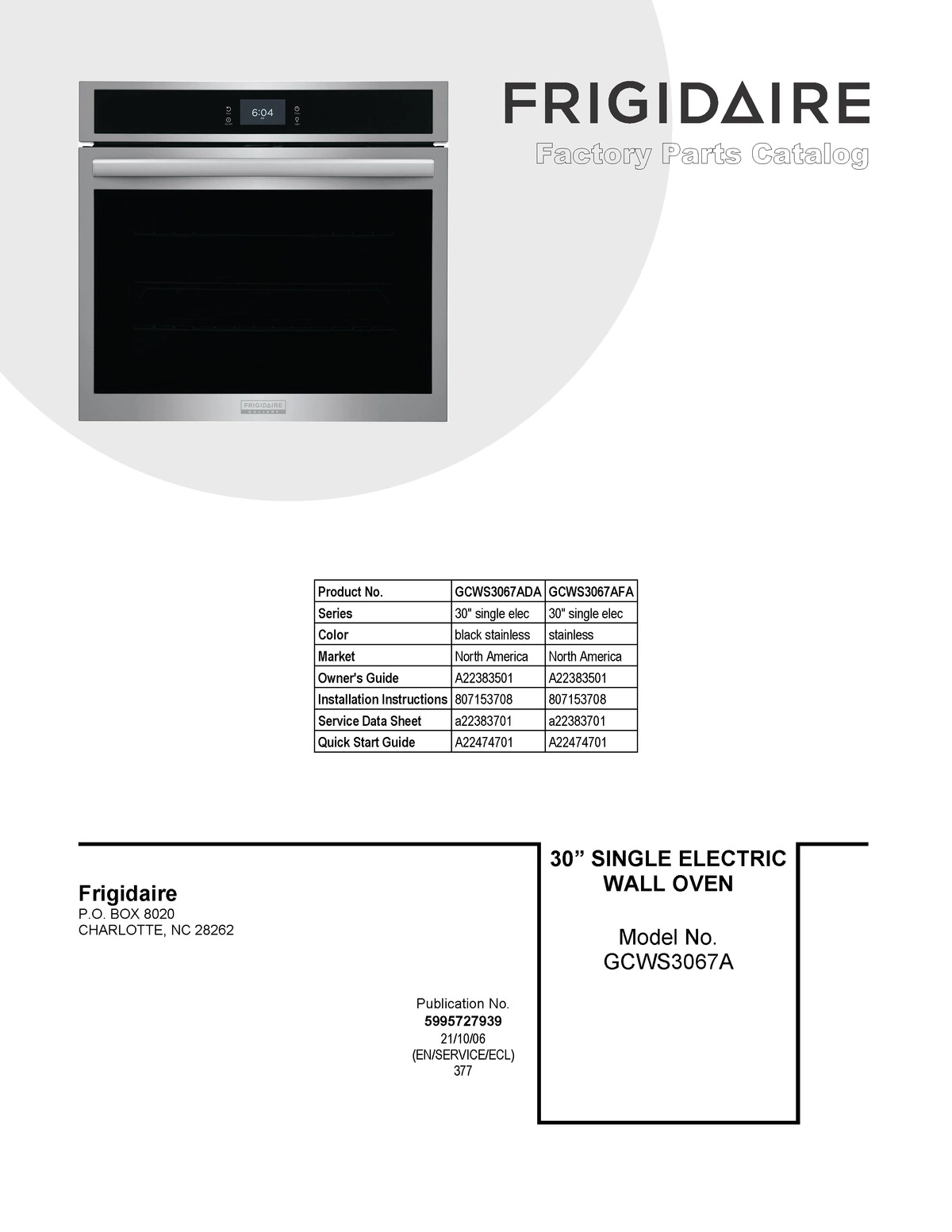

01 - COVER SHEET

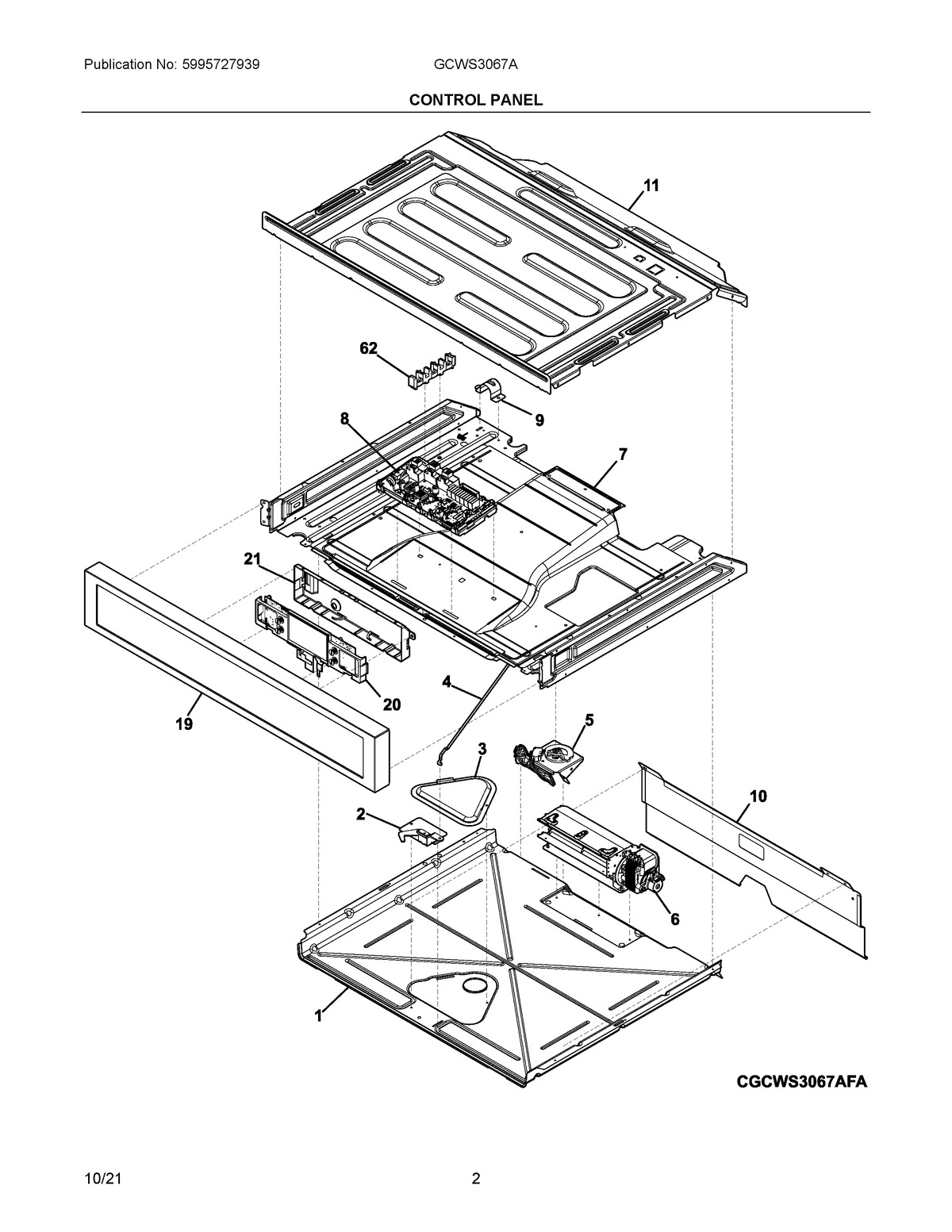

02 - CONTROL PANEL
03 - BODY
04 - DOOR
05 - WIRING DIAGRAM
06 - WIRING DIAGRAM
Common parts from model Electrolux GCWS3067AFA WALL OVEN, ELECTRIC, SINGLE, 30 INCH
3
COVER, VENT WCI 5304526366 Contact Us For Availability
4
ROD, LATCH WCI 5304526368 Contact Us For Availability
4
DOOR ASSEMBLY, OUTER, STEEL/GLASS, EZ CARE, S WCI 5304526649 Contact Us For Availability
5
MOTOR ASSEMBLY, DOOR LATCH/LOCK WCI 5304526552 Contact Us For Availability
5
BRACKET, DOOR PROTECTION, LOWER WCI 5304530443 Contact Us For Availability
6
SHIELD, WOOL, DOOR WCI 5304526282 Contact Us For Availability
6A
RACK ASSEMBLY, GLIDE, HANDLED WCI 5304526506 Contact Us For Availability
6B
AIR FRY TRAY (OPTIONAL ACCESSORY) WCI FRIGPEREAFT Contact Us For Availability
7
CARRIER PLATE, ASSEMBLY, W/DUCT WCI 5304526538 Contact Us For Availability
7
TRAY, HIDDEN BAKE WCI 5304528326 Contact Us For Availability
7
INSULATION WCI 5304526656 Contact Us For Availability
7A
INSULATION WCI 5304526655 Contact Us For Availability
7B
INSULATION WCI 5304526530 Contact Us For Availability
8
GLASS, DOOR, INNER, SHR, PF WCI 5304526387 Contact Us For Availability
9
BRACKET, CONDUIT MTG. WCI 5304530364 Contact Us For Availability
10
SHIELD, INSULATION, REAR, UPPER WCI 5304530427 Contact Us For Availability
10
SCREW WCI 316433305 Contact Us For Availability
11
SEAL WCI 5304526242 Contact Us For Availability
15
LAMP ASSEMBLY, HALOGEN, G9, 40W, 120V WCI 5304530343 Contact Us For Availability
17
BRACKET, GLASS PACK, VERTICAL WCI 5304526284 Contact Us For Availability
17A
BRACKET WCI 5304526285 Contact Us For Availability
19
CONTROL PANEL, ASSEMBLY, STEEL/GLASS, STAINLE WCI 5304526476 Contact Us For Availability
21
HOUSING, CONTROLLER WCI 5304523582 Contact Us For Availability
29
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
37
PROBE, OVEN SENSOR WCI 5304526310 Contact Us For Availability
54
RECEPTACLE WCI 339662626 Contact Us For Availability
56
SCREW WCI 5304526234 Contact Us For Availability
58
INSULATION WCI 5304530429 Contact Us For Availability
58A
INSULATION WCI 5304530428 Contact Us For Availability
59
TUBE, VENT CATALYST WCI 5304526450 Contact Us For Availability
70
PANEL, SIDE, EXTERIOR WCI 5304526314 Contact Us For Availability
71
SHIELD, REAR WIRE WCI 5304526329 Contact Us For Availability
72
COVER, CONVECTION MTR WCI 5304526588 Contact Us For Availability
83
BRACKET, BASE PANEL, MOUNT WCI 5304530453 Contact Us For Availability
86
HINGE, DOOR, PINK, 2 SPRING WCI 5304526280 Contact Us For Availability
107
COVER, FAN, MIDNIGHT BLACK, CONVECTION WCI 5304526365 Contact Us For Availability
109
BLADE, FAN, CONVECTION WCI 5304525455 Contact Us For Availability
125
MOTOR, CONVECTION FAN WCI 5304526375 Contact Us For Availability
161
ELEMENT, CONVECTION, 3800W, 240V, RECTANGULAR WCI 5304526565 Contact Us For Availability
NI
HARNESS WCI 5304526516 Contact Us For Availability
NI
SCREW WCI 387856311 Contact Us For Availability
NI
ANTI TIP, KIT WCI 5304530450 Contact Us For Availability
NIA
NUT, HEX FLANGE, 3/8 10-32 WCI 316205500 Contact Us For Availability
NIA
SCREW WCI 387872717 Contact Us For Availability
NIA
SCREW WCI 5304526532 Contact Us For Availability
NIB
SCREW WCI 5304528293 Contact Us For Availability
NIC
SCREW WCI 316001017 Contact Us For Availability
× ![]()
