Model Electrolux GCRI305CADD RANGE/OVEN, INDUCTION, FREESTANDING, 30 INCH – Common Parts & Diagrams

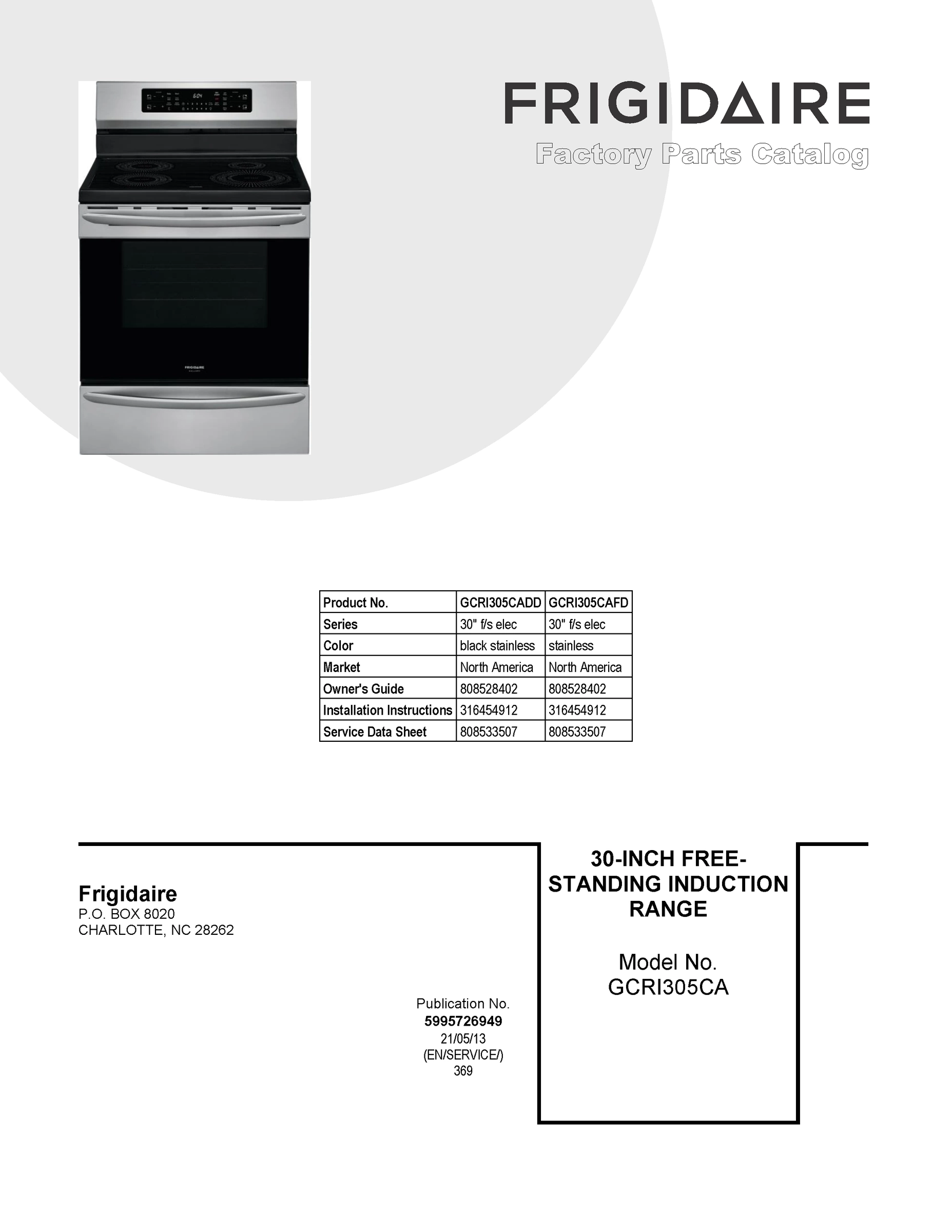

01 - COVER SHEET

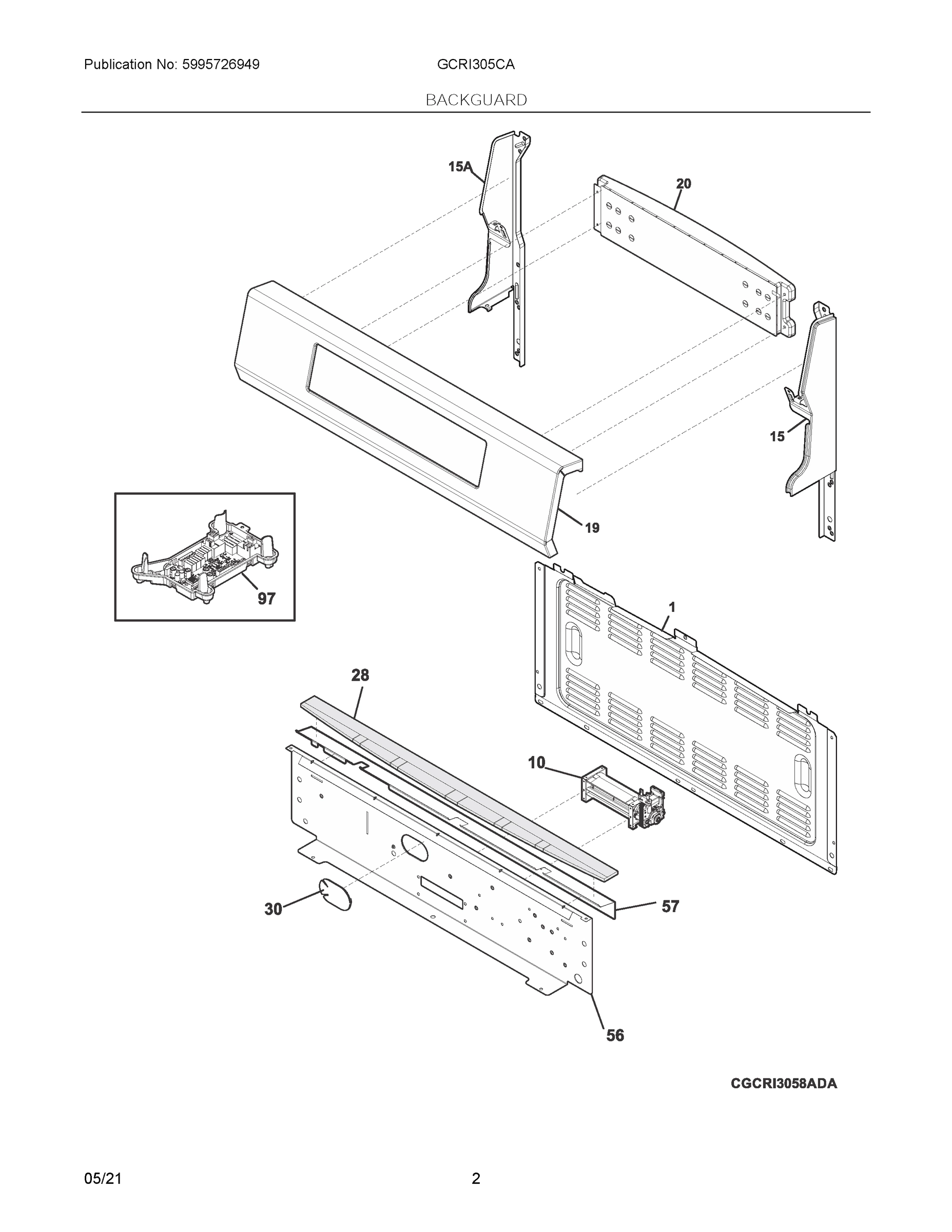

02 - BACKGUARD
03 - BODY
04 - TOP/DRAWER
05 - DOOR
Common parts from model Electrolux GCRI305CADD RANGE/OVEN, INDUCTION, FREESTANDING, 30 INCH
1
DRAWER, UTILITY WCI 316408706 Contact Us For Availability
1
SHIELD, BACKGUARD, REAR WALL WCI 316281802 Contact Us For Availability
2
LINER, DRAWER WCI 5304527989 Contact Us For Availability
3
TRIM KIT-DOOR, 3 SIDED, BLACK, W/TAPE WCI 5303935377 Contact Us For Availability
3
PANEL, BODYSIDE, BLACK, RH WCI 316400144 Contact Us For Availability
3A
PANEL, BODYSIDE, BLACK, LH WCI 316400145 Contact Us For Availability
4
PANEL, DRAWER, DARK STAINLESS WCI 5304516891 Contact Us For Availability
5
SCREW, LEVELING, PLASTIC, REAR, (2) WCI 316272900 Contact Us For Availability
5A
LEVELING LEG ASSY, METAL, FRONT, (2), BRACKET WCI 5304509869 Contact Us For Availability
6
SHIELD, WOOL WCI 316406328 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 316405600 Contact Us For Availability
7A
INSULATION, DOOR LINER, TOP WCI 5304518033 Contact Us For Availability
8
PANEL, OVEN BOTTOM WCI 316400601 Contact Us For Availability
8A
BASE, BAKE ELEMENT WCI 316411106 Contact Us For Availability
9
PAN, BROILEROPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
9
LINER, OVEN DOOR WCI 316423721 Contact Us For Availability
10
FAN ASSEMBLY, BLOWER, CONDENSATION WCI 5304511092 Contact Us For Availability
10
INSERT, BROILER PANOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
11
BRACKET, REAR SUPPORT, (2) WCI 5304517906 Contact Us For Availability
12
SWITCH, OVEN LIGHT, DOOR FRAME WCI 316445500 Contact Us For Availability
13
GLIDE, DRAWER, BLACK, RH INNER WCI 5304517905 Contact Us For Availability
13A
GLIDE, DRAWER, BLACK, LH INNER WCI 5304517903 Contact Us For Availability
14
RECEPTACLE, OVEN LIGHT WCI 316116400 Contact Us For Availability
14
GLIDE, DRAWER, BLACK, RH OUTER WCI 5304517904 Contact Us For Availability
14A
GLIDE, DRAWER, BLACK, LH OUTER WCI 5304517902 Contact Us For Availability
15
LAMP, OVEN LIGHT WCI 316538904 Contact Us For Availability
15
CAP, END, BLACK, RH WCI 5304493644 Contact Us For Availability
15A
CAP, END, BLACK, LH WCI 5304493646 Contact Us For Availability
16
SMOOTHTOP ASSEMBLY, GLASS, BLACK WCI 5304511258 Contact Us For Availability
16
GLASS, DOOR, AIRWASH WCI 316552801 Contact Us For Availability
17
RETAINER, LENS WCI 316087500 Contact Us For Availability
17
SPACER, GLASS WCI 5304504811 Contact Us For Availability
18
LATCH ASSEMBLY, OVEN DOOR WCI 316405800 Contact Us For Availability
18
BRACKET-HINGE, MAIN TOP WCI 316580800 Contact Us For Availability
20
CONTROL, W/OVERLAY, BLACK, ES502I WCI 5304524907 Contact Us For Availability
21
PLATE, DISTRIBUTION, LOAD WCI 316533801 Contact Us For Availability
21
CLIP, BODYSIDE WCI 316408000 Contact Us For Availability
22
BRACKET-BODYSIDE, (2) WCI 316286300 Contact Us For Availability
23
HINGE, DOOR, DUAL SPRING WCI 5304522696 Contact Us For Availability
24
GENERATOR BOARD, POWER, INDUCTION WCI 5304521812 Contact Us For Availability
25
SHIELD, HEAT, LOWER WCI 316406200 Contact Us For Availability
28
INSULATION, MANIFOLD PANEL WCI 316528700 Contact Us For Availability
37
PROBE, OVEN TEMP WCI 316490000 Contact Us For Availability
39
HANDLE, DOOR/DRAWER, BLACK STAINLESS WCI 5304518030 Contact Us For Availability
40
BRACKET, AIRWASH GLASS, (2) WCI 316552401 Contact Us For Availability
44
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
51
INSULATION, DOOR, TOP CAP WCI 316355300 Contact Us For Availability
57
COVER, ACCESS WCI 316283600 Contact Us For Availability
58
INSULATION, OVEN SUMP WCI 316403802 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 316406602 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 316406500 Contact Us For Availability
59A
TUBE, OVEN VENT, UPPER WCI 316208304 Contact Us For Availability
60B
SCREW, 8-18 X 0.5, CHROME WCI 316021109 Contact Us For Availability
66
ELEMENT, BROIL WCI 316203301 Contact Us For Availability
67
ELEMENT, BAKE, HIDDEN WCI 316413800 Contact Us For Availability
68
SUPPORT, ELEMENT, BROIL WCI 316404002 Contact Us For Availability
71
SHIELD, REAR WALL WCI 316283204 Contact Us For Availability
88
ROD, AUTO LATCH WCI 316203500 Contact Us For Availability
97
BOARD, PC, OVEN RELAY WCI 5304516862 Contact Us For Availability
106
WCI 316404100 WCI 316404100 Contact Us For Availability
107
WCI 316026701 WCI 316026701 Contact Us For Availability
108
WCI 316256100 WCI 316256100 Contact Us For Availability
109
WCI 318398302 WCI 318398302 Contact Us For Availability
111
WCI 316136600 WCI 316136600 Contact Us For Availability
161
WCI 5304521820 WCI 5304521820 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
SCREW, WAFER HEAD, 8-32T X 0.500, BLACK, 44* WCI 5303285179 Contact Us For Availability
NI
SCREW, 10-16 X .486 WCI 316089500 Contact Us For Availability
NI
WCI 316418901 WCI 316418901 Contact Us For Availability
NI
SCREW, TRUSS SQDR, 8A X 1", 62* WCI 5303289910 Contact Us For Availability
NI
HARNESS, WIRING, INDUCTION, W/FERRITE CORE WCI 5304519440 Contact Us For Availability
NI
HARNESS, COMMUNICATION WCI 5304524911 Contact Us For Availability
NIA
SPACER, GLASS, FOAM WCI 318165800 Contact Us For Availability
NIA
SCREW, SIMS LP, #8-32 X 5/16", BLACK WCI 316418900 Contact Us For Availability
NIA
WCI 316247300 WCI 316247300 Contact Us For Availability
NIB
WCI 316205500 WCI 316205500 Contact Us For Availability
× ![]()
