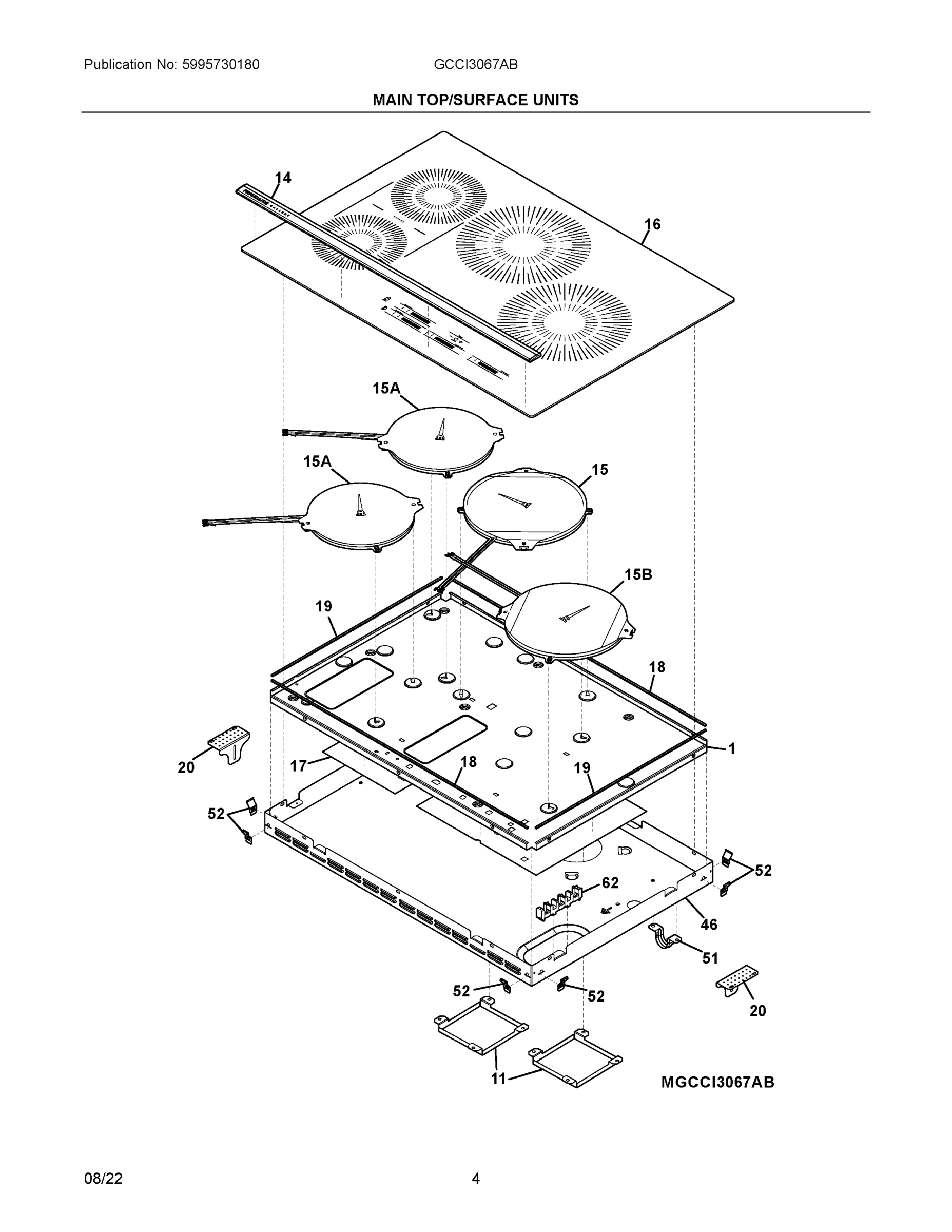

Model Electrolux GCCI3067AB COOKTOP, INDUCTION, 30 INCH – Common Parts & Diagrams

1
CARRIER, INDUCTION COILS
CARRIER, INDUCTION COILS WCI 5304531649 Contact Us For Availability
View on Model
11
COVER, FAN
COVER, FAN WCI 5304527609 Contact Us For Availability
View on Model
14
TRIM ASSEMBLY, FRONT, STAINLESS, W/TAPE
TRIM ASSEMBLY, FRONT, STAINLESS, W/TAPE WCI 5304531654 Contact Us For Availability
View on Model
15
ELEMENT, INDUCTION COIL, 210 MM
ELEMENT, INDUCTION COIL, 210 MM WCI 357227574 Contact Us For Availability
View on Model
15A
ELEMENT, INDUCTION COIL, 180 MM
ELEMENT, INDUCTION COIL, 180 MM WCI 357226372 Contact Us For Availability
View on Model
15B
ELEMENT, INDUCTION COIL, 210MM
ELEMENT, INDUCTION COIL, 210MM WCI 357249669 Contact Us For Availability
View on Model
17
INSULATION, MICA SHEET
INSULATION, MICA SHEET WCI 5304531648 Contact Us For Availability
View on Model
18
TAPE, FOAM, LONG
TAPE, FOAM, LONG WCI 5304531651 Contact Us For Availability
View on Model
19
TAPE, FOAM, SHORT
TAPE, FOAM, SHORT WCI 5304531652 Contact Us For Availability
View on Model
20

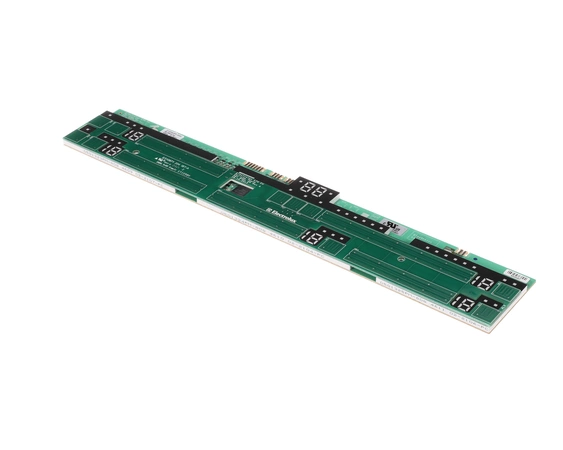

CONTROL ASSEMBLY, USER INTERFACE
CONTROL ASSEMBLY, USER INTERFACE WCI 561940443 Contact Us For Availability
View on Model
21
CARRIER, USER INTERFACE
CARRIER, USER INTERFACE WCI 561630814 Contact Us For Availability
View on Model
23
HARNESS, WIRING, COMMUNICATION, GENERATORS
HARNESS, WIRING, COMMUNICATION, GENERATORS WCI 318578332 Contact Us For Availability
View on Model
46
BOX, OUTER
BOX, OUTER WCI 5304527608 Contact Us For Availability
View on Model
51
BRACKET, CONDUIT MTG.
BRACKET, CONDUIT MTG. WCI 318389600 Contact Us For Availability
View on Model
52
BRACKET, SPRING, COOKTOP MTG.
BRACKET, SPRING, COOKTOP MTG. WCI 387174602 Contact Us For Availability
View on Model
NI
SCREW, B4, 2 X 9, 5
SCREW, B4, 2 X 9, 5 WCI 330447900 Contact Us For Availability
View on Model
NI
SCREW, 8-32 X 5/16
SCREW, 8-32 X 5/16 WCI 5304462994 Contact Us For Availability
View on Model
NI
SCREW, ST, 4.2 : 12, (9)
SCREW, ST, 4.2 : 12, (9) WCI 305309704 Contact Us For Availability
View on Model
NIA
SCREW, M4
SCREW, M4 WCI 305309608 Contact Us For Availability
View on Model
NIA
SCREW, 8 X 5/8
SCREW, 8 X 5/8 WCI 3131048 Contact Us For Availability
View on Model
NIB
SCREW, 8-32 X 0.437, (4)
SCREW, 8-32 X 0.437, (4) WCI 5303307980 Contact Us For Availability
View on Model
NIB
NUT, TERMINAL BLOCK, (2)
NUT, TERMINAL BLOCK, (2) WCI 305376201 Contact Us For Availability
View on Model
NIC
SCREW, GROUND
SCREW, GROUND WCI 305452800 Contact Us For Availability
View on Model
