Model LG GC-B288GQNP.ASWCNA2 REFRIGERATOR – Common Parts & Diagrams

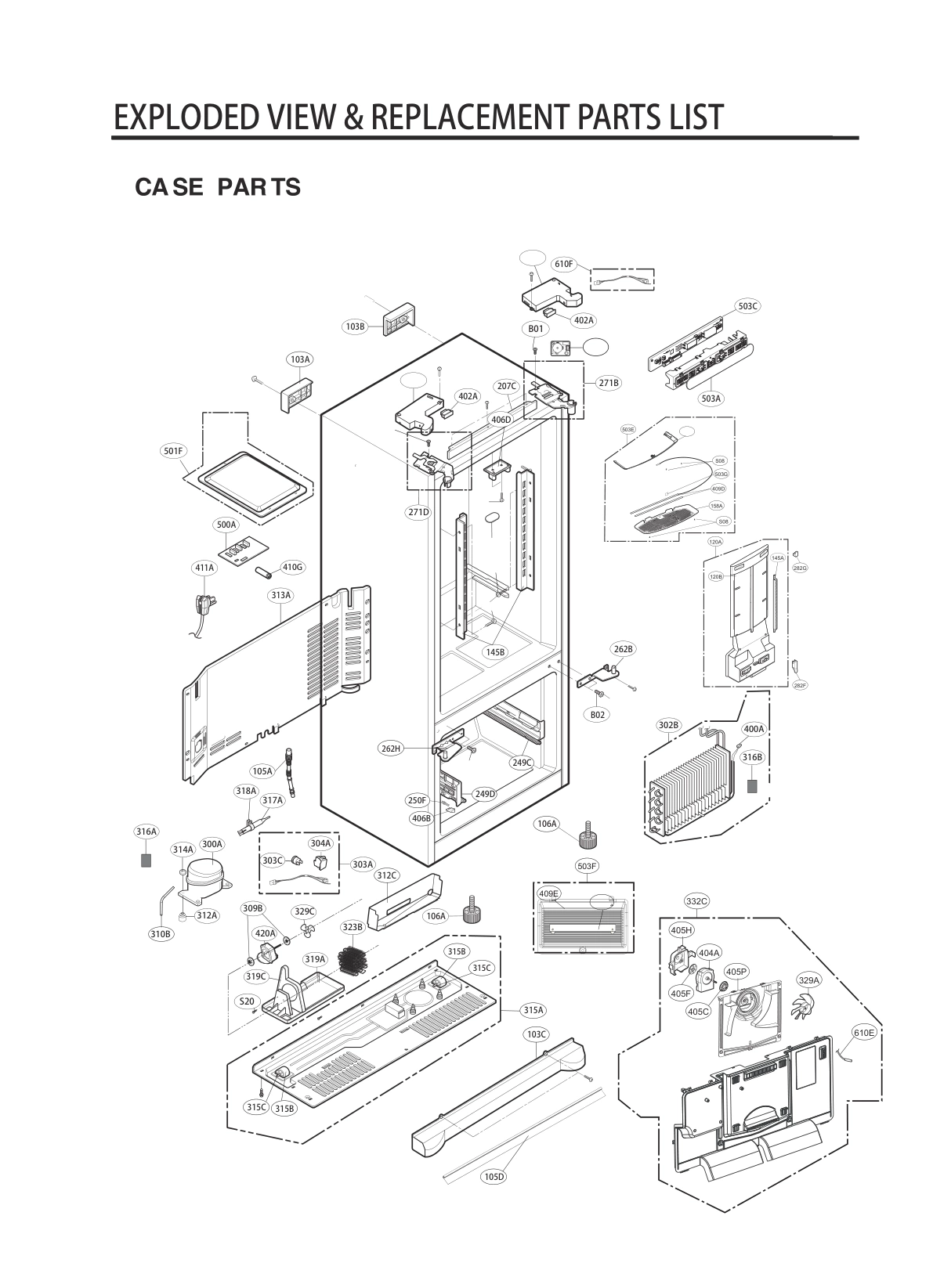

CASE PARTS

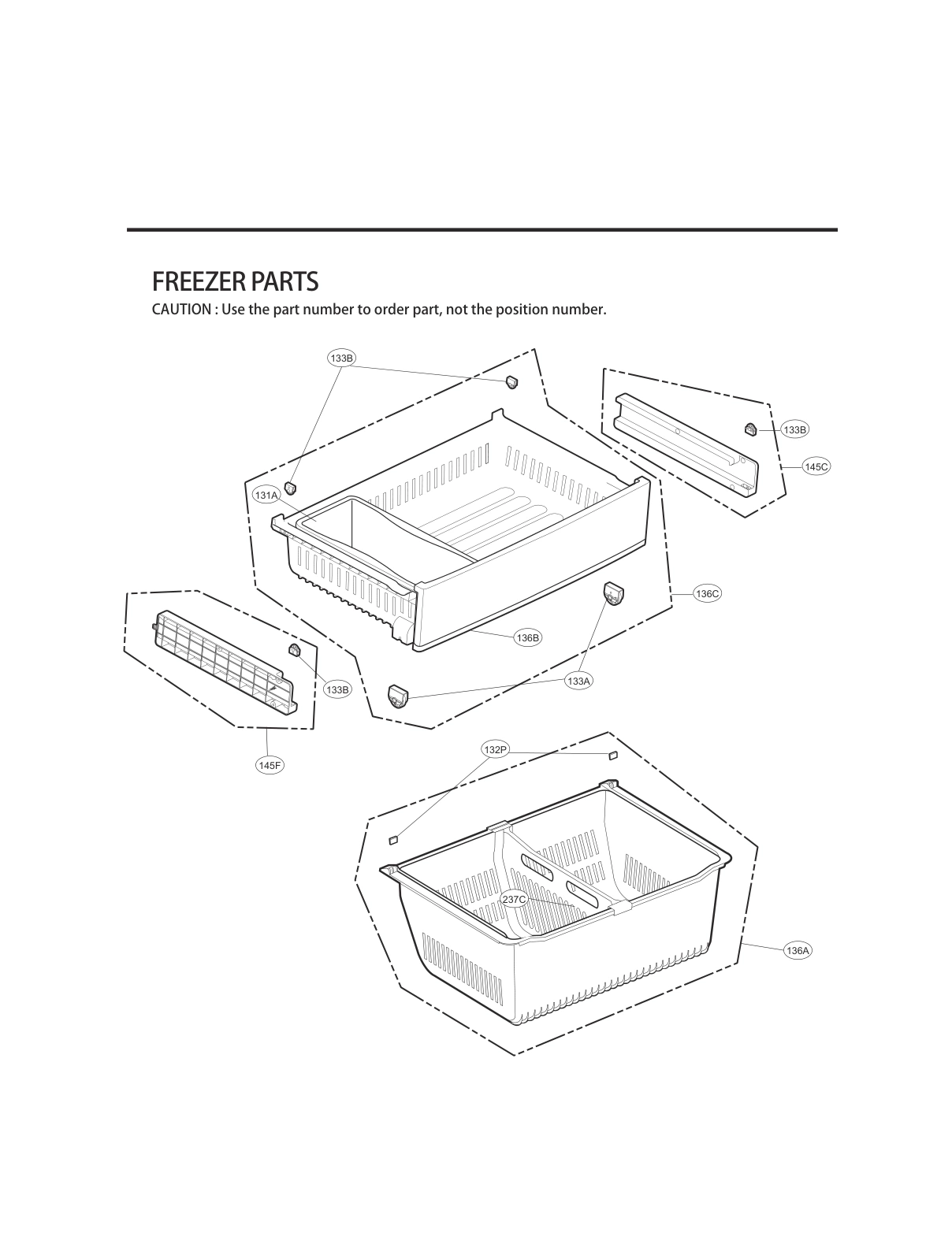

FREEZER PARTS
REFRIGERATOR PARTS
DOOR PARTS
WATER AND ICE MAKER PARTS
Common parts from model LG GC-B288GQNP.ASWCNA2 REFRIGERATOR
105A
Tube Assembly,Drain LGE AJR74125001 Contact Us For Availability
106A
Leg Assembly,Adjust LGE AFC73349801 Contact Us For Availability
120A
Duct Assembly,Multi LGE ADJ73592106 Contact Us For Availability
131A
Tray,Freezer LGE MJS62591801 Contact Us For Availability
133A
Roller Assembly LGE AHJ73329901 Contact Us For Availability
133B
Roller Assembly LGE AHJ73349901 Contact Us For Availability
136C
Tray Assembly,Drawer LGE AJP73594506 Contact Us For Availability
141A
Shelf Assembly,Refrigerator LGE AHT73554101 Contact Us For Availability
141D
Shelf,Glass LGE MHL62691504 Contact Us For Availability
145C
Guide Assembly,Rail LGE AEC73617602 Contact Us For Availability
145F
Guide Assembly,Rail LGE AEC73617601 Contact Us For Availability
151A
Tray Assembly,Vegetable LGE AJP73694502 Contact Us For Availability
151B
Tray Assembly,Vegetable LGE AJP73694501 Contact Us For Availability
161A
Guide Assembly,TV LGE AEC73637501 Contact Us For Availability
161B
Guide Assembly,TV LGE AEC73637502 Contact Us For Availability
161C
Guide Assembly,Rail LGE AEC73637401 Contact Us For Availability
162A
Guide Assembly,Rail LGE AEC73597502 Contact Us For Availability
162B
Guide Assembly,Rail LGE AEC73597503 Contact Us For Availability
203A
Gasket,Door LGE MDS64172922 Contact Us For Availability
212G
Name Plate LGE MFT62346511 Contact Us For Availability
233A
Gasket Assembly,Door LGE ADX73550627 Contact Us For Availability
233B
Gasket Assembly,Door LGE ADX73550628 Contact Us For Availability
235A
Plate Assembly,Front LGE AGU74110902 Contact Us For Availability
241D
Basket Assembly,Door LGE AAP73631502 Contact Us For Availability
241E
Basket Assembly,Door LGE AAP73631602 Contact Us For Availability
243A
Stopper Assembly,Door LGE AJC73112301 Contact Us For Availability
243C
Hinge Assembly,Center LGE AEH36821905 Contact Us For Availability
243D
Cam,Hinge LGE MBJ62121901 Contact Us For Availability
243E
Stopper,Door LGE 4620JJ2009A Contact Us For Availability
249C
Holder,Rail LGE MEG63342502 Contact Us For Availability
249D
Holder,Rail LGE MEG63342501 Contact Us For Availability
249E
Rail,Slide LGE MGT61844003 Contact Us For Availability
249F
Rail,Slide LGE MGT61844004 Contact Us For Availability
249K
Connector,Rail LGE MCD62287602 Contact Us For Availability
250A
Bar LGE MAK62627101 Contact Us For Availability
250B
Gear,Ice LGE MDT62627101 Contact Us For Availability
253A
Supporter,Cover TV LGE MJH62755901 Contact Us For Availability
262B
Hinge Assembly,Center LGE AEH73577637 Contact Us For Availability
262C
Ring LGE MGZ62766901 Contact Us For Availability
262E
Spanner LGE MHU61981201 Contact Us For Availability
262H
Hinge Assembly,Center LGE AEH73577638 Contact Us For Availability
267A
Spring LGE MHY62044106 Contact Us For Availability
271B
Hinge Assembly,Upper LGE AEH74216502 Contact Us For Availability
271D
Hinge Assembly,Upper LGE AEH74216501 Contact Us For Availability
302B
Evaporator Assembly LGE ADL73762004 Contact Us For Availability
303A
Thermistor Assembly,PTC LGE EBG61486613 Contact Us For Availability
303A
Thermistor Assembly,PTC LGE EBG60663213 Contact Us For Availability
303C
Overload Protect LGE 6750CL0001C Contact Us For Availability
309B
Damper,Motor Support LGE MCQ65884301 Contact Us For Availability
312A
Damper,Compressor LGE MCQ67247501 Contact Us For Availability
314A
Stopper,Compressor LGE 4620JA3015A Contact Us For Availability
316A
Damper,Noise LGE 5072JQ3002B Contact Us For Availability
316B
Damper,Noise LGE 5072JQ3002F Contact Us For Availability
319C
Guide,Fan LGE MEA63170401 Contact Us For Availability
323B
Condenser Assembly,Wire LGE ACG73784701 Contact Us For Availability
329A
Fan Assembly LGE ADP73713301 Contact Us For Availability
332C
Grille Assembly,Fan LGE AEB73764505 Contact Us For Availability
400A
Heater,Sheath LGE 5300JK1005Z Contact Us For Availability
402A
Switch,Magnet LGE EBF62234504 Contact Us For Availability
402A
Switch,Magnet LGE EBF62234501 Contact Us For Availability
404A
Motor,DC LGE EAU61524002 Contact Us For Availability
405C
Damper,Motor Support LGE 5040JQ2002B Contact Us For Availability
405F
Damper,Motor Support LGE 5040JQ2003B Contact Us For Availability
406D
Holder,Door LGE MEG61899901 Contact Us For Availability
409E
Cover,Lamp LGE MCK68069401 Contact Us For Availability
410G
Capacitor,Electric Appliance Film,Radial LGE EAE32501010 Contact Us For Availability
411A
Power Cord Assembly LGE EAD62108309 Contact Us For Availability
420A
Motor Assembly,DC,Cooling LGE 4681JB1029D Contact Us For Availability
500A
PCB Assembly,Main LGE EBR74796477 Contact Us For Availability
501F
Cover Assembly,PCB LGE ACQ86388101 Contact Us For Availability
503C
PCB Assembly,Display LGE EBR42479321 Contact Us For Availability
600B
Lever,Ice Maker LGE 4510JA3003D Contact Us For Availability
610E
Sensor,Temperature LGE 6500JB2002X Contact Us For Availability
610F
PCB Assembly,Sensor LGE EBR71326804 Contact Us For Availability
619A
Valve,Water LGE 5220JB2010A Contact Us For Availability
B01
Screw,Customized LGE 1SZZJQ3009A Contact Us For Availability
B06
Stopper,Handle LGE MJB63190001 Contact Us For Availability
× ![]()
