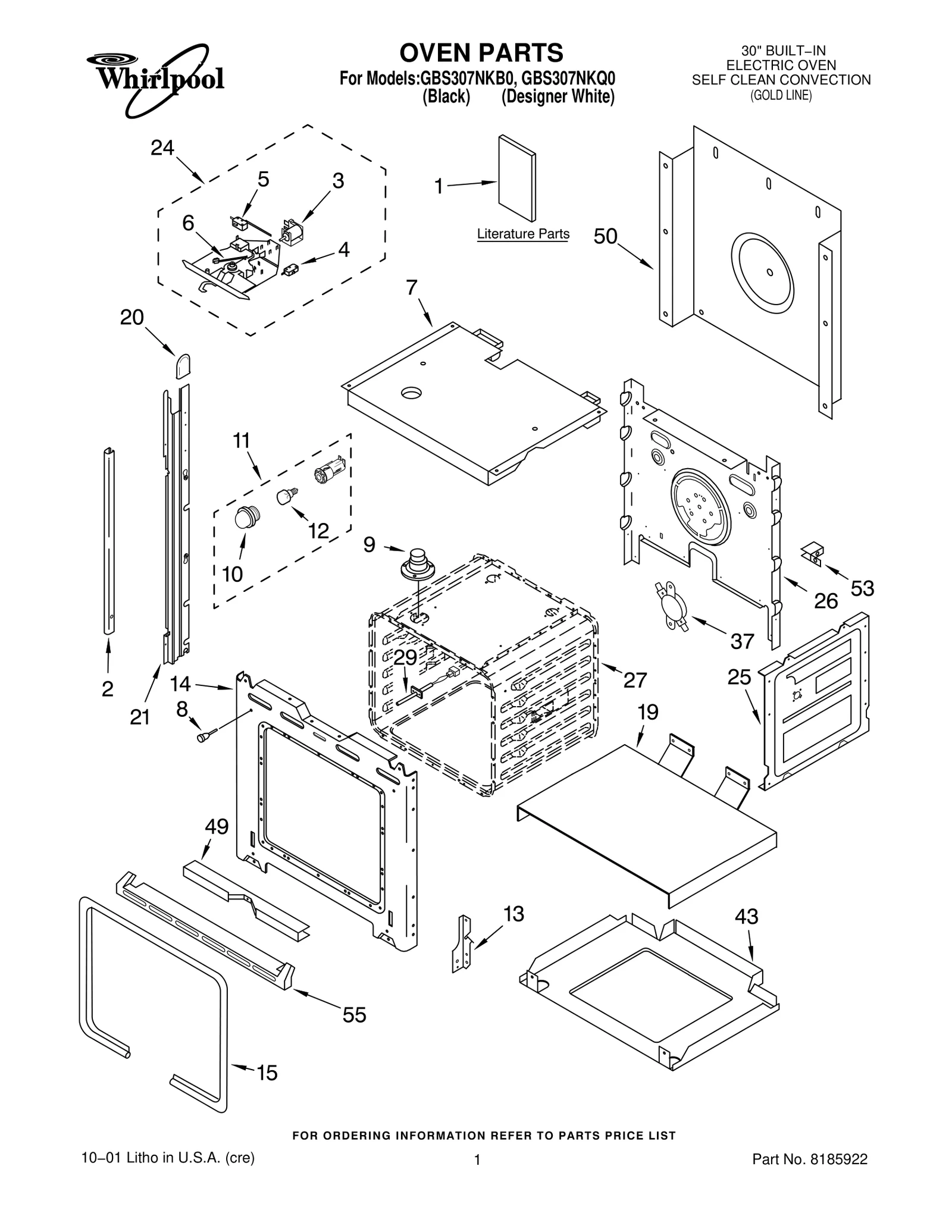

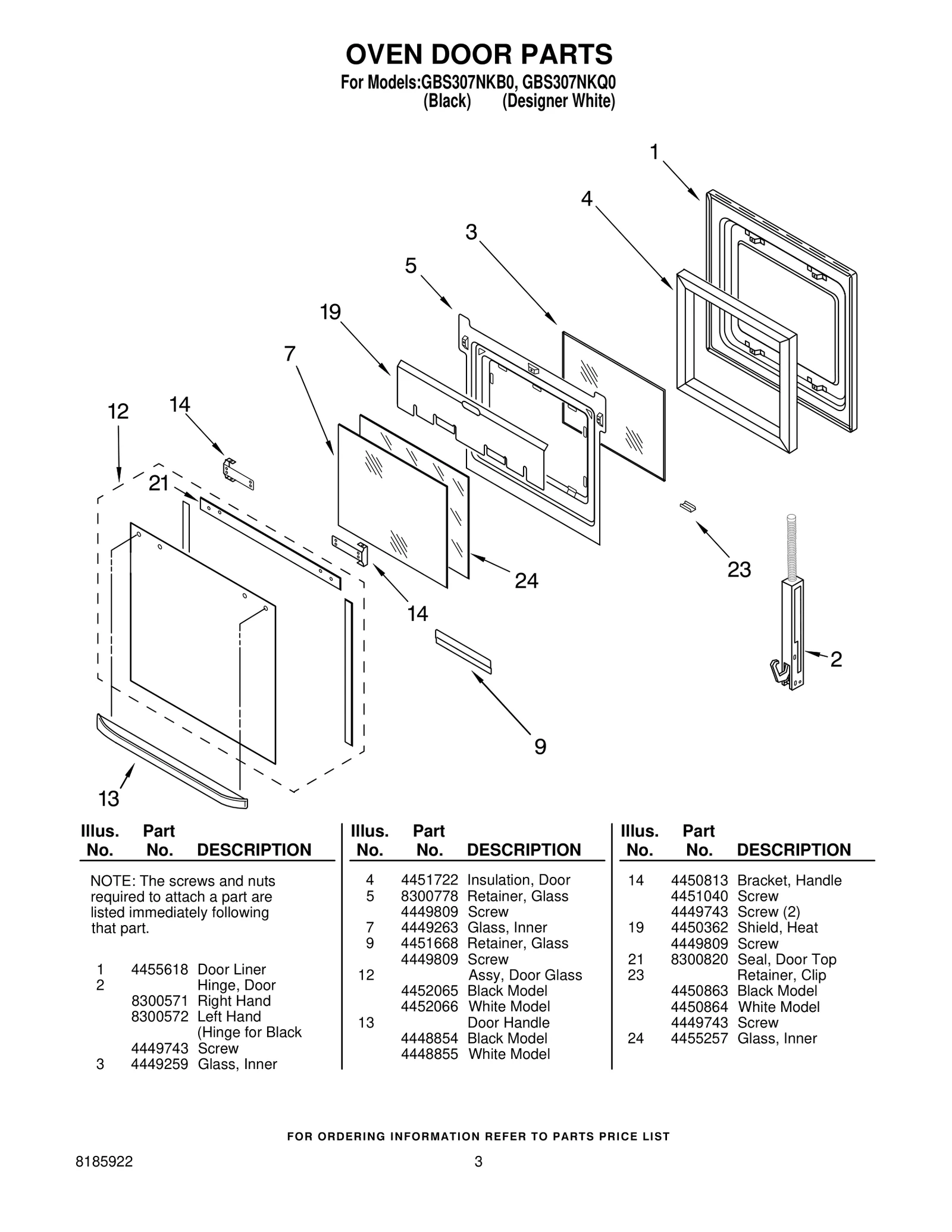

Whirlpool GBS307NKQ0 30" Built−In Electric Oven Self Clean Convection (Gold Line) Parts List

1

WP9759413 Whirlpool Door Liner Backorder WPL WP9759413 $146.78

1

Screw WPL 4449040 Contact Us For Availability

1

Control Panel Assy. W/Membrane Switch — Bla WPL 8300811 Contact Us For Availability

1

Control Panel Assy. W/Membrane Switch — Whi WPL 8300622 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

WP8281236 Whirlpool Screw Backorder WPL WP8281236 $2.51

2

WP9760571 Whirlpool Door Hinge In Stock WPL WP9760571 $47.78

2

WP9760572 Whirlpool Door Hinge Backorder WPL WP9760572 $46.76

2

WP9760767 Whirlpool Range Wall Oven Broil Ele In Stock WPL WP9760767 $72.65

2

Gasket, Control Panel WPL 4451034 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $19.40

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $88.40

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

WP4455352 Whirlpool Mounting Bracket Backorder WPL WP4455352 $13.45

3

Blower 60MM WPL 4455334 Contact Us For Availability

3

Microcomputer WPL 3193166 Contact Us For Availability

4

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

4

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $72.69

4

Switch, Micro WPL 4452312 Contact Us For Availability

5

Retainer, Glass WPL 8300778 Contact Us For Availability

5

Rack, Roasting WPL 3181534 Contact Us For Availability

5

Bracket, Mounting WPL 8300628 Contact Us For Availability

6

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $54.45

6

Board, Cintrol WPL 8526019 Contact Us For Availability

6

Screw WPL 488734 Contact Us For Availability

7

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $89.76

7

WPW10207397 Whirlpool Oven Bake Element In Stock WPL WPW10207397 $47.06

7

Standoff, Power Board WPL 3191907 Contact Us For Availability

8

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

9

Motor, Convection WPL 4451583 Contact Us For Availability

9

Retainer, Glass WPL 4451668 Contact Us For Availability

10

Blade, Fan WPL 4452226 Contact Us For Availability

11

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

11

WPW10160821 Whirlpool Fan Cover Backorder WPL WPW10160821 $111.43

11

Screw WPL 3400080 Contact Us For Availability

12

Assy, Door Glass — Black Model WPL 4452065 Contact Us For Availability

12

Assy, Door Glass — White Model WPL 4452066 Contact Us For Availability

12

Nut WPL 4452227 Contact Us For Availability

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $2.51

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $59.48

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $59.48

Door Handle — Black Model WPL 4448854 Contact Us For Availability

Door Handle — White Model WPL 4448855 Contact Us For Availability

Vent, WPL 4448549 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $37.77

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $32.04

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4451040 Contact Us For Availability

15

Back, Control WPL 4452244 Contact Us For Availability

16

Cover, Top Rear WPL 4450551 Contact Us For Availability

17

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

18

WP4452367 Whirlpool Top Cover Backorder WPL WP4452367 $51.19

19

Shield, Heat WPL 4450362 Contact Us For Availability

21

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

21

Seal, Door Top WPL 8300820 Contact Us For Availability

23

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

23

Retainer, Clip — Black Model WPL 4450863 Contact Us For Availability

23

Retainer, Clip — White Model WPL 4450864 Contact Us For Availability

24

Glass, Inner WPL 4455257 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

53

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.64

55

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

55

Trim, Bottom — Black Model WPL 4448477 Contact Us For Availability
