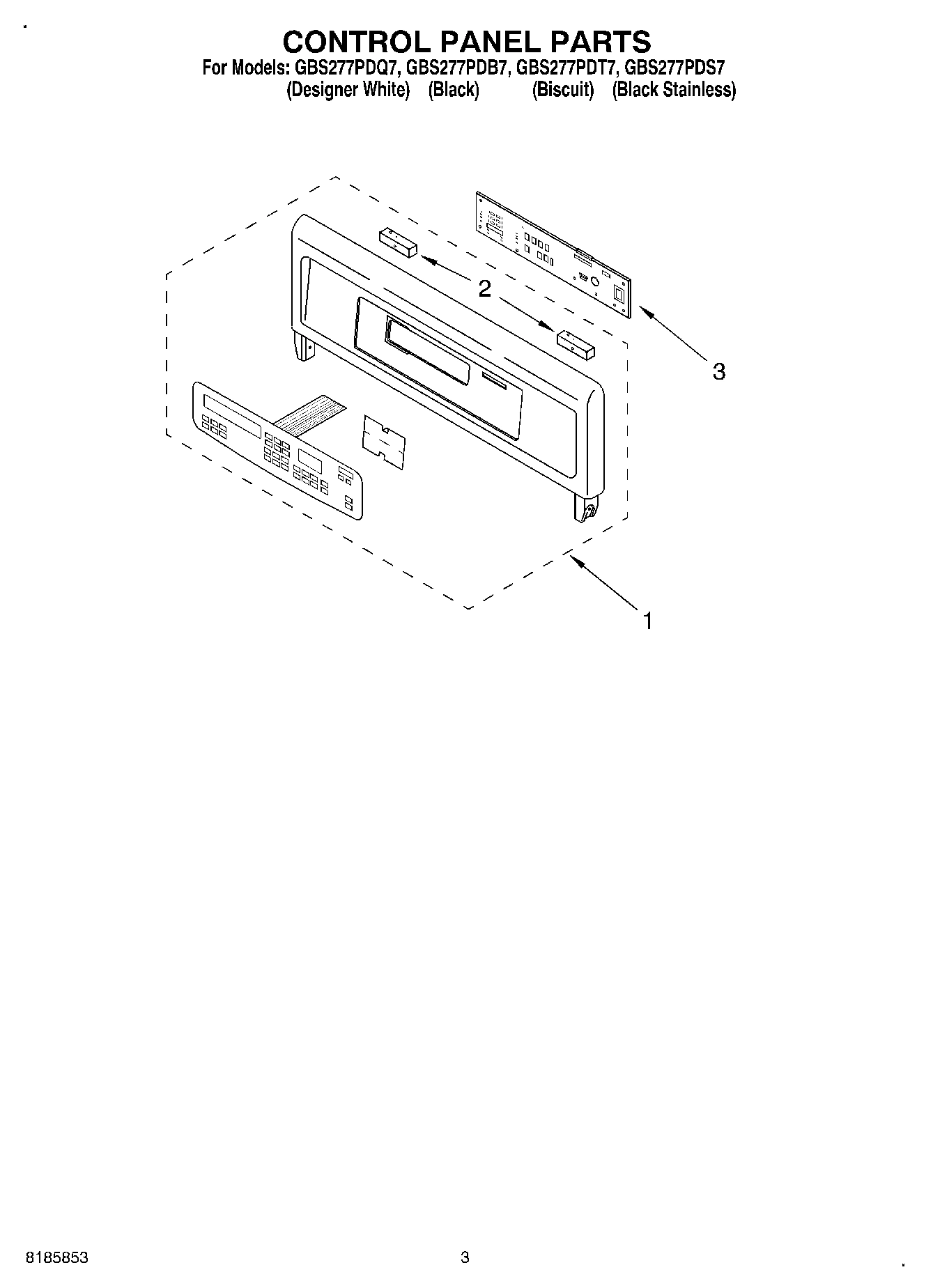

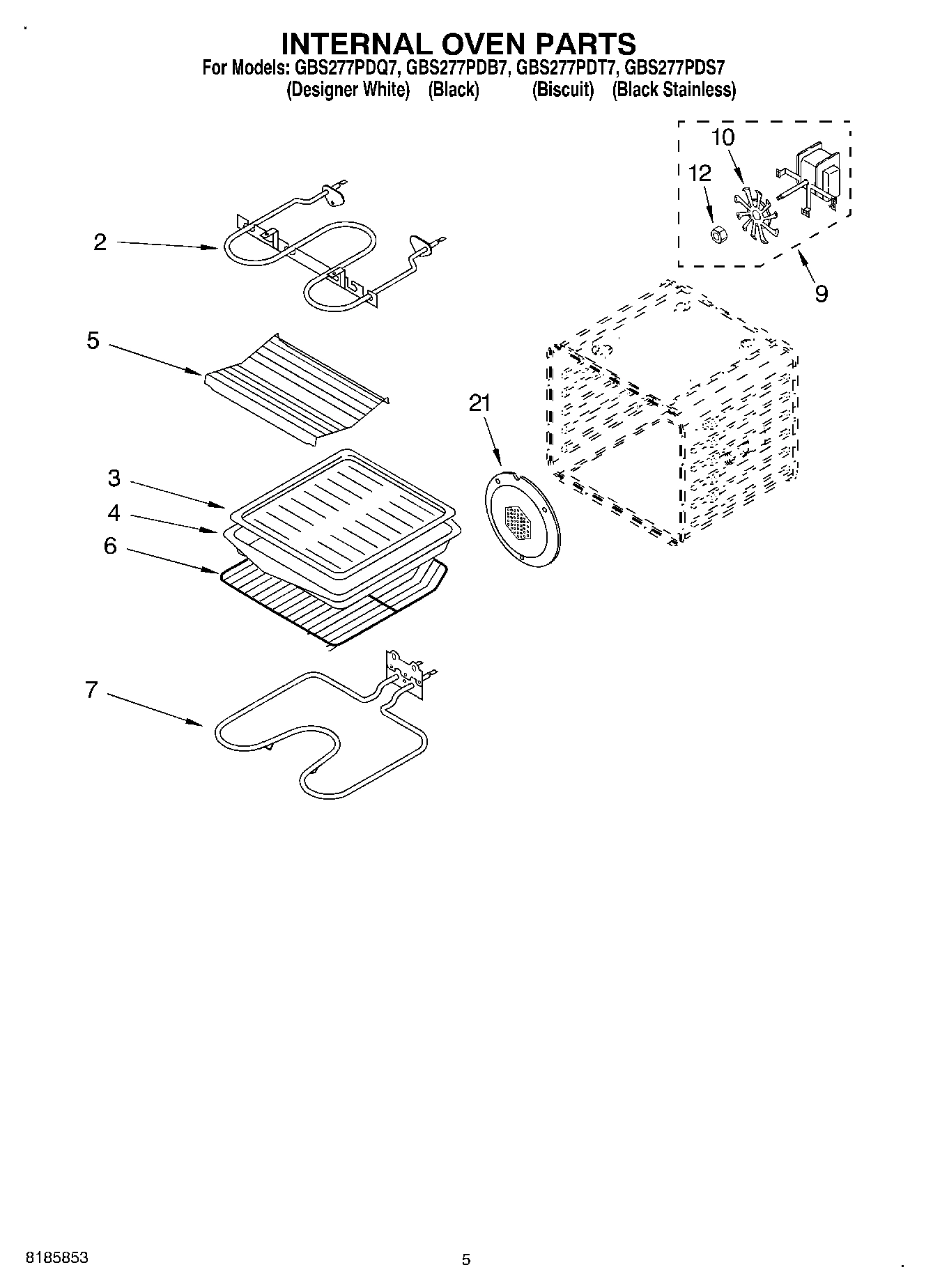

Model Whirlpool GBS277PDQ7 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts &amp; Diagrams

1

Door Liner WPL 4455617 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

WP8281236 Whirlpool Screw In Stock WPL WP8281236 $2.51

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $70.88

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

WP4455352 Whirlpool Mounting Bracket Backorder WPL WP4455352 $13.45

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

Blower 60MM WPL 4455334 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

Insulation, Door WPL 4451721 Contact Us For Availability

5

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

5

Bracket, Handle WPL 4450813 Contact Us For Availability

5

Screw WPL 4451040 Contact Us For Availability

6

Rack, Oven WPL 4448715 Contact Us For Availability

9

Motor Convection WPL 4451583 Contact Us For Availability

10

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $26.94

11

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

11

Screw WPL 3400080 Contact Us For Availability

Door Glass Assy (Black Model) WPL 4452062 Contact Us For Availability

Door Glass, Assy (White Model) WPL 4452063 Contact Us For Availability

Door Glass, Assy (Black, Stainless Model) WPL 4452478 Contact Us For Availability

Door Glass Assy (Biscuit) WPL 8300257 Contact Us For Availability

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

Door Handle (Black) WPL 4448405 Contact Us For Availability

Handle, Door (White Model) WPL 4448406 Contact Us For Availability

Door Handle (Biscuit) WPL 8300255 Contact Us For Availability

Vent, (Control Panel) WPL 4448548 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $33.93

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $28.79

Retainer, Glass WPL 4451668 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

15

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $67.84

15

Back, Control WPL 4452244 Contact Us For Availability

16

Cover, Top Rear WPL 4450550 Contact Us For Availability

18

Cover, Top Front WPL 4450553 Contact Us For Availability

19

Shield, Heat WPL 4450361 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4451761 Whirlpool Oven Support Bracket Backorder WPL 4451761 $5.71

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP4450952 Whirlpool Conduit Backorder WPL WP4450952 $86.84

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Retainer, Glass WPL 8300777 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Harness, (Main) WPL 4455734 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

21

Seal, Door Top WPL 8300819 Contact Us For Availability

22

Latch Assembly WPL 4451896 Contact Us For Availability

23

Retainer, Clip (Black) WPL 4450863 Contact Us For Availability

23

Retainer, Clip (White) WPL 4450864 Contact Us For Availability

23

Retainer, Clip (Biscuit) WPL 4452119 Contact Us For Availability

9760569 Whirlpool Door Hinge Backorder WPL 9760569 $39.24

9760570 Whirlpool Door Hinge Backorder WPL 9760570 $39.00

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

WP9760571 Whirlpool Door Hinge In Stock WPL WP9760571 $42.93

WP9760572 Whirlpool Door Hinge Backorder WPL WP9760572 $42.00

Microswitch N.C. WPL 4452312 Contact Us For Availability

25

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $91.57

25

Glass, Inner (1 Pc) WPL 4455256 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

Switch, Micro WPL 4451426 Contact Us For Availability

31

Spring, Latch WPL 4451537 Contact Us For Availability

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $33.45

43

Base, Chassis WPL 4451397 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

WPL 4448475 WPL 4448475 Contact Us For Availability

WPL 4448476 WPL 4448476 Contact Us For Availability

WPL 4452414 WPL 4452414 Contact Us For Availability

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

WPL 4449315 WPL 4449315 Contact Us For Availability

WPL 4449845 WPL 4449845 Contact Us For Availability

WPL 4450364 WPL 4450364 Contact Us For Availability
