Model Whirlpool GBS277PDQ1 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams

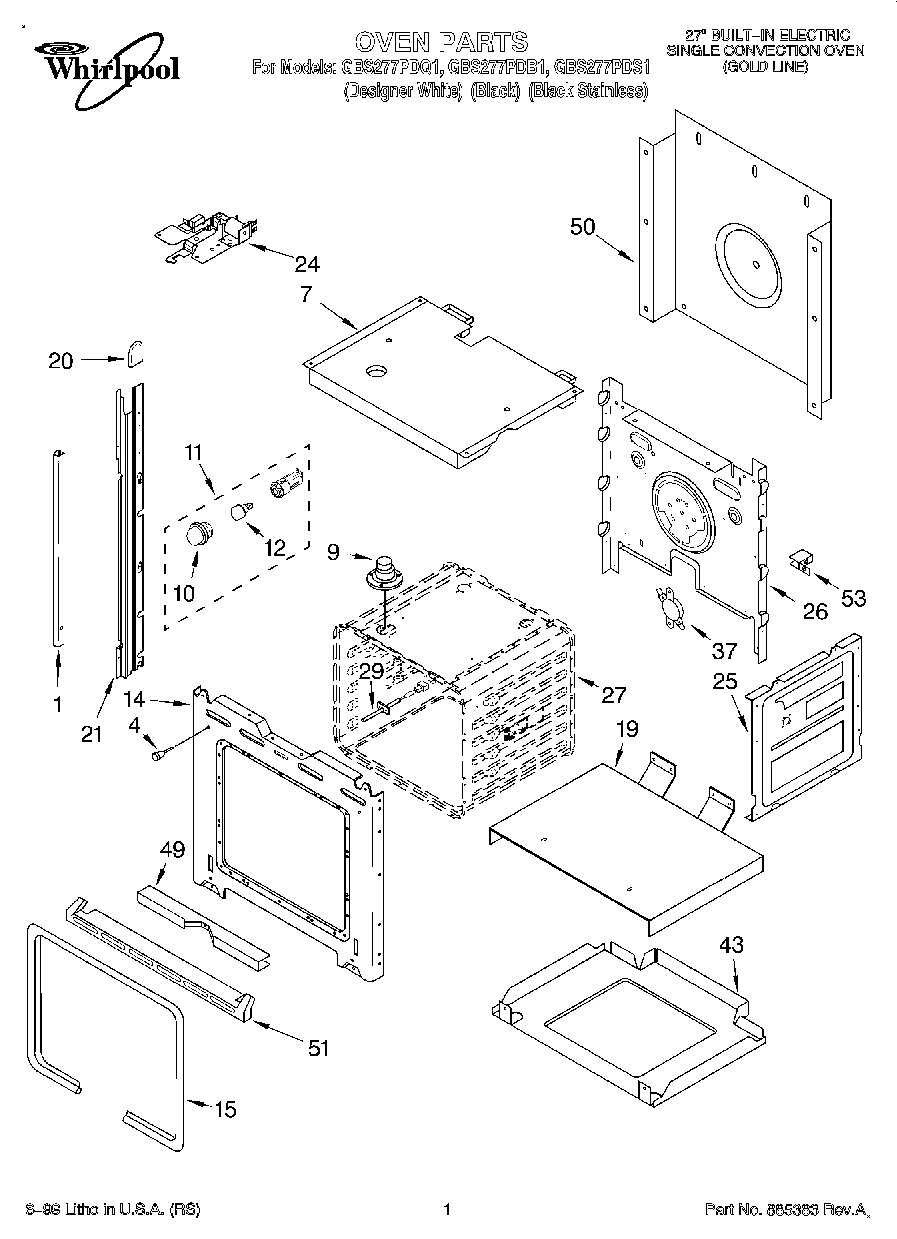

01 - OVEN

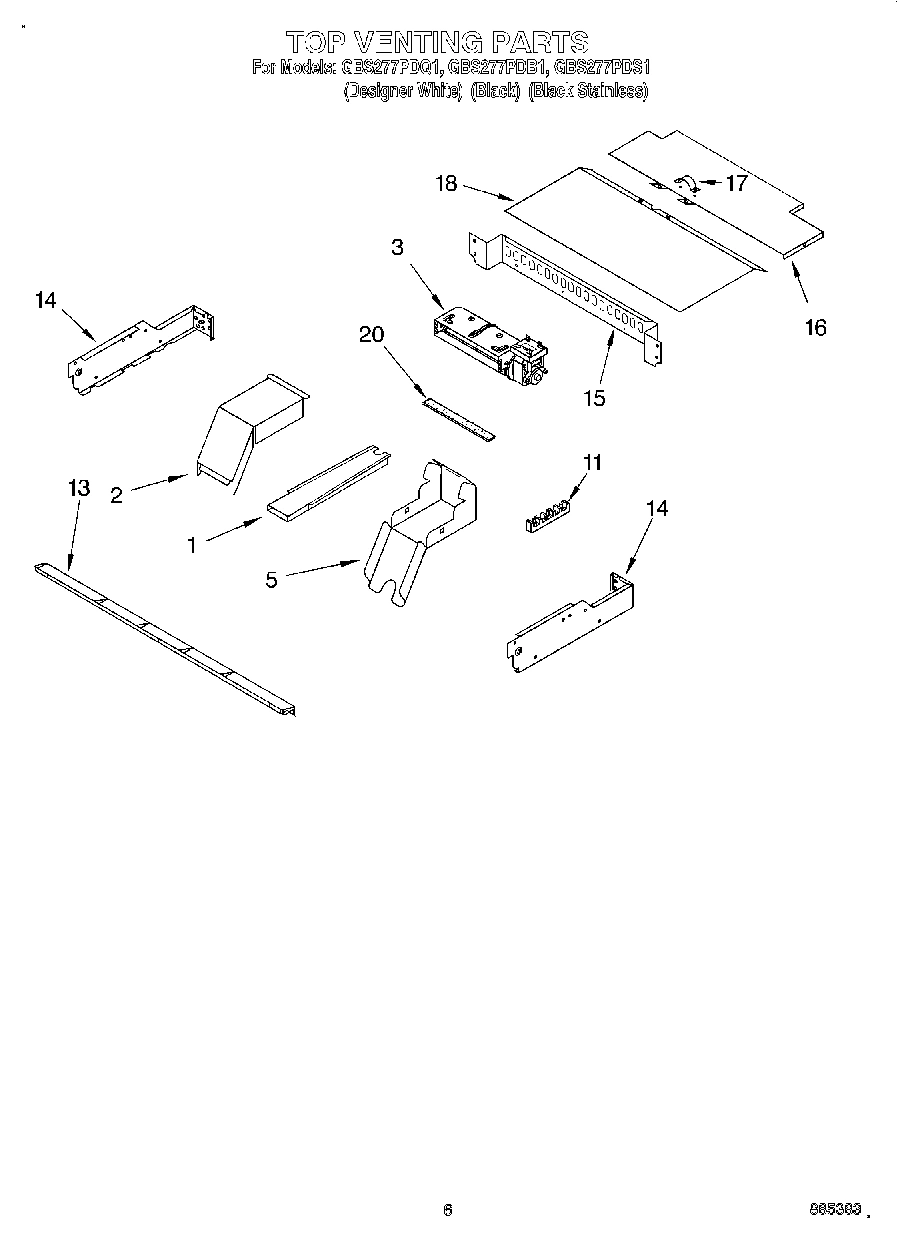

05 - TOP VENTING, OPTIONAL
04 - INTERNAL OVEN
02 - CONTROL PANEL, LITERATURE
03 - OVEN DOOR
Common parts from model Whirlpool GBS277PDQ1 BUILT-IN ELECTRIC SINGLE OVEN
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
Cookbook, T/C Ovens WPL LIT4449237 Contact Us For Availability
Installation Instructions WPL LIT4450410 Contact Us For Availability
Installation/ Undercounter WPL LIT4450839 Contact Us For Availability
Use & Care Guide WPL LIT4452004 Contact Us For Availability
Tech Sheet WPL LIT4452021 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Screw) WPL 4159465 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black WPL 4451345 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White WPL 4451346 Contact Us For Availability
1
Door Liner WPL 4451718 Contact Us For Availability
2
Gasket, Control Panel WPL 4451033 Contact Us For Availability
3
Microcomputer WPL 4452241 Contact Us For Availability
4
Insulation, Door WPL 4451721 Contact Us For Availability
5
Bracket, Handle WPL 4450813 Contact Us For Availability
5
Rack, Roasting WPL 3181534 Contact Us For Availability
5
Screw WPL 4451040 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
9
Motor Convection WPL 4451583 Contact Us For Availability
12
Nut WPL 4452227 Contact Us For Availability
12
Door Glass Assy (Black Model) WPL 4452062 Contact Us For Availability
12
Door Glass, Assy (White Model) WPL 4452063 Contact Us For Availability
12
Door Glass, Assy (Black, Stainless Model) WPL 4452478 Contact Us For Availability
13
Vent, (Control Panel) WPL 4448548 Contact Us For Availability
13
Door Handle (Black) WPL 4448405 Contact Us For Availability
13
Handle, Door (White Model) WPL 4448406 Contact Us For Availability
14
Retainer, Glass WPL 4451668 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
18
Cover, Top Front WPL 4450553 Contact Us For Availability
19
Shield, Heat WPL 4450361 Contact Us For Availability
20
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
20
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
20
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
20
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
20
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
20
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
20
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
20
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
20
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
20
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
20
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
20
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
20
Seal, Foam WPL 4151758 Contact Us For Availability
20
Harness, Wire (Main) WPL 4454919 Contact Us For Availability
20
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
20
Retainer, Glass WPL 4451670 Contact Us For Availability
21
Seal, Door Top WPL 4451673 Contact Us For Availability
23
Retainer, Clip (Black) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White) WPL 4450864 Contact Us For Availability
24
Latch Assembly WPL 4451424 Contact Us For Availability
51
Trim, Bottom (Black) WPL 4448475 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448476 Contact Us For Availability
53
Insulation, Wrap WPL 4449315 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
53
Insulation, Back WPL 4450364 Contact Us For Availability
× ![]()
