  • Whirlpool GBD277PRS02 Parts List

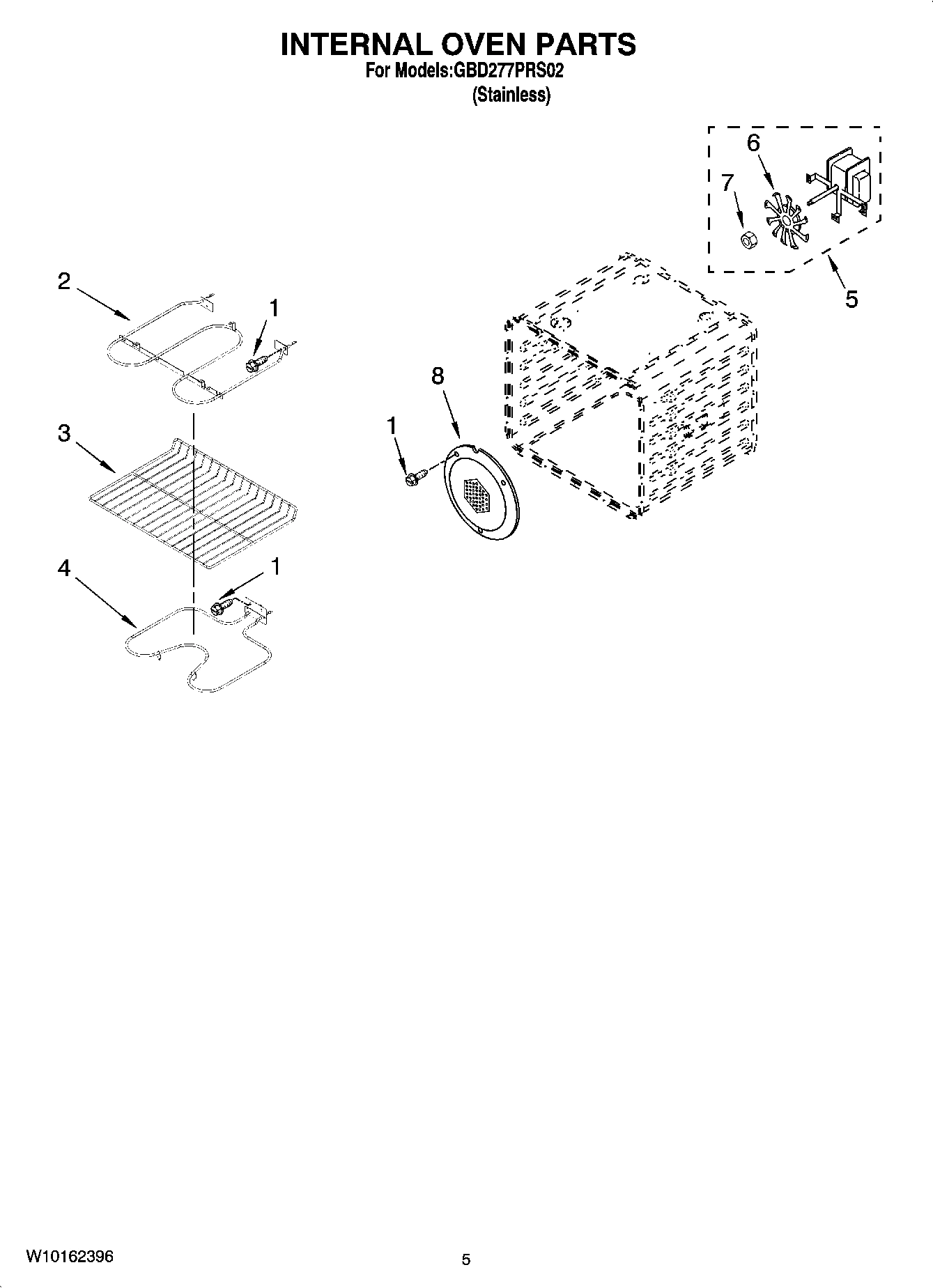

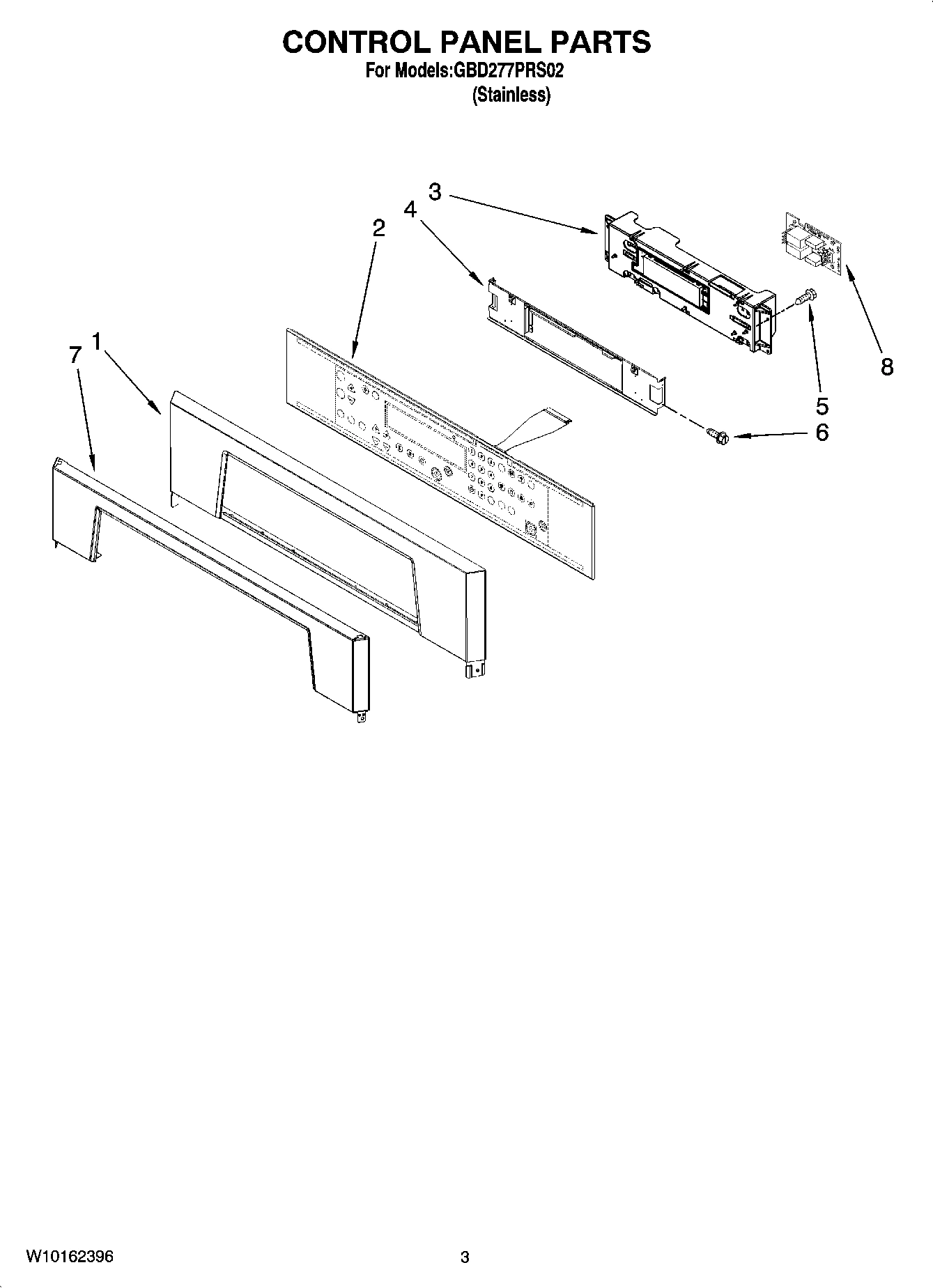

Model Whirlpool GBD277PRS02 27`` BUILT-IN ELECTRIC DOUBLE OVEN CONVECTION - UP – Common Parts & Diagrams

Conduit, Double
Conduit, Double WPL 4450953 Contact Us For Availability
View on Model
Wire (14 Ga. 150 c Red)
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
View on Model
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
View on Model
Wire (12 Ga. 150 c Black)
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
View on Model
Wire (14 Ga. 200 c Brown)
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
View on Model
Spacer, Harness
Spacer, Harness WPL 4452222 Contact Us For Availability
View on Model
ADHESIVE LOCTITE (1/3 OZ.)
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
View on Model
Harness, Main
Harness, Main WPL 8301777 Contact Us For Availability
View on Model
ADHESIVE
ADHESIVE WPL ARI58533A1 Contact Us For Availability
View on Model
S
S WPL ARI58534A2 Contact Us For Availability
View on Model
WPL ARI58535A6
WPL ARI58535A6 WPL ARI58535A6 Contact Us For Availability
View on Model
WPL ARI58536A7
WPL ARI58536A7 WPL ARI58536A7 Contact Us For Availability
View on Model
1
Control Panel
Control Panel WPL 8302844 Contact Us For Availability
View on Model
1
Door Liner
Door Liner WPL 8303699 Contact Us For Availability
View on Model
2
Screw
Screw WPL 4451040 Contact Us For Availability
View on Model
3
Rack, Oven
Rack, Oven WPL 4448715 Contact Us For Availability
View on Model
4
Insulation, Door
Insulation, Door WPL 4451721 Contact Us For Availability
View on Model
5
Motor Convection
Motor Convection WPL 4451583 Contact Us For Availability
View on Model
5
Transformer, Control
Transformer, Control WPL 8300642 Contact Us For Availability
View on Model
5
Bracket, Handle
Bracket, Handle WPL W10136472 Contact Us For Availability
View on Model
7
Glass, Inner
Glass, Inner WPL 9759224 Contact Us For Availability
View on Model
8
Latch, Sister Board
Latch, Sister Board WPL 8301848 Contact Us For Availability
View on Model
8
Screw
Screw WPL 3400080 Contact Us For Availability
View on Model
10
Lens, Light
Lens, Light WPL W10067870 Contact Us For Availability
View on Model
12
Assembly, Door Glass (Upper)
Assembly, Door Glass (Upper) WPL W10151077 Contact Us For Availability
View on Model
12
Assembly, Door Glass (Lower)
Assembly, Door Glass (Lower) WPL W10151078 Contact Us For Availability
View on Model
13
VENT, CONTROL PANEL
VENT, CONTROL PANEL WPL 8303498 Contact Us For Availability
View on Model
13
Door Handle
Door Handle WPL 8303163 Contact Us For Availability
View on Model
14
Seal-Door
Seal-Door WPL 8303877 Contact Us For Availability
View on Model
15
Back, Control
Back, Control WPL 9759135 Contact Us For Availability
View on Model
16
Cover, Top Rear
Cover, Top Rear WPL 4450550 Contact Us For Availability
View on Model
16
BRACKET(3RD GLASS)
BRACKET(3RD GLASS) WPL 9759230 Contact Us For Availability
View on Model
17
Screw
Screw WPL 4449040 Contact Us For Availability
View on Model
18
Cover, Top Front
Cover, Top Front WPL 4452366 Contact Us For Availability
View on Model
19
Shield, Heat
Shield, Heat WPL 4457102 Contact Us For Availability
View on Model
20
Retainer, Glass
Retainer, Glass WPL 4457131 Contact Us For Availability
View on Model
21
SUPPRESSOR
SUPPRESSOR WPL 8302143 Contact Us For Availability
View on Model
21
Spacer, Foam
Spacer, Foam WPL 4452260 Contact Us For Availability
View on Model
21
Name Plate
Name Plate WPL 8303810 Contact Us For Availability
View on Model
22
Shield, Heat (Bottom)
Shield, Heat (Bottom) WPL 4457113 Contact Us For Availability
View on Model
23
Clip, Door
Clip, Door WPL 8303388BL Contact Us For Availability
View on Model
32
Base, Chassis
Base, Chassis WPL 4455529 Contact Us For Availability
