Model Whirlpool GBD277PRS00 27`` BUILT-IN ELECTRIC DOUBLE OVEN CONVECTION - UP – Common Parts & Diagrams
Common parts from model Whirlpool GBD277PRS00 27`` BUILT-IN ELECTRIC DOUBLE OVEN CONVECTION - UP
1
Door Liner WPL 8303699 Contact Us For Availability
1

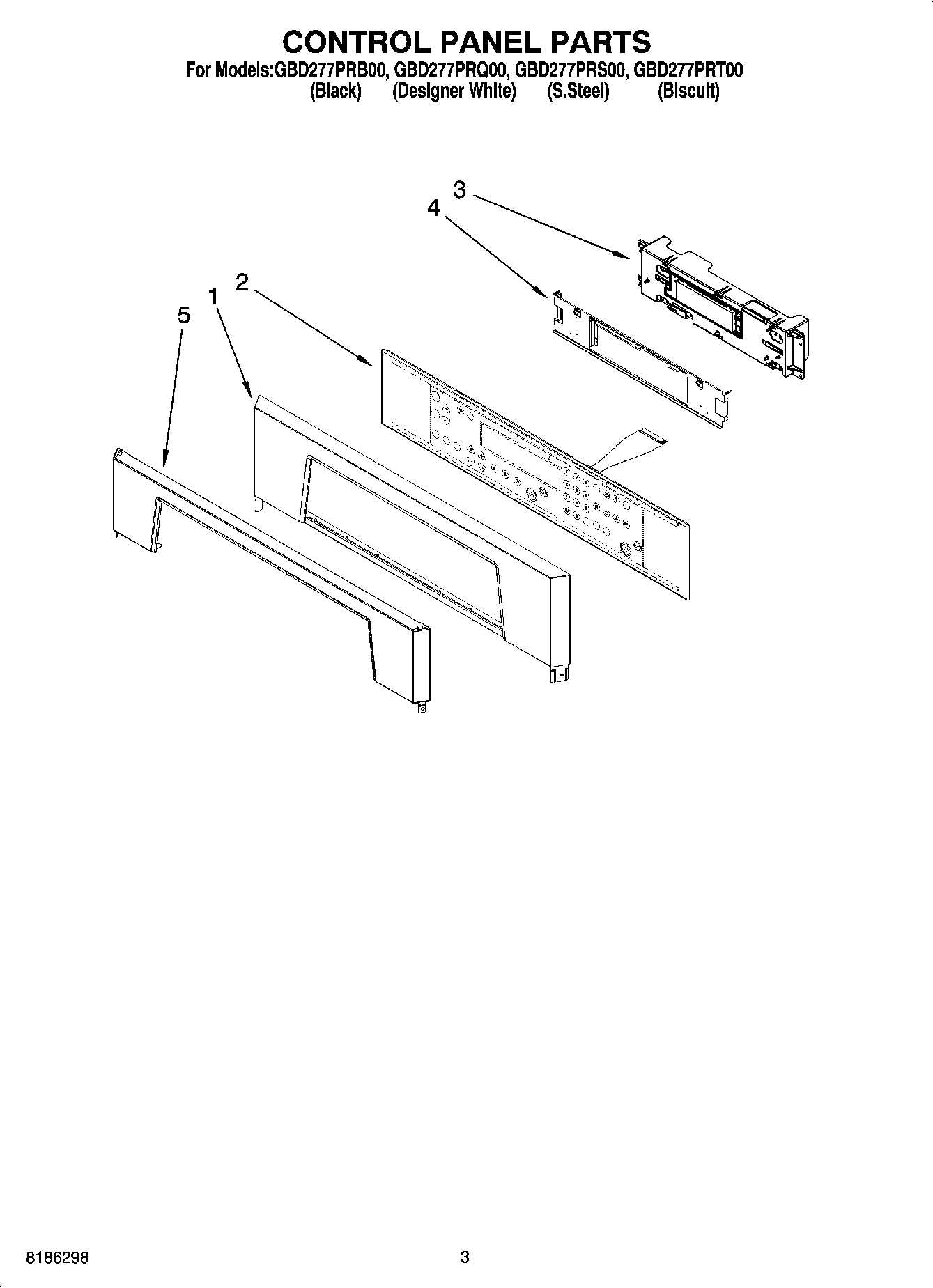

Control Panel (White) WPL 8302845 Contact Us For Availability
1
Safer Cooking Tips WPL 3191638 Contact Us For Availability
1
Tech Sheet (Oven) WPL 8302068 Contact Us For Availability
1
Use & Care Guide WPL 8303645 Contact Us For Availability
1
Installation Instructions WPL 8303648 Contact Us For Availability
1
Safe Cookting Tips WPL 9759133 Contact Us For Availability
1
Control Panel (Biscuit) WPL 8302846 Contact Us For Availability
2
Trim, Side (RH Black) WPL 8302917 Contact Us For Availability
2
Trim, Side (RH White) WPL 8302919 Contact Us For Availability
2
Trim, Side (LH Biscuit) WPL 8302922 Contact Us For Availability
2
Trim, Side (LH S.Steel) WPL 8303209 Contact Us For Availability
2
Trim, Side (RH S.Steel) WPL 8303210 Contact Us For Availability
2
Assy, Switch (Black) WPL 8303182 Contact Us For Availability
2
Assy, Switch (White) WPL 8303224 Contact Us For Availability
2
Assy, Switch (Biscuit) WPL 8303230 Contact Us For Availability
3
Latch, Sister Board WPL 8301848 Contact Us For Availability
3
Assy, Control WPL 8303817 Contact Us For Availability
4
Insulation, Door WPL 4451721 Contact Us For Availability
4
Control, Bracket WPL 8302991 Contact Us For Availability
5
Bracket, Handle WPL 8303166 Contact Us For Availability
5
Trim-Panel (Use on S.Steel model only) WPL 8302878 Contact Us For Availability
6

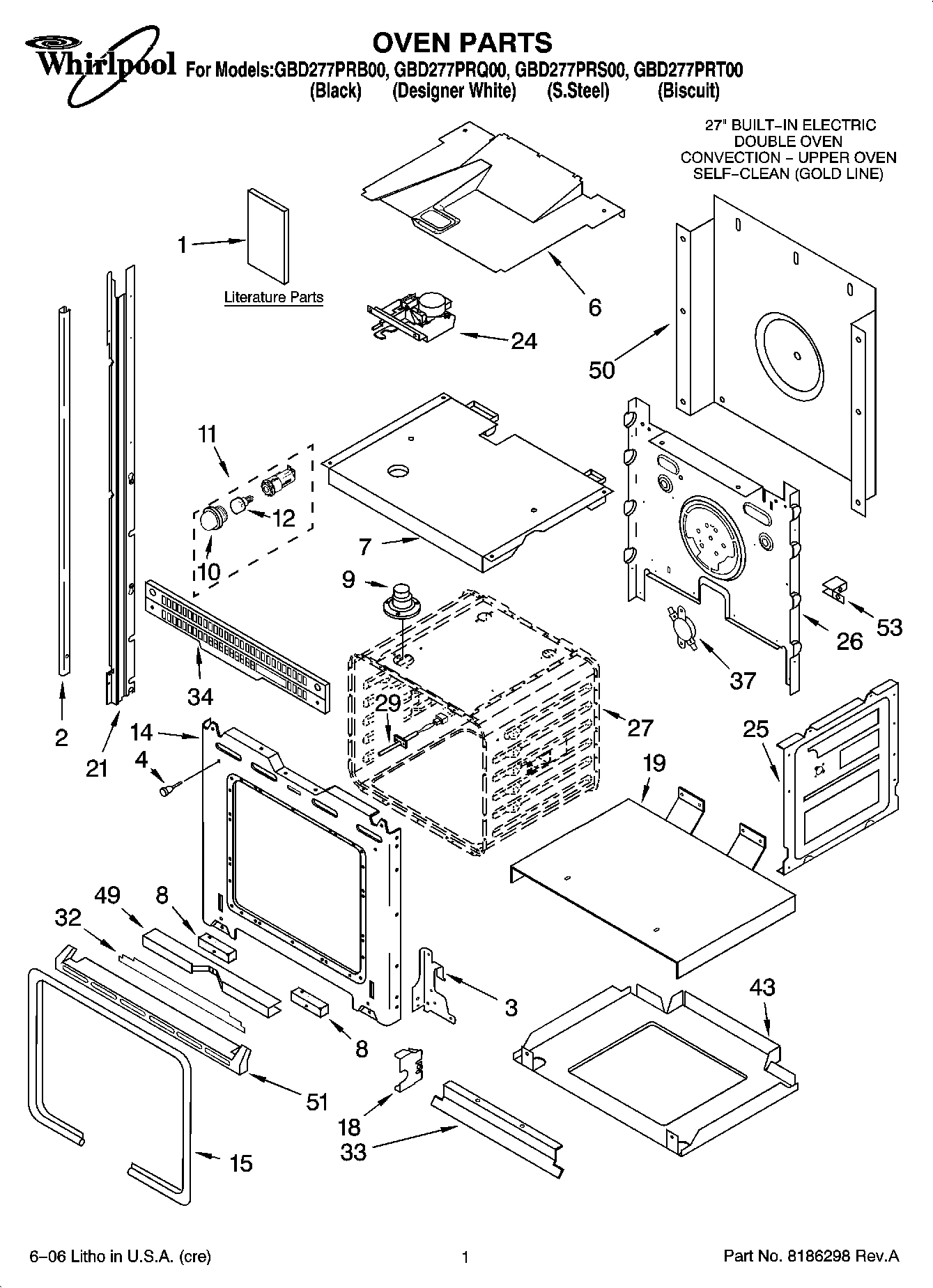

Rack, Oven WPL 4448715 Contact Us For Availability
6
Divider, Vent WPL 8302348 Contact Us For Availability
7
Glass, Inner WPL 9759224 Contact Us For Availability
7
Top, Chassis WPL 4455864 Contact Us For Availability
8
Spacer, Foam WPL 4452490 Contact Us For Availability
9
Motor Convection WPL 4451583 Contact Us For Availability
10
Lens, Light WPL 4452165 Contact Us For Availability
11
Screw WPL 3400080 Contact Us For Availability
12

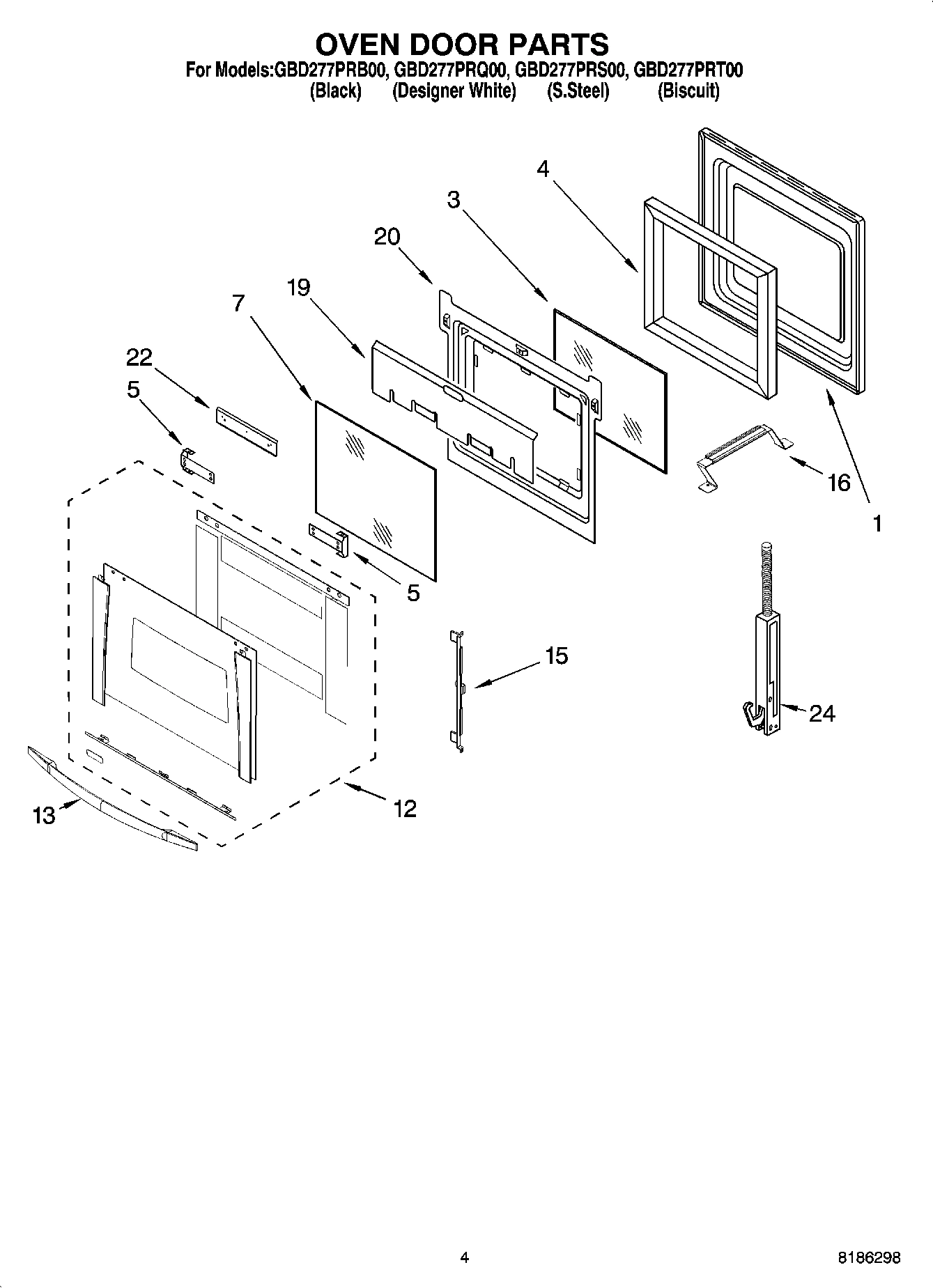

Door Glass, Assy (Upper) (S.Steel) WPL 8303286 Contact Us For Availability
12
Door Glass, Assy (Lower) (S.Steel) WPL 8303287 Contact Us For Availability
12
Door Glass, Assy (Upper) (Black) WPL 8303298 Contact Us For Availability
12
Door Glass, Assy (Lower) (Black) WPL 8303299 Contact Us For Availability
12
Door Glass, Assy (Upper) (White) WPL 8303304 Contact Us For Availability
12
Door Glass, Assy (Lower) (White) WPL 8303305 Contact Us For Availability
12
Door Glass, Assy (Upper) (Biscuit) WPL 8303308 Contact Us For Availability
12
Door Glass, Assy (Lower) (Biscuit) WPL 8303309 Contact Us For Availability
13
Door Handle (Black) WPL 8302810 Contact Us For Availability
13
Door Handle (White) WPL 8302811 Contact Us For Availability
13
Door Handle (Biscuit) WPL 8302812 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Frame, Front WPL 4455611 Contact Us For Availability
16
BRACKET(3RD GLASS) WPL 9759230 Contact Us For Availability
19
Shield, Heat WPL 4457102 Contact Us For Availability
19
Support, Insulation WPL 4451477 Contact Us For Availability
20
Retainer, Glass WPL 4457131 Contact Us For Availability
21
SUPPRESSOR WPL 8302143 Contact Us For Availability
21
Rail, Side (Left) WPL 8302794 Contact Us For Availability
22
Shield, Heat (Bottom) WPL 4457113 Contact Us For Availability
24
Hinge, Door (S.Steel) WPL 8303163 Contact Us For Availability
26
Back, Chassis WPL 4452233 Contact Us For Availability
27
Liner, Oven (Not serviceable) WPL ARI58518A4 Contact Us For Availability
32
Insulation, Bottom Vent WPL 8300154 Contact Us For Availability
33
Deflector, Vent WPL 9760676 Contact Us For Availability
34
Vent, Center WPL 4452266 Contact Us For Availability
43
Base, Chassis WPL 4455529 Contact Us For Availability
51
WPL 8302937 WPL 8302937 Contact Us For Availability
51
WPL 8302938 WPL 8302938 Contact Us For Availability
51
WPL 8302939 WPL 8302939 Contact Us For Availability
51
WPL 8302940 WPL 8302940 Contact Us For Availability
53
WPL 4449315 WPL 4449315 Contact Us For Availability
53
WPL 4449845 WPL 4449845 Contact Us For Availability
53
WPL 4450364 WPL 4450364 Contact Us For Availability
53
WPL ARI58519A2 WPL ARI58519A2 Contact Us For Availability
× ![]()
