Model Whirlpool GBD277PDT09 27`` BUILT-IN ELECTRIC DOUBLE OVEN CONVECTION - UP – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Conduit, Double WPL 4450953 Contact Us For Availability

WPL ARI58460A8 WPL ARI58460A8 Contact Us For Availability

NOTE: The screws and nuts required to attach WPL ARI58464A2 Contact Us For Availability

1

4451759 Whirlpool Oven Exhaust Vent Backorder WPL 4451759 $32.70

1

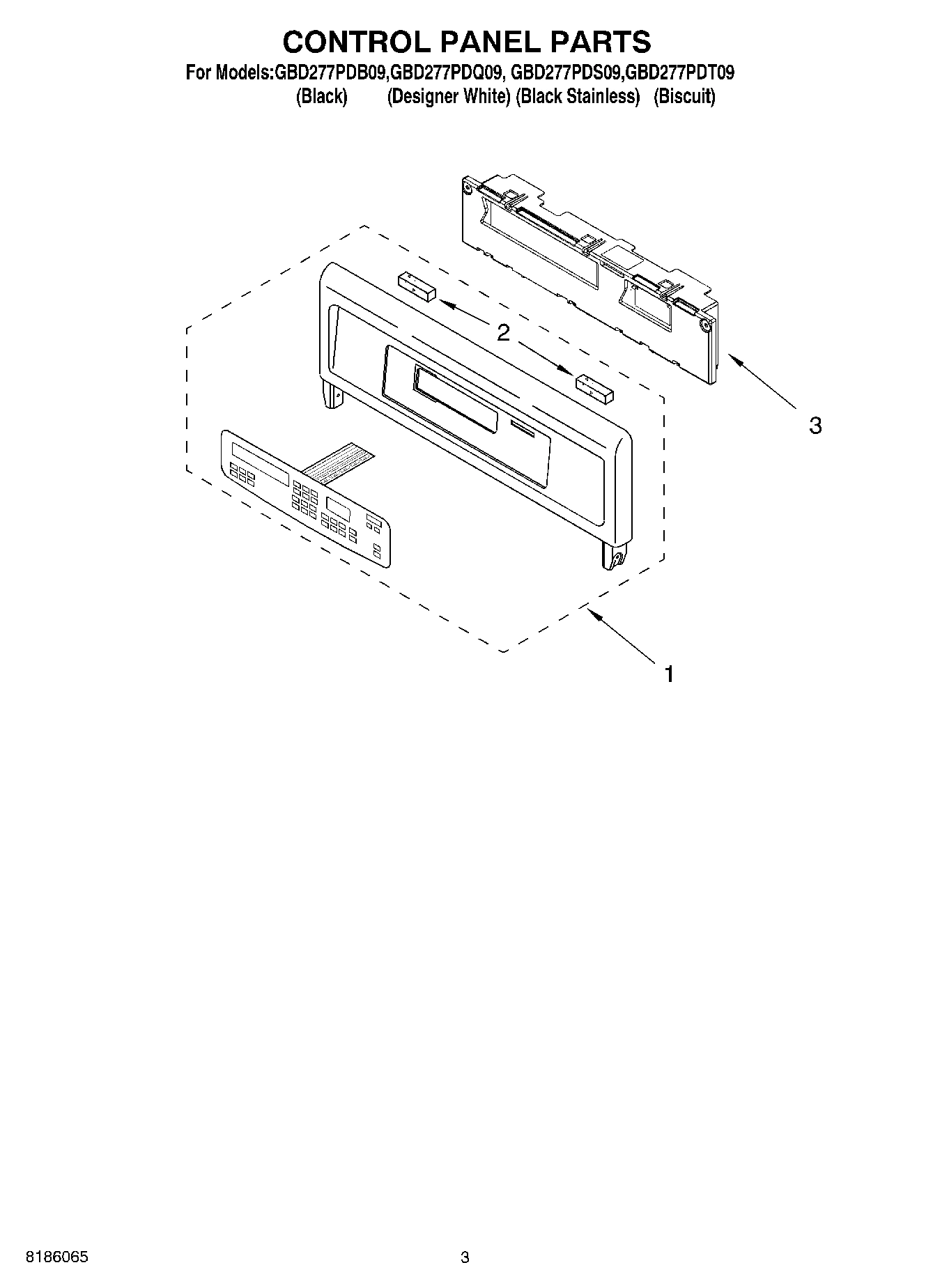

Control Panel Assy. W/Membrane, Switch (Black WPL 8300433 Contact Us For Availability

1

Control Panel Assy. W/Membrane, Switch (Black WPL 8300453 Contact Us For Availability

1

Control Panel Assy. W/Membrane, Switch (White WPL 8300434 Contact Us For Availability

1

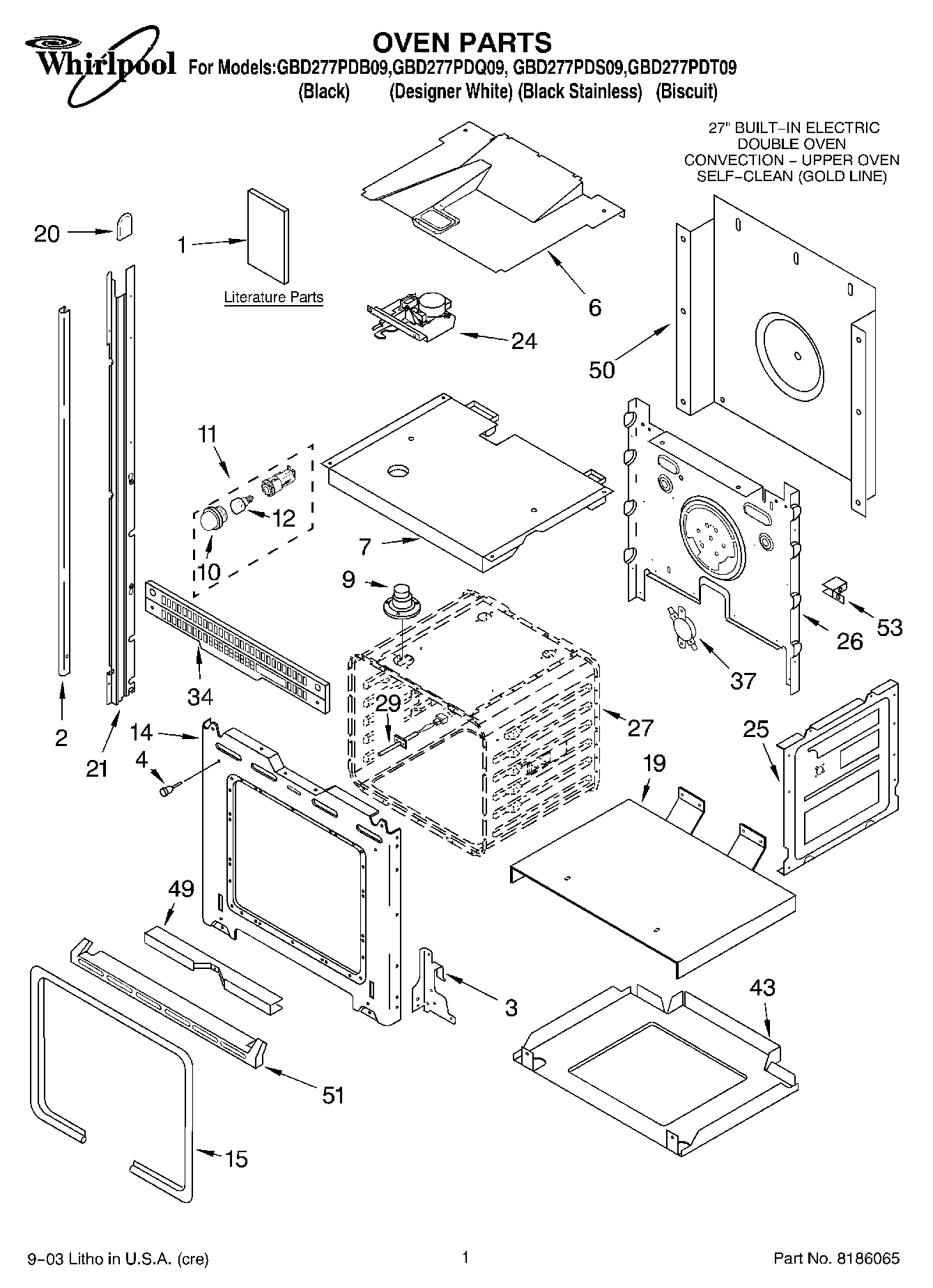

OVEN PARTS WPL ARI58461A8 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT4455992 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT8300609 Contact Us For Availability

1

Literature Parts (Tech Sheet (Oven)) WPL LIT8302068 Contact Us For Availability

1

Control Panel Assy. W/Membrane, Switch (Biscu WPL 8300443 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

2

Trim, Side (White Model) WPL 4449041 Contact Us For Availability

2

Trim, Side (RH Black) WPL 4450850 Contact Us For Availability

2

Trim, Side (RH White) WPL 4450851 Contact Us For Availability

2

Trim, Side (LH Black) WPL 4450853 Contact Us For Availability

2

Trim, Side (LH White) WPL 4450854 Contact Us For Availability

2

Trim, Side (RH Biscuit) WPL 4452122 Contact Us For Availability

2

Trim, Side (LH Biscuit Screw) WPL 4452123 Contact Us For Availability

2

Gasket, Control Panel WPL 4451033 Contact Us For Availability

3

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $41.94

3

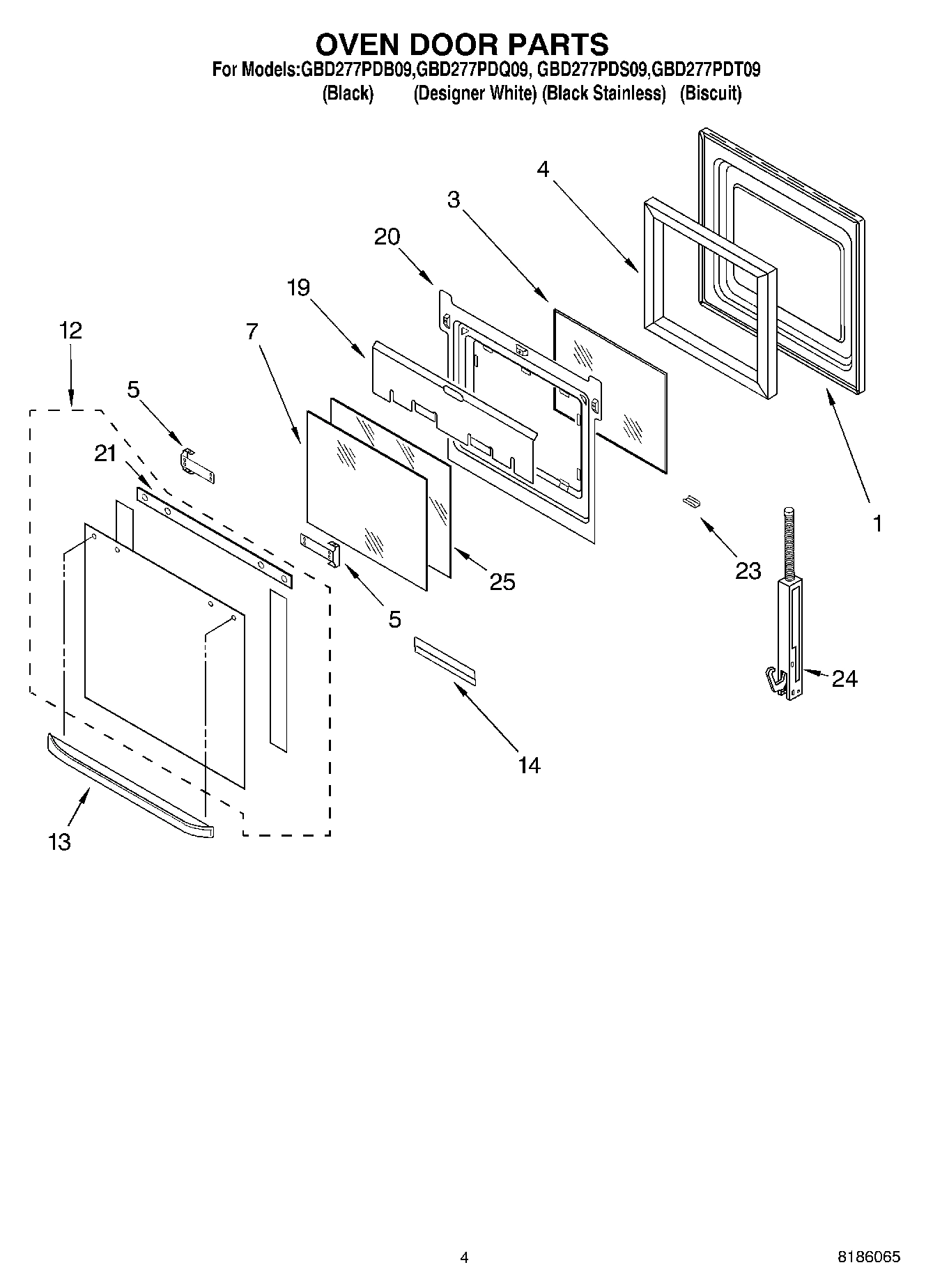

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $70.88

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

Blower (60MM Upper Oven) WPL 4455334 Contact Us For Availability

3

Latch, Sister Board WPL 8301848 Contact Us For Availability

3

Assy, Control WPL 8302152 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

4

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $167.94

4

Insulation, Door WPL 4451721 Contact Us For Availability

5

Bracket, Handle WPL 4450813 Contact Us For Availability

6

Rack, Oven WPL 4448715 Contact Us For Availability

6

Divider, Vent WPL 4452200 Contact Us For Availability

7

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $91.57

7

Top, Chassis WPL 4455864 Contact Us For Availability

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $38.10

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

9

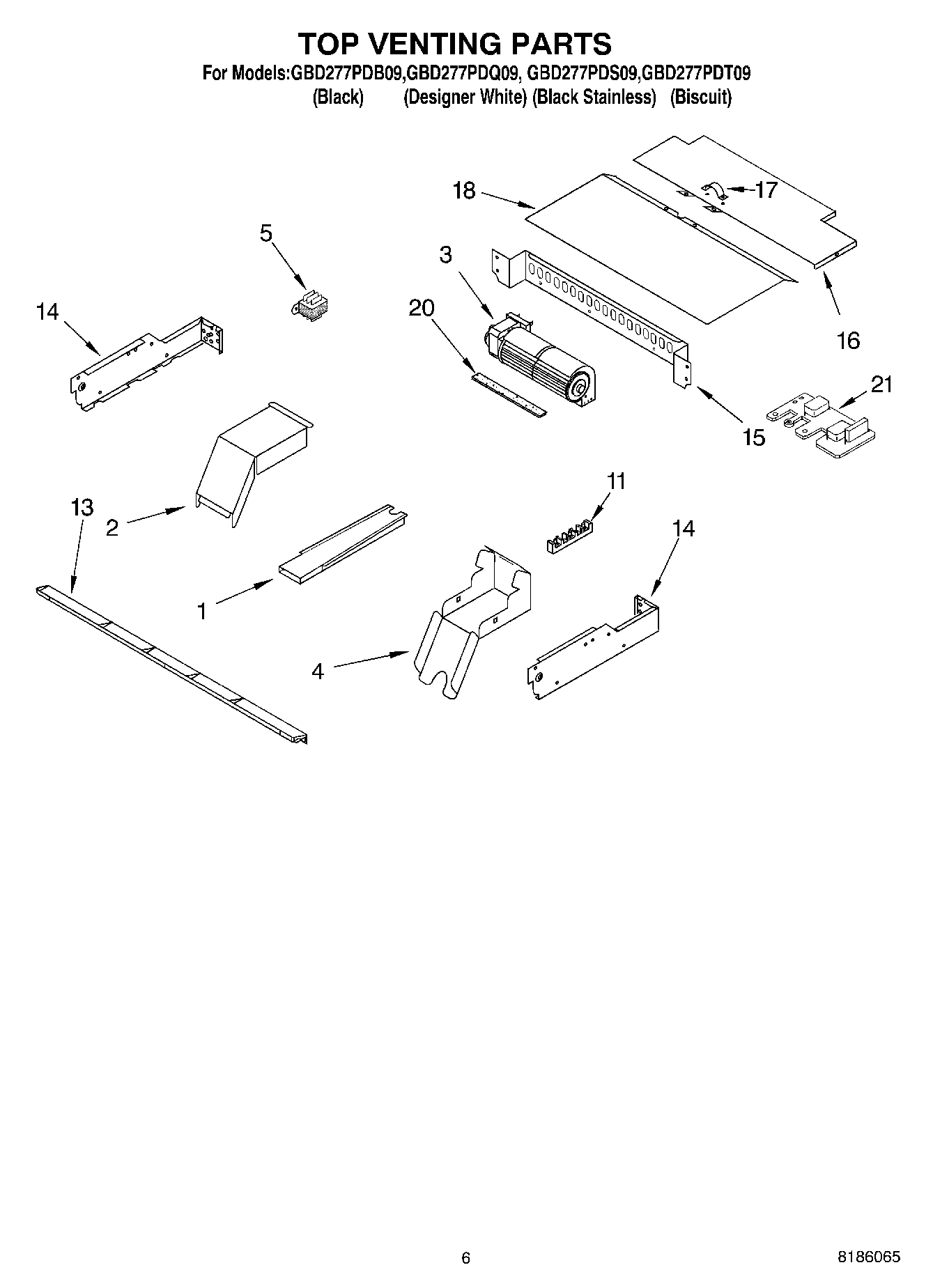

Motor Convection WPL 4451583 Contact Us For Availability

10

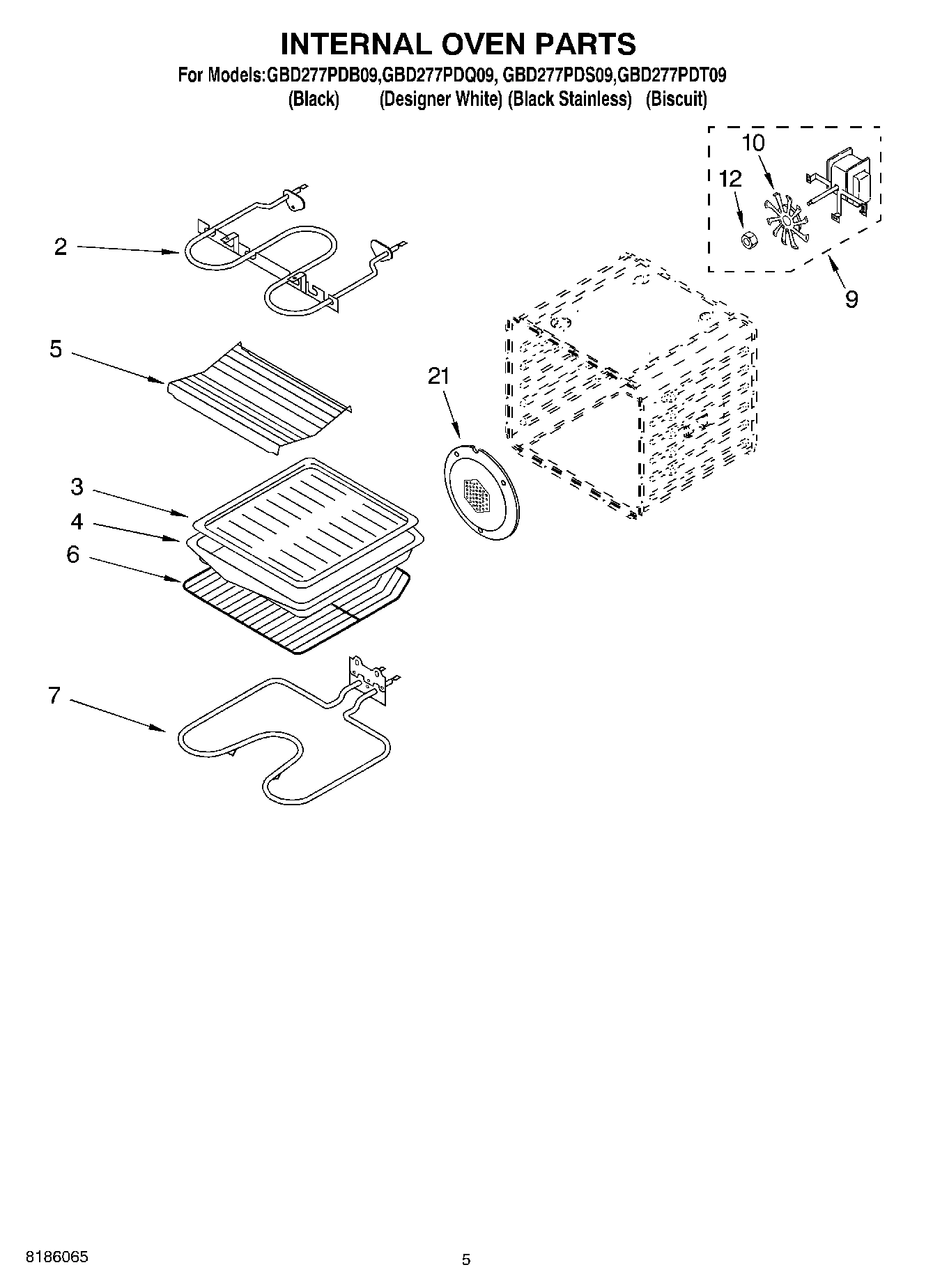

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $26.94

10

Lens, Light WPL 4452165 Contact Us For Availability

11

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $35.32

11

Screw WPL 3400080 Contact Us For Availability

WP4173175 Whirlpool Light Bulb In Stock WPL WP4173175 $27.18

Door Glass, Assy (Black Model) WPL 8300912 Contact Us For Availability

Door Glass, Assy (White Model) WPL 8300911 Contact Us For Availability

Door Glass, Assy (Black, Stainless Model) WPL 8300905 Contact Us For Availability

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

Door Handle (Black Model) WPL 4448405 Contact Us For Availability

Door Handle (White Model) WPL 4448406 Contact Us For Availability

Door Handle (Biscuit Model) WPL 8300255 Contact Us For Availability

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

Screw WPL 4449040 Contact Us For Availability

Retainer, Glass WPL 4450470 Contact Us For Availability

Frame, Front WPL 4455611 Contact Us For Availability

15

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $67.84

19

Shield, Heat WPL 4450361 Contact Us For Availability

19

Support, Insulation WPL 4451477 Contact Us For Availability

20

Retainer, Glass WPL 8300777 Contact Us For Availability

20

Cap, Spacer WPL 4451605 Contact Us For Availability

814373 Whirlpool Oven Rail Mount Backorder WPL 814373 $86.57

814374 Whirlpool Oven Rail Mount Backorder WPL 814374 $86.66

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

SUPPRESSOR WPL 8302143 Contact Us For Availability

Seal, Door Top WPL 8300819 Contact Us For Availability

23

Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability

23

Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability

23

Retainer, Clip (Biscuit Model) WPL 4452119 Contact Us For Availability

9760569 Whirlpool Door Hinge Backorder WPL 9760569 $39.24

9760570 Whirlpool Door Hinge Backorder WPL 9760570 $39.00

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

WP9760571 Whirlpool Door Hinge In Stock WPL WP9760571 $42.93

WP9760572 Whirlpool Door Hinge Backorder WPL WP9760572 $42.00

WP9760889 Whirlpool Door Latch In Stock WPL WP9760889 $218.57

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $54.63

25

Glass. Inner WPL 8300973 Contact Us For Availability

26

Back, Chassis WPL 4452233 Contact Us For Availability

27

Liner, Oven (Not serviceable) WPL ARI58462A6 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

34

Vent, Center WPL 4452266 Contact Us For Availability

37

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $45.37

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $33.45

43

Base, Chassis WPL 4455529 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

Trim, WPL 4448475 Contact Us For Availability

WPL 4448476 WPL 4448476 Contact Us For Availability

WPL 4452414 WPL 4452414 Contact Us For Availability

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

WPL 4449315 WPL 4449315 Contact Us For Availability

WPL 4449845 WPL 4449845 Contact Us For Availability

WPL 4450364 WPL 4450364 Contact Us For Availability

WPL ARI58463A4 WPL ARI58463A4 Contact Us For Availability
