Model Maytag GB2026PEKW12 REFRIGERATOR – Common Parts & Diagrams

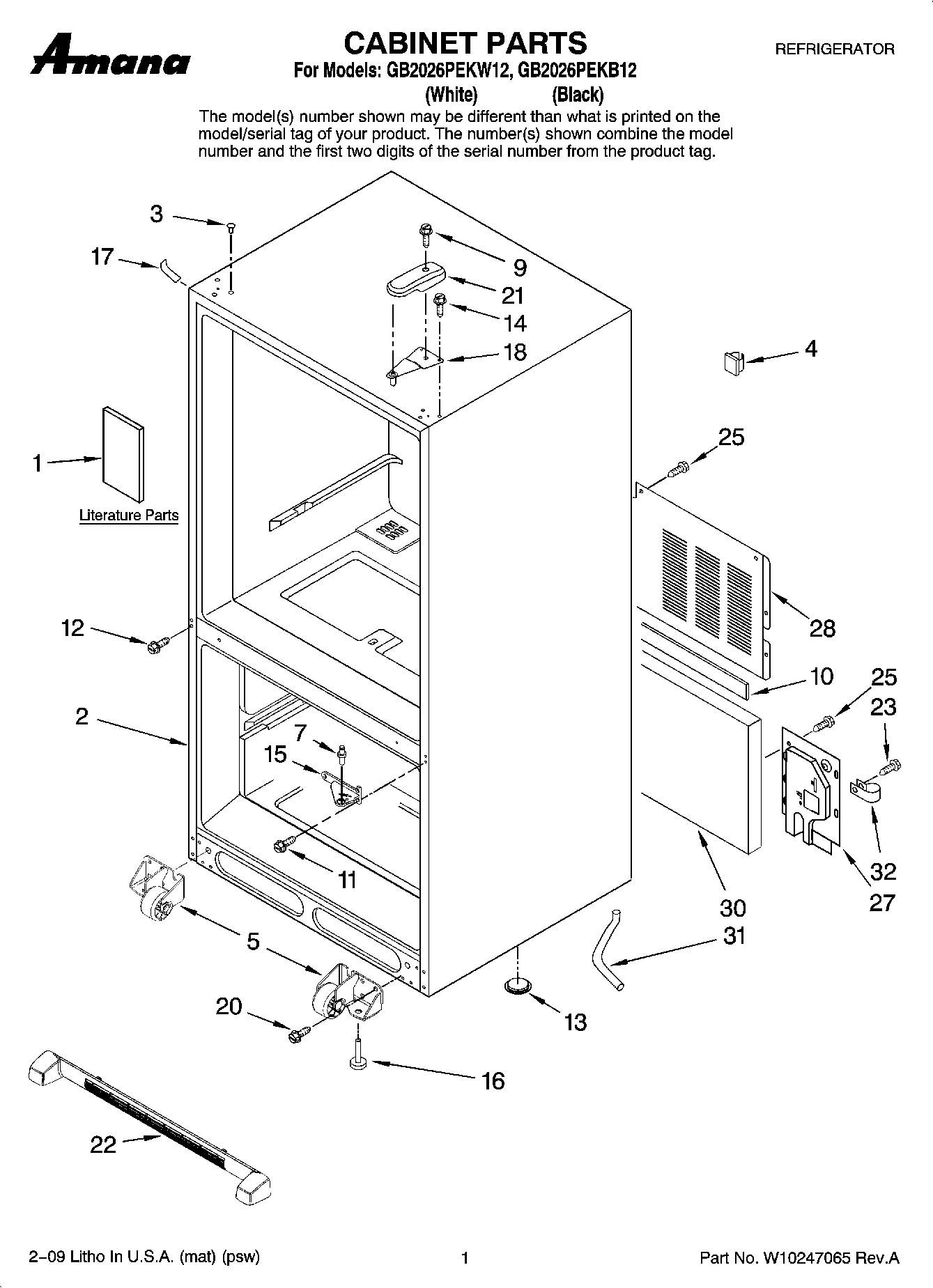

01 - CABINET PARTS

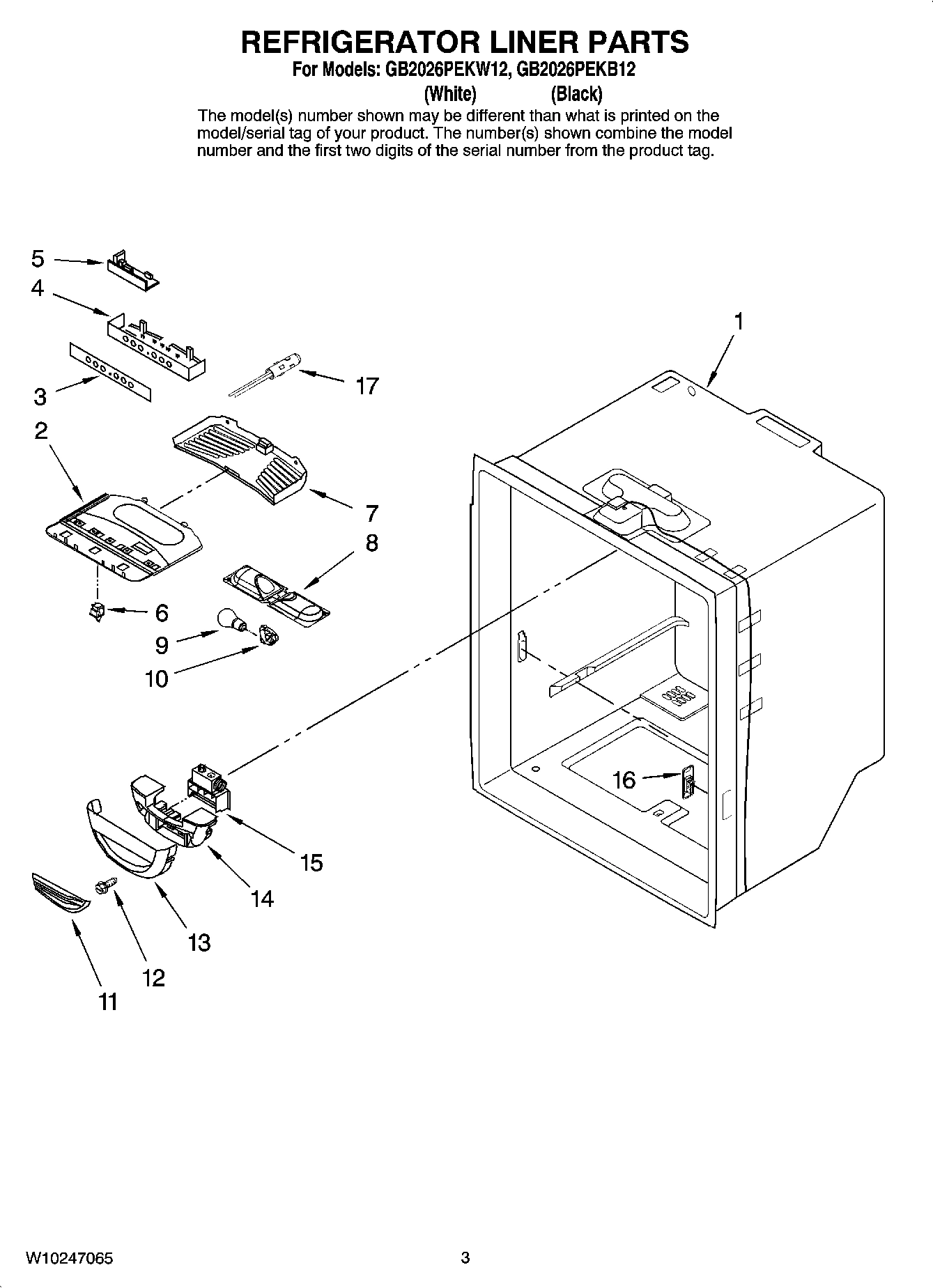

02 - REFRIGERATOR LINER PARTS

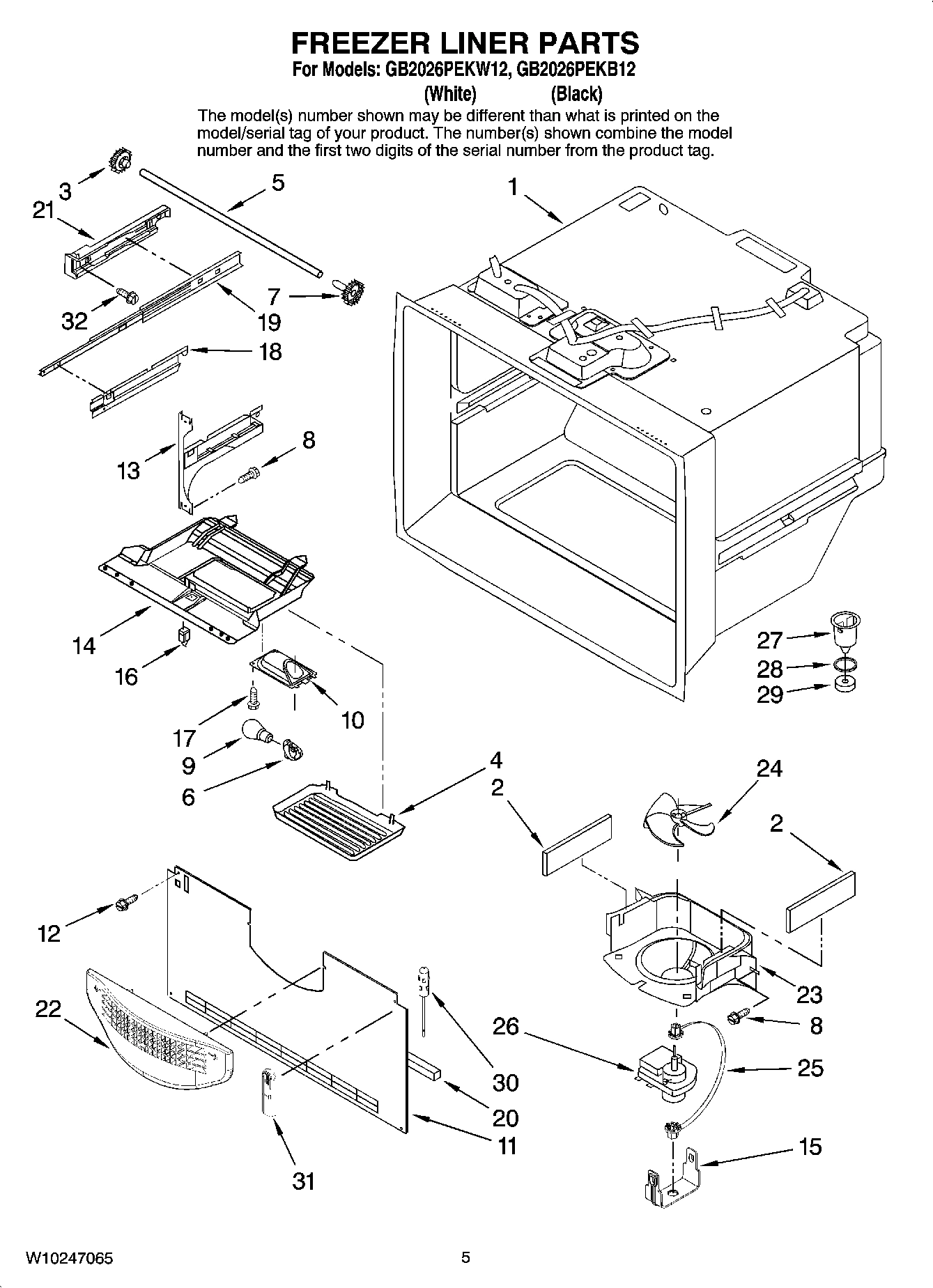

03 - FREEZER LINER PARTS

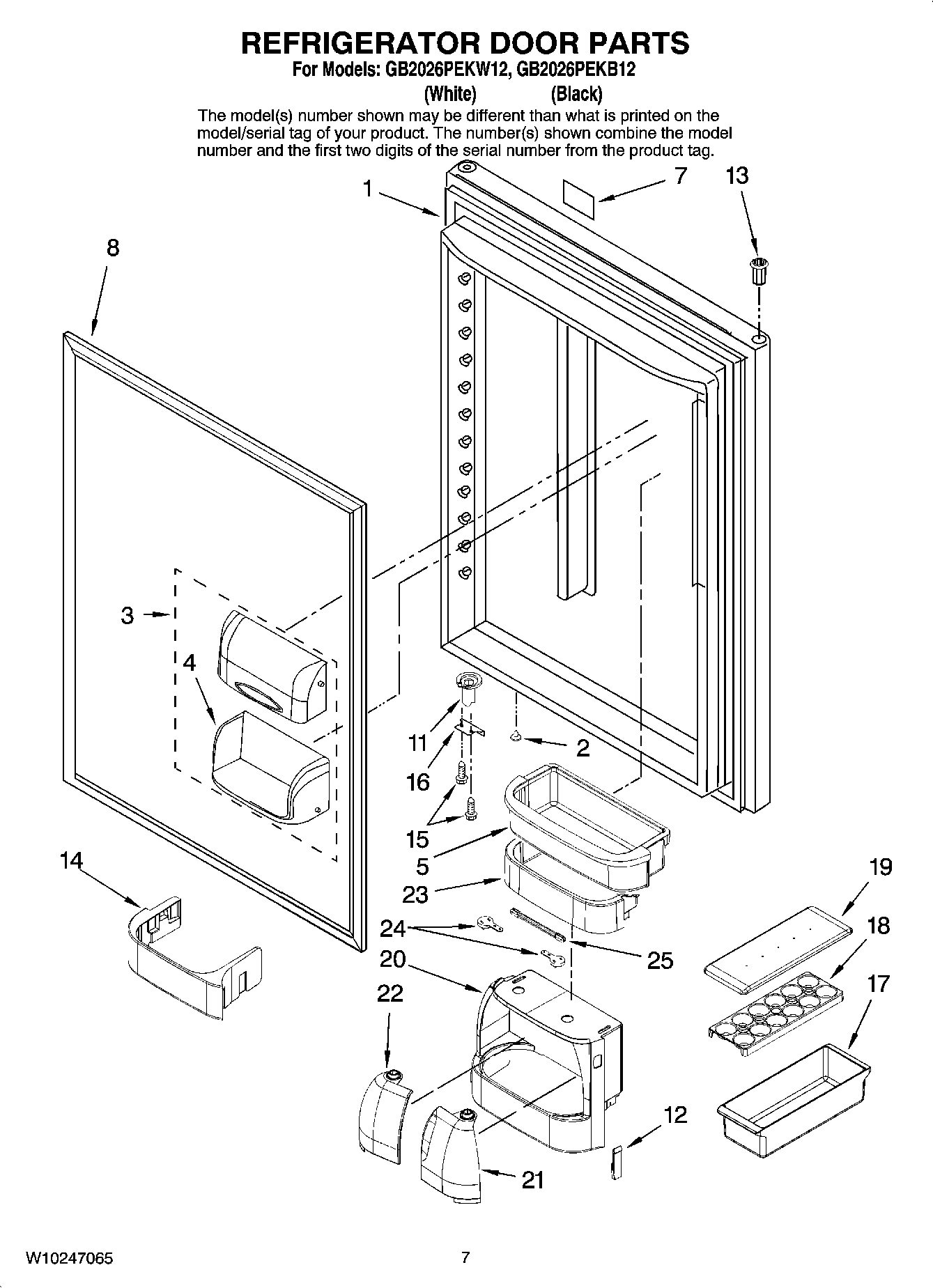

04 - REFRIGERATOR DOOR PARTS

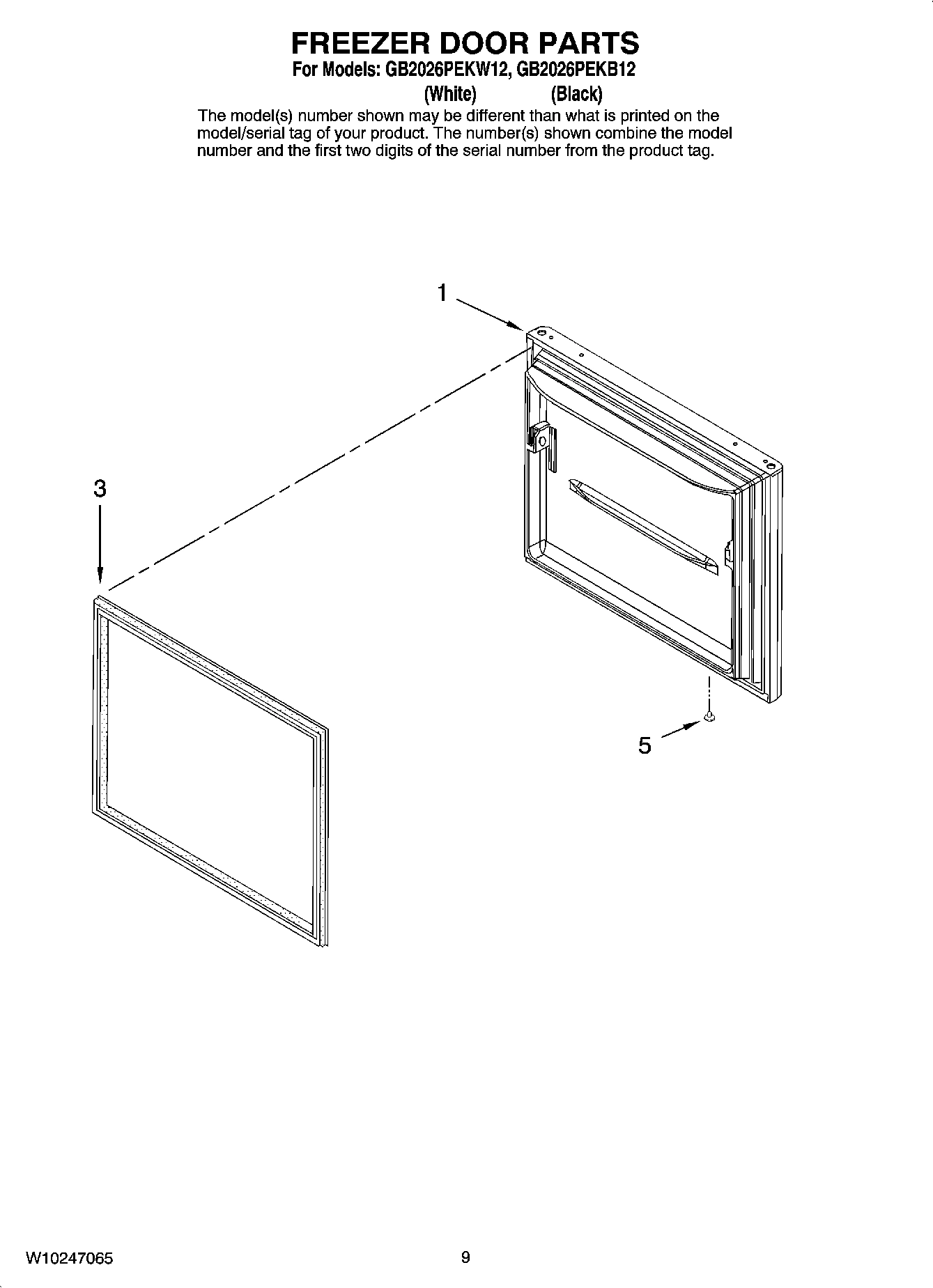

05 - FREEZER DOOR PARTS

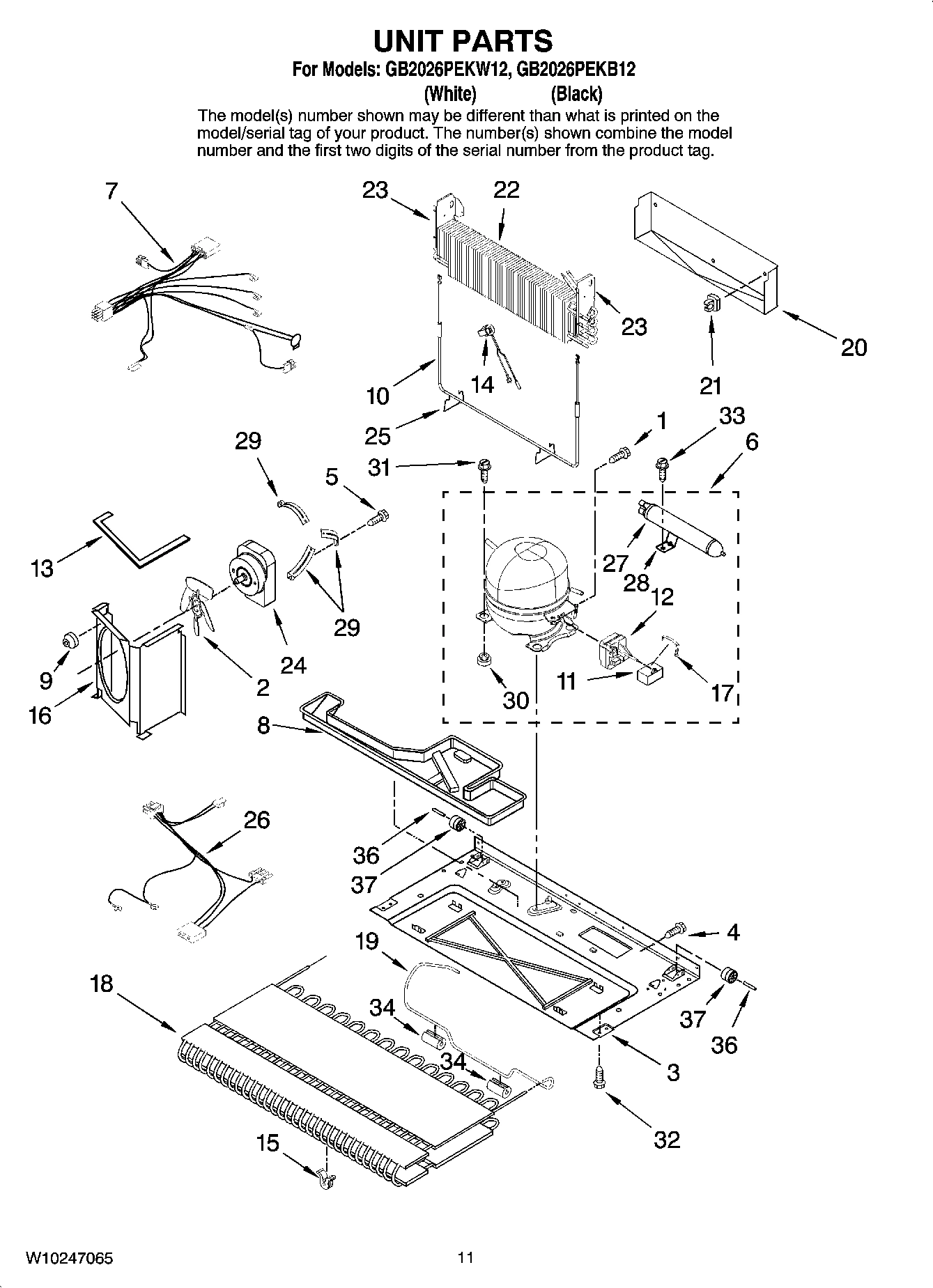

06 - UNIT PARTS
07 - SHELF PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag GB2026PEKW12 REFRIGERATOR
1
Refrigerator Door (w/ Insulation) (Black) MAY 67002621 Contact Us For Availability
1
Refrigerator Door (w/ Insulation) (White) MAY 67002622 Contact Us For Availability
1
MAY 13092220BQ MAY 13092220BQ Contact Us For Availability
1
MAY 13092220WQ MAY 13092220WQ Contact Us For Availability
1
MAY 67006433 MAY 67006433 Contact Us For Availability
2
MAY W10162928 MAY W10162928 Contact Us For Availability
2
MAY 67006400 MAY 67006400 Contact Us For Availability
3
MAY W10131754 MAY W10131754 Contact Us For Availability
3
MAY W10133249 MAY W10133249 Contact Us For Availability
3
MAY 12457108 MAY 12457108 Contact Us For Availability
4
Screw MAY 67006425 Contact Us For Availability
5
Bucket (2) (Large) MAY 67003776 Contact Us For Availability
6
Compressor MAY 12049773 Contact Us For Availability
6
Shelf, Glide (4) MAY 67004801 Contact Us For Availability
7
Nameplate MAY 66981-5 Contact Us For Availability
7
MAY W10169651 MAY W10169651 Contact Us For Availability
8
MAY W10133418 MAY W10133418 Contact Us For Availability
8
MAY W10133881 MAY W10133881 Contact Us For Availability
8
Drain Pan MAY 67007176 Contact Us For Availability
8
MAY 67003132 MAY 67003132 Contact Us For Availability
9
MAY 61004743 MAY 61004743 Contact Us For Availability
10
Housing, Frz. Light MAY 67001035 Contact Us For Availability
10
Evaporator Heater MAY 12729120 Contact Us For Availability
10
MAY 67005864 MAY 67005864 Contact Us For Availability
11
MAY 67007162 MAY 67007162 Contact Us For Availability
12
Hook, Chiller MAY 67004602 Contact Us For Availability
12
Overload/Relay (Service) MAY 2303344 Contact Us For Availability
12
MAY 67006453 MAY 67006453 Contact Us For Availability
12
GLIDE-PANTRY MAY 67007026 Contact Us For Availability
13
Brace Frame MAY 12227304WD Contact Us For Availability
14
Retainer, Chiller MAY 67004717 Contact Us For Availability
14
MAY 12639322SP MAY 12639322SP Contact Us For Availability
14
Trim, Crisper MAY 67004852 Contact Us For Availability
15
MAY 67005908 MAY 67005908 Contact Us For Availability
15
Grommet (4) MAY W10137529 Contact Us For Availability
16
SHROUD, CONDENSER MAY 67006661 Contact Us For Availability
16
MAY 67004988 MAY 67004988 Contact Us For Availability
17
MAY 67006530 MAY 67006530 Contact Us For Availability
17
MAY 10423131 MAY 10423131 Contact Us For Availability
17
MAY 67007052 MAY 67007052 Contact Us For Availability
18
Bracket, Basket (Left) MAY 67004728 Contact Us For Availability
18
MAY 10436404 MAY 10436404 Contact Us For Availability
18
Divider, Upper Basket MAY 67004127 Contact Us For Availability
19
MAY W10180420 MAY W10180420 Contact Us For Availability
19
MAY 10436506 MAY 10436506 Contact Us For Availability
19
MAY 12866903 MAY 12866903 Contact Us For Availability
19
MAY 67006608 MAY 67006608 Contact Us For Availability
20
Gasket, Bottom MAY 67003731 Contact Us For Availability
20
MAY 67004720 MAY 67004720 Contact Us For Availability
20
MAY 67002490 MAY 67002490 Contact Us For Availability
20
MAY 67006026 MAY 67006026 Contact Us For Availability
21
Bracket, Slide (Right) MAY 67004972 Contact Us For Availability
21
Door, RH Chiller MAY 67004598 Contact Us For Availability
21
MAY 10623002 MAY 10623002 Contact Us For Availability
21
MAY 67004812 MAY 67004812 Contact Us For Availability
22
Cover, Fan Shroud MAY W10175909 Contact Us For Availability
22
Door, LH Chiller MAY 67004599 Contact Us For Availability
22
Brace, Pantry MAY 12227305WD Contact Us For Availability
23
SHROUD, EVAP FAN MAY W10167023 Contact Us For Availability
23
MAY 67004721 MAY 67004721 Contact Us For Availability
23
MAY 67001083 MAY 67001083 Contact Us For Availability
23
MAY 67001084 MAY 67001084 Contact Us For Availability
23
Slide, Pantry MAY 67003793 Contact Us For Availability
24
Fan, Evaporator MAY 2169142 Contact Us For Availability
24
Linkeage MAY 67002293 Contact Us For Availability
24
MAY 67004432 MAY 67004432 Contact Us For Availability
25
MAY W10121318 MAY W10121318 Contact Us For Availability
25
Center, Linkeage MAY 67004601 Contact Us For Availability
26
MAY 67005023 MAY 67005023 Contact Us For Availability
26
Harness, Unit MAY W10169658 Contact Us For Availability
27
Funnel, Drain (Incl. 28 & 29) MAY D7753903 Contact Us For Availability
27
MAY W10143759 MAY W10143759 Contact Us For Availability
27
Bar, Control MAY 67003794 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
Clip, Drier (Includes Items 11, 12, 17, 27 & MAY 10547003 Contact Us For Availability
28
MAY 67005625 MAY 67005625 Contact Us For Availability
29
Gasket MAY B8381501 Contact Us For Availability
29
Bracket, Condenser MAY 67004953 Contact Us For Availability
30
MAY 67006415 MAY 67006415 Contact Us For Availability
31
MAY 67001066 MAY 67001066 Contact Us For Availability
31
Screw MAY 67006432 Contact Us For Availability
32
Screw MAY 67006406 Contact Us For Availability
32
Screw (6) MAY 67006573 Contact Us For Availability
33
SCREW MAY 67006737 Contact Us For Availability
NI
Harness, Lights (Freezer) MAY 13065802 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
MAY 31462 MAY 31462 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
