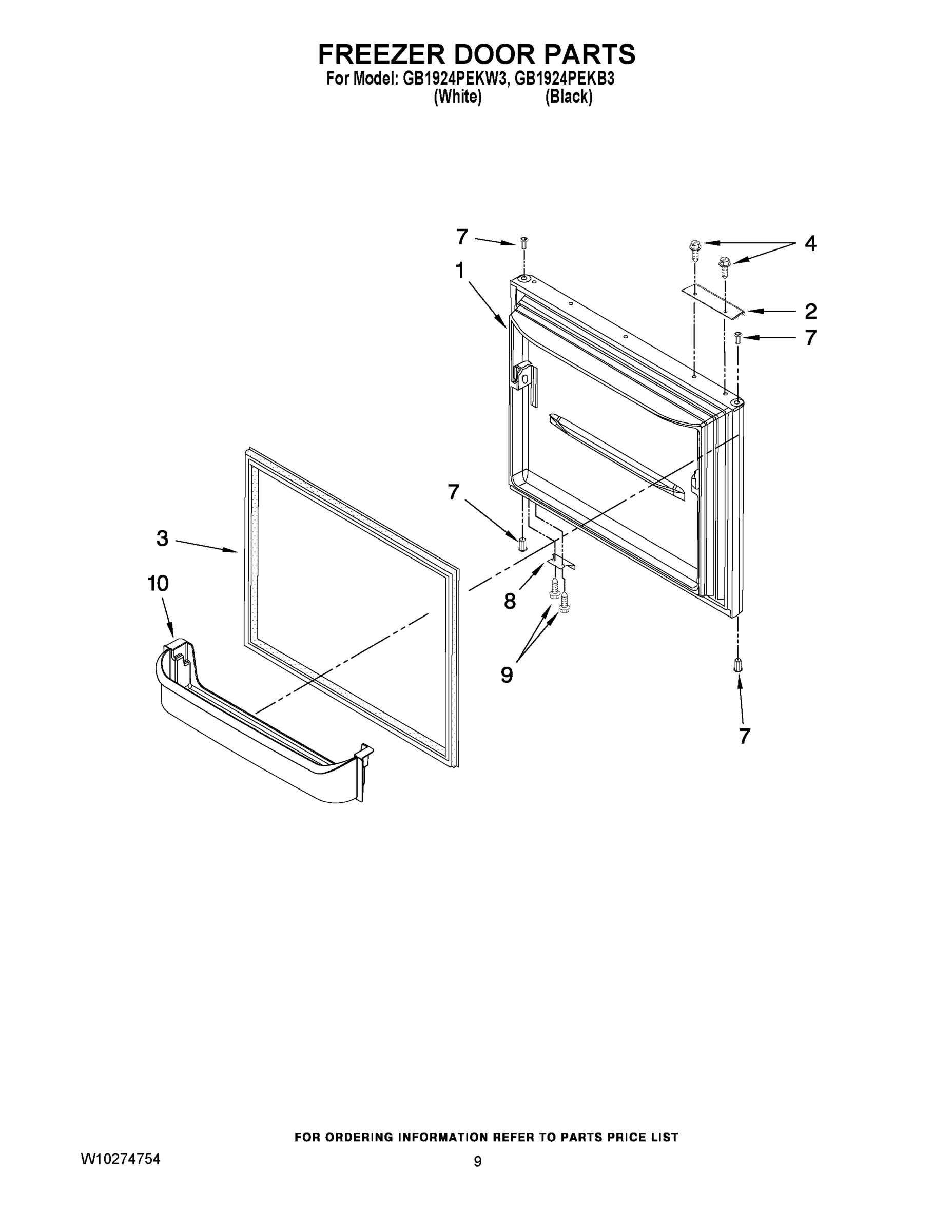

Model Whirlpool GB1924PEKW3 REFRIGERATOR – Common Parts &amp; Diagrams

1

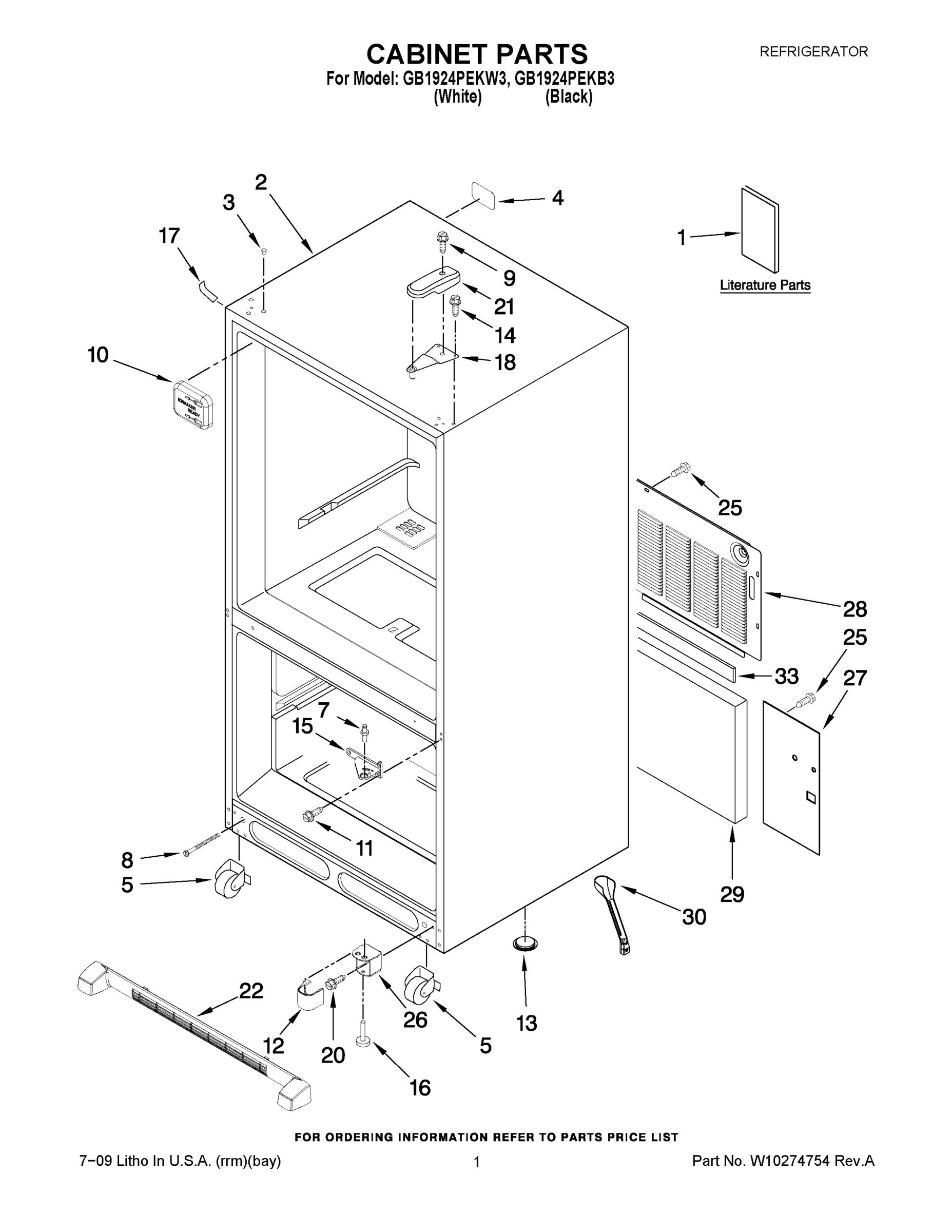

W10251970 Whirlpool Refrigerator Ladder Backorder WPL W10251970 $11.91

1

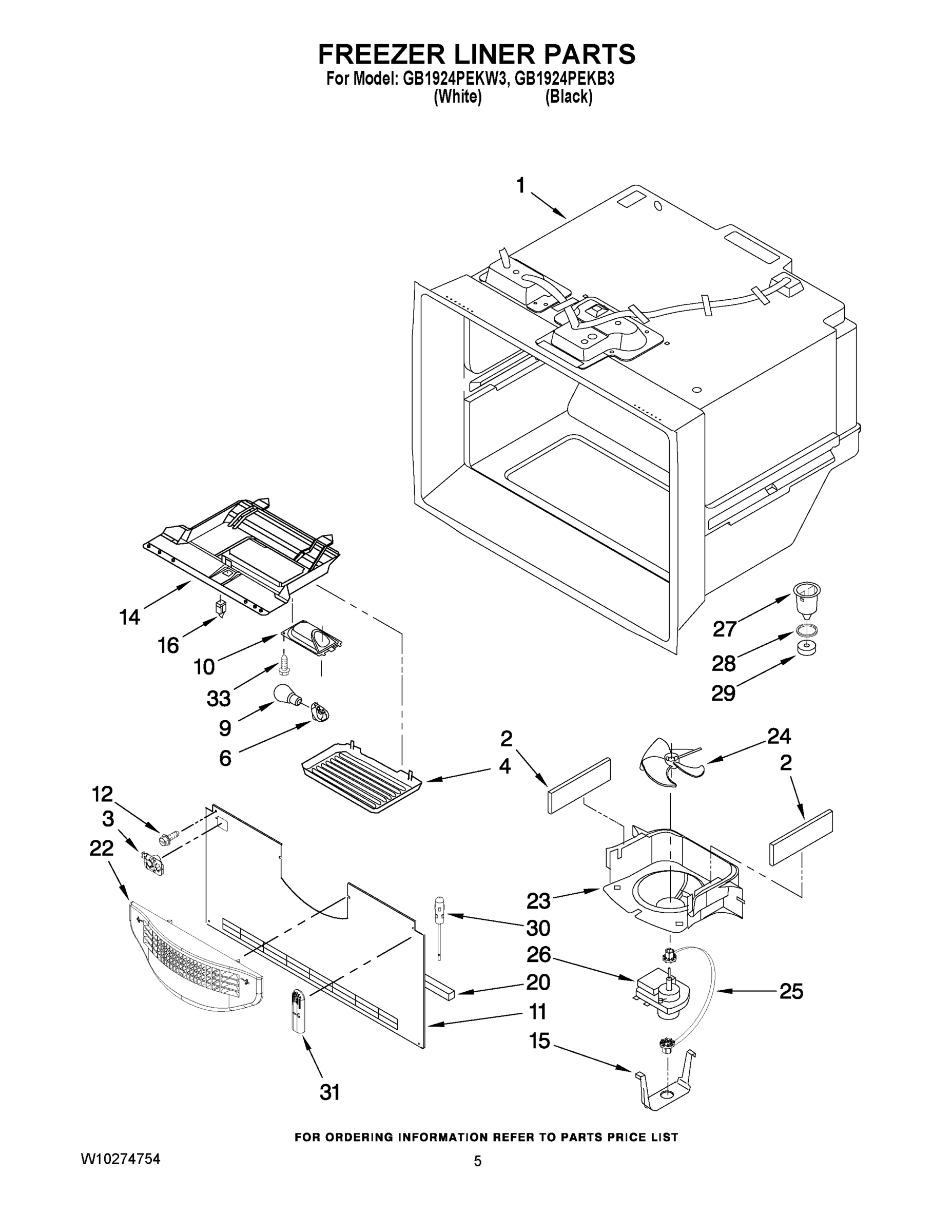

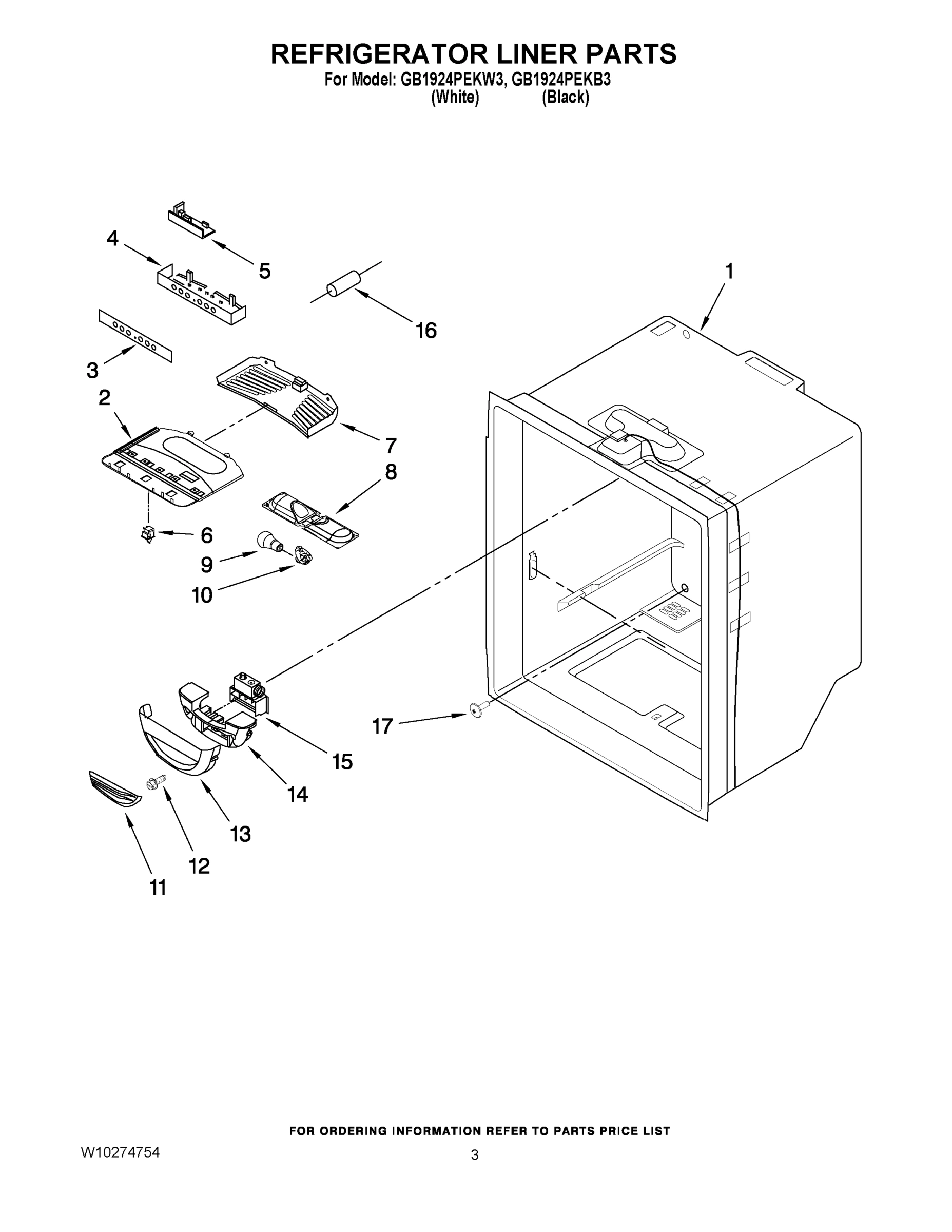

LINER (NOT A SEVICEABLE PART) WPL NP Contact Us For Availability

1

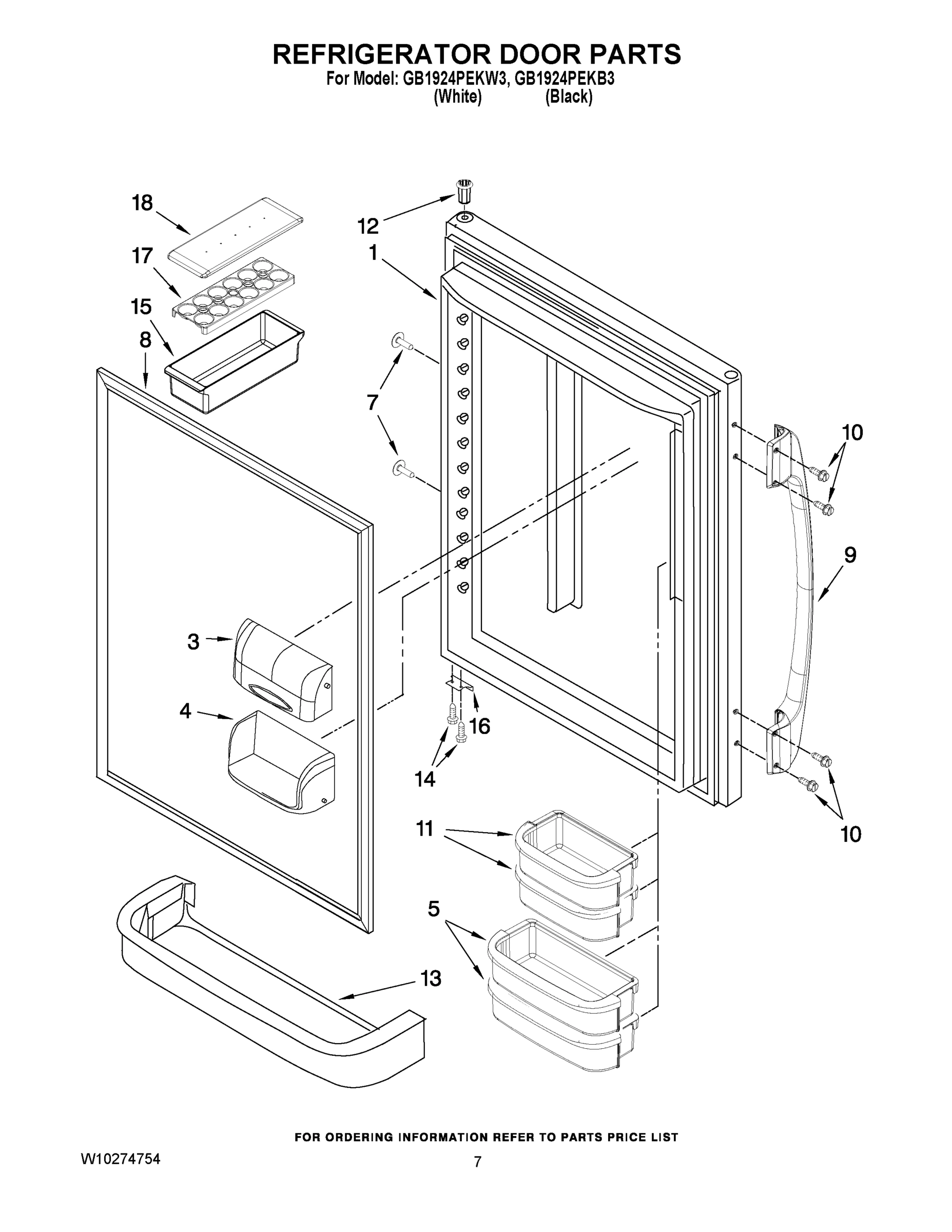

REFRIGERATOR DOOR (W/ INSULATION) (BLACK) WPL 12658529BQ Contact Us For Availability

1

REFRIGERATOR DOOR (W/ INSULATION) (WHITE) WPL 12658529WQ Contact Us For Availability

1

ENERGY TAG WPL 12738352 Contact Us For Availability

1

OWNERS MANUAL WPL 12828189SP Contact Us For Availability

1

TECH SHEET WPL W10239599 Contact Us For Availability

2

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $3.70

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $37.20

3

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $11.38

3

W10480107 Whirlpool Refrigerator Plate Backorder WPL W10480107 $59.49

3

W11448709 Whirlpool Refrigerator Bracket Backorder WPL W11448709 $11.69

3

WP67001130 Whirlpool Refrigerator White Butto In Stock WPL WP67001130 $3.70

3

WP67003637 Whirlpool Dairy Door In Stock WPL WP67003637 $43.90

3

Plug, Button (3) (Black) WPL M0310731 Contact Us For Availability

4

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $7.81

4

W11685757 Whirlpool Label Backorder WPL W11685757 $2.29

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $48.97

4

Cover, Light WPL 12804901 Contact Us For Availability

5

67004040 Whirlpool Refrigerator Bucket Door Backorder WPL 67004040 $54.33

5

WPW10708492-includeCORE Whirlpool WPW10708492 Backorder WPL WPW10708492-includeCORE $202.23

5

Roller Assembly WPL 12580304 Contact Us For Availability

6

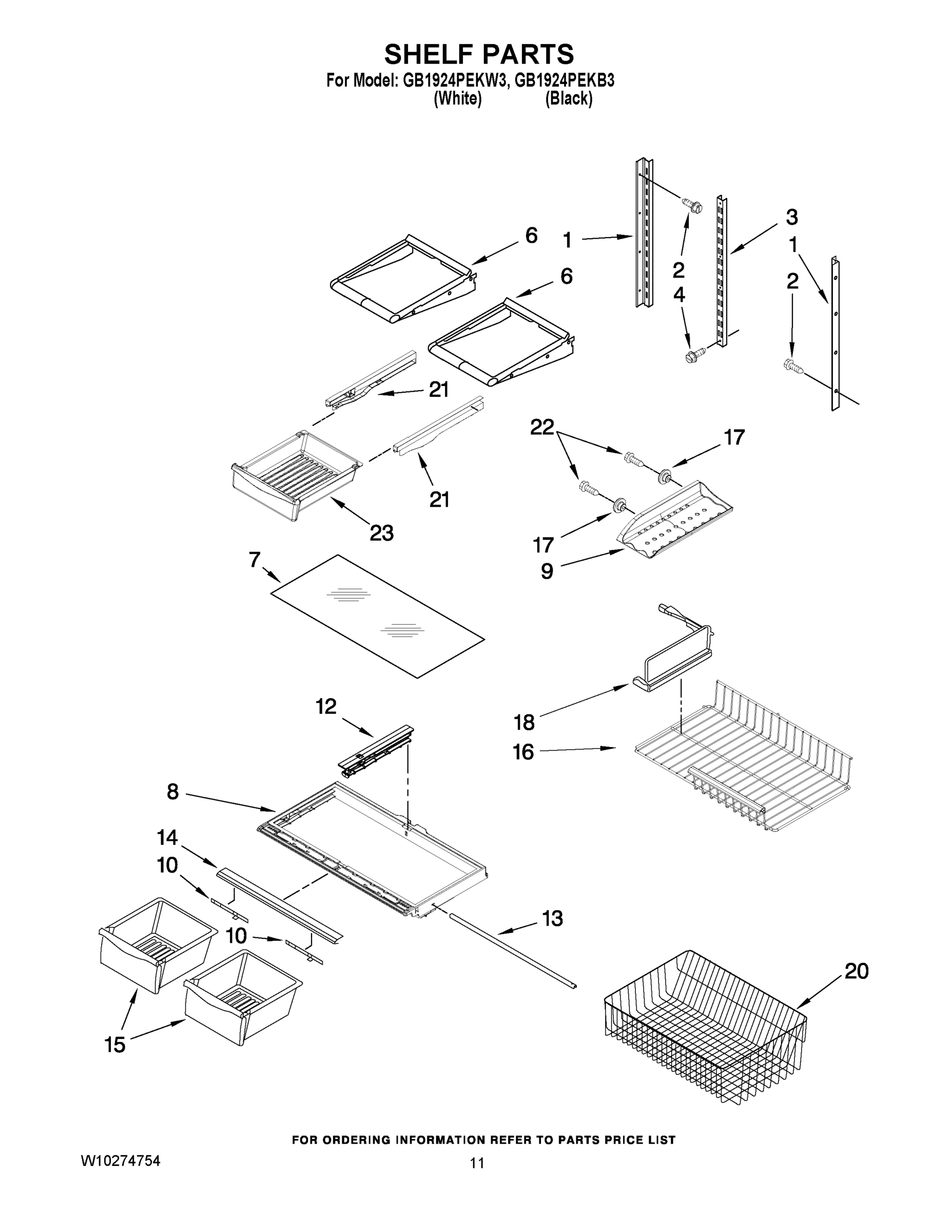

W11402522 Whirlpool Refrigerator Glass Shelf Backorder WPL W11402522 $124.05

6

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

7

12991101 Whirlpool Refrigerator Screw Backorder WPL 12991101 $9.59

7

WP67006744 Whirlpool Refrigerator Center Pin Backorder WPL WP67006744 $3.70

7

WP67006877 Whirlpool Refrigerator Glass Shelf Backorder WPL WP67006877 $118.99

8

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.85

8

WPW10436245 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436245 $123.39

8

WPW10443309 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443309 $133.29

8

WPW10671240 Whirlpool Refrigerator Frame In Stock WPL WPW10671240 $79.26

9

W10829281 Whirlpool Refrigerator Screw In Stock WPL W10829281 $5.01

9

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $2.56

9

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

9

RACK, ICE TRAY WPL 12646501V Contact Us For Availability

9

HANDLE, DOOR (BLACK) WPL 12658751B Contact Us For Availability

9

HANDLE, DOOR (WHITE) WPL 12658751W Contact Us For Availability

67006121 Whirlpool Refrigerator Screw Backorder WPL 67006121 $9.13

W11702858 Whirlpool Housing Backorder WPL W11702858 $33.89

WP67001098 Whirlpool Refrigerator Tube Cover Backorder WPL WP67001098 $3.70

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.70

11

WP67004041 Whirlpool Refrigerator Bucket Backorder WPL WP67004041 $54.44

11

WP67006380 Whirlpool Screw Backorder WPL WP67006380 $2.51

11

COVER, EVAPORATOR WPL 12226115 Contact Us For Availability

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $10.76

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $3.70

WPW10671238 Whirlpool Drawer Slide Rail In Stock WPL WPW10671238 $41.34

Cover, Hinge (Black) WPL 12561901B Contact Us For Availability

Cover, Hinge (White) WPL 12561901W Contact Us For Availability

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.53

WP12227302WD Whirlpool Refrigerator Shelf Sup Backorder WPL WP12227302WD $36.18

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $39.73

Retainer, Door WPL 12690501 Contact Us For Availability

67003906 Whirlpool Refrigerator Control Modul Backorder WPL 67003906 $51.55

Backorder WPL W11750607 $19.22

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

TRIM, CRISPER WPL W10231337 Contact Us For Availability

W10833528 Whirlpool Whirlpool Refrigerator Cr In Stock WPL W10833528 $86.43

W11689473 Whirlpool Door Hinge Backorder WPL W11689473 $26.41

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $49.87

CLIP, EVAP. MOTOR WPL 13058002 Contact Us For Availability

BIN, UTILITY WPL 10423131SP Contact Us For Availability

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $29.10

W11177593 Whirlpool Leveling Feet In Stock WPL W11177593 $7.08

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $14.86

W11708403 Whirlpool Door Stop In Stock WPL W11708403 $5.07

SHELF, GLIDE (UPPER) WPL 12694606 Contact Us For Availability

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $10.76

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.76

WP10972101 Whirlpool Refrigerator Spacer Backorder WPL WP10972101 $4.65

TRAY, EGG WPL 10436506S Contact Us For Availability

18

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $16.98

18

DIVIDER, UPPER BASKET WPL 12693802 Contact Us For Availability

18

LID, UTILITY WPL 10436404S Contact Us For Availability

20

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $2.51

20

WP12754803 Whirlpool Refrigerator Freezer Bas Backorder WPL WP12754803 $128.98

20

GASKET, BOTTOM WPL 12739111 Contact Us For Availability

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $29.13

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $10.76

WP67001053 Whirlpool Drawer Glide In Stock WPL WP67001053 $3.88

WP67001054 Whirlpool Left Glide In Stock WPL WP67001054 $3.88

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $28.97

SCREW WPL 12990601 Contact Us For Availability

GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK) WPL 12734404B Contact Us For Availability

GRILLE ASSEMBLY (INCLUDES CLIPS) (WHITE) WPL 12734404W Contact Us For Availability

23

WP67001308 Whirlpool Deli Drawer Backorder WPL WP67001308 $86.39

23

WPW10167023 Whirlpool Refrigerator Shroud Backorder WPL WPW10167023 $35.83

23

Dam (Left Side) WPL 12225602 Contact Us For Availability

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

25

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

25

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $28.66

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

26

12465002WD Whirlpool Refrigerator Bottom Hing Backorder WPL 12465002WD $37.61

26

12465005ED Whirlpool Door Hinge Backorder WPL 12465005ED $30.25

26

WP67005023 Whirlpool Refrigerator Evaporator Backorder WPL WP67005023 $140.96

27

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $29.08

27

W11684617 Whirlpool Valve Cover Backorder WPL W11684617 $7.41

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $14.68

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

28

COVER, UNIT WPL W10211980 Contact Us For Availability

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.70

29

INSULATION, SOUND WPL 12820505 Contact Us For Availability

30

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $22.72

30

W10619951 Whirlpool Drain Tube with Grommet In Stock WPL W10619951 $24.50

31

W11556315 Whirlpool Shroud Backorder WPL W11556315 $29.19

31

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.70

33

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $7.69

33

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $4.59

35

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $10.76

36

CLIP, EVAP (2) WPL 10623002 Contact Us For Availability

37

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $3.70

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $28.53

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Cleaner, Stainless Steel WPL 4396920 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 qt.) (Black (Uncut)) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

ICE MAKER FIELD INSTALLABLE (IC514) WPL W10261455 Contact Us For Availability

HARNESS, LIGHTS (FREEZER) WPL 13065802 Contact Us For Availability
