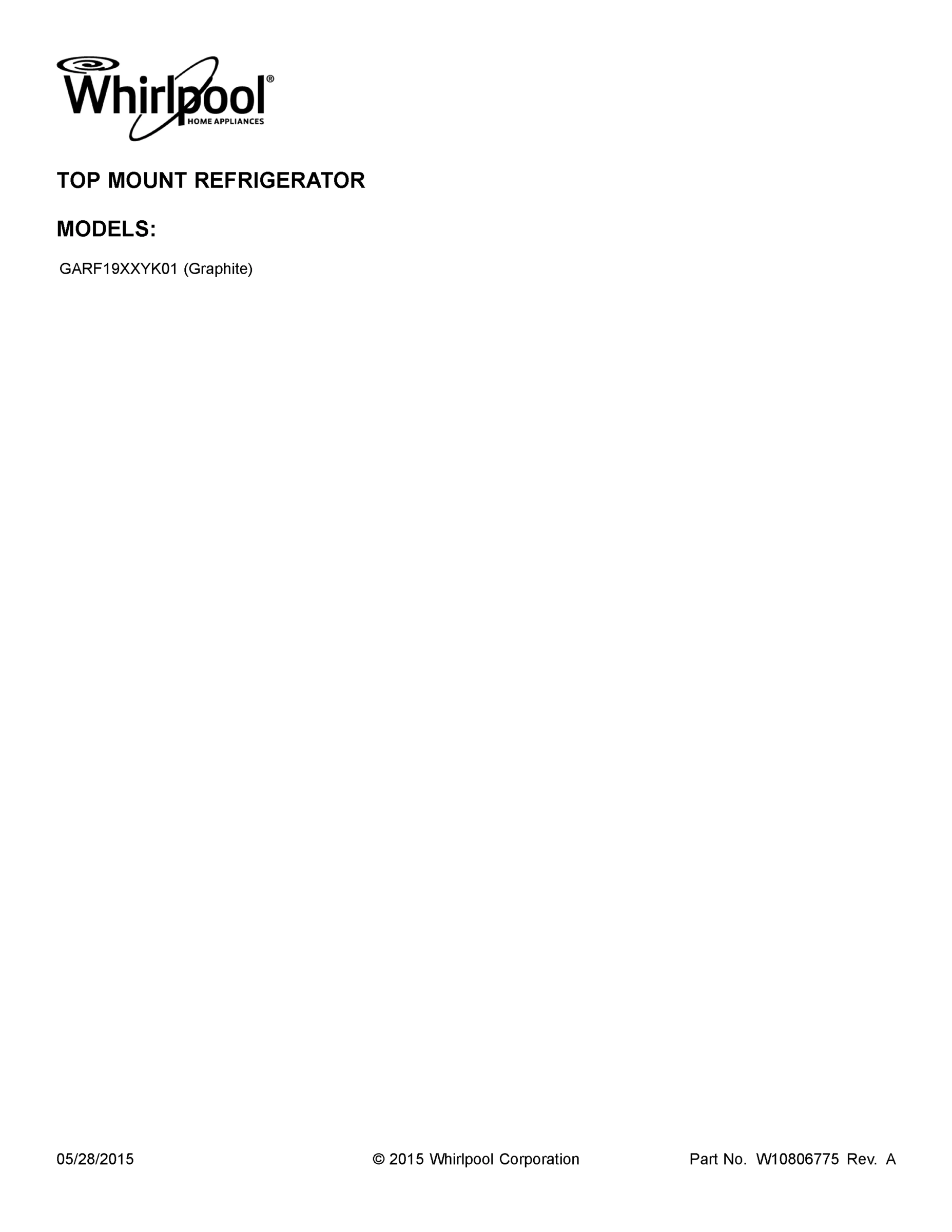

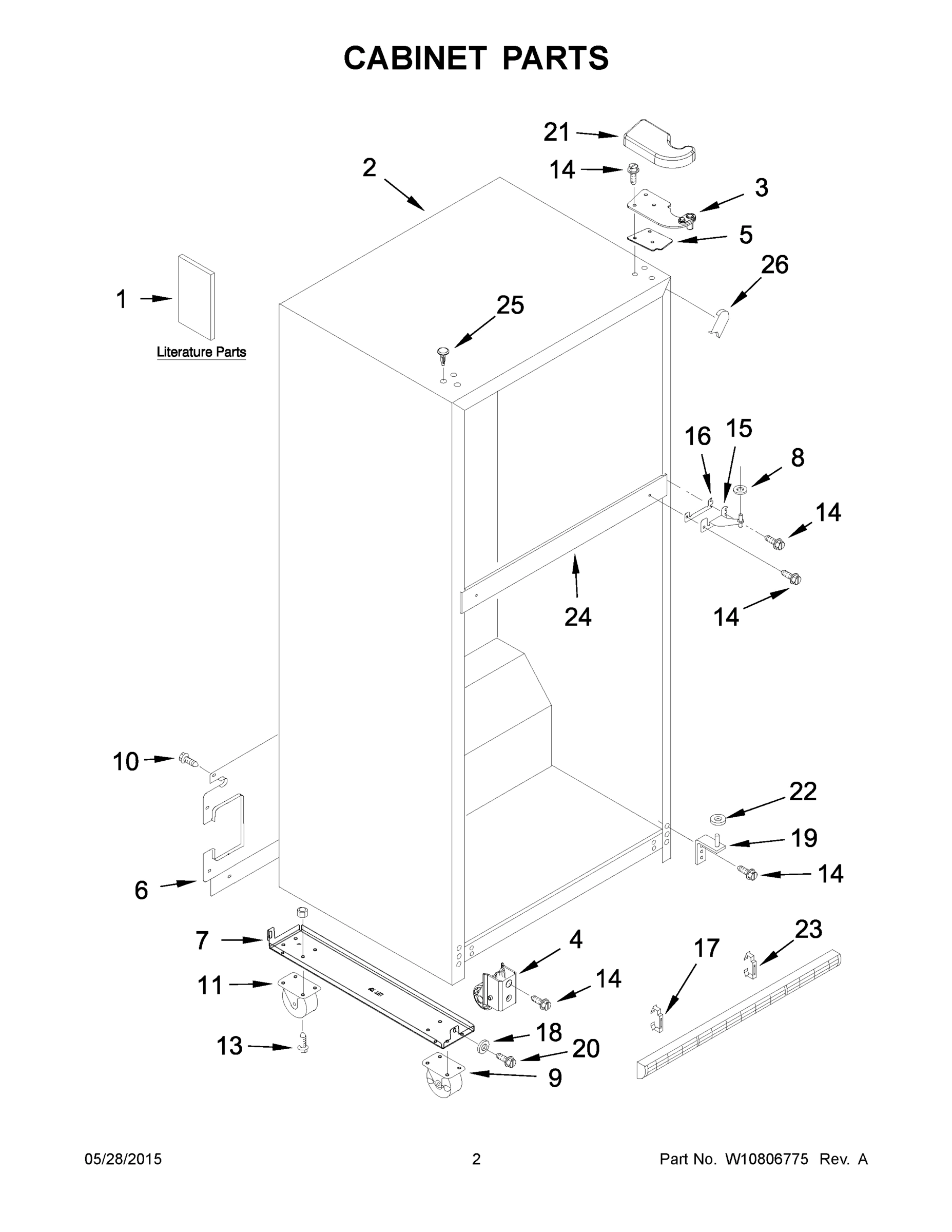

Model Whirlpool GARF19XXYK01 REFRIGERATOR – Common Parts &amp; Diagrams

1

WPW10468555 Whirlpool Refrigerator Track In Stock WPL WPW10468555 $6.84

2

2187762 Whirlpool Refrigerator Power Cord Backorder WPL 2187762 $49.54

2

WPW10468557 Whirlpool Refrigerator Crisper Dr Backorder WPL WPW10468557 $16.78

2

TRIM, DOOR SHELF WPL W10469909 Contact Us For Availability

3

WPW10300065 Whirlpool Refrigerator Door Hinge In Stock WPL WPW10300065 $8.29

3

WPW10342567 Whirlpool Refrigerator Condenser Backorder WPL WPW10342567 $158.22

3

WPW10468556 Whirlpool Refrigerator Track In Stock WPL WPW10468556 $9.28

4

W10849386 Whirlpool Refrigerator CAB Roller Backorder WPL W10849386 $43.90

4

WPW10130299 Whirlpool Refrigerator Cup In Stock WPL WPW10130299 $9.50

4

WPW10316428 Whirlpool Refrigerator Heater In Stock WPL WPW10316428 $129.44

4

WPW10352689-includeCORE Whirlpool WPW10352689 Backorder WPL WPW10352689-includeCORE $184.70

5

W10477088 Whirlpool Refrigerator Wire Shelf Backorder WPL W10477088 $76.06

5

W10883637 Whirlpool Refrigerator Hinge Shim Backorder WPL W10883637 $8.73

5

W11189115 Whirlpool Refrigerator Thimble In Stock WPL W11189115 $4.90

5

WPW10314205 Whirlpool Refrigerator Evaporator In Stock WPL WPW10314205 $145.11

5

WPW10348614 Whirlpool Refrigerator Cover Backorder WPL WPW10348614 $42.79

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

WPW10314195 Whirlpool Refrigerator Shield Backorder WPL WPW10314195 $43.04

7

HOUSING, COMPARTMENT WPL W10308809 Contact Us For Availability

8

W10314197 Whirlpool Refrigerator Bracket Backorder WPL W10314197 $8.45

8

WPW10308868 Whirlpool Refrigerator Door Bin In Stock WPL WPW10308868 $45.64

8

WPW10486290 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10486290 $112.03

9

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

9

ASSEMBLY, 16" CRISPER PAN WPL W10373936 Contact Us For Availability

W10236396 Whirlpool Refrigerator Strap In Stock WPL W10236396 $7.81

WP2315539 Whirlpool Refrigerator Evaporator F In Stock WPL WP2315539 $35.83

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

WPW10308867 Whirlpool Refrigerator Cantilever In Stock WPL WPW10308867 $44.62

ASSEMBLY, 8" CRISPER PAN WPL W10373941 Contact Us For Availability

11

W10174743 Whirlpool Refrigerator Handle Backorder WPL W10174743 $9.81

11

W11590562 Whirlpool Refrigerator Slide Backorder WPL W11590562 $8.47

11

CADDY, CAN WPL W10308845 Contact Us For Availability

12

W10316941 Whirlpool Refrigerator Control Box Backorder WPL W10316941 $36.75

12

W10349514 Whirlpool Refrigerator Air Baffle Backorder WPL W10349514 $27.52

12

WPW10308843 Whirlpool Refrigerator Door Compr Backorder WPL WPW10308843 $44.58

13

W10469910 Whirlpool Refrigerator Door Trim In Stock WPL W10469910 $64.85

13

WP3400527 Whirlpool Refrigerator Screw In Stock WPL WP3400527 $3.70

14

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

14

CAP, TRIM END (LEFT HAND) WPL W10338485 Contact Us For Availability

15

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $35.16

15

CAP, TRIM END (RIGHT HAND) WPL W10308871 Contact Us For Availability

16

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

16

WP2183852 Whirlpool Refrigerator Shim Backorder WPL WP2183852 $4.50

17

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $7.06

17

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

17

CLIP, GRILLE WPL 2189356 Contact Us For Availability

18

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $33.38

18

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

19

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

20

WPW10139483 Whirlpool Refrigerator Condenser In Stock WPL WPW10139483 $30.01

21

WPW10305175 Whirlpool Refrigerator Cover Backorder WPL WPW10305175 $50.54

22

W10466682 Whirlpool Refrigerator Tube Backorder WPL W10466682 $18.06

22

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

23

2254385 Whirlpool Refrigerator Clip Backorder WPL 2254385 $32.89

23

WPW10197428 Whirlpool Start Device In Stock WPL WPW10197428 $40.46

23

TOWER, AIR WPL W10305174 Contact Us For Availability

24

ASSEMBLY, AIR DIFFUSER WPL W10376137 Contact Us For Availability

25

W10890667 Whirlpool Refrigerator Drip Pan Backorder WPL W10890667 $58.64

25

WPW10520305 Whirlpool Refrigerator Button Plu Backorder WPL WPW10520305 $6.68

26

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

26

CUP, AIR DIFFUSER WPL W10310927 Contact Us For Availability

27

WPW10339203 Whirlpool Refrigerator Tube Cover Backorder WPL WPW10339203 $3.70

27

GRILLE (BLACK) WPL 2254388 Contact Us For Availability

28

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

29

W10850162 Whirlpool Refrigerator Orifice Backorder WPL W10850162 $11.44

30

ASSEMBLY, TOWER CONNECTION WPL W10396926 Contact Us For Availability

31

W10300161 Whirlpool Refrigerator Shield Backorder WPL W10300161 $36.05

32

W10336009 Whirlpool Refrigerator Cover Backorder WPL W10336009 $27.30

32

WP2315541 Whirlpool Refrigerator Air Baffle Backorder WPL WP2315541 $31.22

33

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

34

WPW10313917 Whirlpool Refrigerator Housing In Stock WPL WPW10313917 $35.04

35

W11190084 Whirlpool Refrigerator Drain Tube In Stock WPL W11190084 $22.36

35

W11661565 Whirlpool Refrigerator Socket In Stock WPL W11661565 $12.19

36

W11518235 Whirlpool LED Light In Stock WPL W11518235 $13.01

36

HEAT-PROBE Backorder WPL W11807361 $12.17

37

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

37

WPW10313918 Whirlpool Refrigerator Light Lens Backorder WPL WPW10313918 $34.50

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

8212473 Whirlpool Refrigerator Touch Up Paint In Stock WPL 8212473 $8.69

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

W11729596 Whirlpool Ice Maker Field Install K In Stock WPL W11729596 $105.37

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

KIT, DOOR REVERSAL WPL W10395148 Contact Us For Availability

VALVE, ACCESS WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2") WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability
