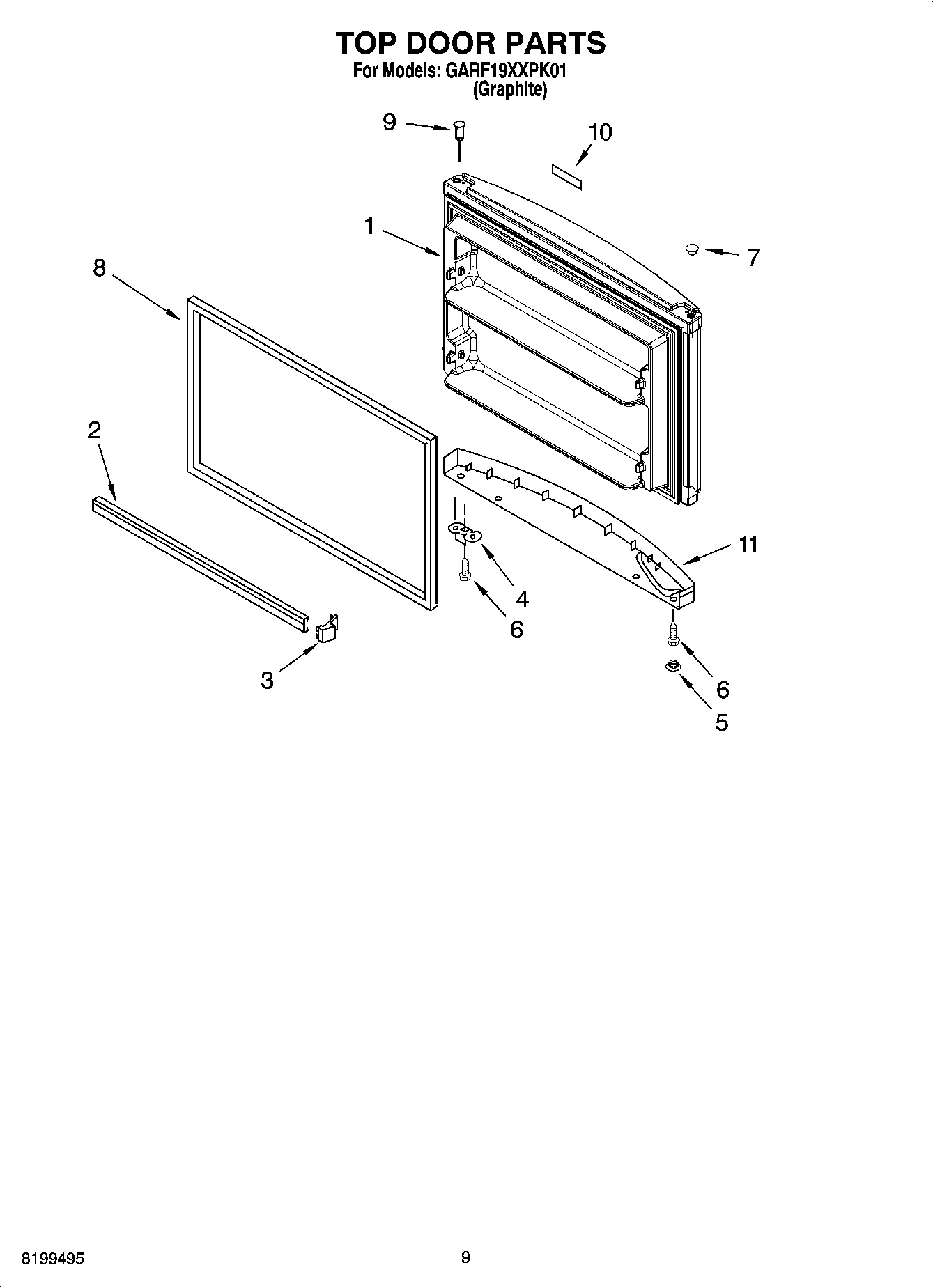

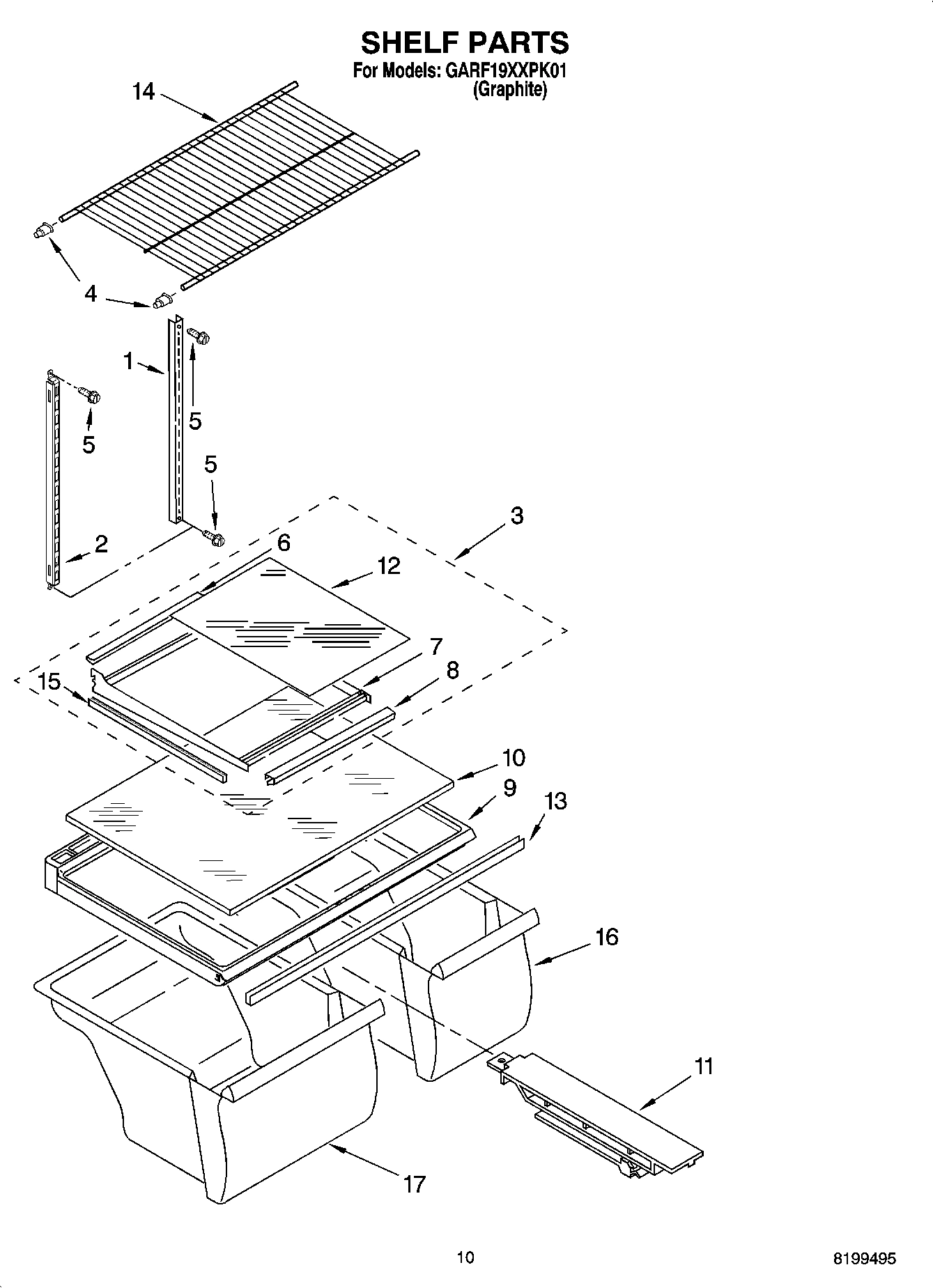

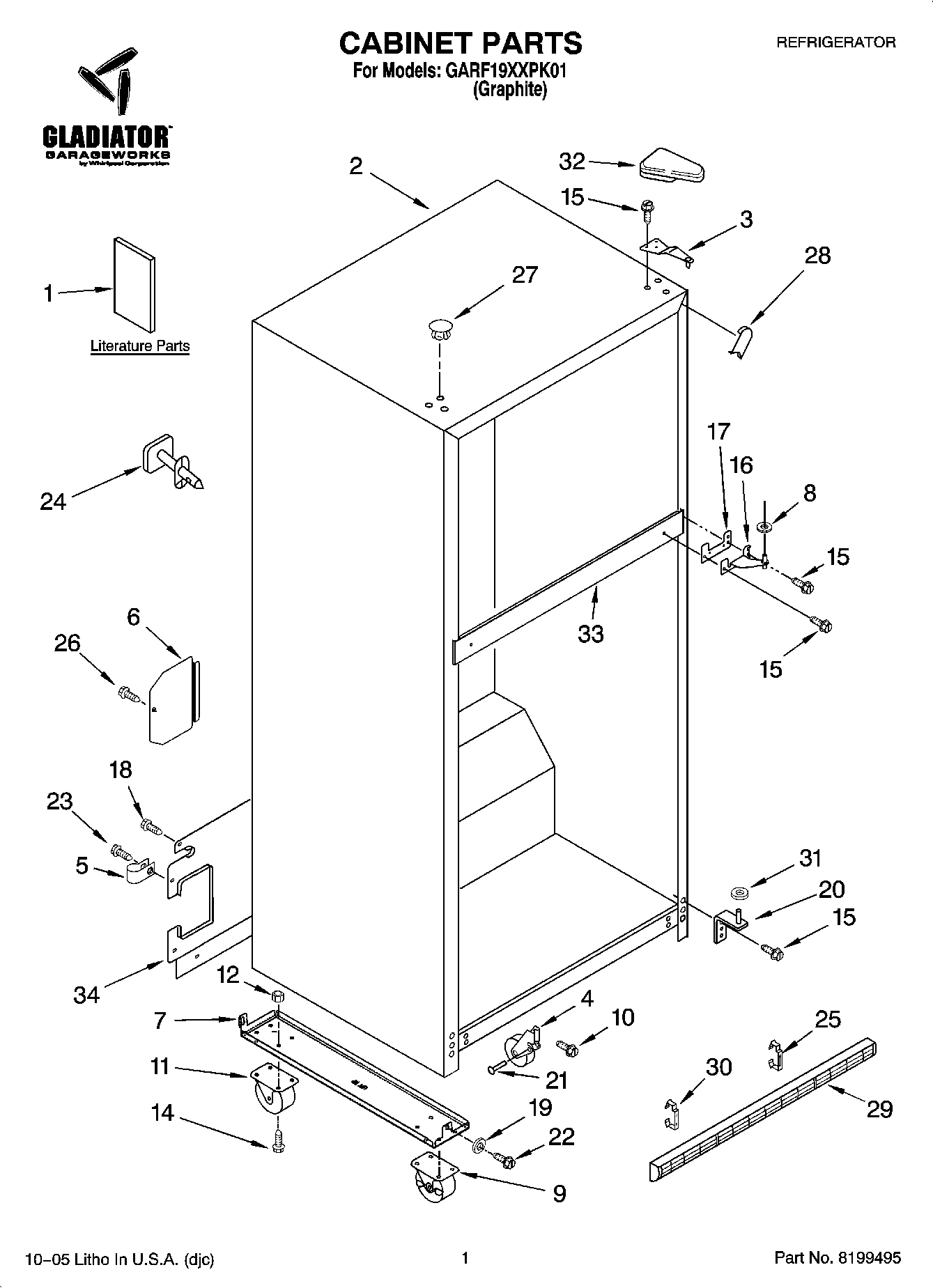

Model Whirlpool GARF19XXPK01 REFRIGERATOR – Common Parts &amp; Diagrams

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

Brush Touch-up Kit (Graphite) WPL 80051 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

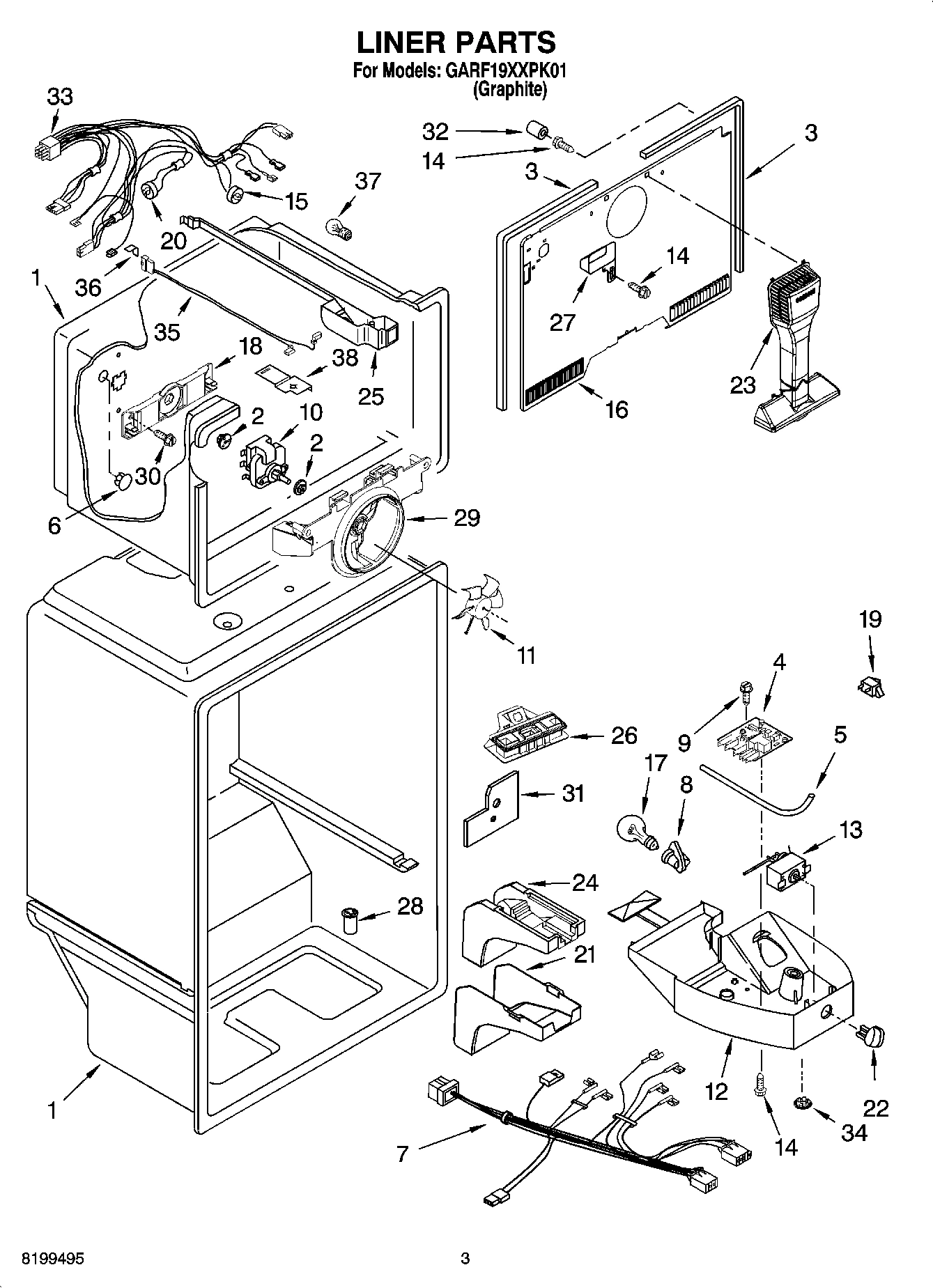

Liner (Not A Serviceable Part) WPL ARI58081A8 Contact Us For Availability

2

2187762 Whirlpool Refrigerator Power Cord Backorder WPL 2187762 $47.18

2

WP2159312 Whirlpool Refrigerator Door Trim Backorder WPL WP2159312 $41.05

2

WP2264462 Whirlpool Refrigerator Grommet In Stock WPL WP2264462 $16.25

3

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $134.98

3

WP2254360 Whirlpool Refrigerator Gasket In Stock WPL WP2254360 $8.67

3

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $41.10

3

Tray, Door WPL 2159302 Contact Us For Availability

3

Shelf, Cantilever (Complete) WPL 2201107K Contact Us For Availability

4

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

4

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

4

WP2315531 Whirlpool Refrigerator Heater In Stock WPL WP2315531 $55.60

5

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

5

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

6

Cover, Water Valve WPL 2166251 Contact Us For Availability

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

Bracket, Caster (Left) WPL 2253155 Contact Us For Availability

7

Bracket, Caster (Right) WPL 2253156 Contact Us For Availability

7

Wire Assembly, Control Box WPL 2187876 Contact Us For Availability

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

8

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

8

Trim, Shelf Front WPL 2188684 Contact Us For Availability

9

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

9

WP2253168 Whirlpool Refrigerator Caster Backorder WPL WP2253168 $69.05

9

Screw WPL 8534009 Contact Us For Availability

10

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

10

WPW10189703 Whirlpool Refrigerator Evaporator In Stock WPL WPW10189703 $35.77

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

WP2163835 Whirlpool Track Assembly In Stock WPL WP2163835 $11.91

WP2253169 Whirlpool Refrigerator Caster Backorder WPL WP2253169 $49.36

Bin, Door (4) WPL 2204811 Contact Us For Availability

12

WP8533952 Whirlpool Refrigerator Nut Backorder WPL WP8533952 $29.43

12

Control Box WPL 2218380 Contact Us For Availability

13

Thermostat Assy. WPL 2254102 Contact Us For Availability

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $69.61

WP3400527 Whirlpool Refrigerator Screw In Stock WPL WP3400527 $3.70

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

15

2254101 Whirlpool Refrigerator Bimetallic Def Backorder WPL 2254101 $32.26

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

16

W10856580 Whirlpool Crisper Pan In Stock WPL W10856580 $90.63

16

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $25.07

16

Cover-Evaporator WPL 2254257 Contact Us For Availability

17

W10854037 Whirlpool Refrigerator Crisper Pan In Stock WPL W10854037 $89.14

17

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $7.06

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

18

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $31.79

18

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

18

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

19

Clip, Heater WPL 2182338 Contact Us For Availability

19

Lock Washer WPL 8533956 Contact Us For Availability

20

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

20

WP2321800 Whirlpool Refrigerator Bimetallic D In Stock WPL WP2321800 $28.85

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

22

3400241 Whirlpool Screw Backorder WPL 3400241 $9.13

22

WP2202885 Whirlpool Refrigerator Thermal Knob Backorder WPL WP2202885 $8.88

22

Support Block WPL 2201184 Contact Us For Availability

23

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $51.48

23

Start-Device Combination (Start Relay and Ove WPL 2302351 Contact Us For Availability

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

24

Fitting, Water Tube (Not Serviced) WPL ARI58079A3 Contact Us For Availability

25

2254385 Whirlpool Refrigerator Clip Backorder WPL 2254385 $31.31

25

Housing Base WPL 2300417 Contact Us For Availability

26

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

26

Air Separator Assembly WPL 2210390 Contact Us For Availability

27

Cover, Hole WPL 2205003 Contact Us For Availability

27

Hole Plug (6) WPL 2204835 Contact Us For Availability

28

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

28

Corner Filler (2) WPL 2204843 Contact Us For Availability

29

BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability

29

Grille (Includes Illus. 25 & 30) WPL 2254390 Contact Us For Availability

30

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

30

CLIP, GRILLE WPL 2189356 Contact Us For Availability

31

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

31

Shield, heat WPL 2204639 Contact Us For Availability

32

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

32

Cover, Hinge WPL 2213388 Contact Us For Availability

33

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

33

Rail Center (Not Serviced) WPL ARI58080A2 Contact Us For Availability

33

Wire Assembly, Freezer Compartment (Includes WPL 2310044 Contact Us For Availability

34

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

34

WP2189475 Whirlpool Refrigerator Unit Cover Backorder WPL WP2189475 $68.24

35

Wiring Harness, Freezer Light WPL 2187601 Contact Us For Availability

36

Bi-metal WPL 2253201 Contact Us For Availability

36

Gasket, Rear WPL 2166284 Contact Us For Availability

37

2205533 Whirlpool Refrigerator Tube Backorder WPL 2205533 $28.80

37

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $5.98

38

Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
