Model Maytag G37026FEAS1 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - FREEZER LINER PARTS

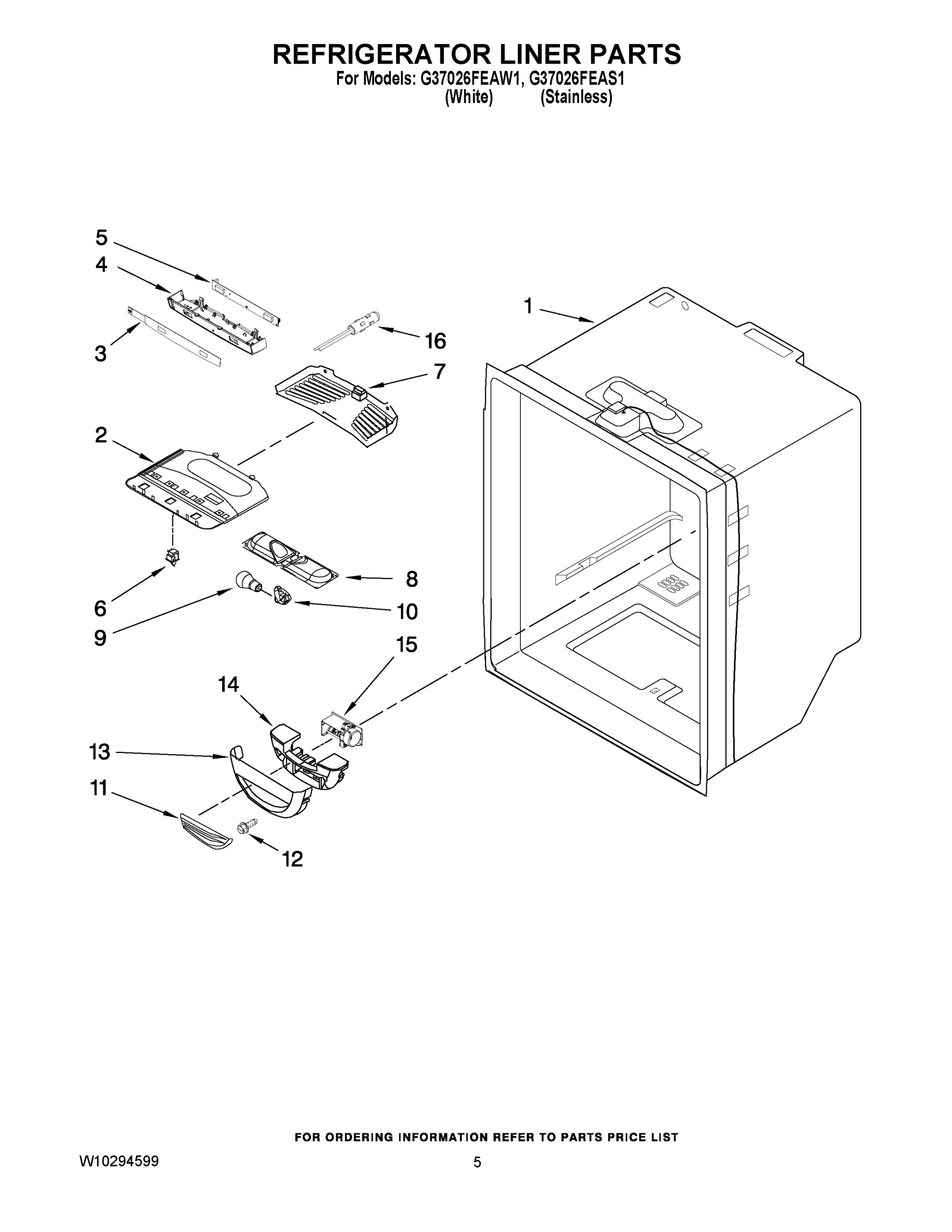

03 - REFRIGERATOR LINER PARTS

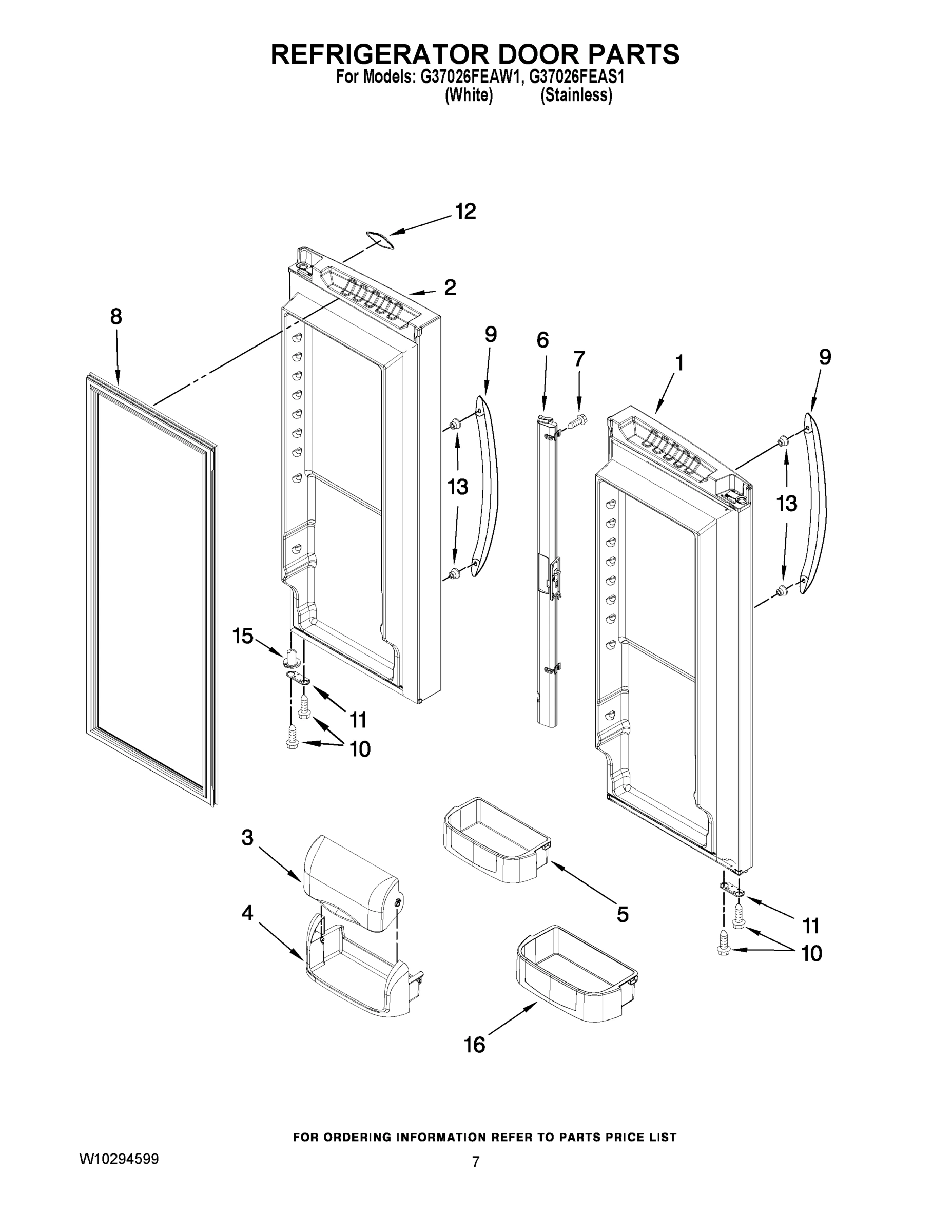

04 - REFRIGERATOR DOOR PARTS

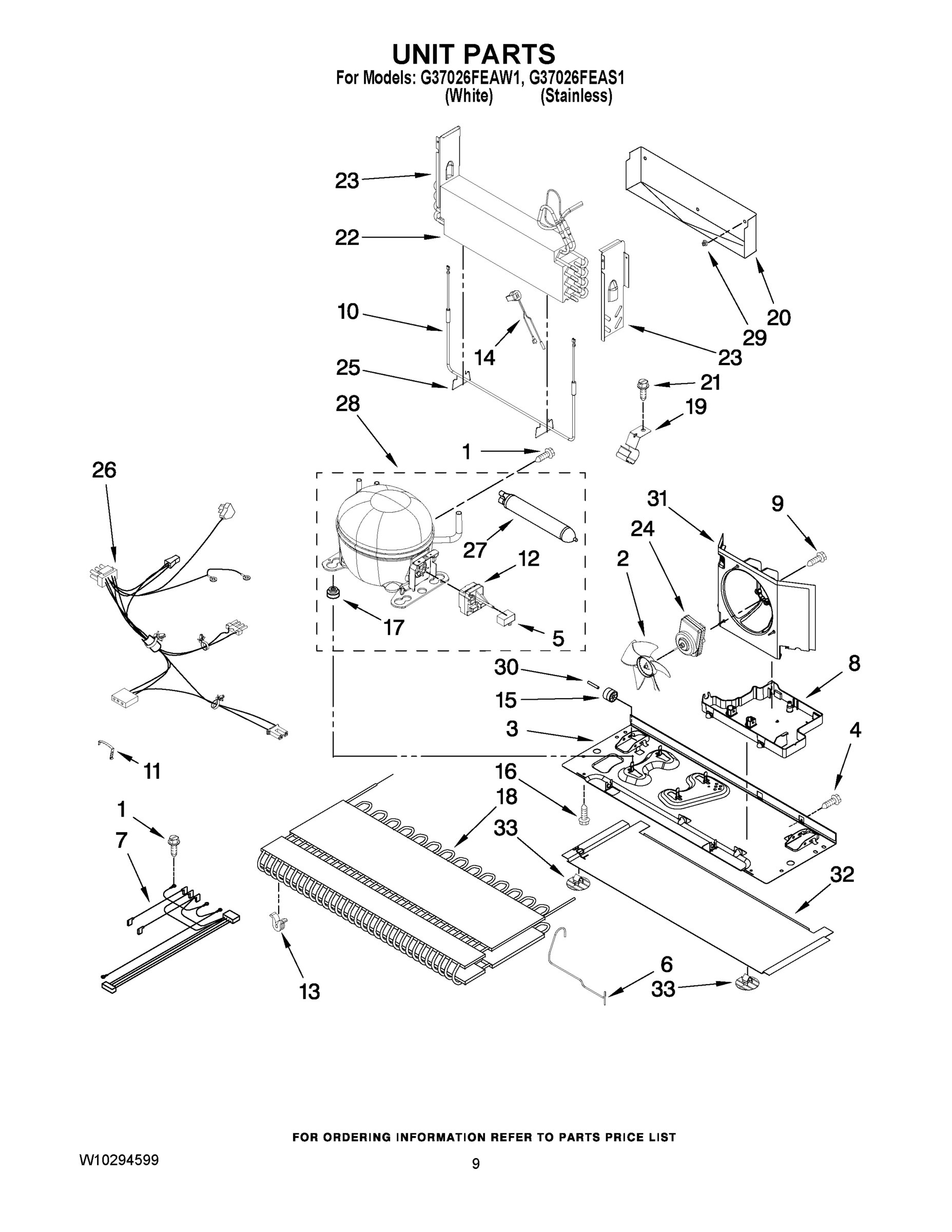

05 - UNIT PARTS

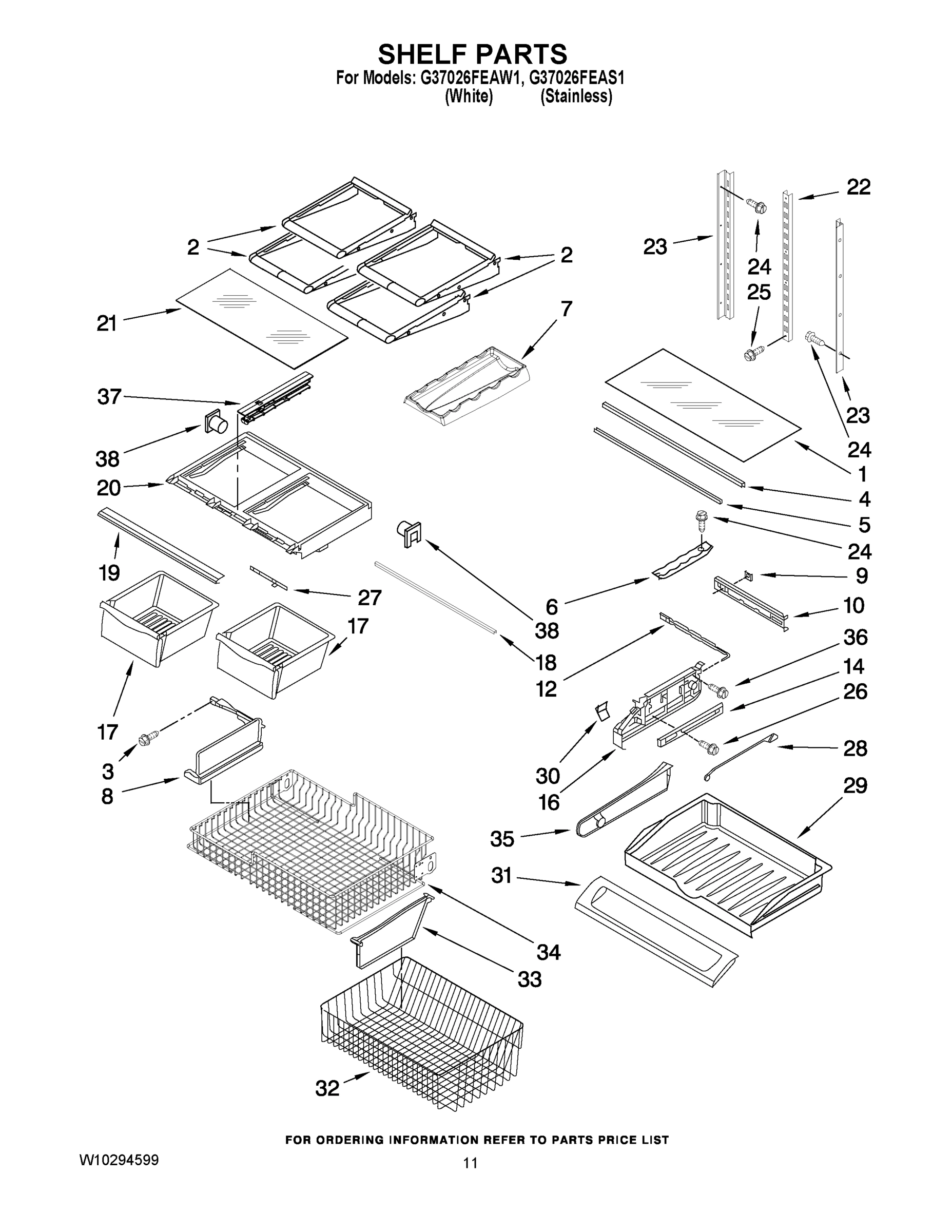

06 - SHELF PARTS

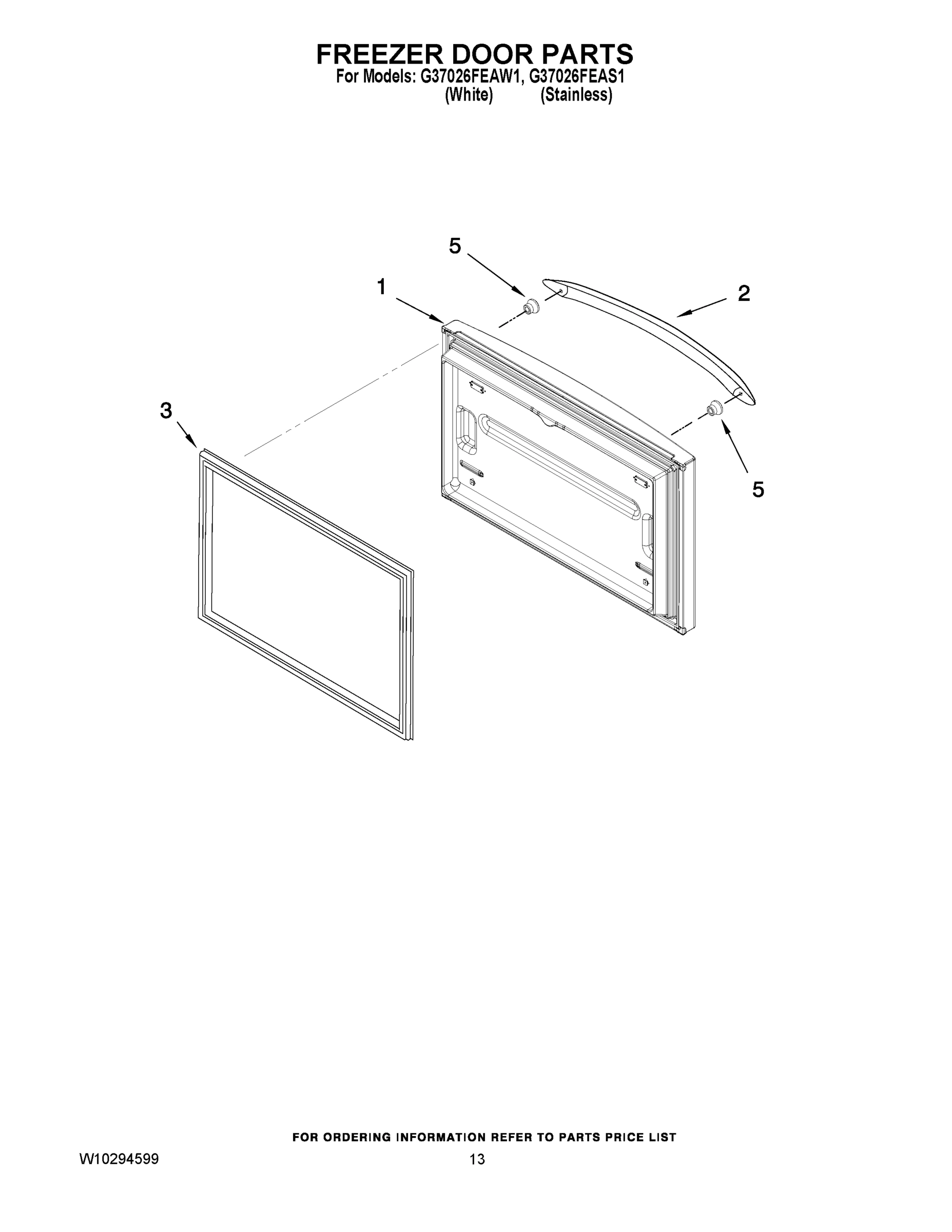

07 - FREEZER DOOR PARTS

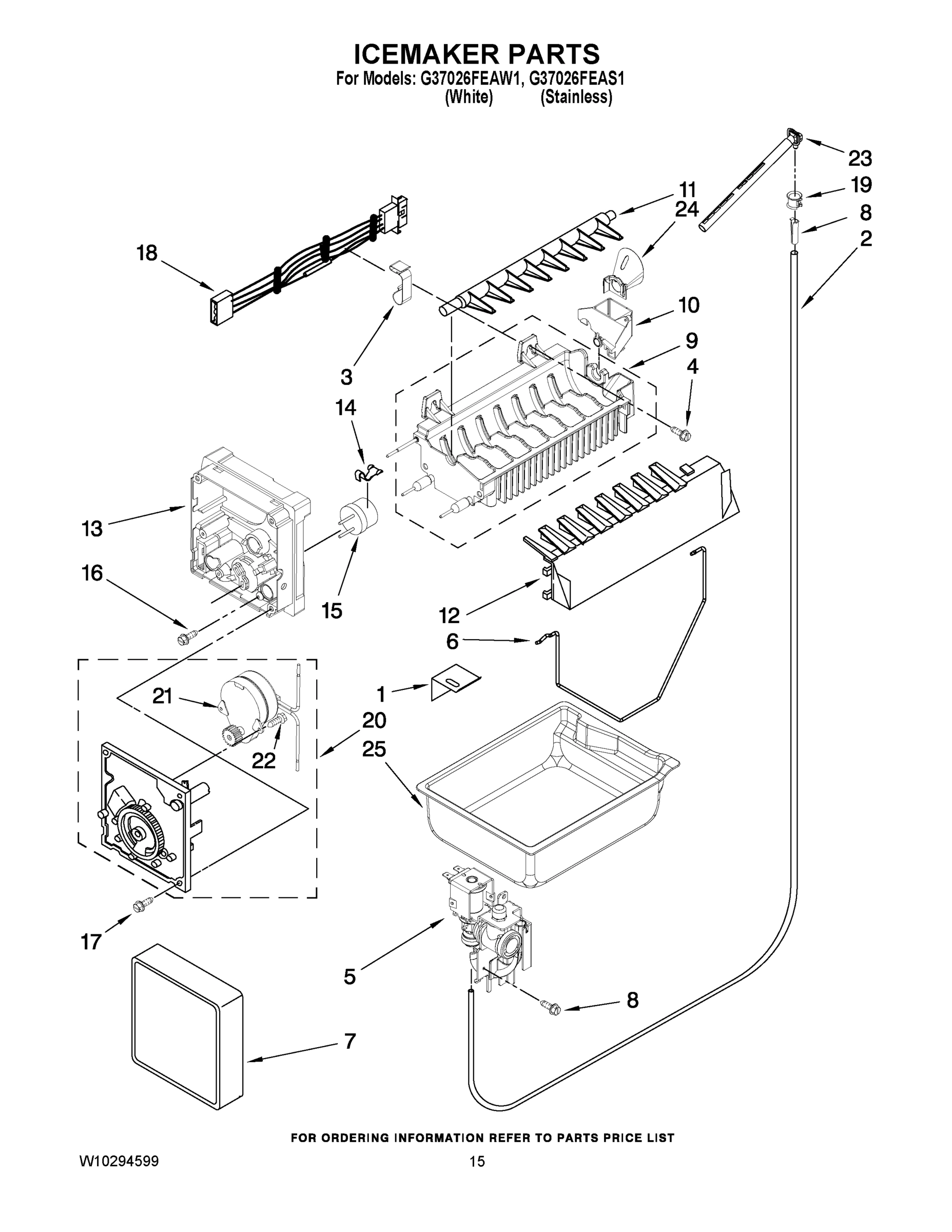

08 - ICEMAKER PARTS
09 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag G37026FEAS1 REFRIGERATOR
1
MAY 12732427WQ MAY 12732427WQ Contact Us For Availability
1
MAY 13024032SQ MAY 13024032SQ Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
GLASS, PANTRY MAY 12204824 Contact Us For Availability
1
FREEZER DOOR (WHITE) MAY 13092203WQ Contact Us For Availability
1
MAY 13092214SQ MAY 13092214SQ Contact Us For Availability
1
Bracket, Ice Maker MAY 2256087 Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
MAY 12806302 MAY 12806302 Contact Us For Availability
2
MAY 13024017WQ MAY 13024017WQ Contact Us For Availability
2
MAY 13024031SQ MAY 13024031SQ Contact Us For Availability
2
HANDLE (WHITE) MAY W10179171 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
SHELF, GLIDE OUT MAY 12654610 Contact Us For Availability
2
MAY 12850918 MAY 12850918 Contact Us For Availability
2
MAY B5705333SP MAY B5705333SP Contact Us For Availability
3
MAY 12816517 MAY 12816517 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10210985 MAY W10210985 Contact Us For Availability
3
MAY 12990601 MAY 12990601 Contact Us For Availability
3
MAY W10164040 MAY W10164040 Contact Us For Availability
3
MAY W10164041 MAY W10164041 Contact Us For Availability
3
CLAMP MAY M0108107 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY 12804901 MAY 12804901 Contact Us For Availability
4
MAY 12990504 MAY 12990504 Contact Us For Availability
4
MAY 12806406 MAY 12806406 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY 12655902SP MAY 12655902SP Contact Us For Availability
5
SHAFT MAY 12812903WD Contact Us For Availability
5
MAY 12868515 MAY 12868515 Contact Us For Availability
5
MAY 12557212 MAY 12557212 Contact Us For Availability
5
CAPACITOR MAY 2321245 Contact Us For Availability
5
MAY 12227305WD MAY 12227305WD Contact Us For Availability
5
MAY W10158153 MAY W10158153 Contact Us For Availability
6
SWITCH, LIGHT (2) MAY C3680310V Contact Us For Availability
6
MAY 12722811BKV MAY 12722811BKV Contact Us For Availability
6
MAY 12722811WKV MAY 12722811WKV Contact Us For Availability
6
MAY W10217747 MAY W10217747 Contact Us For Availability
6
TRACK, PANTRY MAY 12531901 Contact Us For Availability
6
ARM, SHUTOFF MAY 12868001 Contact Us For Availability
7
GUARD-WATER VALVE MAY W10208592 Contact Us For Availability
7
MAY 12932103 MAY 12932103 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
MAY 12990204 MAY 12990204 Contact Us For Availability
7
HARNESS, EVAP. HEATER MAY W10280429 Contact Us For Availability
7
TRIVET-WINE MAY 12525101 Contact Us For Availability
7
MAY 12582501 MAY 12582501 Contact Us For Availability
8
MAY W10216614 MAY W10216614 Contact Us For Availability
8
Screw (8) MAY 12990521 Contact Us For Availability
8
MAY 12806601V MAY 12806601V Contact Us For Availability
8
Gasket, Door (2) (White) MAY W10163894 Contact Us For Availability
8
MAY W10163895 MAY W10163895 Contact Us For Availability
8
MAY W10215085 MAY W10215085 Contact Us For Availability
8
Divider, Upper Basket MAY 12693802 Contact Us For Availability
8
MAY A3223101SP MAY A3223101SP Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
BULB, LIGHT (2) MAY A0282808V Contact Us For Availability
9
HANDLE, DOOR (STAINLESS-EURO) MAY 12850919 Contact Us For Availability
9
HANDLE, DOOR (WHITE-RIGHT) MAY W10179168 Contact Us For Availability
9
SCREW MAY W10216919 Contact Us For Availability
9
MAY 12656901 MAY 12656901 Contact Us For Availability
9
MAY W10122523 MAY W10122523 Contact Us For Availability
10
SOCKET, LIGHT (2) MAY W10134764V Contact Us For Availability
10
MAY 12476401V MAY 12476401V Contact Us For Availability
10
MAY 12729132 MAY 12729132 Contact Us For Availability
10
MAY 12656202 MAY 12656202 Contact Us For Availability
10
CUP, WATER FILL MAY 628515 Contact Us For Availability
11
SCREW (6) MAY 12992201 Contact Us For Availability
11
MAY 12226114 MAY 12226114 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY 12968202B MAY 12968202B Contact Us For Availability
11
MAY 12968202W MAY 12968202W Contact Us For Availability
11
STRAP, BALE MAY 2302129 Contact Us For Availability
11
MAY 627843 MAY 627843 Contact Us For Availability
12
Screw (2) MAY 12990604 Contact Us For Availability
12
Nameplate MAY 66981-5 Contact Us For Availability
12
START DEVICE MAY 2312007 Contact Us For Availability
12
SLIDE, TEMPERATURE MAY 12655402 Contact Us For Availability
12
ICE STRIPPER MAY W10122563 Contact Us For Availability
13
MAY 12684201BSP MAY 12684201BSP Contact Us For Availability
13
MAY 12684201WSP MAY 12684201WSP Contact Us For Availability
13
BRACKET, DOOR (LEFT) MAY W10122147 Contact Us For Availability
13
BRACKET, DOOR (RIGHT) MAY W10122148 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
GROMMET, COND (4) MAY W10137529 Contact Us For Availability
13
Support MAY 2194712 Contact Us For Availability
14
SCREW (6) MAY 12992403 Contact Us For Availability
14
MAY 12805001 MAY 12805001 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
Thermostat, Defrost MAY 12639322SP Contact Us For Availability
14
MAY 13058101V MAY 13058101V Contact Us For Availability
14
Retainer MAY 2315522 Contact Us For Availability
15
Hinge, Center (RT) (White) MAY 13000002WD Contact Us For Availability
15
HINGE, CENTER (RT) (BLACK) MAY 13000008ED Contact Us For Availability
15
Control, Damper (Incl. Harness) MAY W10177399 Contact Us For Availability
15
MAY 12028505B MAY 12028505B Contact Us For Availability
15
MAY 12028505W MAY 12028505W Contact Us For Availability
15
Roller (2) MAY 12477102 Contact Us For Availability
15
THERMOSTAT ORDER 542369 CEMENT ALUMILASTIC) MAY 2321258 Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
MAY 12699004 MAY 12699004 Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
16
ENDCAP, PANTRY (RIGHT) MAY 12656019 Contact Us For Availability
16
ENDCAP, PANTRY (LEFT) MAY 12656106 Contact Us For Availability
16
MAY W10001280 MAY W10001280 Contact Us For Availability
17
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
17
COVER, CORNER (WHITE) MAY 12587703W Contact Us For Availability
17
Grommet (4) MAY 10835903SP Contact Us For Availability
17
MAY 12804601 MAY 12804601 Contact Us For Availability
17
MAY 489464 MAY 489464 Contact Us For Availability
18
MAY 12566607ED MAY 12566607ED Contact Us For Availability
18
CRADLE, BASKET (LEFT) MAY W10280608 Contact Us For Availability
18
CRADLE, BASKET (RIGHT) MAY W10280613 Contact Us For Availability
18
MAY W10135026 MAY W10135026 Contact Us For Availability
18
Brace, Crisper MAY 12642303WD Contact Us For Availability
18
MAY 12975112 MAY 12975112 Contact Us For Availability
19
ROLLER ASSY.(RIGHT) MAY W10275849 Contact Us For Availability
19
ROLLER ASSY.(LEFT) MAY W10275850 Contact Us For Availability
19
SLIDE, DRAWER (2) MAY W10120018 Contact Us For Availability
19
MAY 10547003 MAY 10547003 Contact Us For Availability
19
MAY W10231344 MAY W10231344 Contact Us For Availability
19
MAY M0114003SP MAY M0114003SP Contact Us For Availability
20
MAY 12991302 MAY 12991302 Contact Us For Availability
20
Gasket, Bottom MAY A3189397 Contact Us For Availability
20
MAY 12225403WD MAY 12225403WD Contact Us For Availability
20
MAY 12796301SP MAY 12796301SP Contact Us For Availability
20
MODULE ASSEMBLY (INCLUDES ITEMS 21& 22) MAY W10122522 Contact Us For Availability
21
MAY 12579702 MAY 12579702 Contact Us For Availability
21
MAY W10128118 MAY W10128118 Contact Us For Availability
21
MAY W10128119 MAY W10128119 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
GLASS, CRISPER COVER MAY 12204830 Contact Us For Availability
21
MAY 2321277 MAY 2321277 Contact Us For Availability
22
MAY W10244559 MAY W10244559 Contact Us For Availability
22
MAY W10244561 MAY W10244561 Contact Us For Availability
22
Grille, Fz Air MAY 13024803 Contact Us For Availability
22
MAY 12726403 MAY 12726403 Contact Us For Availability
22
MAY W10273463 MAY W10273463 Contact Us For Availability
22
MAY W10001240 MAY W10001240 Contact Us For Availability
23
SHROUD, EVAP.FAN MAY 13057901 Contact Us For Availability
23
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
23
Dam (Right Side) MAY 12225702 Contact Us For Availability
23
MAY W10251971 MAY W10251971 Contact Us For Availability
23
MAY W10137519 MAY W10137519 Contact Us For Availability
24
Hinge, Center (LT) (White) MAY 13000001WD Contact Us For Availability
24
HINGE, CENTER (LT) (BLACK) MAY 13000007ED Contact Us For Availability
24
Blade, Fan (Evaporator) MAY 2169142 Contact Us For Availability
24
MAY 12825102 MAY 12825102 Contact Us For Availability
24
Screw (6) MAY 12990513 Contact Us For Availability
24
MAY 12918001 MAY 12918001 Contact Us For Availability
25
MAY W10121318 MAY W10121318 Contact Us For Availability
25
MAY 12990515 MAY 12990515 Contact Us For Availability
25
MAY 12695001 MAY 12695001 Contact Us For Availability
26
MAY 10449516 MAY 10449516 Contact Us For Availability
26
HARNESS, UNIT WITH POWER CORD MAY W10273559 Contact Us For Availability
26
Screw (4) MAY 12990512 Contact Us For Availability
27
MAY D7753903 MAY D7753903 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
27
MAY 12530805SP MAY 12530805SP Contact Us For Availability
28
SCREW (2) MAY 12990303 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
MAY W10223234 MAY W10223234 Contact Us For Availability
28
ROD, TEMPERATURE CONTROL MAY 12655304 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
29
Gasket MAY B8381501 Contact Us For Availability
29
MAY 12731302 MAY 12731302 Contact Us For Availability
30
MAY W10212541 MAY W10212541 Contact Us For Availability
30
Axle, Roller (2) MAY 12477202 Contact Us For Availability
30
MAY 12655204V MAY 12655204V Contact Us For Availability
31
MAY W10210988 MAY W10210988 Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
31
MAY 12656816 MAY 12656816 Contact Us For Availability
32
Screw (6) MAY 12990501 Contact Us For Availability
32
EXTENSION, BASEPAN MAY W10206338 Contact Us For Availability
32
MAY 13016003 MAY 13016003 Contact Us For Availability
33
Insulation, Sound MAY 12820505 Contact Us For Availability
33
MAY 12991603V MAY 12991603V Contact Us For Availability
33
MAY W10206339 MAY W10206339 Contact Us For Availability
33
Divider, Lower Basket MAY 12659608 Contact Us For Availability
34
Foot, Brake MAY 10354002 Contact Us For Availability
34
MAY 12896403 MAY 12896403 Contact Us For Availability
35
MAY 12684202B MAY 12684202B Contact Us For Availability
35
MAY 12684202W MAY 12684202W Contact Us For Availability
35
DIVIDER, PANTRY DRAWER MAY 12731901 Contact Us For Availability
37
RAIL-CRISPER-CENTR MAY 12796401 Contact Us For Availability
38
SUPPORT-CRISPER MAY 13062602 Contact Us For Availability
100
COMPLETE ICE MAKER MAY W10190972 Contact Us For Availability
NI
REFRIGERANT CHARGE (5.25 OZS. (R-134A)) MAY N/P Contact Us For Availability
NI
MAY 13065802 MAY 13065802 Contact Us For Availability
NI
MAY 12973603 MAY 12973603 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
Cleaner, Stnls Steel Magic MAY 20000008 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, White (13 MAY 350930 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, Black (13 MAY 350939 Contact Us For Availability
NI
Customer Touch-Up Material (Primer, White (13 MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72032 Contact Us For Availability
NI
Refinishing Material (Enamel, Black (1 Qt. Un MAY 799340 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
MAY 876305 MAY 876305 Contact Us For Availability
NI
MAY 876370 MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
