Model Frigidaire FRU17BG4J REFRIGERATOR – Common Parts & Diagrams
01 - COVER
03 - DOOR

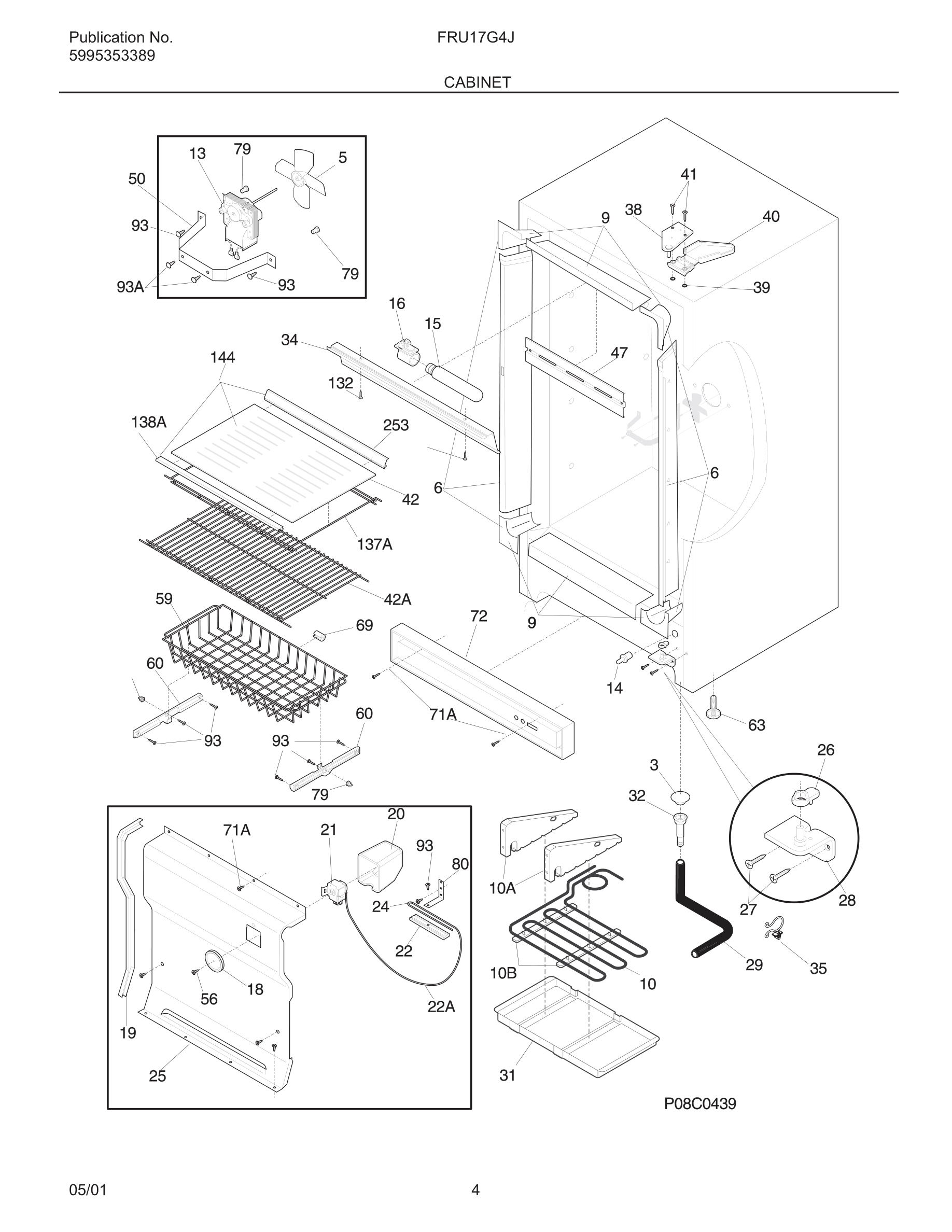

05 - CABINET
07 - SYSTEM
Common parts from model Frigidaire FRU17BG4J REFRIGERATOR
*
Insulation,drain tube WCI 09948773 Contact Us For Availability
*
Sleeve-tube insert WCI 216502500 Contact Us For Availability
5#
Harness-main WCI 216722200 Contact Us For Availability
5*
Thermostat-heater WCI 216703900 Contact Us For Availability
13
Door Stop WCI 08016354 Contact Us For Availability
14A#
Heater-internal WCI 216730500 Contact Us For Availability
16#
Socket-light/lamp WCI 5300136117 Contact Us For Availability
18
Insulator-evap,styrofoam WCI 216727600 Contact Us For Availability
19
Gasket,evap cover WCI 216204900 Contact Us For Availability
19
Insulator-evap,styrofoam WCI 216727700 Contact Us For Availability
21
Control-temperature WCI 216717900 Contact Us For Availability
24
Bracket WCI 08016580 Contact Us For Availability
26
Ramp,closer ,door WCI 216503300 Contact Us For Availability
28
Hinge-bottom WCI 216247400 Contact Us For Availability
29
Hose-drain WCI 216313503 Contact Us For Availability
29#
Compressor,w/ electricals WCI 216681000 Contact Us For Availability
30
Starter WCI 216681100 Contact Us For Availability
31
Pan-drain WCI 216732400 Contact Us For Availability
31
Overload Protector WCI 216100118 Contact Us For Availability
32
Valve-breather WCI 5309950074 Contact Us For Availability
34
Sleeve-compressor WCI 5306594529 Contact Us For Availability
34
Shield-light WCI 216557600 Contact Us For Availability
35
Screw,Ind hex sems ,1/4-28 unfx ,compressor WCI 5303272328 Contact Us For Availability
37
Trim-handle,2.47" ,white ,w/chrome band WCI 215870619 Contact Us For Availability
38
Hinge-upper WCI 5303925086 Contact Us For Availability
39
Nut-insert,hinge WCI 5303294372 Contact Us For Availability
40
Cover-hinge WCI 5303212912 Contact Us For Availability
41
Screw-top hinge WCI 5303212937 Contact Us For Availability
42
Glass-,fixed ,full width WCI 216781700 Contact Us For Availability
42A
Shelf,12.50x27.88 ,white WCI 216458200 Contact Us For Availability
43
Clip,cord WCI 09950610 Contact Us For Availability
50
Bracket-motor mtg fan WCI 216394000 Contact Us For Availability
53
Cover terminal,cover-comp term WCI 216347800 Contact Us For Availability
56
Screw-control knob,phillips ,4-40 x 3/8 WCI 09950853 Contact Us For Availability
59
Basket,(2) WCI 216372800 Contact Us For Availability
64
Plug-button,base door WCI 216403700 Contact Us For Availability
72
Shelf,tilt out ,wire WCI 216514100 Contact Us For Availability
72
Grille/Kickplate,white WCI 216174000 Contact Us For Availability
80
Bracket,control WCI 06594601 Contact Us For Availability
87
Screw WCI 08037849 Contact Us For Availability
93A
Screw WCI 5303302760 Contact Us For Availability
130
Support-evaporator WCI 216730400 Contact Us For Availability
132
Screw,6-20AB x 3/8 WCI 5303283898 Contact Us For Availability
137A
Frame,fixed ,full width WCI 216781600 Contact Us For Availability
138A
Trim-cantilever/fixed shelf,24.21" ,glass,fro WCI 216492200 Contact Us For Availability
144
Shelf-assy,fixed,glass ,complete WCI 216781500 Contact Us For Availability
208
Screw,AB ,8-18x.500 WCI 216504500 Contact Us For Availability
253
Trim-cantilever/fixed shelf,24.21" ,rear WCI 216492300 Contact Us For Availability
× ![]()
