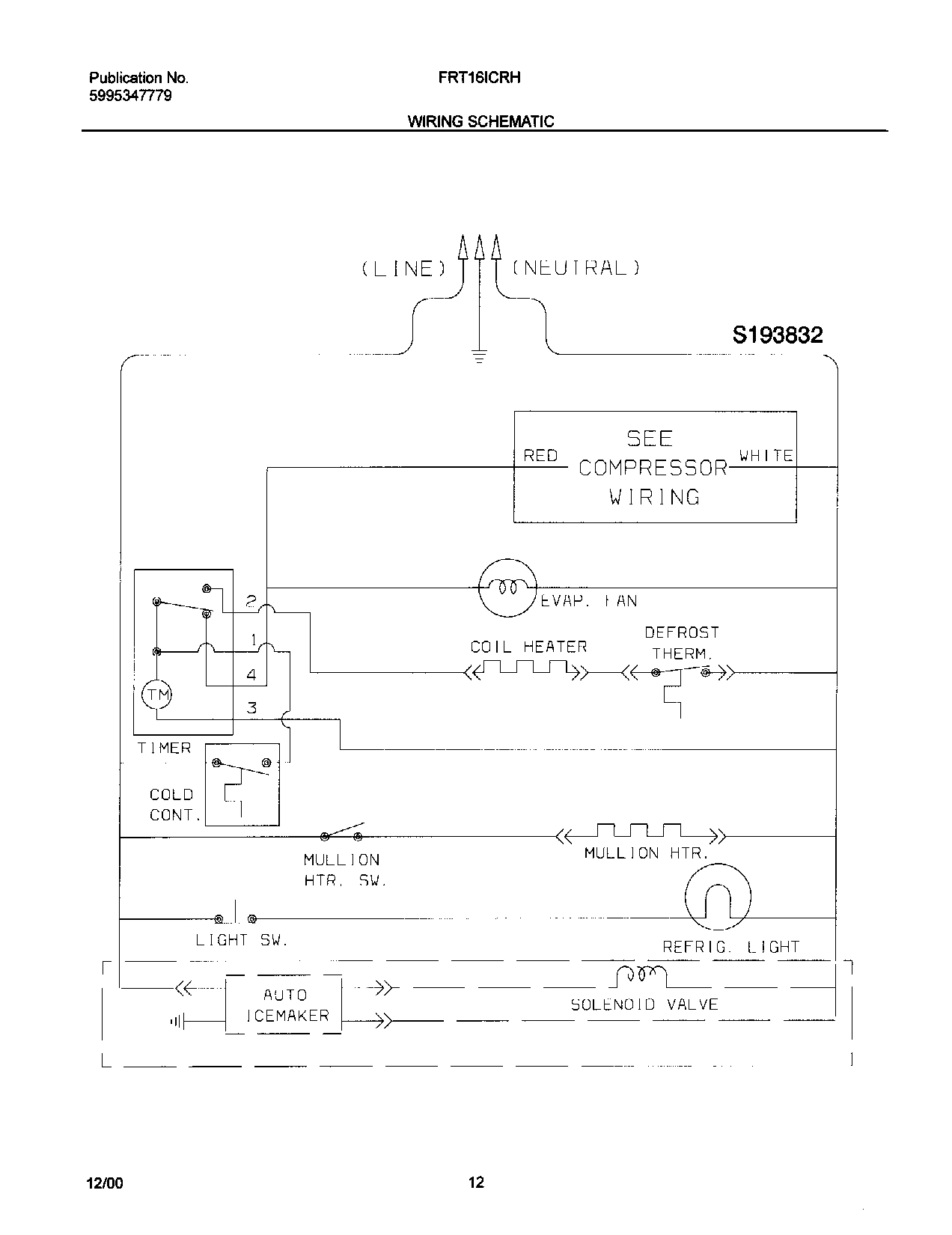

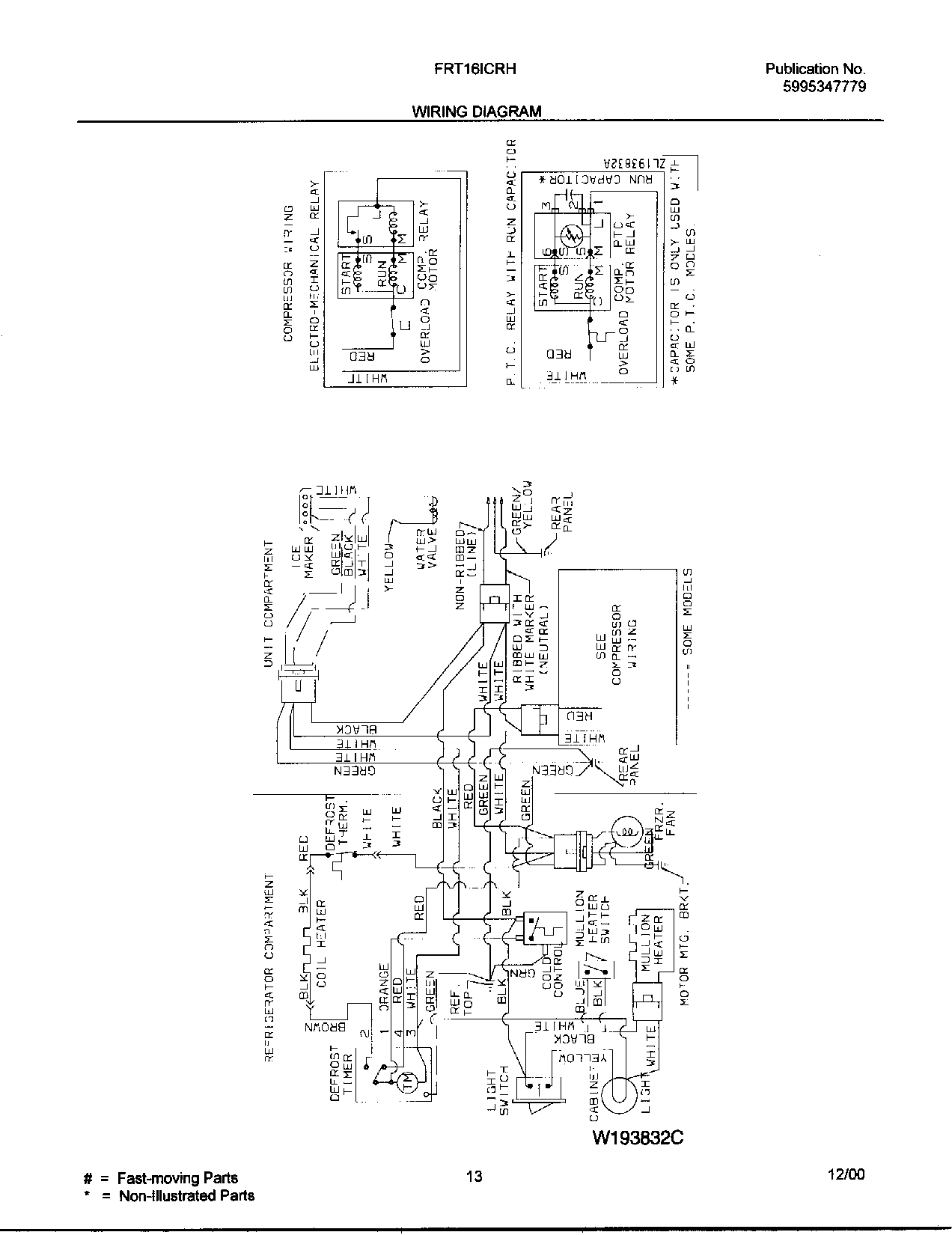

Model Electrolux FRT16ICRHY4 REFRIGERATOR – Common Parts &amp; Diagrams

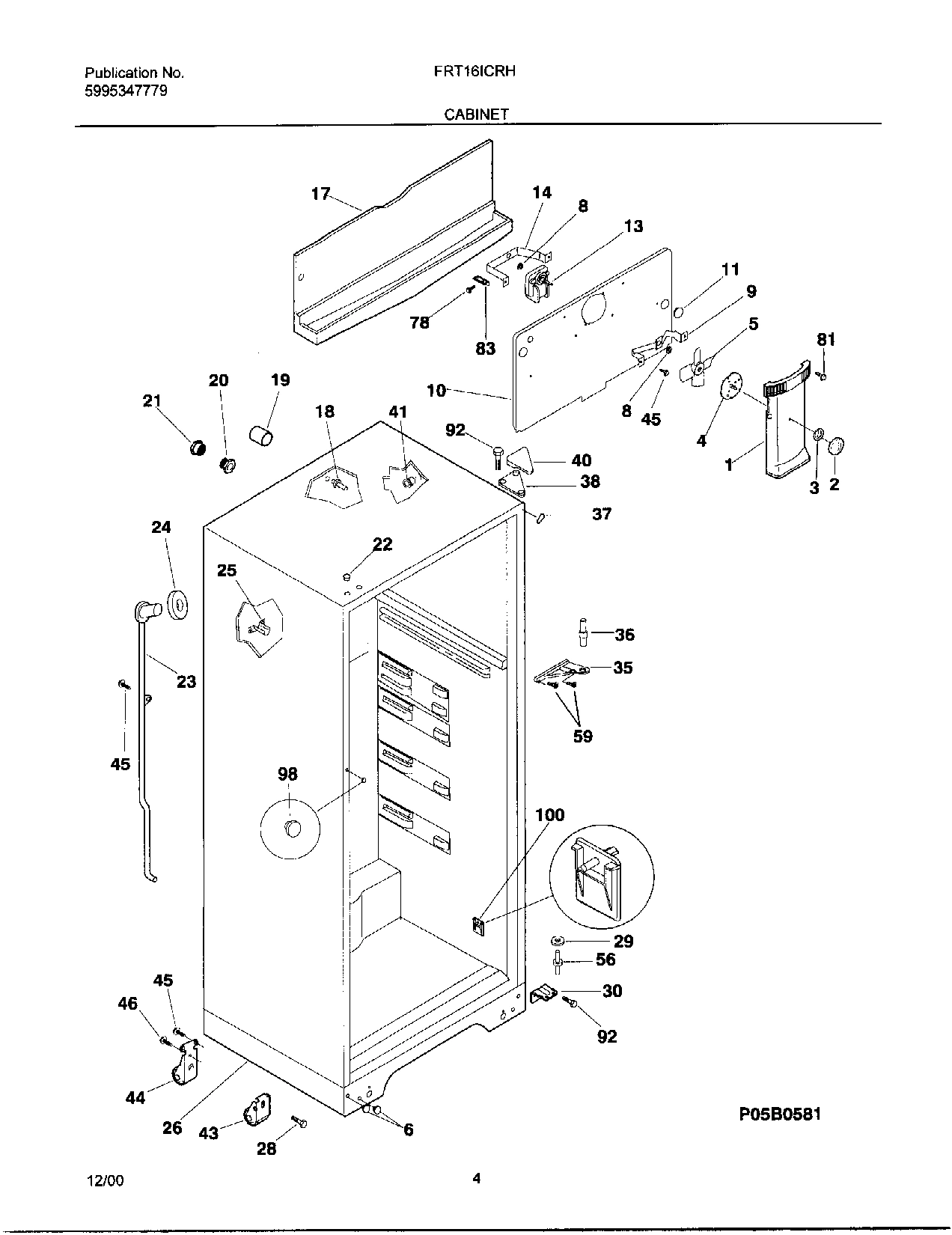

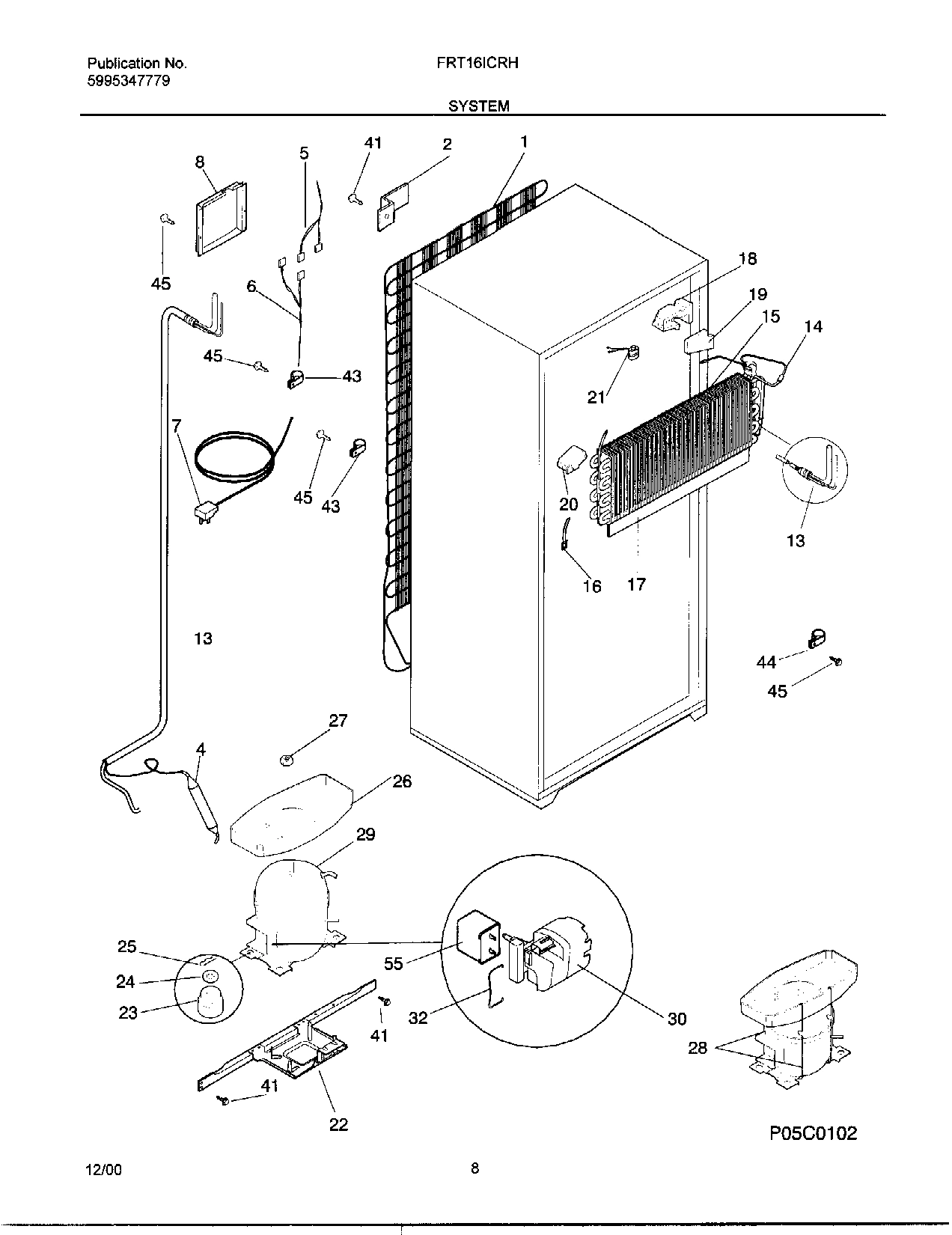

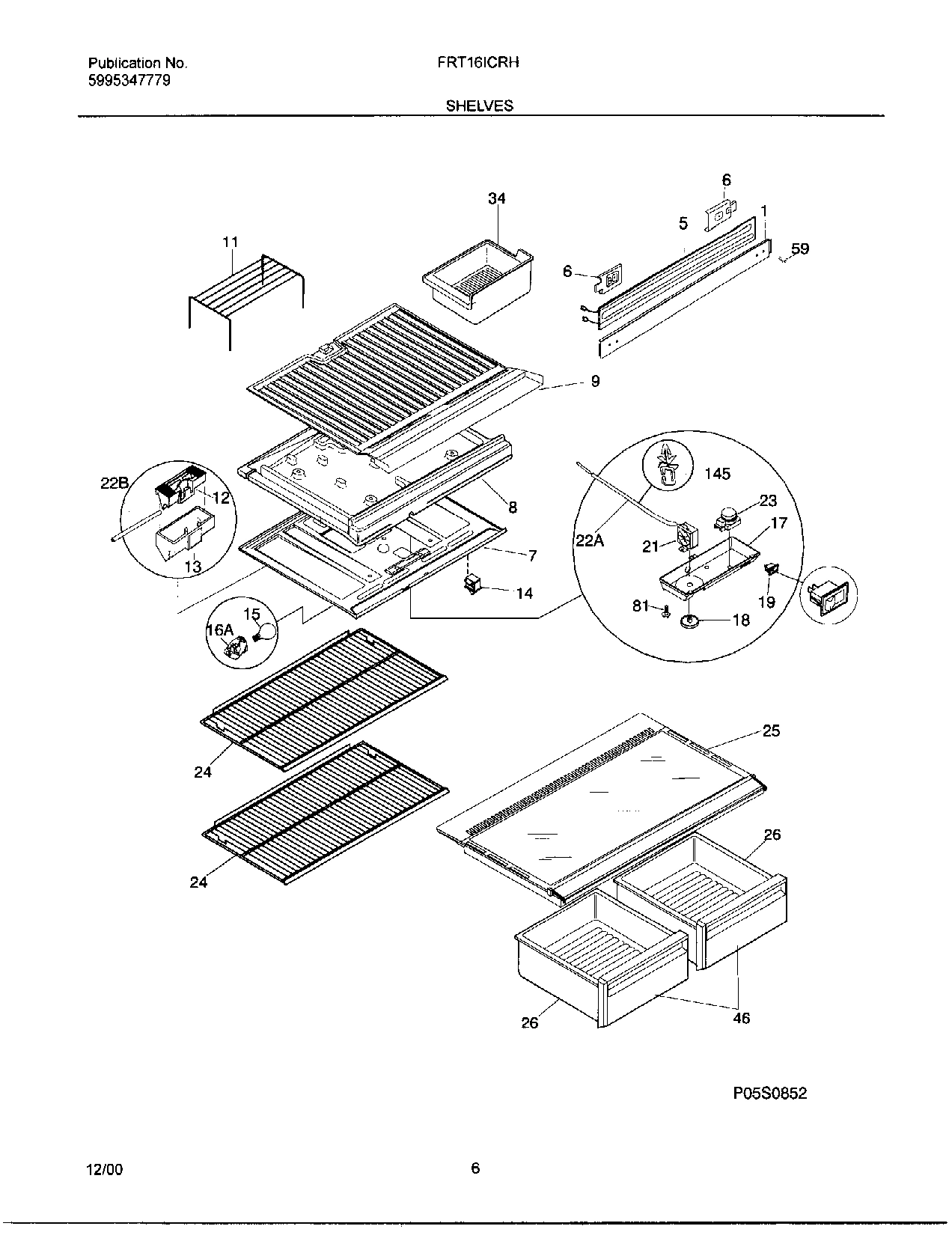

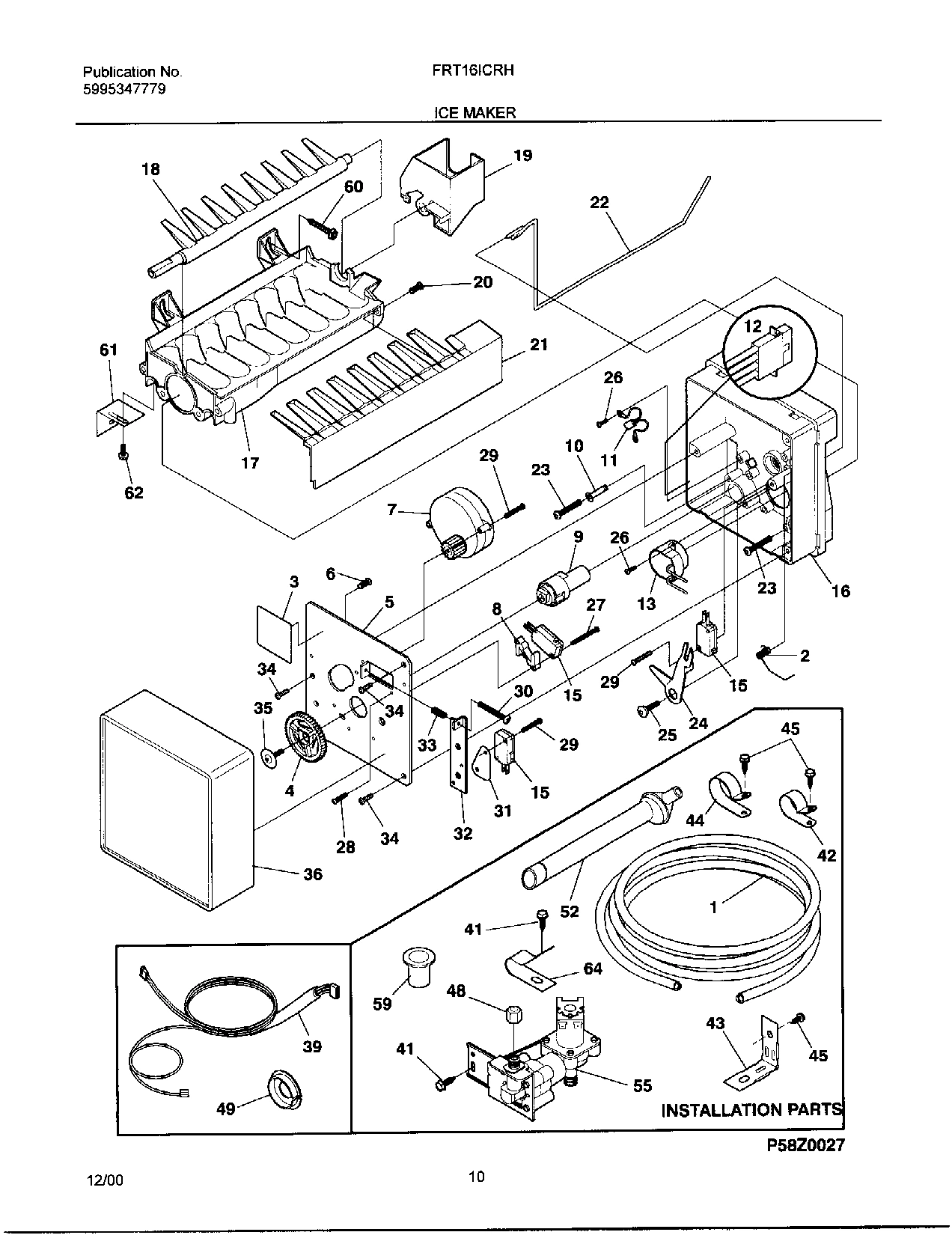

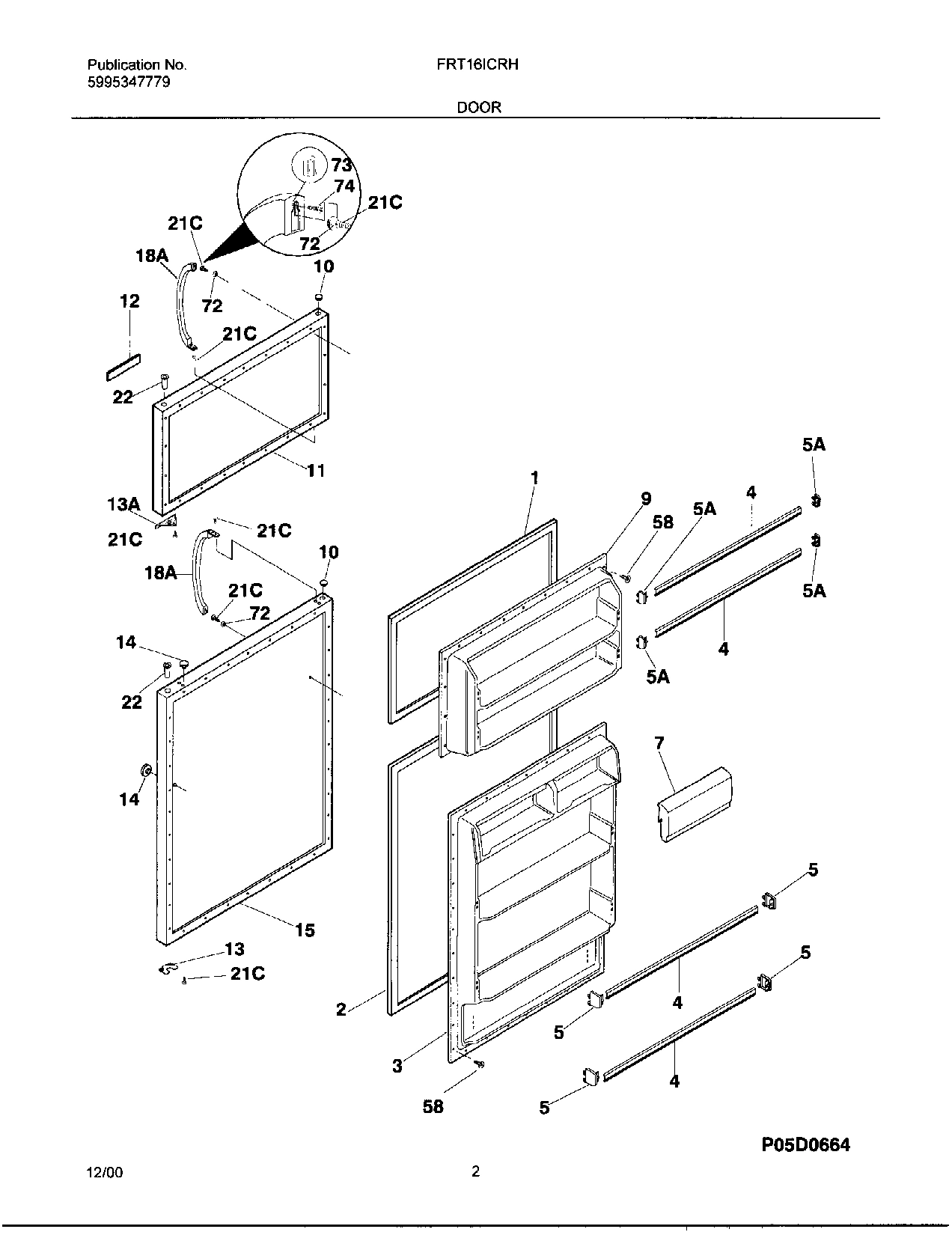

1

GASKET-FRZR DOOR, WHITE, MAGNETIC WCI 5308007123 Contact Us For Availability

1

WCI 218491000 WCI 218491000 Contact Us For Availability

2

Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability

2

WCI 3206348 WCI 3206348 Contact Us For Availability

3

Label,ID plate WCI 3206299 Contact Us For Availability

4

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $18.59

4

5304469403 Frigidaire Gear Backorder WCI 5304469403 $12.74

5

215267701 Frigidaire Refrigerator White Door In Stock WCI 215267701 $2.35

5

WCI 218781004 WCI 218781004 Contact Us For Availability

5

WCI 218878500 WCI 218878500 Contact Us For Availability

5

WCI 3206303 WCI 3206303 Contact Us For Availability

6

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.79

6

PLUG-BUTTON, ALMOND WCI 5303001389 Contact Us For Availability

6

WIRING HARNESS,COMPRESSOR WCI 215257001 Contact Us For Availability

7

WCI 218287801 WCI 218287801 Contact Us For Availability

7

CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability

8

WCI 5303001197 WCI 5303001197 Contact Us For Availability

8

SPACER-HOLD SWITCH WCI 3206312 Contact Us For Availability

9

WCI 3206313 WCI 3206313 Contact Us For Availability

10

PLUG-BUTTON, ALMOND, HINGE BRG HOLE WCI 5303001308 Contact Us For Availability

10

PLUG-BUTTON, WHITE, HINGE BRG HOLE WCI 5308000134 Contact Us For Availability

10

WCI 3206315 WCI 3206315 Contact Us For Availability

11

3206319 Frigidaire Refrigerator Thermal Cut-O Backorder WCI 3206319 $31.29

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

12

WCI 218730000 WCI 218730000 Contact Us For Availability

12

WCI 218917602 WCI 218917602 Contact Us For Availability

12

WIRING HARNESS,ICE MAKER ,INTERNAL ,WITH PLUG WCI 3206349 Contact Us For Availability

13

WCI 218631001 WCI 218631001 Contact Us For Availability

13

Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability

13

WCI 215076403 WCI 215076403 Contact Us For Availability

13A

WCI 218249001 WCI 218249001 Contact Us For Availability

14

5309918806 Frigidaire Refrigerator Light Swit Backorder WCI 5309918806 $14.02

14

WCI 5308009754 WCI 5308009754 Contact Us For Availability

15

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

15

WCI 218818701 WCI 218818701 Contact Us For Availability

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

16

SUPPORT,PHENOLIC WCI 3206326 Contact Us For Availability

16A

218906802 Frigidaire Light Lamp Socket In Stock WCI 218906802 $11.32

17

241798231 Frigidaire Refrigerator Ice Maker A In Stock WCI 241798231 $63.51

17

INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability

17

WCI 5304414816 WCI 5304414816 Contact Us For Availability

18

WCI 5303311079 WCI 5303311079 Contact Us For Availability

18

WCI 218821301 WCI 218821301 Contact Us For Availability

18

EJECTOR-ICE WCI 3206328 Contact Us For Availability

18A

218428101 Frigidaire Refrigerator White Door In Stock WCI 218428101 $16.53

19

SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability

19

INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability

19

WCI 3206330 WCI 3206330 Contact Us For Availability

20

WCI 218821201 WCI 218821201 Contact Us For Availability

20

WCI 5304408581 WCI 5304408581 Contact Us For Availability

21

297216600 Frigidaire Refrigerator Defrost The In Stock WCI 297216600 $13.53

21

5304404821 Frigidaire Cold Control Thermostat In Stock WCI 5304404821 $94.62

21

ICE STRIPPER WCI 3206332 Contact Us For Availability

215774901 Frigidaire Refrigerator Button Plug In Stock WCI 215774901 $10.87

WCI 218519300 WCI 218519300 Contact Us For Availability

WCI 215774911 WCI 215774911 Contact Us For Availability

WCI 5308013663 WCI 5308013663 Contact Us For Availability

SHUT-OFF ARM WCI 3206333 Contact Us For Availability

22A

5303916855 Frigidaire Refrigerator Tube Backorder WCI 5303916855 $38.55

22B

WCI 218731104 WCI 218731104 Contact Us For Availability

215846602 Frigidaire Refrigerator 8-Hour Defr In Stock WCI 215846602 $15.34

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

WCI 5303210377 WCI 5303210377 Contact Us For Availability

WCI 5304408582 WCI 5304408582 Contact Us For Availability

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $42.12

WCI 218272502 WCI 218272502 Contact Us For Availability

WCI 5303207353 WCI 5303207353 Contact Us For Availability

WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability

25

WCI 218314101 WCI 218314101 Contact Us For Availability

25

CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability

25

SCREW,8-18 X 0.562 ,LEVER ARM/SPRT WCI 3206336 Contact Us For Availability

26

PAN - CRISPER WCI 3206180 No Longer Available

26

WCI 215372500 WCI 215372500 Contact Us For Availability

26

SCREW-THERMO/SPRT,4-24 X 0.375 ,(4) WCI 3206337 Contact Us For Availability

27

Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability

27

SCREW,4-40 X 1.000 ,HOLD SWITCH MTG ,(2) WCI 3206338 Contact Us For Availability

28

PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability

28

Screw-timing stop`4-40 x 0.375 WCI 3206339 Contact Us For Availability

29

5304478809 Frigidaire Refrigerator Compressor In Stock WCI 5304478809 $352.82

29

SCREW,4-24 X 0.750 ,(6) WCI 3206323 Contact Us For Availability

30

WCI 218721108 No Longer Available

30

SCREW-TIMING ADJ,8-32 X 1.000 WCI 3206341 Contact Us For Availability

31

WCI 3206342 WCI 3206342 Contact Us For Availability

32

218973501 Frigidaire Refrigerator Clamp Backorder WCI 218973501 $14.05

32

WCI 3206343 WCI 3206343 Contact Us For Availability

33

WCI 5304408583 WCI 5304408583 Contact Us For Availability

34

241679901 Frigidaire Refrigerator Screw Backorder WCI 241679901 $9.06

34

5303212918 Frigidaire Refrigerator Control Backorder WCI 5303212918 $61.86

35

WCI 218998901 WCI 218998901 Contact Us For Availability

35

WCI 218998902 WCI 218998902 Contact Us For Availability

35

WCI 5304408585 WCI 5304408585 Contact Us For Availability

36

218251300 Frigidaire Refrigerator Center Hing Backorder WCI 218251300 $37.63

36

COVER-ICE MAKER WCI 3206347 Contact Us For Availability

37

WCI 5303321082 WCI 5303321082 Contact Us For Availability

37

WCI 5303321081 WCI 5303321081 Contact Us For Availability

39

WIRING HARNESS,ICEMAKER ,EXTERNAL WCI 3206358 Contact Us For Availability

40

WCI 3206101 WCI 3206101 Contact Us For Availability

41

5308000039 Frigidaire Refrigerator Screw Backorder WCI 5308000039 $7.67

42

5303001193 Frigidaire Refrigerator Clamp Backorder WCI 5303001193 $10.41

43

5303001199 Frigidaire Refrigerator Wiring Har Backorder WCI 5303001199 $41.66

44

5308000133 Frigidaire Refrigerator Clamp Backorder WCI 5308000133 $7.25

45

5304455651 Frigidaire Refrigerator Screw In Stock WCI 5304455651 $8.58

46

FRONT, CRISPER PAN WCI 5303303588 Contact Us For Availability

48

NUT,7/16-20 ,NYLON WCI 5308000200 Contact Us For Availability

49

5303001147 Frigidaire Refrigerator Hole Harne Backorder WCI 5303001147 $14.26

52

215456100 Frigidaire Refrigerator Water Inlet In Stock WCI 215456100 $66.78

55

5304464438 Frigidaire Compressor Run Capacito In Stock WCI 5304464438 $14.74

55

WCI 218907301 WCI 218907301 Contact Us For Availability

59

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $4.97

59

WCI 5303001191 WCI 5303001191 Contact Us For Availability

60

218362501 Frigidaire Refrigerator Screw Backorder WCI 218362501 $7.71

61

218721500 Frigidaire Refrigerator Leveling Br Backorder WCI 218721500 $46.16

62

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

72

WCI 218397000 No Longer Available

73

218396700 Frigidaire Door Handle Mounting Blo In Stock WCI 218396700 $28.99

83

WCI 5308000107 WCI 5308000107 Contact Us For Availability

98

WCI 215099711 WCI 215099711 Contact Us For Availability

98

WCI 215099701 WCI 215099701 Contact Us For Availability

100

SUPPORT-PAN COVER WCI 5303288973 No Longer Available

145

WCI 218660800 WCI 218660800 Contact Us For Availability

218843801 Frigidaire Refrigerator Screw Backorder WCI 218843801 $8.58

5303001449 Frigidaire Refrigerator Seal Backorder WCI 5303001449 $1.35

5303307583 Frigidaire Refrigerator P1 Pad Noi In Stock WCI 5303307583 $42.57

5303918277 Frigidaire Refrigerator Ice Maker In Stock WCI 5303918277 $55.75

5304455649 Frigidaire Refrigerator Screw Backorder WCI 5304455649 $10.85

5304455852 Frigidaire Refrigerator Screw Backorder WCI 5304455852 $8.14

5304500407 Frigidaire Refrigerator Shelf Moun Backorder WCI 5304500407 $4.07

WCI 5303917276 WCI 5303917276 Contact Us For Availability

Adapter-water sply WCI 218888001 Contact Us For Availability

WCI 218905701 WCI 218905701 Contact Us For Availability

WASHER, .34 X .62 X .02, NYLON WCI 5308011326 Contact Us For Availability

CONNECTOR PLUG, WIRING HARNESS WCI 3206321 Contact Us For Availability

WCI 5303001260 WCI 5303001260 Contact Us For Availability

NUT-ANCHOR WCI 5308016567 Contact Us For Availability

SCREW,HEX HD SER WSHR ,8-18 X 0.375 WCI 218754500 Contact Us For Availability

HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability

SPACER-COND TUBE,BLACK WCI 5303208866 Contact Us For Availability

WCI 5304406721 WCI 5304406721 Contact Us For Availability

WASHER, NO. 10 STEEL, 7/32 X 7/16 OD WCI 5308003607 Contact Us For Availability

Washer,ext tooth lock ,No.10 ,grounding WCI 5308009617 Contact Us For Availability

WCI 5303015102 WCI 5303015102 Contact Us For Availability
