Model Electrolux FRT16CRHZ4 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
03 - DOOR

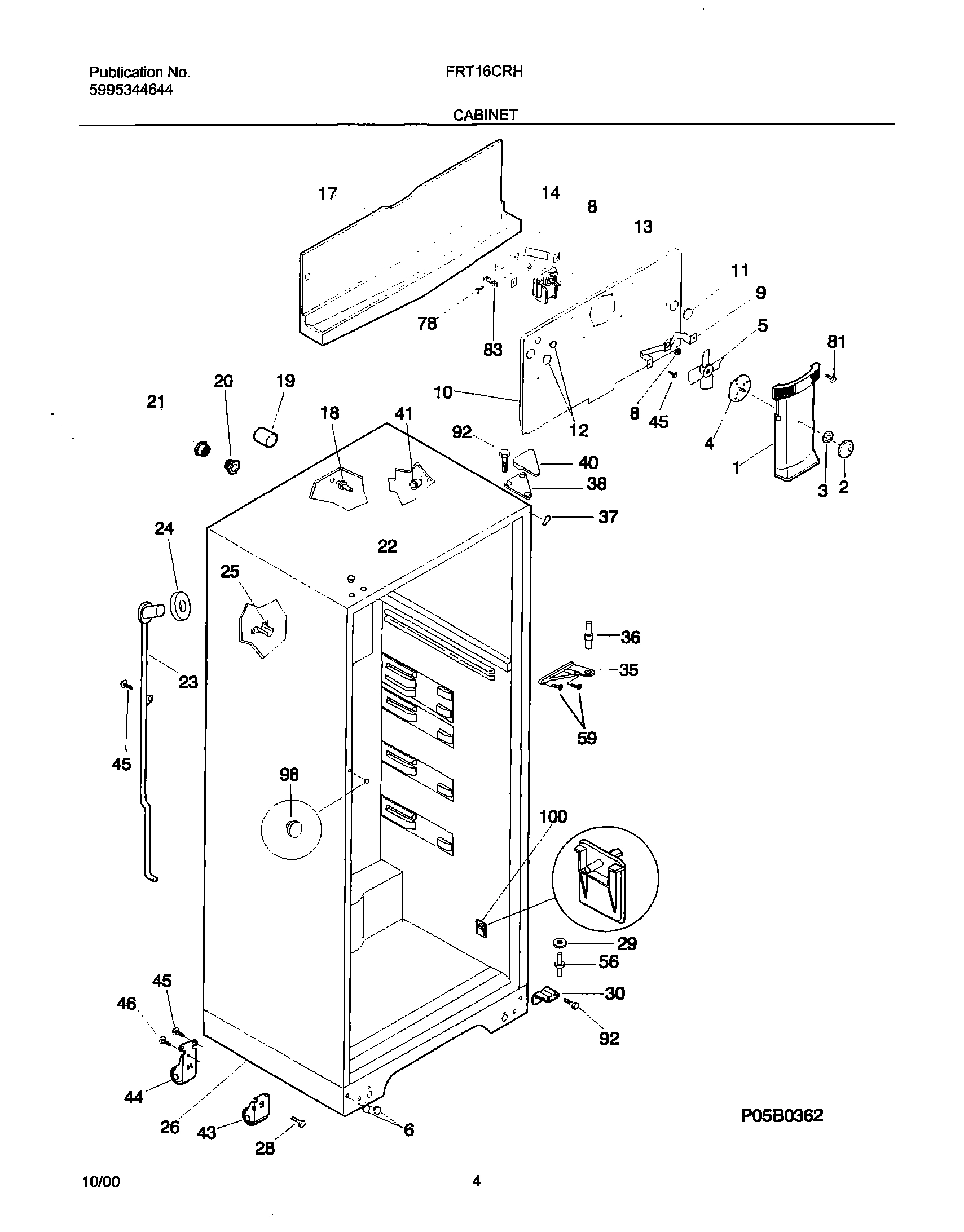

05 - CABINET

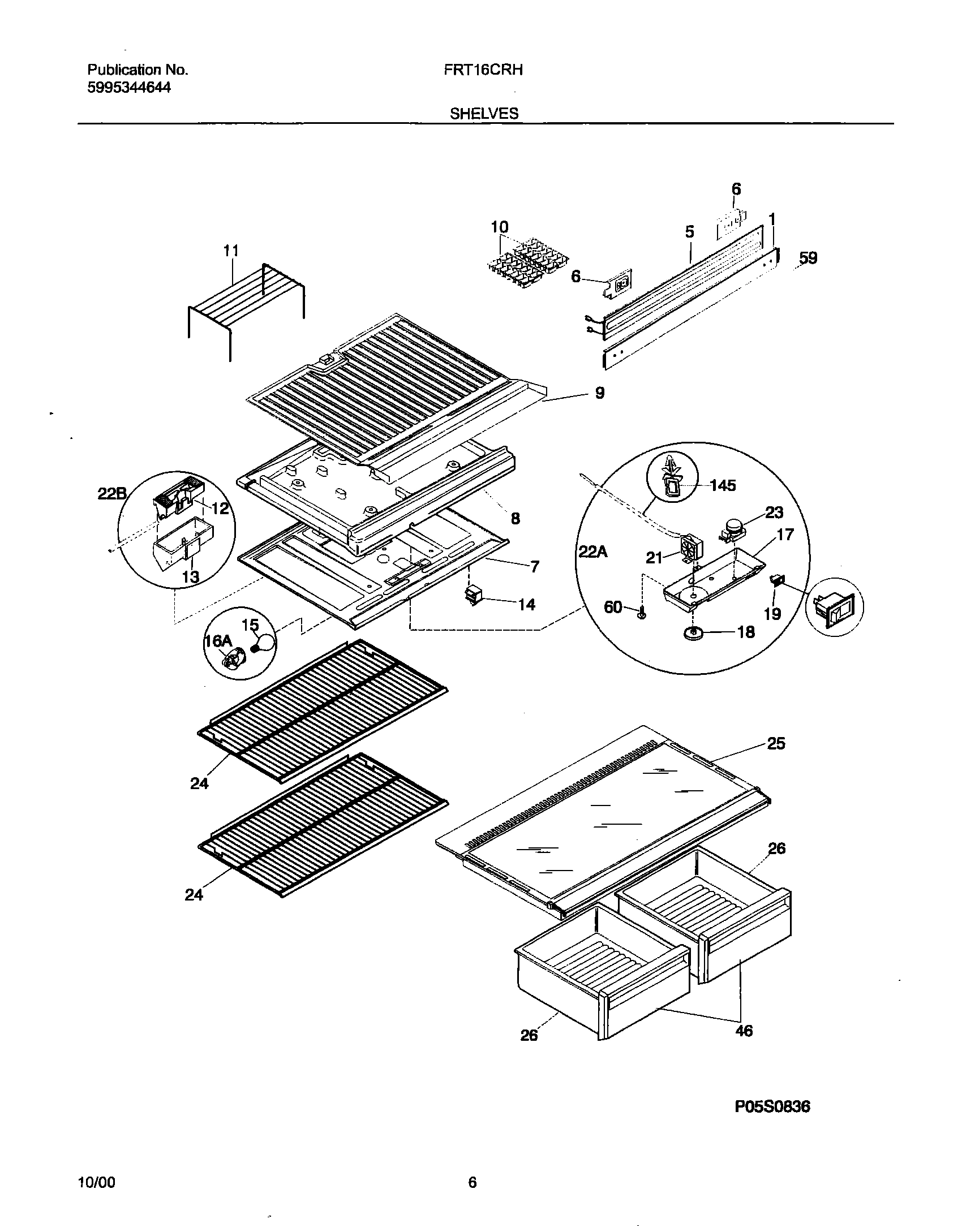

07 - SHELVES

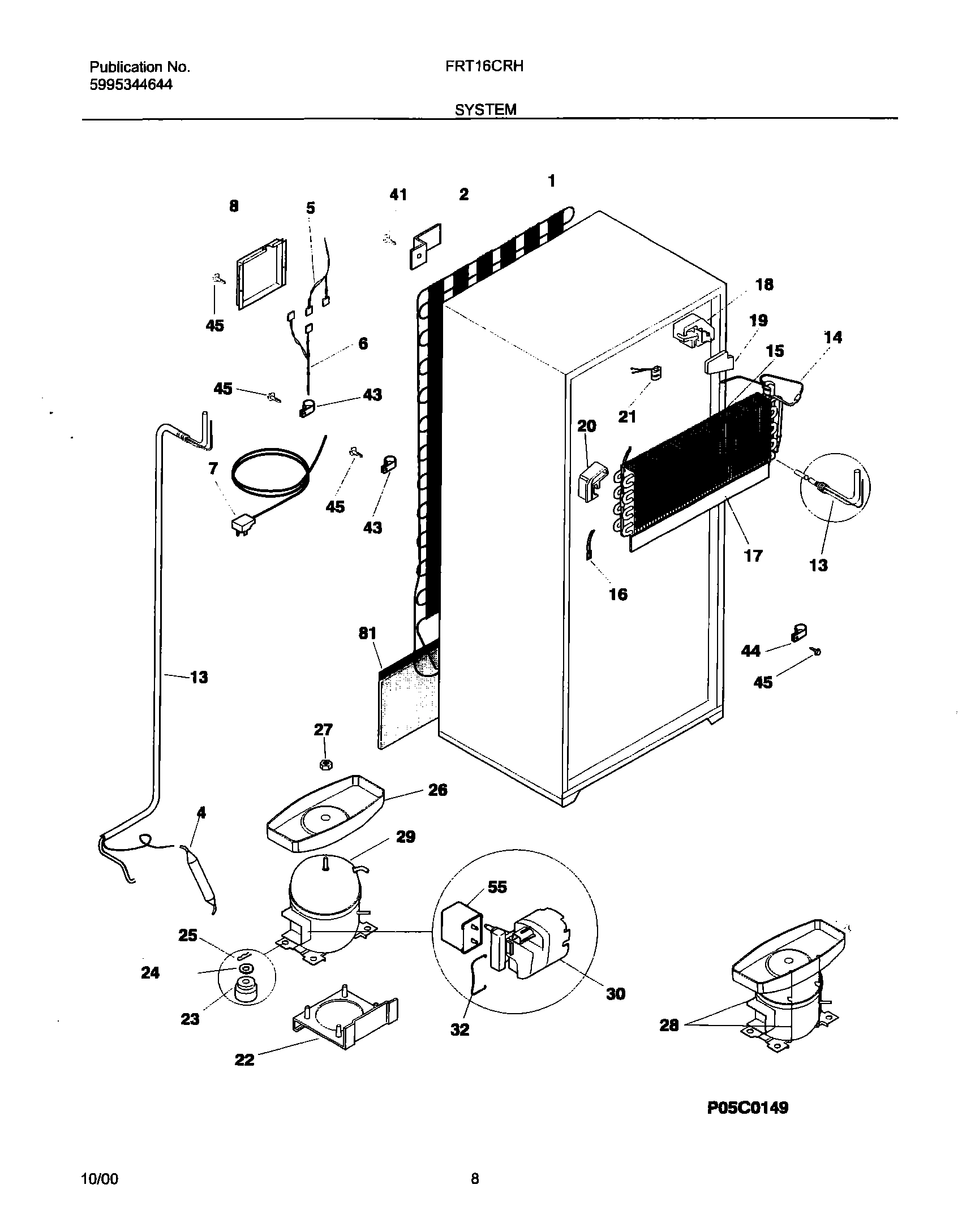

09 - SYSTEM

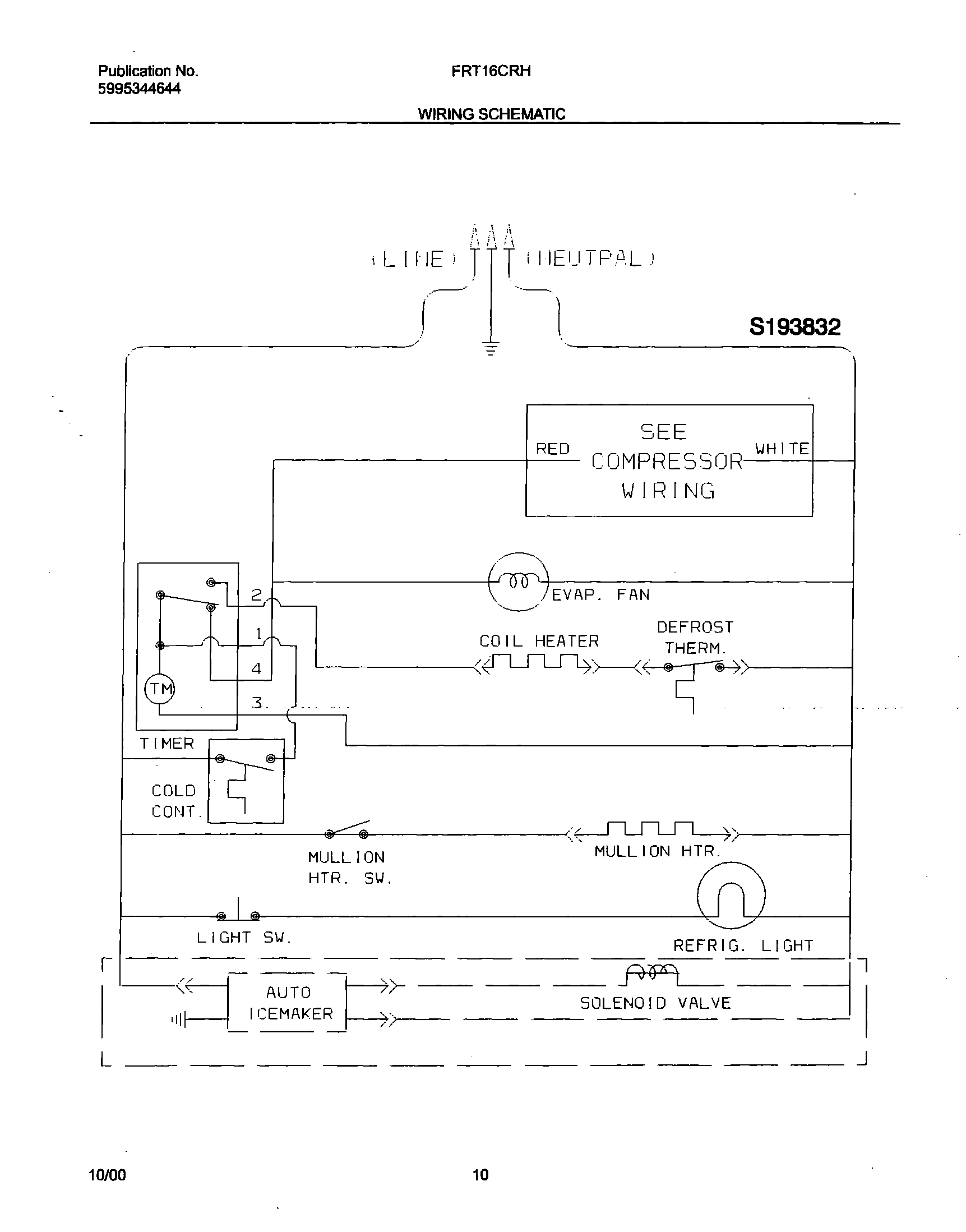

10 - WIRING SCHEMATIC

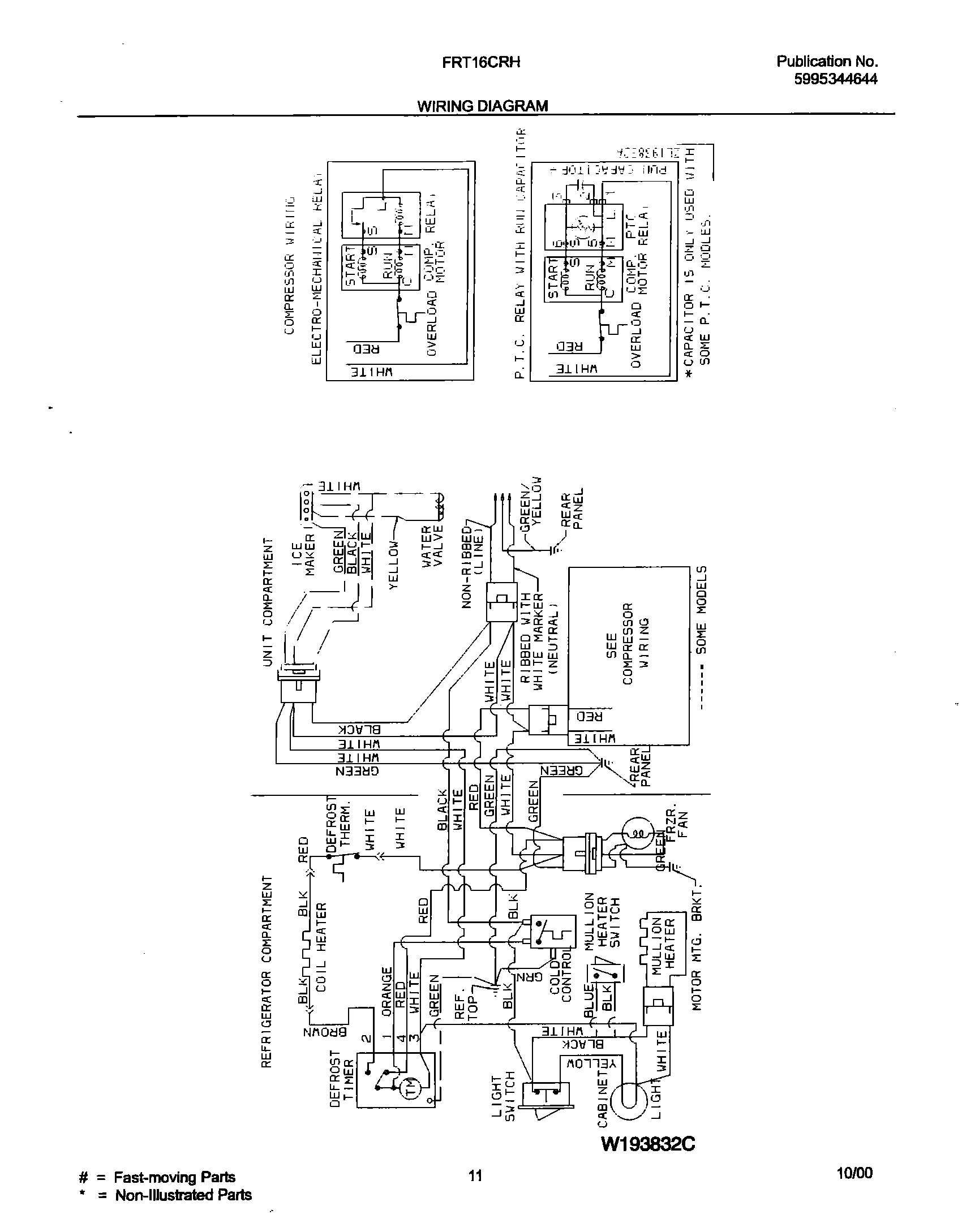

11 - WIRING DIAGRAM
Common parts from model Electrolux FRT16CRHZ4 REFRIGERATOR
1
GASKET-FREEZER WCI 5308007123 Contact Us For Availability
1
WCI 218491000 WCI 218491000 Contact Us For Availability
2
BRACKET - COND MOUNTING (4) WCI 5308000296 Contact Us For Availability
2
LOCK WASHER (2) WCI 5308009617 Contact Us For Availability
5
WCI 218781004 WCI 218781004 Contact Us For Availability
5
HARNESS-WIRING,CONTROL/DIVIDER WCI 218878500 Contact Us For Availability
6
TAPPING PLATE, MULLION MTG, (2) WCI 218845602 Contact Us For Availability
6
WCI 215257001 WCI 215257001 Contact Us For Availability
7
DOOR-DAIRY WCI 218287801 Contact Us For Availability
7
WCI 218865801 WCI 218865801 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
8
WCI 218909705 WCI 218909705 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
BOTTOM PANEL-FRZR WCI 218865600 Contact Us For Availability
10
BUTTON PLUG-WHITE WCI 5308000134 Contact Us For Availability
11
SHELF-FREEZER, ``TABLE TYPE`` WCI 5303283280 Contact Us For Availability
12
WCI 218730000 WCI 218730000 Contact Us For Availability
12
WCI 215079000 WCI 215079000 Contact Us For Availability
12
WCI 215079100 WCI 215079100 Contact Us For Availability
13
WCI 218631001 WCI 218631001 Contact Us For Availability
13
WCI 215076403 WCI 215076403 Contact Us For Availability
13A
DOOR STOP, FREEZER, WHITE WCI 218249001 Contact Us For Availability
14
HEAT - DEFROST WCI 5308009754 Contact Us For Availability
15
WCI 218818701 WCI 218818701 Contact Us For Availability
17
INSULATION - EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 5304414816 WCI 5304414816 Contact Us For Availability
17
WCI 5308016567 WCI 5308016567 Contact Us For Availability
18
WCI 5303311079 WCI 5303311079 Contact Us For Availability
18
WCI 218821301 WCI 218821301 Contact Us For Availability
19
WCI 5303286905 WCI 5303286905 Contact Us For Availability
19
INSTULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
WCI 218821201 WCI 218821201 Contact Us For Availability
21
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
WCI 218519300 WCI 218519300 Contact Us For Availability
22
COMPRESSOR MTG PLATE WCI 5308013663 Contact Us For Availability
22B
WCI 218731104 WCI 218731104 Contact Us For Availability
23
DEFROST DRAIN TUBE & RING SEAL ASSY WCI 5303210377 Contact Us For Availability
24
WCI 218272502 WCI 218272502 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
COVER, CRISPER PAN, WITH BEAM WCI 218314101 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
26
PAN - CRISPER WCI 3206180 No Longer Available
26
WCI 215372500 WCI 215372500 Contact Us For Availability
27
LOCK NUT WCI 5303001348 Contact Us For Availability
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
30
WCI 218721108 No Longer Available
35
WCI 218998901 WCI 218998901 Contact Us For Availability
37
WCI 5303321081 WCI 5303321081 Contact Us For Availability
40
COVER-TOP HINGE-WHITE WCI 3206101 Contact Us For Availability
41
WASHER, NO. 10 STEEL (2) WCI 5308003607 Contact Us For Availability
43
WASHER, .34 X .62 X .02, NYLON WCI 5308011326 Contact Us For Availability
45
SCREW, HEX HD SER WSHR, No.8-18 X 3/8, WIRING WCI 218754500 Contact Us For Availability
46
FRONT, CRISPER PAN WCI 5303303588 Contact Us For Availability
72
WCI 218397000 No Longer Available
83
BRACKET WCI 5308000107 Contact Us For Availability
98
PLUG-BUTTON, WHITE, CTR HINGE HOLE WCI 215099701 Contact Us For Availability
100
WCI 5303288973 No Longer Available
145
WCI 218660800 WCI 218660800 Contact Us For Availability
NI
INSTULATION-DOOR, FIBERGLASS, (BULK) WCI 5303917276 Contact Us For Availability
NI
COVER-SOUND INSUL,PRESSBOARD/FOAM , WCI 218905701 Contact Us For Availability
NI
BUTTER PLUG LINER WCI 5308016571 Contact Us For Availability
NI
HOT TUBE REPAIR KIT WCI 5300189383 Contact Us For Availability
NI
SPACER-TUBE (3) (NON-ILLUSTRATED) WCI 5303208866 Contact Us For Availability
NI
WCI 5304406721 WCI 5304406721 Contact Us For Availability
× ![]()
