Model FRS26LF8CW4 – Common Parts & Diagrams
01 - COVER
03 - FREEZER DOOR

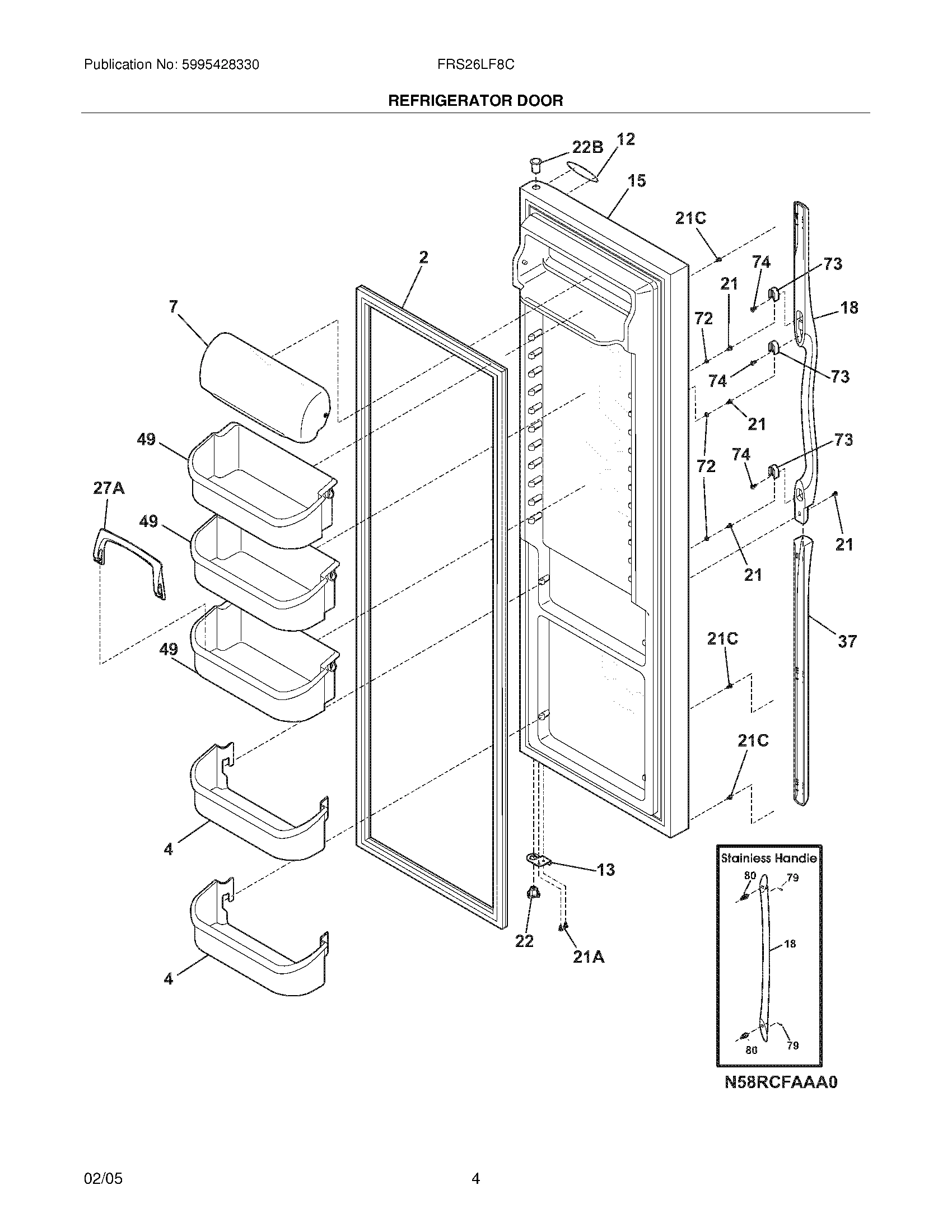

05 - REFRIGERATOR DOOR
07 - CABINET

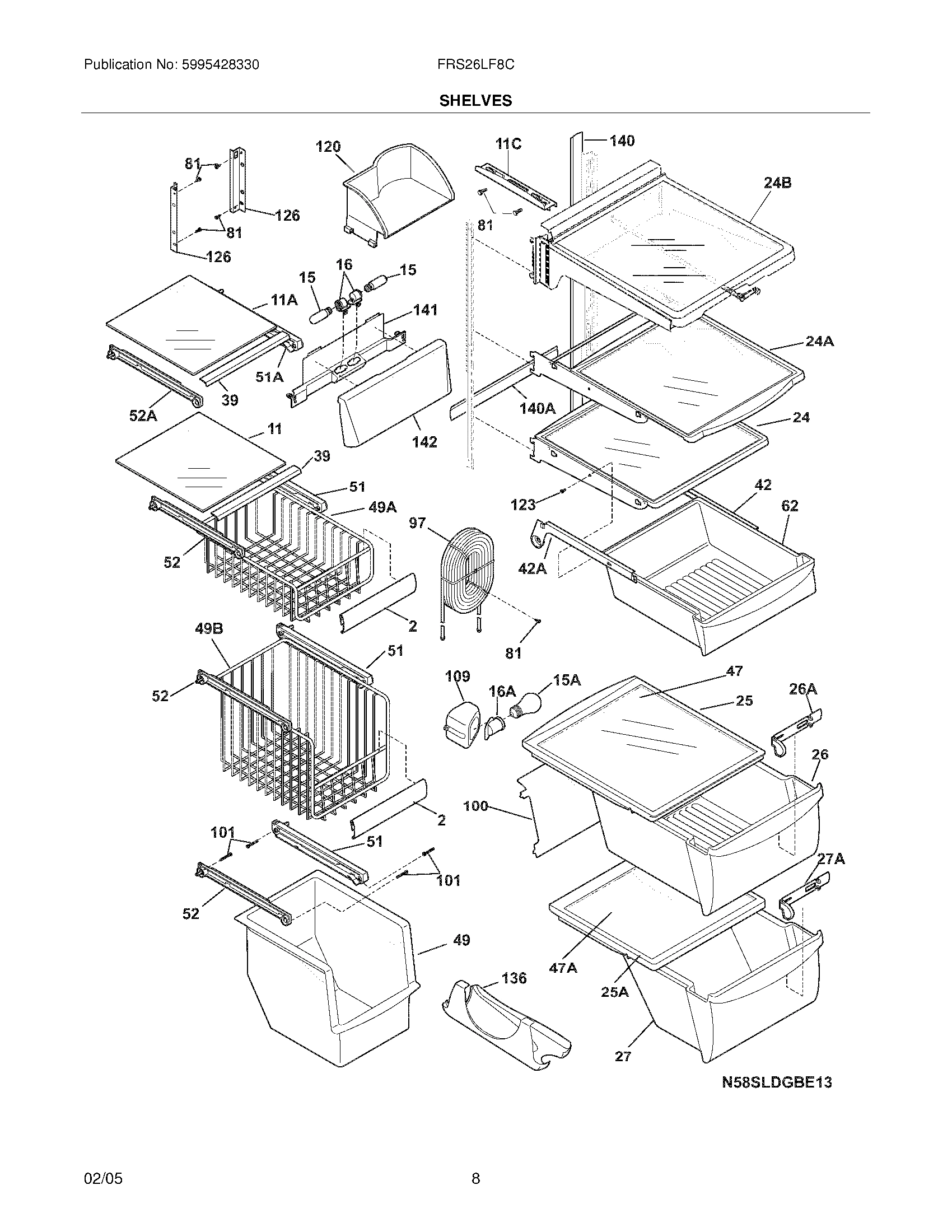

09 - SHELVES

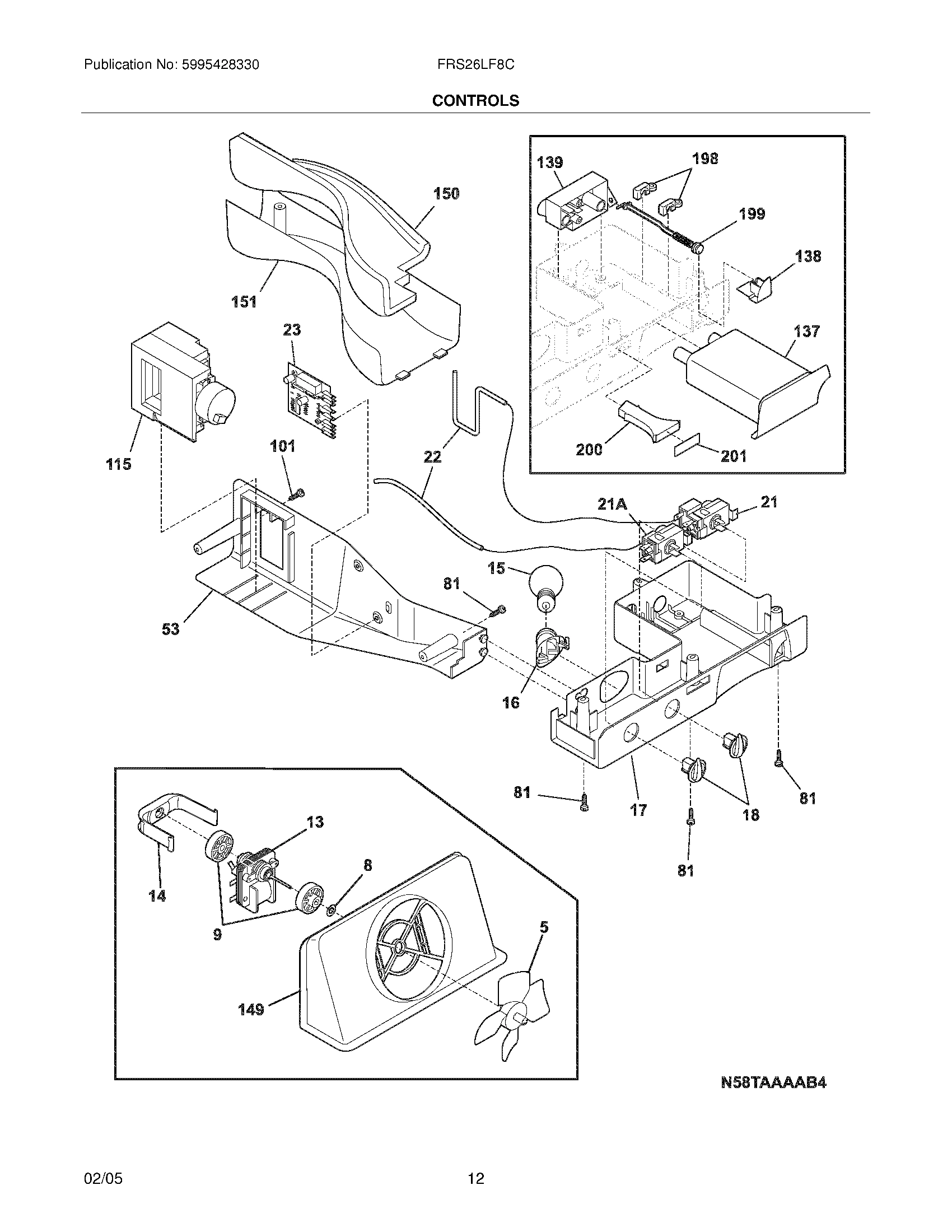

11 - CONTROLS
13 - SYSTEM
15 - ICE & WATER DISPENSER

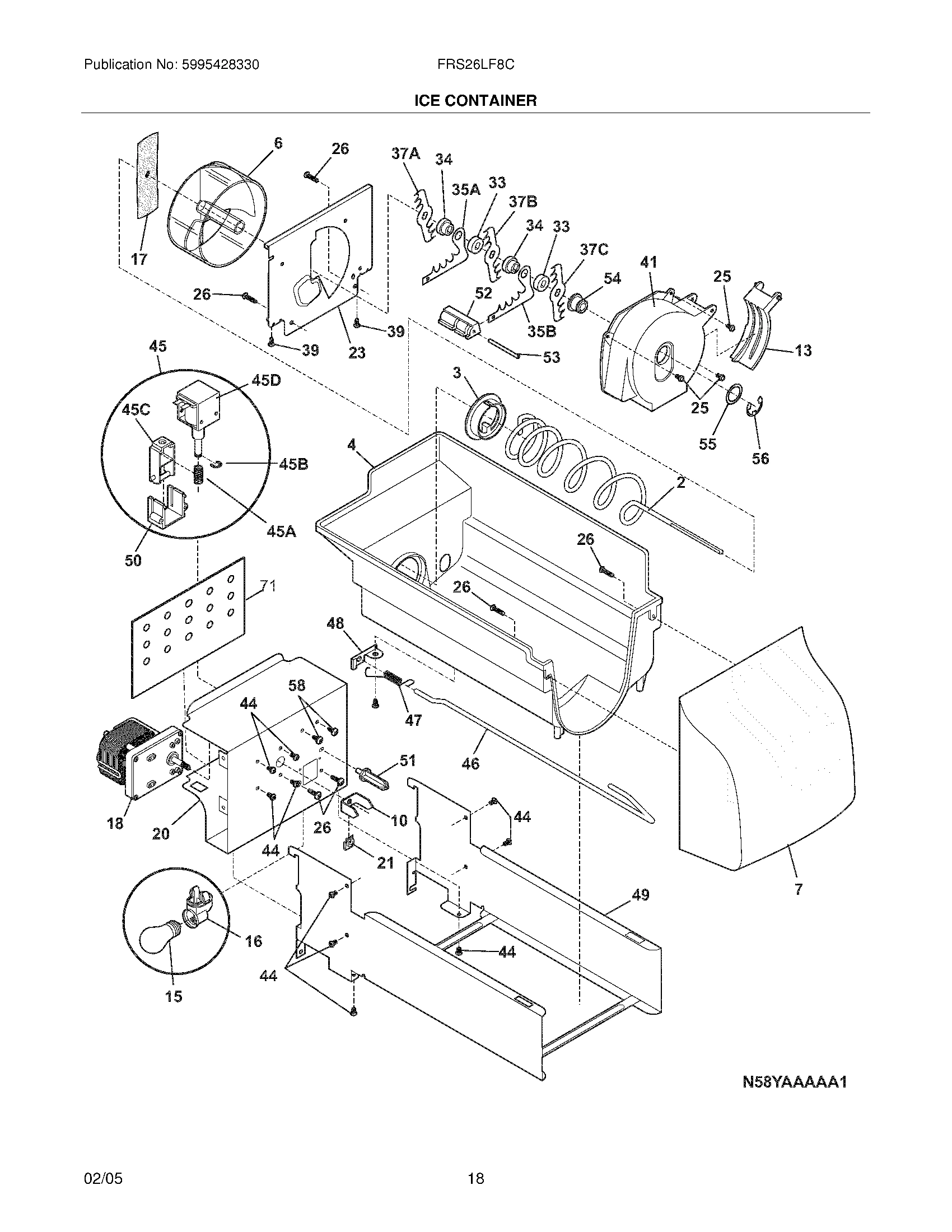

17 - ICE CONTAINER
19 - ICE MAKER
24 - WIRING SCHEMATIC

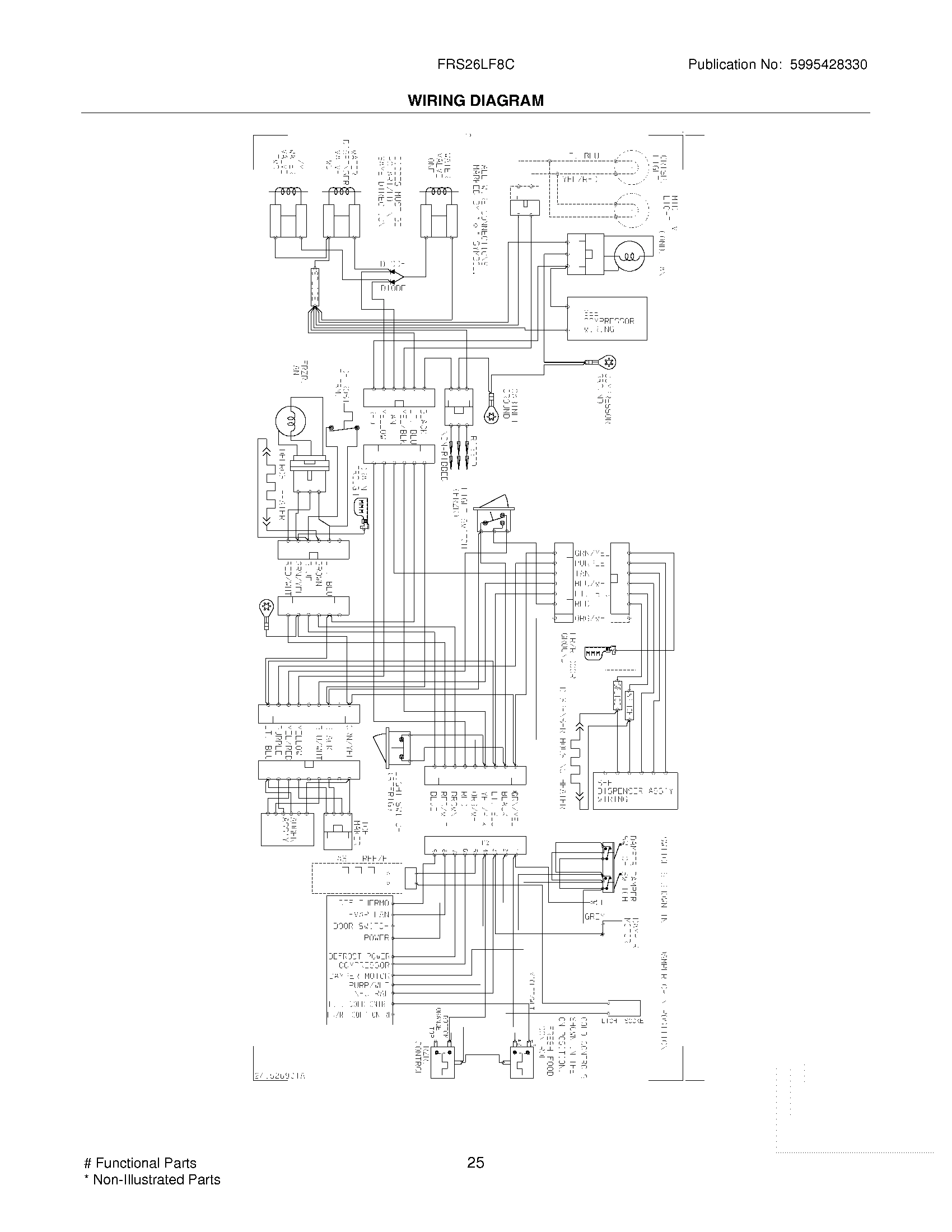

25 - WIRING DIAGRAM
