Model FRS26LF8CW0 – Common Parts & Diagrams
01 - COVER
03 - FREEZER DOOR

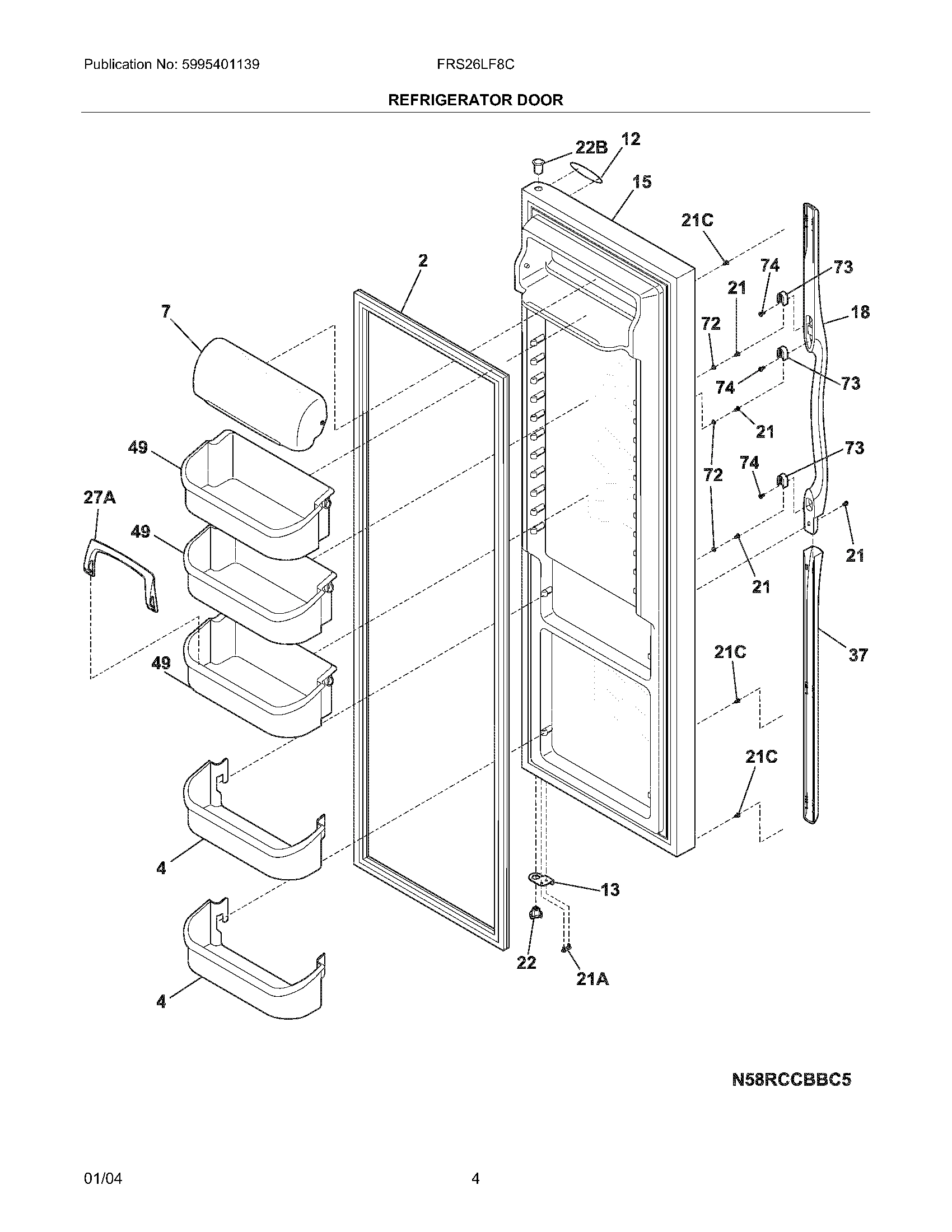

05 - REFRIGERATOR DOOR
07 - CABINET

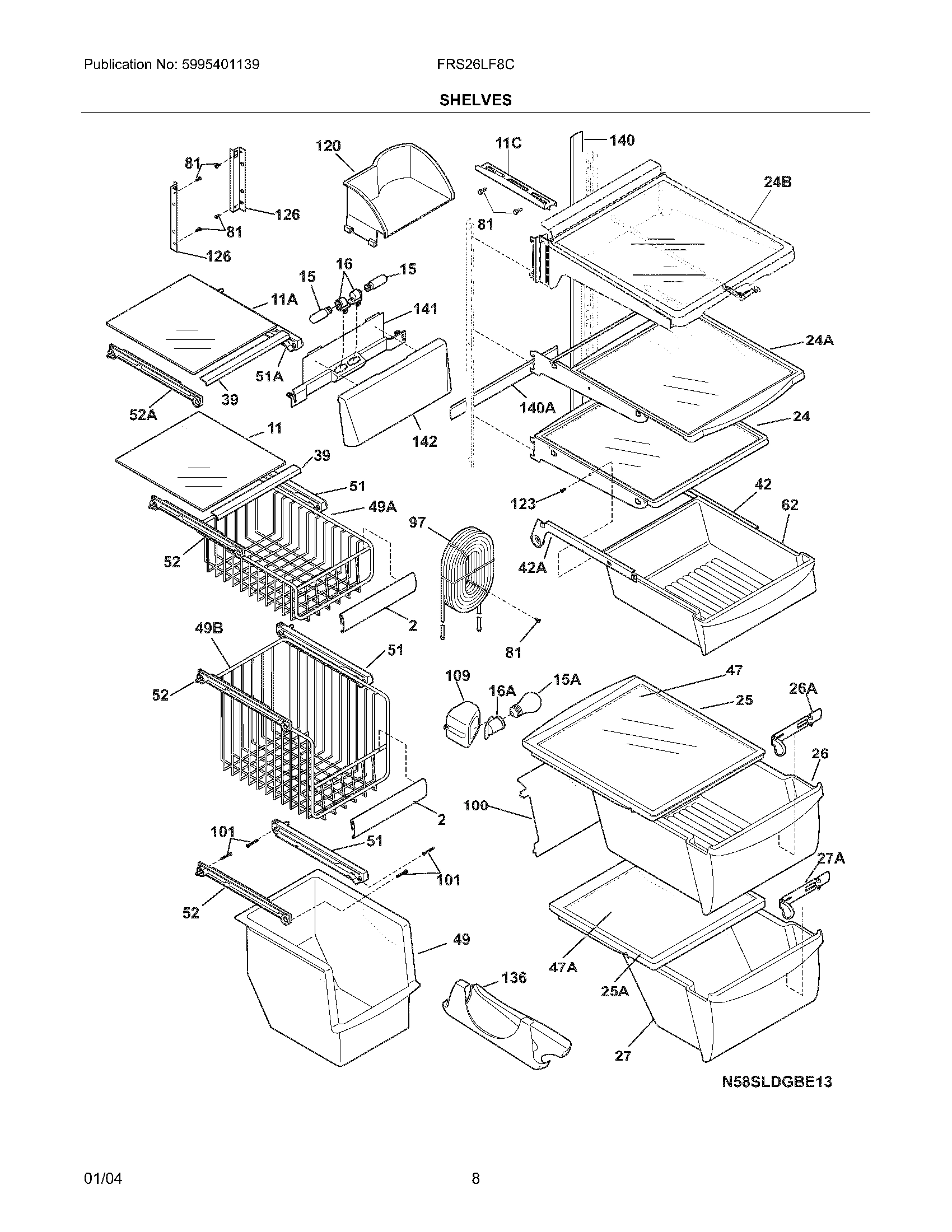

09 - SHELVES
11 - CONTROLS
13 - SYSTEM
15 - ICE & WATER DISPENSER
17 - ICE CONTAINER
19 - ICE MAKER

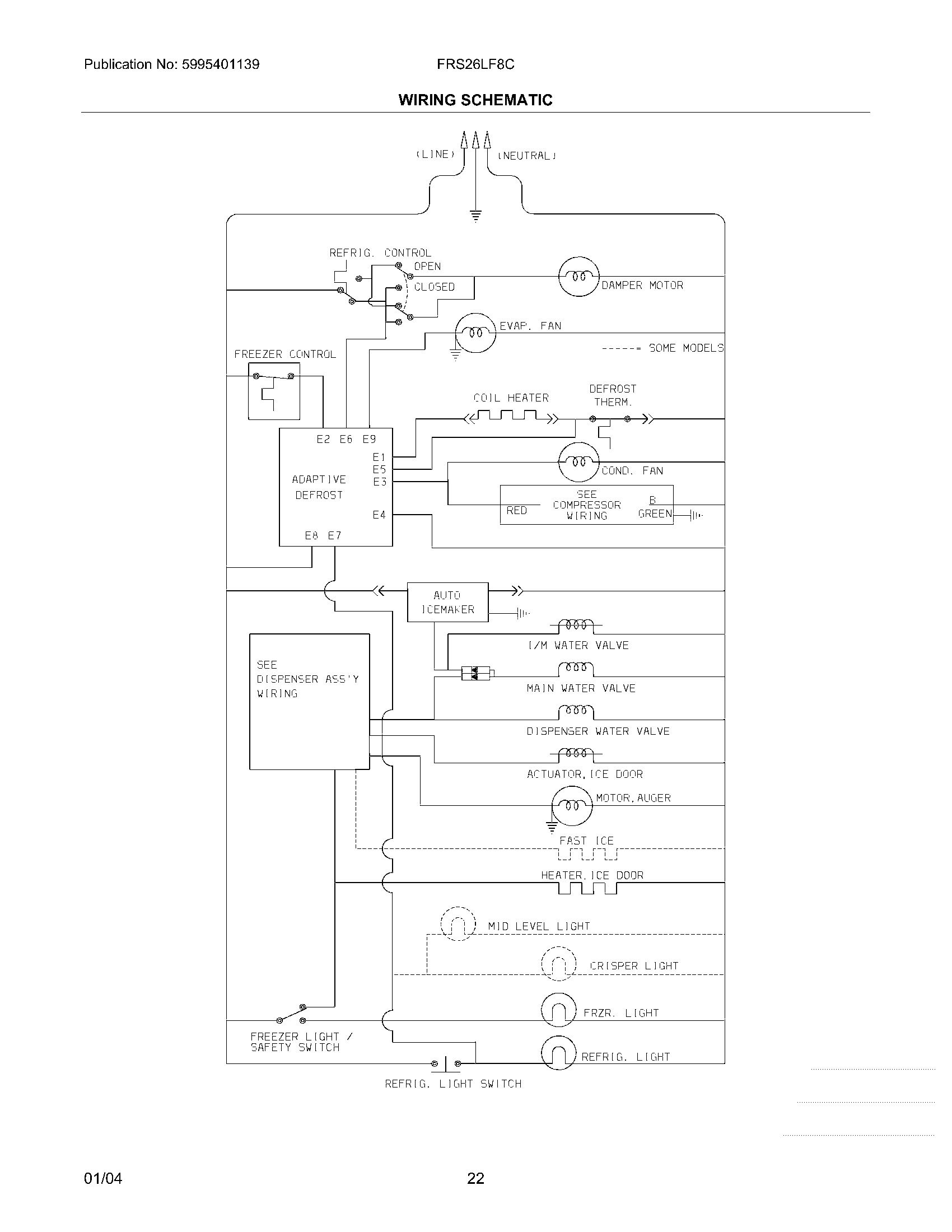

22 - WIRING SCHEMATIC

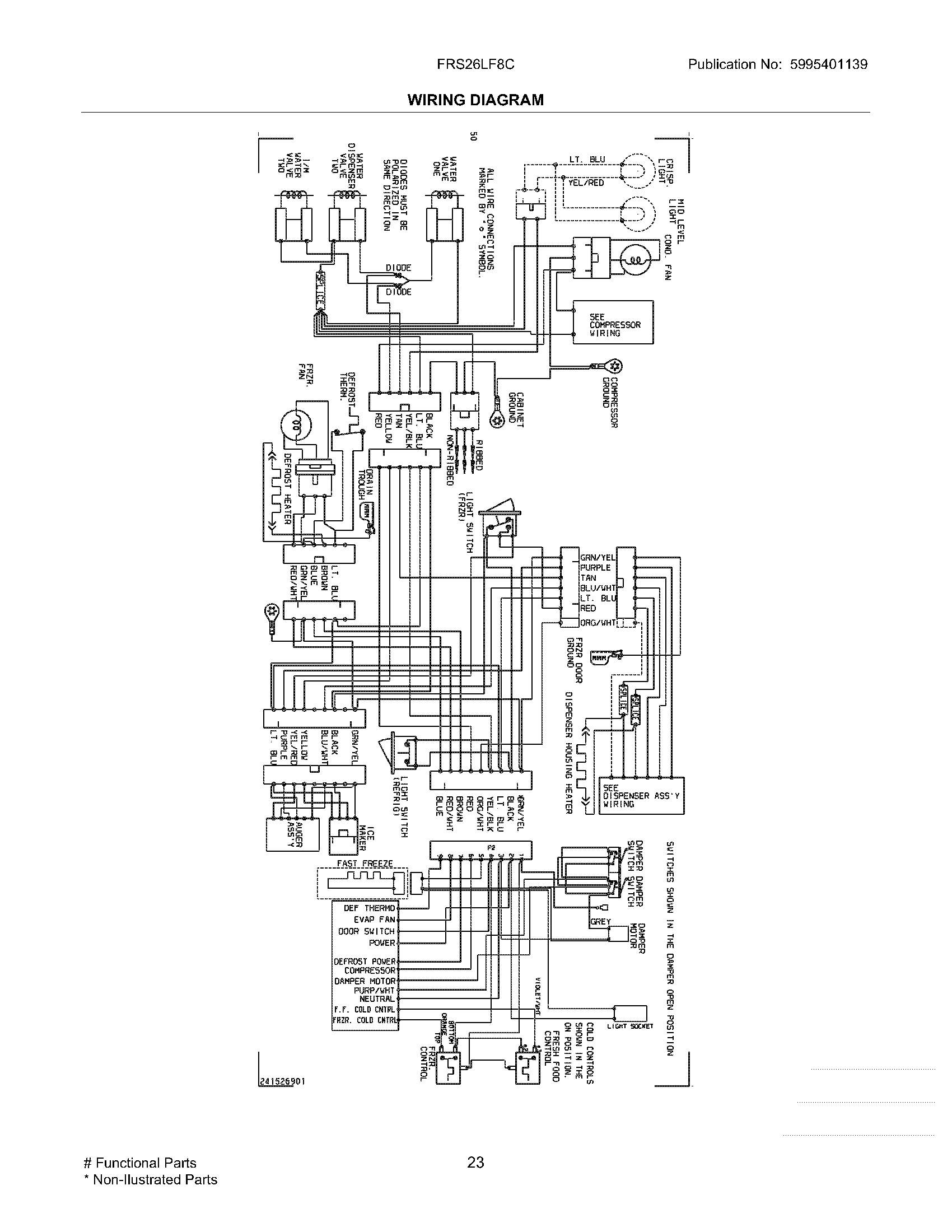

23 - WIRING DIAGRAM
