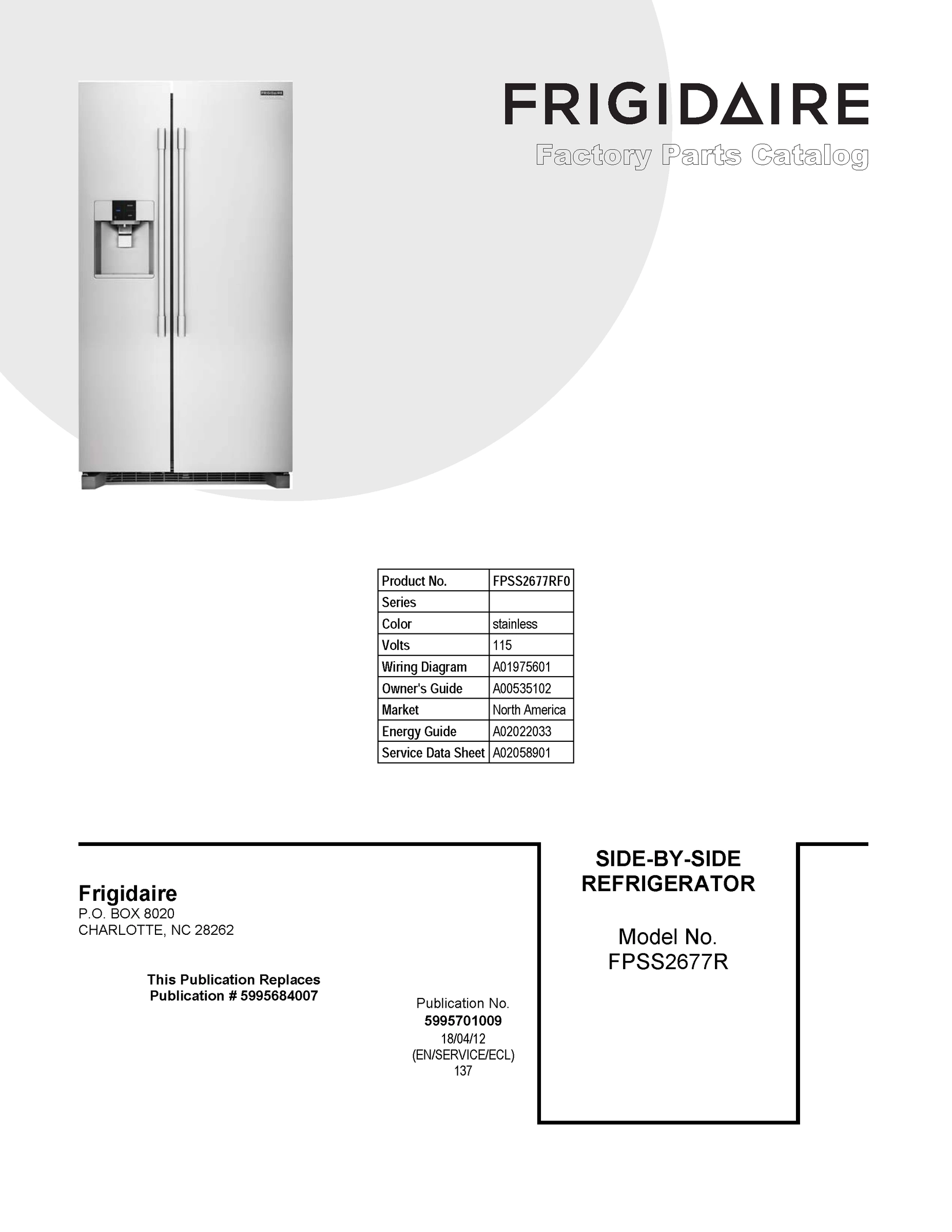

Model Electrolux FPSS2677RF0 REFRIGERATOR, SIDE-BY-SIDE – Common Parts &amp; Diagrams

1

241786014 Frigidaire Refrigerator Door Gasket In Stock WCI 241786014 $57.30

1

242106605 Frigidaire Refrigerator Condenser Backorder WCI 242106605 $117.40

1

5304522718 Frigidaire Ice Container Assembly In Stock WCI 5304522718 $177.47

2

241786013 Frigidaire Refrigerator Door Gasket Backorder WCI 241786013 $57.76

2

243297613 Frigidaire Refrigerator Ice Maker In Stock WCI 243297613 $58.27

3

218679614 Frigidaire Refrigerator Evaporator Backorder WCI 218679614 $12.67

4

240323002 Frigidaire Bottom Clear Door Bin In Stock WCI 240323002 $36.85

4

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $18.59

4B

240334202 Frigidaire Refrigerator Door Bin Up In Stock WCI 240334202 $26.89

5

241545005 Frigidaire Refrigerator Tilt-Out Bi Backorder WCI 241545005 $80.37

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

6

241516904 Frigidaire Refrigerator Service Cor In Stock WCI 241516904 $23.09

7

DOOR-DAIRY WCI 240326203 Contact Us For Availability

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

8

5303918773 Frigidaire Refrigerator Dispenser In Stock WCI 5303918773 $161.89

9

241563601 Frigidaire Refrigerator Motor Mount Backorder WCI 241563601 $11.32

9A

241845301 Frigidaire Refrigerator Motor Mount Backorder WCI 241845301 $14.48

10

241829001 Frigidaire Refrigerator Bar Drive In Stock WCI 241829001 $36.99

10

807688301 Frigidaire Refrigerator Spring Backorder WCI 807688301 $11.87

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

11

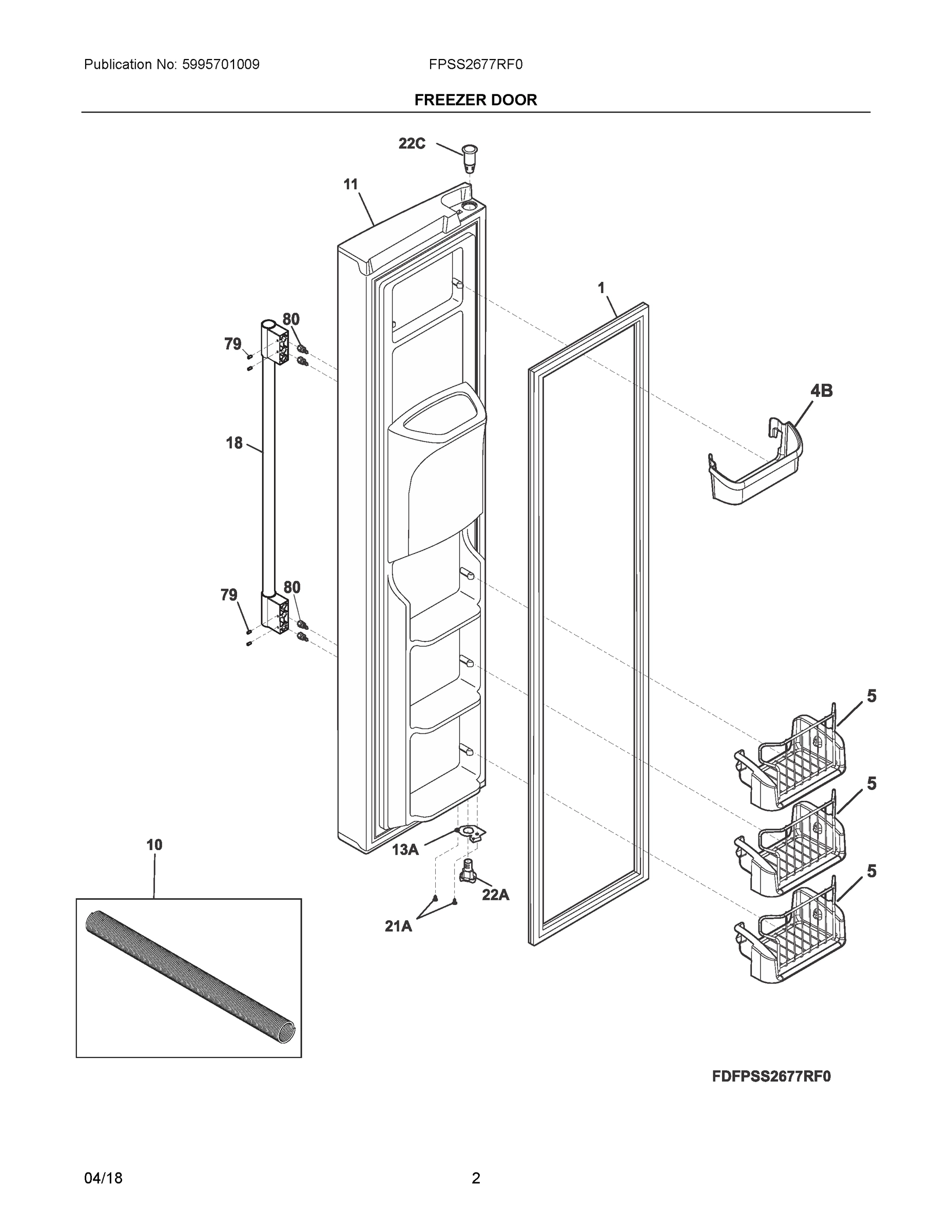

FREEZER DOOR, COMPLETE, STAINLESS WCI 807460023 Contact Us For Availability

11A

240350604 Frigidaire Refrigerator Glass Assem Backorder WCI 240350604 $67.67

11D

240350605 Frigidaire Refrigerator Freezer She In Stock WCI 240350605 $63.19

12

809108704 Frigidaire Refrigerator Badge In Stock WCI 809108704 $17.40

13

241990203 Frigidaire Refrigerator Door Stop Backorder WCI 241990203 $13.13

13

242290001 Frigidaire Refrigerator Blower Moto In Stock WCI 242290001 $89.96

14

242044113 Frigidaire Refrigerator Defrost Hea In Stock WCI 242044113 $65.42

14

242135301 Frigidaire Refrigerator Evaporator In Stock WCI 242135301 $4.97

14A

241547902 Frigidaire Refrigerator Light Switc In Stock WCI 241547902 $10.86

15

242196204 Frigidaire Refrigerator Light Board Backorder WCI 242196204 $37.65

15

5303918284 Frigidaire Refrigerator Evaporator In Stock WCI 5303918284 $330.62

15

DOOR-REFR, COMPLETE ASSY, STAINLESS WCI 807460124 Contact Us For Availability

15A

242202701 Frigidaire Refrigerator Lens In Stock WCI 242202701 $19.45

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

18

241816602 Frigidaire Refrigerator Auger Motor In Stock WCI 241816602 $84.28

18

5304536767 Frigidaire Handle Assembly Backorder WCI 5304536767 $77.35

19

5304521770 Frigidaire Refrigerator Harness Backorder WCI 5304521770 $51.23

20

242303501 Frigidaire Refrigerator Housing Backorder WCI 242303501 $67.20

20A

242303601 Frigidaire Refrigerator Housing Backorder WCI 242303601 $69.81

21

242305203 Frigidaire Refrigerator Motor-Cover Backorder WCI 242305203 $15.85

21

5303918214 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918214 $14.53

21A

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $4.97

21D

218781101 Frigidaire Handle Screw In Stock WCI 218781101 $9.97

22

240597220 Frigidaire Sensor In Stock WCI 240597220 $3.05

22

241917801 Frigidaire Refrigerator Closer Plat In Stock WCI 241917801 $4.51

22

241990301 Frigidaire Hinge Bearing Backorder WCI 241990301 $4.51

22A

241990302 Frigidaire Refrigerator Hinge Beari Backorder WCI 241990302 $4.51

22B

241760404 Frigidaire Refrigerator Bearing Backorder WCI 241760404 $8.15

22C

241760402 Frigidaire Refrigerator Bearing In Stock WCI 241760402 $12.20

23

241512901 Frigidaire Refrigerator Sensor Cove Backorder WCI 241512901 $50.24

23

5304504455 Frigidaire Refrigerator Fill Cup Backorder WCI 5304504455 $57.37

24

5304501181 Frigidaire Refrigerator Actuator Backorder WCI 5304501181 $59.61

25

240555005 Frigidaire Refrigerator Screw Backorder WCI 240555005 $6.79

25

240599301 Frigidaire Refrigerator Crisper Dra In Stock WCI 240599301 $39.88

25

SCREW-COMPRESSOR MTG, 1/4-28 X 1.16, (4) WCI 240491503 Contact Us For Availability

25A

240350903 Frigidaire Refrigerator Crisper Pan In Stock WCI 240350903 $37.62

25B

241969501 Frigidaire Refrigerator Meat Pan Co In Stock WCI 241969501 $57.89

26

240351061 Frigidaire Refrigerator Crisper Pan In Stock WCI 240351061 $45.88

26

241697603 Frigidaire Defrost Pan Backorder WCI 241697603 $47.70

27

240351240 Frigidaire Refrigerator Crisper Pan In Stock WCI 240351240 $113.90

27A

RETAINER, TALL BOTTLE WCI 241812702 Contact Us For Availability

28

240362201 Frigidaire Refrigerator Humidity Co Backorder WCI 240362201 $43.91

29

5304537072 Frigidaire Compressor with Clip, E In Stock WCI 5304537072 $177.51

30

216954236 Frigidaire Refrigerator Compressor Backorder WCI 216954236 $55.45

30

241918001 Frigidaire Lower Door Hinge Backorder WCI 241918001 $41.68

30A

241918002 Frigidaire Refrigerator Lower Hinge Backorder WCI 241918002 $36.70

32

216954300 Frigidaire Refrigerator Clip Backorder WCI 216954300 $10.85

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

37

242161206 Frigidaire Refrigerator Cabinet Cor Backorder WCI 242161206 $6.32

38

241761301 Frigidaire Upper Bracket Hinge Backorder WCI 241761301 $41.88

38

242048229 Frigidaire Refrigerator Black User In Stock WCI 242048229 $170.03

38A

241761302 Frigidaire Refrigerator Upper Hinge In Stock WCI 241761302 $40.78

38C

809091204 Frigidaire Refrigerator Control Ass Backorder WCI 809091204 $190.48

39

240367602 Frigidaire Refrigerator Shelf Trim In Stock WCI 240367602 $28.99

40

241946709 Frigidaire Refrigerator Upper Hinge Backorder WCI 241946709 $41.71

40A

241946710 Frigidaire Refrigerator Upper Hinge Backorder WCI 241946710 $40.85

41

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

41

241550801 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550801 $37.63

42

240578902 Frigidaire Screw Mounting Hinge In Stock WCI 240578902 $9.04

43

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.79

43

5304499445 Frigidaire Refrigerator Roller Ass Backorder WCI 5304499445 $19.99

45

241675704 Frigidaire Refrigerator Solenoid As In Stock WCI 241675704 $27.19

47

240350649 Frigidaire Refrigerator Glass Inser In Stock WCI 240350649 $64.95

47

241513001 Frigidaire Refrigerator Shelf Mount In Stock WCI 241513001 $66.34

47A

240350603 Frigidaire Glass Shelf Backorder WCI 240350603 $73.07

47B

240443384 Frigidaire Refrigerator Crisper Cov In Stock WCI 240443384 $87.18

49

240356402 Frigidaire Refrigerator Gallon Door In Stock WCI 240356402 $42.72

49

240564401 Frigidaire Refrigerator Sliding Bas In Stock WCI 240564401 $89.90

49B

BASKET-SLIDING, UPPER, FULL WCI 240530504 Contact Us For Availability

50

5304504436 Frigidaire Refrigerator Main Power Backorder WCI 5304504436 $188.55

51

240343002 Frigidaire Hanger Basket Backorder WCI 240343002 $38.55

51

242095501 Frigidaire Refrigerator Anti-Twist Backorder WCI 242095501 $13.13

51A

240395502 Frigidaire Refrigerator Basket Hang Backorder WCI 240395502 $46.16

52

240343102 Frigidaire Basket Hanger In Stock WCI 240343102 $41.24

52A

240395602 Frigidaire Refrigerator Basket Hang Backorder WCI 240395602 $38.97

54

SUPPORT, HOUSING, MAIN BOARD WCI 807854301 Contact Us For Availability

55

242252702 Frigidaire Refrigerator Water Inlet In Stock WCI 242252702 $33.24

55

297286803 Frigidaire Refrigerator Run Capacit In Stock WCI 297286803 $16.17

58

241548003 Frigidaire Refrigerator Screw In Stock WCI 241548003 $1.79

59

241946106 Frigidaire Refrigerator Condenser F Backorder WCI 241946106 $28.97

60

242018301 Frigidaire Refrigerator Condenser F In Stock WCI 242018301 $80.30

60

242287001 Frigidaire Refrigerator Housing Backorder WCI 242287001 $28.09

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $11.41

62

240429406 Frigidaire Refrigerator Drain Troug Backorder WCI 240429406 $47.05

66

241756801 Frigidaire Refrigerator Meat Keeper Backorder WCI 241756801 $16.75

66A

241756901 Frigidaire Refrigerator Damper Hous Backorder WCI 241756901 $19.47

72

5304537061 Frigidaire Grill Backorder WCI 5304537061 $16.79

74

218755402 Frigidaire Refrigerator Set Screw In Stock WCI 218755402 $4.07

80

218755504 Frigidaire Refrigerator Shoulder Sc In Stock WCI 218755504 $8.60

80

241953908 Frigidaire Refrigerator Screw Backorder WCI 241953908 $2.72

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

82

240335202 Frigidaire Refrigerator Roller Backorder WCI 240335202 $13.59

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.80

82

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $9.50

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

85

241856909 Frigidaire Refrigerator Connector T In Stock WCI 241856909 $94.62

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $39.88

89

5304520905 Frigidaire Assembly Cover Refriger Backorder WCI 5304520905 $44.58

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60

93

241911705 Frigidaire Refrigerator Light Switc In Stock WCI 241911705 $33.97

100

241993101 Frigidaire Refrigerator Right Crisp In Stock WCI 241993101 $3.46

101

242157801 Frigidaire Refrigerator Cover Backorder WCI 242157801 $14.50

115

241853801 Frigidaire Refrigerator Damper Cont In Stock WCI 241853801 $67.82

139

5304522623 Frigidaire Head/Manifold Water Fil In Stock WCI 5304522623 $44.93

147

5304504451 Frigidaire Refrigerator Motor Backorder WCI 5304504451 $14.48

148

5304504447 Frigidaire Refrigerator Air Duct Backorder WCI 5304504447 $12.20

210

5304501183 Frigidaire Refrigerator Housing Backorder WCI 5304501183 $24.46

211

807932201 Frigidaire Refrigerator Plug Backorder WCI 807932201 $9.50

240451503 Frigidaire Refrigerator Screw Backorder WCI 240451503 $2.26

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.72

5303918327 Frigidaire Refrigerator Heat Excha In Stock WCI 5303918327 $176.48

5303918744 Frigidaire Refrigerator Kit In Stock WCI 5303918744 $113.57

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $9.04

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $19.01

240349801 Frigidaire Refrigerator Clip In Stock WCI 240349801 $12.24

240362101 Frigidaire Refrigerator Crisper Cov In Stock WCI 240362101 $28.07

241512807 Frigidaire Refrigerator Seal Backorder WCI 241512807 $1.79

241519401 Frigidaire Refrigerator Clip Backorder WCI 241519401 $5.40

241550701 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550701 $10.85

241945101 Frigidaire Refrigerator Air Duct In Backorder WCI 241945101 $12.68

241993001 Frigidaire Refrigerator Left Crispe In Stock WCI 241993001 $5.55

242036801 Frigidaire Refrigerator Plastic Cli In Stock WCI 242036801 $60.94

242220119 Frigidaire Refrigerator Water Tube In Stock WCI 242220119 $19.45

LINER, BIN, BIN WCI 241780403 Contact Us For Availability

218976438 Frigidaire Refrigerator Tube In Stock WCI 218976438 $13.11

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.14

241781601 Frigidaire Refrigerator Air Return Backorder WCI 241781601 $5.40

NIC

218976439 Frigidaire Refrigerator Water Inlet In Stock WCI 218976439 $12.22

NID

242200102 Frigidaire Refrigerator Clip Backorder WCI 242200102 $6.79
