Model Electrolux FPHS2699PF2 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
03 - FREEZER DOOR

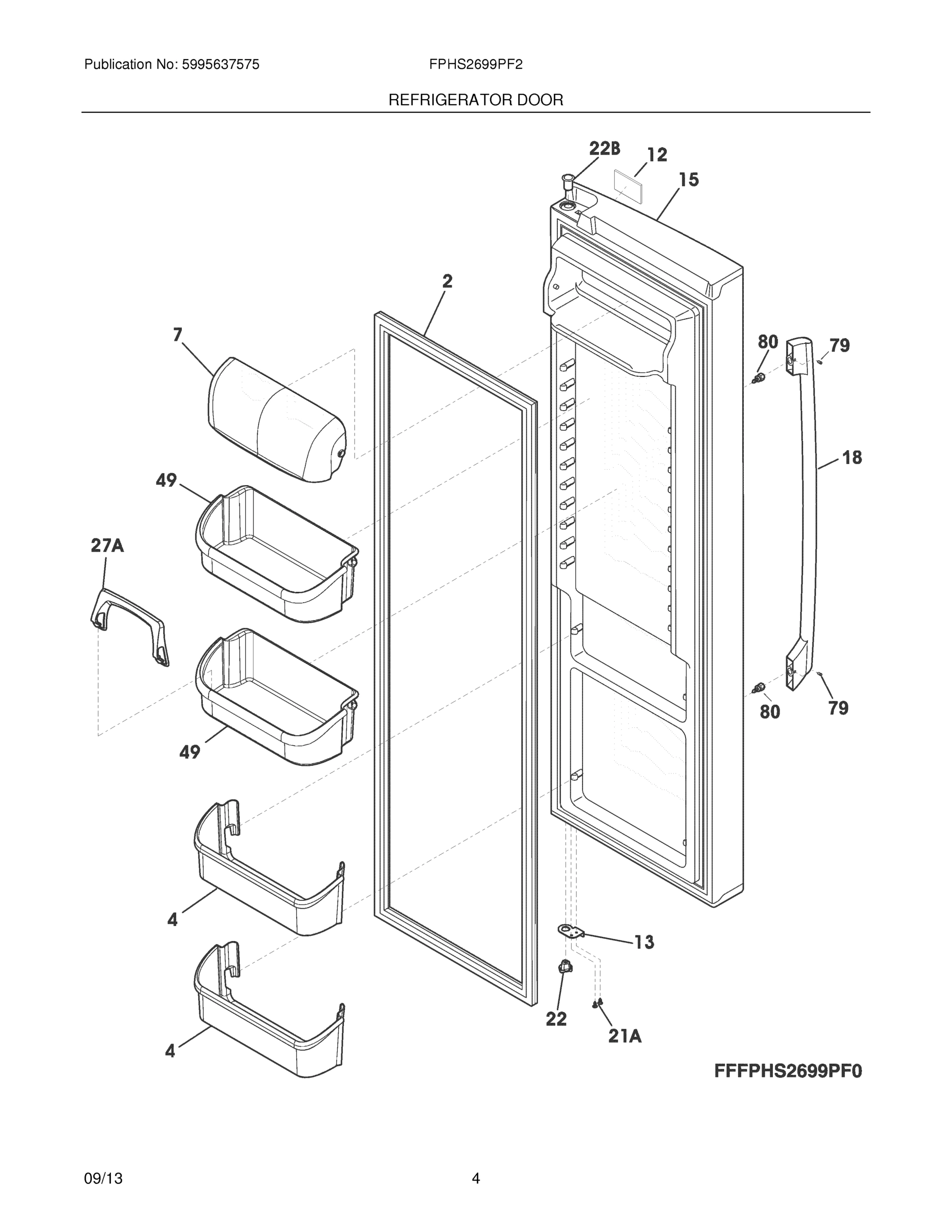

05 - REFRIGERATOR DOOR

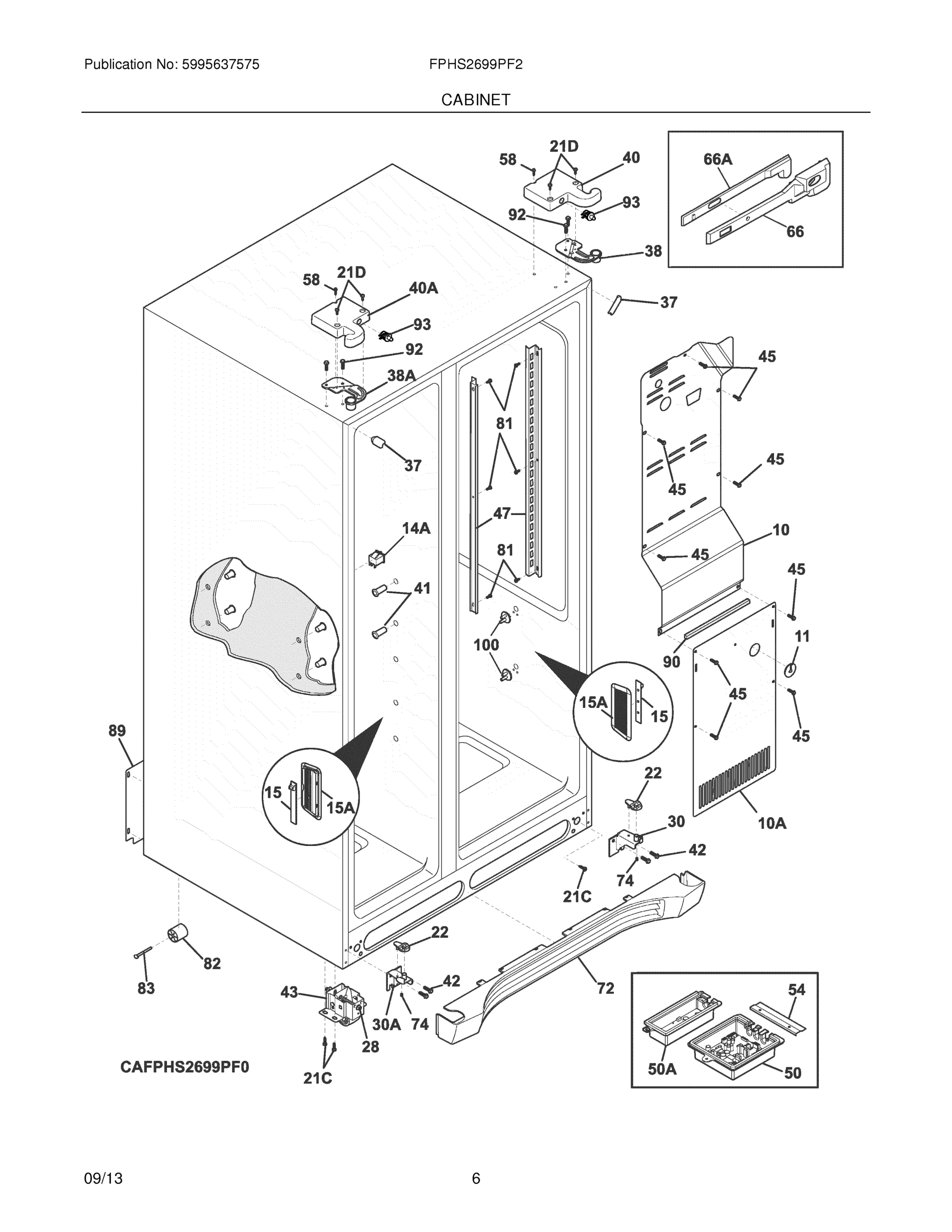

07 - CABINET

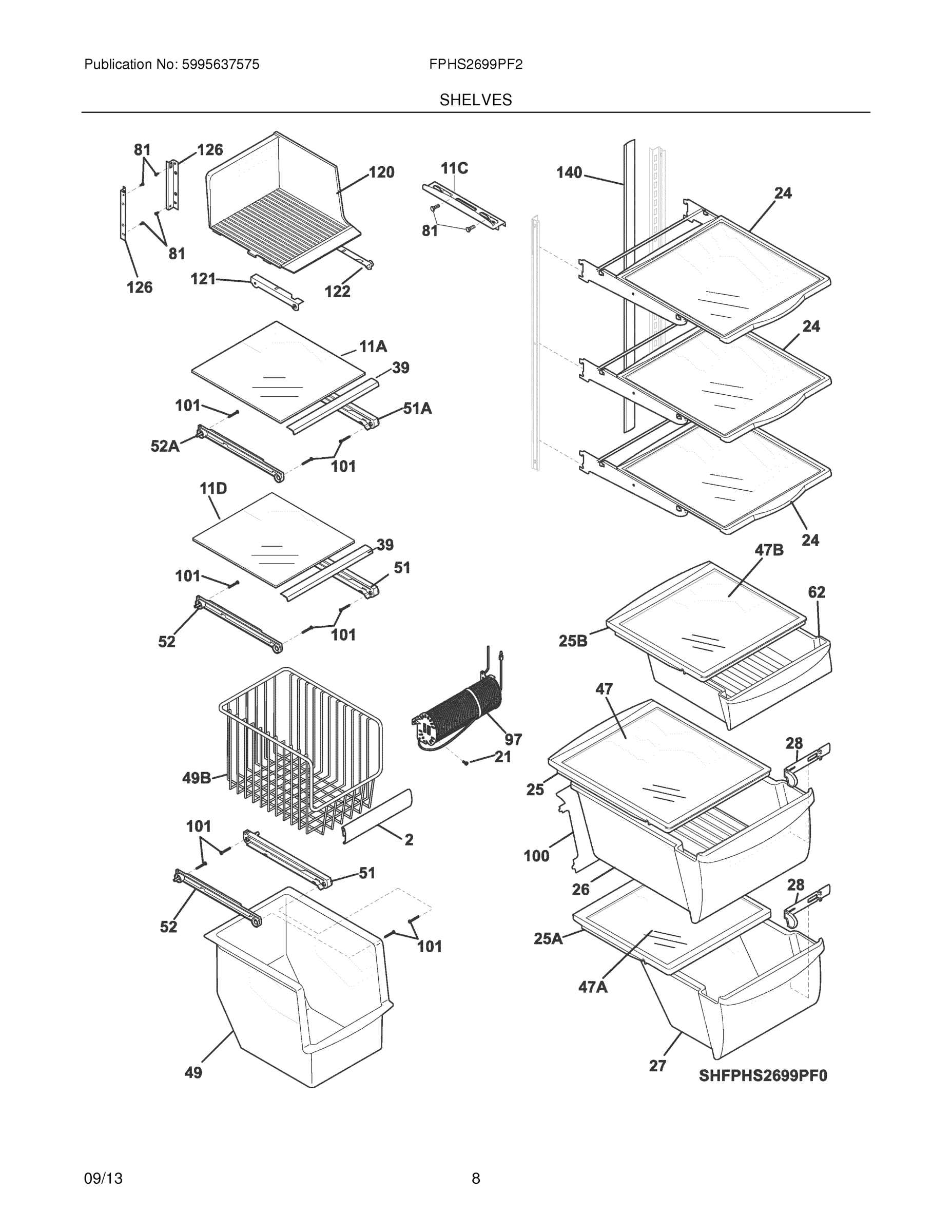

09 - SHELVES

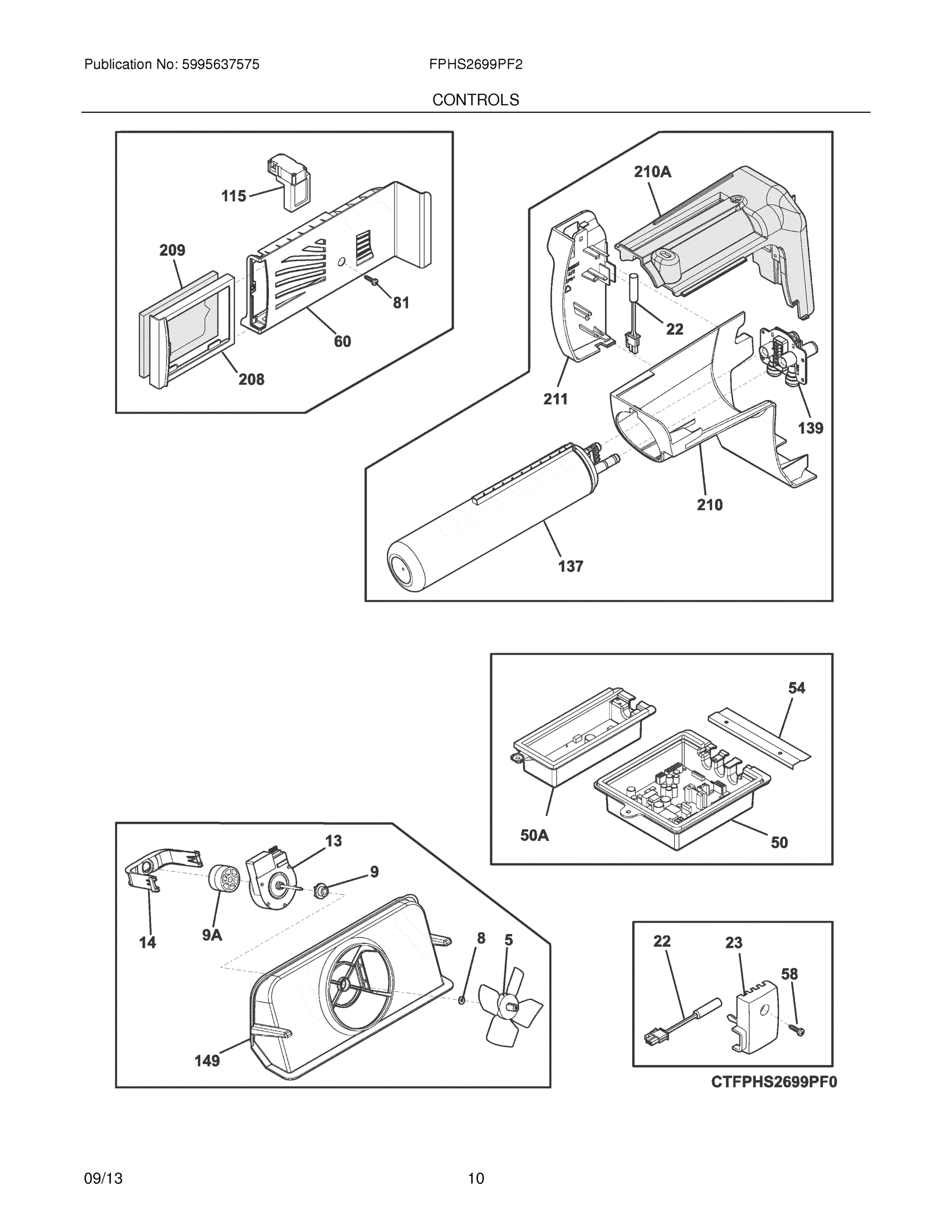

11 - CONTROLS

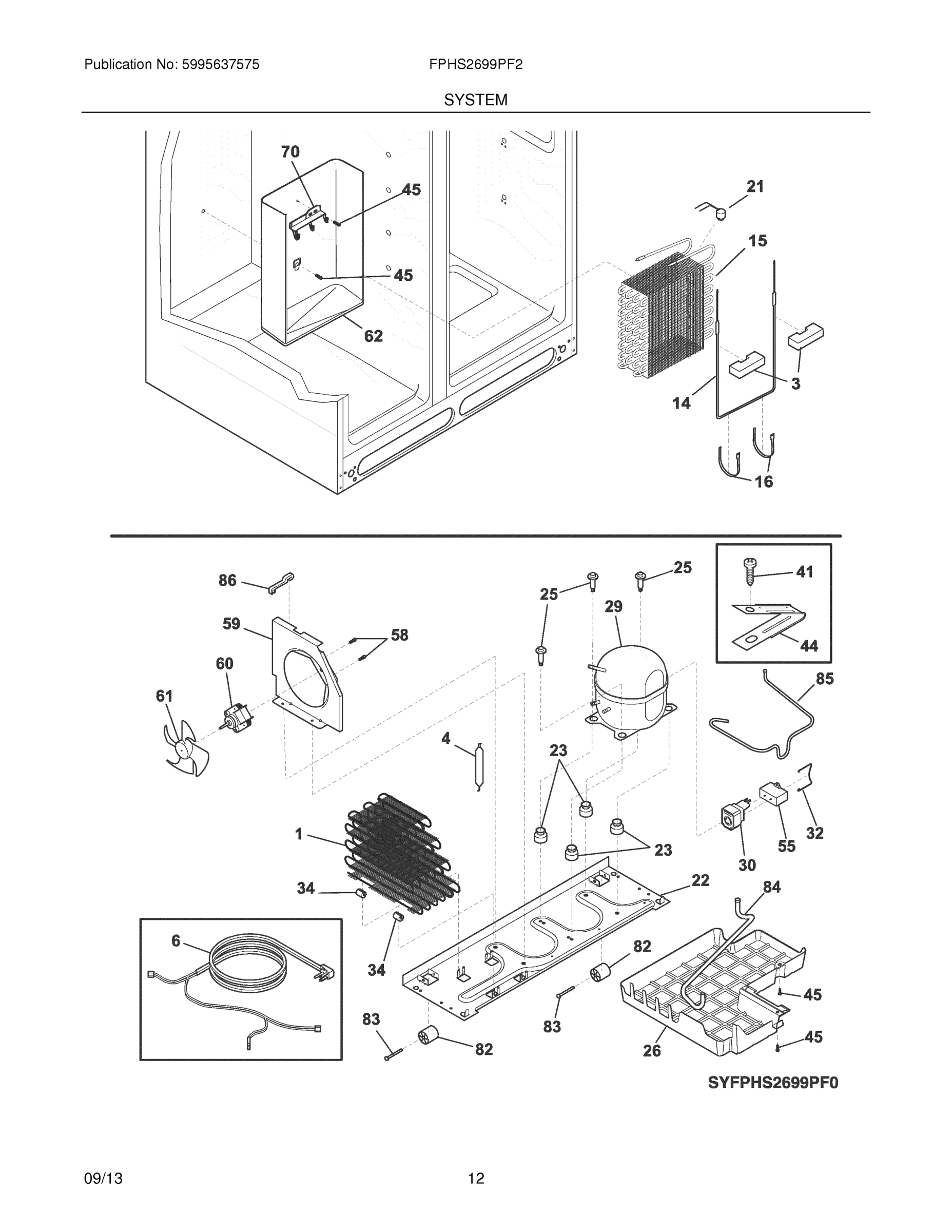

13 - SYSTEM

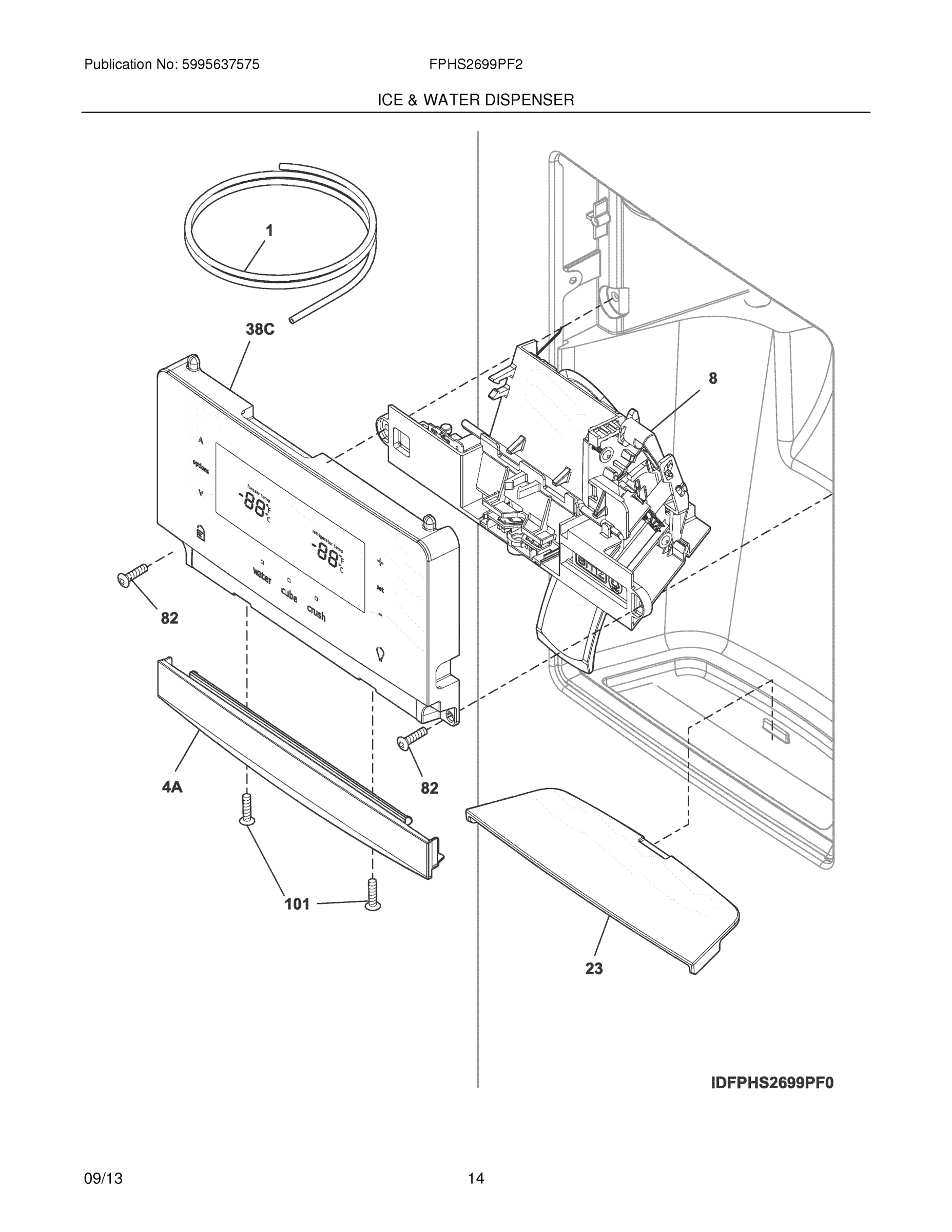

15 - ICE & WATER DISPENSER

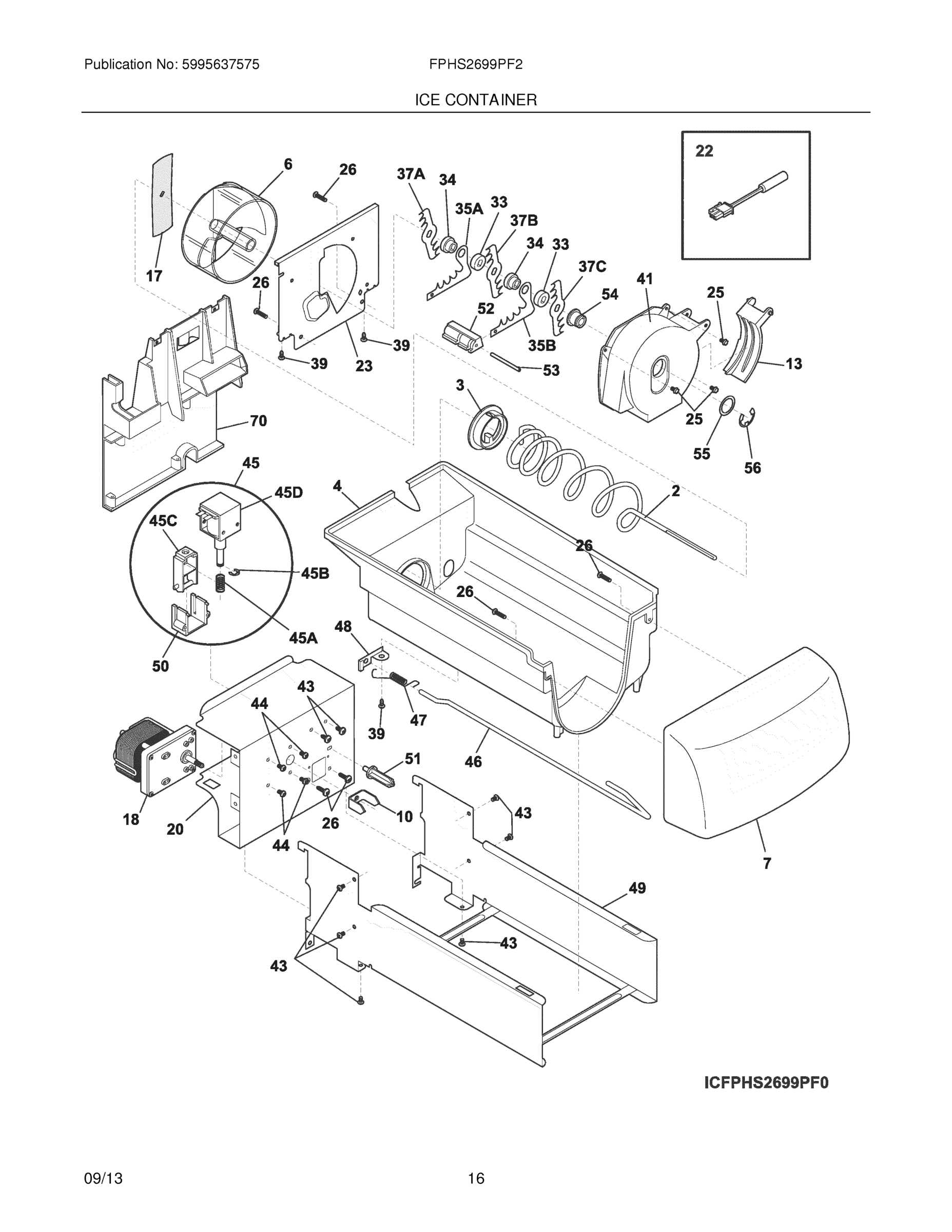

17 - ICE CONTAINER

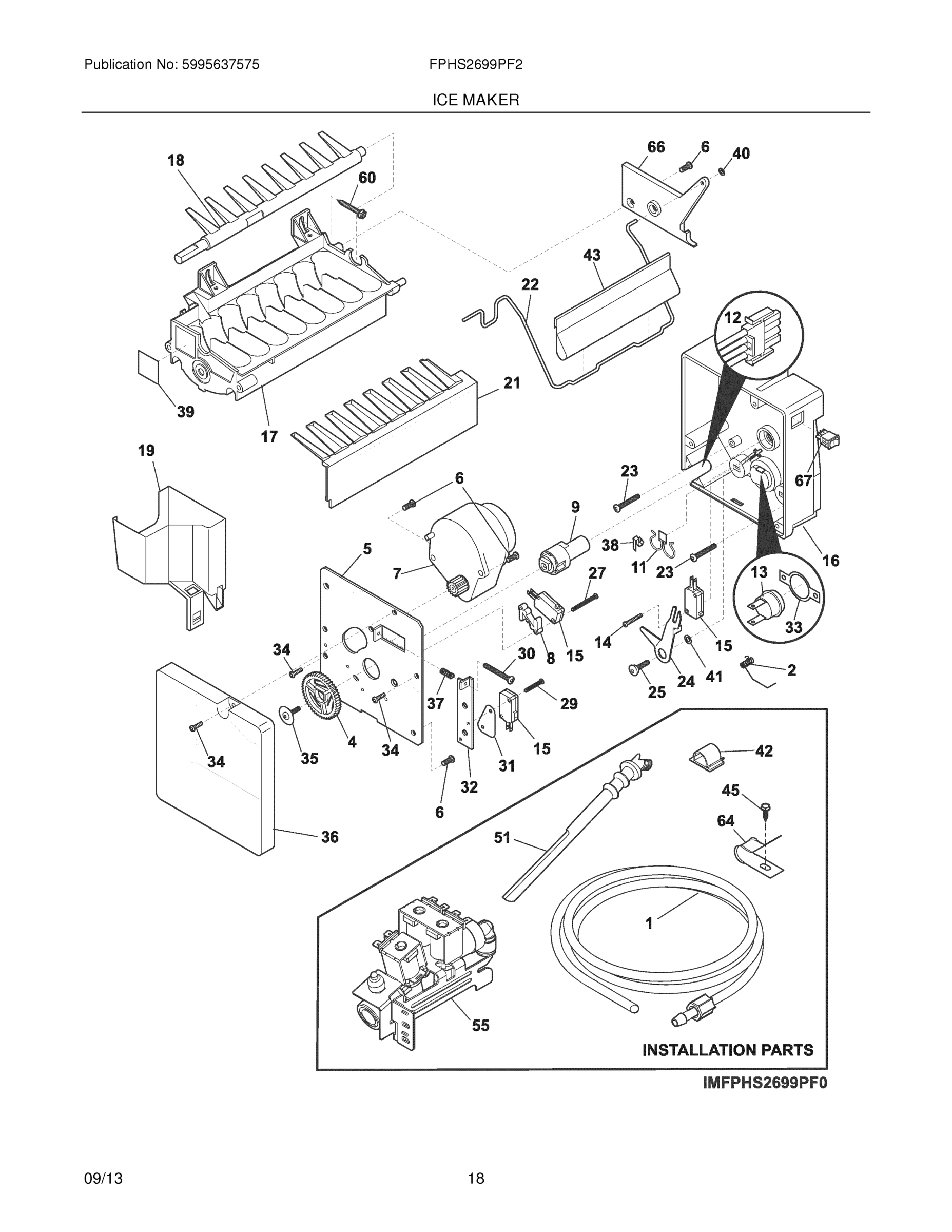

19 - ICE MAKER

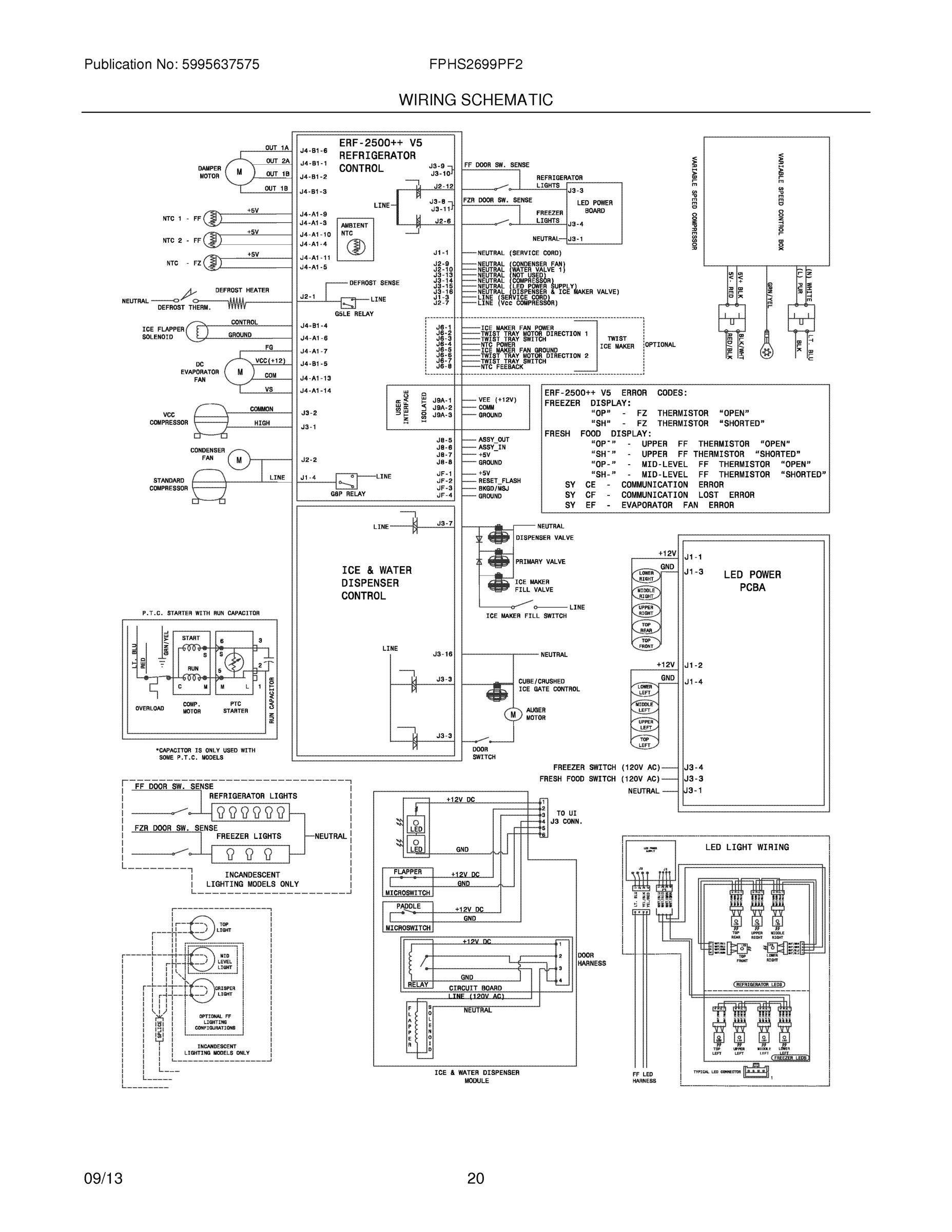

20 - WIRING SCHEMATIC

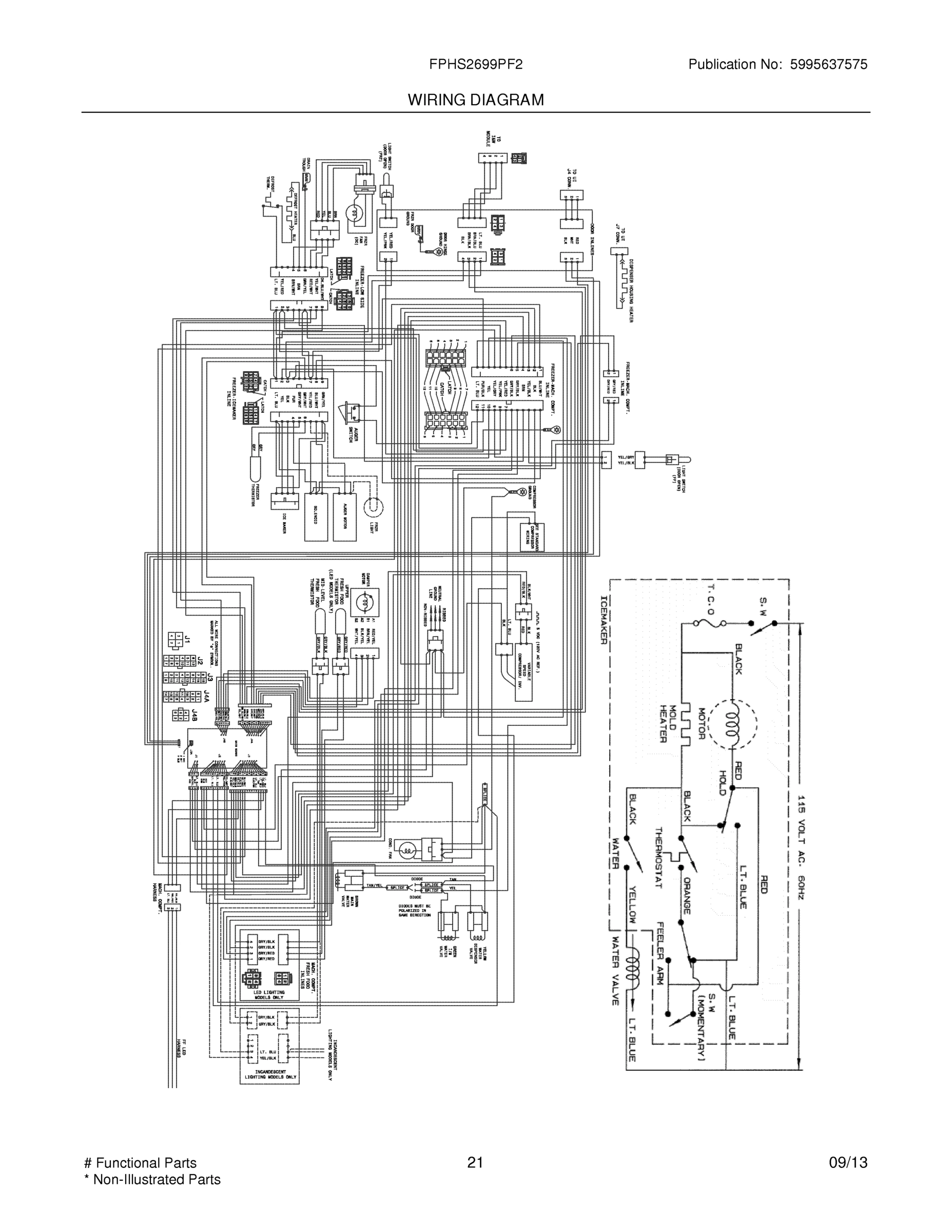

21 - WIRING DIAGRAM
Common parts from model Electrolux FPHS2699PF2 REFRIGERATOR
1
Tube,water ,60`` ,natural ,door WCI 218976409 Contact Us For Availability
1
WCI 242106605 WCI 242106605 Contact Us For Availability
2
WCI 5304436616 WCI 5304436616 Contact Us For Availability
3
WCI 218679614 WCI 218679614 Contact Us For Availability
4
Bin-door,pseudo ,clear ,bottom WCI 240323002 Contact Us For Availability
4A
WCI 242194301 WCI 242194301 Contact Us For Availability
5
Fan Blade,red ,evaporator fan WCI 5308000010 Contact Us For Availability
5
WCI 241545005 WCI 241545005 Contact Us For Availability
7
WCI 240326203 WCI 240326203 Contact Us For Availability
7
WCI 5304458382 WCI 5304458382 Contact Us For Availability
7
WCI 241561402 WCI 241561402 Contact Us For Availability
9A
WCI 241845301 WCI 241845301 Contact Us For Availability
10
WCI 241726501 WCI 241726501 Contact Us For Availability
10A
WCI 241719711 WCI 241719711 Contact Us For Availability
11
PLUG-HOLE, FACTORY TEST WCI 5303208309 Contact Us For Availability
11
WCI 5304458400 WCI 5304458400 Contact Us For Availability
11C
WCI 240324101 WCI 240324101 Contact Us For Availability
11D
WCI 240350605 WCI 240350605 Contact Us For Availability
12
WCI 242015101 WCI 242015101 Contact Us For Availability
13
WCI 241990201 WCI 241990201 Contact Us For Availability
13
WCI 5304456665 WCI 5304456665 Contact Us For Availability
13A
WCI 241990202 WCI 241990202 Contact Us For Availability
14
WCI 242044113 WCI 242044113 Contact Us For Availability
14
WCI 242135301 WCI 242135301 Contact Us For Availability
15
WCI 5303918284 WCI 5303918284 Contact Us For Availability
15A
Lens,3 LED cluster WCI 242202701 Contact Us For Availability
16
STRAP-EVAP/HEATER,ALUMINUM ,(2) WCI 5308000110 Contact Us For Availability
18
WCI 241972501 WCI 241972501 Contact Us For Availability
19
WCI 5304458378 WCI 5304458378 Contact Us For Availability
21
WCI 5303918214 WCI 5303918214 Contact Us For Availability
21
WCI 5304458390 WCI 5304458390 Contact Us For Availability
22
WCI 241917801 WCI 241917801 Contact Us For Availability
22
WCI 241990301 WCI 241990301 Contact Us For Availability
22
WCI 5304458375 WCI 5304458375 Contact Us For Availability
22A
WCI 241990302 WCI 241990302 Contact Us For Availability
22B
WCI 241760404 WCI 241760404 Contact Us For Availability
22C
WCI 241760402 WCI 241760402 Contact Us For Availability
23
Sump,dispenser ,grey WCI 242176503 Contact Us For Availability
23
WCI 218513300 WCI 218513300 Contact Us For Availability
23
WCI 241845401 WCI 241845401 Contact Us For Availability
24
WCI 240350150 WCI 240350150 Contact Us For Availability
25
WCI 240491503 WCI 240491503 Contact Us For Availability
25A
WCI 240350903 WCI 240350903 Contact Us For Availability
25B
WCI 241969501 WCI 241969501 Contact Us For Availability
26
WCI 240351061 WCI 240351061 Contact Us For Availability
27
WCI 240351240 WCI 240351240 Contact Us For Availability
27A
WCI 241812702 WCI 241812702 Contact Us For Availability
28
WCI 240362201 WCI 240362201 Contact Us For Availability
30
WCI 241941003 WCI 241941003 Contact Us For Availability
37
Trim-cabinet corner,gray ,(2) WCI 242161206 Contact Us For Availability
38
WCI 241761301 WCI 241761301 Contact Us For Availability
38A
WCI 241761302 WCI 241761302 Contact Us For Availability
38C
WCI 242058222 WCI 242058222 Contact Us For Availability
40
Cover-upper hinge,gray ,RH WCI 241946709 Contact Us For Availability
40
WCI 5304458401 WCI 5304458401 Contact Us For Availability
40A
Cover-upper hinge,gray ,LH WCI 241946710 Contact Us For Availability
40A
WCI 241891901 WCI 241891901 Contact Us For Availability
42
WCI 218515403 WCI 218515403 Contact Us For Availability
43
WCI 215005101 WCI 215005101 Contact Us For Availability
44
WCI 218359202 WCI 218359202 Contact Us For Availability
45A
WCI 241675902 WCI 241675902 Contact Us For Availability
46
WCI 241716002 WCI 241716002 Contact Us For Availability
47
WCI 241731801 WCI 241731801 Contact Us For Availability
47
WCI 241513001 WCI 241513001 Contact Us For Availability
47A
WCI 240350603 WCI 240350603 Contact Us For Availability
47B
WCI 240443384 WCI 240443384 Contact Us For Availability
48
WCI 241684602 WCI 241684602 Contact Us For Availability
49B
WCI 240530504 WCI 240530504 Contact Us For Availability
50
WCI 242115254 WCI 242115254 Contact Us For Availability
50A
Power Board,LED WCI 241891610 Contact Us For Availability
51
Tube-water fill,extension WCI 241796407 Contact Us For Availability
51
WCI 240343002 WCI 240343002 Contact Us For Availability
51
WCI 241676301 WCI 241676301 Contact Us For Availability
52
WCI 240343102 WCI 240343102 Contact Us For Availability
54
WCI 241532401 WCI 241532401 Contact Us For Availability
55
WCI 242252702 WCI 242252702 Contact Us For Availability
55
WCI 297286803 WCI 297286803 Contact Us For Availability
58
WCI 241548003 WCI 241548003 Contact Us For Availability
59
WCI 241946106 WCI 241946106 Contact Us For Availability
60
WCI 242018301 WCI 242018301 Contact Us For Availability
60
WCI 218362501 WCI 218362501 Contact Us For Availability
60
WCI 242287001 WCI 242287001 Contact Us For Availability
66
WCI 241756801 WCI 241756801 Contact Us For Availability
66A
WCI 241756901 WCI 241756901 Contact Us For Availability
72
WCI 241969405 WCI 241969405 Contact Us For Availability
74
Screw-set,10-32 x .500 in WCI 218755402 Contact Us For Availability
79
WCI 218755401 WCI 218755401 Contact Us For Availability
82
WCI 5304418225 WCI 5304418225 Contact Us For Availability
86
WCI 240409302 WCI 240409302 Contact Us For Availability
93
WCI 241911705 WCI 241911705 Contact Us For Availability
100
WCI 241993101 WCI 241993101 Contact Us For Availability
100
WCI 241993001 WCI 241993001 Contact Us For Availability
100
WCI 240326304 WCI 240326304 Contact Us For Availability
101
WCI 241953902 WCI 241953902 Contact Us For Availability
101
WCI 218493101 WCI 218493101 Contact Us For Availability
115
WCI 241853801 WCI 241853801 Contact Us For Availability
126
WCI 241674401 WCI 241674401 Contact Us For Availability
126
WCI 241674402 WCI 241674402 Contact Us For Availability
208
WCI 241754301 WCI 241754301 Contact Us For Availability
210
WCI 241983812 WCI 241983812 Contact Us For Availability
211
WCI 242286201 WCI 242286201 Contact Us For Availability
NI
WCI 241860810 WCI 241860810 Contact Us For Availability
NI
WCI 5303918222 WCI 5303918222 Contact Us For Availability
NI
Tube-water inlet,5/16 - 97.50`` ,brown/tan WCI 218976429 Contact Us For Availability
NI
Clip-slide,cover WCI 240362101 Contact Us For Availability
NI
Clip-slide,pan WCI 240349801 Contact Us For Availability
NI
WCI 241519902 WCI 241519902 Contact Us For Availability
NI
WCI 240555002 WCI 240555002 Contact Us For Availability
NI
Clip-slide,crisper WCI 241595202 Contact Us For Availability
NI
WCI 241781601 WCI 241781601 Contact Us For Availability
NI
WCI 242288101 WCI 242288101 Contact Us For Availability
NI
WCI 242199602 WCI 242199602 Contact Us For Availability
NI
WCI 240359403 WCI 240359403 Contact Us For Availability
NI
WCI 240451503 WCI 240451503 Contact Us For Availability
NI
WCI 241519401 WCI 241519401 Contact Us For Availability
NI
WCI 240363602 WCI 240363602 Contact Us For Availability
NI
WCI 242036801 WCI 242036801 Contact Us For Availability
NI
WCI 241945101 WCI 241945101 Contact Us For Availability
NI
WCI 241780403 WCI 241780403 Contact Us For Availability
× ![]()
