Model FPHS2699PF1 – Common Parts & Diagrams

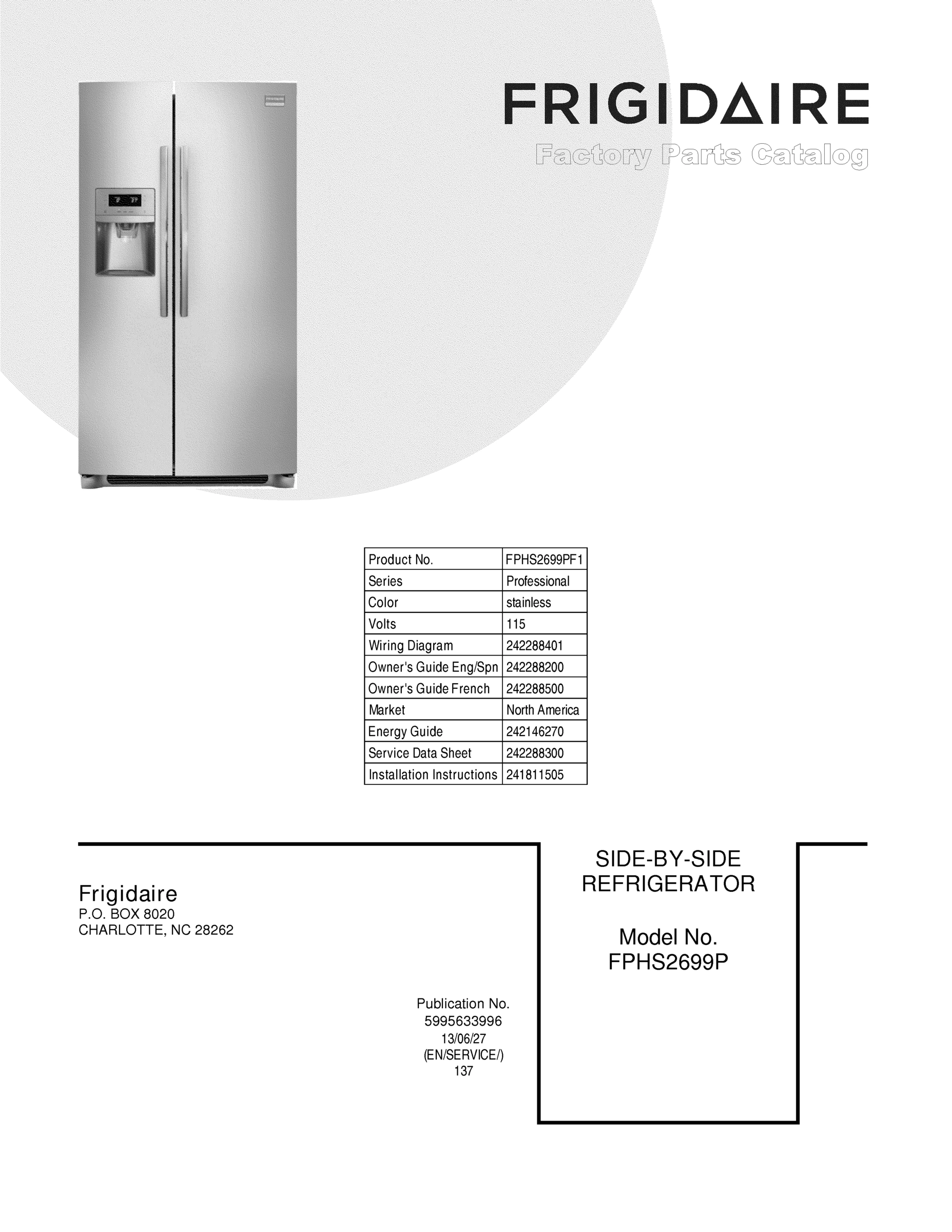

01 - COVER

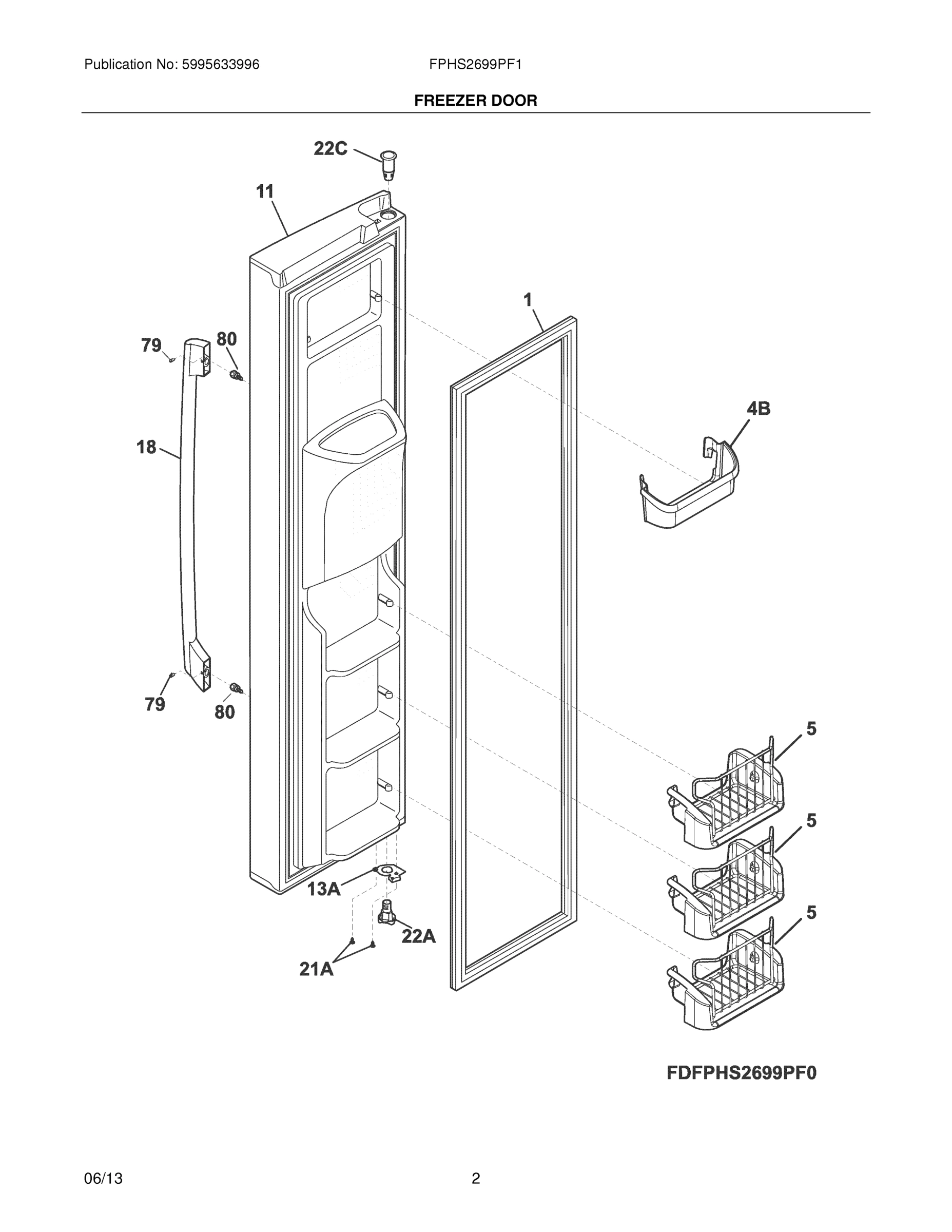

03 - FREEZER DOOR

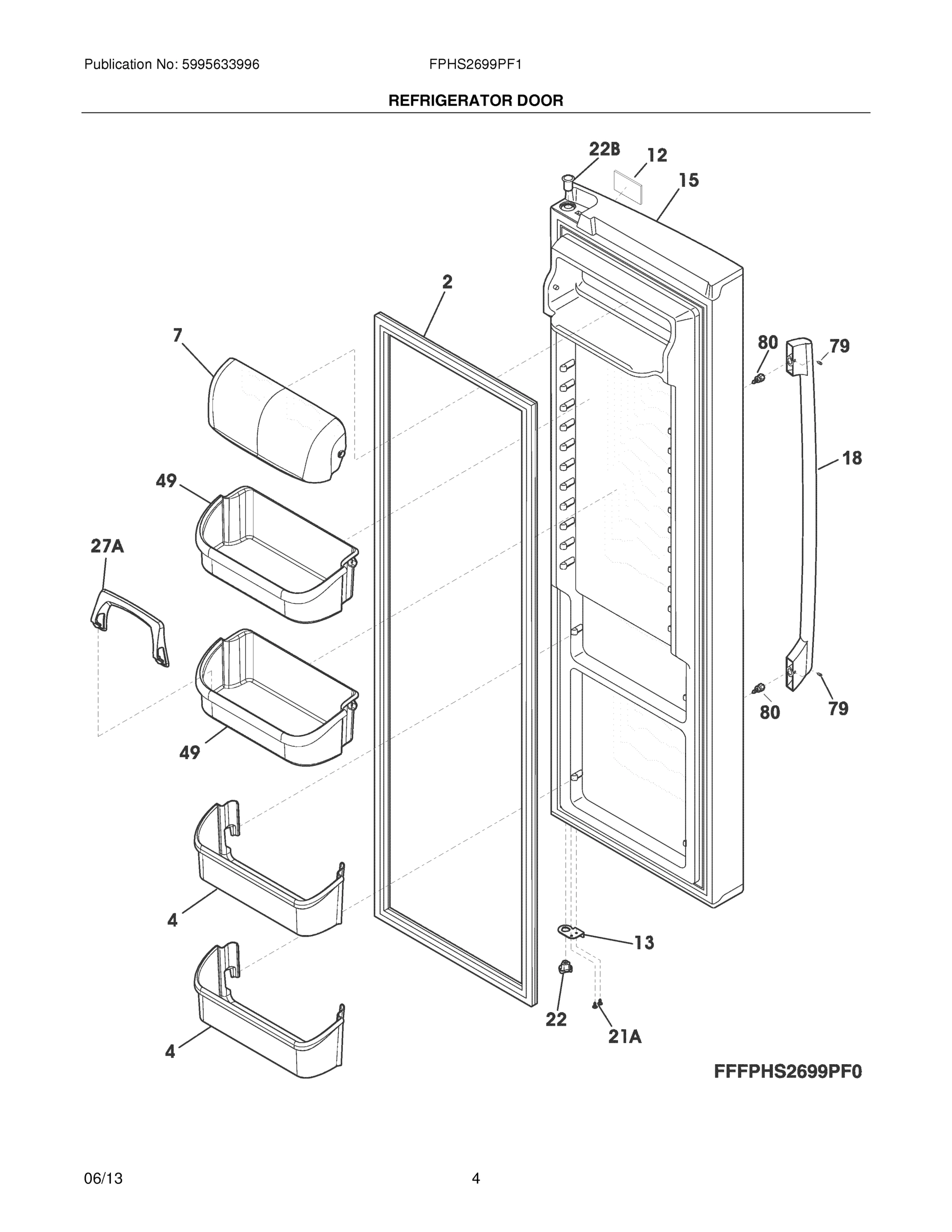

05 - REFRIGERATOR DOOR

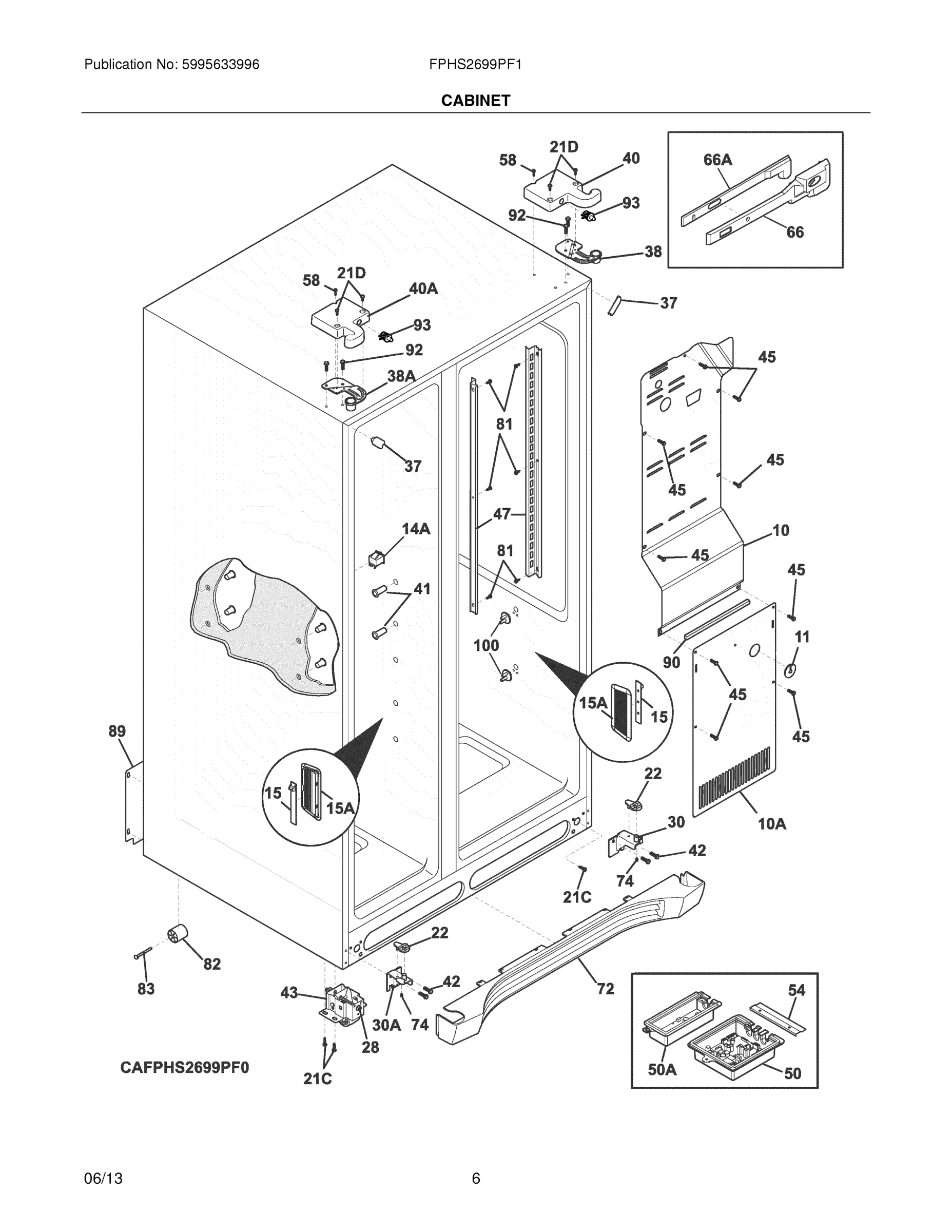

07 - CABINET

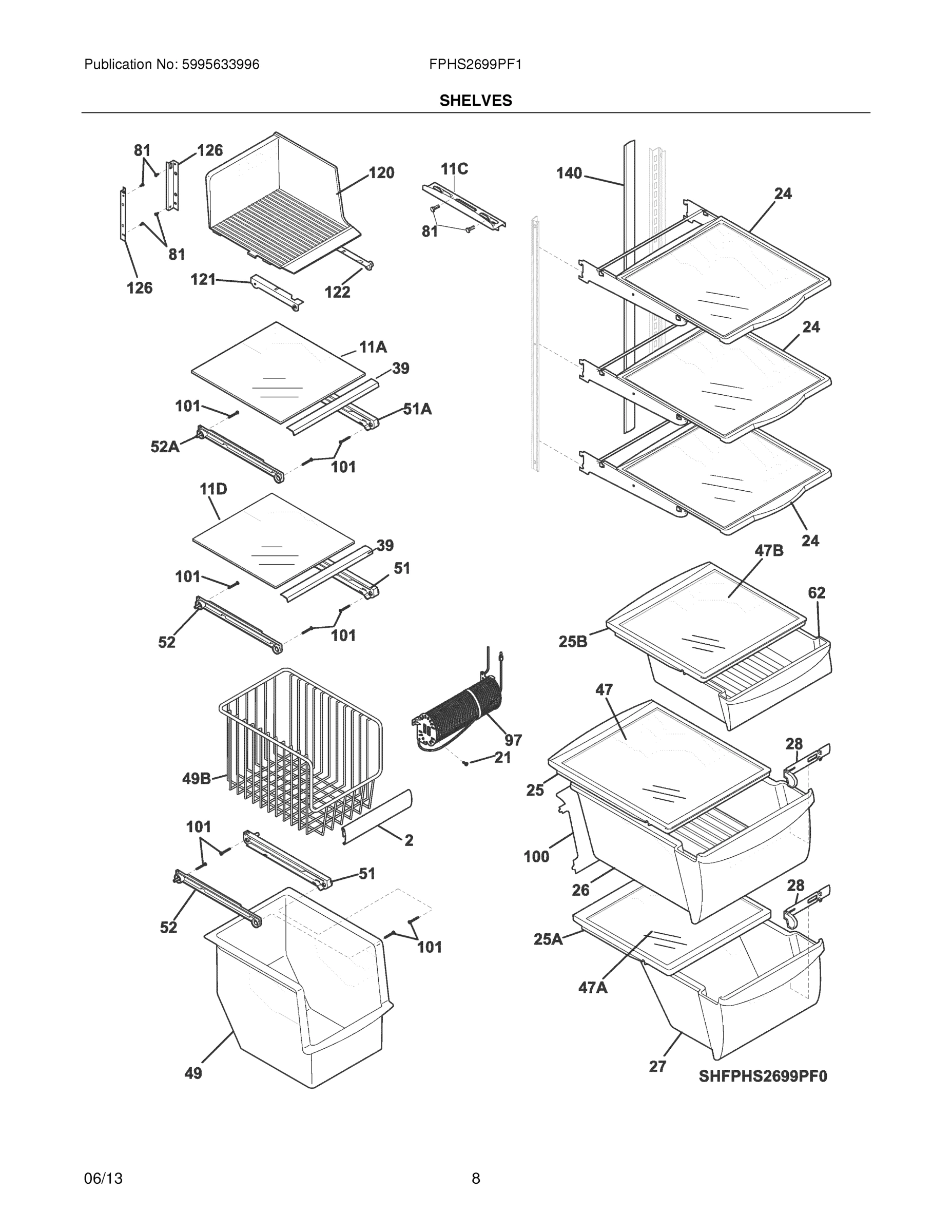

09 - SHELVES

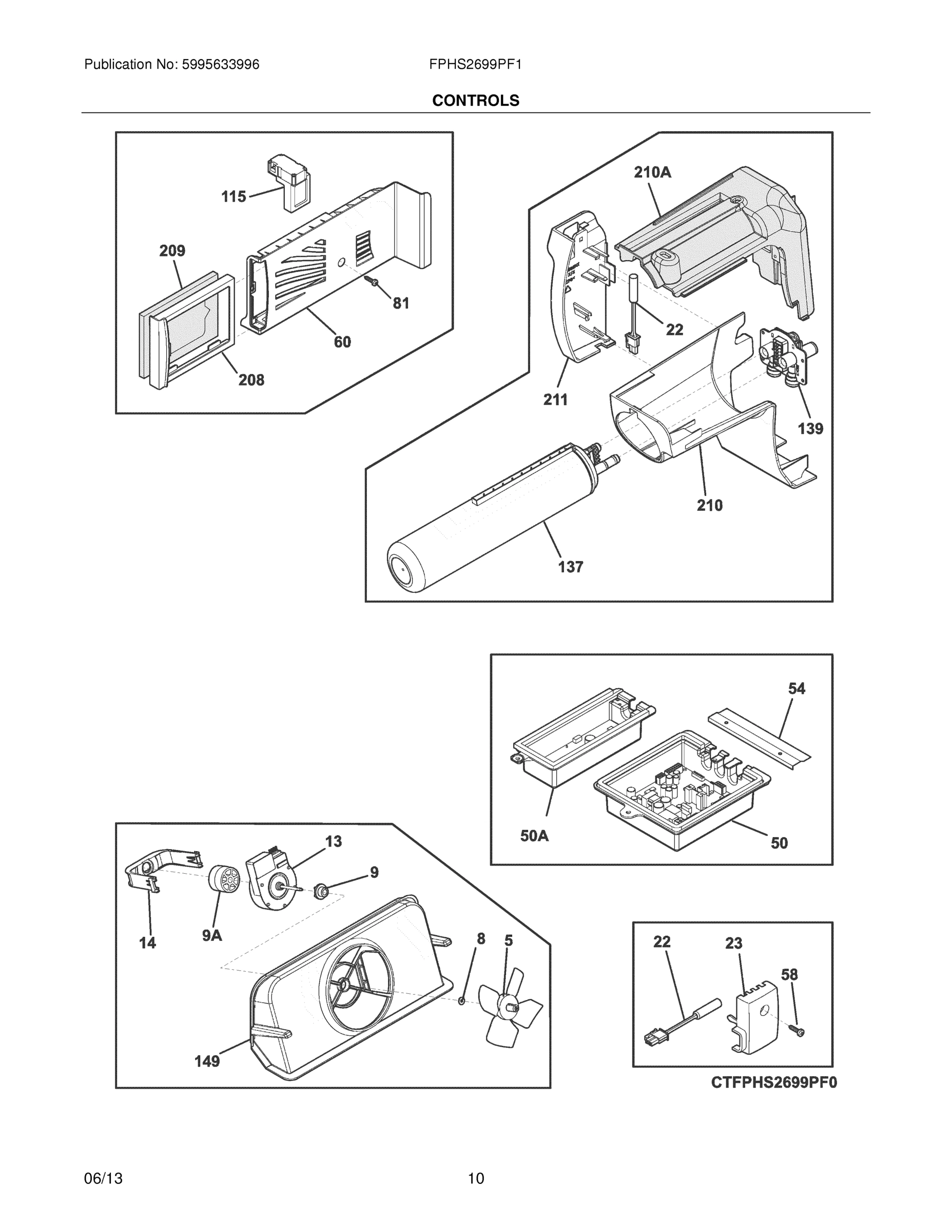

11 - CONTROLS

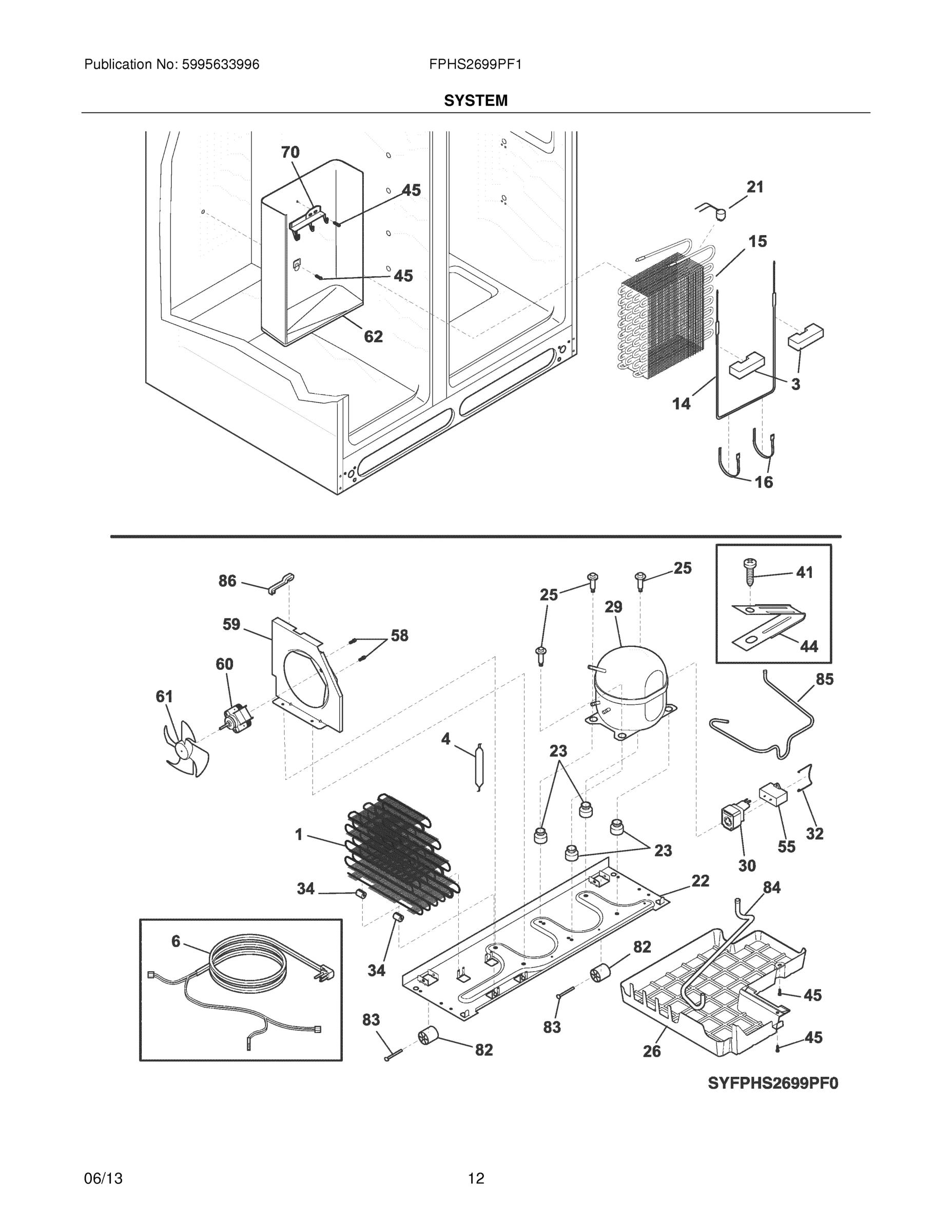

13 - SYSTEM

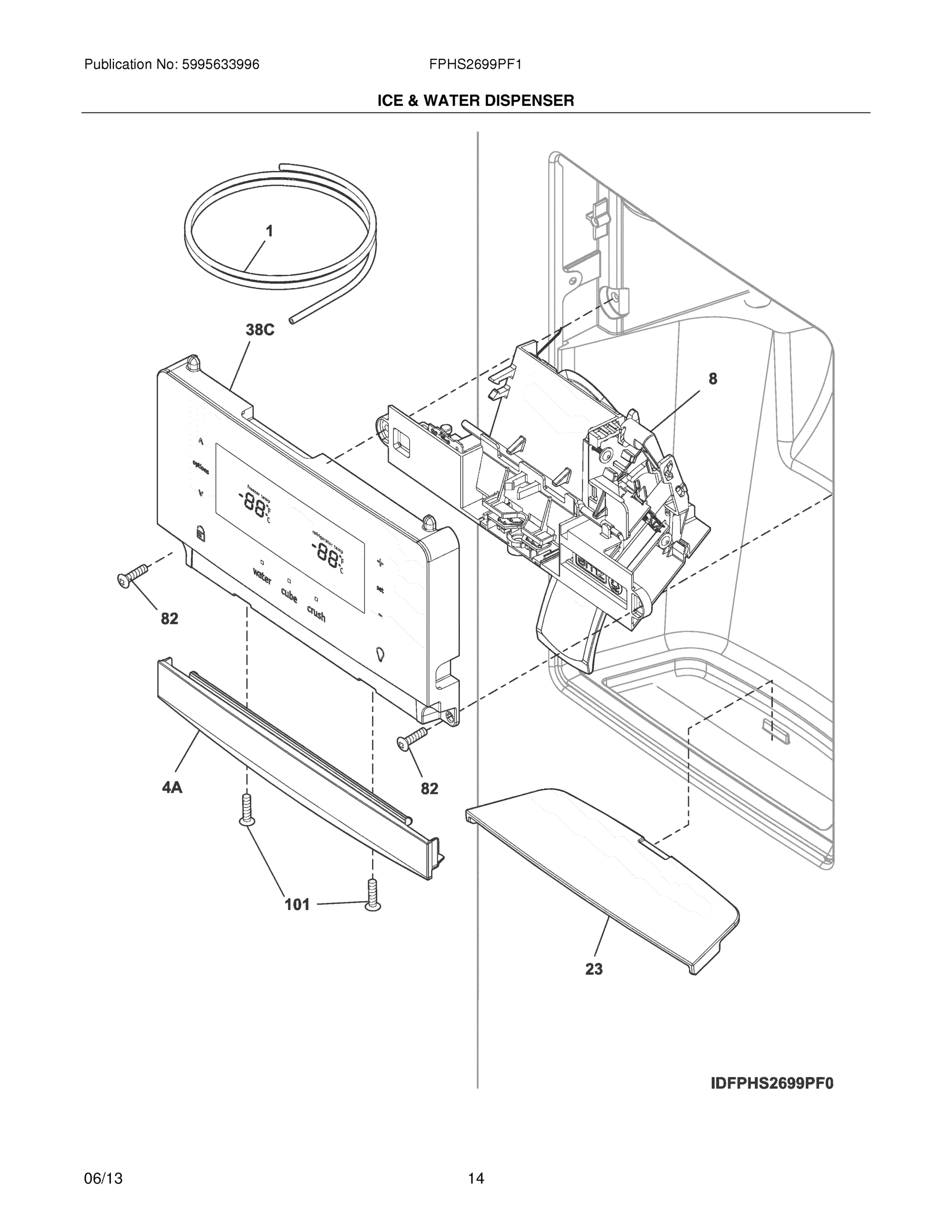

15 - ICE & WATER DISPENSER

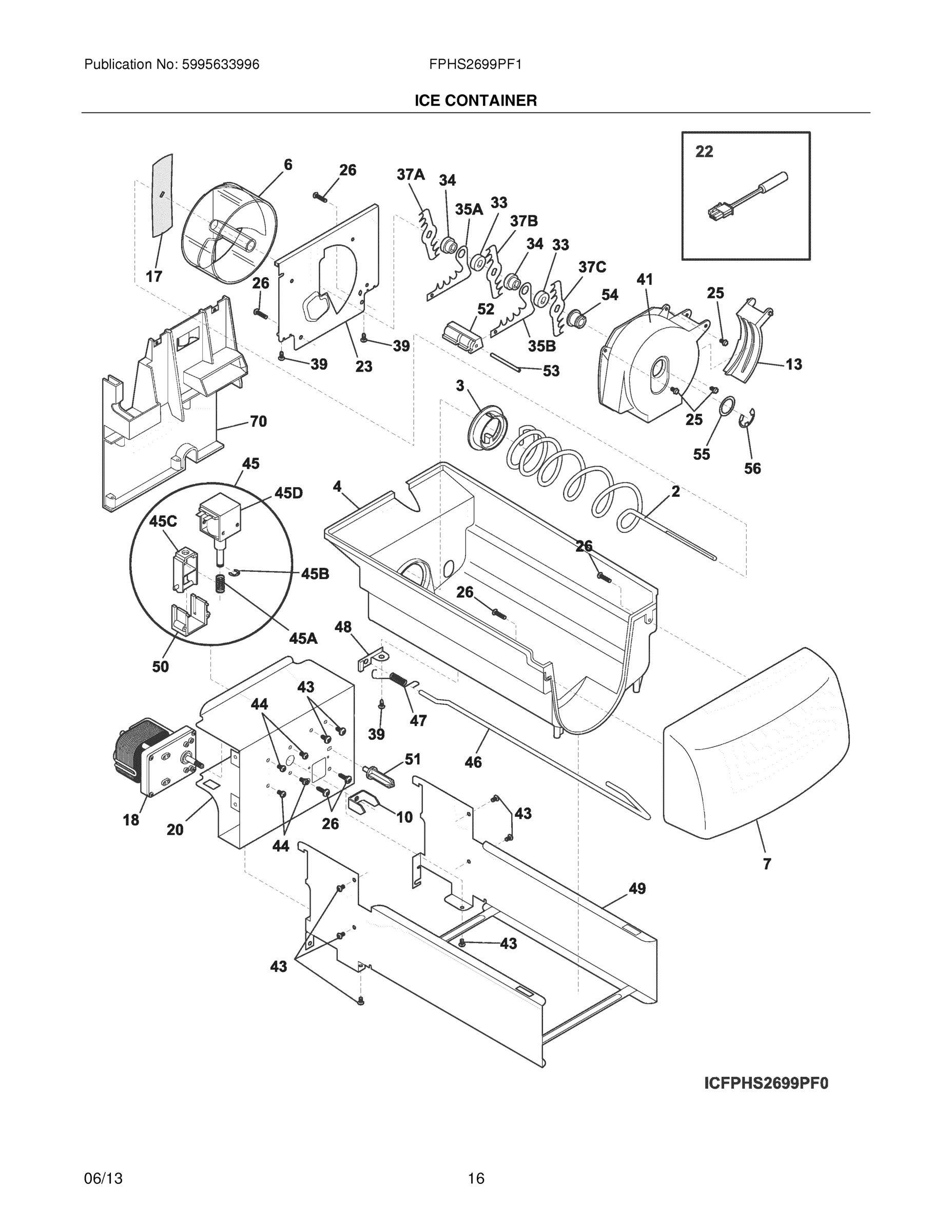

17 - ICE CONTAINER

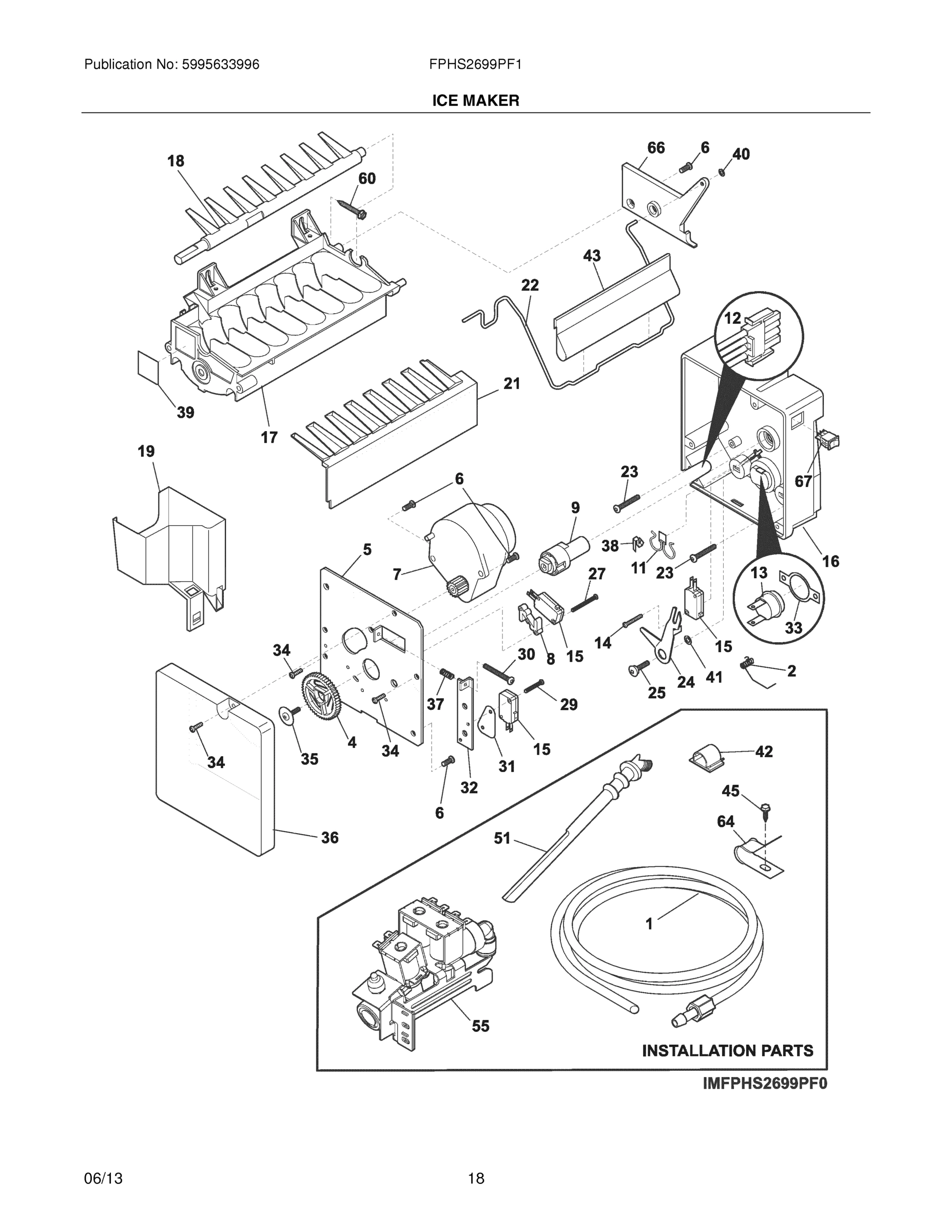

19 - ICE MAKER

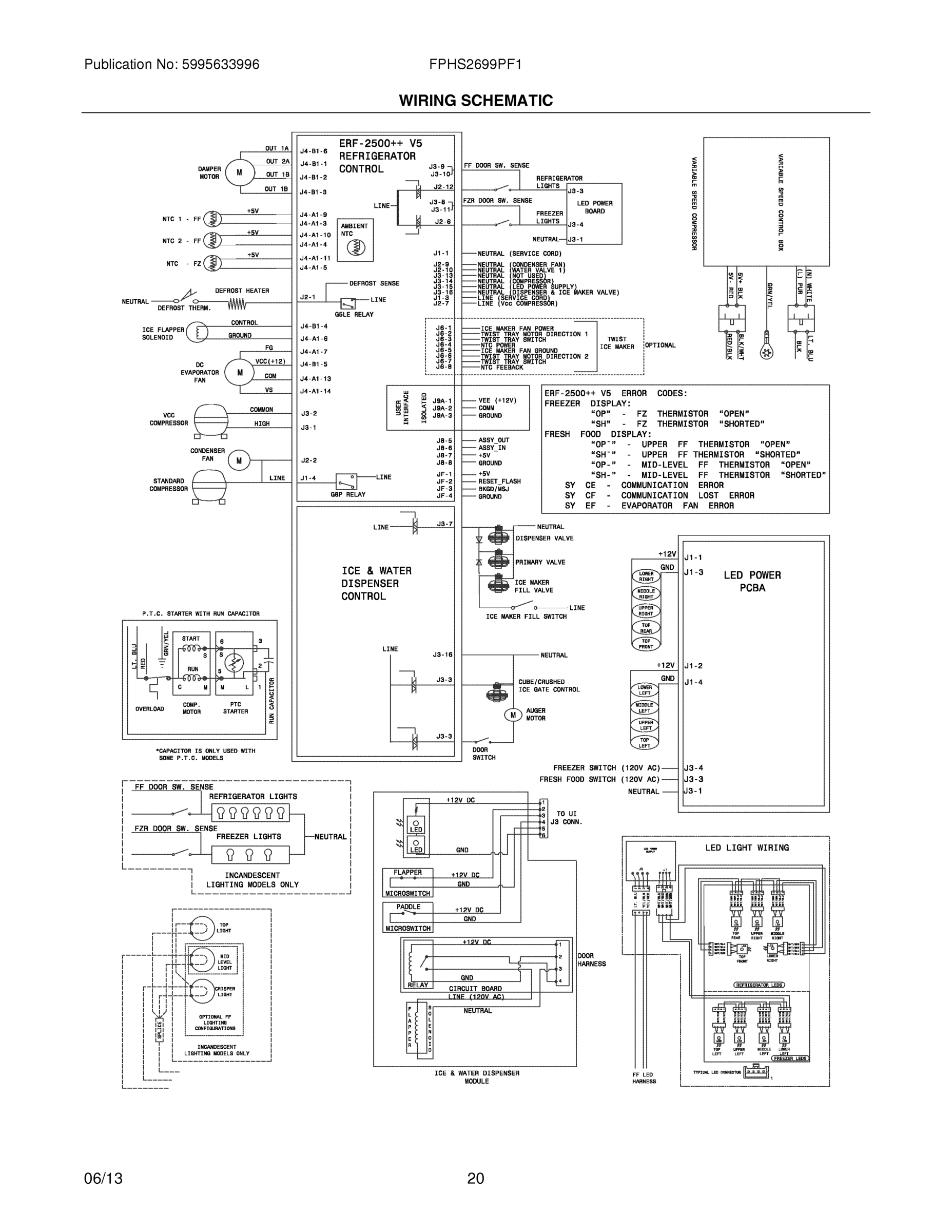

20 - WIRING SCHEMATIC

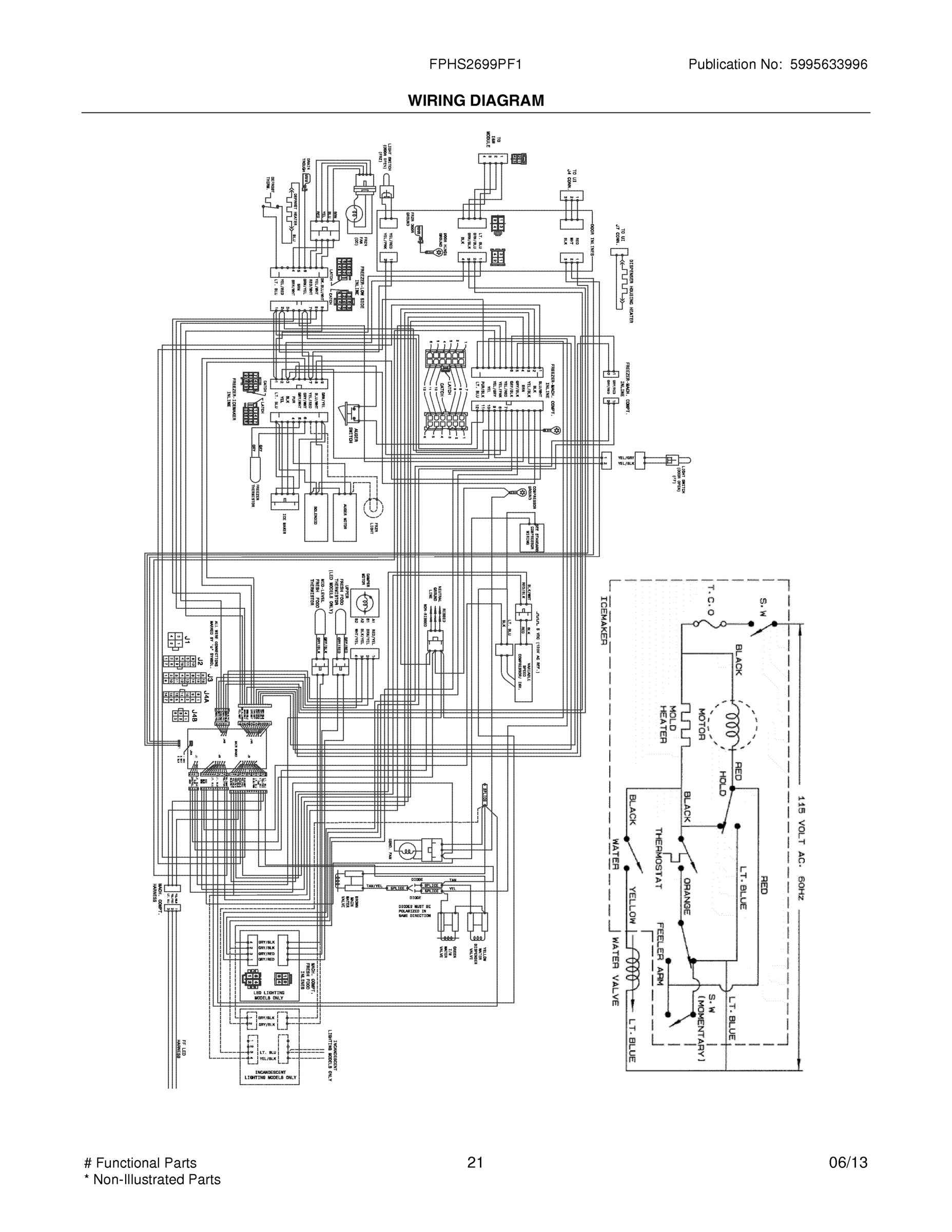

21 - WIRING DIAGRAM
