Model Electrolux FPGF3077QFB GAS RANGE – Common Parts & Diagrams
01 - COVER SHEET

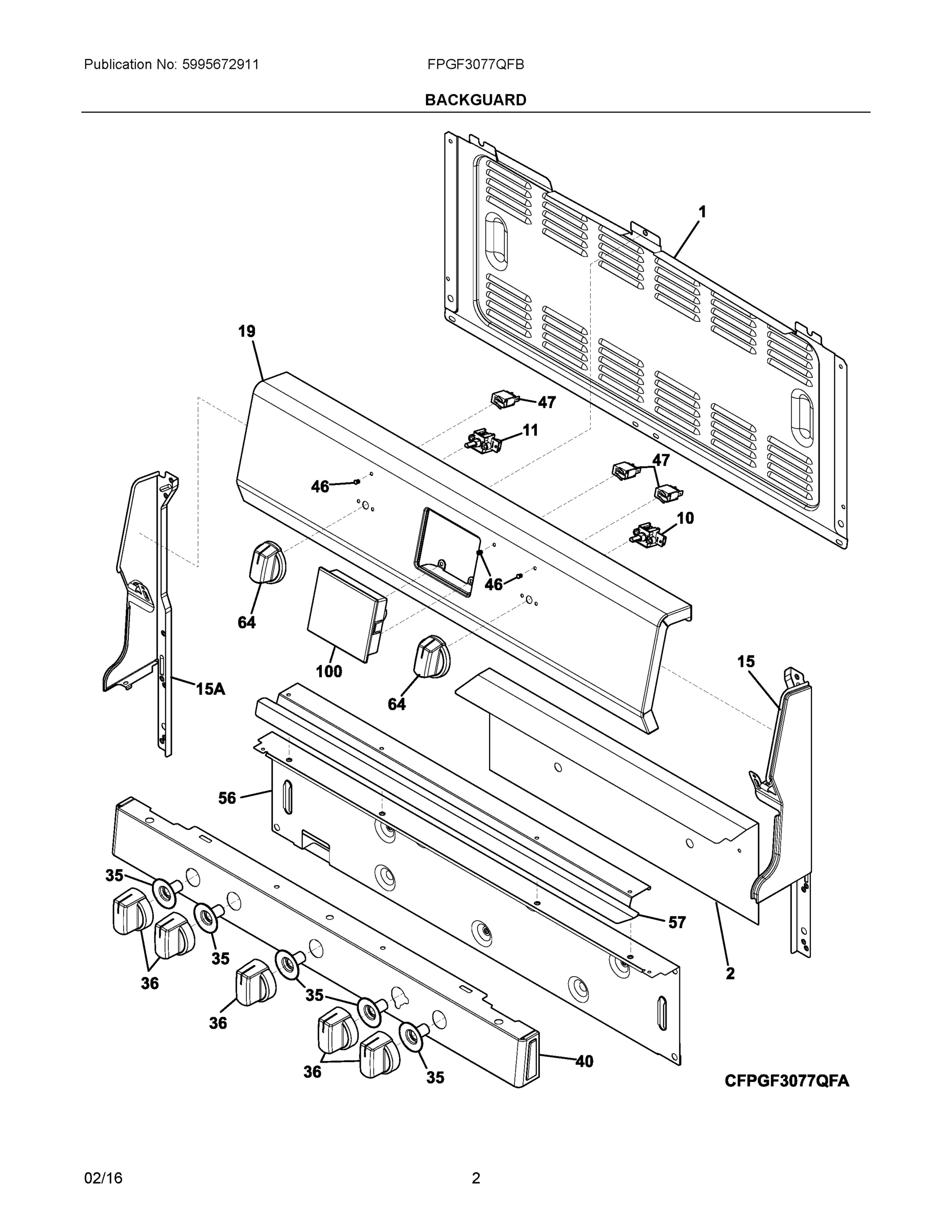

02 - BACKGUARD

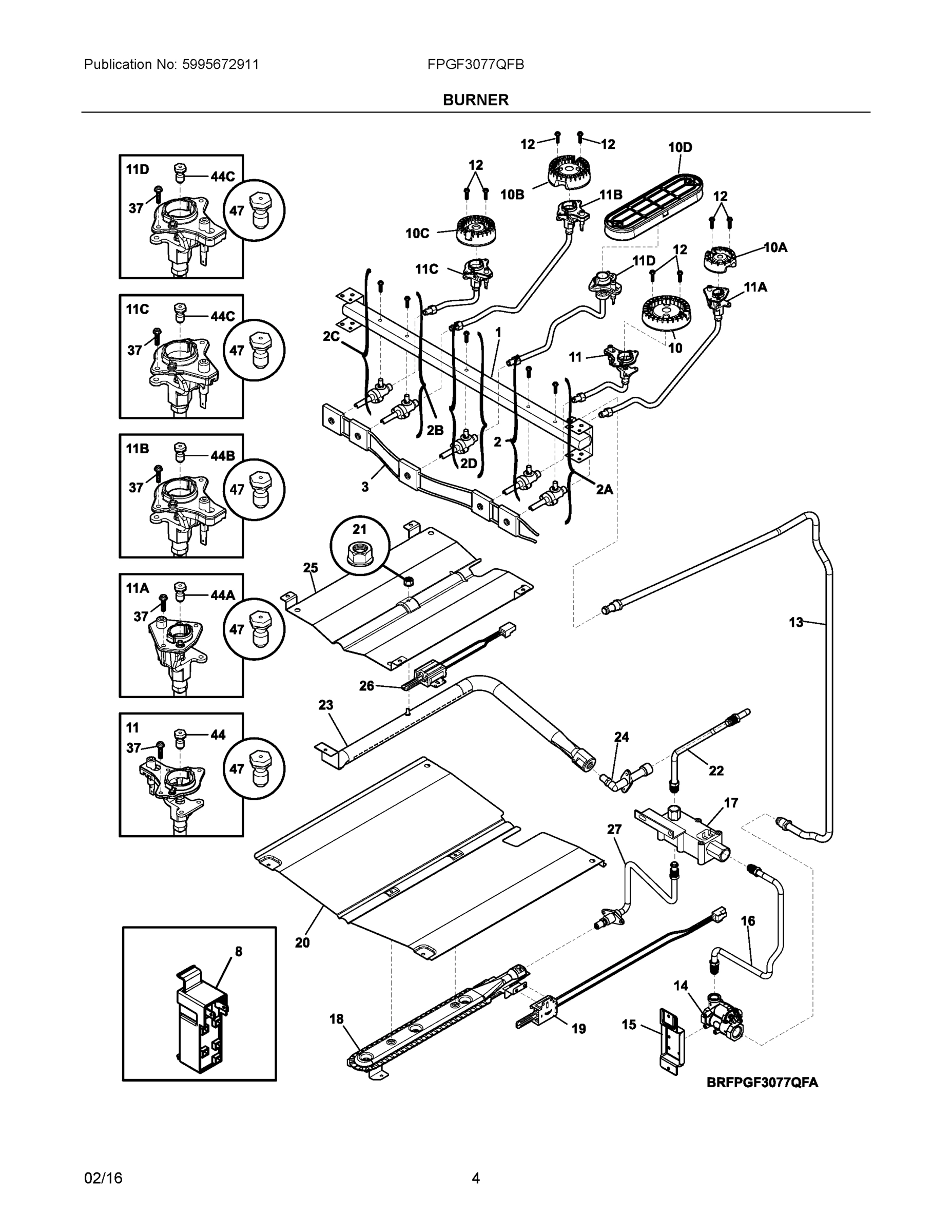

03 - BURNER

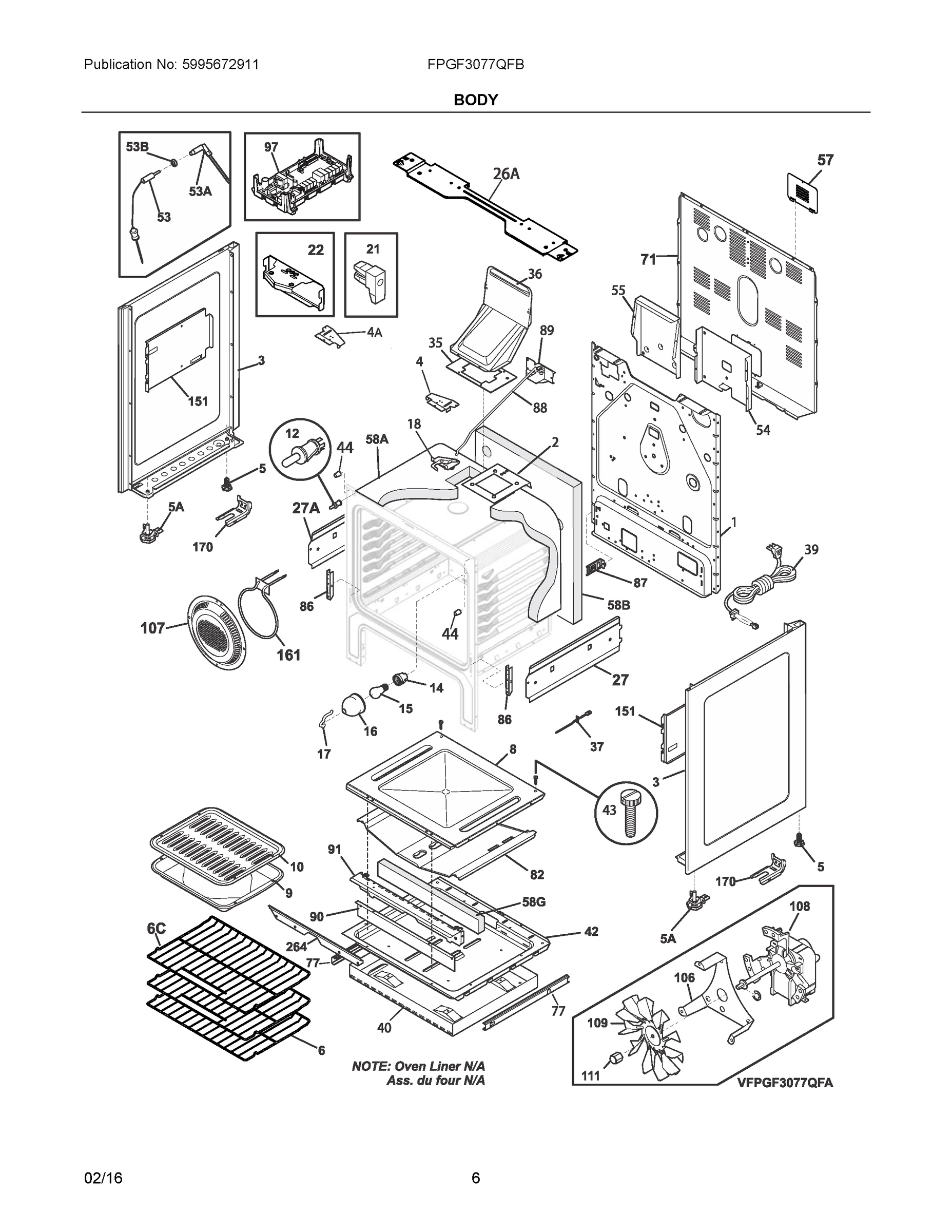

04 - BODY

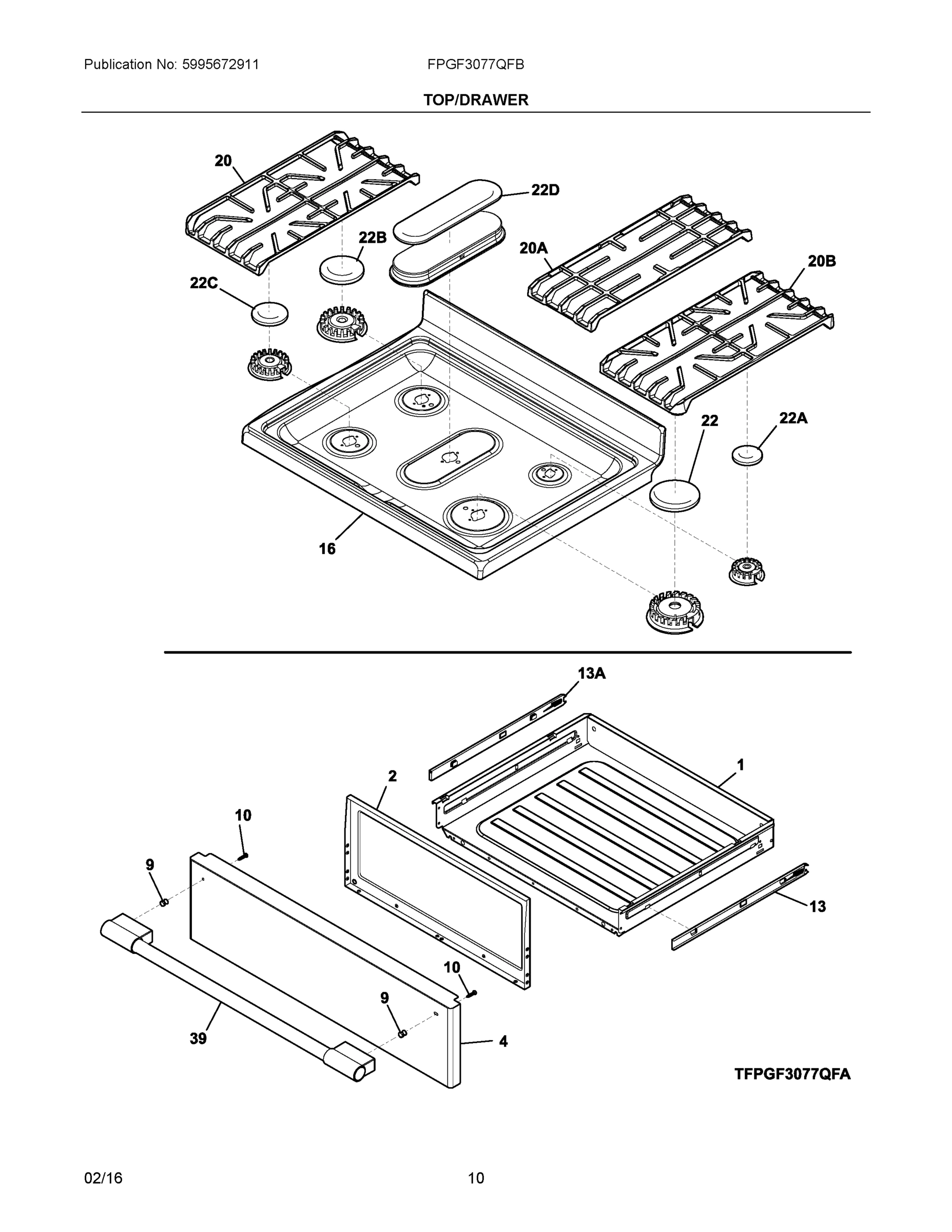

05 - TOP/DRAWER

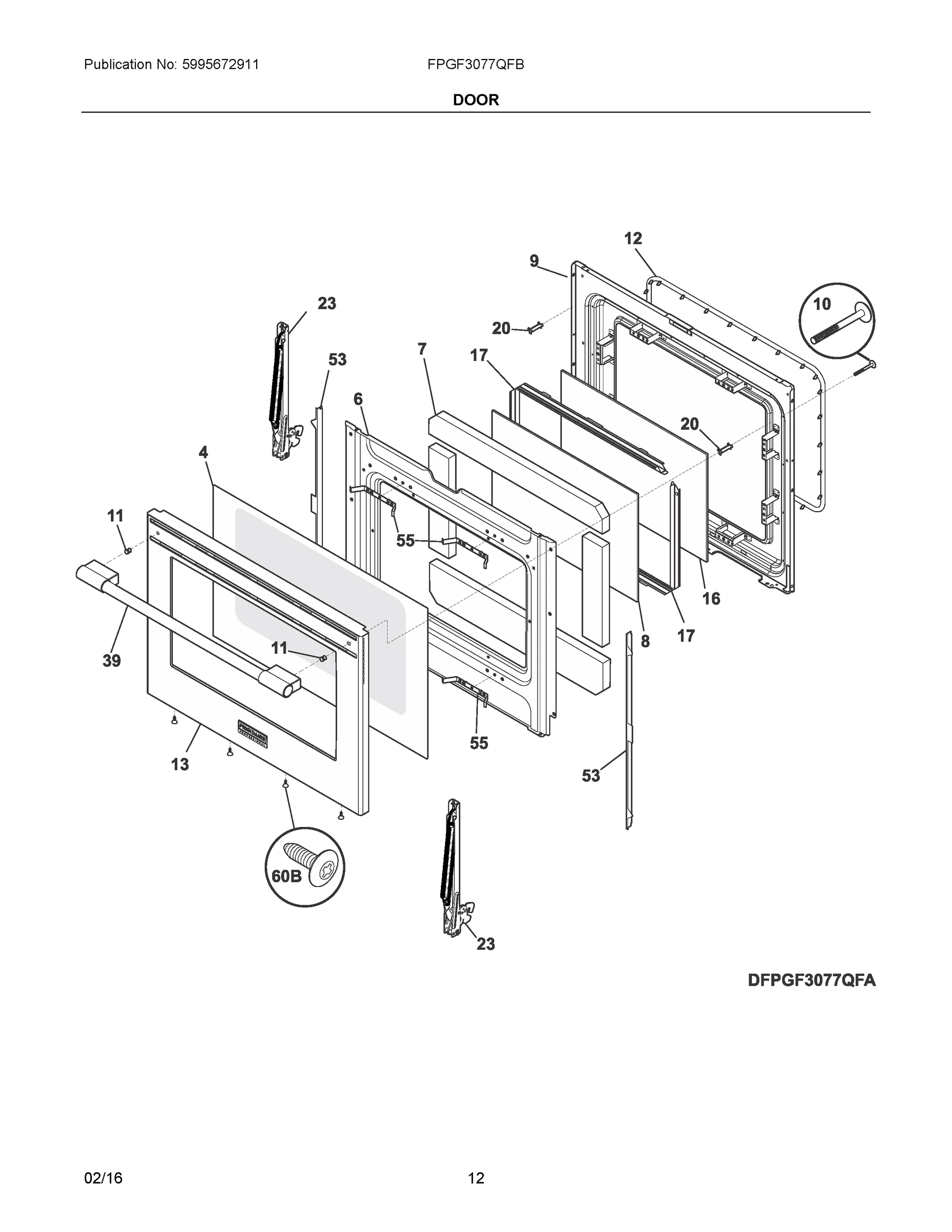

06 - DOOR

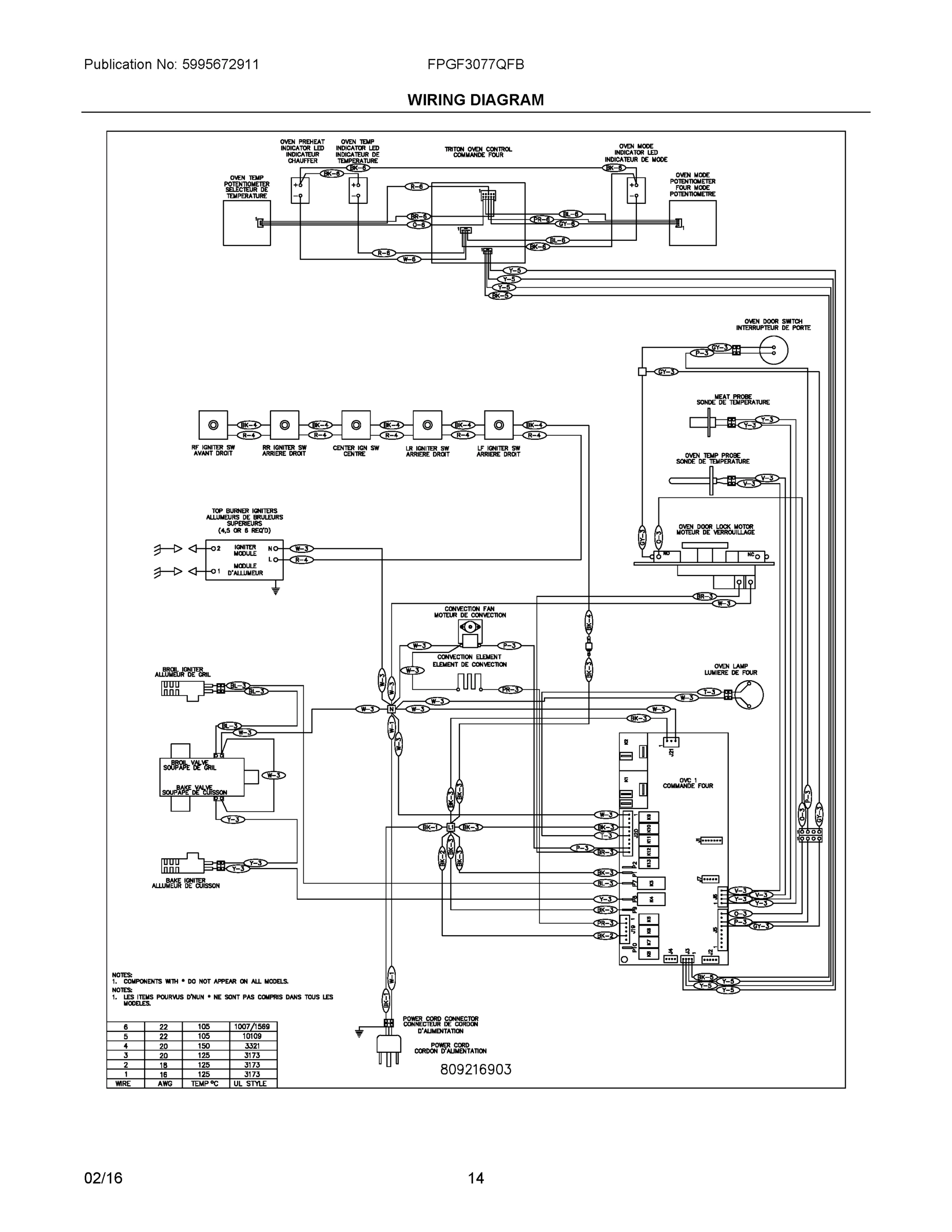

07 - WIRING DIAGRAM

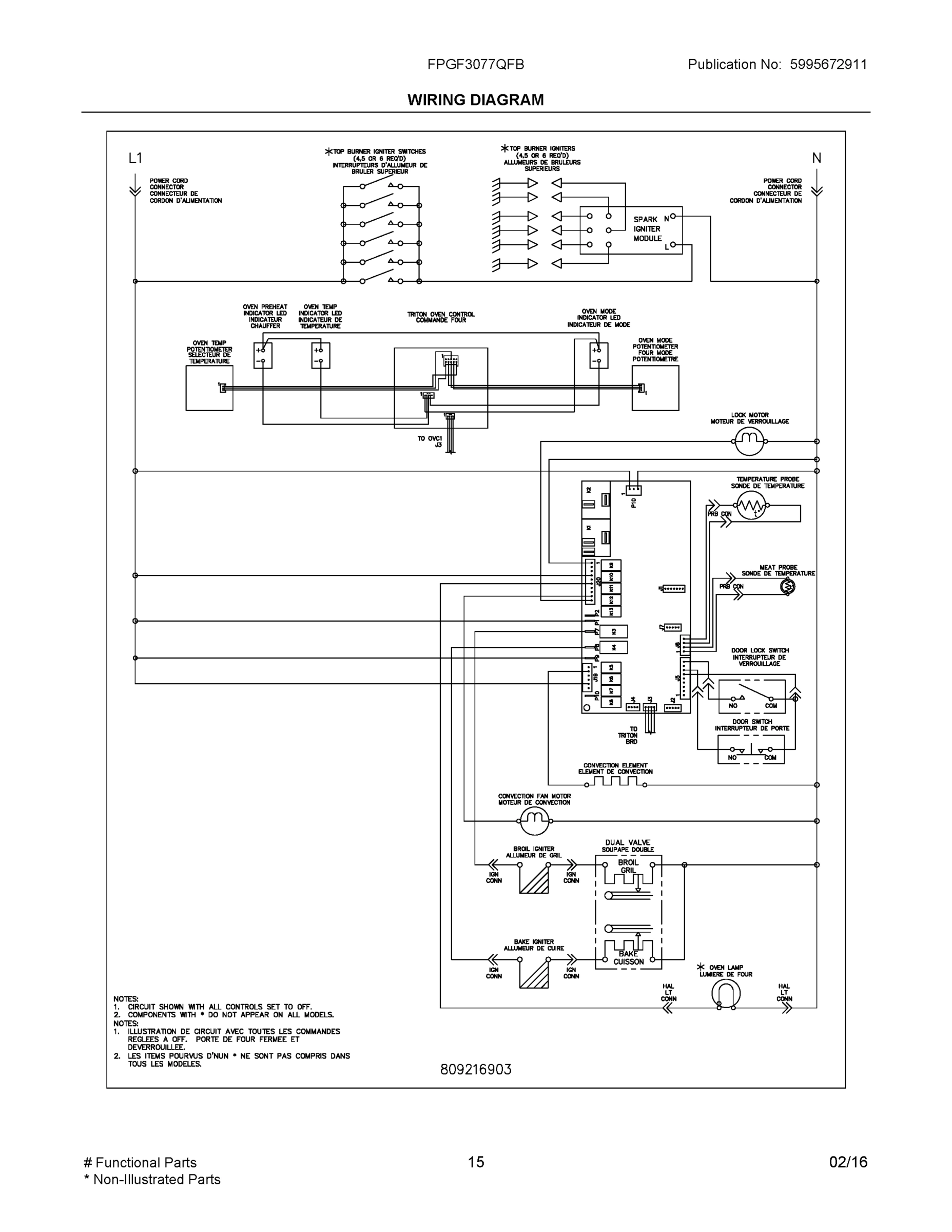

08 - WIRING DIAGRAM
Common parts from model Electrolux FPGF3077QFB GAS RANGE
2
VALVE, BURNER, 16/17/18K WCI 316560900 Contact Us For Availability
2A
VALVE, 5K TOP BURNER, W/MTG SCREW WCI 5303935308 Contact Us For Availability
2B
VALVE, TOP BURNER, BLUE STEM WCI 5303935306 Contact Us For Availability
2C
VALVE, 9.5K BURNER, W/MTG SCREW WCI 5303935305 Contact Us For Availability
2D
VALVE, TOP BURNER, 9.5K/TORTILLA WCI 5303935309 Contact Us For Availability
3
WCI 5304494418 WCI 5304494418 Contact Us For Availability
4
PANEL, DRAWER FRONT, STAINLESS WCI 5304494412 Contact Us For Availability
4
GLASS, OVEN DOOR, BLACK, W/FOIL WCI 316452723 Contact Us For Availability
5
SCREW, LEVELING, PLASTIC, REAR, (2) WCI 316272900 Contact Us For Availability
6
RACK, OVEN WCI 316496205 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 316403900 Contact Us For Availability
8
WCI 316603201 WCI 316603201 Contact Us For Availability
9
WCI 316423807 WCI 316423807 Contact Us For Availability
9
PAN, BROILER WCI 318138801 Contact Us For Availability
10
BURNER, SEALED, 17K WCI 316438400 Contact Us For Availability
10
WCI 808843102 WCI 808843102 Contact Us For Availability
10
SCREW, HANDLE MTG. WCI 5304414648 Contact Us For Availability
10A
BURNER, SEALED, 5K WCI 316438200 Contact Us For Availability
10B
BURNER, SEALED, 12K WCI 316438000 Contact Us For Availability
10C
BURNER, SEALED, 9.5K WCI 316558300 Contact Us For Availability
10D
BURNER, SEALED, 9.5K, OVAL WCI 316559300 Contact Us For Availability
11
WCI 5304493649 WCI 5304493649 Contact Us For Availability
11
WCI 316536625 WCI 316536625 Contact Us For Availability
11A
IGNITOR/ORIFICE ASSY., TOP BURNER, RIGHT REAR WCI 316536610 Contact Us For Availability
11B
IGNITOR/ORIFICE ASSY., TOP BURNER, LEFT REAR, WCI 316536612 Contact Us For Availability
11C
IGNITOR/ORIFICE ASSY., TOP BURNER, LEFT FRONT WCI 316536602 Contact Us For Availability
11D
IGNITOR/ORIFICE ASSY., TOP BURNER, CENTER, 9. WCI 316536623 Contact Us For Availability
12
SCREW, BURNER, HEAD MTG, (8) WCI 316540900 Contact Us For Availability
12
WCI 5304498835 WCI 5304498835 Contact Us For Availability
13
WCI 5304494421 WCI 5304494421 Contact Us For Availability
13
GLIDE, WARMER, INNER RH WCI 316415000 Contact Us For Availability
13A
GLIDE, WARMER, INNER LH WCI 316415001 Contact Us For Availability
14
RECEPTACLE, OVEN LIGHT WCI 316116400 Contact Us For Availability
15
WCI 5304493644 WCI 5304493644 Contact Us For Availability
15A
WCI 5304493646 WCI 5304493646 Contact Us For Availability
16
WCI 316610006 WCI 316610006 Contact Us For Availability
17
VALVE, SAFETY WCI 5303210798 Contact Us For Availability
17
RETAINER, LENS WCI 316087500 Contact Us For Availability
18
LATCH ASSEMBLY, OVEN DOOR WCI 316405800 Contact Us For Availability
18
WCI 5304494426 WCI 5304494426 Contact Us For Availability
19
IGNITOR, BAKE BURNER WCI 316489403 Contact Us For Availability
19
WCI 5304496878 WCI 5304496878 Contact Us For Availability
20
WCI 808754701 WCI 808754701 Contact Us For Availability
20
WCI 316602001 WCI 316602001 Contact Us For Availability
20
WCI 316284102 WCI 316284102 Contact Us For Availability
20A
WCI 808754801 WCI 808754801 Contact Us For Availability
20B
WCI 808754702 WCI 808754702 Contact Us For Availability
21
NUT, HEX HEAD SEMS WCI 5303013272 Contact Us For Availability
21
CLIP, BODYSIDE WCI 316408000 Contact Us For Availability
22
BRACKET-BODYSIDE, (2) WCI 316286300 Contact Us For Availability
22D
CAP, 9.5K BURNER, BLACK, OVAL WCI 316559604 Contact Us For Availability
23
HINGE, OVEN DOOR WCI 316575906 Contact Us For Availability
23
BURNER, BROILER WCI 316404302 Contact Us For Availability
25
WCI 5304497666 WCI 5304497666 Contact Us For Availability
26A
BRACKET-SUPPORT, CHASSIS, ALUMINUM WCI 316498200 Contact Us For Availability
27
WCI 316602400 WCI 316602400 Contact Us For Availability
35
WCI 316354300 WCI 316354300 Contact Us For Availability
36
WCI 808694401 WCI 808694401 Contact Us For Availability
37
PROBE, OVEN TEMP WCI 316490000 Contact Us For Availability
37
SCREW, ASSY MTG, (8), IGNITOR/ORIFICE WCI 316240600 Contact Us For Availability
39
WCI 5304494423 WCI 5304494423 Contact Us For Availability
40
WCI 316606117 WCI 316606117 Contact Us For Availability
44
SPACER, OVEN DOOR WCI 316517600 Contact Us For Availability
44A
ORIFICE, BURNER, 5K WCI 316527504 Contact Us For Availability
44B
ORIFICE, BURNER, 12K WCI 316527502 Contact Us For Availability
44C
ORIFICE, BURNER, 9.5K WCI 316527500 Contact Us For Availability
46
LENS-LIGHT/LAMP, INDICATOR, CLEAR WCI 316557300 Contact Us For Availability
47
LP CONVERSION KIT, W/INSTRUCTIONS WCI GRLP4 Contact Us For Availability
47
WCI 316022505 WCI 316022505 Contact Us For Availability
53A
RECEPTACLE, PROBE WCI 316536900 Contact Us For Availability
53B
NUT, MOUNTING WCI 316247700 Contact Us For Availability
55
BRACKET, GLASS SUPPORT, (4) WCI 316408301 Contact Us For Availability
57
COVER, ACCESS WCI 316283600 Contact Us For Availability
57
WCI 808754601 WCI 808754601 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 316403700 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 316403600 Contact Us For Availability
58G
INSULATION, MAIN FRONT WCI 08067973 Contact Us For Availability
64
WCI 809020701 WCI 809020701 Contact Us For Availability
77
GLIDE, WARMER DRAWER, OUTER/RH & LH, (2) WCI 316456700 Contact Us For Availability
86
RECEPTACLE, HINGE WCI 316441300 Contact Us For Availability
100
WCI 808751507 WCI 808751507 Contact Us For Availability
106
BRACKET, MOTOR MTG. WCI 316404100 Contact Us For Availability
107
COVER, FAN WCI 316026701 Contact Us For Availability
108
WCI 316256900 WCI 316256900 Contact Us For Availability
109
WCI 318398302 WCI 318398302 Contact Us For Availability
111
NUT, FAN RETAINER WCI 316136600 Contact Us For Availability
161
ELEMENT, CONVECTION FAN, 350 W WCI 316211603 Contact Us For Availability
NI
SCREW, 8-18 X 0.5, CHROME WCI 316021109 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
SCREW, WAFER HEAD, 8-32T X 0.500, BLACK WCI 5303285179 Contact Us For Availability
NI
SCREW, 10-16 X .486 WCI 316089500 Contact Us For Availability
NI
SCREW, VALVE MTG., 1/4 - 20 WCI 316215600 Contact Us For Availability
NI
WCI 316418901 WCI 316418901 Contact Us For Availability
NI
SCREW, CUP PT, 8-18 X 0.375, CHROME WCI 316021108 Contact Us For Availability
NI
WCI 808858301 WCI 808858301 Contact Us For Availability
NI
WCI 808858401 WCI 808858401 Contact Us For Availability
NI
WCI 5303289910 WCI 5303289910 Contact Us For Availability
NI
WCI 5304498836 WCI 5304498836 Contact Us For Availability
NIA
WCI 5304494425 WCI 5304494425 Contact Us For Availability
NIA
SCREW, SIMS LP, #8-32 X 5/16", BLACK WCI 316418900 Contact Us For Availability
NIA
WCI 316401500 WCI 316401500 Contact Us For Availability
NIA
WCI 316021104 WCI 316021104 Contact Us For Availability
NIA
WCI 5303271648 WCI 5303271648 Contact Us For Availability
× ![]()
