Model Electrolux FPEF3077QFM RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET

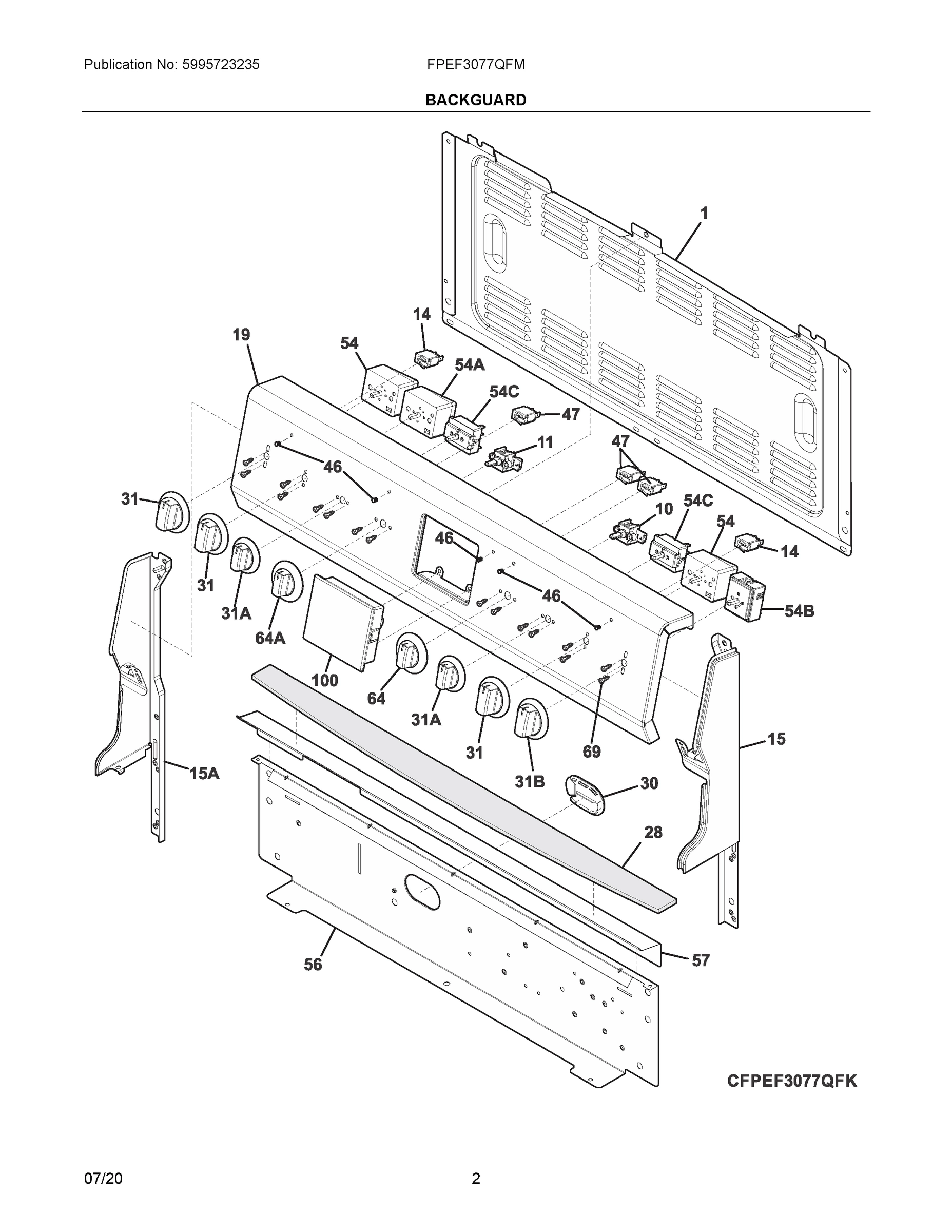

02 - BACKGUARD

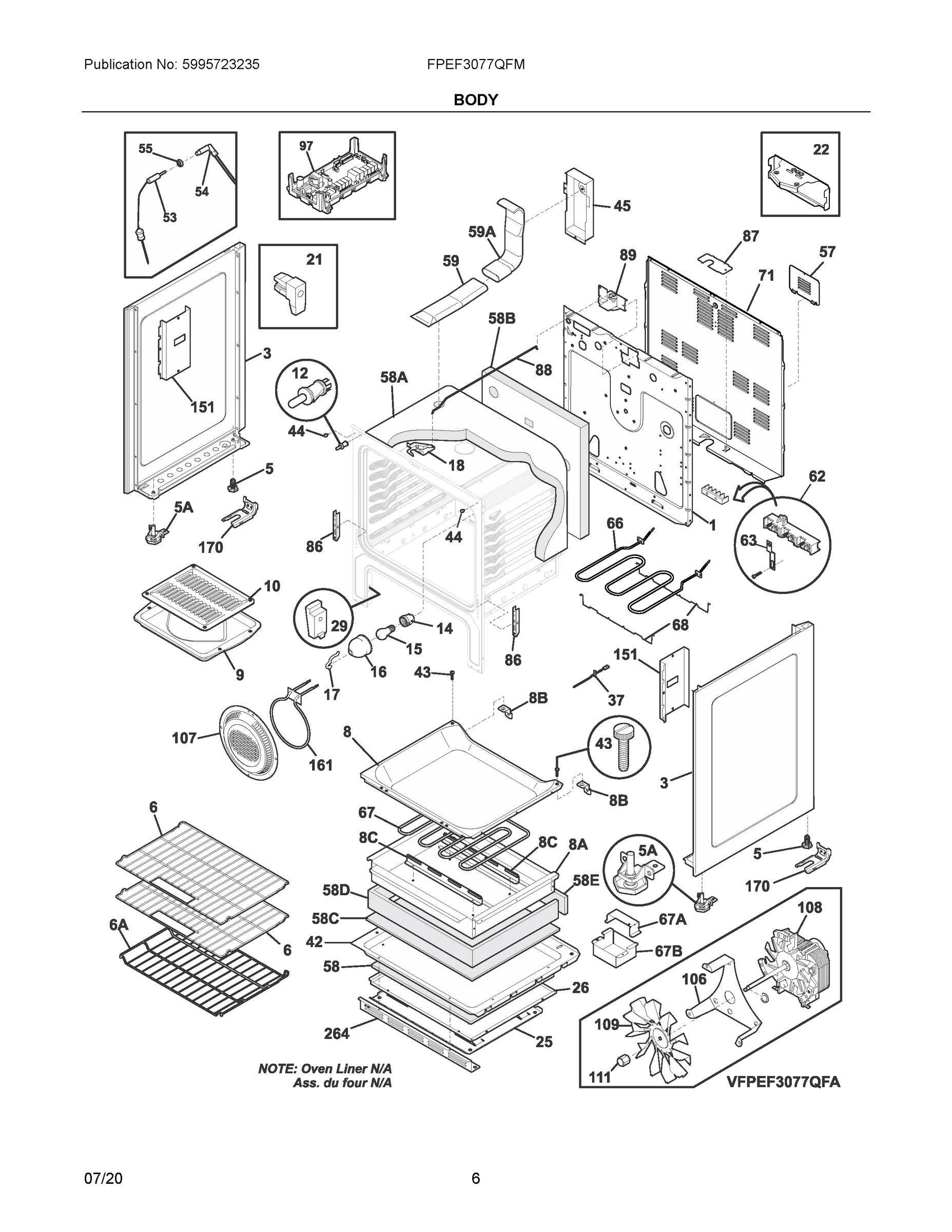

03 - BODY

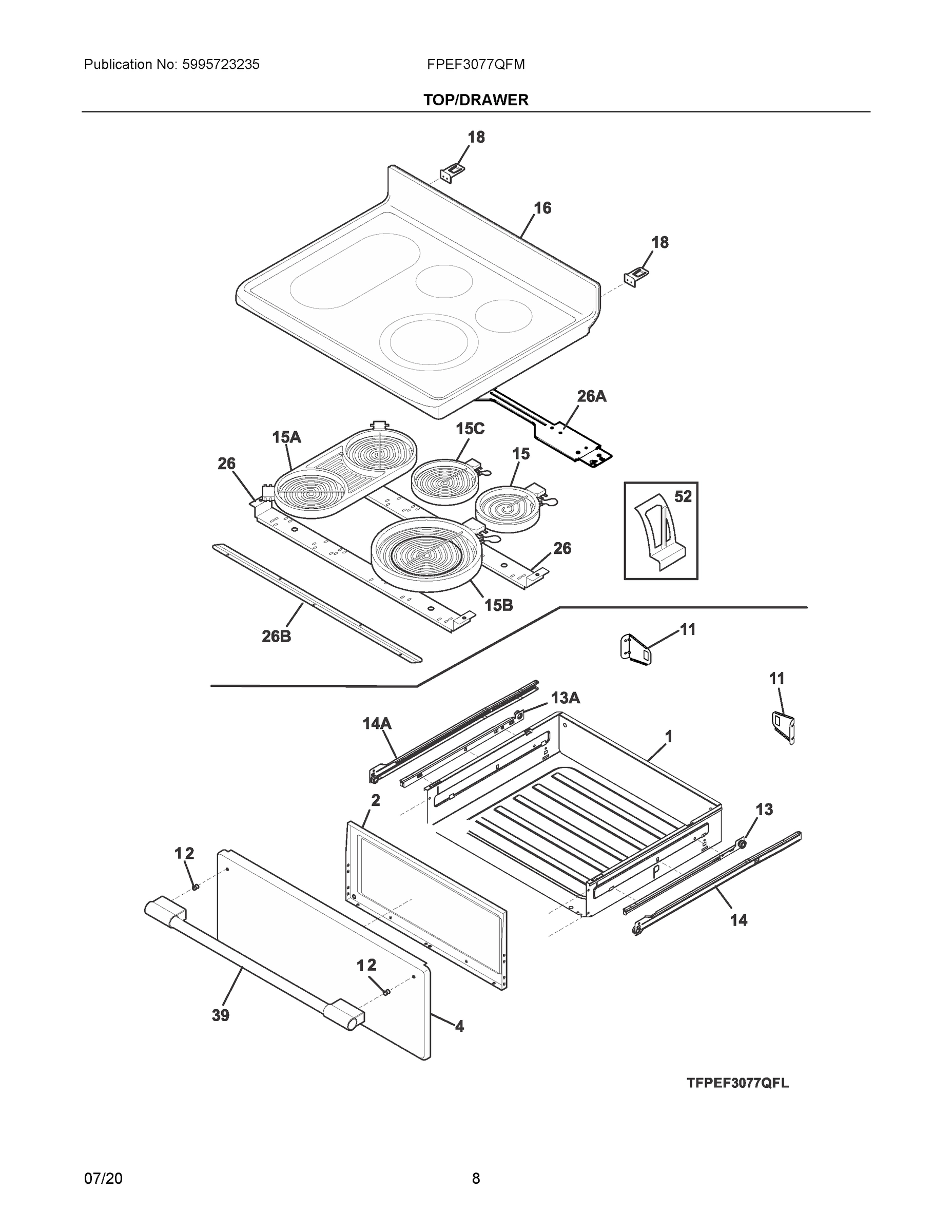

04 - TOP/DRAWER

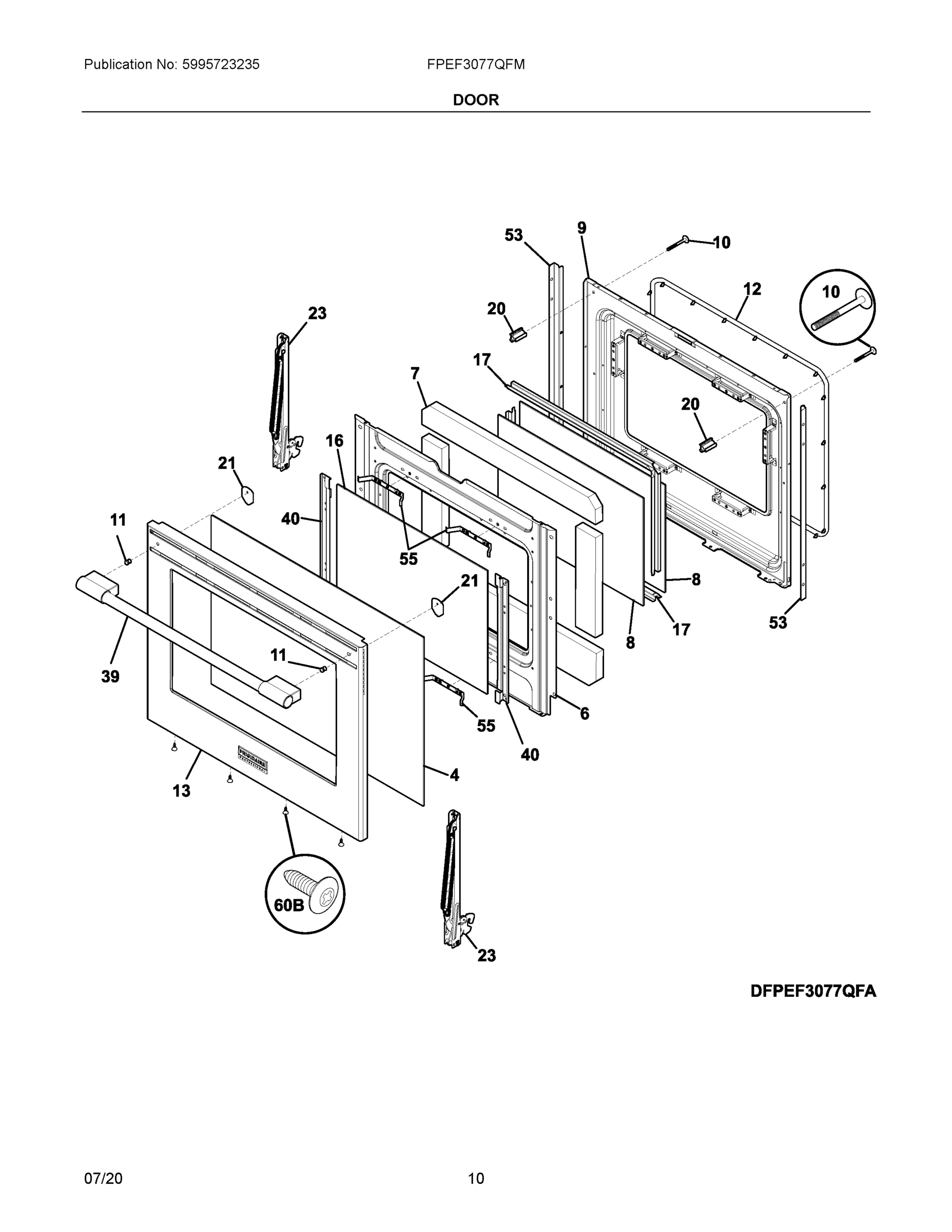

05 - DOOR
Common parts from model Electrolux FPEF3077QFM RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH
1
DRAWER, UTILITY WCI 316408706 Contact Us For Availability
1
SHIELD, BACKGUARD, REAR WALL WCI 316281802 Contact Us For Availability
4
PANEL, DRAWER, STAINLESS, OUTER WCI 5304511907 Contact Us For Availability
4
GLASS, OVEN DOOR, BLACK, OUTER WCI 316452744 Contact Us For Availability
5
SCREW, LEVELING, PLASTIC, REAR, (2) WCI 316272900 Contact Us For Availability
5A
LEVELING LEG ASSY, METAL, FRONT, (2), BRACKET WCI 5304509869 Contact Us For Availability
6
SHIELD, WOOL WCI 316406328 Contact Us For Availability
6A
RACK, OVEN WCI 316496205 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 316405600 Contact Us For Availability
8
BOTTOM, OVEN WCI 316549601 Contact Us For Availability
9
LINER, OVEN DOOR WCI 316423707 Contact Us For Availability
9
PAN, BROILEROPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
10
SCREW, HANDLE MTG., 10-24 X 1.75", (2) WCI 316439500 Contact Us For Availability
10
SCREW, HANDLE SET WCI 5304414648 Contact Us For Availability
10
INSERT, BROILER PANOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
10
POTENTIOMETER, OVEN TEMP WCI 5304494433 Contact Us For Availability
11
POTENTIOMETER, OVEN MODE WCI 5304493649 Contact Us For Availability
11
BRACKET, REAR SUPPORT, (2) WCI 5304517906 Contact Us For Availability
12
SEAL, OVEN DOOR WCI 316405000 Contact Us For Availability
13
GLIDE, DRAWER, BLACK, RH INNER WCI 5304517905 Contact Us For Availability
13
DOOR ASSEMBLY, OUTER, STAINLESS, W/BADGE WCI 5304494422 Contact Us For Availability
13A
GLIDE, DRAWER, BLACK, LH INNER WCI 5304517903 Contact Us For Availability
14
LIGHT/LAMP, INDICATOR, BLACK, 125 V WCI 316022500 Contact Us For Availability
14
RECEPTACLE, OVEN LIGHT WCI 316116400 Contact Us For Availability
14
GLIDE, DRAWER, BLACK, RH OUTER WCI 5304517904 Contact Us For Availability
14A
GLIDE, DRAWER, BLACK, LH OUTER WCI 5304517902 Contact Us For Availability
15
ELEMENT, SURFACE, 6", 1200, (2), RADIANT WCI 318178110 Contact Us For Availability
15
LAMP, OVEN LIGHT WCI 316538904 Contact Us For Availability
15
CAP, END, BLACK, RH WCI 5304493644 Contact Us For Availability
15A
ELEMENT, DOUBLE 7", SURFACE, 4400W, W/BRIDGE WCI 316280701 Contact Us For Availability
15A
CAP, END, BLACK, LH WCI 5304493646 Contact Us For Availability
15B
ELEMENT, DUAL, 9/12", SURFACE, 1700/2700W, DU WCI 316282101 Contact Us For Availability
15C
ELEMENT, WARMER, 100 W WCI 5304521951 Contact Us For Availability
16
TOP, BLACK WCI 5304513627 Contact Us For Availability
16
GLASS, DOOR, AIRWASH WCI 316552801 Contact Us For Availability
17
RETAINER, LENS WCI 316087500 Contact Us For Availability
17
SPACER, GLASS WCI 5304504811 Contact Us For Availability
18
LATCH ASSEMBLY, OVEN DOOR WCI 316405800 Contact Us For Availability
18
BRACKET-HINGE, MAIN TOP WCI 316580800 Contact Us For Availability
19
PANEL, CONTROL, STAINLESS WCI 5304496879 Contact Us For Availability
20
SPACER, DOOR HANDLE, (2) WCI 316284100 Contact Us For Availability
21
PLATE, DISTRIBUTION, LOAD WCI 316533801 Contact Us For Availability
21
CLIP, BODYSIDE WCI 316408000 Contact Us For Availability
22
BRACKET-BODYSIDE, (2) WCI 316286300 Contact Us For Availability
23
HINGE, OVEN DOOR, BROWN WCI 316575911 Contact Us For Availability
26A
BRACKET-SUPPORT, CHASSIS, ALUMINUM WCI 316498200 Contact Us For Availability
28
INSULATION, MANIFOLD PANEL WCI 316528700 Contact Us For Availability
37
PROBE, OVEN TEMP WCI 316490000 Contact Us For Availability
39
HANDLE, ASM WCI 5304494423 Contact Us For Availability
40
BRACKET, AIRWASH GLASS, (2) WCI 316552401 Contact Us For Availability
44
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
46
LENS-LIGHT/LAMP, INDICATOR, CLEAR WCI 316557300 Contact Us For Availability
47
LIGHT/LAMP, INDICATOR, BLUE, OVEN WCI 316022508 Contact Us For Availability
52
CLIP, ELEMENT MTG WCI 316461700 Contact Us For Availability
54
SWITCH, INFINITE, SMALL ELEMENT WCI 316436000 Contact Us For Availability
54B
SWITCH, INFINITE, RADIANT DUAL WCI 5304522918 Contact Us For Availability
54C
SWITCH-INFINITE, WARMER DRW/ZONE WCI 316471601 Contact Us For Availability
55
NUT, MOUNTING WCI 316247700 Contact Us For Availability
55
BRACKET, GLASS SUPPORT, (4) WCI 316408300 Contact Us For Availability
56
SHIELD, BACKGUARD, BLACK, INNER WCI 316234045 Contact Us For Availability
57
COVER, ACCESS WCI 316283600 Contact Us For Availability
59
VENT TUBE, ASSEMBLY, W/CATALYST WCI 316208401 Contact Us For Availability
59A
TUBE, OVEN VENT, UPPER WCI 316208304 Contact Us For Availability
60B
SCREW, 8-18 X 0.5, CHROME WCI 316021109 Contact Us For Availability
62
TERMINAL BLOCK K WCI 5303935271 Contact Us For Availability
66
WCI 316430900 WCI 316430900 Contact Us For Availability
67
WCI 316563600 WCI 316563600 Contact Us For Availability
68
WCI 316429100 WCI 316429100 Contact Us For Availability
71
WCI 316283204 WCI 316283204 Contact Us For Availability
86
WCI 316441300 WCI 316441300 Contact Us For Availability
87
WCI 316081200 WCI 316081200 Contact Us For Availability
88
WCI 316203500 WCI 316203500 Contact Us For Availability
97
WCI 316472807 WCI 316472807 Contact Us For Availability
106
WCI 316404100 WCI 316404100 Contact Us For Availability
107
WCI 316026701 WCI 316026701 Contact Us For Availability
108
WCI 316256100 WCI 316256100 Contact Us For Availability
109
WCI 318398302 WCI 318398302 Contact Us For Availability
111
WCI 316136600 WCI 316136600 Contact Us For Availability
161
WCI 316211603 WCI 316211603 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
SCREW, WAFER HEAD, 8-32T X 0.500, BLACK, 44* WCI 5303285179 Contact Us For Availability
NI
WCI 316089500 WCI 316089500 Contact Us For Availability
NI
WCI 316418901 WCI 316418901 Contact Us For Availability
NI
WCI 5308014215 WCI 5308014215 Contact Us For Availability
NI
WCI 316247300 WCI 316247300 Contact Us For Availability
NI
HARNESS, BACKGUARD WCI 5304505678 Contact Us For Availability
NI
WCI 5303289910 WCI 5303289910 Contact Us For Availability
NI
WCI 5304516183 WCI 5304516183 Contact Us For Availability
NIA
WCI 5304494446 WCI 5304494446 Contact Us For Availability
NIA
WCI 316205500 WCI 316205500 Contact Us For Availability
NIA
SCREW, SIMS LP, #8-32 X 5/16", BLACK WCI 316418900 Contact Us For Availability
× ![]()
