Model Electrolux FPEF3077QFA RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH – Common Parts & Diagrams

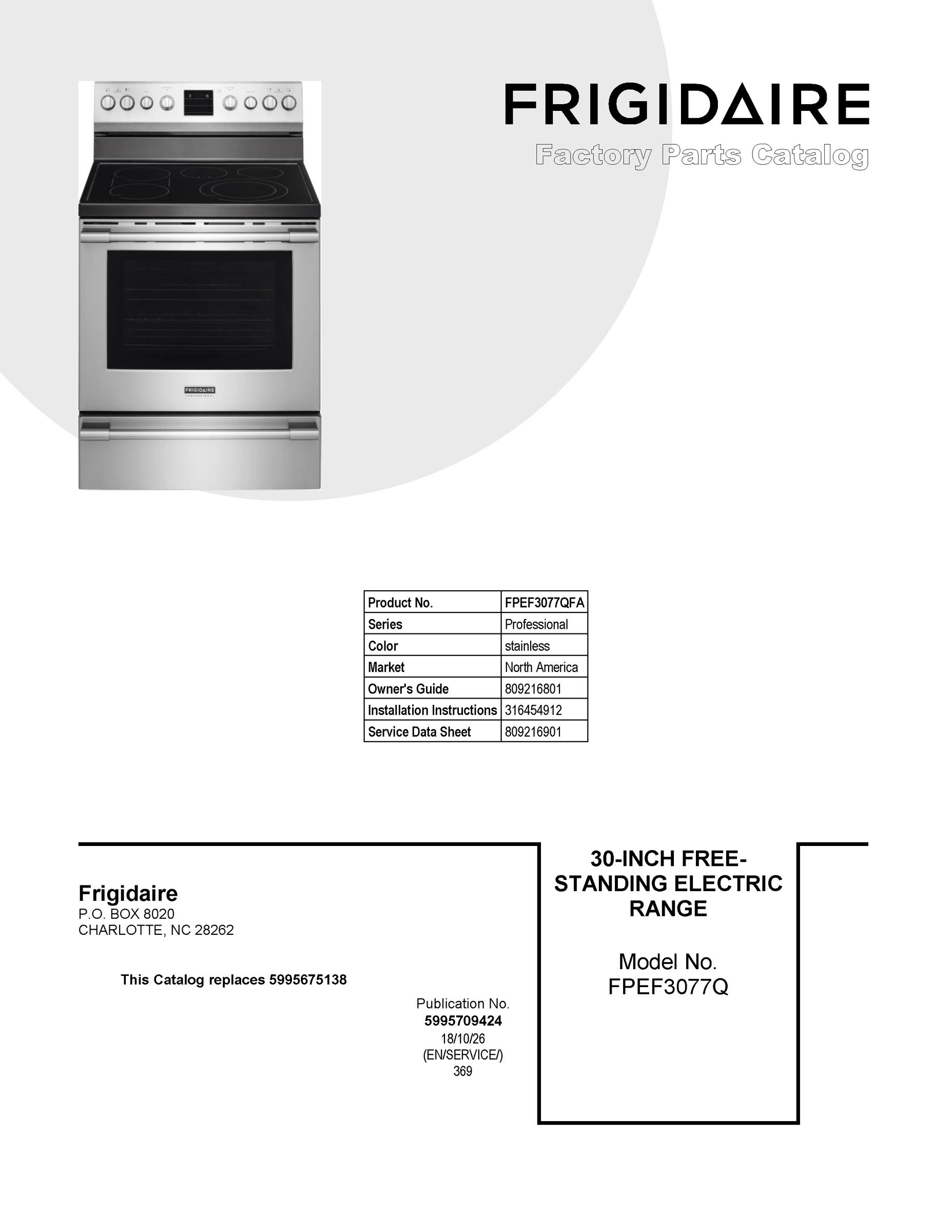

01 - COVER SHEET

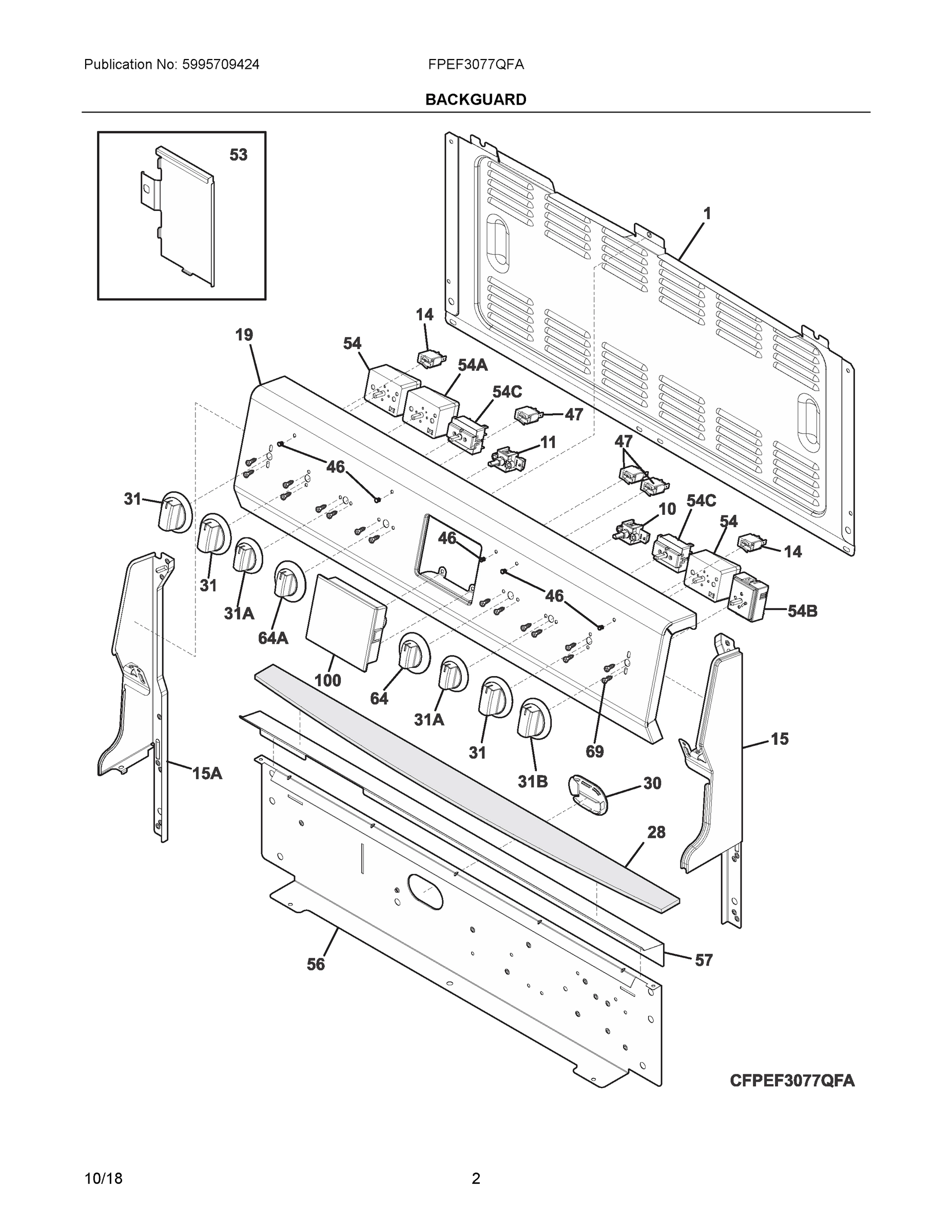

02 - BACKGUARD
03 - BODY
04 - TOP/DRAWER
05 - DOOR
Common parts from model Electrolux FPEF3077QFA RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH
4
GLASS, OVEN DOOR, BLACK, OUTER WCI 316452744 Contact Us For Availability
5
SCREW, LEVELING, PLASTIC, REAR, (2) WCI 316272900 Contact Us For Availability
6A
RACK, OVEN WCI 316496205 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 316405600 Contact Us For Availability
8
GLIDE, DRAWER, FRONT WCI 5304490938 Contact Us For Availability
8
BOTTOM, OVEN WCI 316549601 Contact Us For Availability
9
LINER, OVEN DOOR WCI 316423707 Contact Us For Availability
9
PAN, BROILEROPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
10
SCREW, HANDLE MTG., 10-24 X 1.75", (2) WCI 316439500 Contact Us For Availability
10
INSERT, BROILER PANOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
10
POTENTIOMETER, OVEN TEMP WCI 5304494433 Contact Us For Availability
11
POTENTIOMETER, OVEN MODE WCI 5304493649 Contact Us For Availability
12
SEAL, OVEN DOOR WCI 316405000 Contact Us For Availability
13
DOOR ASSEMBLY, OUTER, STAINLESS, W/BADGE WCI 5304494422 Contact Us For Availability
14
LIGHT/LAMP, INDICATOR, BLACK, 125 V WCI 316022500 Contact Us For Availability
14
RECEPTACLE, OVEN LIGHT WCI 316116400 Contact Us For Availability
15
ELEMENT, SURFACE, 6", 1200, (2), RADIANT WCI 318178110 Contact Us For Availability
15
CAP, END, BLACK, RH WCI 5304493644 Contact Us For Availability
15A
ELEMENT, DOUBLE 7", SURFACE, 4400W, W/BRIDGE WCI 316280701 Contact Us For Availability
15A
CAP, END, BLACK, LH WCI 5304493646 Contact Us For Availability
15B
ELEMENT, DUAL, 9/12", SURFACE, 1700/2700W, DU WCI 316282101 Contact Us For Availability
16
MAINTOP, BLACK WCI 807038642 Contact Us For Availability
16
GLASS, DOOR, AIRWASH WCI 316552800 Contact Us For Availability
17
RETAINER, LENS WCI 316087500 Contact Us For Availability
18
LATCH ASSEMBLY, OVEN DOOR WCI 316405800 Contact Us For Availability
18
BRACKET-HINGE, MAIN TOP WCI 316580800 Contact Us For Availability
19
PANEL, CONTROL, STAINLESS WCI 5304496879 Contact Us For Availability
20
SPACER, DOOR HANDLE, (2) WCI 316284100 Contact Us For Availability
21
PLATE, DISTRIBUTION, LOAD WCI 316533801 Contact Us For Availability
21
CLIP, BODYSIDE WCI 316408000 Contact Us For Availability
22
BRACKET-BODYSIDE, (2) WCI 316286300 Contact Us For Availability
23
HINGE, OVEN DOOR, BROWN WCI 316575911 Contact Us For Availability
26A
BRACKET-SUPPORT, CHASSIS, ALUMINUM WCI 316498200 Contact Us For Availability
28
INSULATION, MANIFOLD PANEL WCI 316528700 Contact Us For Availability
39
HANDLE, ASM WCI 5304494423 Contact Us For Availability
40
BRACKET, AIRWASH GLASS, (2) WCI 316552401 Contact Us For Availability
44
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
46
LENS-LIGHT/LAMP, INDICATOR, CLEAR WCI 316557300 Contact Us For Availability
47
LIGHT/LAMP, INDICATOR, BLUE WCI 316022505 Contact Us For Availability
52
CLIP, ELEMENT MTG WCI 316461700 Contact Us For Availability
54
SWITCH, INFINITE, SMALL ELEMENT WCI 316436000 Contact Us For Availability
54
RECEPTACLE, PROBE WCI 316536900 Contact Us For Availability
54B
SWITCH, INFINITE RADIAN, DUAL WCI 316238201 Contact Us For Availability
54C
SWITCH-INFINITE, WARMER DRW/ZONE WCI 316471601 Contact Us For Availability
55
NUT, MOUNTING WCI 316247700 Contact Us For Availability
55
BRACKET, GLASS SUPPORT, (4) WCI 316408300 Contact Us For Availability
57
COVER, ACCESS WCI 316283600 Contact Us For Availability
59
VENT TUBE, ASSEMBLY, W/CATALYST WCI 316208401 Contact Us For Availability
59A
TUBE, OVEN VENT, UPPER WCI 316208304 Contact Us For Availability
62
WCI 5303935271 WCI 5303935271 Contact Us For Availability
66
WCI 316430900 WCI 316430900 Contact Us For Availability
67
WCI 316563600 WCI 316563600 Contact Us For Availability
68
WCI 316429100 WCI 316429100 Contact Us For Availability
86
WCI 316441300 WCI 316441300 Contact Us For Availability
87
WCI 316081200 WCI 316081200 Contact Us For Availability
88
WCI 316203500 WCI 316203500 Contact Us For Availability
106
WCI 316404100 WCI 316404100 Contact Us For Availability
107
WCI 316026701 WCI 316026701 Contact Us For Availability
108
WCI 316256100 WCI 316256100 Contact Us For Availability
109
WCI 318398302 WCI 318398302 Contact Us For Availability
111
WCI 316136600 WCI 316136600 Contact Us For Availability
161
WCI 316211603 WCI 316211603 Contact Us For Availability
NI
SCREW, 8-18 X 0.5, CHROME WCI 316021109 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
SCREW, WAFER HEAD, 8-32T X 0.500, BLACK, 44* WCI 5303285179 Contact Us For Availability
NI
SCREW, 10-16 X .486 WCI 316089500 Contact Us For Availability
NI
SCREW, TRILOBE, 10-32 X 5/16", BLACK WCI 316418901 Contact Us For Availability
NI
SCREW, 6-20 X 0.312 WCI 5308014215 Contact Us For Availability
NI
HARNESS, SURFACE WCI 5304493655 Contact Us For Availability
NI
WCI 5303289910 WCI 5303289910 Contact Us For Availability
NI
HARNESS, BACKGUARD WCI 5304498836 Contact Us For Availability
NIA
WCI 5304494446 WCI 5304494446 Contact Us For Availability
NIA
SCREW, SIMS LP, #8-32 X 5/16", BLACK WCI 316418900 Contact Us For Availability
NIB
WCI 316205500 WCI 316205500 Contact Us For Availability
× ![]()
