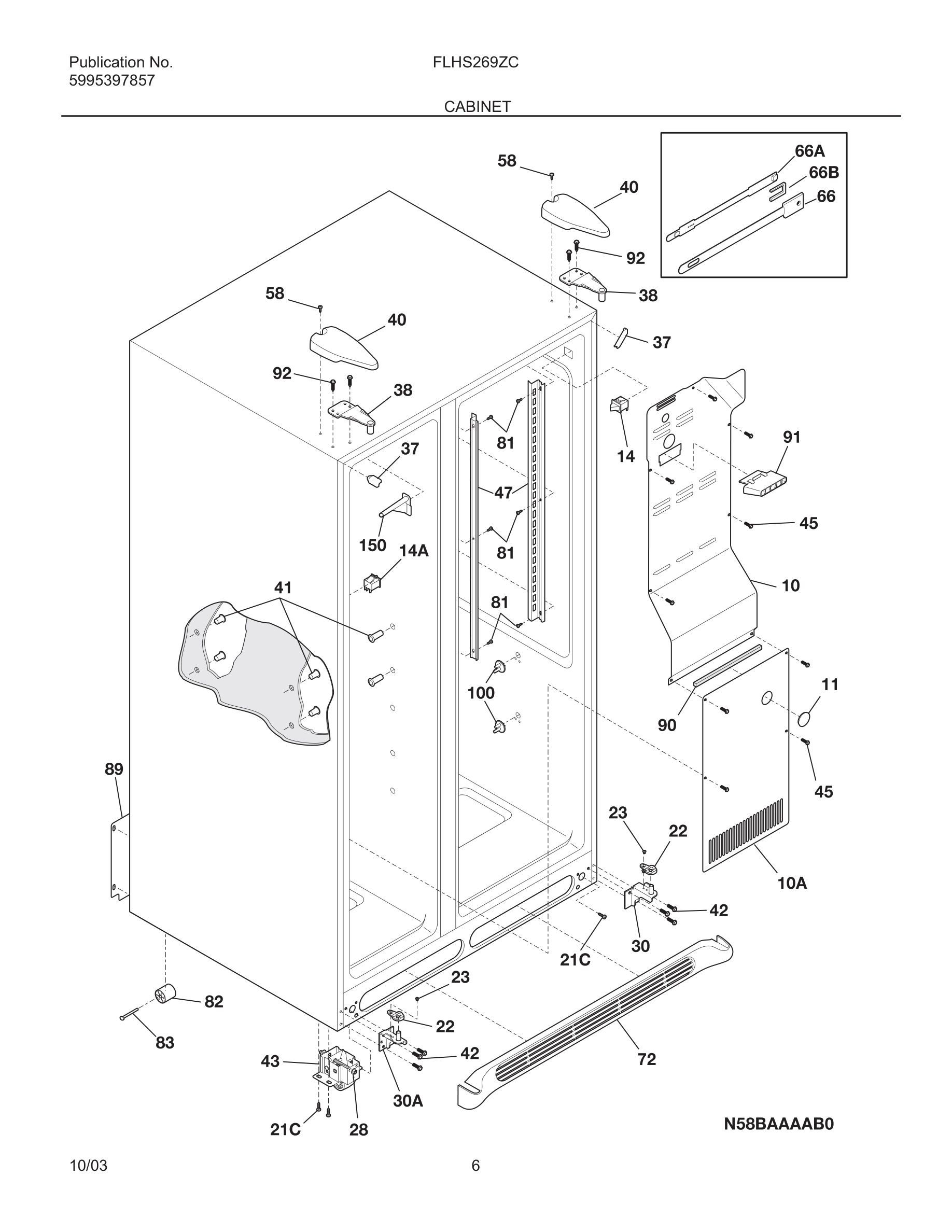

Model Frigidaire FLHS269ZCW1 REFRIGERATOR – Common Parts &amp; Diagrams

*

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $12.24

*

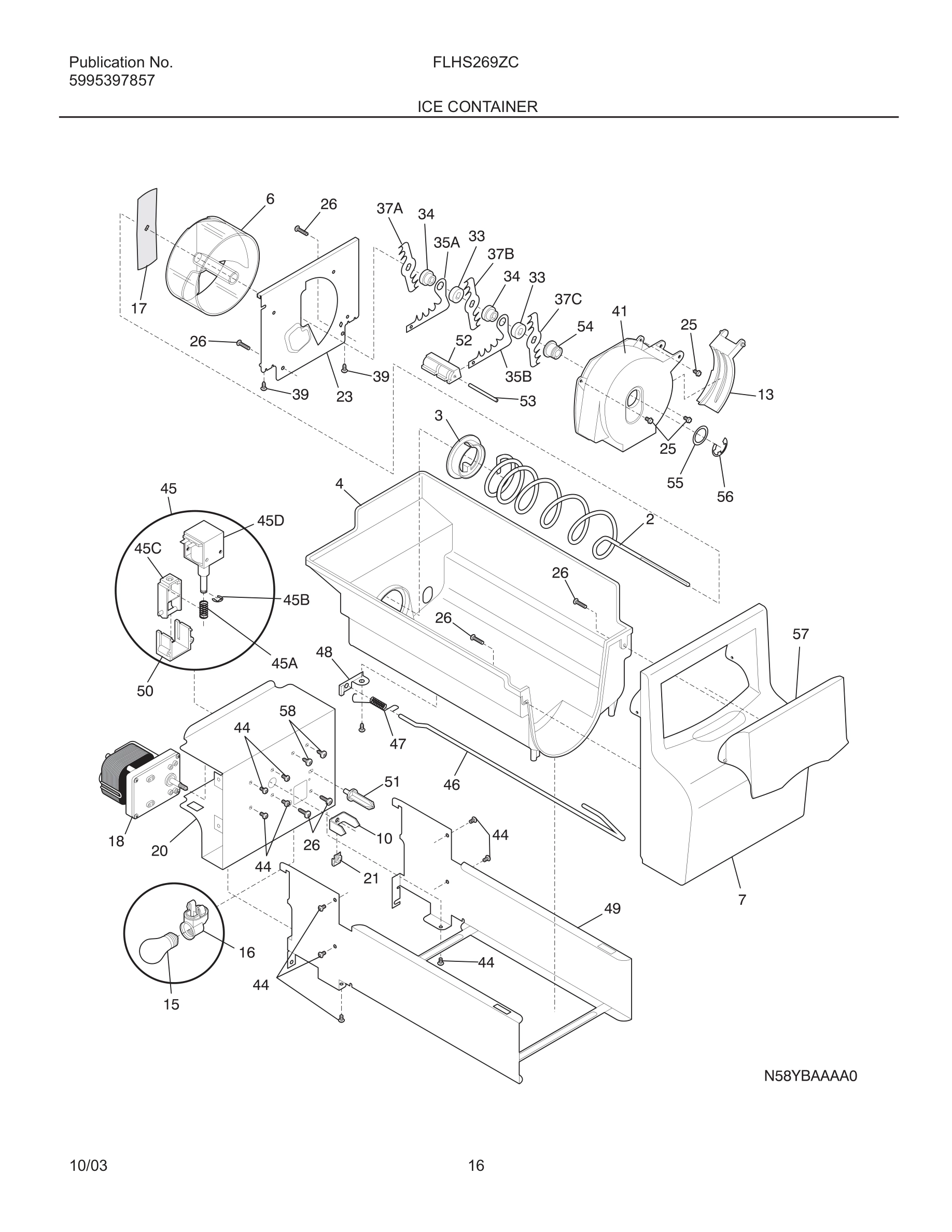

241860801 Frigidaire Refrigerator Ice Contain In Stock WCI 241860801 $138.58

*

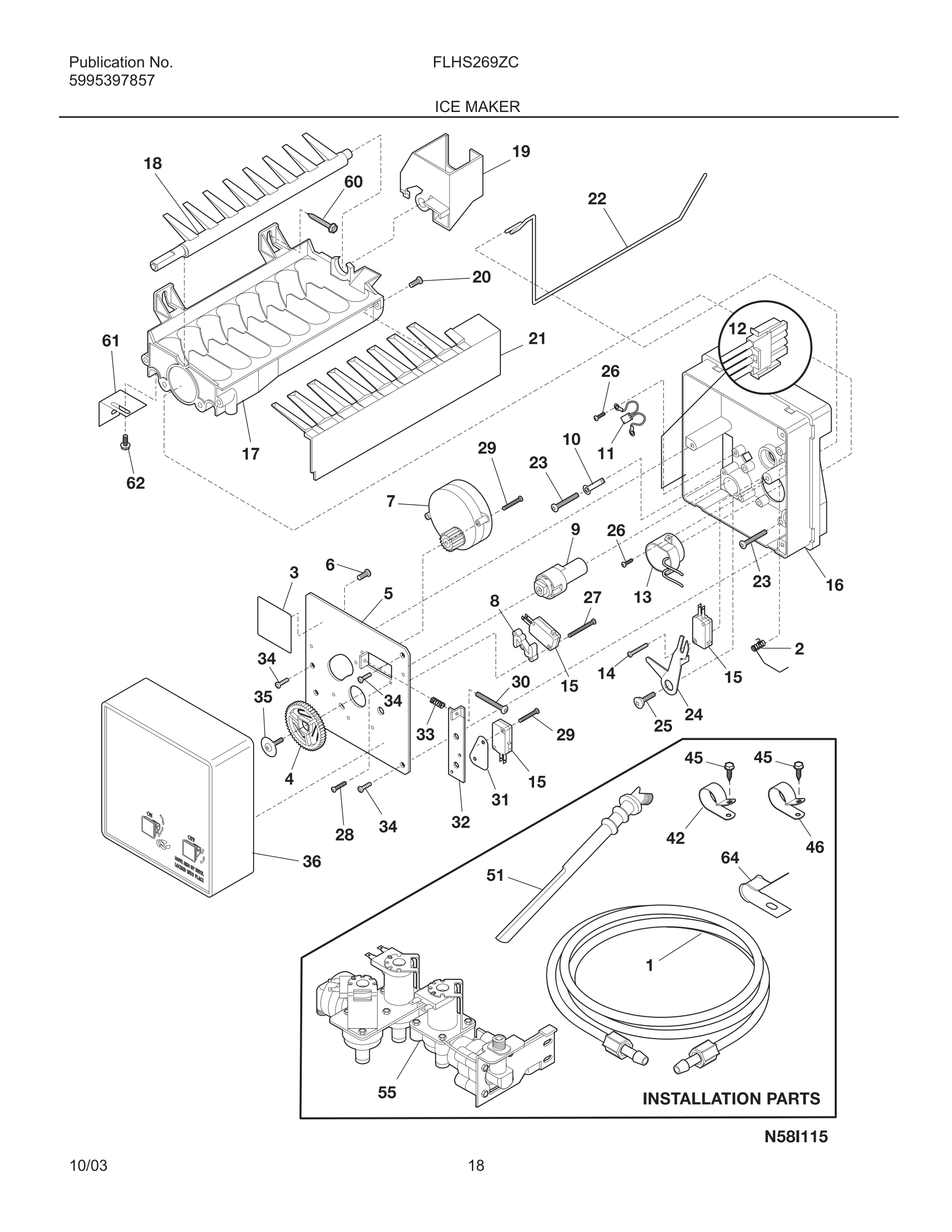

5304458371 Frigidaire Refrigerator Ice Maker In Stock WCI 5304458371 $101.39

*

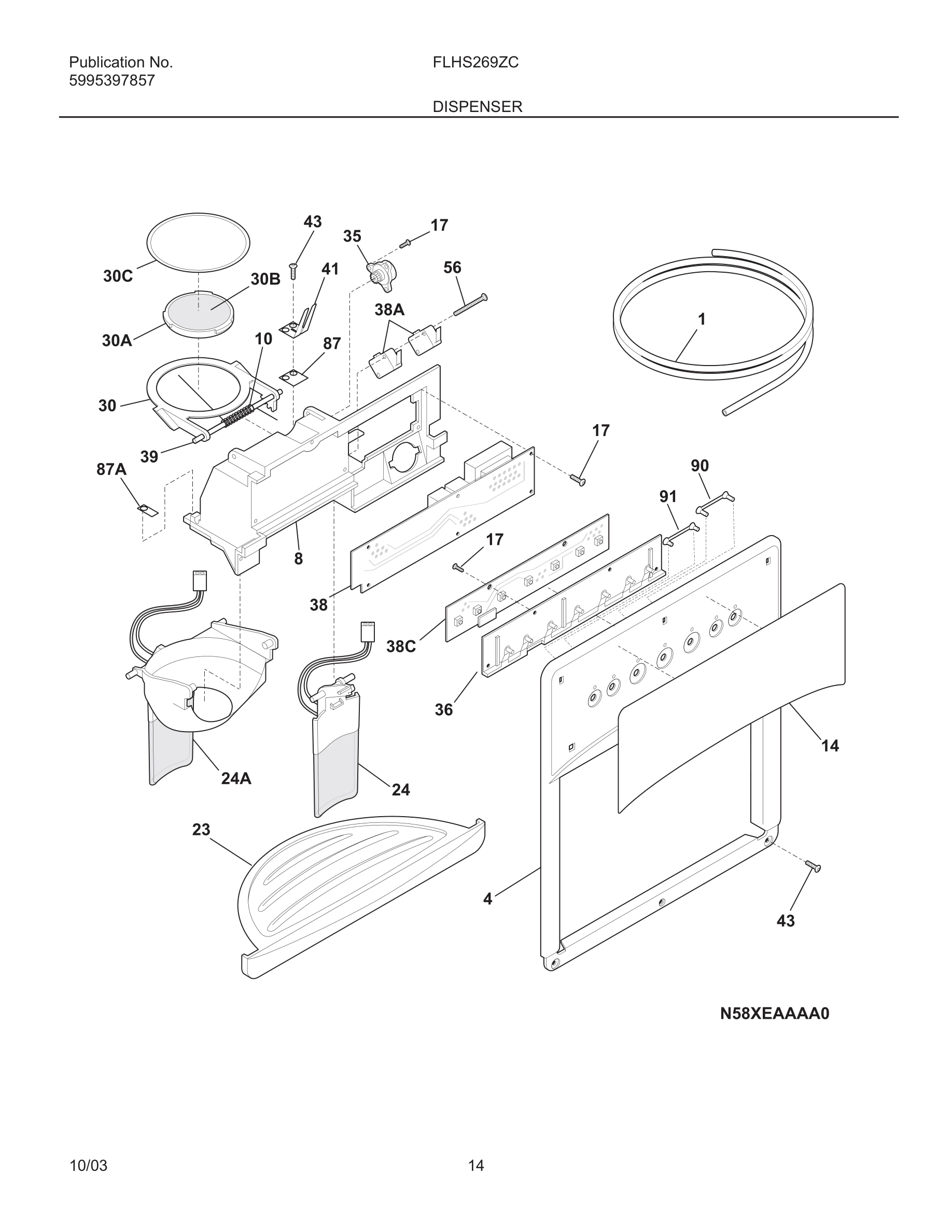

Dispenser heater kit WCI 5303918256 Contact Us For Availability

*

Adapter-water supply,nut & sleeve ,compressio WCI 218888001 Contact Us For Availability

*

Insulator-electrical WCI 5304426535 Contact Us For Availability

*#

5303918328 Frigidaire Refrigerator OS1 Heat E In Stock WCI 5303918328 $213.23

*#

Hot Tube Repair Kit,Service WCI 5303918222 Contact Us For Availability

1

Tube-water WCI 218976409 Contact Us For Availability

Tube-water inlet,inlet valve ,to ice maker WCI 218976901 Contact Us For Availability

Tube-water inlet,inlet valve ,to filter WCI 218976903 Contact Us For Availability

Seal-water inlet,inlet valve ,to ice maker WCI 240561701 Contact Us For Availability

Tube-water inlet,valve to door WCI 218976907 Contact Us For Availability

2

241716101 Frigidaire Refrigerator Ice Auger Backorder WCI 241716101 $74.17

2

Spring,shut-off arm WCI 5304420650 Contact Us For Availability

3

218679614 Frigidaire Refrigerator Evaporator Backorder WCI 218679614 $12.67

3

241685201 Frigidaire Refrigerator Drive Cam In Stock WCI 241685201 $26.72

3

Label,ID plate WCI 3206299 Contact Us For Availability

4

241734001 Frigidaire Refrigerator Ice Bucket In Stock WCI 241734001 $66.78

4

5304469403 Frigidaire Gear Backorder WCI 5304469403 $12.74

4

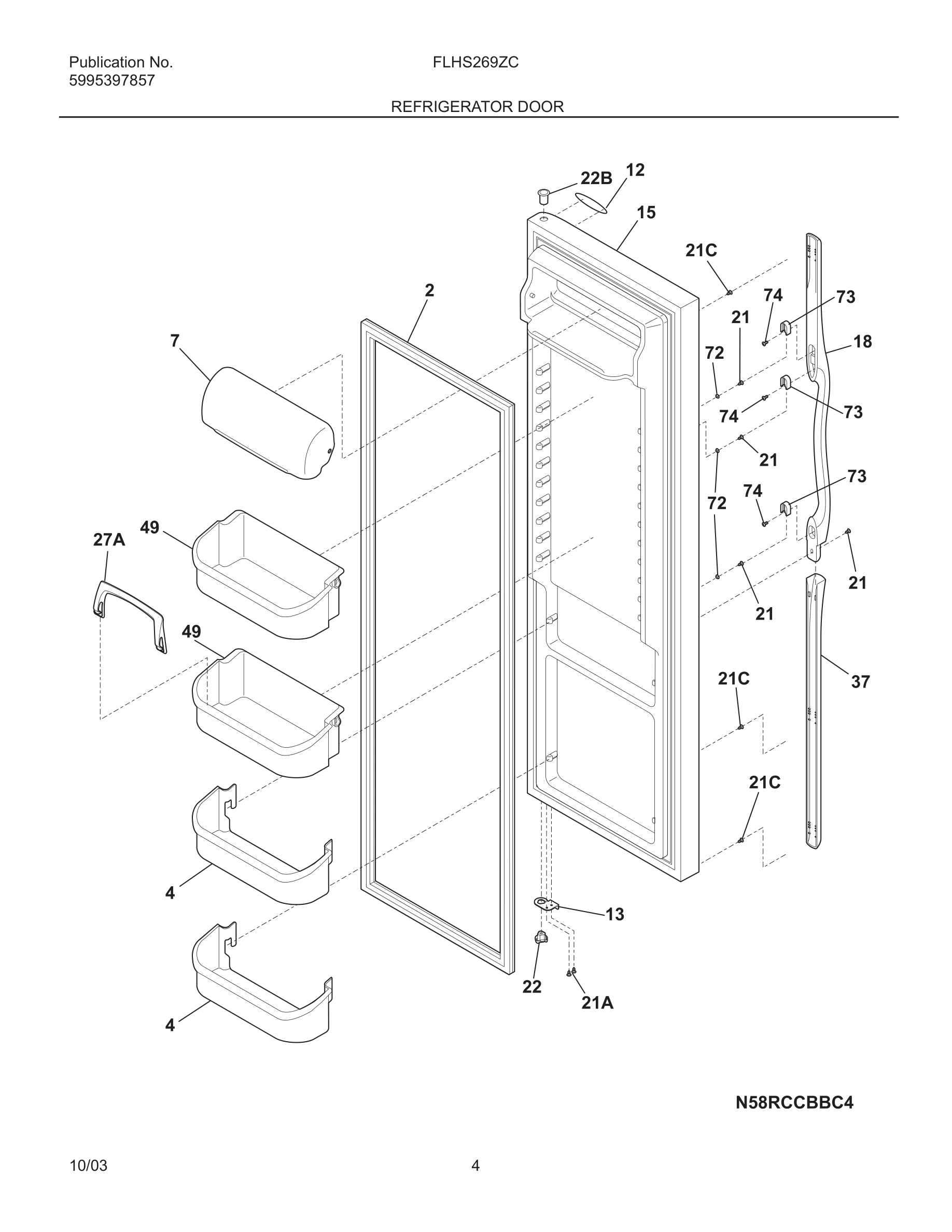

Bin-door,pseudo ,bottom WCI 240323002 Contact Us For Availability

4

Cover-module,white WCI 5304421822 Contact Us For Availability

4#

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $16.79

4A

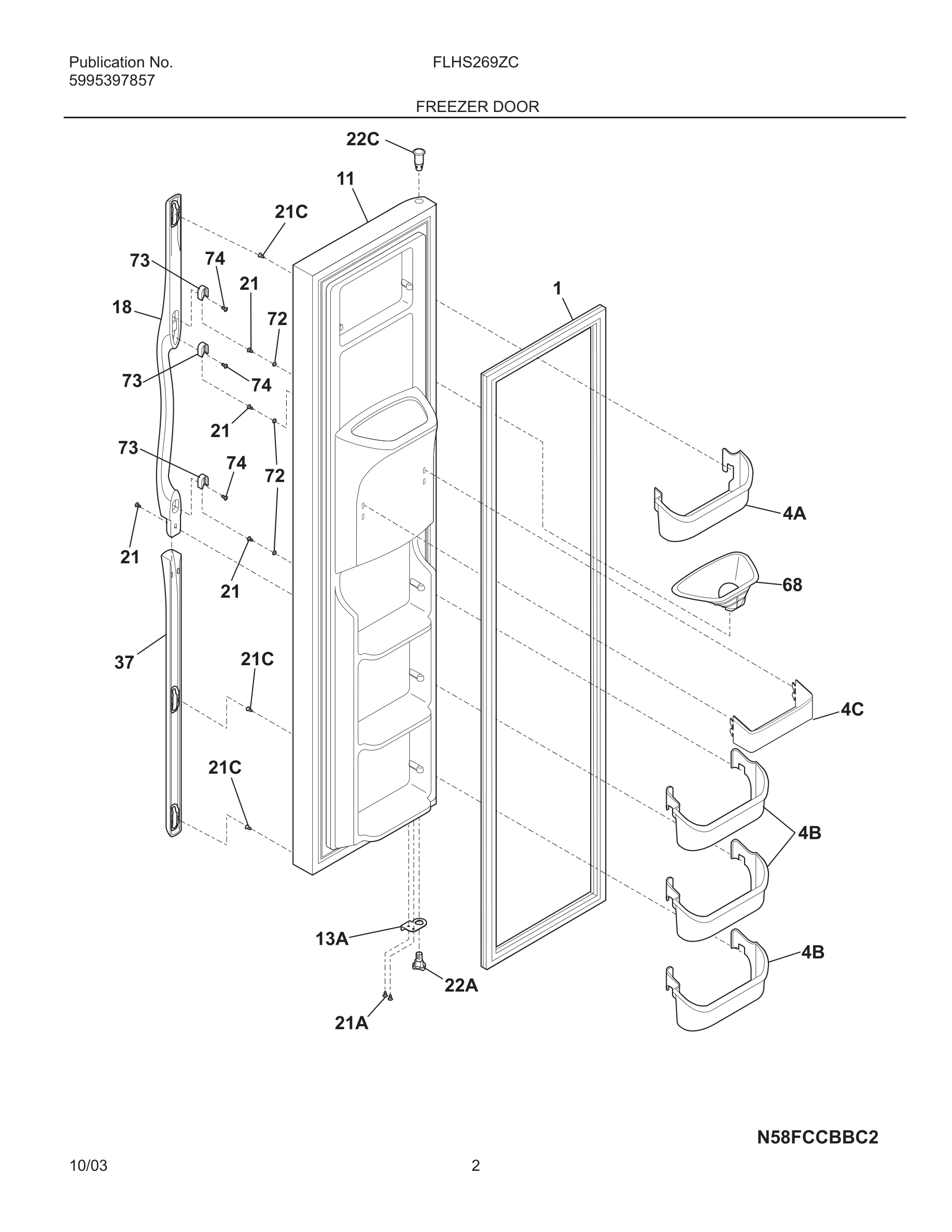

240334202 Frigidaire Refrigerator Door Bin Up In Stock WCI 240334202 $40.45

4B

Bin-door WCI 240351602 Contact Us For Availability

5

Plate-mounting WCI 3206303 Contact Us For Availability

5#

Fan Blade,red ,evaporator fan WCI 5308000010 Contact Us For Availability

6

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.79

6

241685101 Frigidaire Refrigerator Ice Dispens In Stock WCI 241685101 $33.06

6

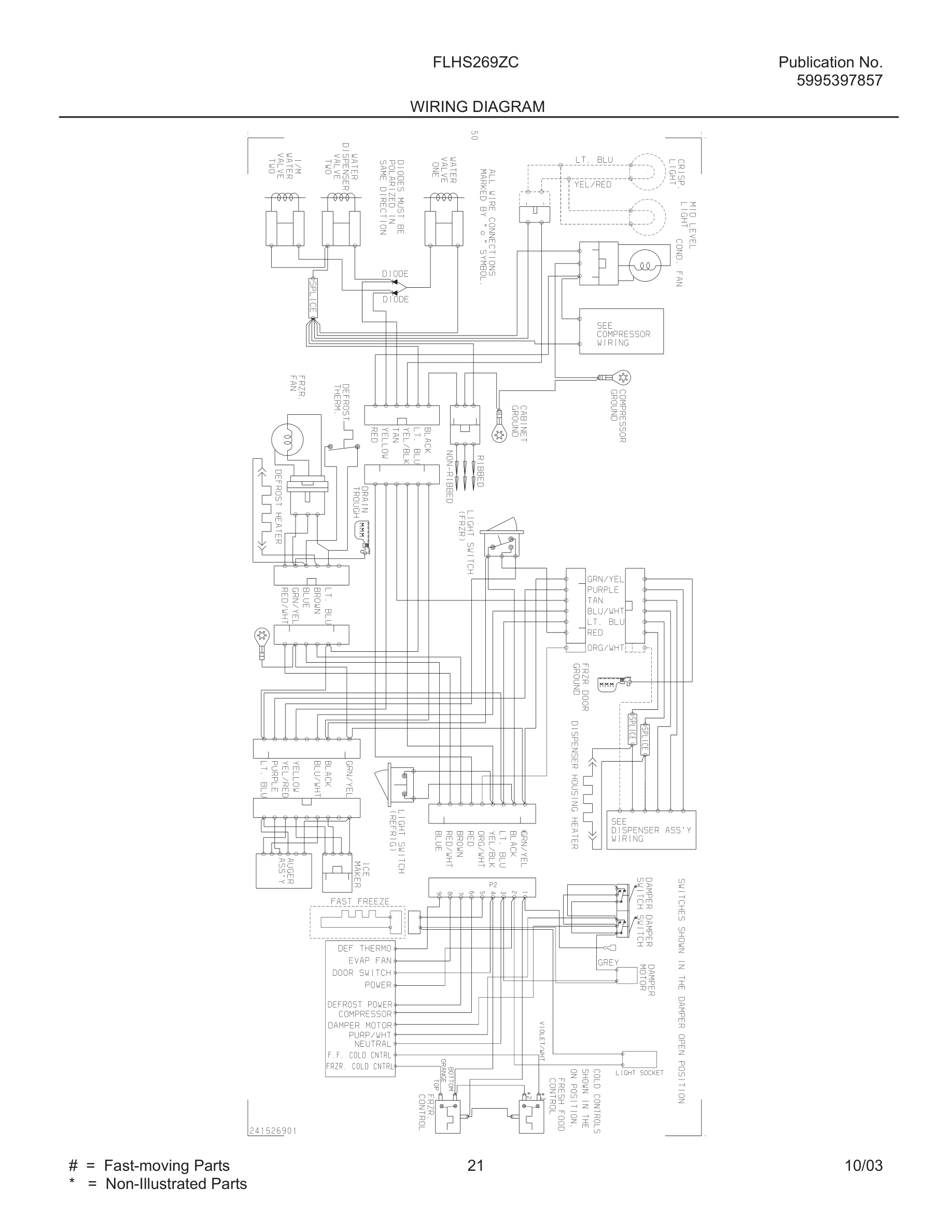

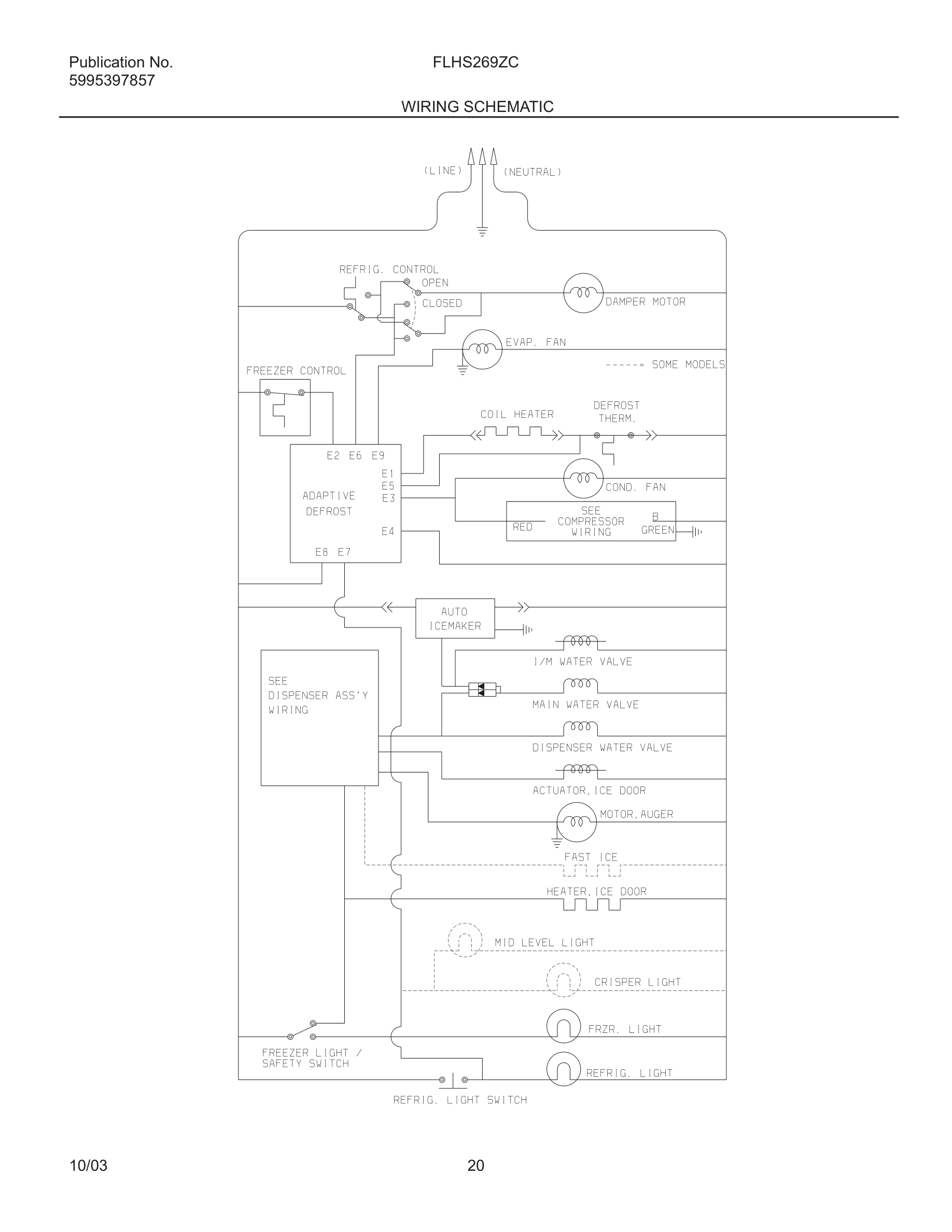

Harness-wiring,machine compt WCI 240346402 Contact Us For Availability

6*

Harness-wiring WCI 241517501 Contact Us For Availability

6*

Harness-wiring,control box WCI 241508101 Contact Us For Availability

7

Door-dairy WCI 240326203 Contact Us For Availability

7

Front-ice container WCI 5304422805 Contact Us For Availability

8

Module-dispenser,white WCI 5304421823 Contact Us For Availability

8

Spacer-hold switch WCI 3206312 Contact Us For Availability

9

Bracket-motor mtg,front WCI 5303292396 Contact Us For Availability

9

Cam WCI 3206313 Contact Us For Availability

10

241688901 Frigidaire Refrigerator Torsion Spr Backorder WCI 241688901 $13.57

10

Clamp WCI 3206315 Contact Us For Availability

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

11#

3206319 Frigidaire Refrigerator Thermal Cut-O Backorder WCI 3206319 $31.29

11A

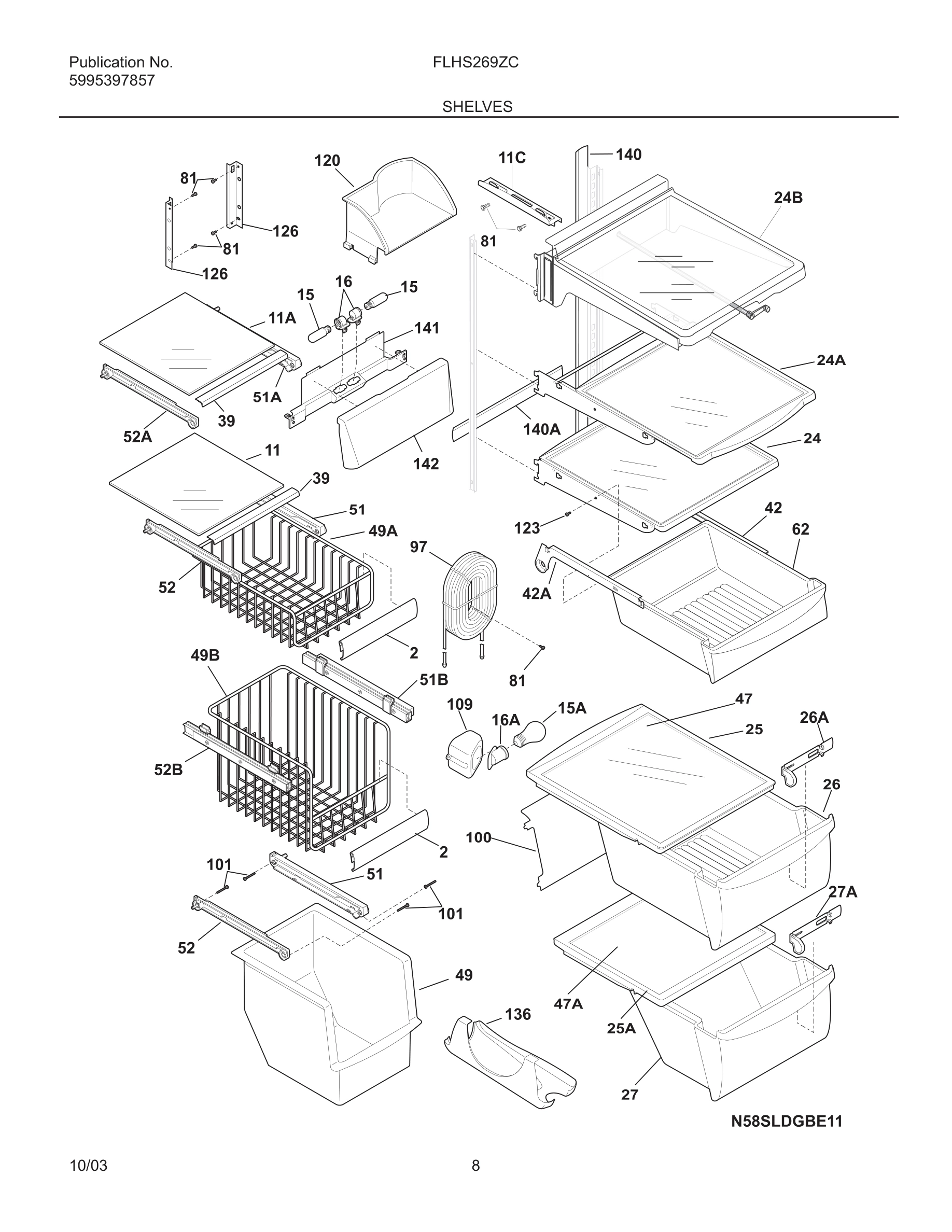

240350604 Frigidaire Refrigerator Glass Assem Backorder WCI 240350604 $67.67

11C

Shelf-pizza WCI 240324101 Contact Us For Availability

12#

Wiring Harness,ICE MAKER ,internal ,with plug WCI 240352601 Contact Us For Availability

13

5303918455 Frigidaire Refrigerator Adjustable In Stock WCI 5303918455 $87.38

13#

Thermostat Assy,ICE MAKER WCI 3206322 Contact Us For Availability

13*

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

14

Label-module cover,white WCI 240323967 Contact Us For Availability

14

Screw,4 x 0.750 ,switch mtg. WCI 5304420652 Contact Us For Availability

14#

Switch,light/lamp WCI 240505801 Contact Us For Availability

15#

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

15#

Evaporator Kit WCI 5303918284 Contact Us For Availability

16

241559801 Frigidaire Light Socket Refrigerato In Stock WCI 241559801 $45.94

16

Strap-evap/heater,aluminum ,(2) WCI 5308000110 Contact Us For Availability

16

Support,phenolic WCI 5304420653 Contact Us For Availability

17

241679801 Frigidaire Screw Backorder WCI 241679801 $9.06

17

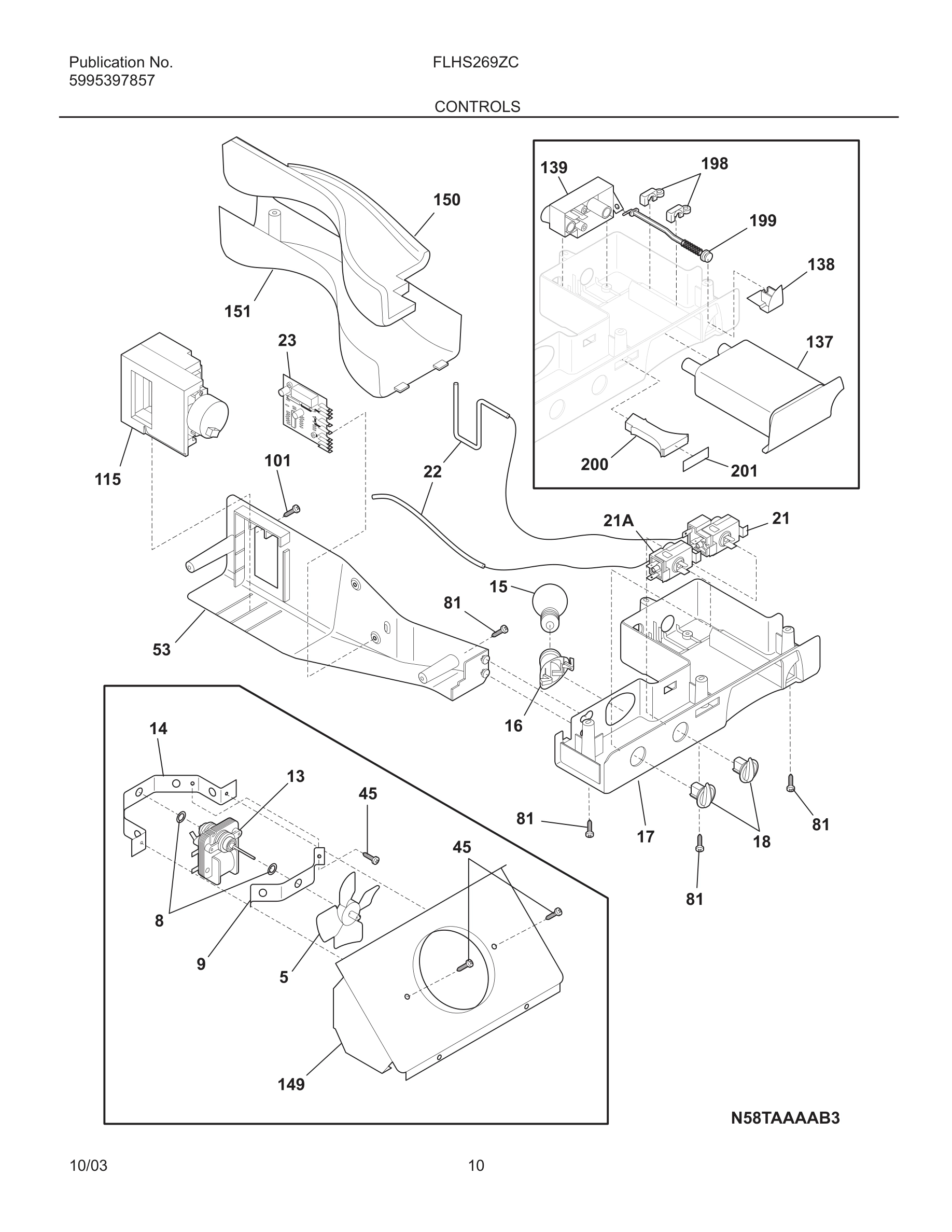

Box-control,front WCI 240317701 Contact Us For Availability

18

Knob,temp control WCI 240360801 Contact Us For Availability

18

Ejector-ice WCI 3206328 Contact Us For Availability

18#

5304462594 Frigidaire Refrigerator Auger Moto Backorder WCI 5304462594 $182.46

18*

Wiring Harness,auger motor WCI 5304404335 Contact Us For Availability

19

Bearing & Inlet WCI 3206330 Contact Us For Availability

20

Cover-motor WCI 5304404332 Contact Us For Availability

20

Screw,8-32 x 0.375 WCI 5304408581 Contact Us For Availability

21

241726501 Frigidaire Refrigerator Drive Bar In Stock WCI 241726501 $37.18

21

Thermostat-defrost,kit WCI 5303918214 Contact Us For Availability

21

Ice Stripper WCI 3206332 Contact Us For Availability

Bearing-hinge,closer WCI 240328201 Contact Us For Availability

Plate-door closer WCI 240457701 Contact Us For Availability

Base-compressor mtg WCI 240330008 Contact Us For Availability

Shut-off Arm WCI 3206333 Contact Us For Availability

22*

218252201 Frigidaire Refrigerator Screw In Stock WCI 218252201 $9.04

22B

Bearing-hinge,upper WCI 240328401 Contact Us For Availability

22C

Bearing-hinge,upper WCI 240328402 Contact Us For Availability

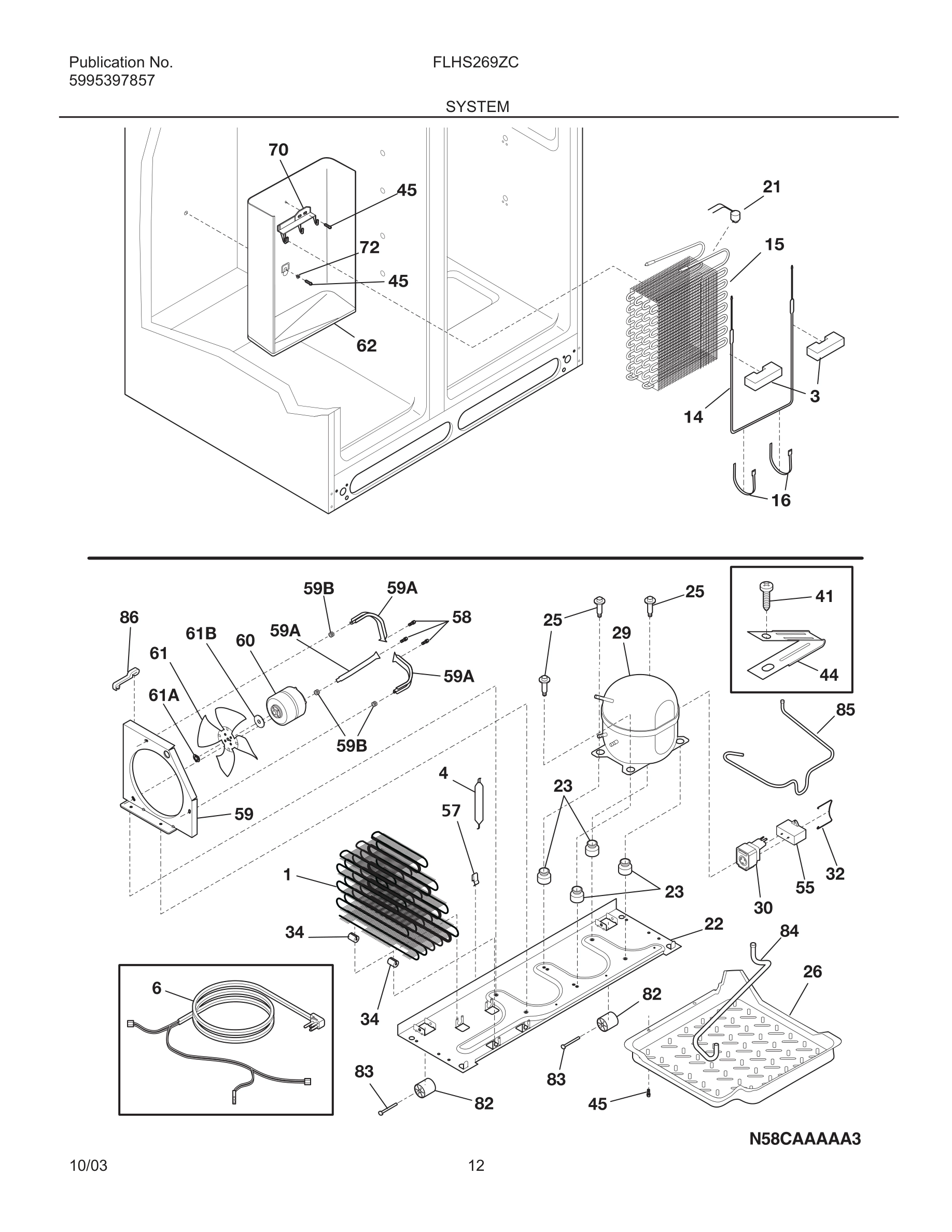

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

241684001 Frigidaire Refrigerator Front Plate Backorder WCI 241684001 $92.01

Screw-#10-32 x 1/4 flat hd WCI 240402701 Contact Us For Availability

Screw,8-32 x 0.875 ,mold-to-support ,(3) WCI 5304408582 Contact Us For Availability

24

241685701 Frigidaire Refrigerator White Water In Stock WCI 241685701 $121.20

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $42.12

24

Shelf-"Spill-Safe",fixed WCI 240355203 Contact Us For Availability

24A

Actuator-ice,white WCI 5304433612 Contact Us For Availability

25

Cover-crisper pan,upper WCI 240350702 Contact Us For Availability

25

Screw-compr mtg,1/4-28x116,shoulder,typ CF WCI 240491501 Contact Us For Availability

25

Screw,8-18 x 0.562 ,lever arm/sprt WCI 3206336 Contact Us For Availability

25*

Clip-slide,cover-crisper WCI 240362101 Contact Us For Availability

26

215503203 Frigidaire Refrigerator Door Handle In Stock WCI 215503203 $4.51

26

Screw-thermo/sprt,4-24 x 0.375 ,(4) WCI 5304420654 Contact Us For Availability

26*

Clip-slide,pan-crisper WCI 240349801 Contact Us For Availability

27

Screw,4-40 x 1.000 ,hold switch mtg ,(2) WCI 3206338 Contact Us For Availability

27A

Control-humidity WCI 240362201 Contact Us For Availability

27A

Retainer,tall bottle WCI 240396102 Contact Us For Availability

28

Screw-timing stop,4-40 x 0.375 WCI 3206339 Contact Us For Availability

29

Screw,4-24 x 0.750 ,(6) WCI 3206323 Contact Us For Availability

29#

5304475102 Frigidaire Refrigerator Compressor In Stock WCI 5304475102 $339.93

30

241688401 Frigidaire Ice Door Bracket In Stock WCI 241688401 $31.71

30

Screw-timing adj,8-32 x 1.000 WCI 3206341 Contact Us For Availability

30#

5304491941 Frigidaire Refrigerator Starter Re In Stock WCI 5304491941 $82.43

30A

241688501 Frigidaire Refrigerator Door Center In Stock WCI 241688501 $33.84

30B

241688601 Frigidaire Refrigerator Door Insula In Stock WCI 241688601 $39.94

30C

241688701 Frigidaire Refrigerator Door Seal In Stock WCI 241688701 $24.59

31

Insulator WCI 3206342 Contact Us For Availability

32

Clamp,elec cont mtg ,compressor WCI 218973501 Contact Us For Availability

32

Plate-valve switch WCI 3206343 Contact Us For Availability

33

Spring-timing adj WCI 5304408583 Contact Us For Availability

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

34

Screw,plazscrew ,8-10 ,(3) WCI 5304420655 Contact Us For Availability

35

Screw WCI 5304408585 Contact Us For Availability

36

Carrier WCI 5304421824 Contact Us For Availability

36

Cover-ice maker WCI 3206347 Contact Us For Availability

38

Board-power WCI 5304433619 Contact Us For Availability

38C

241708307 Frigidaire Refrigerator Control Boa Backorder WCI 241708307 $152.59

38C*

Harness-ribbon cable WCI 5304430811 Contact Us For Availability

39

240367602 Frigidaire Refrigerator Shelf Trim In Stock WCI 240367602 $28.99

39

241688801 Frigidaire Refrigerator Hinge Pin In Stock WCI 241688801 $27.62

39

241690501 Frigidaire Refrigerator Screw Backorder WCI 241690501 $10.41

40

Cover-upper hinge,white WCI 240327005 Contact Us For Availability

41

241689001 Frigidaire Refrigerator Actuator Sp In Stock WCI 241689001 $14.03

41

241885001 Frigidaire Refrigerator Ice Crusher In Stock WCI 241885001 $47.97

42

Track,meat pan hanger ,RH WCI 240356501 Contact Us For Availability

42*

Clip,(2) ,tube mtg. WCI 218515402 Contact Us For Availability

42A

Hanger-meat pan,LH WCI 240349701 Contact Us For Availability

42A*

Block-meat pan rail,LH WCI 240349901 Contact Us For Availability

42A*

Spring-meat pan rail WCI 240350001 Contact Us For Availability

43

Screw,plask h/l ,#6 x 3/8 WCI 215296300 Contact Us For Availability

44

5303001199 Frigidaire Refrigerator Wiring Har Backorder WCI 5303001199 $41.66

44

Screw,pan head ,8-32 x 0.250 WCI 218359200 Contact Us For Availability

45

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

45#

241675704 Frigidaire Refrigerator Solenoid As In Stock WCI 241675704 $53.06

45*

5304455651 Frigidaire Refrigerator Screw In Stock WCI 5304455651 $8.58

45A

241675902 Frigidaire Refrigerator Solenoid Sp Backorder WCI 241675902 $4.07

45B

241676001 Frigidaire Refrigerator E-Ring Sole Backorder WCI 241676001 $44.35

45C

241676101 Frigidaire Refrigerator Solenoid-Ac In Stock WCI 241676101 $40.78

46

Clamp,.50 ID ,steel ,water tube WCI 5303001193 Contact Us For Availability

46

Control Rod WCI 5304404341 Contact Us For Availability

46*

Clamp,nylon ,.625 ID WCI 5308000133 Contact Us For Availability

47

Channel-shelf mtg,side ,(2) WCI 240349402 Contact Us For Availability

47

Spring-control rod WCI 5304404342 Contact Us For Availability

47A

Insert-pan cover,glass WCI 240350603 Contact Us For Availability

48

241684602 Frigidaire Refrigerator Control Rod Backorder WCI 241684602 $67.69

48*

Screw-bracket WCI 5304404364 Contact Us For Availability

49

240356402 Frigidaire Refrigerator Gallon Door In Stock WCI 240356402 $64.29

49

240564401 Frigidaire Refrigerator Sliding Bas Backorder WCI 240564401 $89.90

49

Rail Assy WCI 5304404329 Contact Us For Availability

49B

Basket-sliding,upper ,full WCI 240530504 Contact Us For Availability

50

241675601 Frigidaire Refrigerator Solenoid Gu Backorder WCI 241675601 $50.64

51

241796405 Frigidaire Refrigerator Fill Water In Stock WCI 241796405 $11.76

51

Hanger-basket,RH WCI 240343002 Contact Us For Availability

51

Rotation Stop WCI 5304404336 Contact Us For Availability

51A

240395502 Frigidaire Refrigerator Basket Hang Backorder WCI 240395502 $46.16

52

241684901 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684901 $18.12

52

Hanger-basket,LH WCI 240343102 Contact Us For Availability

52A

240395602 Frigidaire Refrigerator Basket Hang Backorder WCI 240395602 $38.97

53

241690402 Frigidaire Refrigerator Spiral Pin Backorder WCI 241690402 $12.20

53

Box-control WCI 240369501 Contact Us For Availability

54

241685001 Frigidaire Auger Nut Backorder WCI 241685001 $12.67

55

241690306 Frigidaire Refrigerator Washer Backorder WCI 241690306 $31.71

55

5304464438 Frigidaire Compressor Run Capacito In Stock WCI 5304464438 $20.34

55#

242252702 Frigidaire Refrigerator Water Inlet In Stock WCI 242252702 $44.28

55*

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.14

55*

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $11.33

56

241689201 Frigidaire Refrigerator Micro Switc Backorder WCI 241689201 $8.58

56

241690201 Frigidaire Refrigerator E-Ring Backorder WCI 241690201 $12.22

57

Clip-wiring harness WCI 240542601 Contact Us For Availability

58

Screw-solenoid WCI 5304404331 Contact Us For Availability

59

Shroud-cond fan WCI 240315501 Contact Us For Availability

59*

240346701 Frigidaire Refrigerator Foam Seal T In Stock WCI 240346701 $19.01

59A

240346501 Frigidaire Refrigerator Support Bra Backorder WCI 240346501 $14.05

59B

Grommet-bracket,(3) WCI 240346601 Contact Us For Availability

60

5304455852 Frigidaire Refrigerator Screw In Stock WCI 5304455852 $8.14

60#

Motor-condenser fan WCI 240334002 Contact Us For Availability

61

Bracket-leveling,ICE MAKER WCI 218721500 Contact Us For Availability

61#

Fan Blade,galv steel ,condenser fan WCI 240315401 Contact Us For Availability

61A

Nut,speed WCI 215004700 Contact Us For Availability

61B

Grommet-silencer WCI 215004800 Contact Us For Availability

62

5304481642 Frigidaire Refrigerator Trough Backorder WCI 5304481642 $189.92

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

66B*

240518802 Frigidaire Refrigerator Push Pin In Stock WCI 240518802 $10.41

70

Bracket-evap/cvr mtg WCI 218990801 Contact Us For Availability

72

Button-handle mtg,dovetail WCI 218397000 Contact Us For Availability

73

218396700 Frigidaire Door Handle Mounting Blo In Stock WCI 218396700 $28.99

82

Roller,compressor base ,rear ,(2) WCI 5304418225 Contact Us For Availability

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

84

241957901 Frigidaire Refrigerator Drain Tube In Stock WCI 241957901 $38.55

85

Tube-connector,suction WCI 240346201 Contact Us For Availability

86

Spacer-cond tube,black WCI 240409302 Contact Us For Availability

87

241688302 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688302 $12.67

87A

241688301 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688301 $12.67

90

Light Pipe,reflector WCI 5304421831 Contact Us For Availability

91

240380101 Frigidaire Refrigerator Ice Maker D Backorder WCI 240380101 $44.37

91

Light Pipe,reflector ,short WCI 5304421850 Contact Us For Availability

101

218493101 Frigidaire Refrigerator Screw In Stock WCI 218493101 $8.58

115

241600902 Frigidaire Refrigerator Damper Cont In Stock WCI 241600902 $139.02

137*

242227702 Frigidaire Refrigerator Water Filte Backorder WCI 242227702 $37.35

138

Button-filter release WCI 240397301 Contact Us For Availability

139

240396002 Frigidaire Refrigerator Primary Bas In Stock WCI 240396002 $81.14

140

Channel,wtr tube cover WCI 240430501 Contact Us For Availability

149

5304444980 Frigidaire Refrigerator Fan Orific Backorder WCI 5304444980 $57.37

150

Insulation-water tube cover WCI 240394204 Contact Us For Availability

151

Cover-water tube WCI 240373806 Contact Us For Availability

198

Retainer WCI 240397401 Contact Us For Availability

199

Rod WCI 240397501 Contact Us For Availability

199*

Spring-filter release rod WCI 240398401 Contact Us For Availability

200

Light Pipe WCI 240397601 Contact Us For Availability

201

Label-control box WCI 240398501 Contact Us For Availability
