Model Whirlpool FGP320VL1 GAS RANGE – Common Parts & Diagrams
08 - OVEN DOOR
03 - BACKGUARD

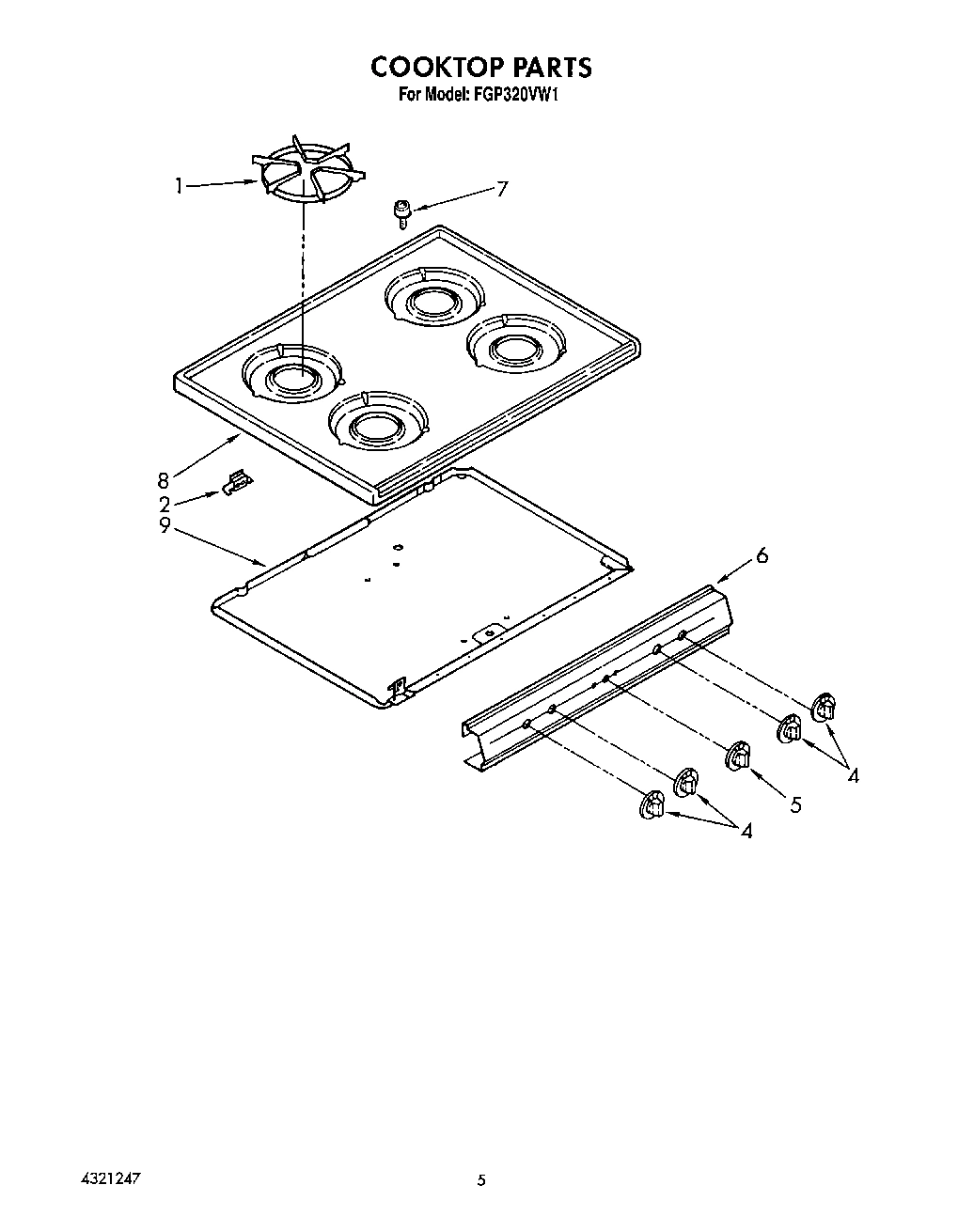

05 - COOKTOP

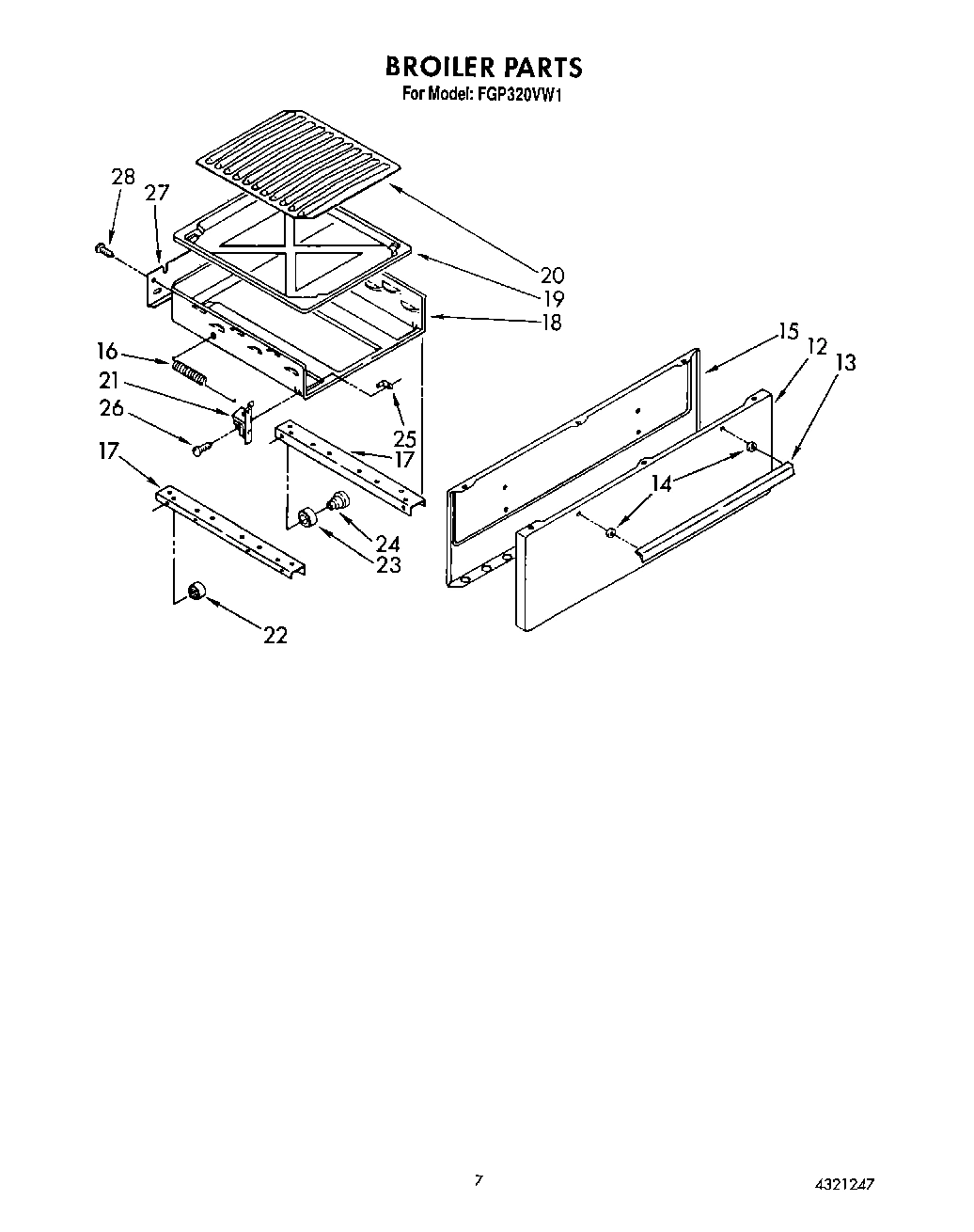

07 - BROILER

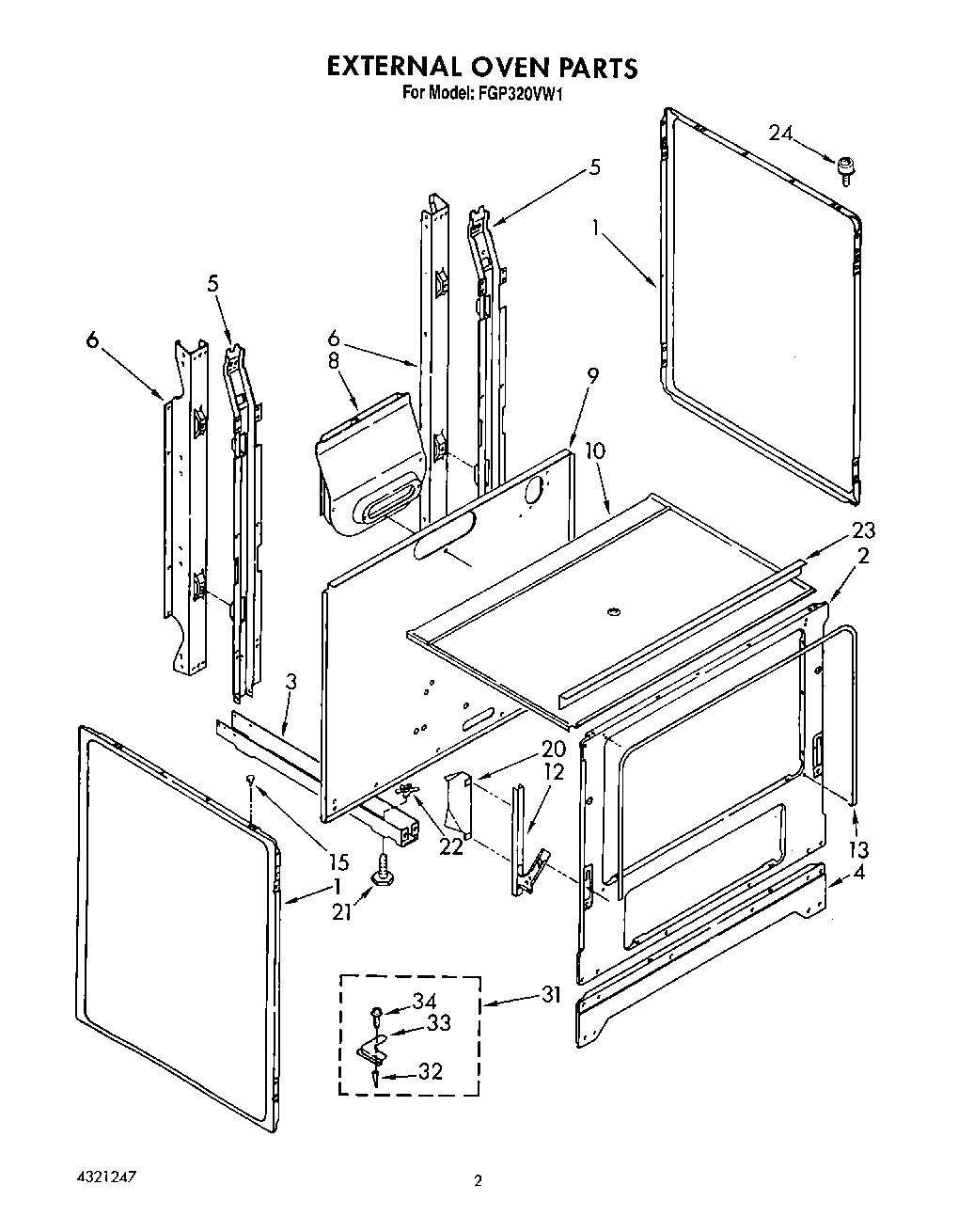

02 - EXTERNAL OVEN

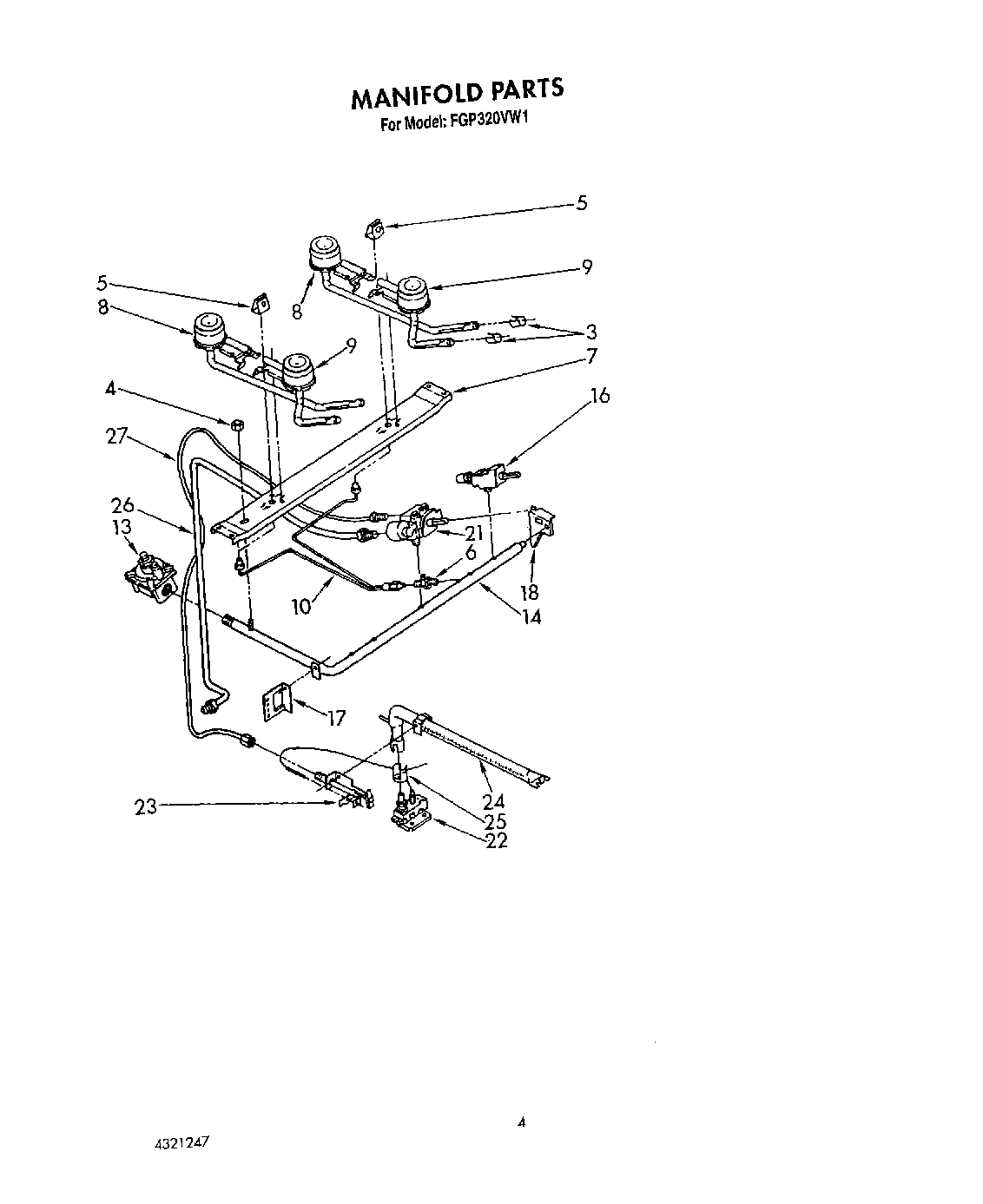

04 - MANIFOLD, LIT/OPTIONAL

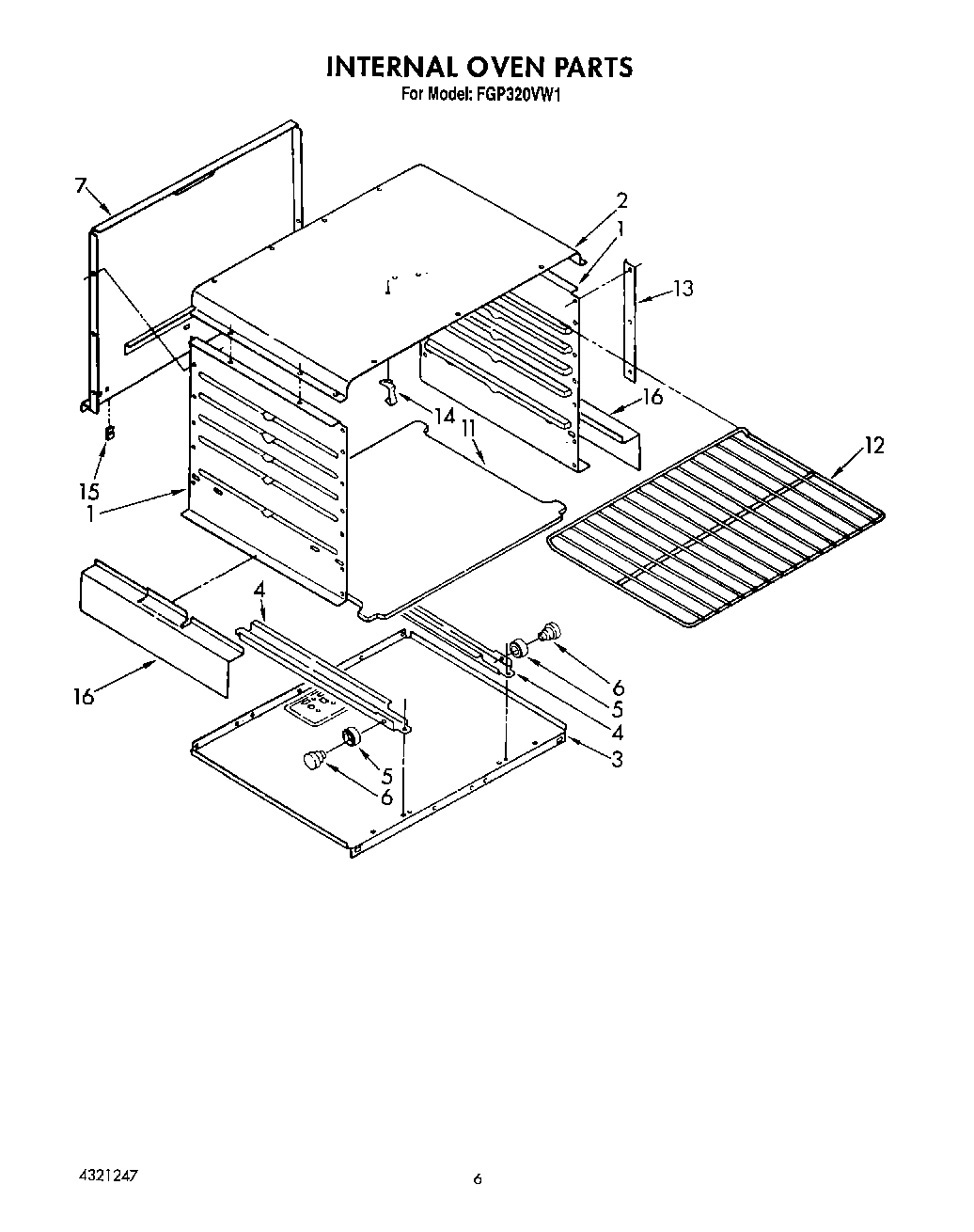

06 - INTERNAL OVEN
Common parts from model Whirlpool FGP320VL1 GAS RANGE
Guide, Use & Care WPL LIT4315645 Contact Us For Availability
Instructions, Installation WPL LIT4315695 Contact Us For Availability
List, Repair Parts WPL LIT4321247 Contact Us For Availability
1
Grate, Burner (4) WPL 4157056 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4320372 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4320373 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4315753 Contact Us For Availability
2
Bracket, Support (2) WPL 4314910 Contact Us For Availability
2
Frame, Front WPL 4320464 Contact Us For Availability
2
Liner, Oven Top WPL 4315045 Contact Us For Availability
3
Frame WPL 4320472 Contact Us For Availability
3
Rail, Base (2) WPL 4320525 Contact Us For Availability
3
Shutter, Air (4) WPL 4157074 Contact Us For Availability
3
Baffle, Bottom WPL 4315389 Contact Us For Availability
4
Knob, Gas Valve WPL 4315516 Contact Us For Availability
4
Handle WPL 4320473 Contact Us For Availability
4
Panel, Backguard (White) WPL 4320563 Contact Us For Availability
4
Panel, Backguard (Almond) WPL 4320564 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
4
Track, Broiler (Left Hand) WPL 4315384 Contact Us For Availability
4
Track, Broiler (Right Hand) WPL 4315385 Contact Us For Availability
5
Panel, Filler (White) WPL 4320423 Contact Us For Availability
5
Panel, Filler (Almond) WPL 4320424 Contact Us For Availability
5
Knob, Thermostat WPL 4315517 Contact Us For Availability
5
Roller (2) WPL 4315388 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Screw, 10-32 X 1/2 (1) WPL 4157123 Contact Us For Availability
5
Cover, Pilot (2) WPL 4157076 Contact Us For Availability
6
Screw, Door Handle WPL 4320474 Contact Us For Availability
6
Panel, Manifold WPL 4320565 Contact Us For Availability
6
Pin, Roller (2) WPL 4315381 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
6
Filter, Pilot WPL 4157077 Contact Us For Availability
7
Insulator WPL 4157033 Contact Us For Availability
7
Locator Stud (2) WPL 4314933 Contact Us For Availability
7
Support, Burner WPL 4157078 Contact Us For Availability
7
Liner, Oven Back WPL 4320561 Contact Us For Availability
8
Lining WPL 4320562 Contact Us For Availability
8
Support, leg (Left) WPL 4320418 Contact Us For Availability
8
Support, leg (Right) WPL 4320419 Contact Us For Availability
8
Top, Main (White) WPL 4179174 Contact Us For Availability
8
Top, Main (Almond) WPL 4179175 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
8
Burner, Rear (2) WPL 4157079 Contact Us For Availability
9
Ring, Hold Down WPL 4320352 Contact Us For Availability
9
End Cap (Left) WPL 4320682 Contact Us For Availability
9
End Cap (Right) WPL 4320683 Contact Us For Availability
9
Panel, Rear WPL 4315380 Contact Us For Availability
9
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
9
Burner, Front (2) WPL 4157080 Contact Us For Availability
10
Cover, Wire WPL 4320448 Contact Us For Availability
10
Burner Box WPL 4320411 Contact Us For Availability
10
Tubing, Pilot (Incl. No. 6) WPL 4157081 Contact Us For Availability
11
Bracket ``Z`` (8) WPL 4320476 Contact Us For Availability
11
Bottom, Oven WPL 4320462 Contact Us For Availability
12
Bumper, Rubber (2) WPL 4320477 Contact Us For Availability
12
Panel, Broiler (White) WPL 4320457 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4320458 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Hinge, Door (2) WPL 4320451 Contact Us For Availability
12
Rack, Oven (2) WPL 4320534 Contact Us For Availability
13
Bumper, Rubber (6) WPL 4157128 Contact Us For Availability
13
Handle WPL 4157208 Contact Us For Availability
13
Seal, Door (2) WPL 4320463 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
14
Spacer WPL 4157041 Contact Us For Availability
14
Manifold WPL 4320558 Contact Us For Availability
15
Liner, Broiler Door WPL 4315621 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
16
Valve, 90~ (4) (Includes Ill. No. 33) WPL 4314821 Contact Us For Availability
16
Shield, Radiation WPL 4157331 Contact Us For Availability
17
Track, Upper (2) WPL 4315383 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4320443 Contact Us For Availability
18
Carriage, Broiler WPL 4157172 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4320444 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
20
Shield, Insulation WPL 4157325 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
21
Thermostat (Includes Ill. No. 32) WPL 4314822 Contact Us For Availability
22
Bumper, Nylon (4) WPL 4315387 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
23
Extension Burner Box WPL 4320479 Contact Us For Availability
23
Pilot WPL 4157095 Contact Us For Availability
23
Screw, 10-24 X 1/4 (1) WPL 4157126 Contact Us For Availability
24
Locator stud (2) WPL 4315408 Contact Us For Availability
24
Stud Screw (2) WPL 4315409 Contact Us For Availability
24
Burner, Oven WPL 4157096 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
25
Shutter, Burner WPL 4157097 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4157098 Contact Us For Availability
27
Backer, Carriage WPL 4315521 Contact Us For Availability
27
Tubing 3/16`` (Thermostat To Pilot) WPL 4157099 Contact Us For Availability
28
Screw (3) WPL 4315522 Contact Us For Availability
31
Anti Tip Kit WPL 4315756 Contact Us For Availability
32
Anchor WPL 4315786 Contact Us For Availability
33
Bracket WPL 4315792 Contact Us For Availability
34
Screw WPL 4320348 Contact Us For Availability
× ![]()
