Model Whirlpool FGP310VL4 GAS RANGE – Common Parts & Diagrams
04 - BACKGUARD
06 - COOKTOP AND MANIFOLD, LIT/OPTIONAL

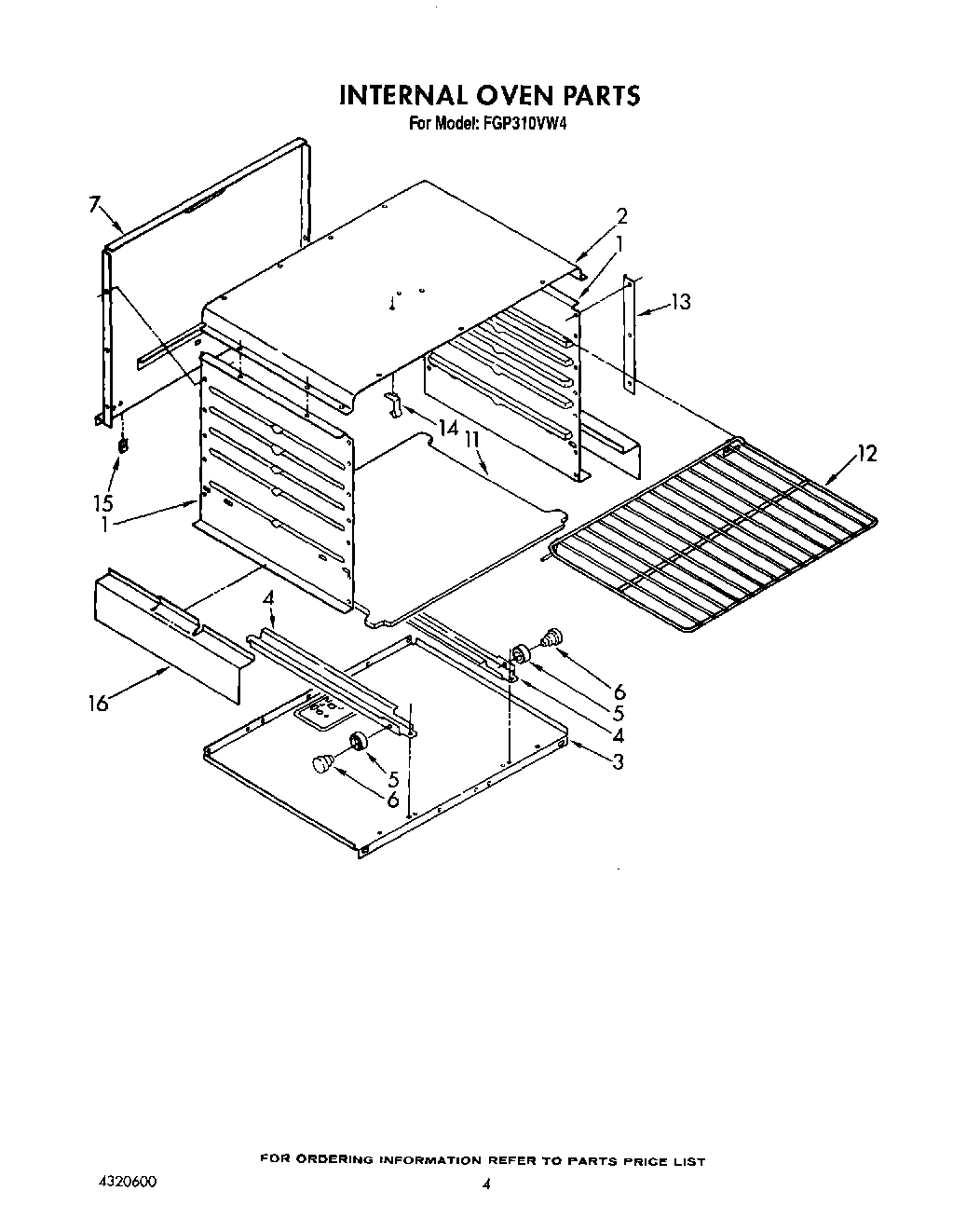

03 - INTERNAL OVEN

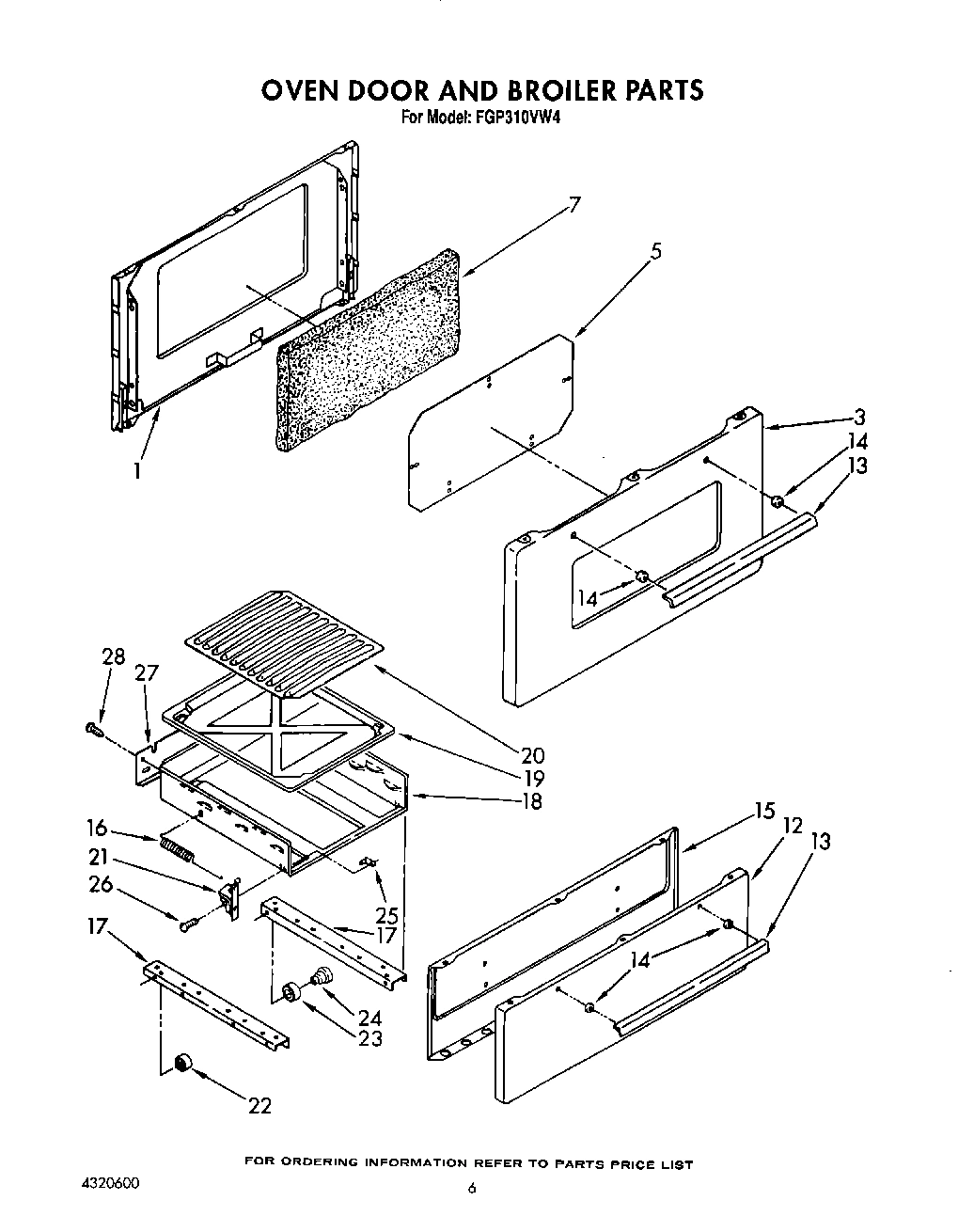

05 - OVEN DOOR AND BROILER

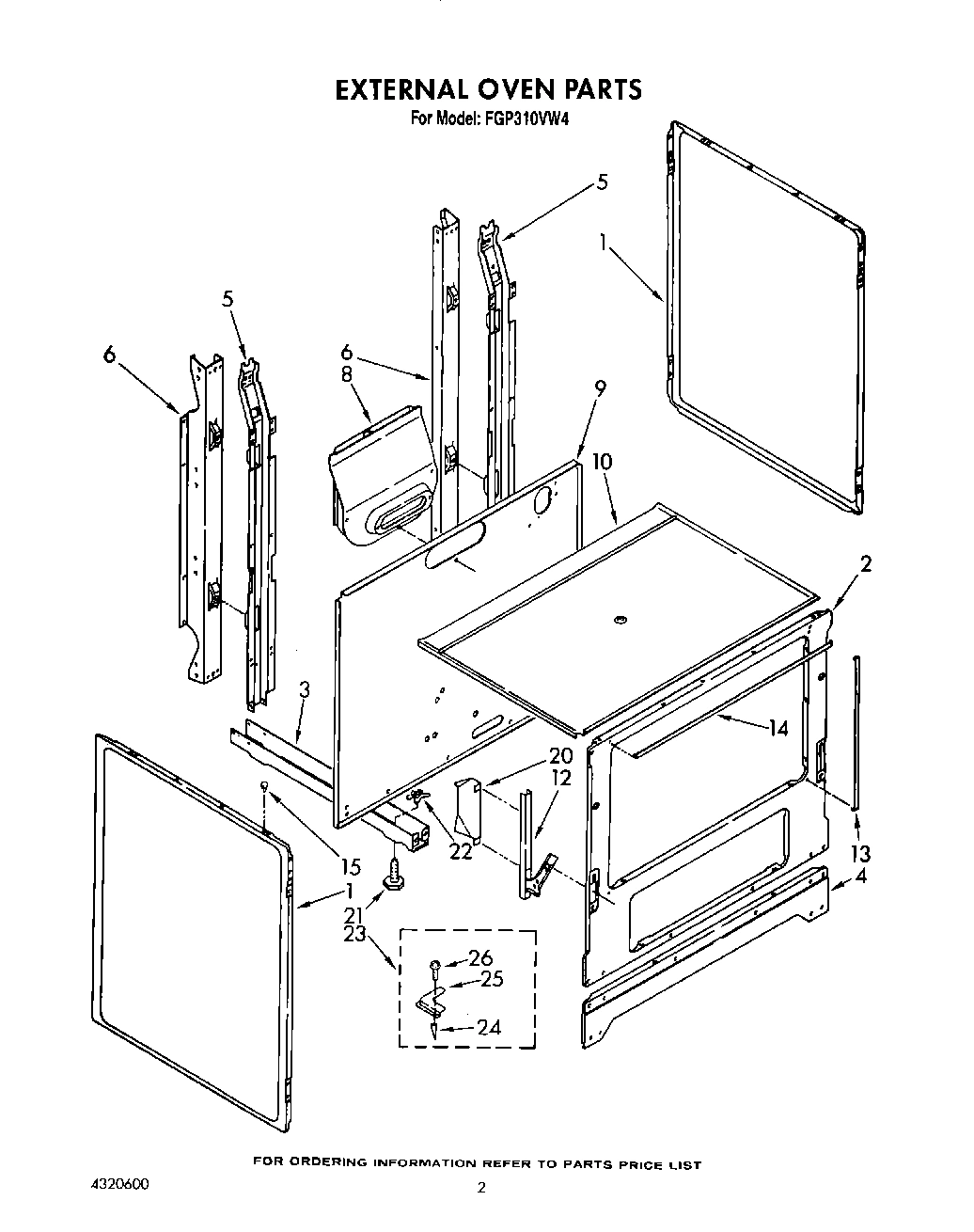

02 - EXTERNAL OVEN
Common parts from model Whirlpool FGP310VL4 GAS RANGE
Instuctions, Installation WPL LIT4315518 Contact Us For Availability
Guide, Use & Care WPL LIT4315527 Contact Us For Availability
Repair Parts WPL LIT4320600 Contact Us For Availability
1
Cooktop (White) WPL 4179174 Contact Us For Availability
1
Cooktop (Almond) WPL 4179175 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4315041 Contact Us For Availability
1
Liner, Door WPL 4315064 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4157000 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4157130 Contact Us For Availability
2
Grate (4) WPL 4157056 Contact Us For Availability
2
Liner, Oven Top WPL 4315045 Contact Us For Availability
2
Frame, Front WPL 4315083 Contact Us For Availability
3
Panel (Almond) WPL 4315526 Contact Us For Availability
3
Shutter, Air (4) WPL 4157074 Contact Us For Availability
3
Baffle, Bottom WPL 4315389 Contact Us For Availability
3
Panel, Door (White) WPL 4157152 Contact Us For Availability
3
Panel, Door (Almond) WPL 4157153 Contact Us For Availability
3
Rail, Base (2) WPL 4157005 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157159 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157160 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
4
Track, Broiler (Left Hand) WPL 4315384 Contact Us For Availability
4
Track, Broiler (Right Hand) WPL 4315385 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
5
Screw, 10-32 X 1/2 (1) WPL 4157123 Contact Us For Availability
5
Cover, Pilot (2) WPL 4157076 Contact Us For Availability
5
Baffle, Door WPL 4157154 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
6
Filter, Pilot WPL 4157077 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
7
Support, Burner WPL 4157078 Contact Us For Availability
7
Liner, Oven Back WPL 4315054 Contact Us For Availability
7
Insulation WPL 4157033 Contact Us For Availability
8
Burner, Rear (2) WPL 4179101 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
9
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
9
Burner, Front (2) WPL 4179100 Contact Us For Availability
9
Panel, Rear WPL 4315380 Contact Us For Availability
10
Tubing, Pilot (Incl. No. 6) WPL 4157081 Contact Us For Availability
10
Burner Box WPL 4315080 Contact Us For Availability
11
Knob, Burner (4) WPL 4315516 Contact Us For Availability
11
Bottom, Oven WPL 4315071 Contact Us For Availability
12
Hinge, Cooktop (2) WPL 4157083 Contact Us For Availability
12
Speed Clip (4) WPL 4157115 Contact Us For Availability
12
Rack, Oven (2) WPL 4315754 Contact Us For Availability
12
Panel, Broiler (White) WPL 4315262 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4315263 Contact Us For Availability
12
Hinge, Door (2) WPL 4157022 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Handle, Door (2) WPL 4157040 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4157118 Contact Us For Availability
13
Washer (2) WPL 4157119 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4315334 Contact Us For Availability
14
Manifold WPL 4314823 Contact Us For Availability
14
Spacer (4) WPL 4157041 Contact Us For Availability
14
Seal, Door (Top) WPL 4315333 Contact Us For Availability
15
Panel, Manifold WPL 4315515 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Liner, Broiler Door WPL 4315087 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
16
Valve, 90~ (4) (Includes Ill. No. 33) WPL 4314821 Contact Us For Availability
16
Shield, Radiation WPL 4157331 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4157088 Contact Us For Availability
17
Track, Upper (2) WPL 4315383 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4314820 Contact Us For Availability
18
Carriage, Broiler WPL 4315520 Contact Us For Availability
20
Knob, Thermostat WPL 4315517 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
20
Shield, Insulation WPL 4157325 Contact Us For Availability
21
Thermostat (Includes Ill. No. 32) WPL 4314822 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
22
Bumper, Nylon (4) WPL 4315387 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
23
Pilot WPL 4157095 Contact Us For Availability
23
Screw, 10-24 X 1/4 (1) WPL 4157126 Contact Us For Availability
23
Roller (2) WPL 4315388 Contact Us For Availability
23
Anti Tip Kit WPL 4315756 Contact Us For Availability
24
Burner, Oven WPL 4179289 Contact Us For Availability
24
Pin, Roller (2) WPL 4315381 Contact Us For Availability
24
Anchor (2) WPL 4315786 Contact Us For Availability
25
Shutter, Burner WPL 4157097 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
25
Bracket WPL 4315792 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4157098 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
26
Screw (2) WPL 4320348 Contact Us For Availability
27
Tubing 3/16`` (Thermostat Pilot) WPL 4157099 Contact Us For Availability
27
Backer, Carriage WPL 4315521 Contact Us For Availability
28
Screws (3) WPL 4315522 Contact Us For Availability
32
Bolt, Thermostat Mounting (2) WPL 4314816 Contact Us For Availability
33
Bolt, Valve Mounting WPL 4314817 Contact Us For Availability
34
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
34
Spacer, Manifold WPL 4315207 Contact Us For Availability
× ![]()
